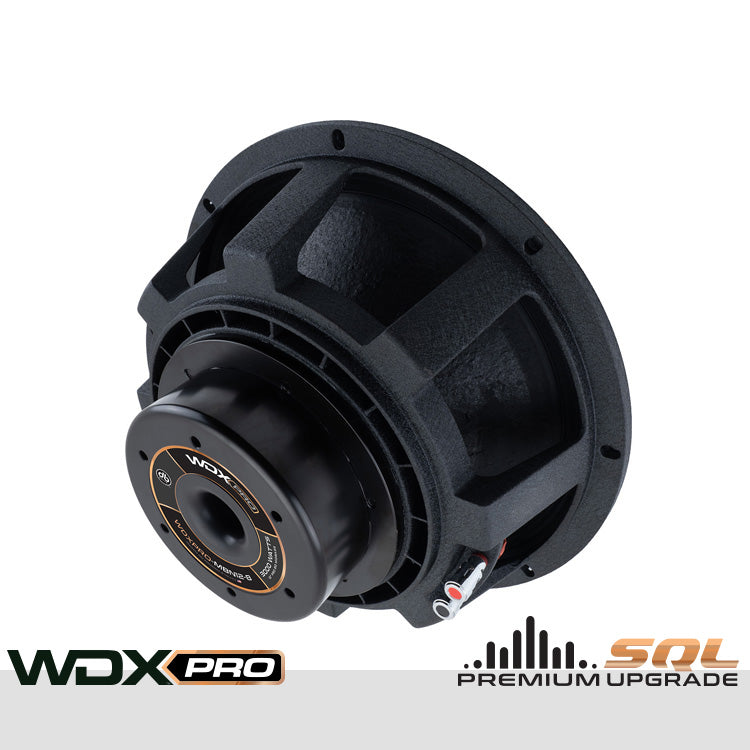

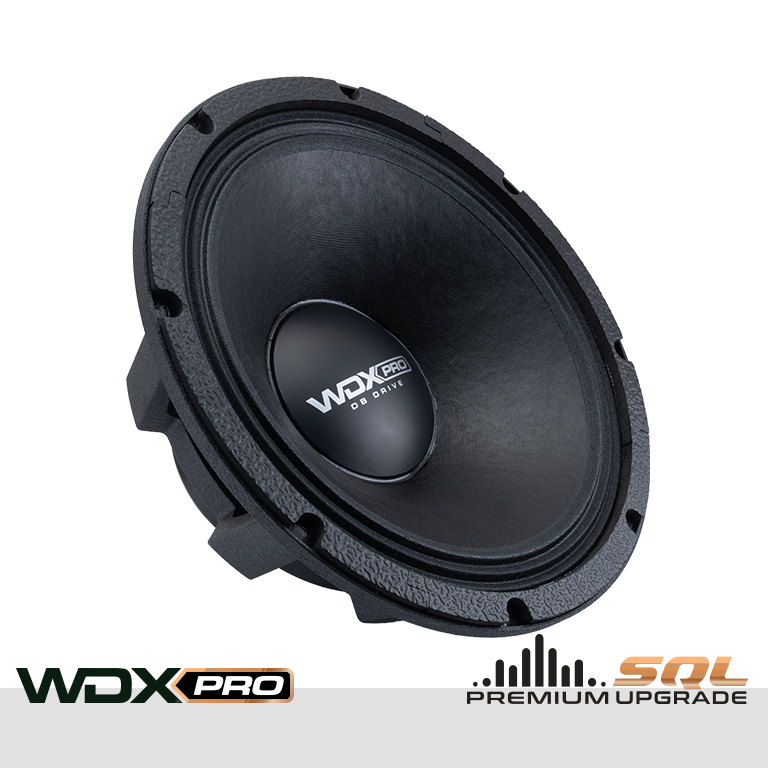

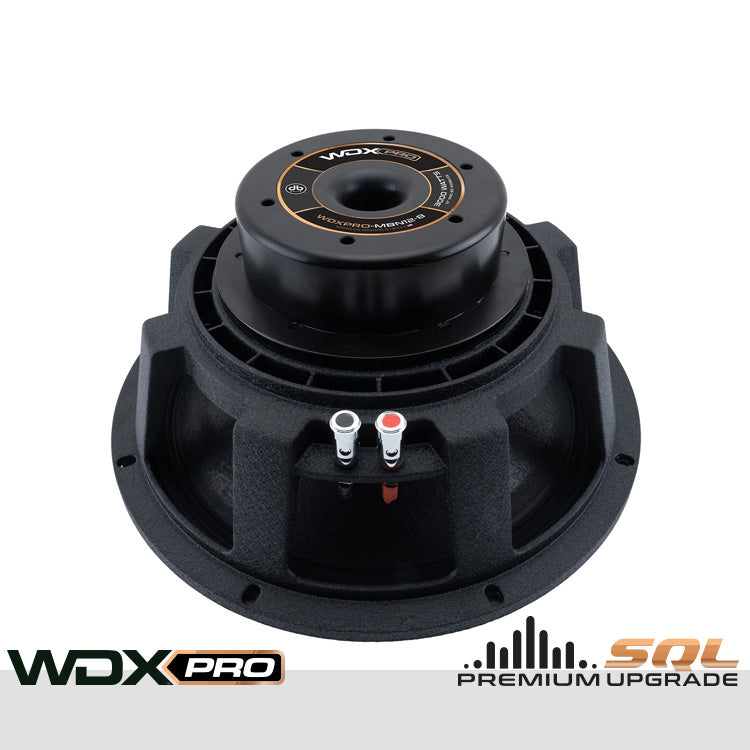

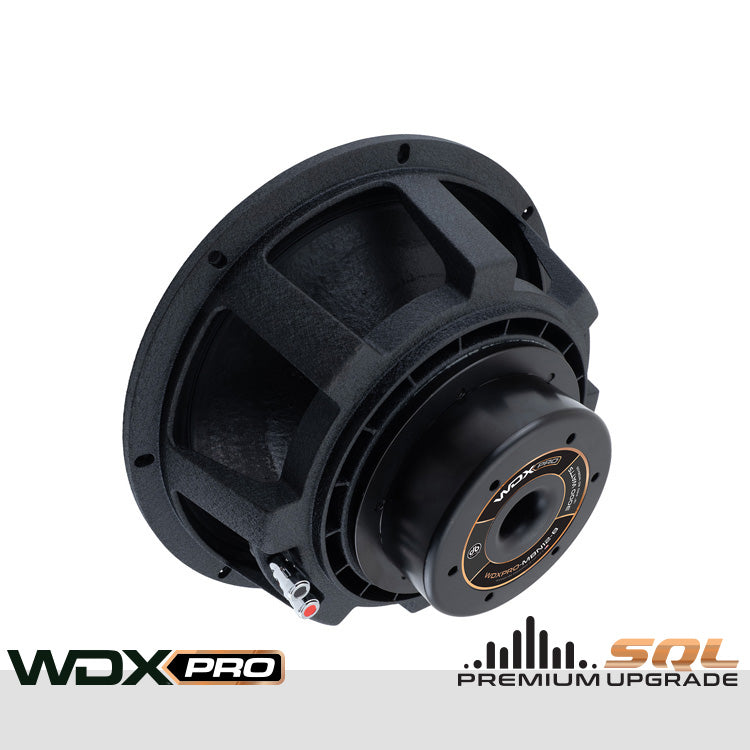

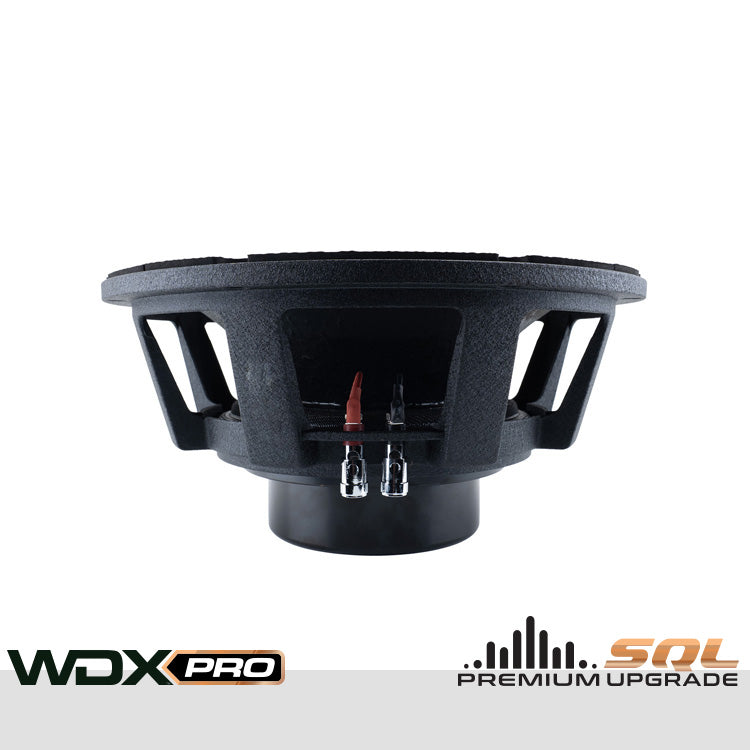

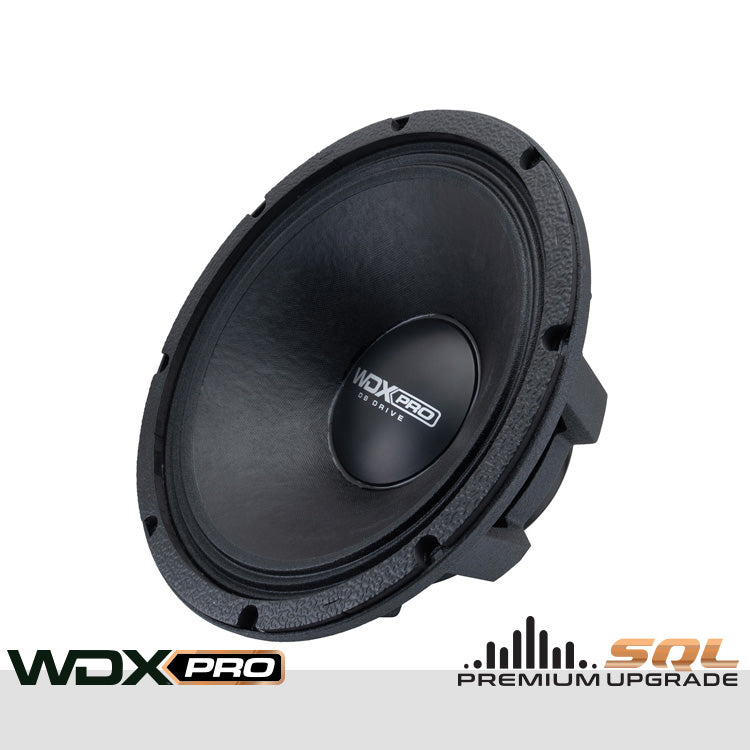

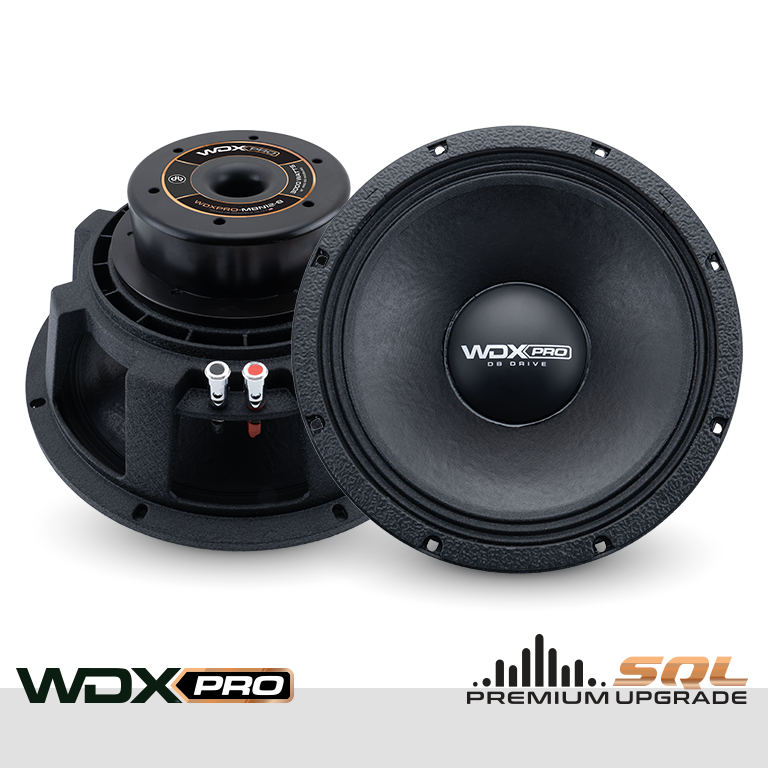

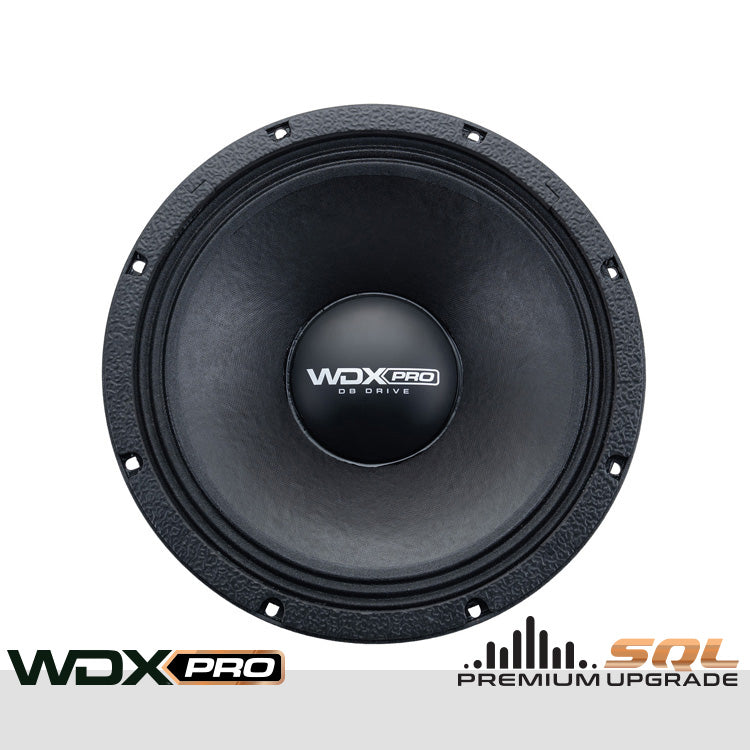

WDXPRO-MBN12-8 : 12" PRO Series NEO Midbass (8-Ohm)

Features

• 4.0" High Temperature Voice Coil with Shorting Ring

• Neodymium magnet for higher efficiency

• Treated Paper Cone with Cloth Surround

• Extreme Output Capability

• Die-Cast Aluminum

• EVA Mounting gasket

• Compression Speaker terminals

Specifications

• Dynamic Power Handling: 6000 Watts

• Nominal Power Handling: 3000 Watts

• Impedance: 8Ω Voice Coil

• Resonant Frequency (fs): 59 Hz

• D.C. Voice Coil Resistance (Re): 8Ω

• Mechanical Quality Factor (Qms): 3.94

• Electrical Quality Factor (Qes): 0.42

• Total Quality Factor (Qts): 0.38

• Equivalent Air Volume to Cms (Vas): 32.6 L

• Mass of Diaphragm/Coil (Mms): 82.8 g

• Force Factor (BL): 19.5

• Sound Pressure Level (SPL): 93.9 dB

• Dimensions

• Outside Diameter: 12.32"/ 313 mm

• Cutout Diameter: 11.15"/ 283.12 mm

• Mounting Depth: 5.39"/ 137 mm

Description

The WDXPRO-MBN12-8 is a 12-inch midbass speaker engineered for extreme high-output car audio systems. It features a 4.0" high-temperature voice coil with a shorting ring, paired with a Neodymium magnet for high efficiency and enhanced power handling . The treated paper cone with a cloth surround is designed to optimize midbass frequency response, delivering exceptional output performance. With a dynamic power handling of 6000 watts and a nominal power rating of 3000 watts, this speaker is built for unmatched performance and durability.
