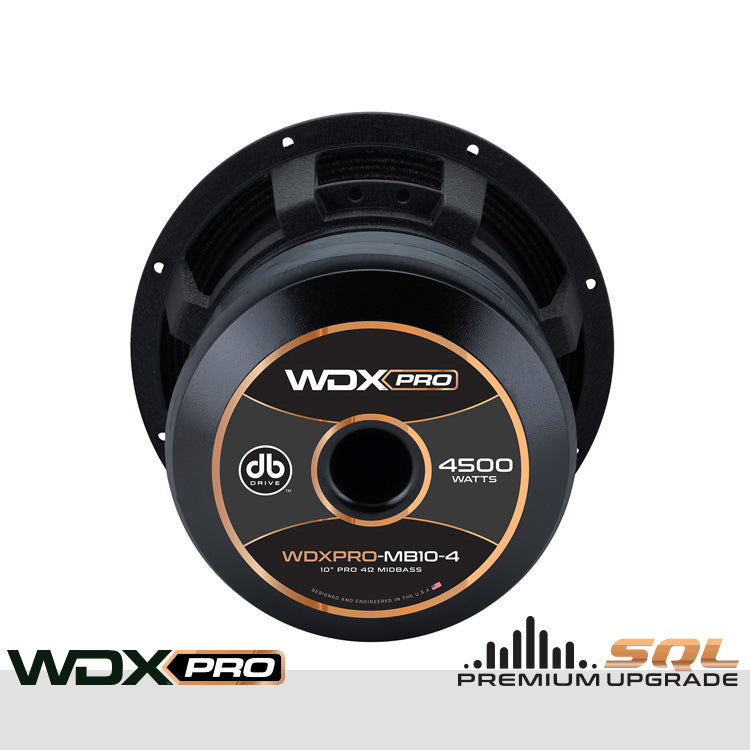

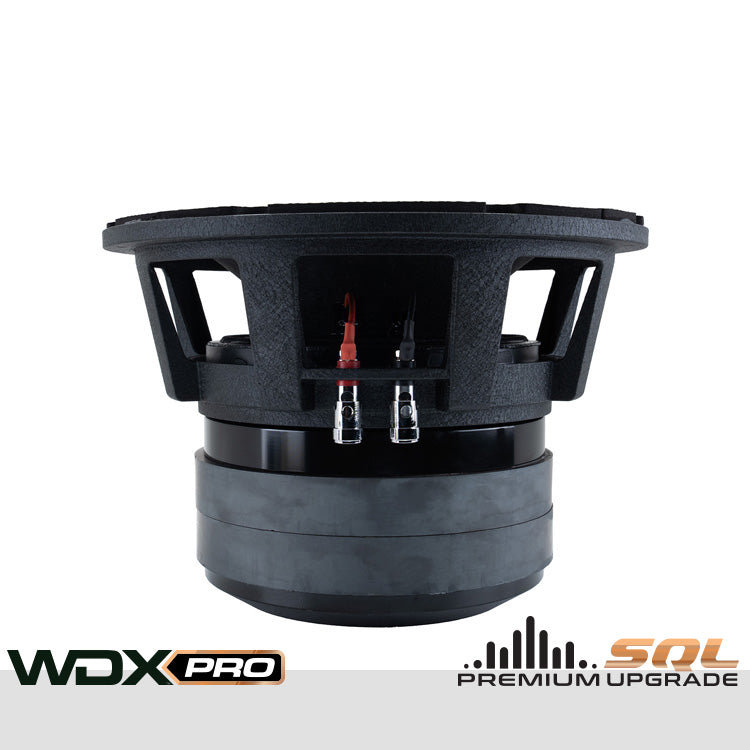

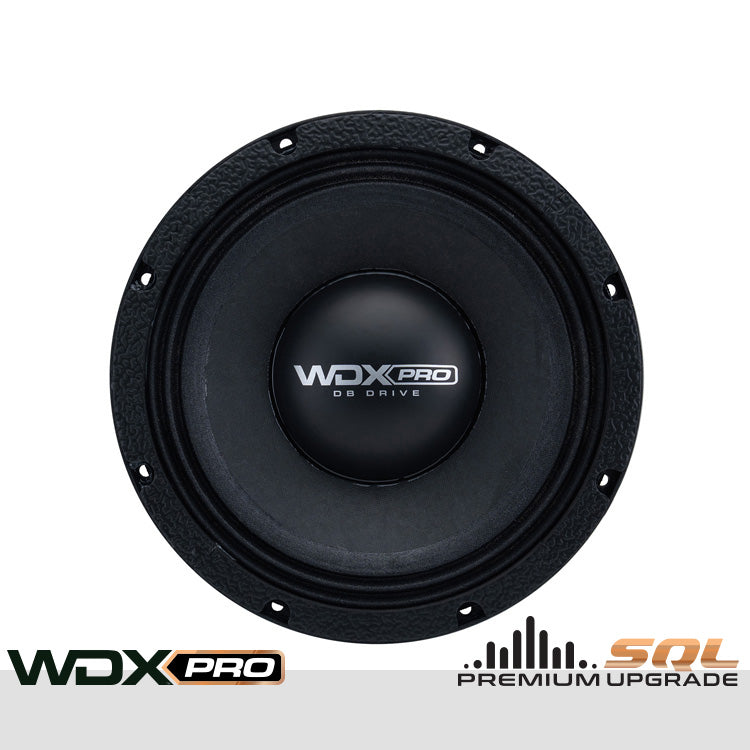

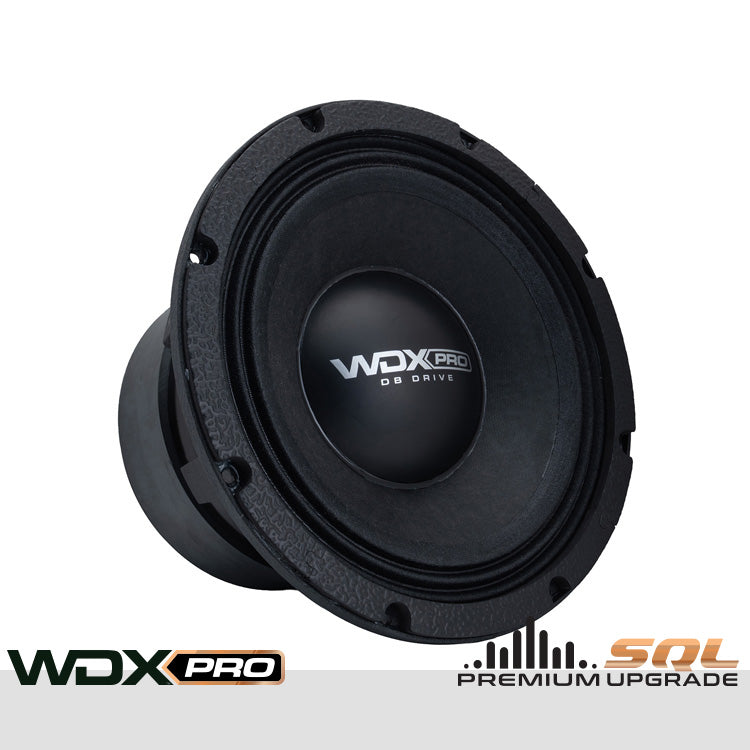

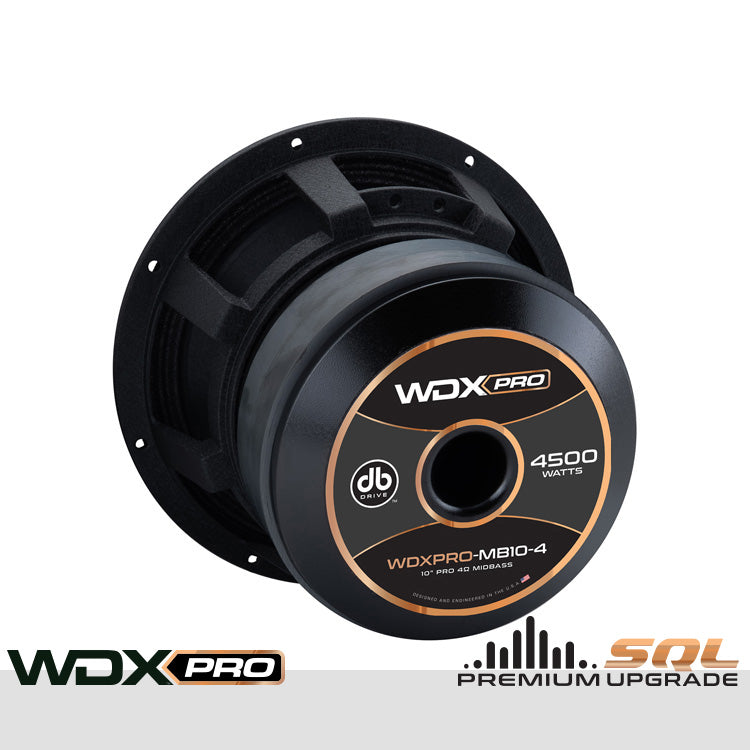

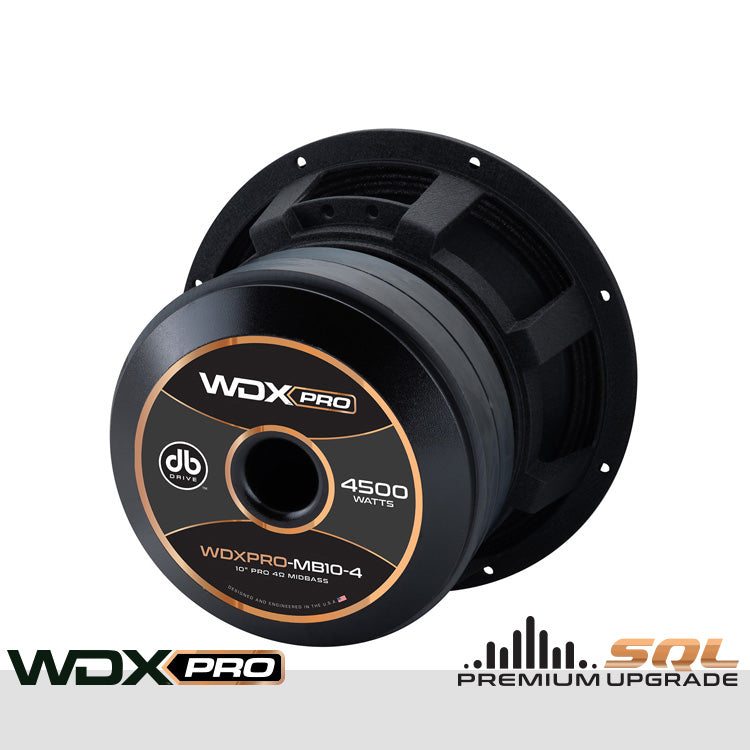

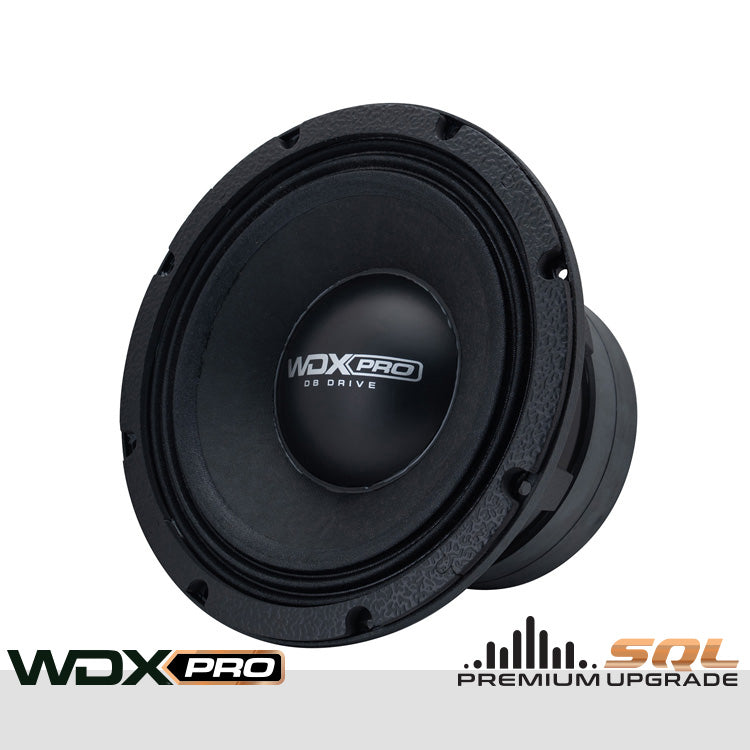

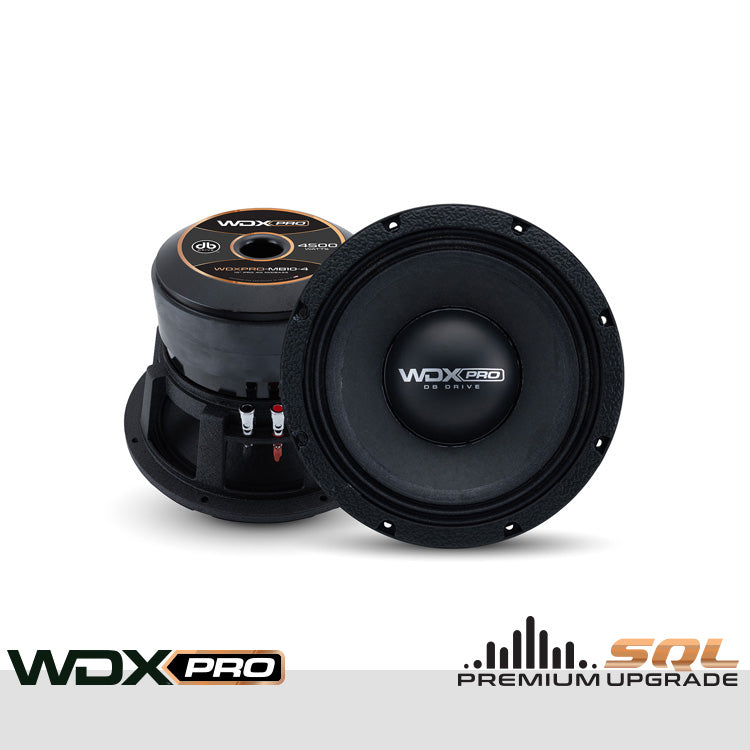

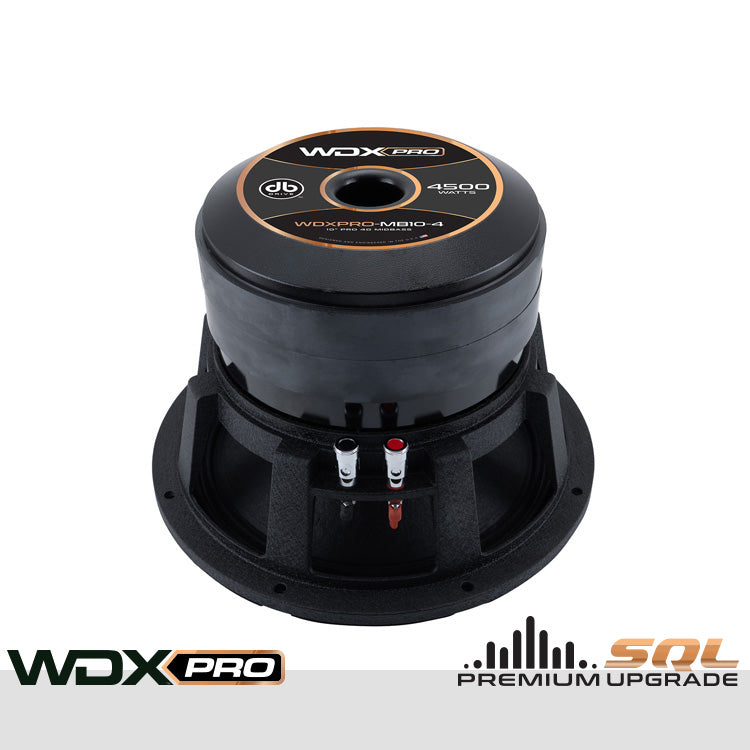

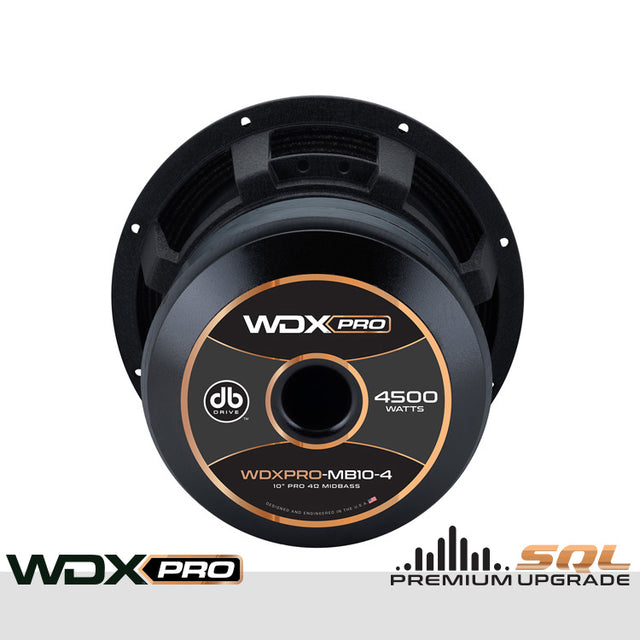

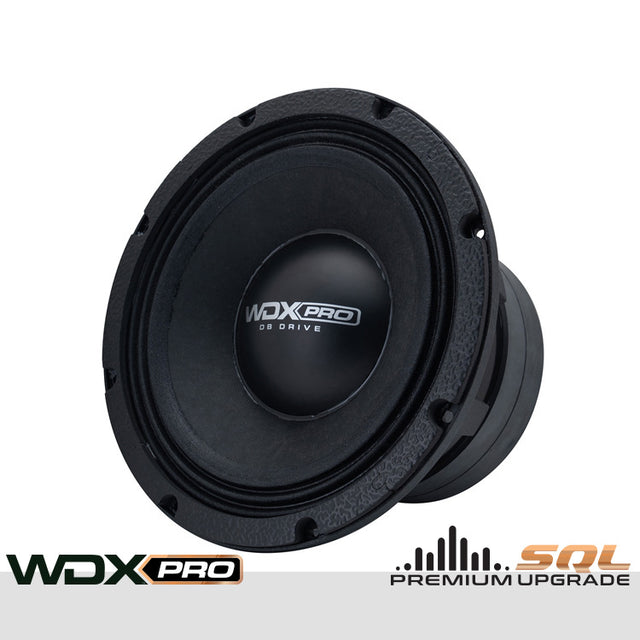

WDXPRO-MB10-4 : 10 in. PRO Series Midbass

• Dynamic Power Handling: 3500 Watts

• Nominal Power Handling: 1500 Watts

• Impedance: 4Ω Voice Coil

• Resonant Frequency (fs):  83.7 Hz

• D.C. Voice Coil Resistance (Re): 4Ω

• Mechanical Quality Factor (Qms): 3.22

• Electrical Quality Factor (Qes): 0.54

• Total Quality Factor (Qts): 0.46

• Equivalent Air Volume to Cms (Vas): 7.6 L

• Mass of Diaphragm/Coil (Mms): 75.0 g

• Force Factor (BL): 14.4

• Sound Pressure Level (SPL): 91.1 dB

The WDXPRO-MB10-4 is a 10-inch midbass speaker engineered for extreme high-output car audio systems. It features a 3.0" high-temperature voice coil with a shorting ring, paired with a ferrite oxide magnet for superior power handling. The treated paper cone and cloth surround are optimized to deliver precise midbass frequency response and exceptional output performance. With a dynamic power handling of 2000 watts and a nominal power rating of 1000 watts, this speaker is built for unmatched performance and durability.
