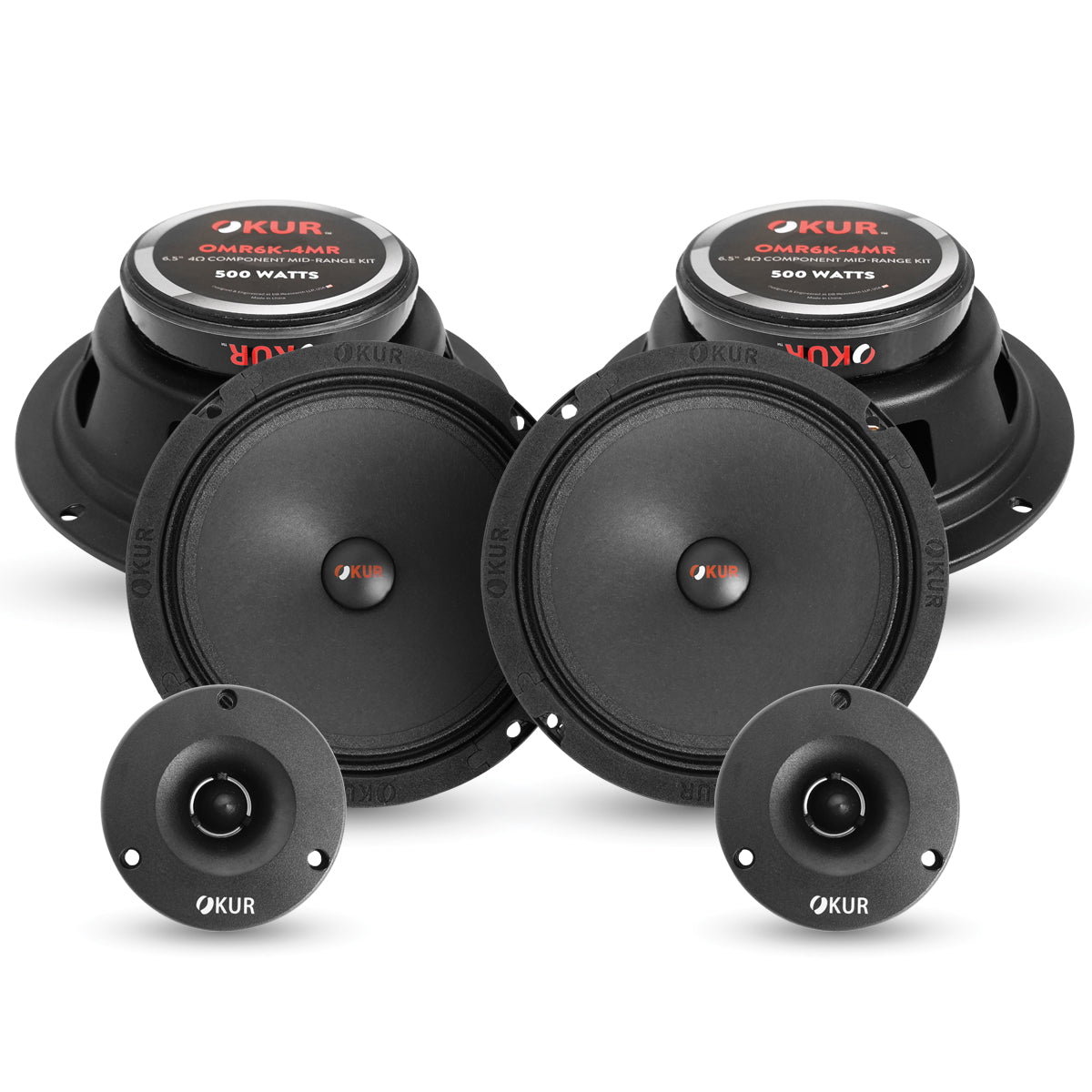

| Size - 6.5" |
| Impedance: 4Ω
|
| Nominal Power - 125 Watts |
| Dynamic Power - 500 Watts |
| Resonance 118.4 Hz |
| Sensitivity: 96.3 dB |
| Voice Coil Diameter: 1" |
| Sold As - 2 Pairs |
| Driver Composition |
| Voice Coil Wire: CCAW |
| |
| Magnet: Ferrite |
| Basket: Stamped Steel |
| Cone: paper |
| Cone Edge: cloth |
| T/S Parameters |
| Resonant Frequency (fs) 118.4 |
| DC Resistance (RE) 3 |
| Coil Inductance (LE) 0.00mH |
| Mechanical Q Qms) 5.78 |
| Electromagnetic Q (QES): 1.27 |
| Total Q (QTS) 1.04 |
| Compliance Equivalent volume (VAS) 6.7 |
| Mechanical Compliance of Suspension (CMS) 0.23 |
| BL Product (BL) 3.8 N/A |
| Diaphragm Mass Inc. Airload (Mms) 8.0gr |

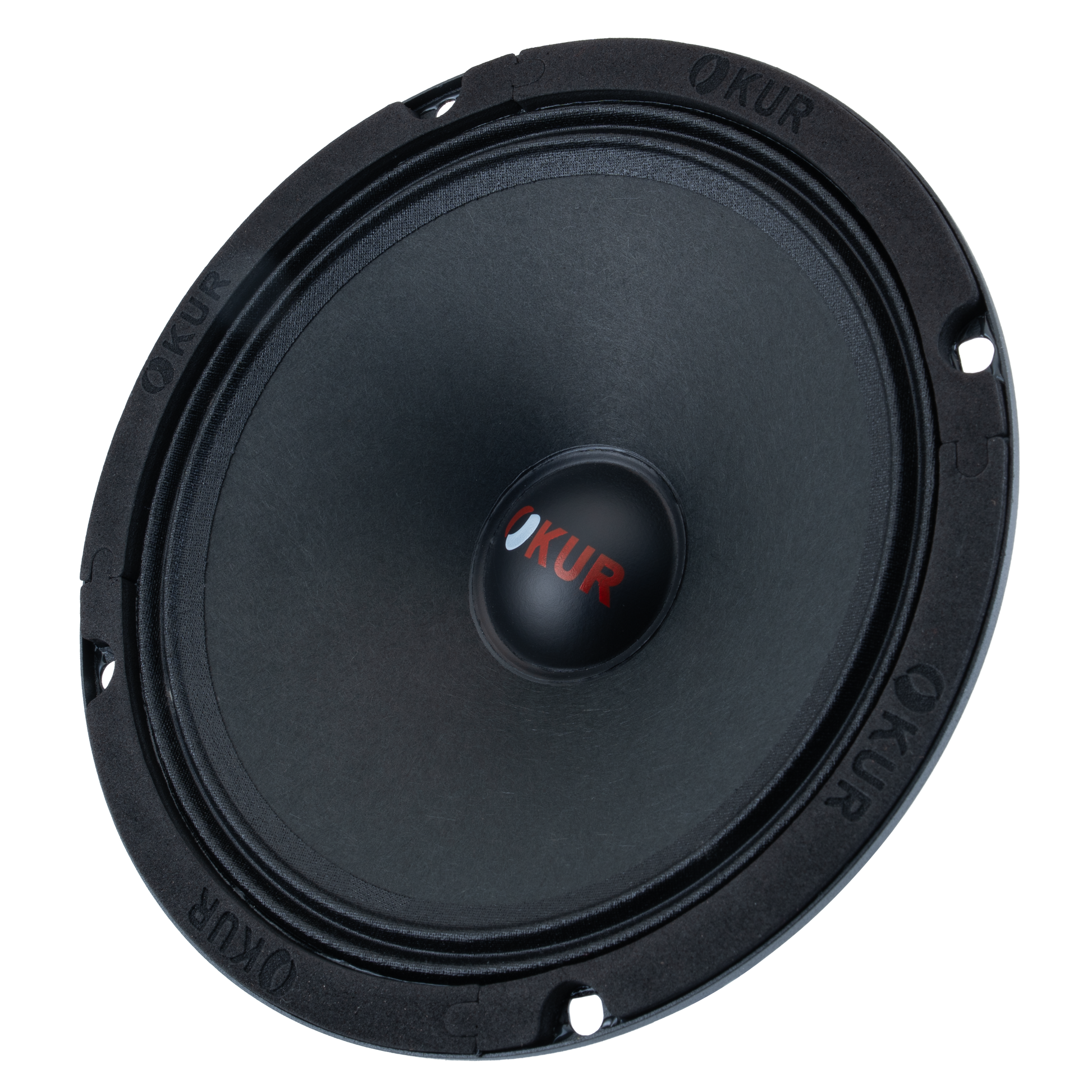

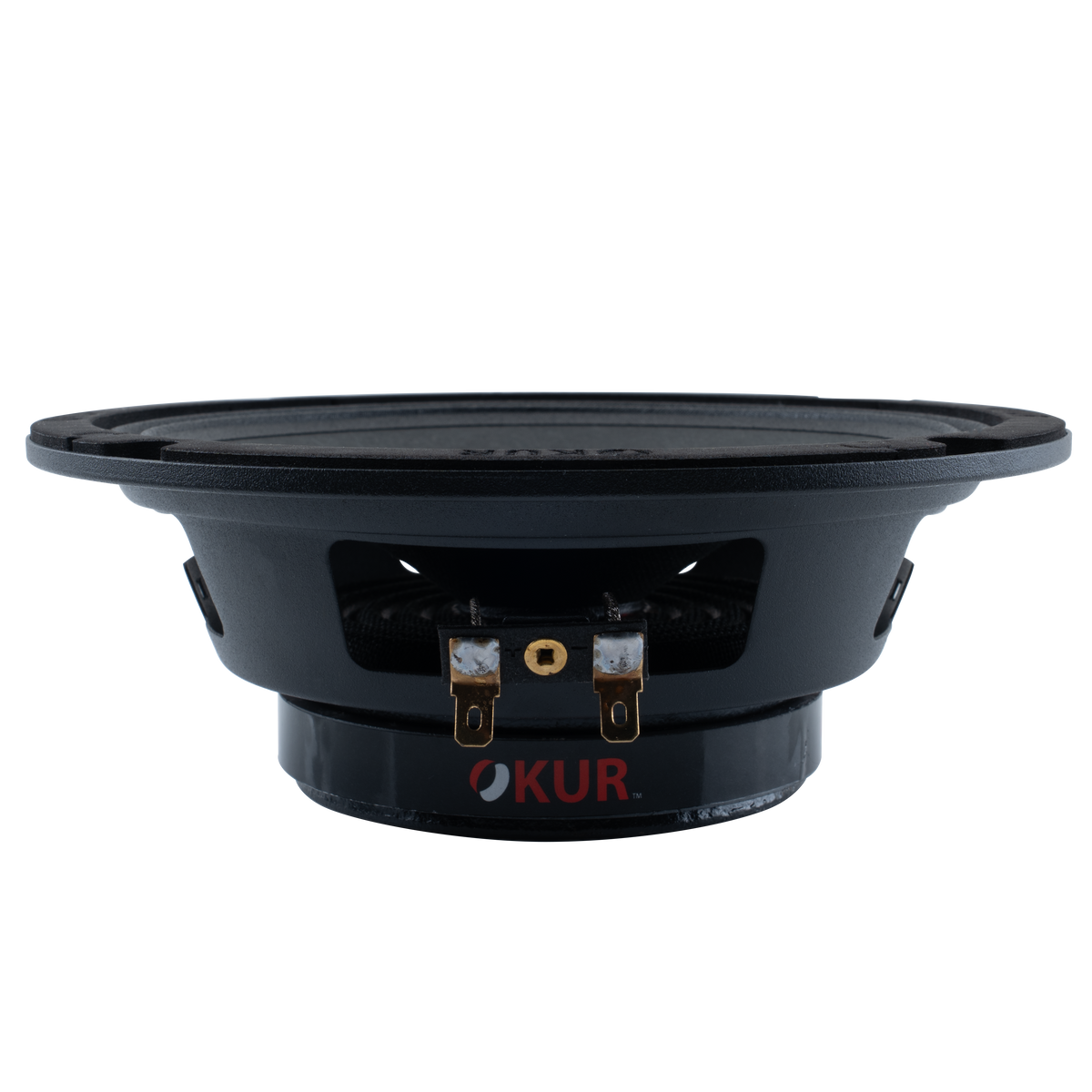

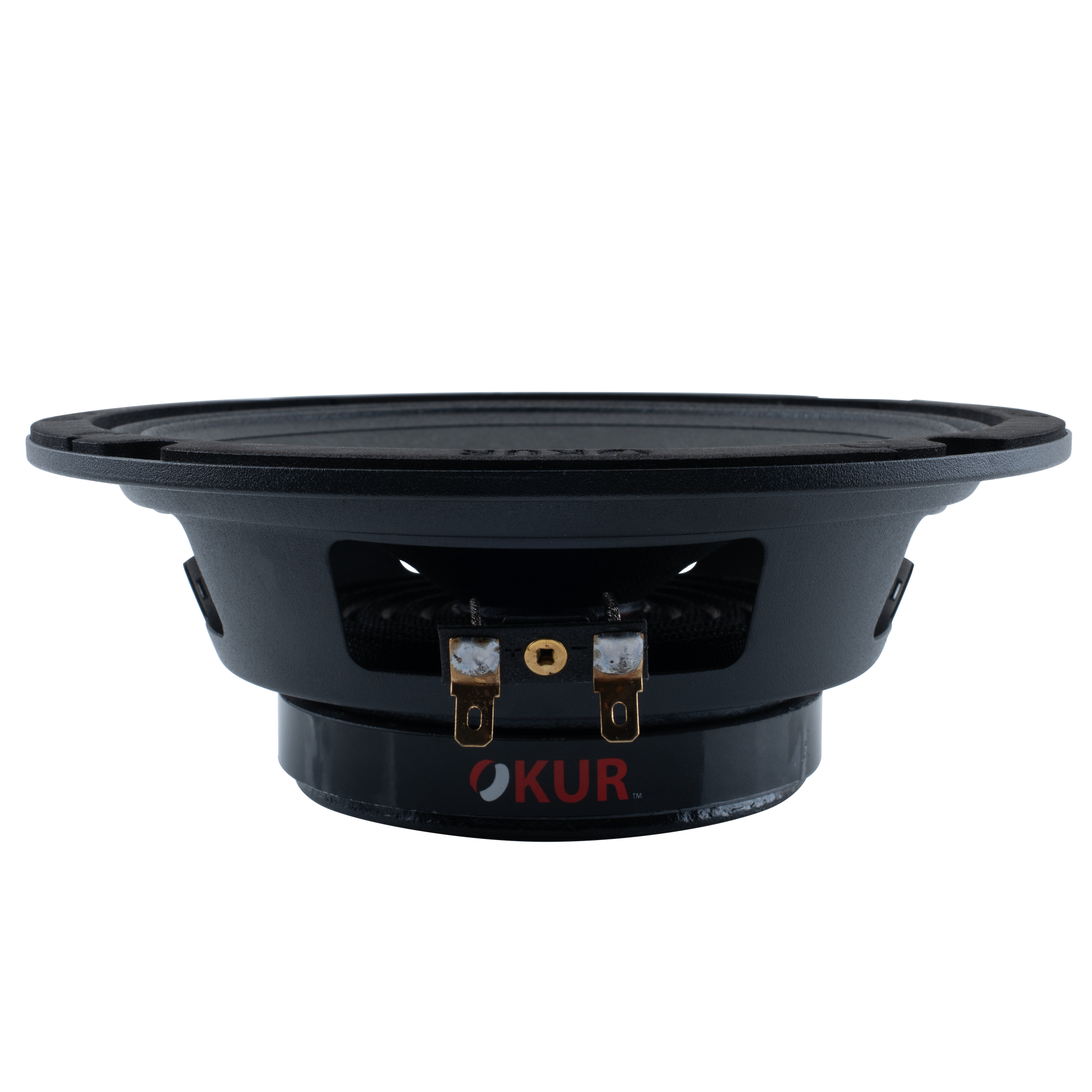

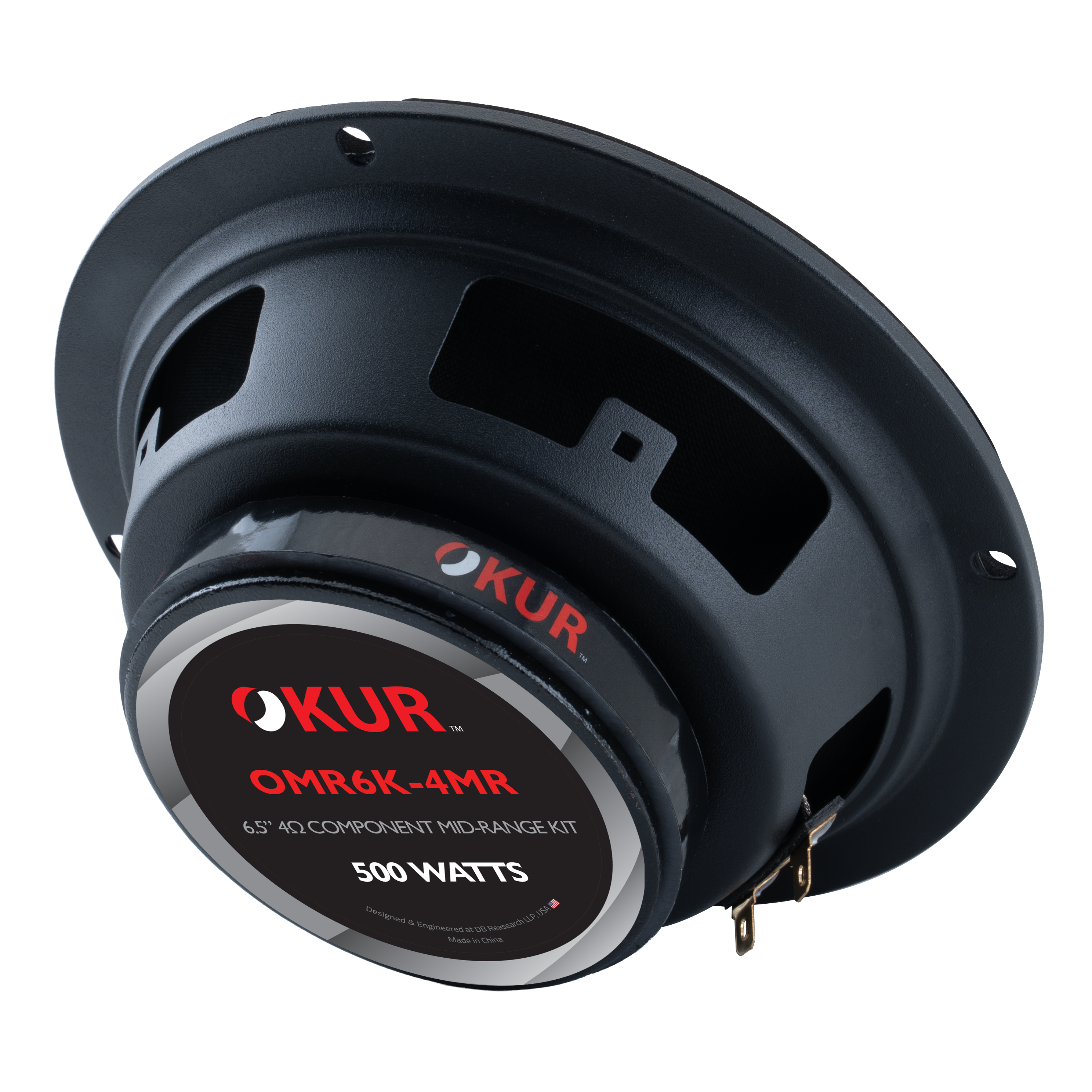

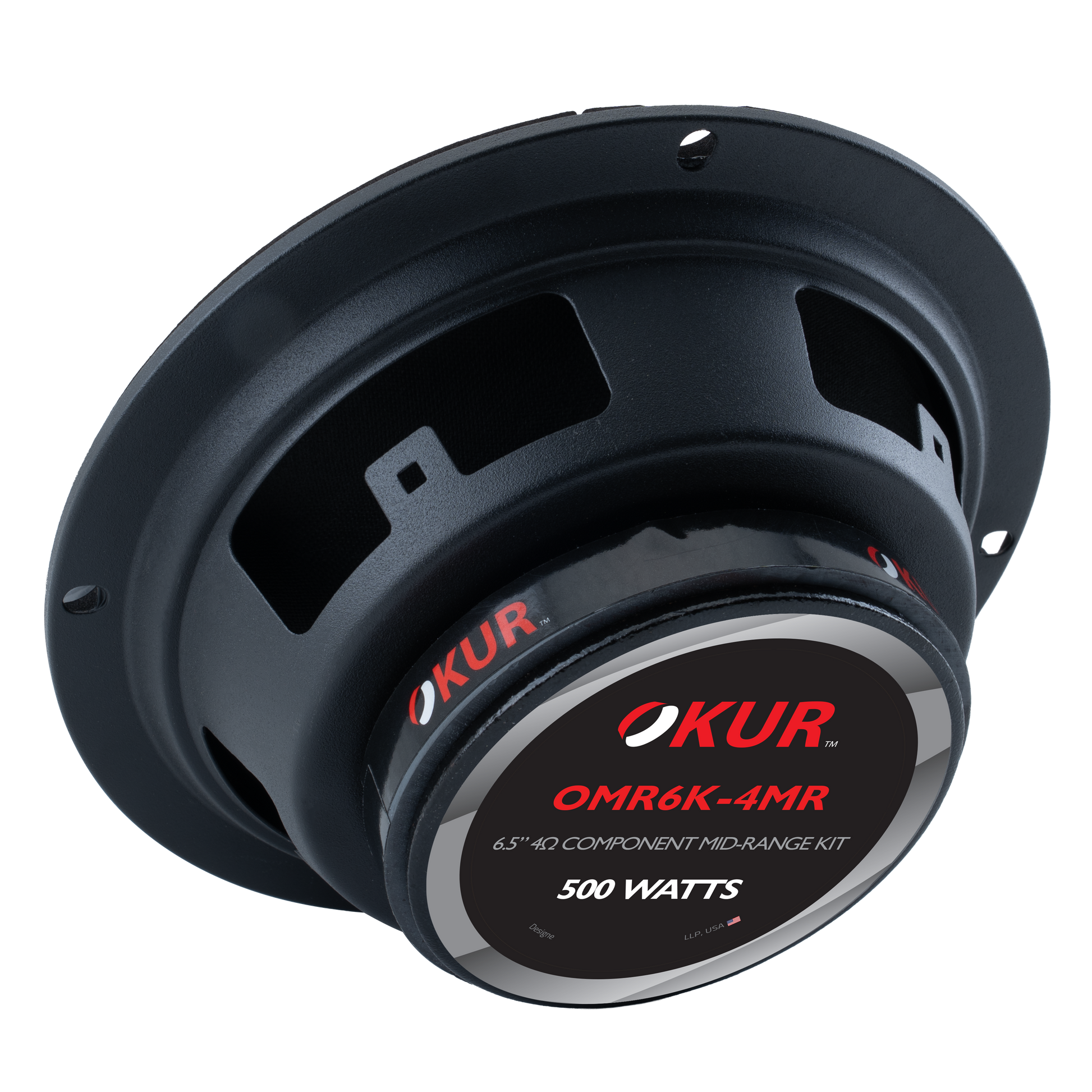

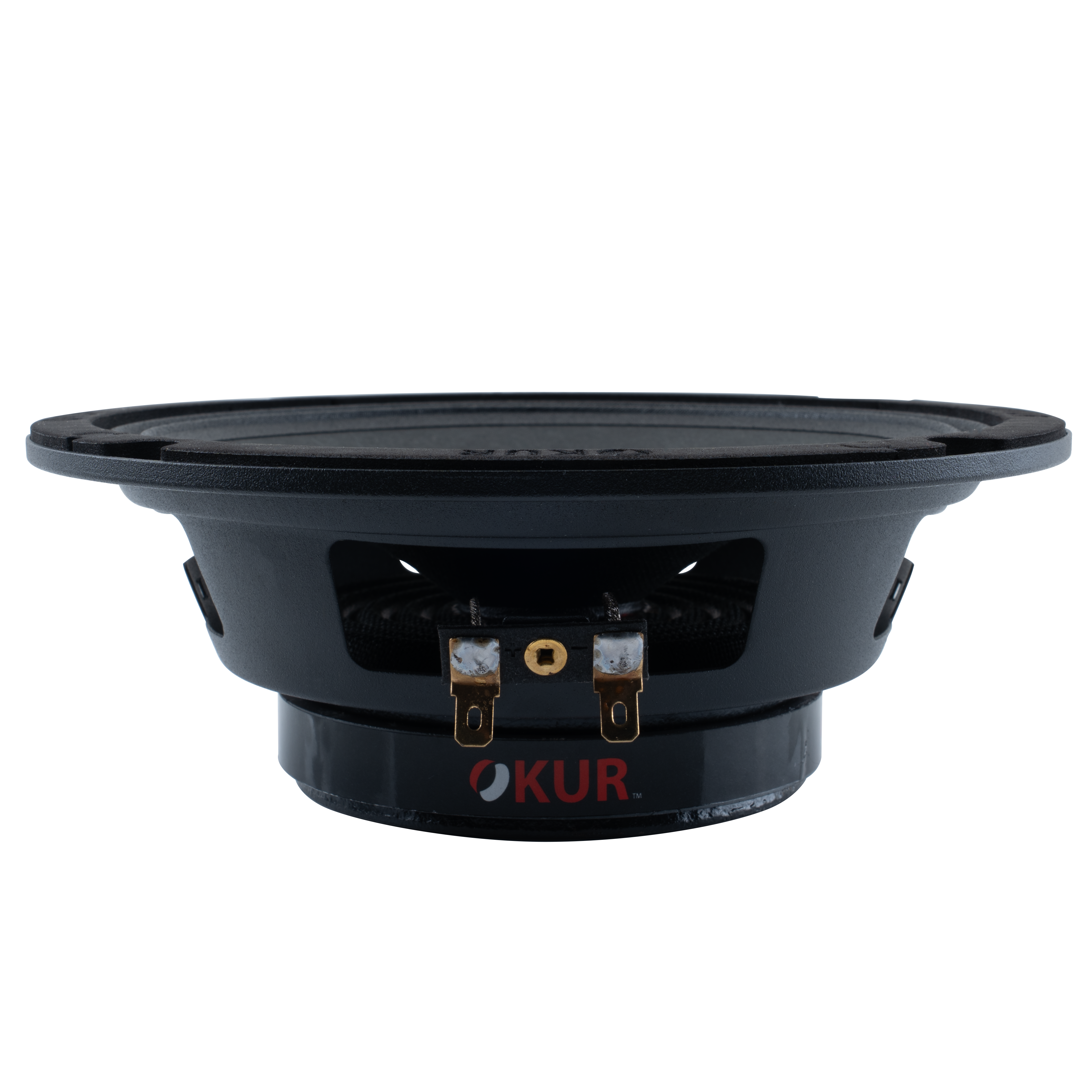

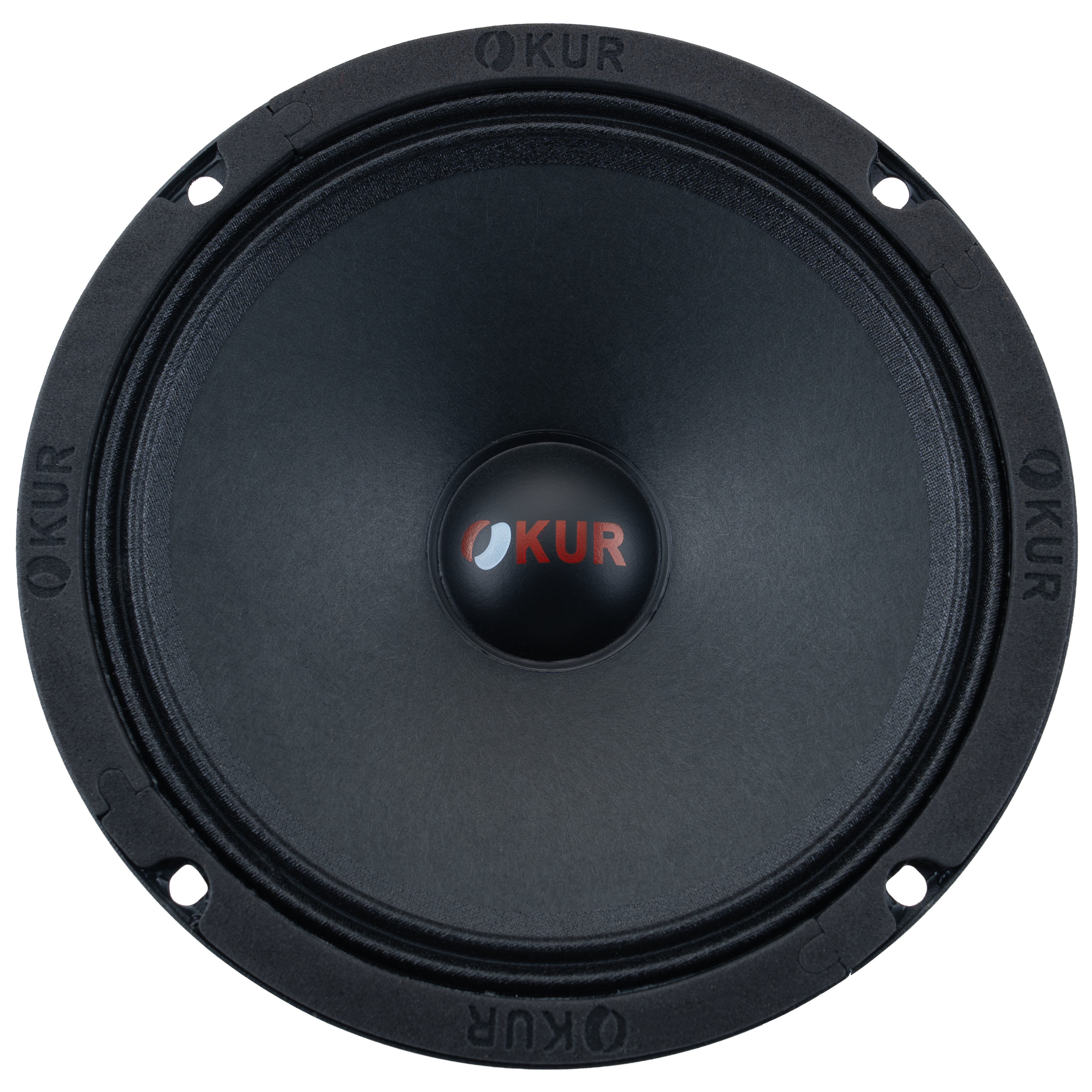

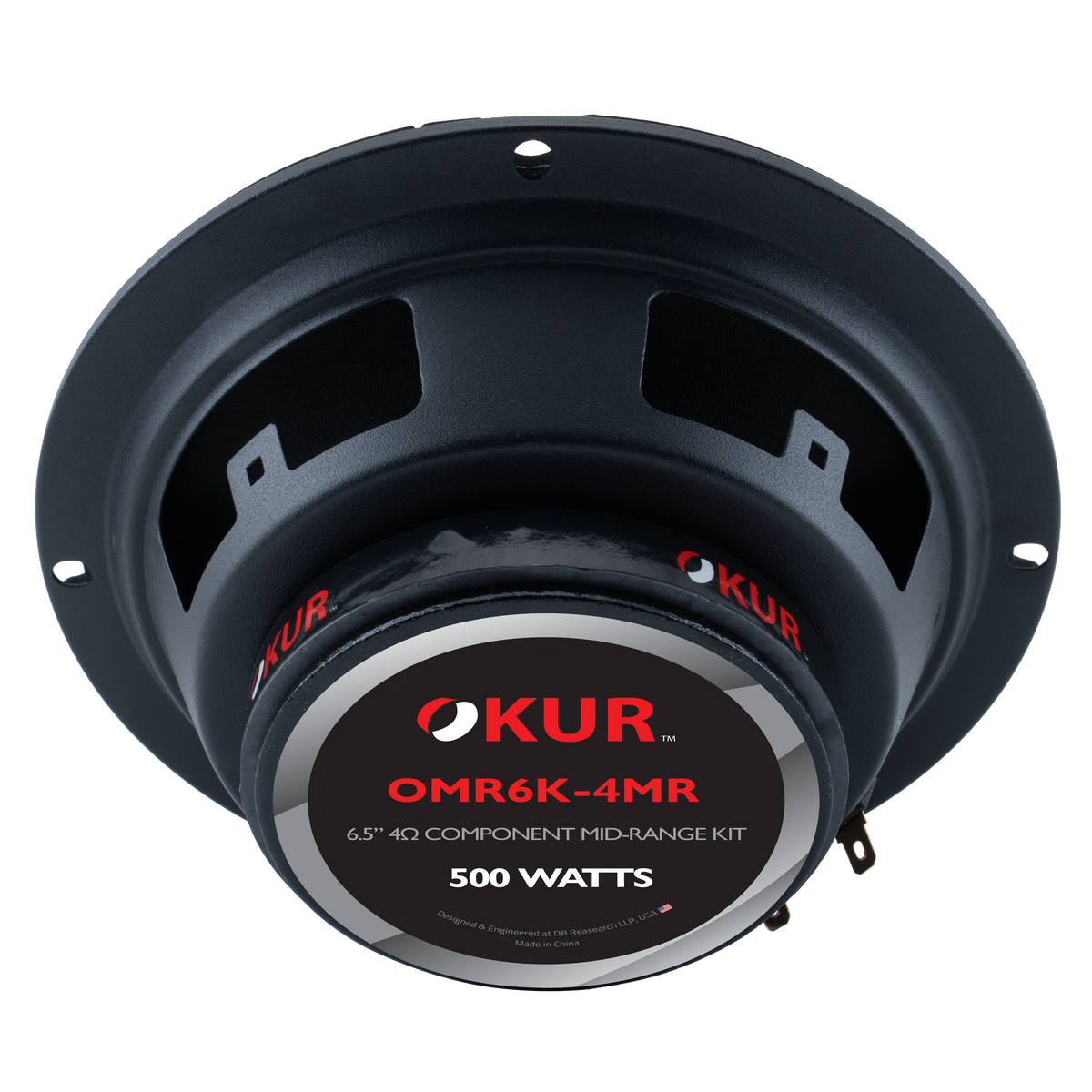

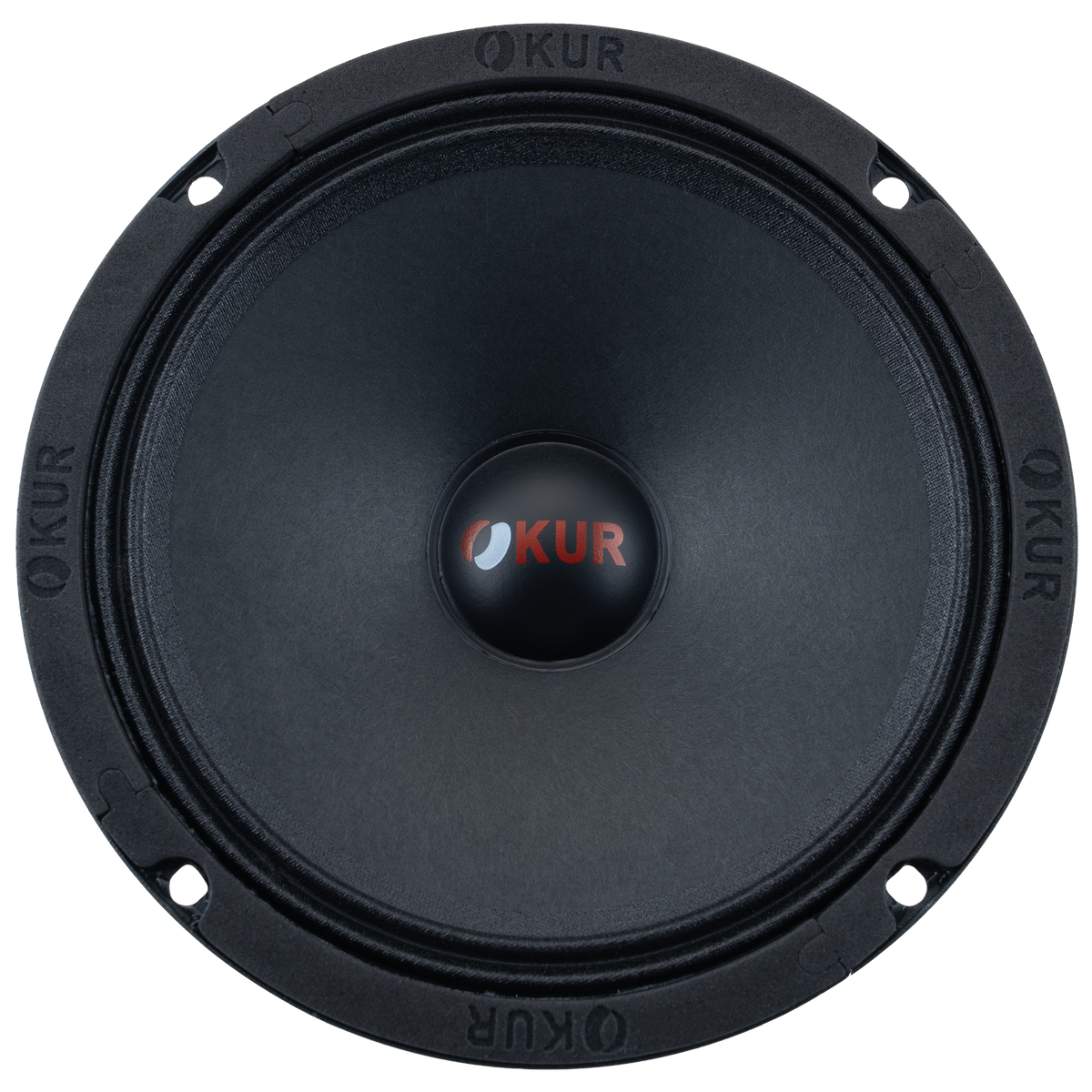

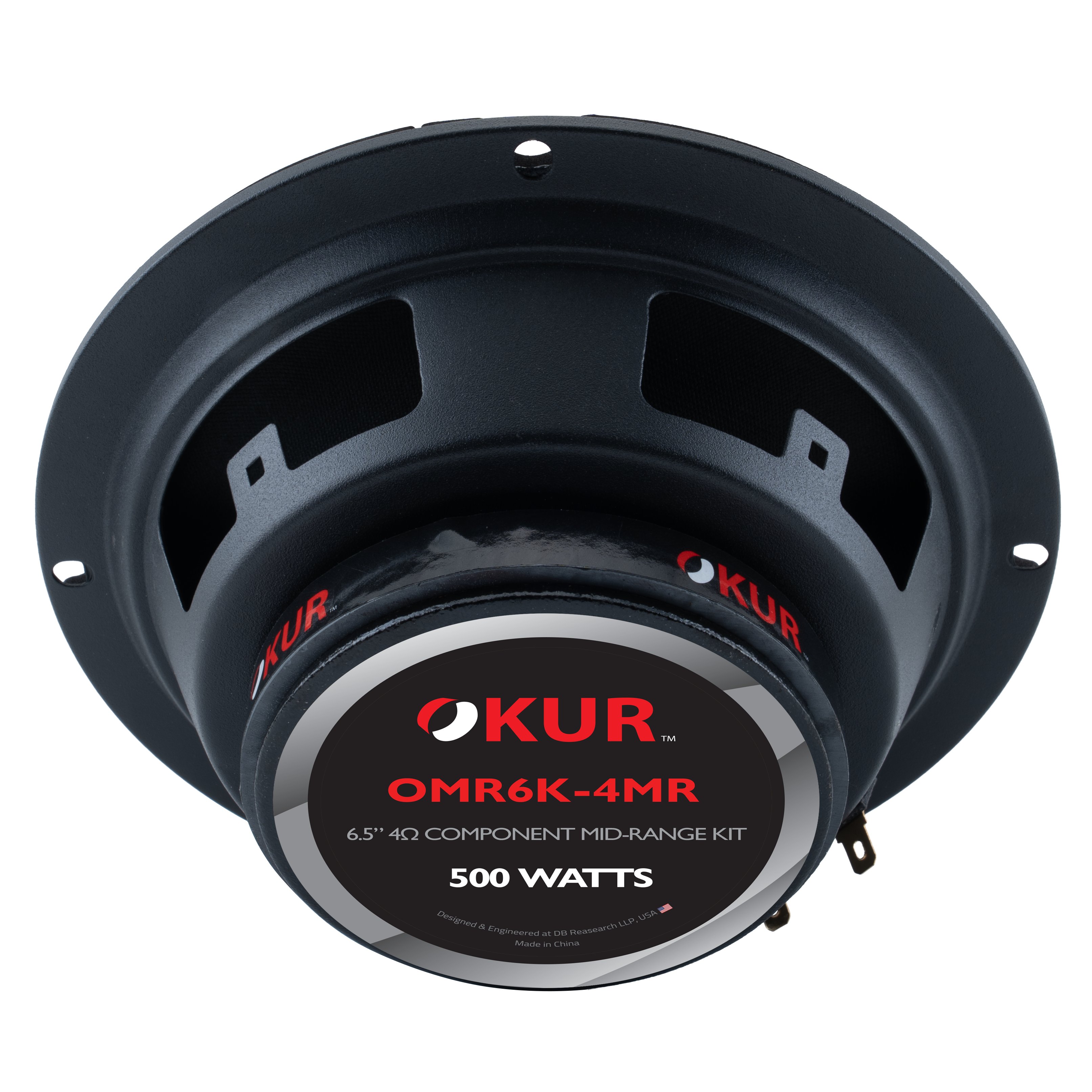

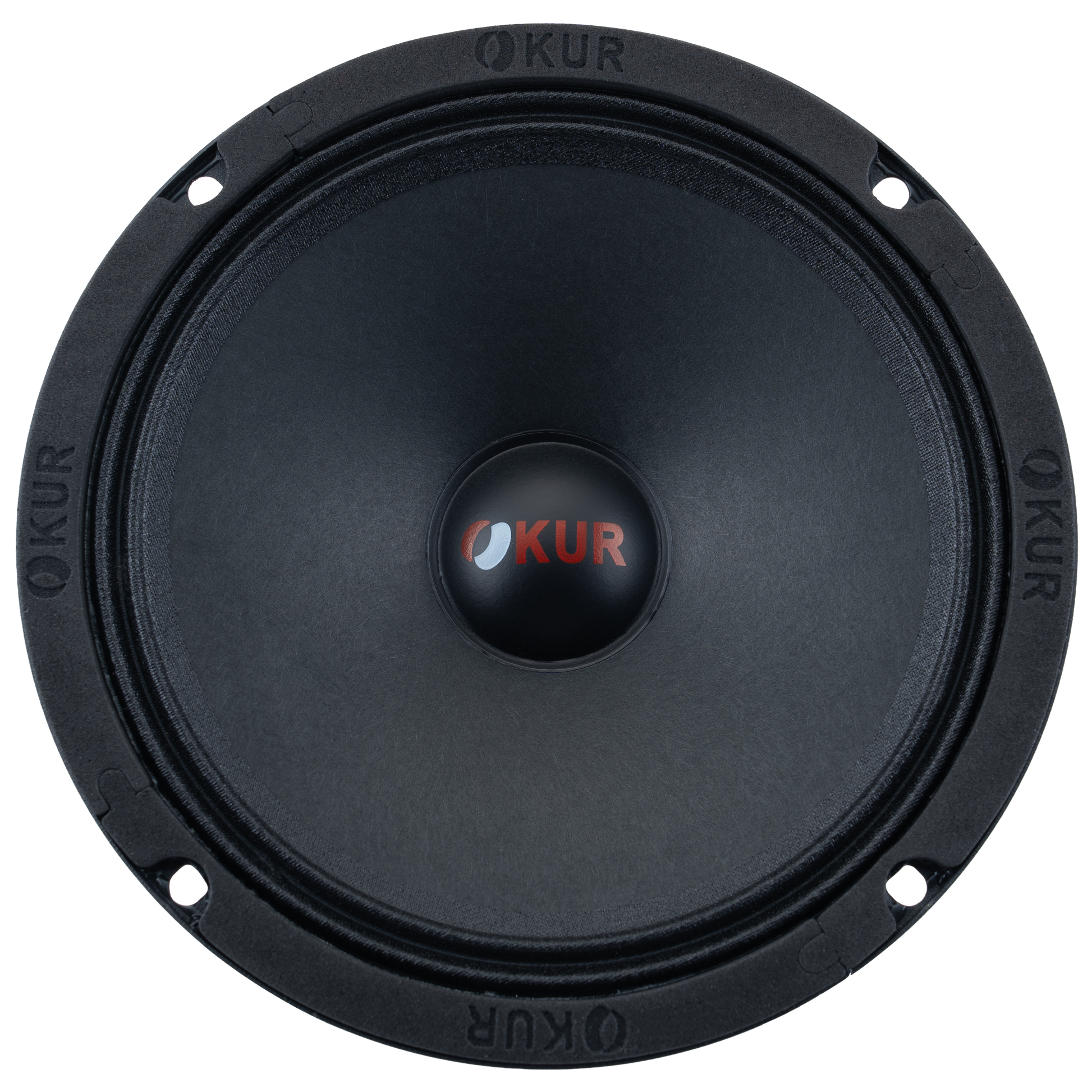

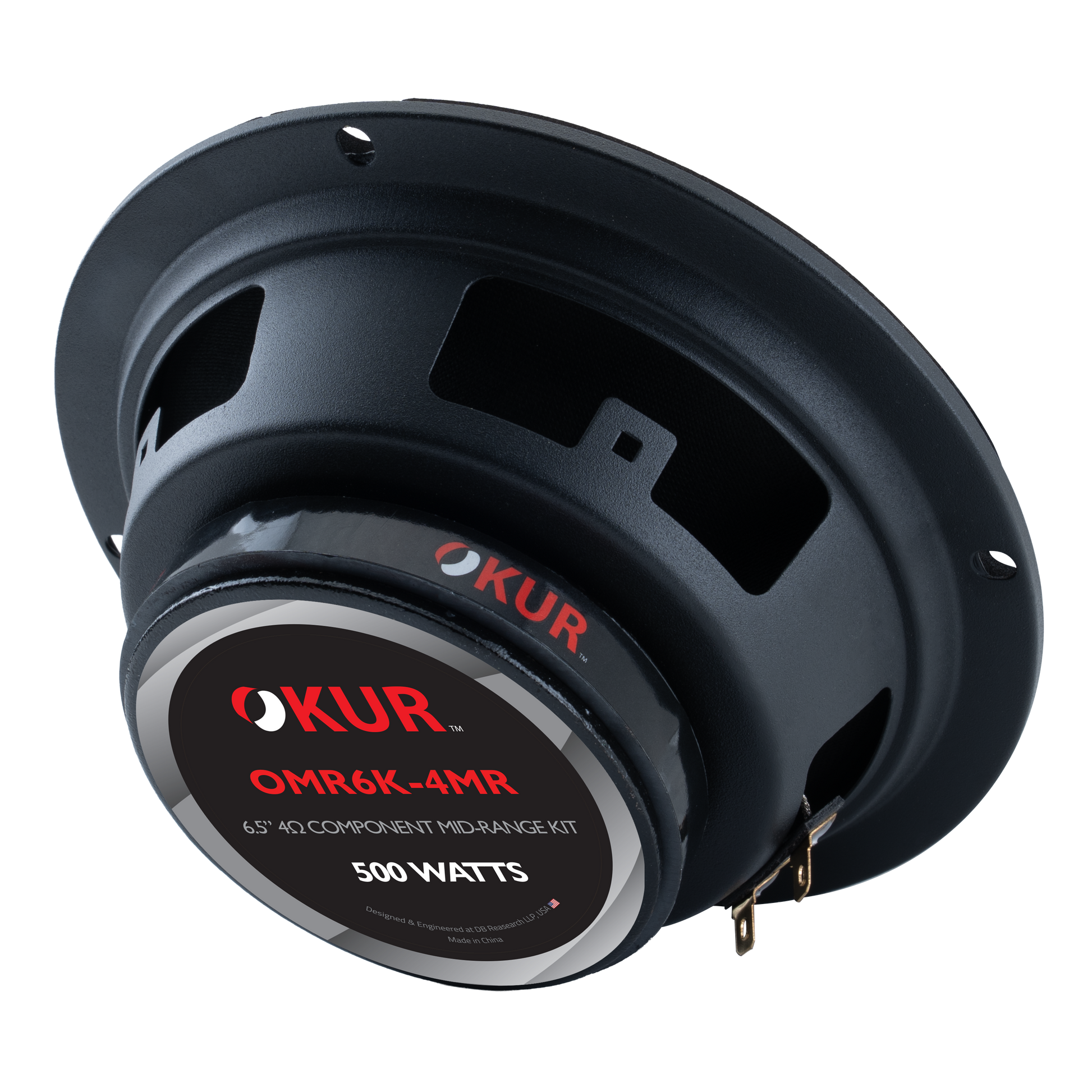

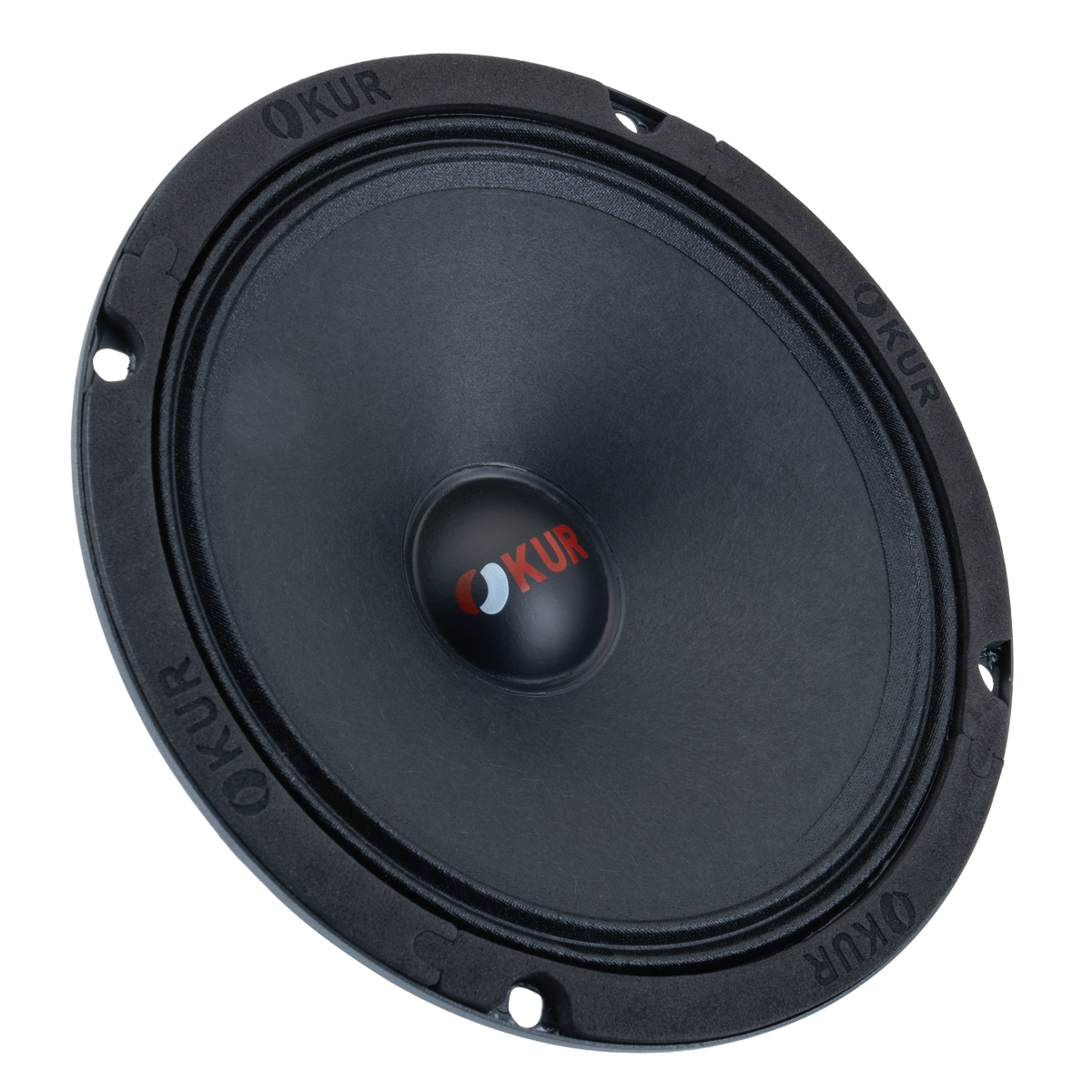

| Mounting Information (Mid-Range) |
| Overall Diameter: 167.5mm |
| Cutout diameter: 144mm |
| Mounting Depth: 55mm |

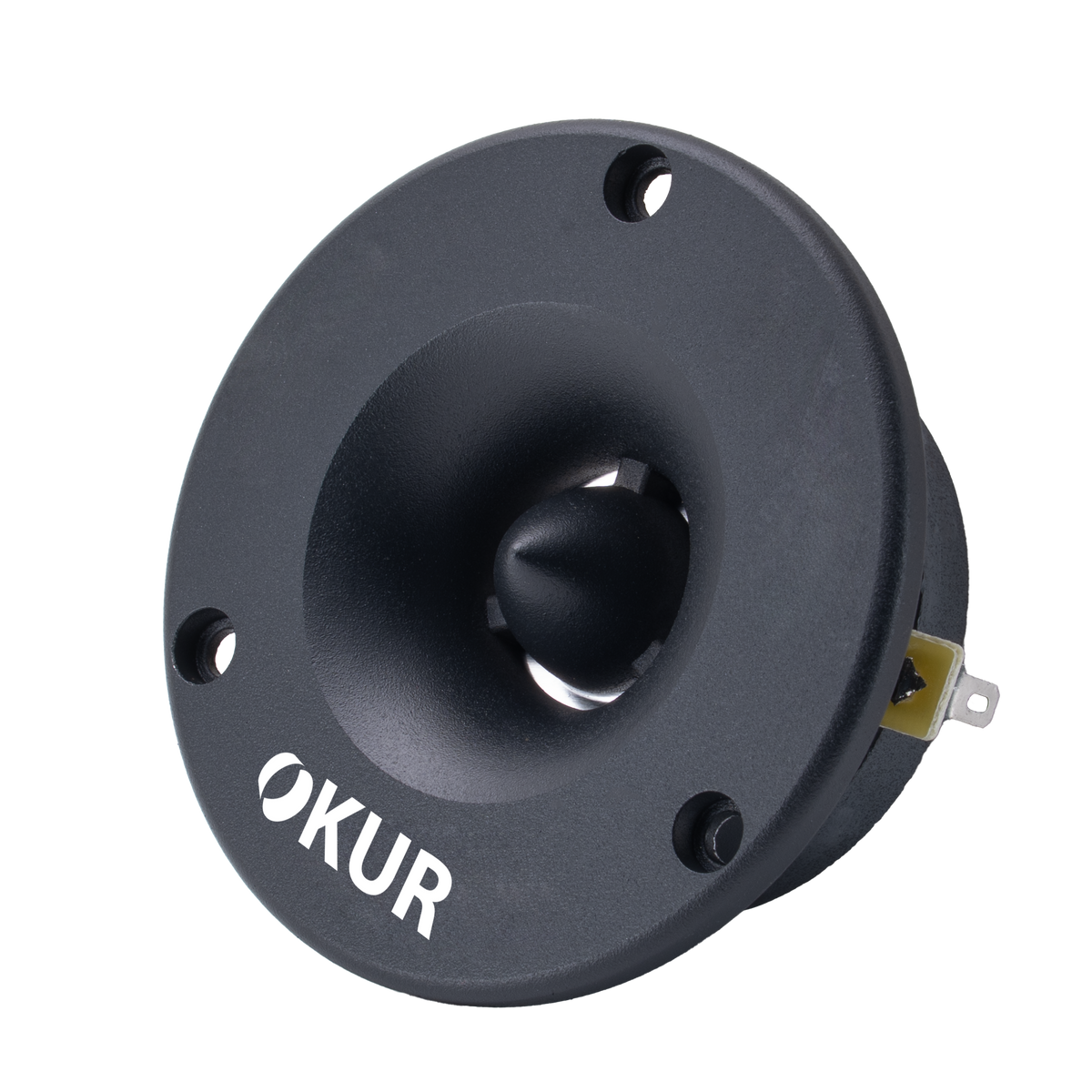

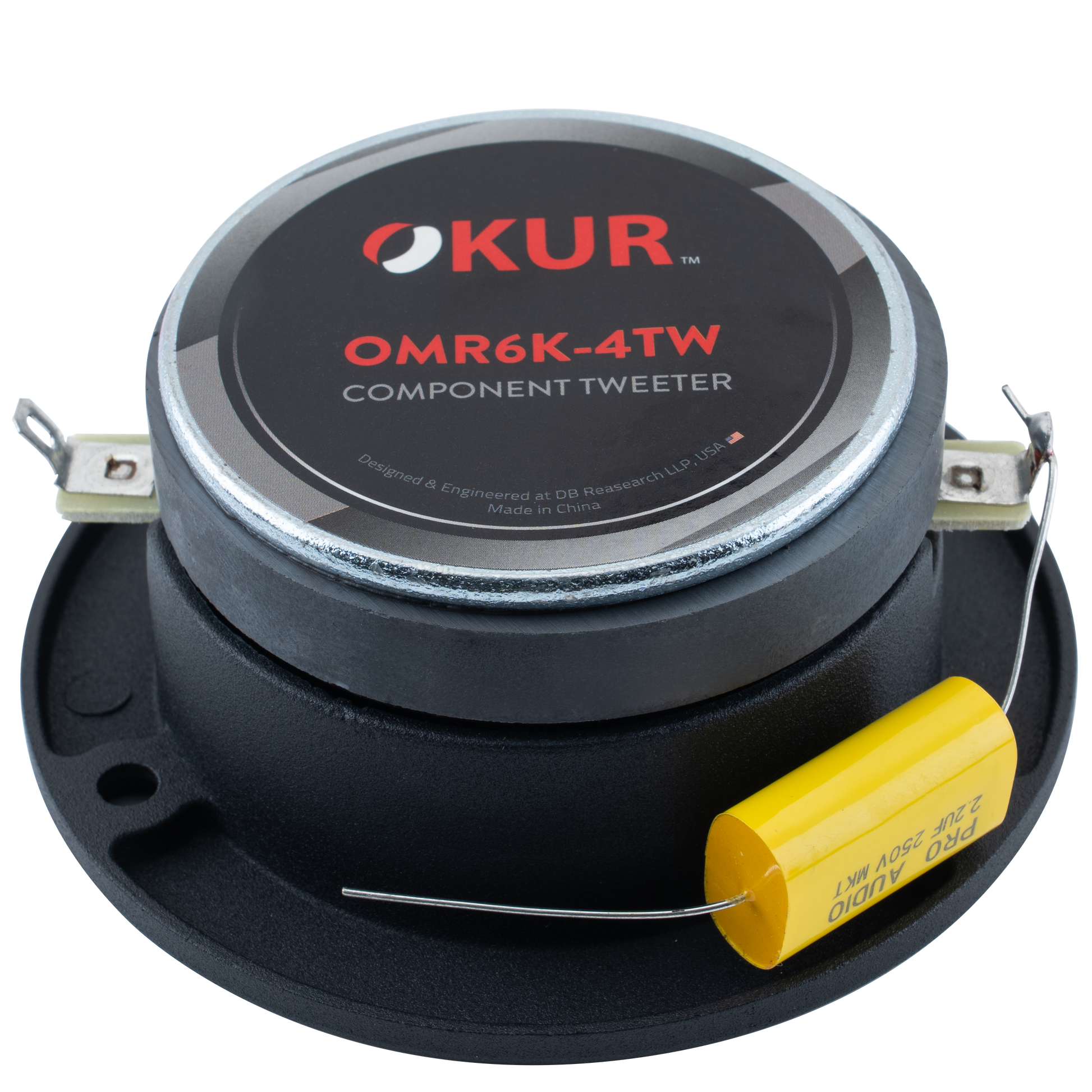

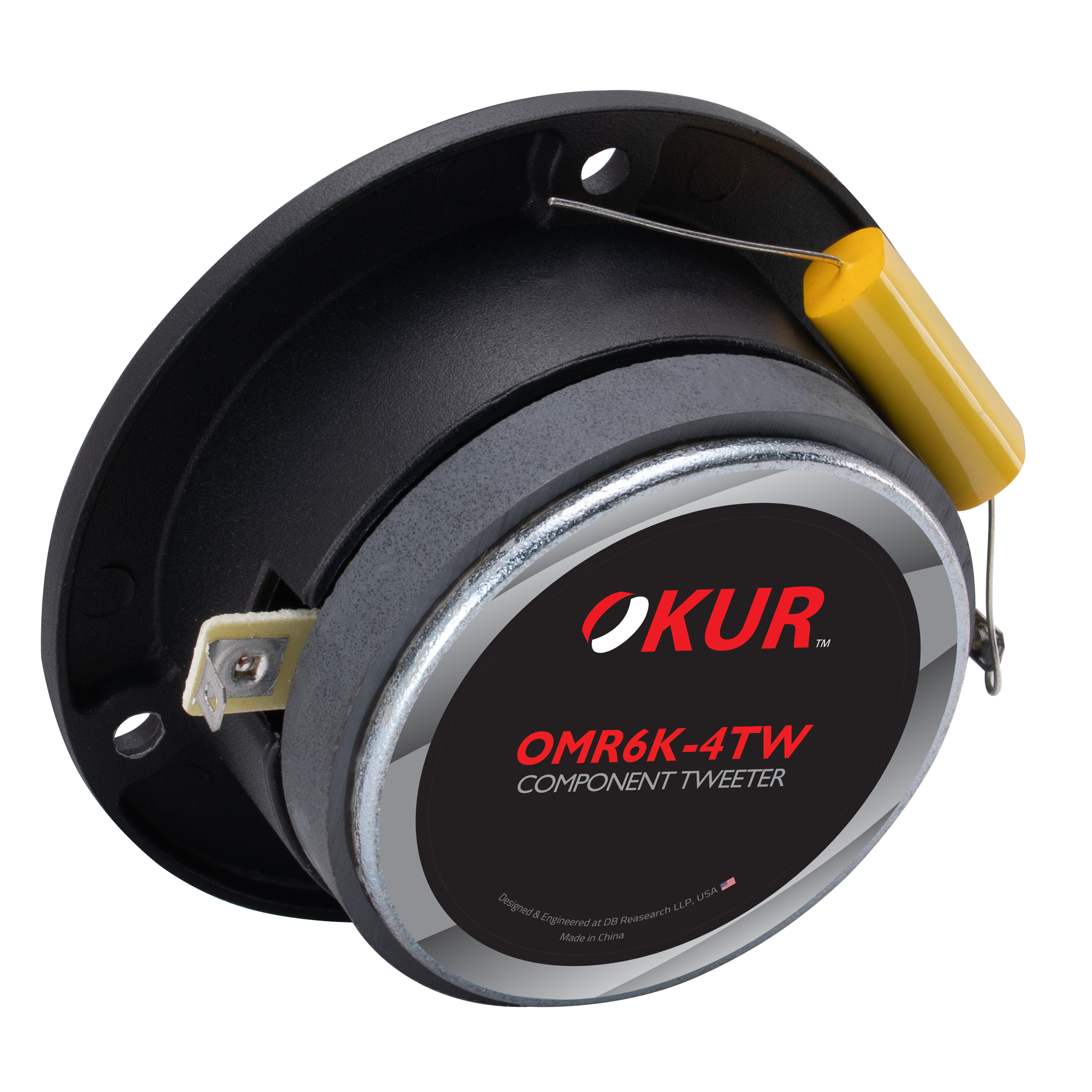

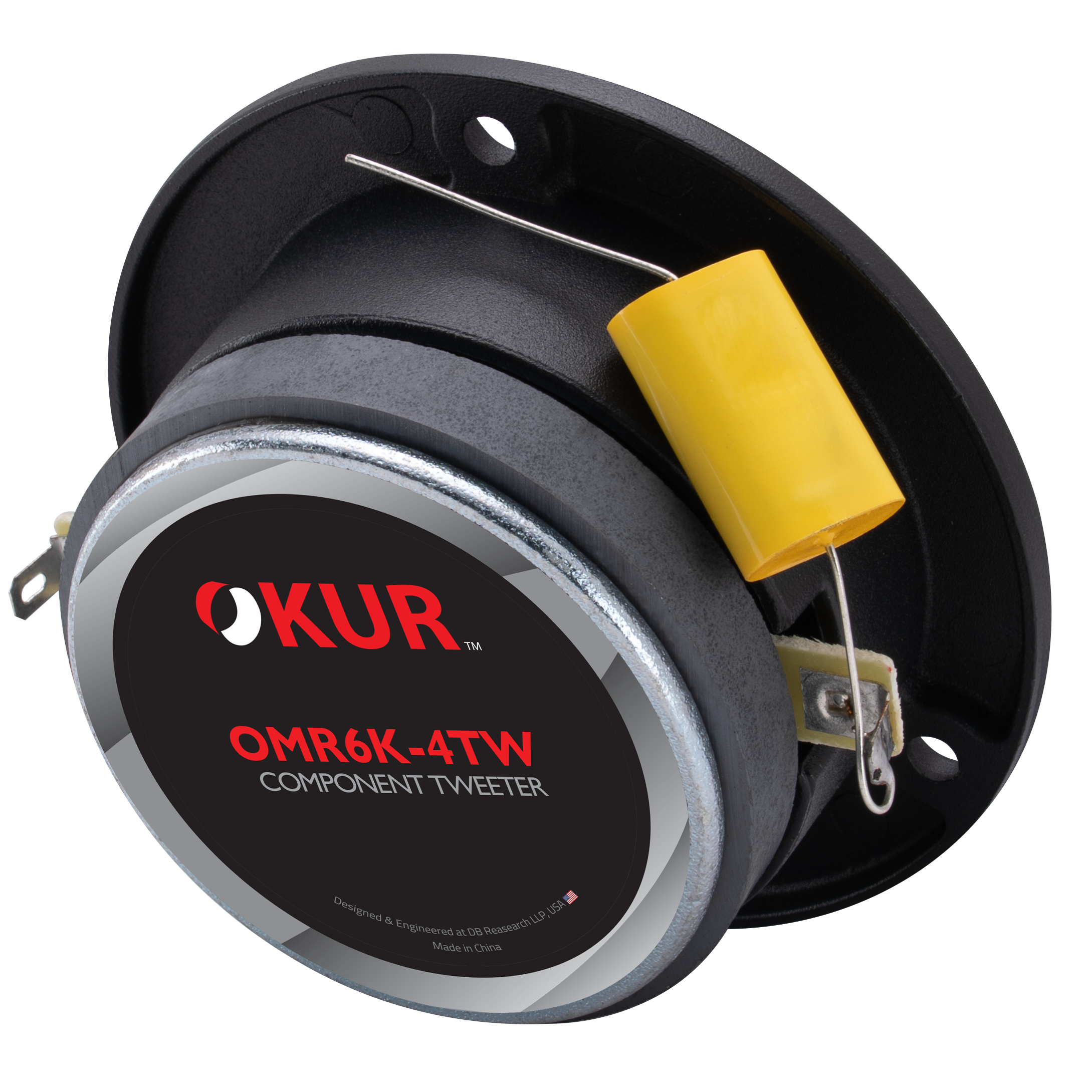

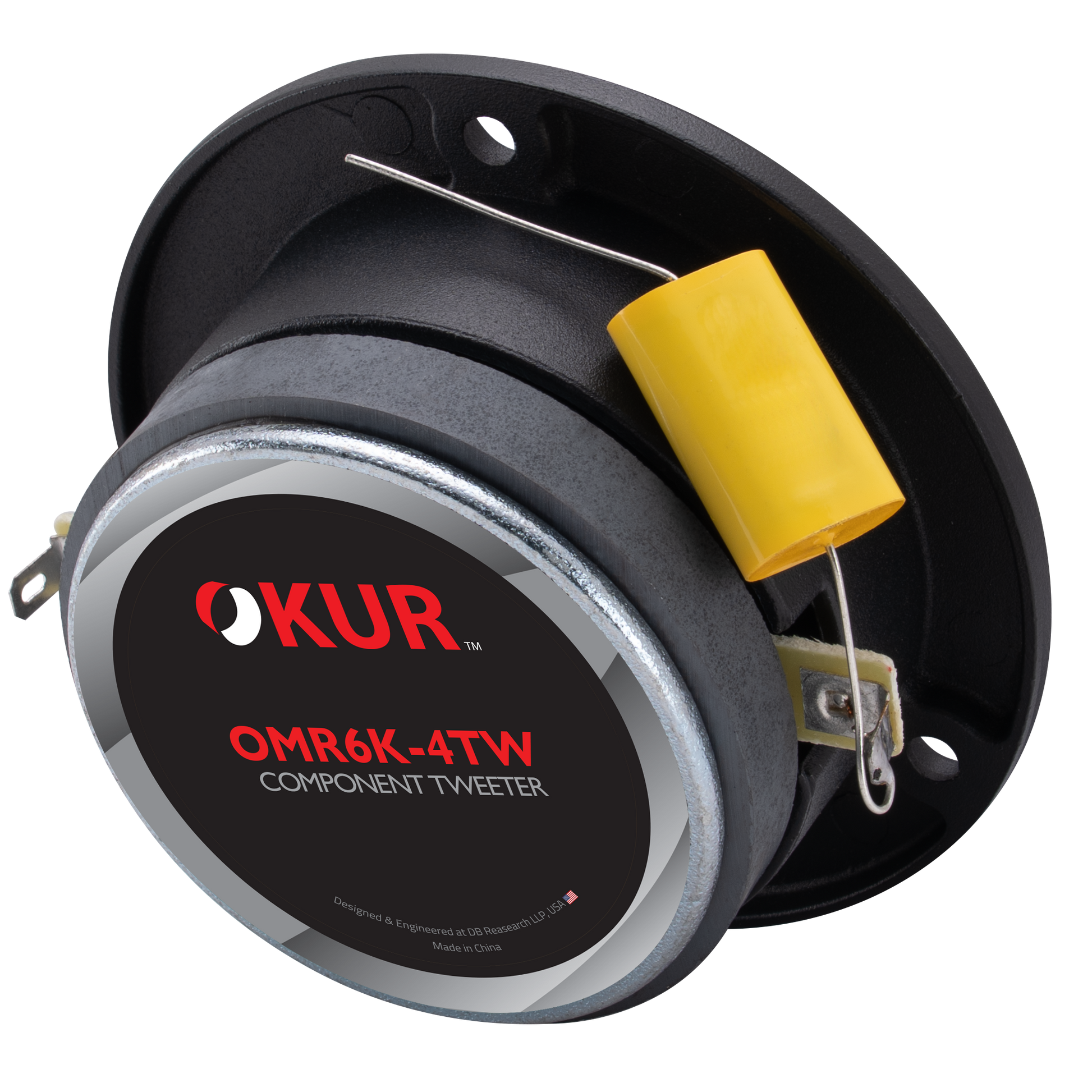

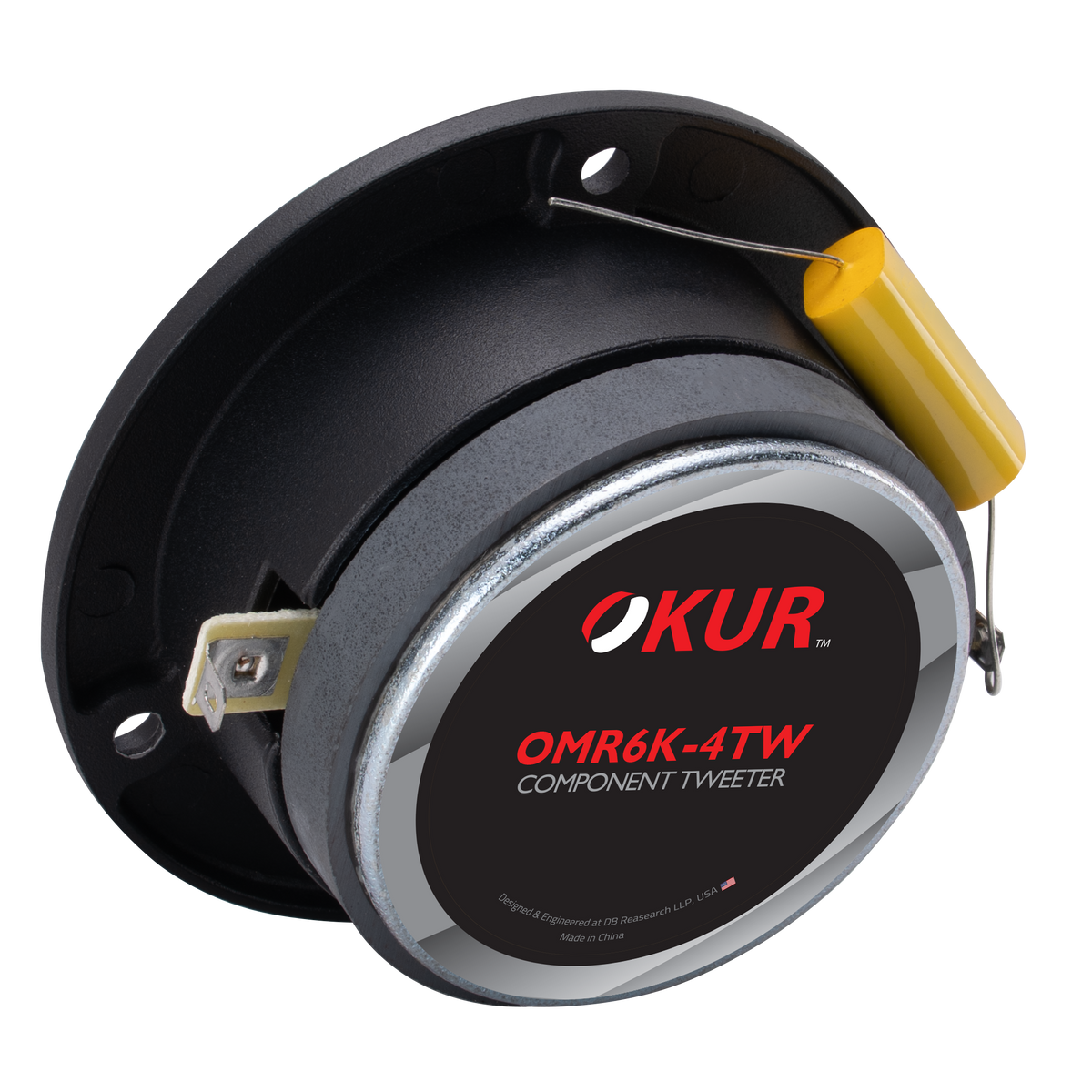

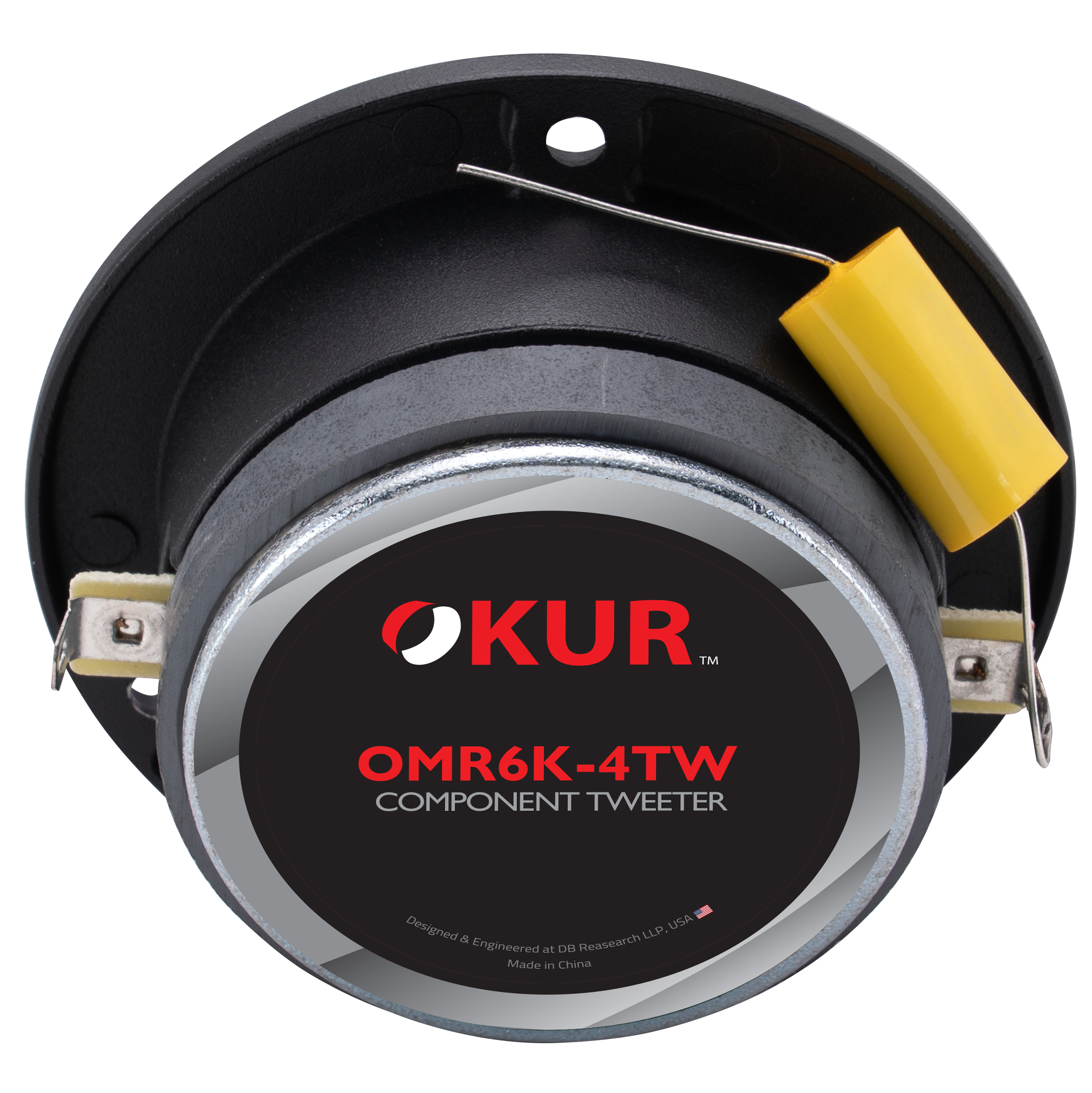

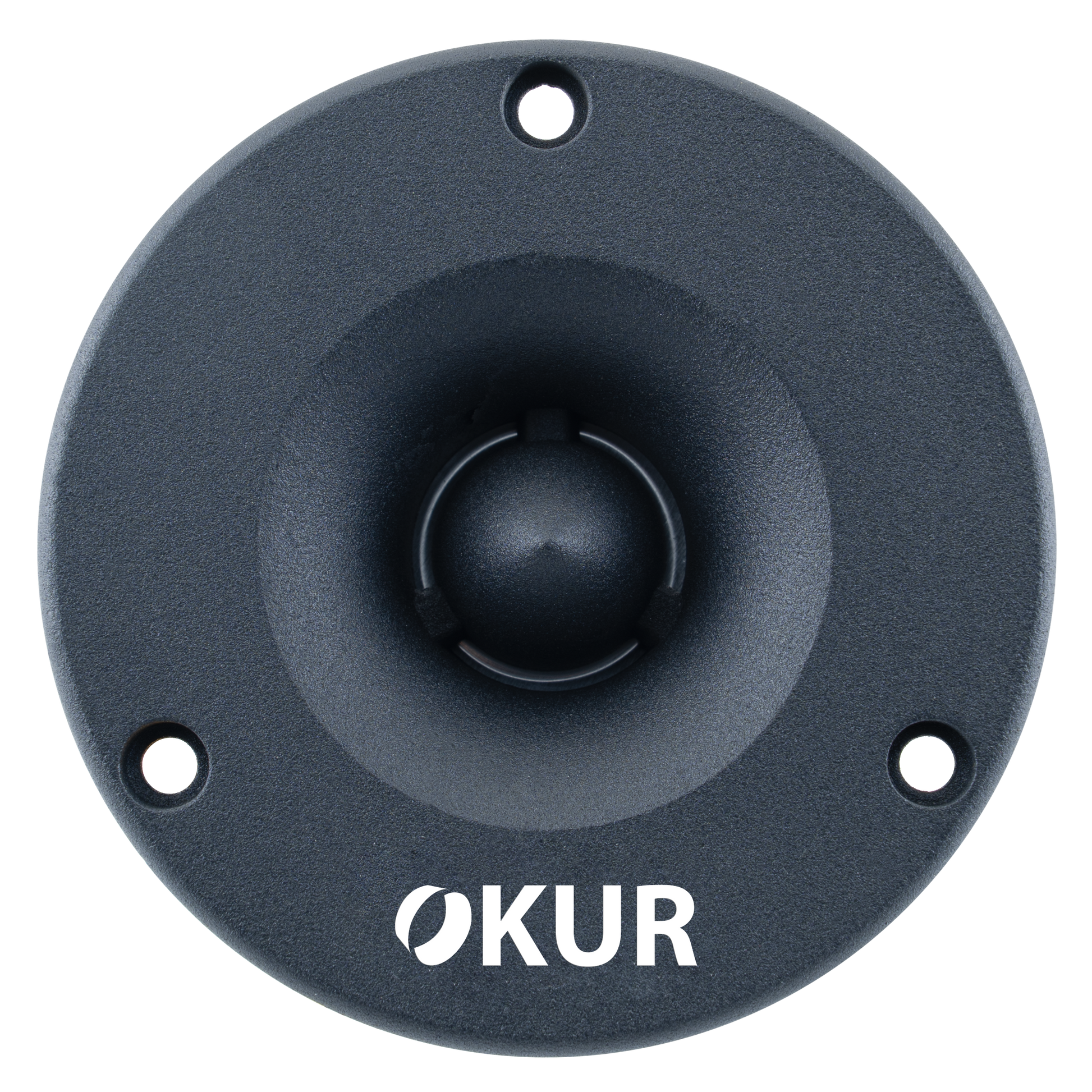

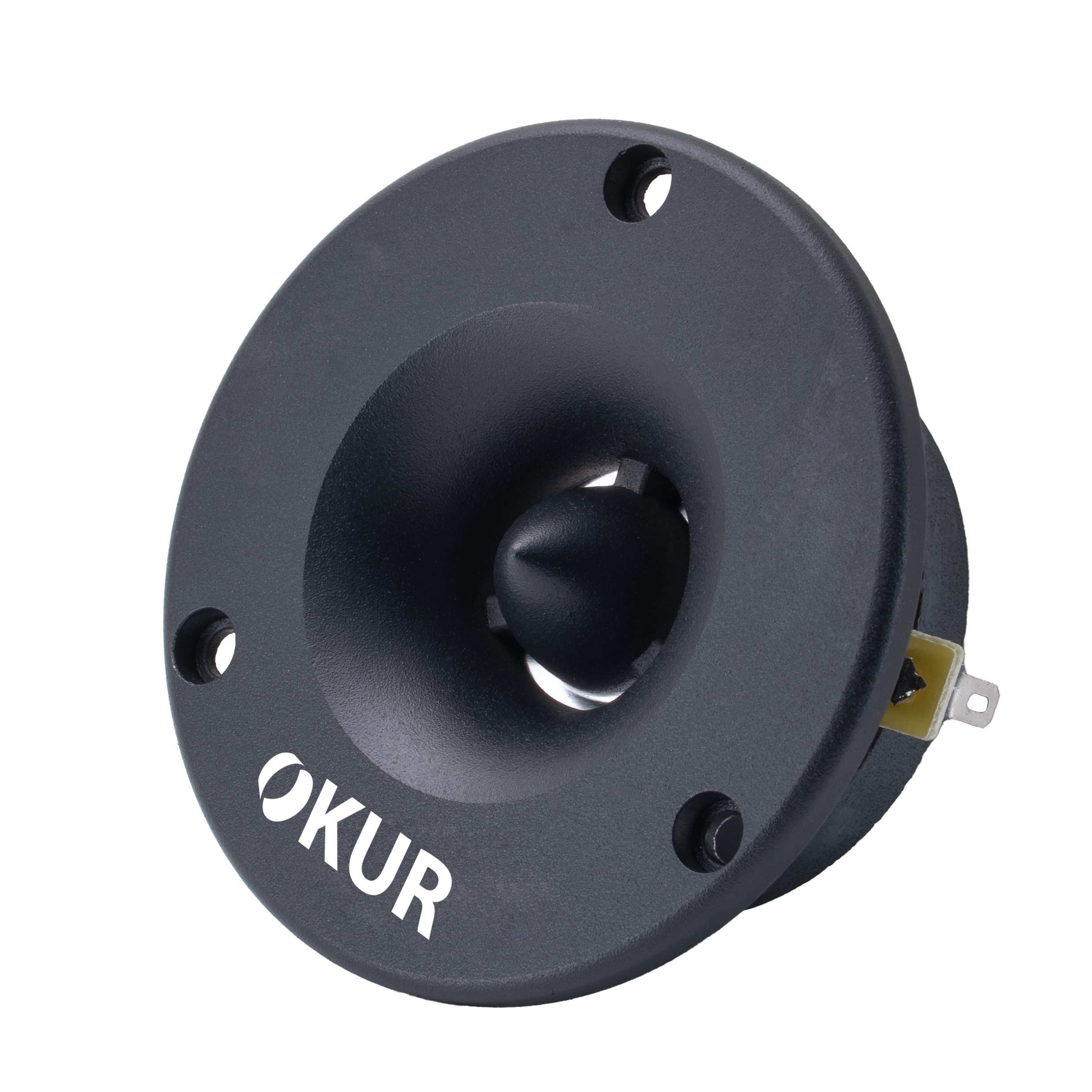

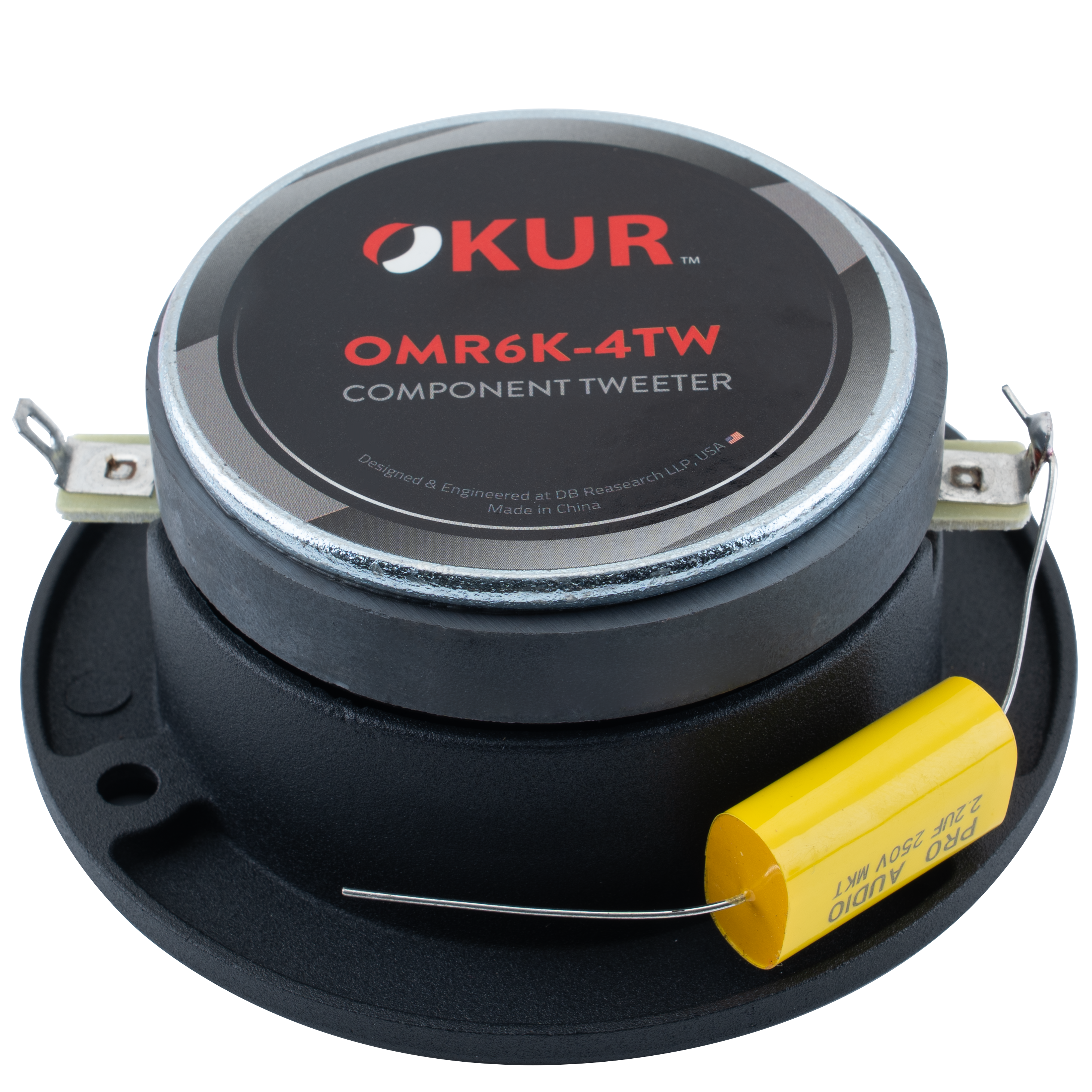

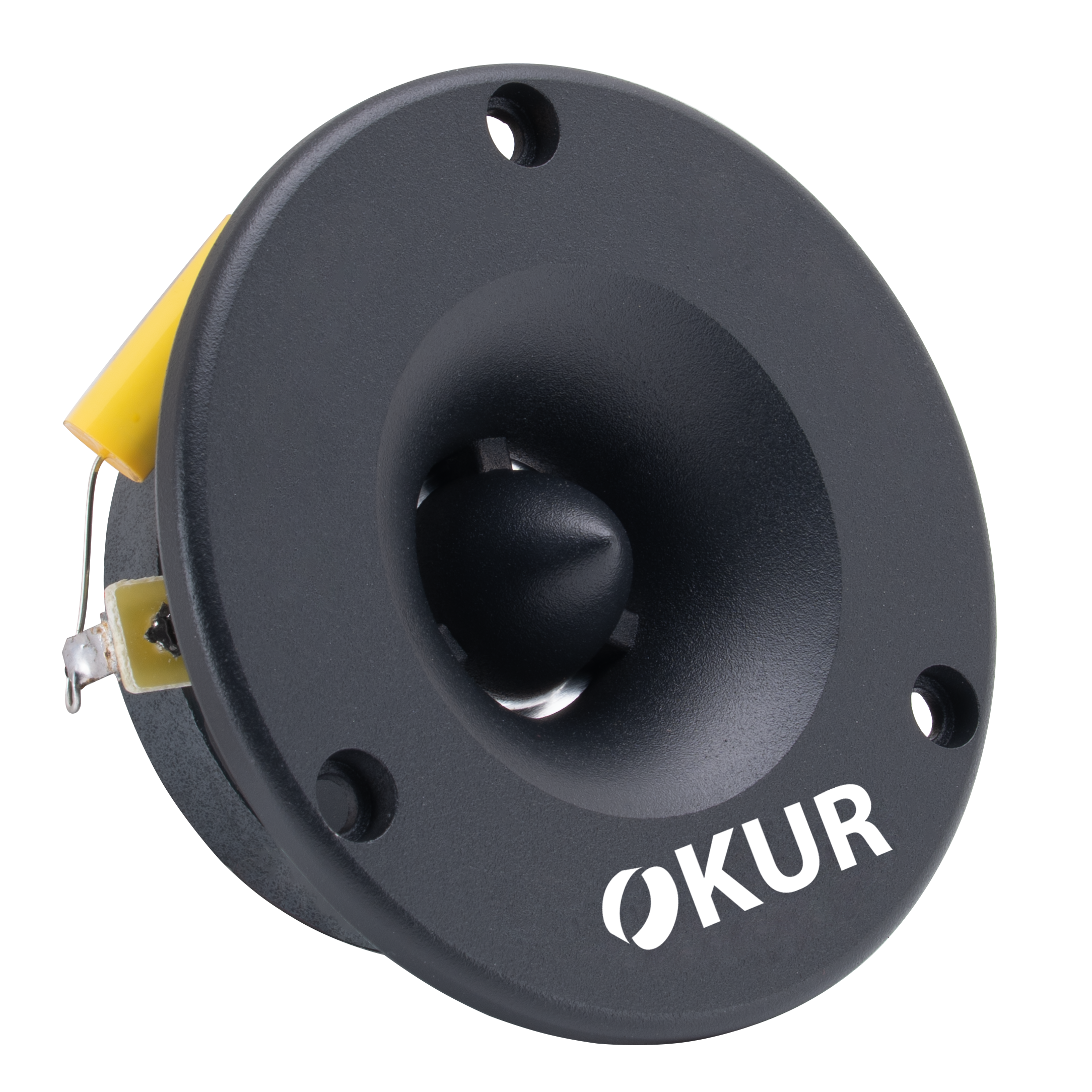

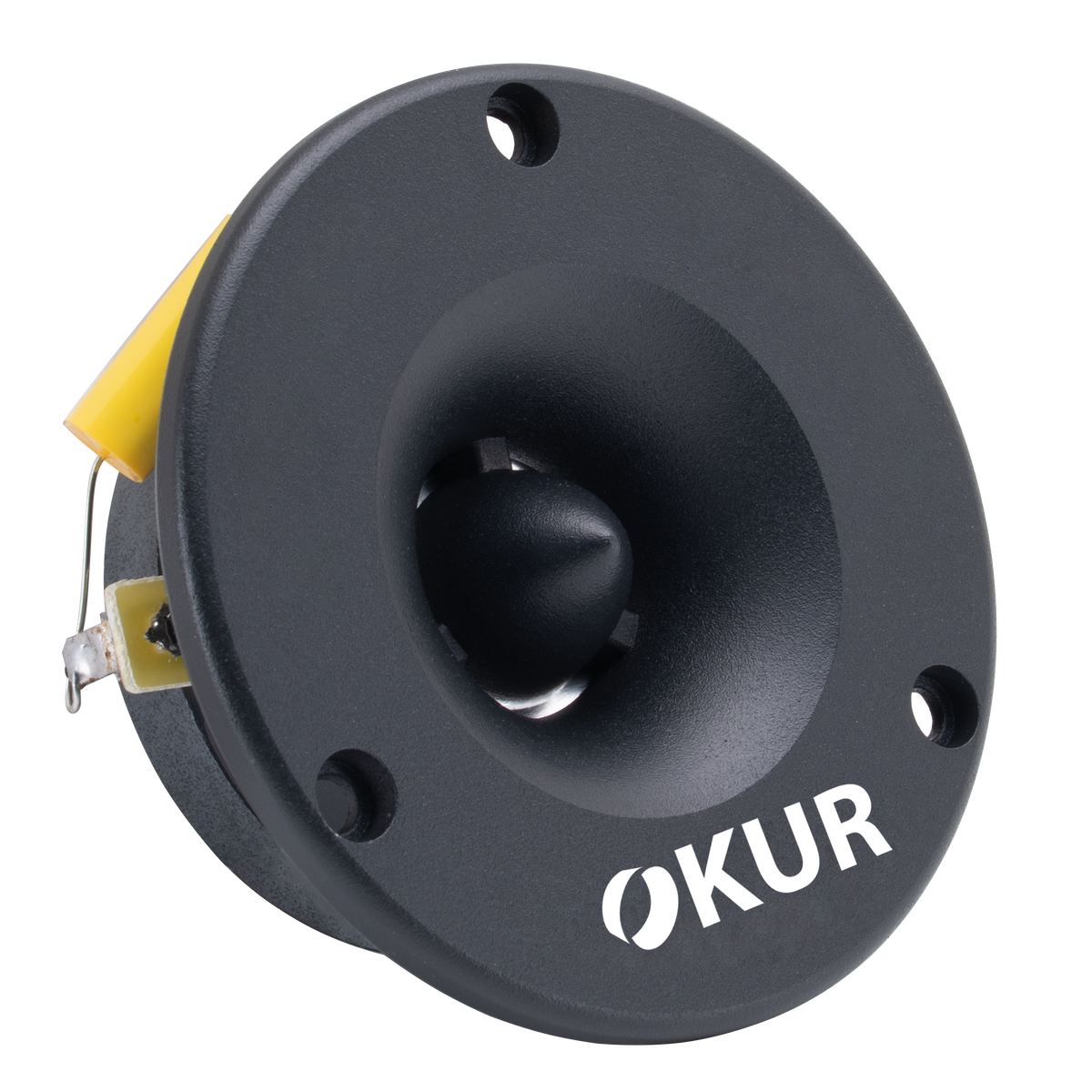

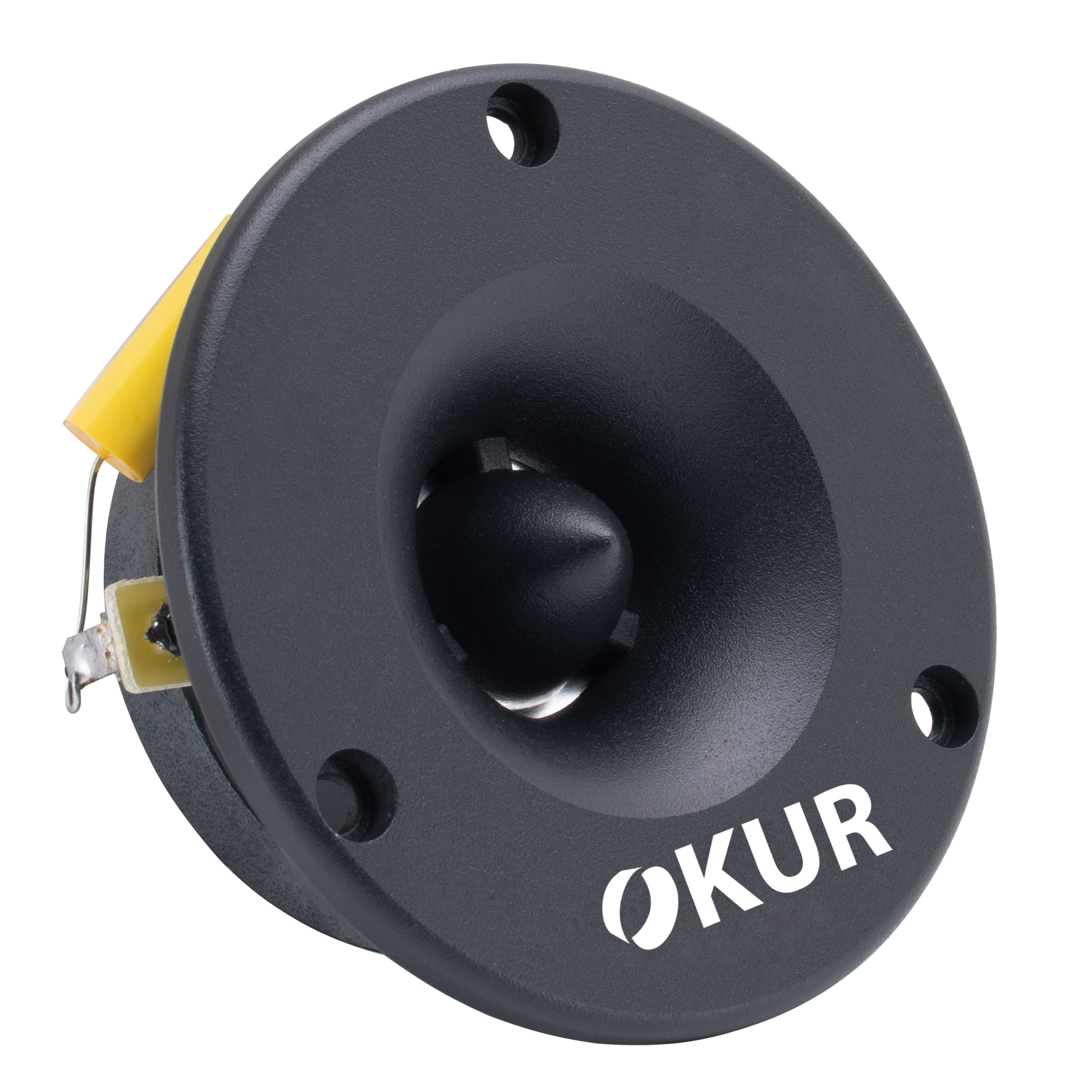

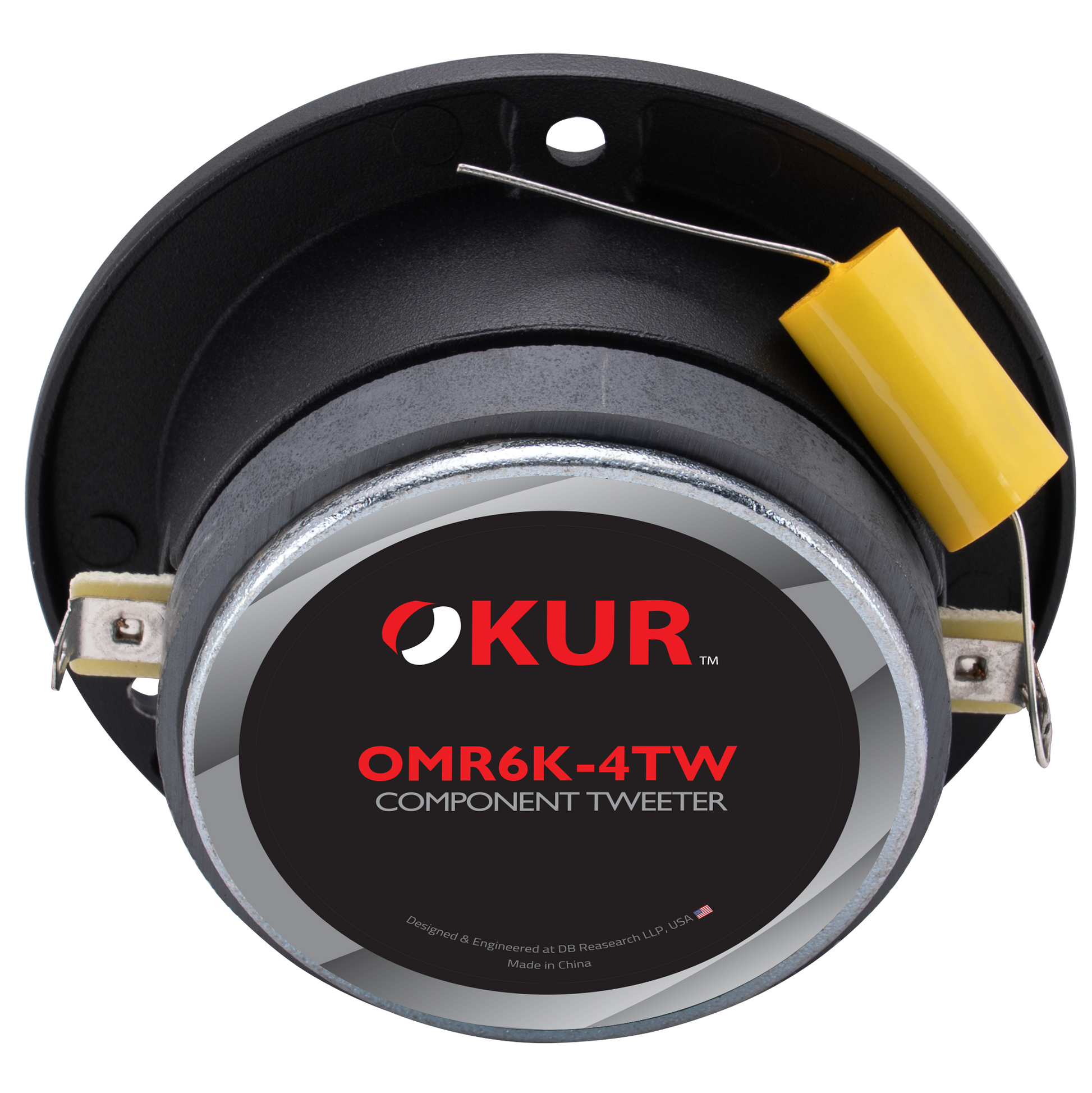

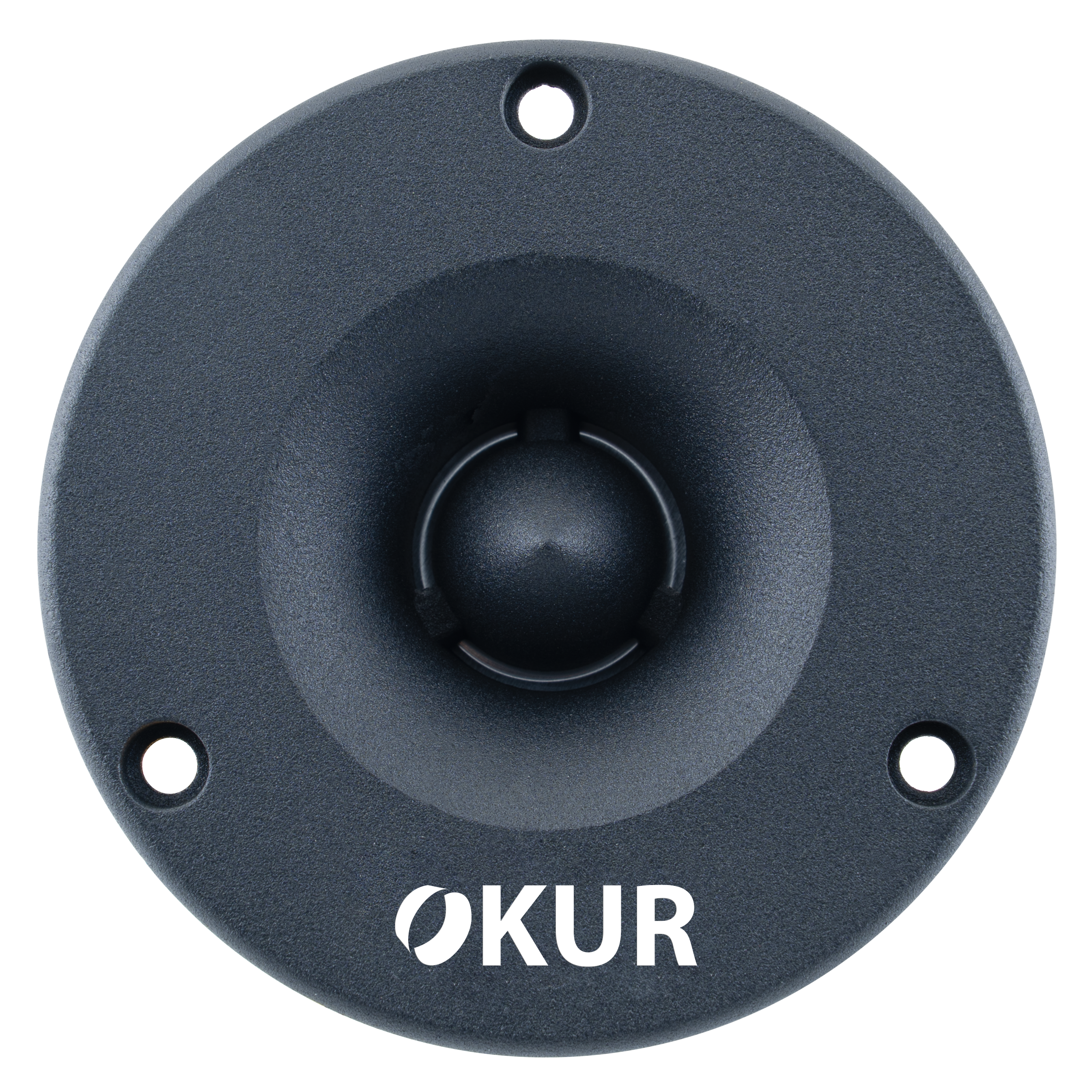

| Mounting Information (tweeter) |
| Overall Diameter: 97mm |
| Cutout diameter: 71.7mm |
| Mounting Depth: 36.2mm |
