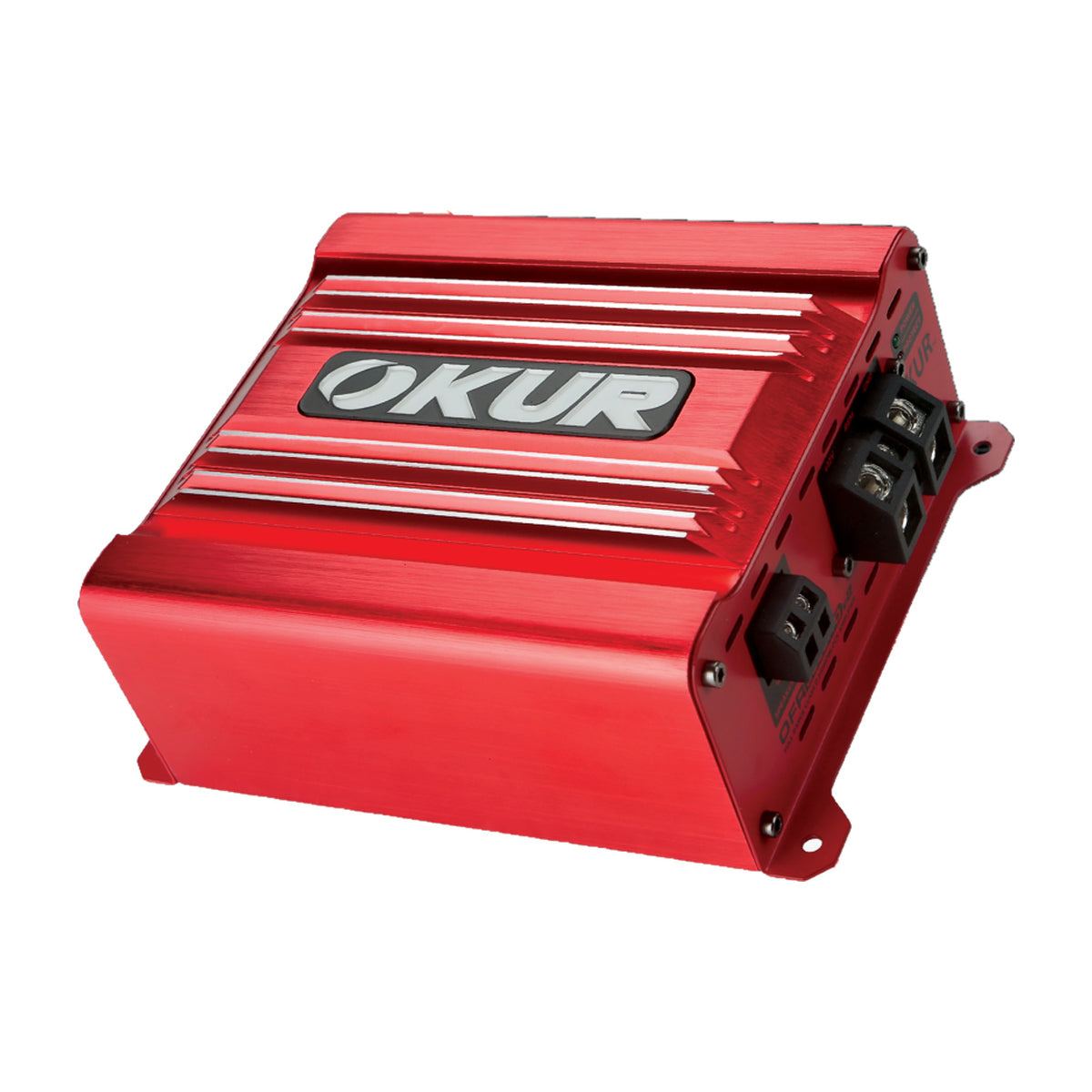

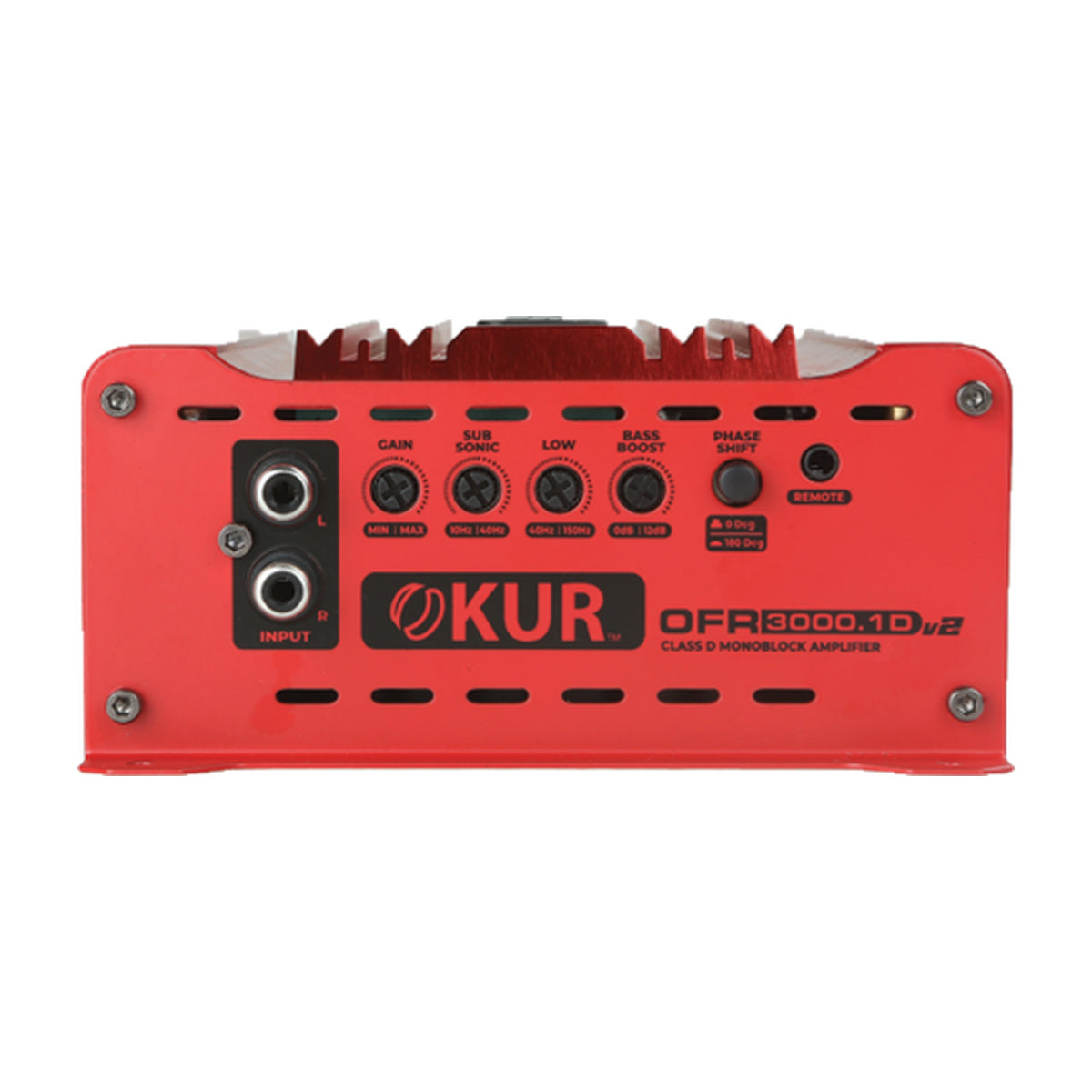

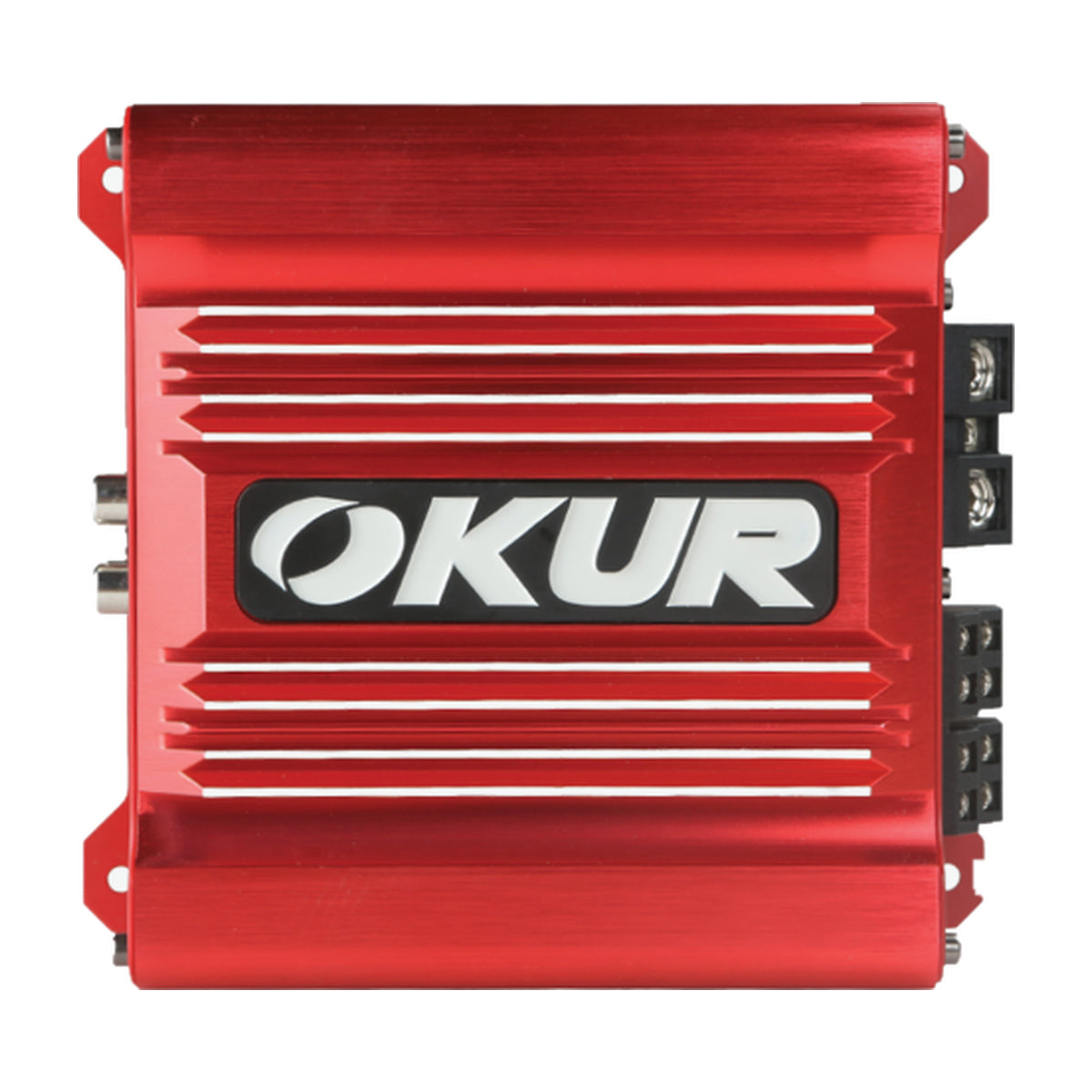

OFR3000.1DV2 : Mono Class D Amplifier

Features

• Class D Circuitry

• Heat Management Design

• Variable LP Crossover

• Audio Protection Circuit

• Direct Connect Speaker Terminals

• Large Gauge Power Terminals

• Remote Bass Control (Included)

• 1 Ohm Stable

Specifications

• Phase Shift: 0–180°

• LPF Range: 40–150 Hz

• Subsonic Filter: 10–40 Hz

• Variable Bass Boost @ 45 Hz: 0–12 dB

• Power @ 14.4V, 1 Ohm: 1 × 1,500 Watts

• Power @ 14.4V, 2 Ohms: 1 × 750 Watts

• Power @ 14.4V, 4 Ohms: 1 × 325 Watts

• Dynamic Power @ 1 Ohm: 1 × 3,000 Watts

Dimensions

• Width: 5.63″ / 143 mm

• Length: 5.36″ / 136.30 mm

• Height: 2.53″ / 64.29 mm
