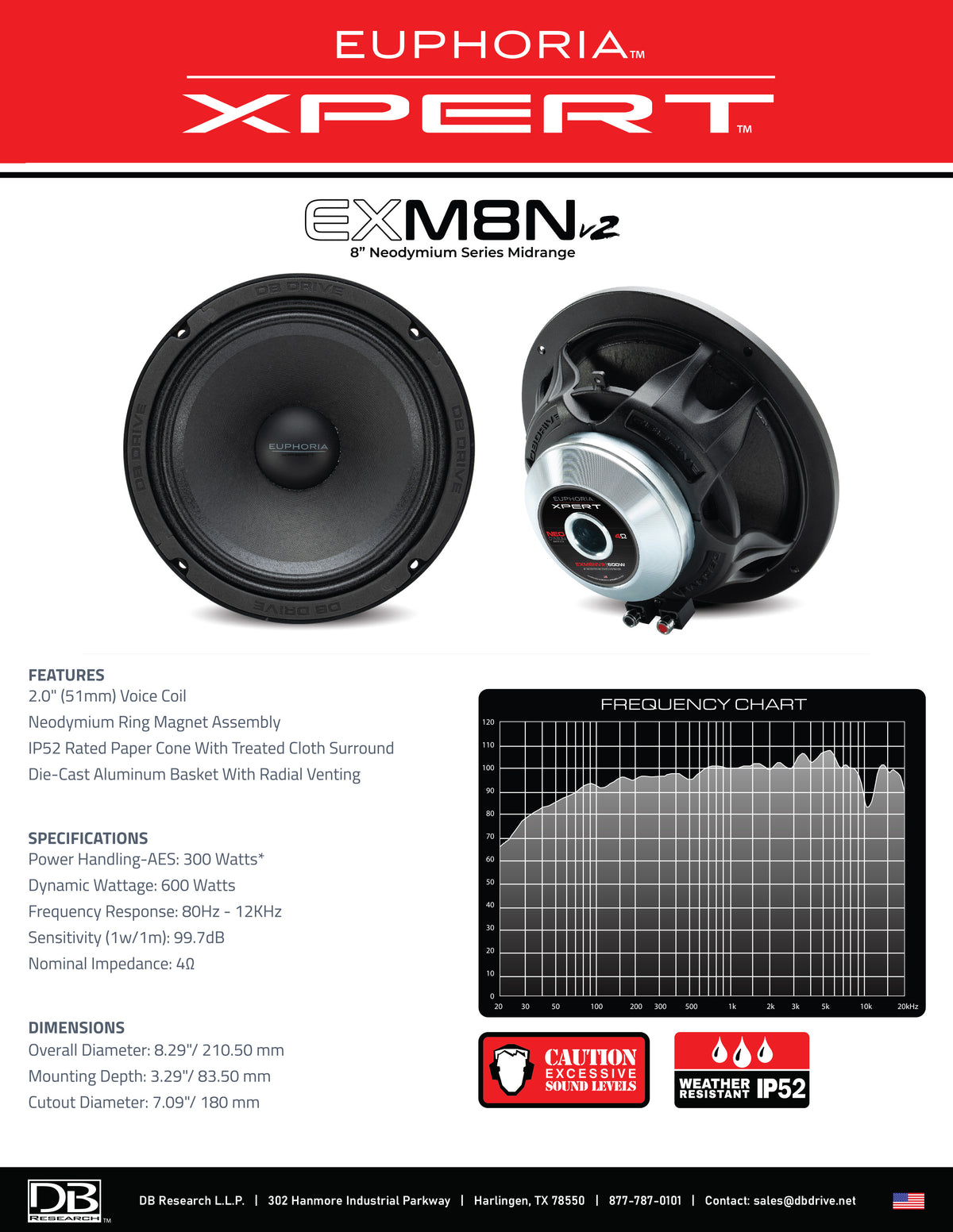

| Power Handling-AES: 300 Watts* |
| Dynamic Wattage: 600 Watts |
| Frequency Response: 80Hz - 12KHz |
| Sensitivity (1w/1m): 99.7dB |
| Nominal Impedance: 4Ω |
|
| THIELE-SMALL PARAMETERS |
| Resonant Frequency (fs) 80.6Hz |
| D.C. Voice coil resistance (RE) 3.0Ω |
| Mechanical Quality Factor (Qms) 2.95 |
| Electrical Quality Factor (Qes) 0.45 |
| Total Quality factor (Qts) 0.39 |
| Equivalent Air Volume to Cms (Vas) 16.9L |
| Mechanical Compliance (Cms) 0.25 mm/N |
| Sensitivity (1W/1M) 99.8dB |
|
| DIMENSIONS |
| Overall Diameter: 8.29"/ 210.50 mm |
| Mounting Depth: 3.29"/ 83.50 mm |
| Cutout Diameter: 7.09"/ 180 mm |
