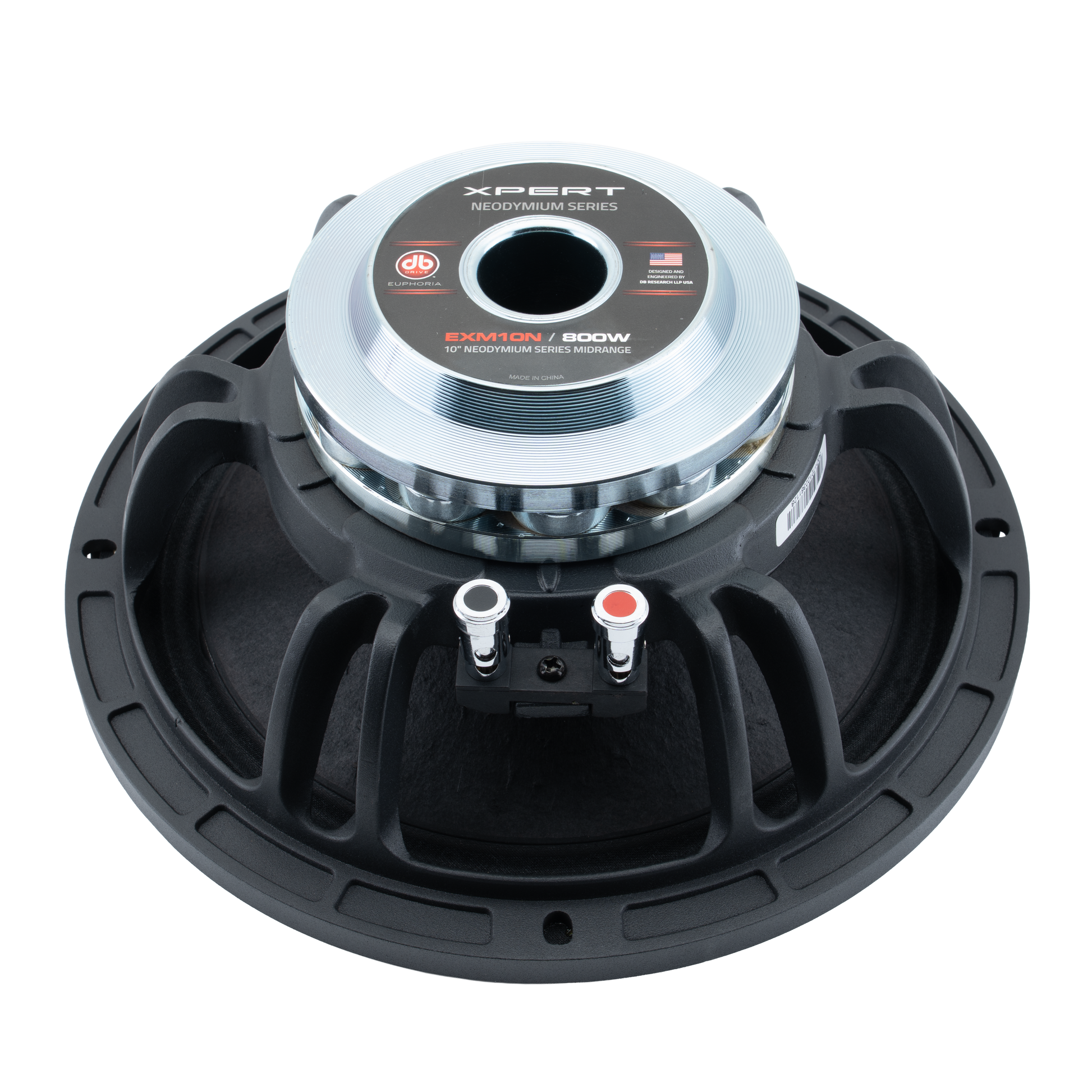

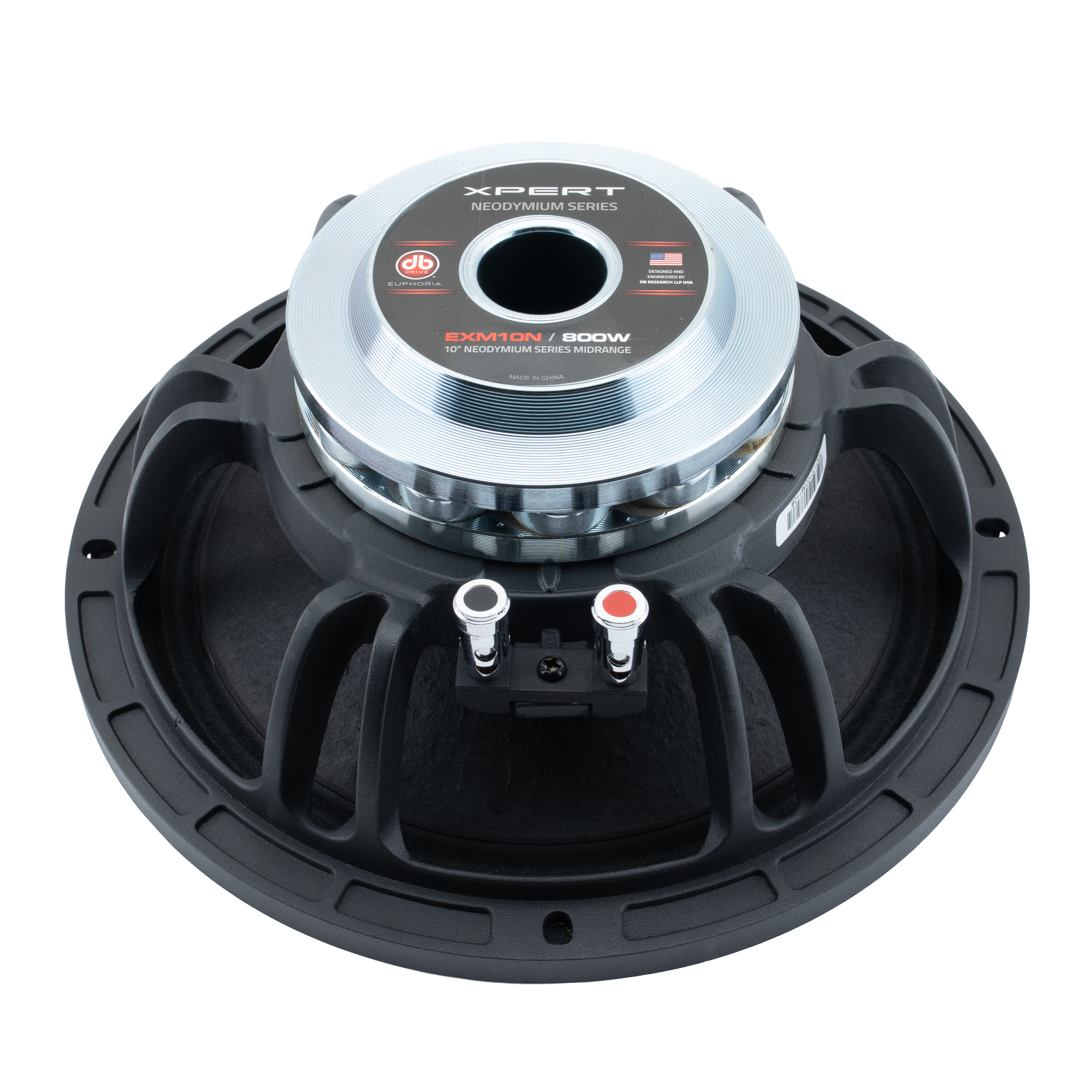

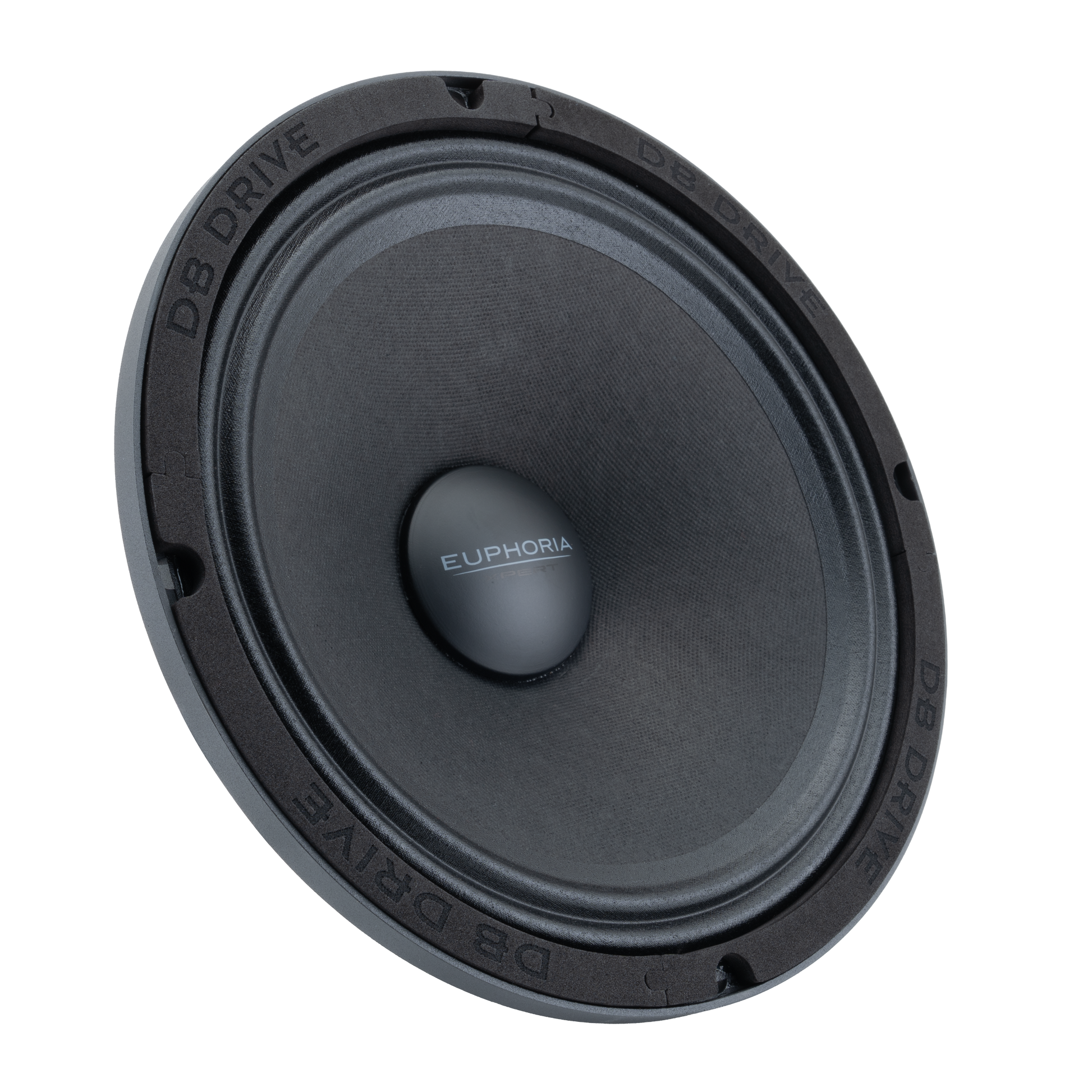

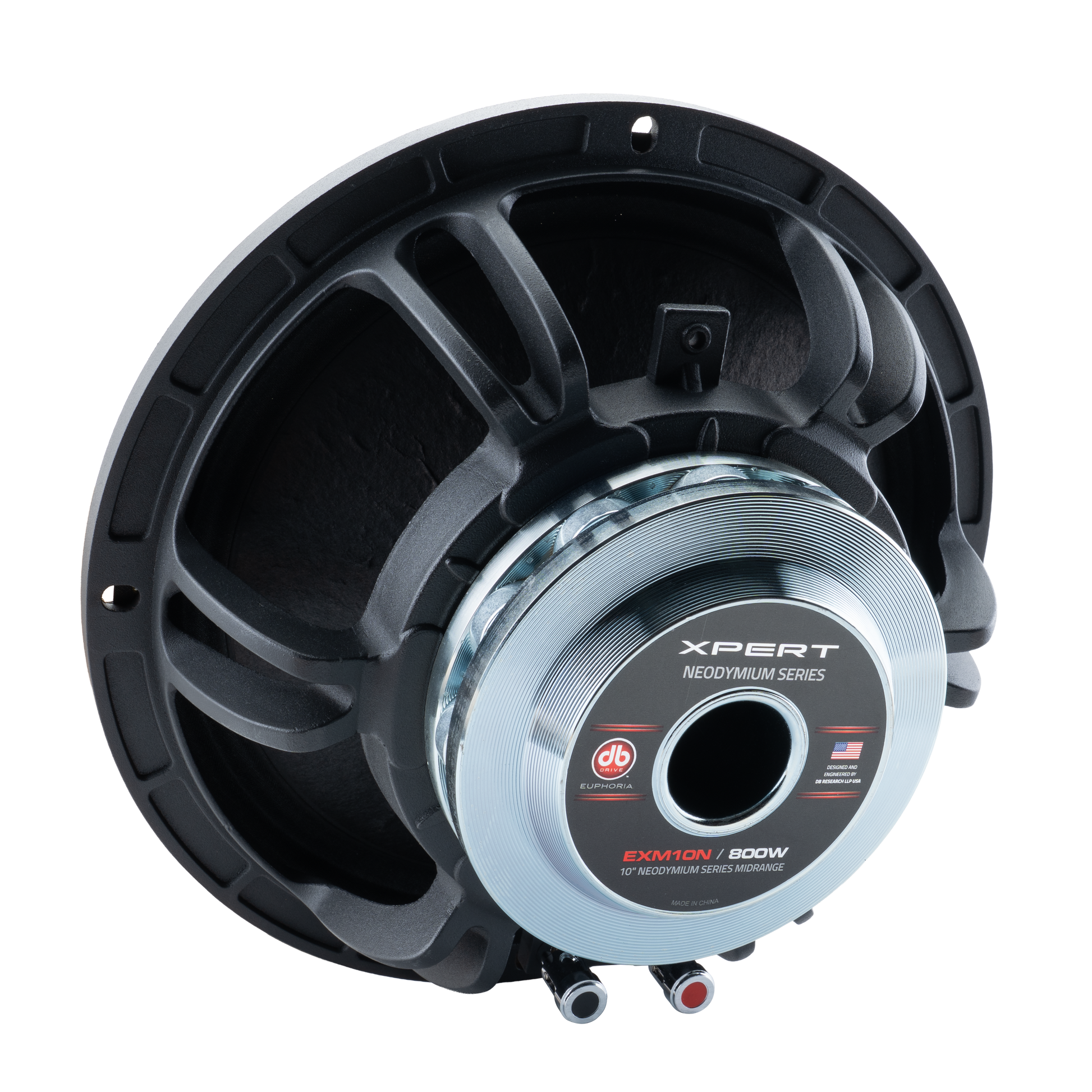

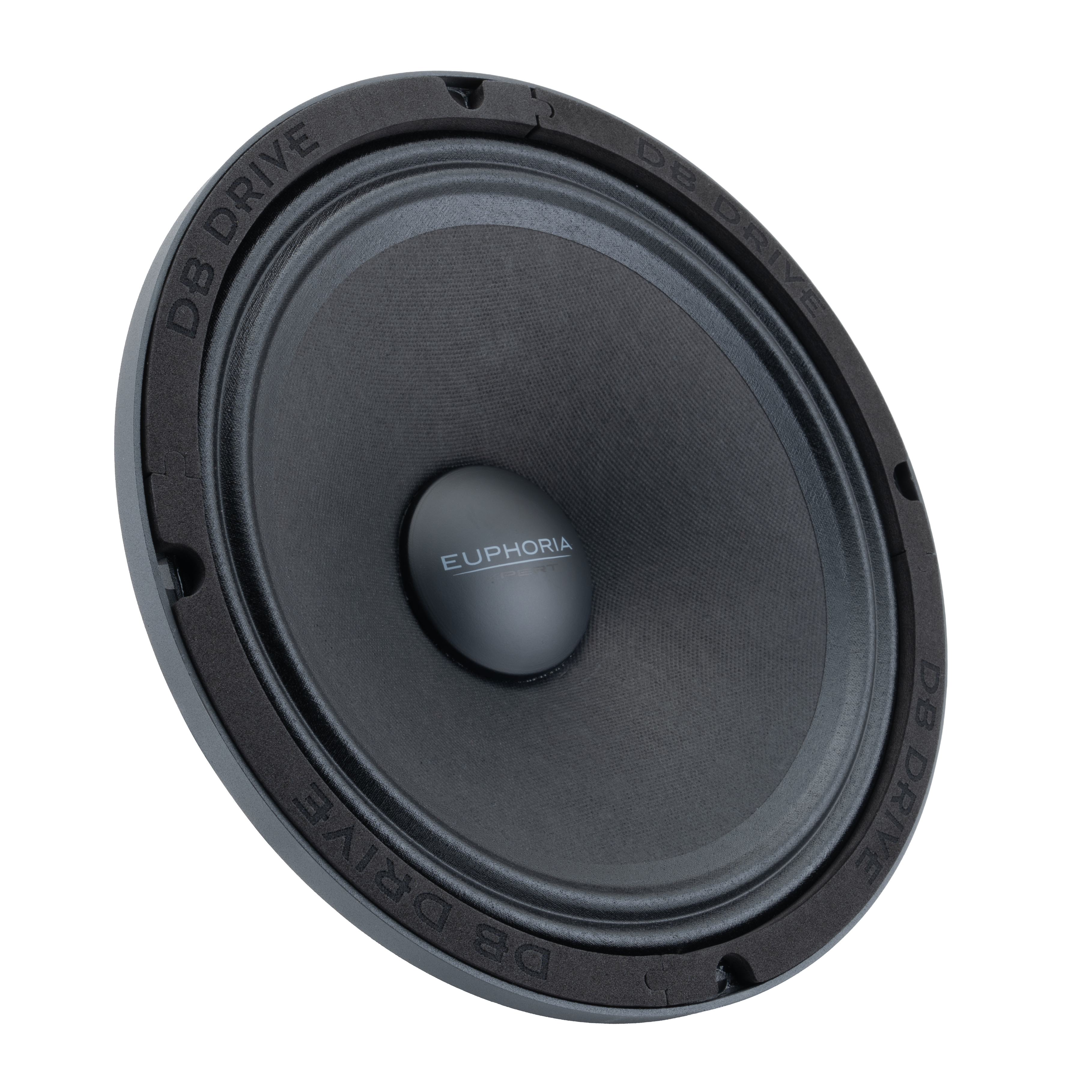

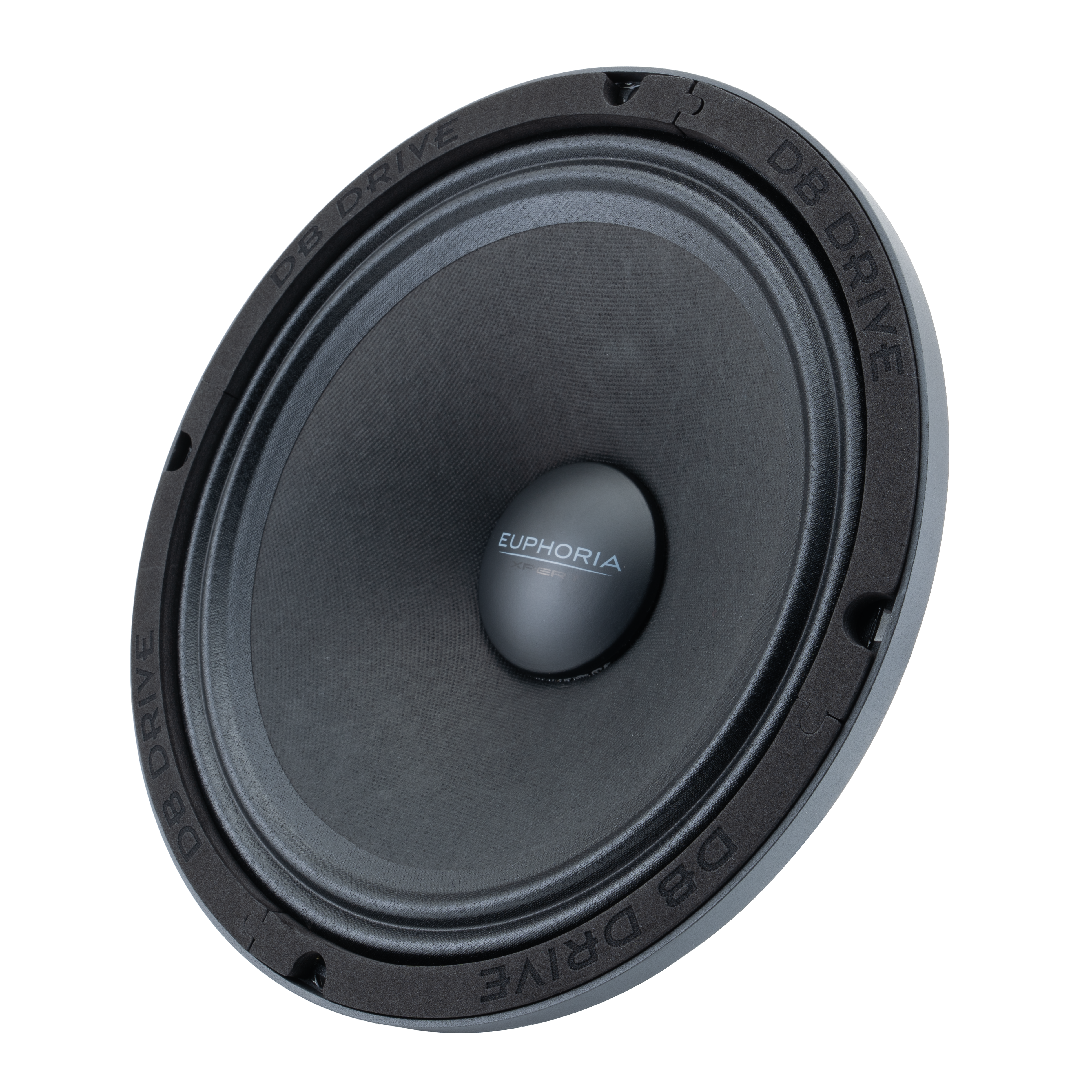

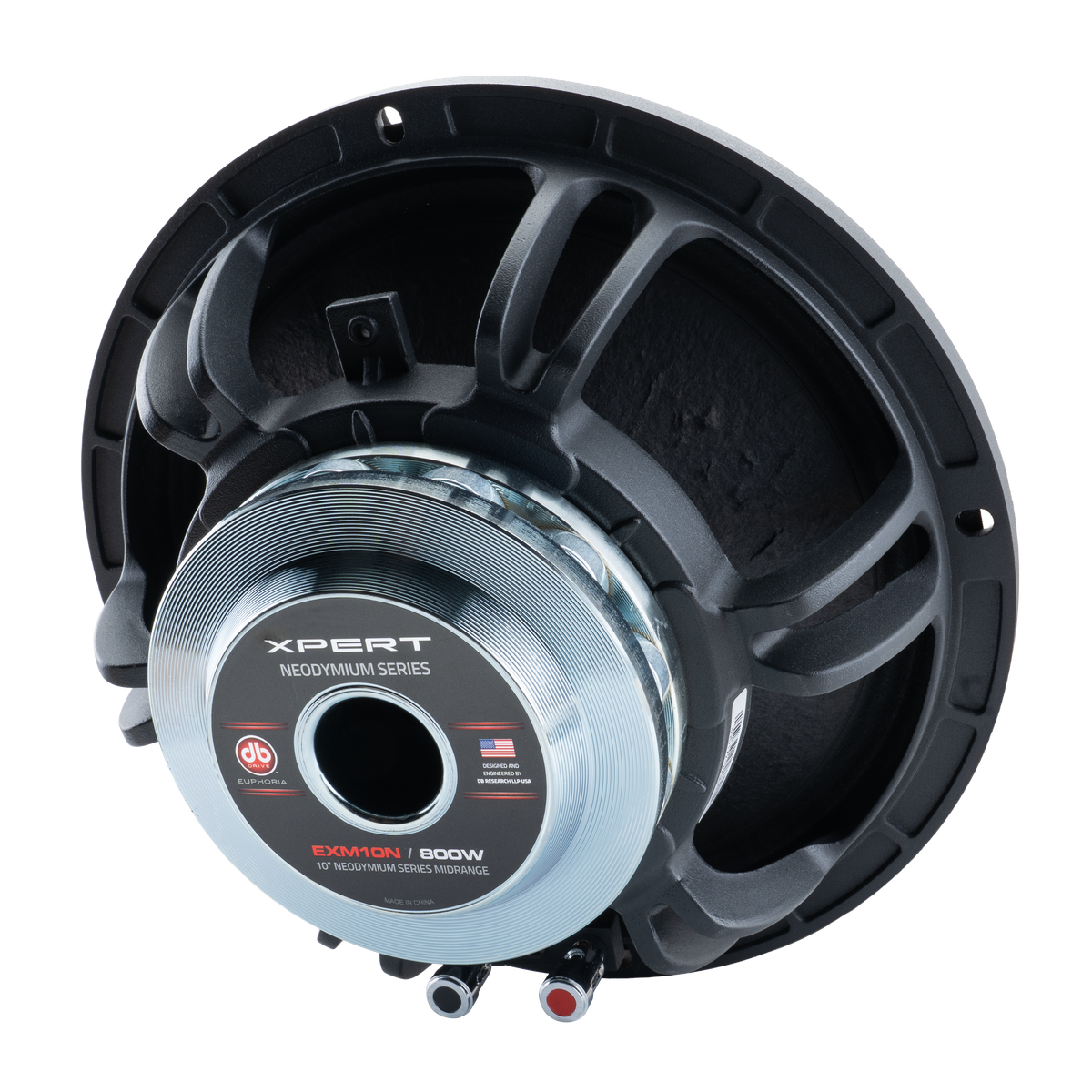

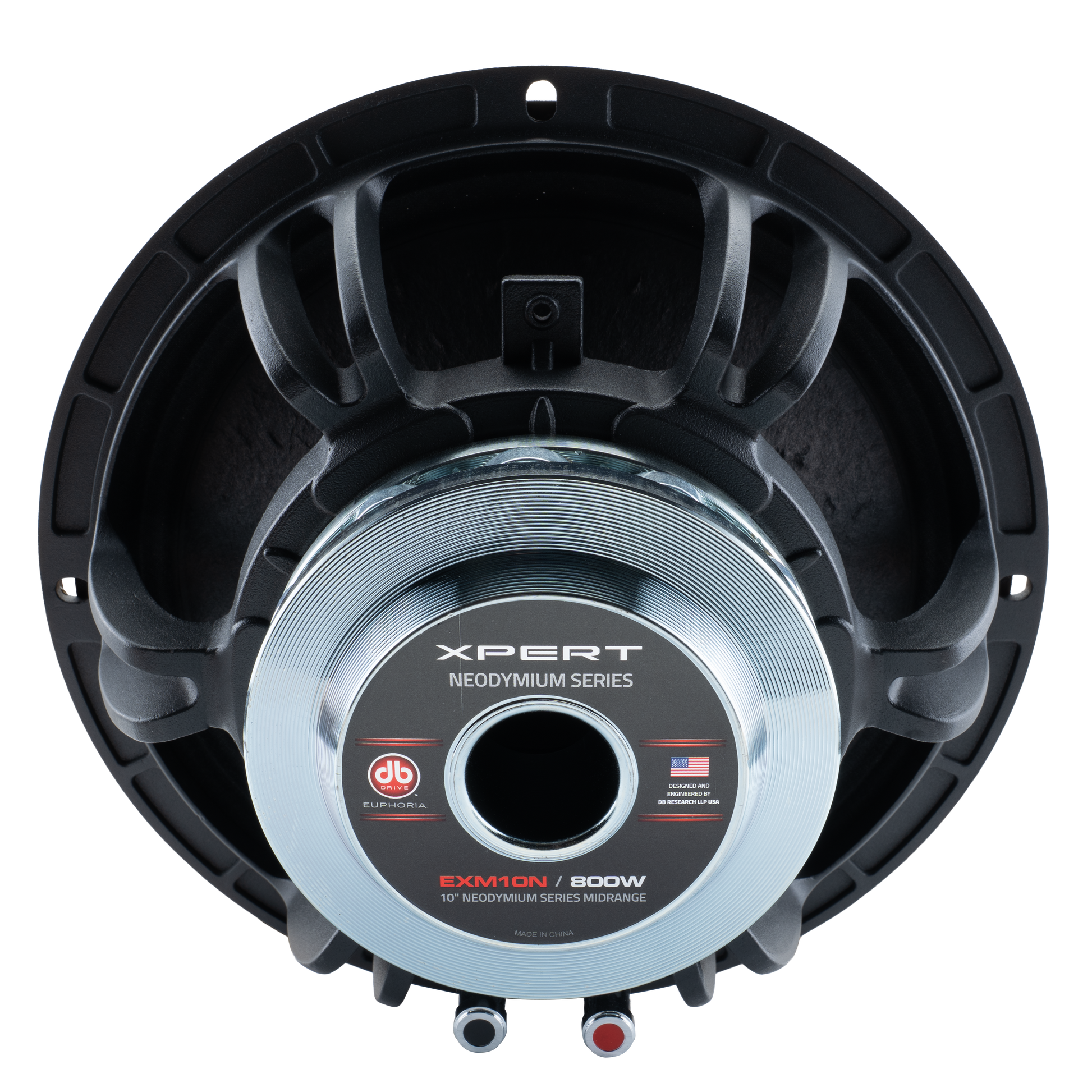

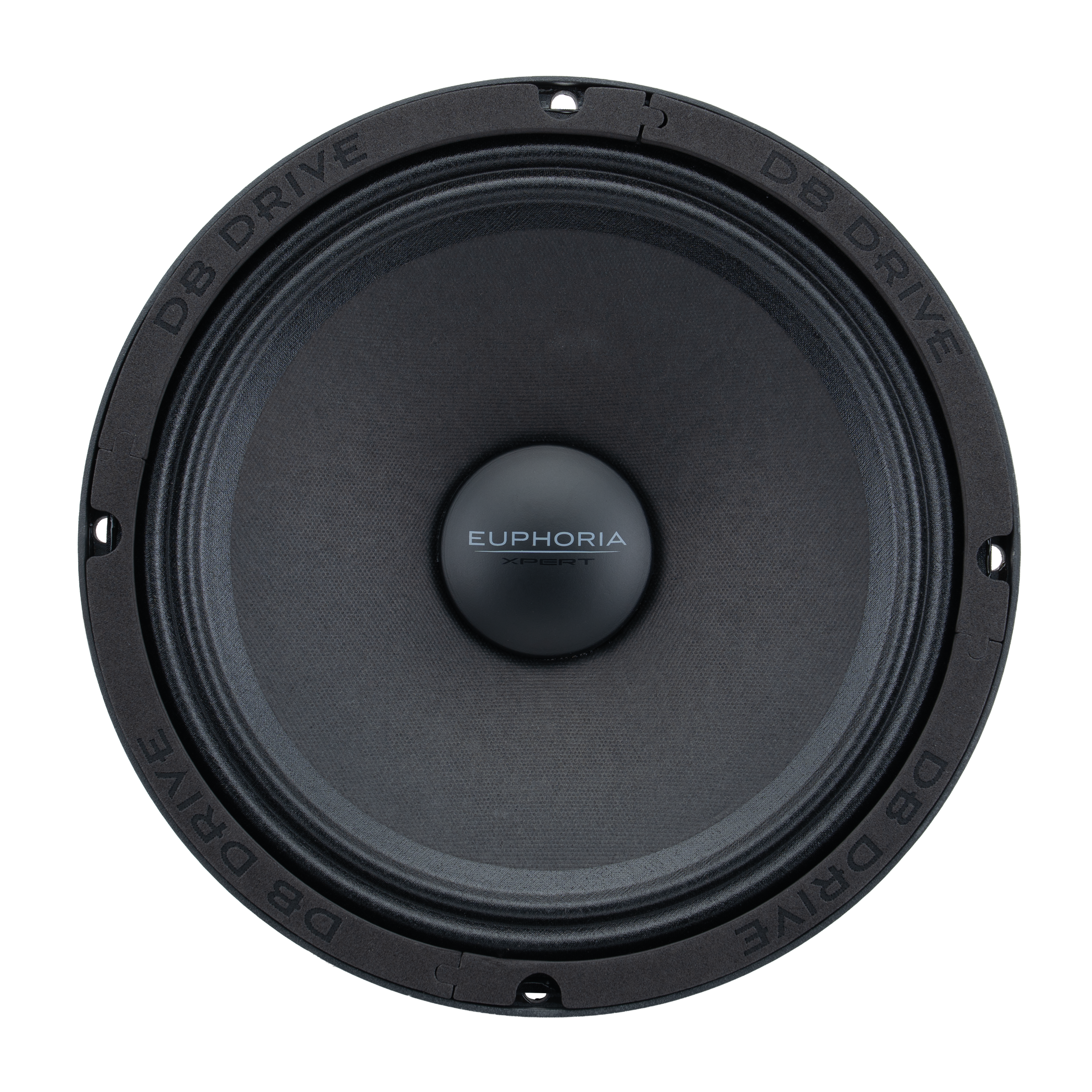

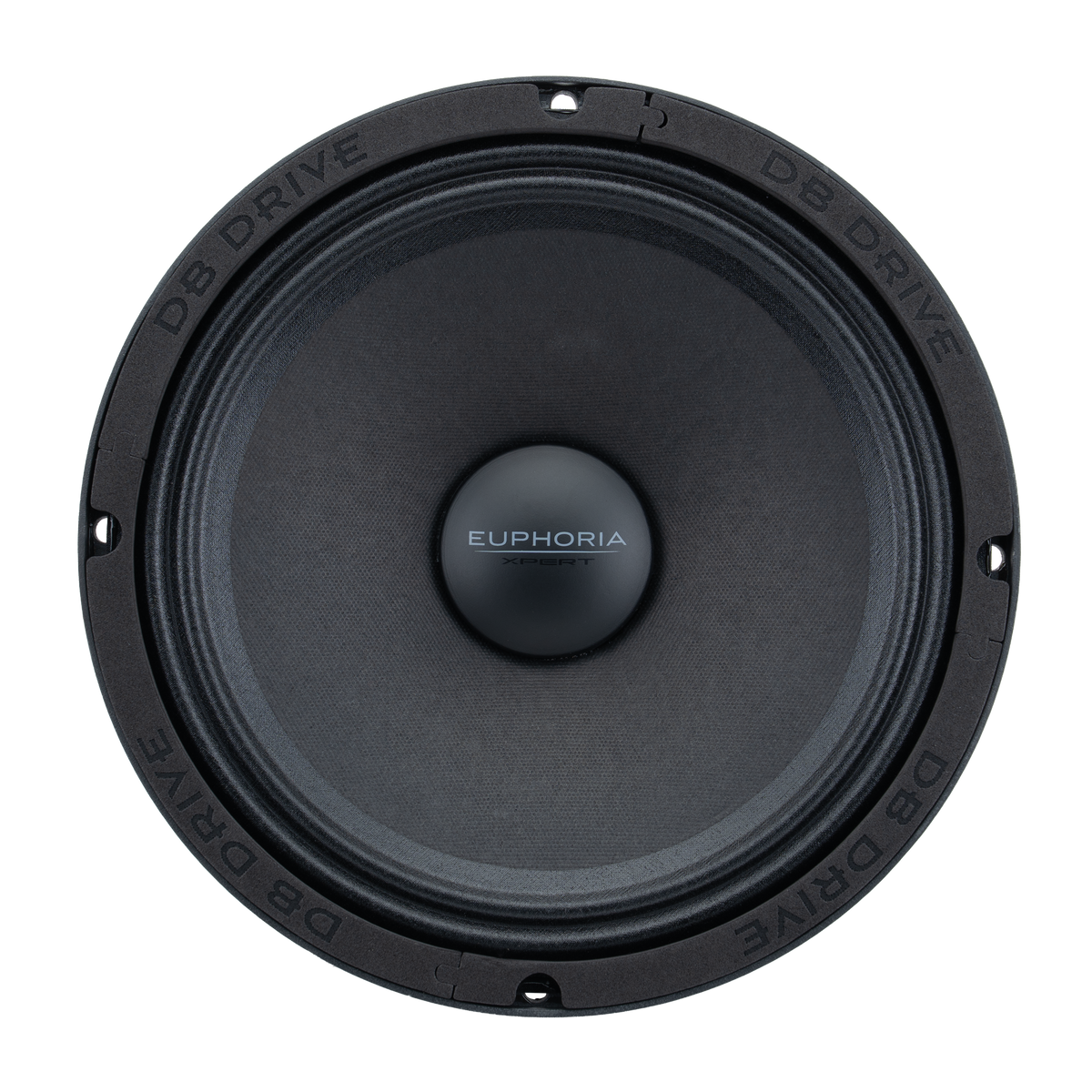

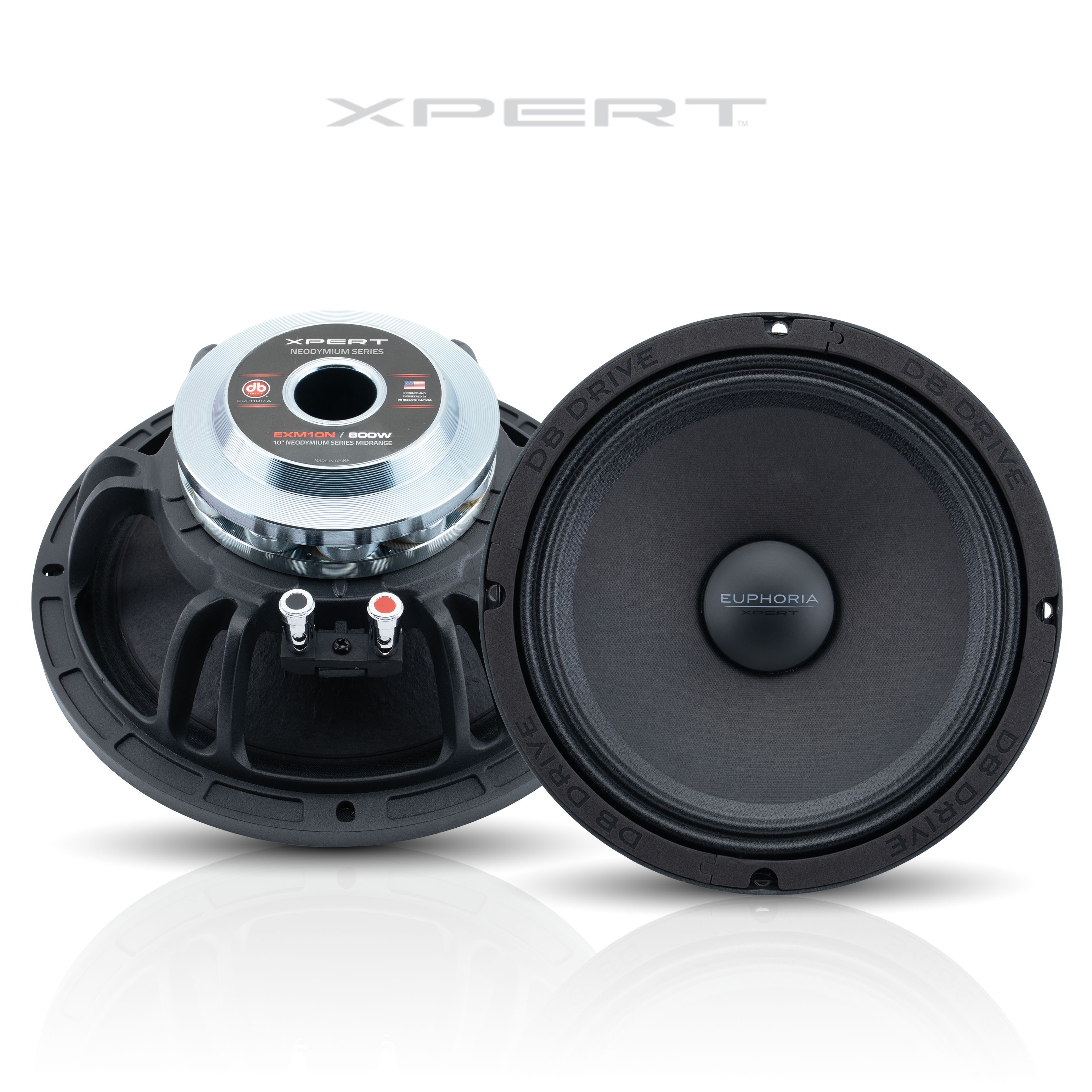

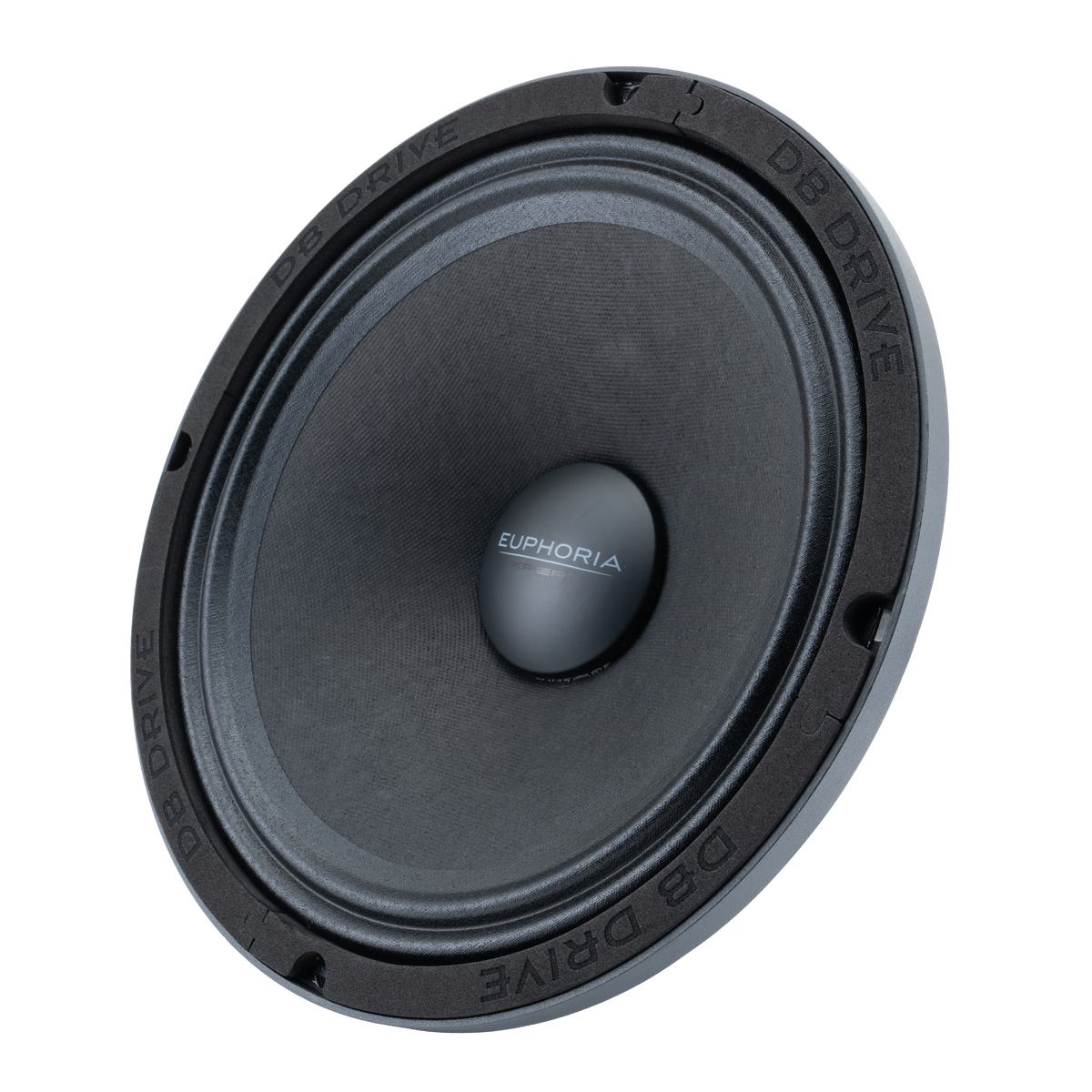

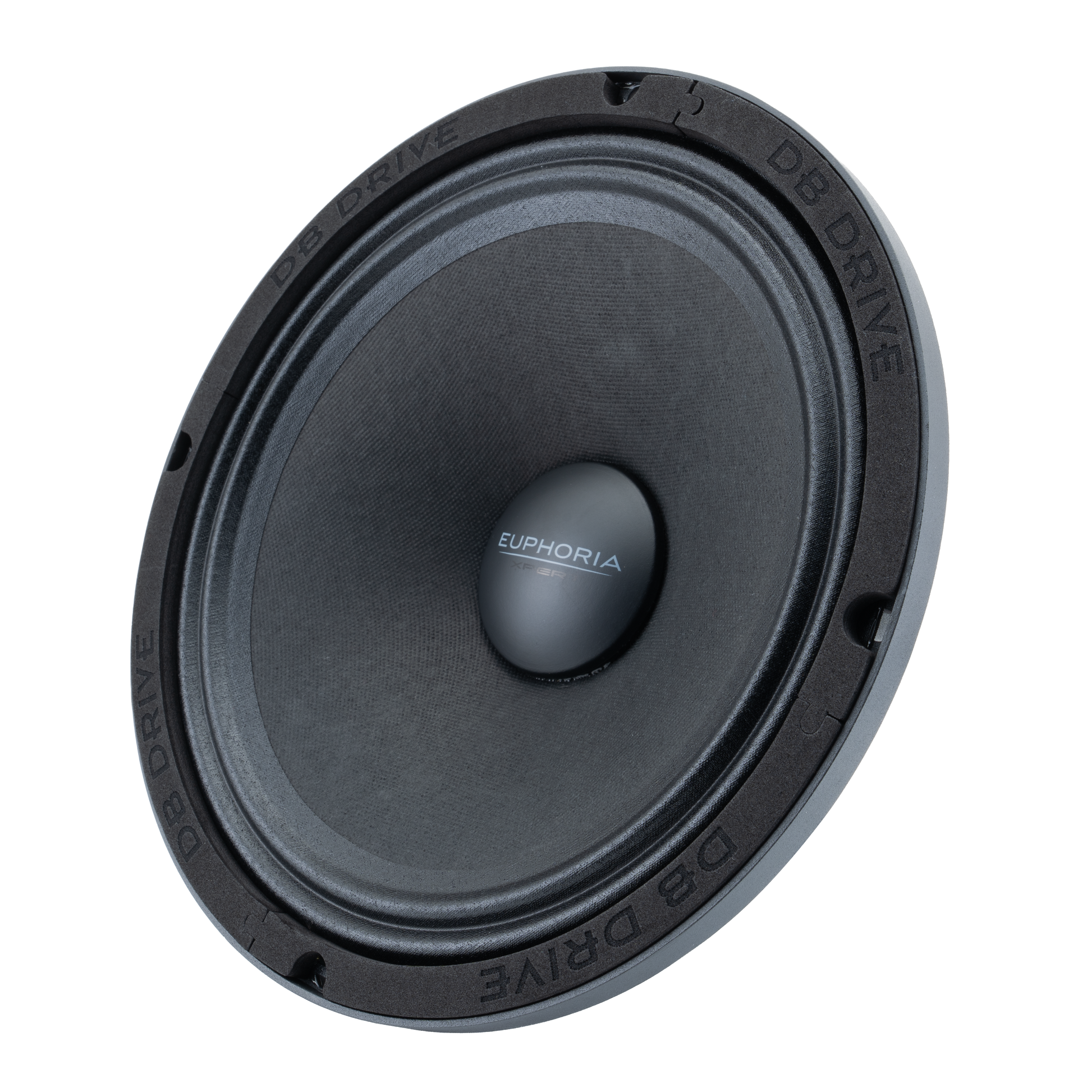

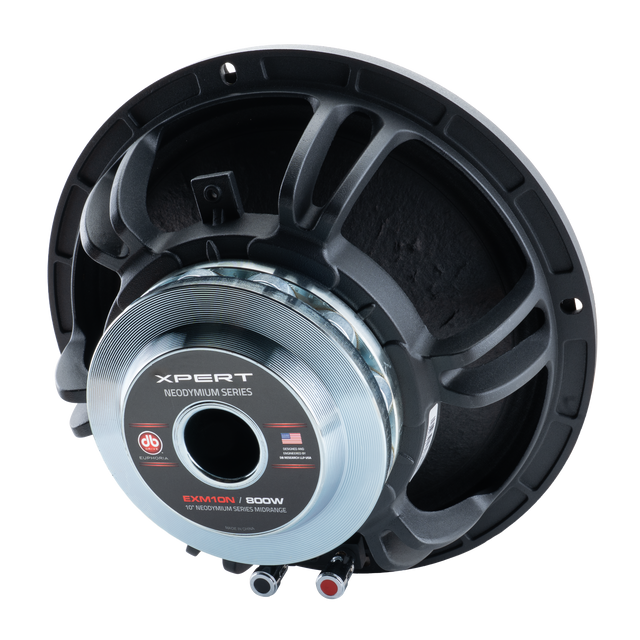

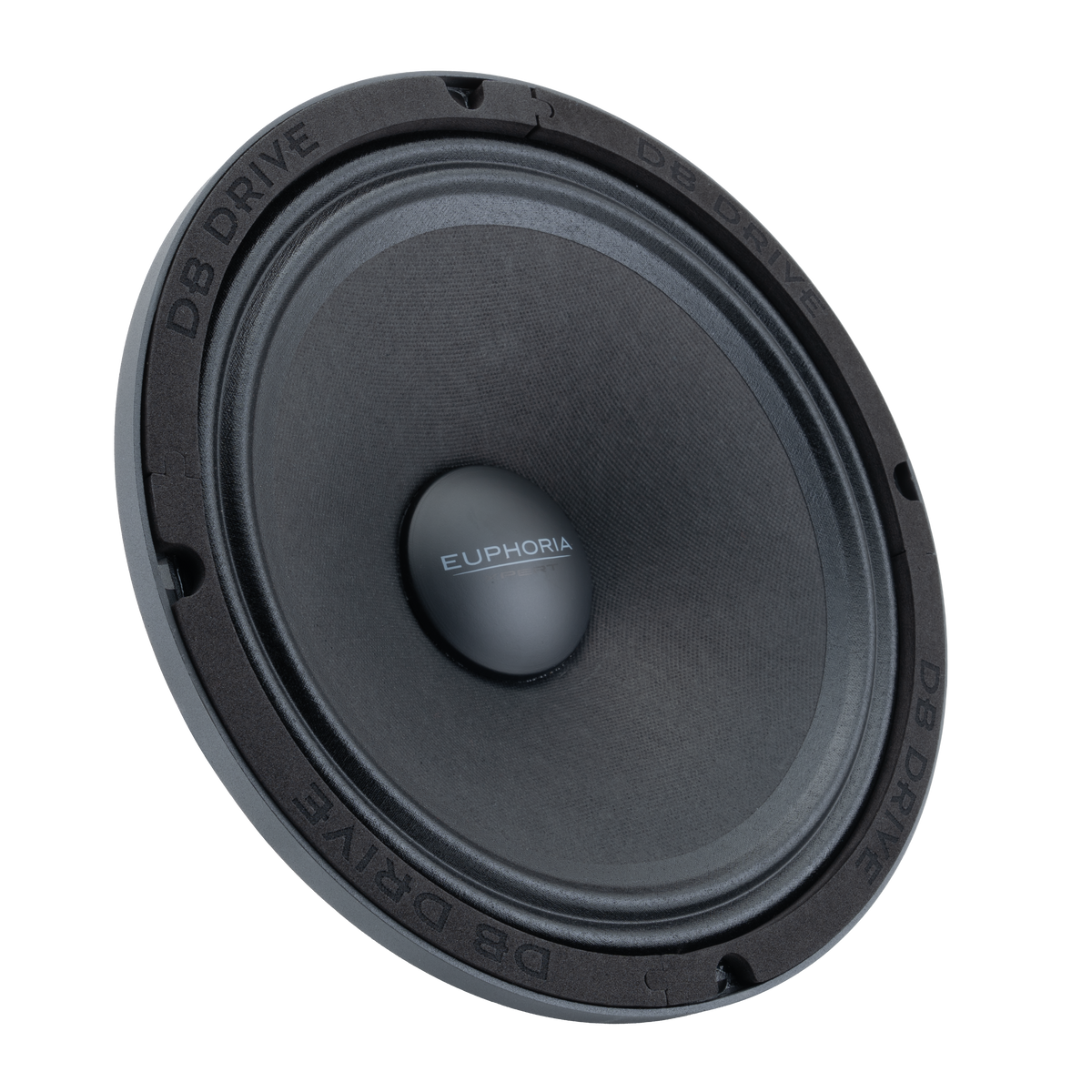

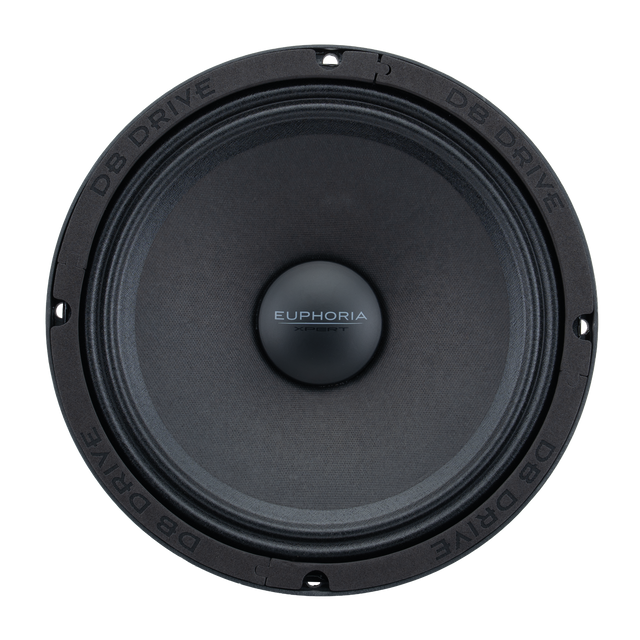

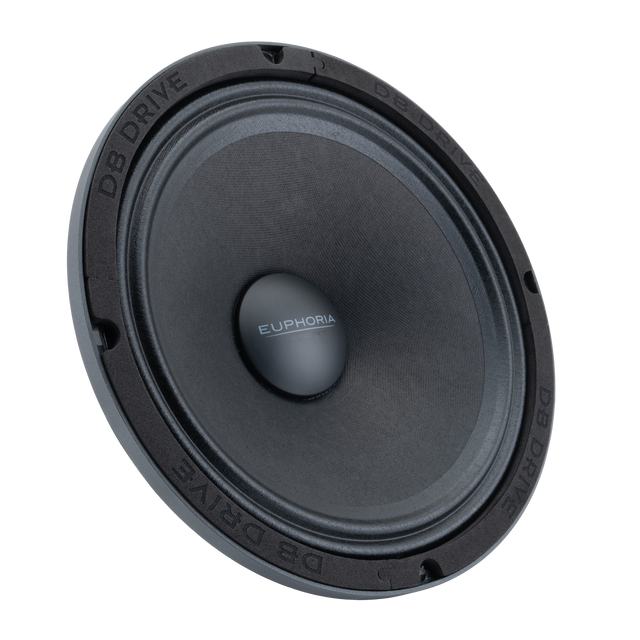

EXM10N : 10" NEO Midrange

EXM10N

10" NEO Midrange

$329.98

Experience sound like never before with the XPERT EXM10N Midrange Speaker! Get ready to transform your audio experience with the XPERT EXM10N Midrange Speaker. This powerhouse features a Neodymium 10 Piece Radially Equalized Magnet Assembly that delivers superior sound quality with a frequency response of 75Hz to 12KHz. Boasting a robust max power of 800 watts and a nominal power of 400 watts, it's designed for those who demand the best. The IP52 Rated Paper Cone with Treated Cloth Surround ensures durability, while the Die-Cast Aluminum Basket with Radial Venting keeps things cool even during high performance. Whether you're an audiophile or just looking to elevate your sound system, the XPERT EXM10N is your go-to for clear, precise, and powerful midrange sound. Discover the difference with XPERT!

ADD TO CART

Financing Options Available at Checkout

What Makes it UNIQUE?

Feature#1

Feature#4

Feature#2

Feature#5

Feature#3

Feature#6

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer nec odio. Praesent libero. Sed cursus ante dapibus diam. Sed nisi. Nulla quis sem at nibh elementum imperdiet.

2.5″ (63.5mm) Voice Coil
Provides reliable power handling and efficient heat dissipation for consistent, high-output sound performance.

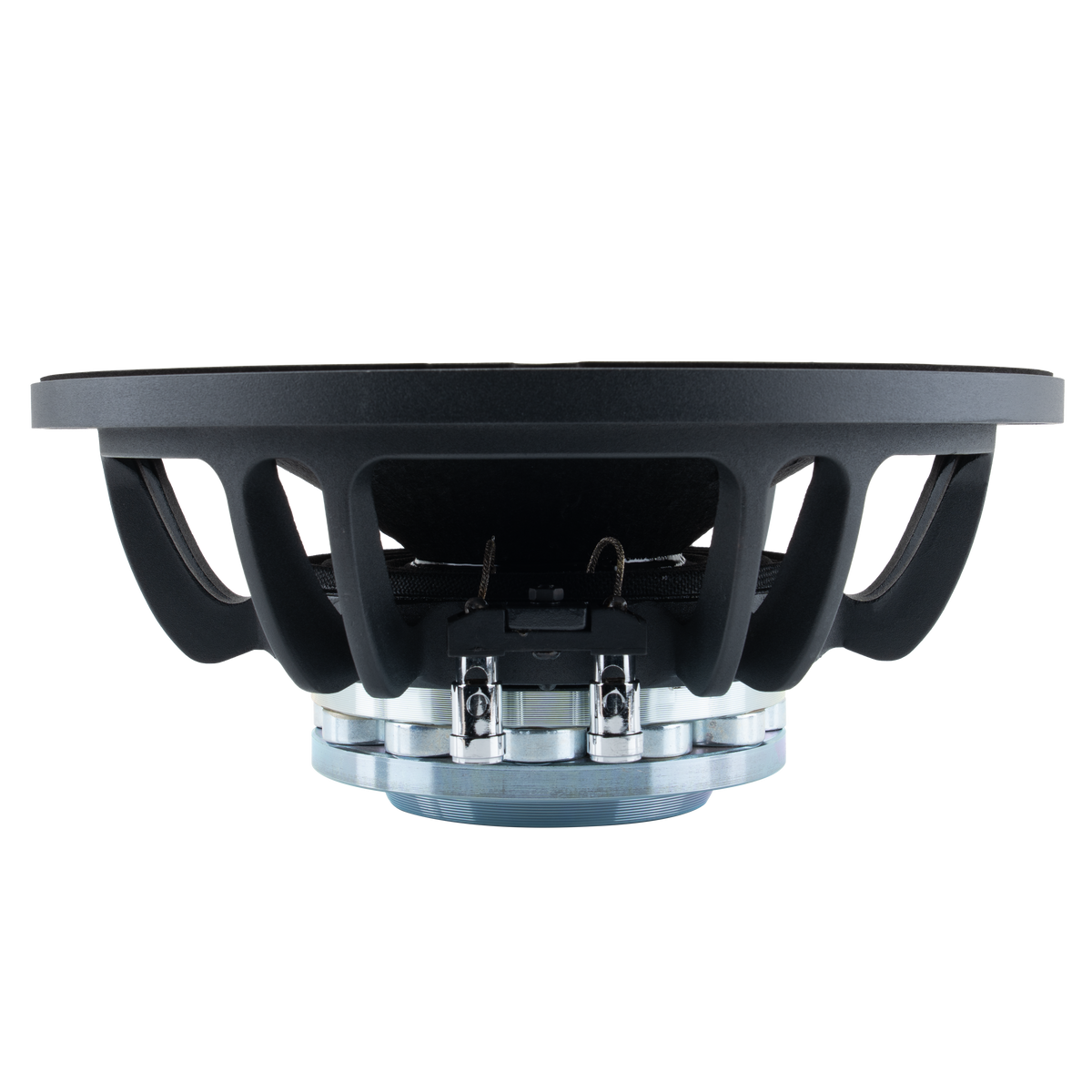

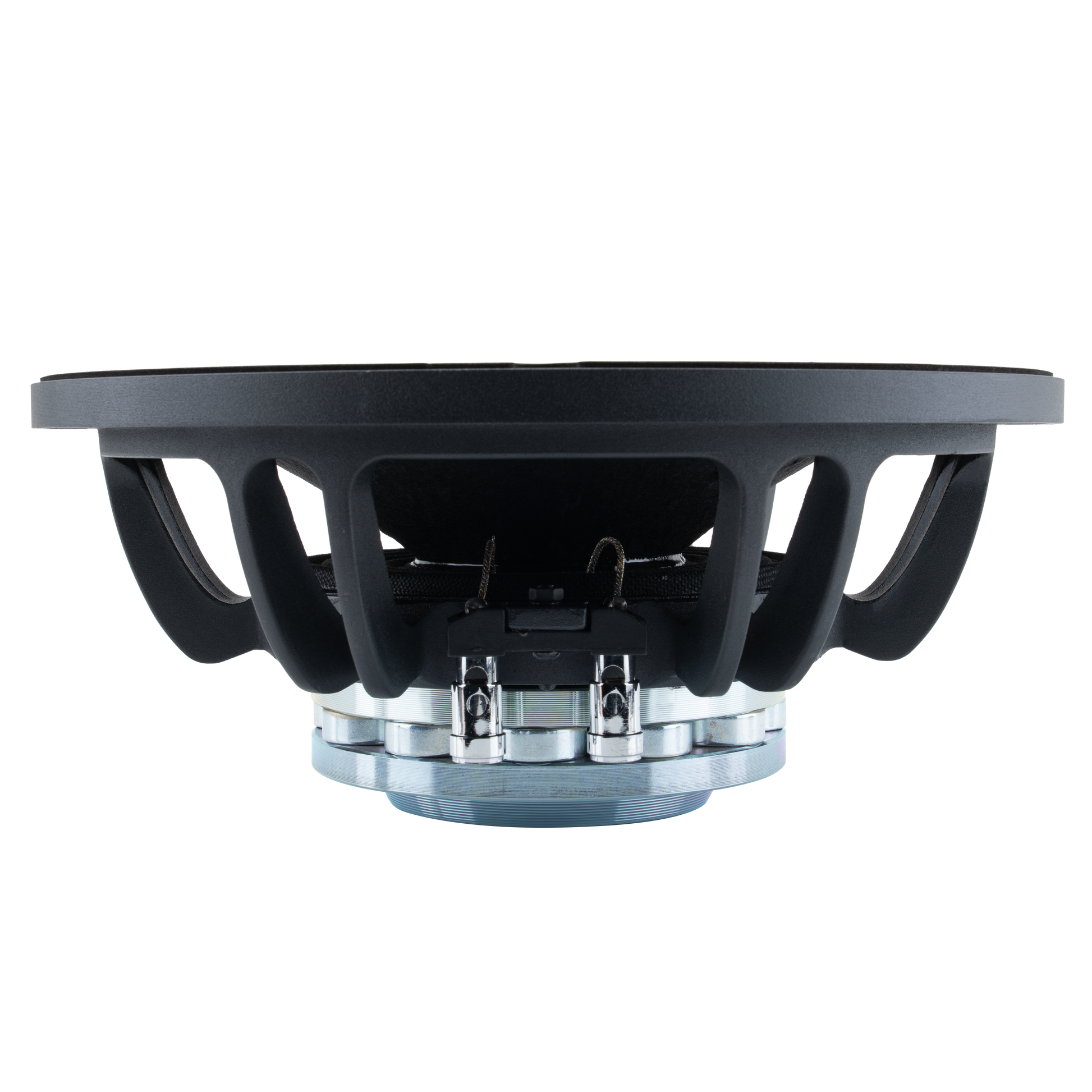

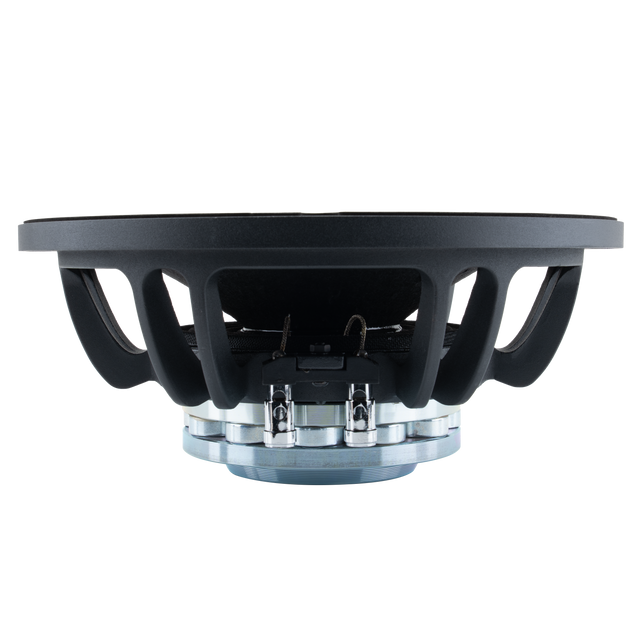

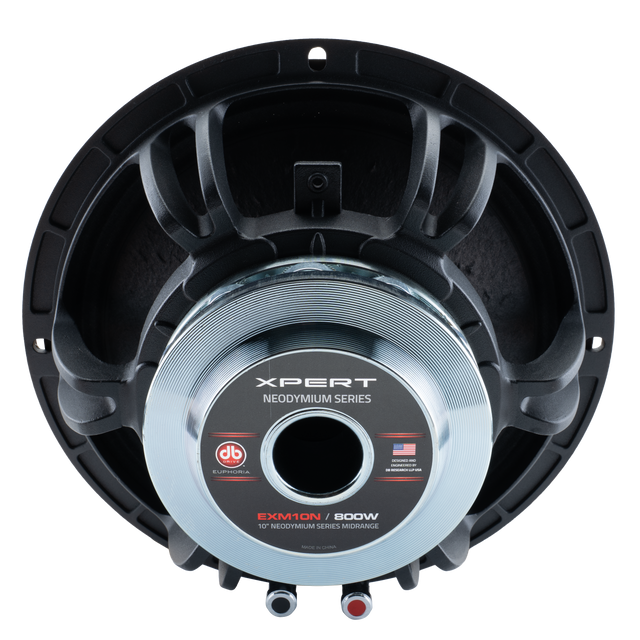

Die-Cast Aluminum Basket with Radial Venting
Delivers rigid structural support while promoting airflow for improved heat dissipation.

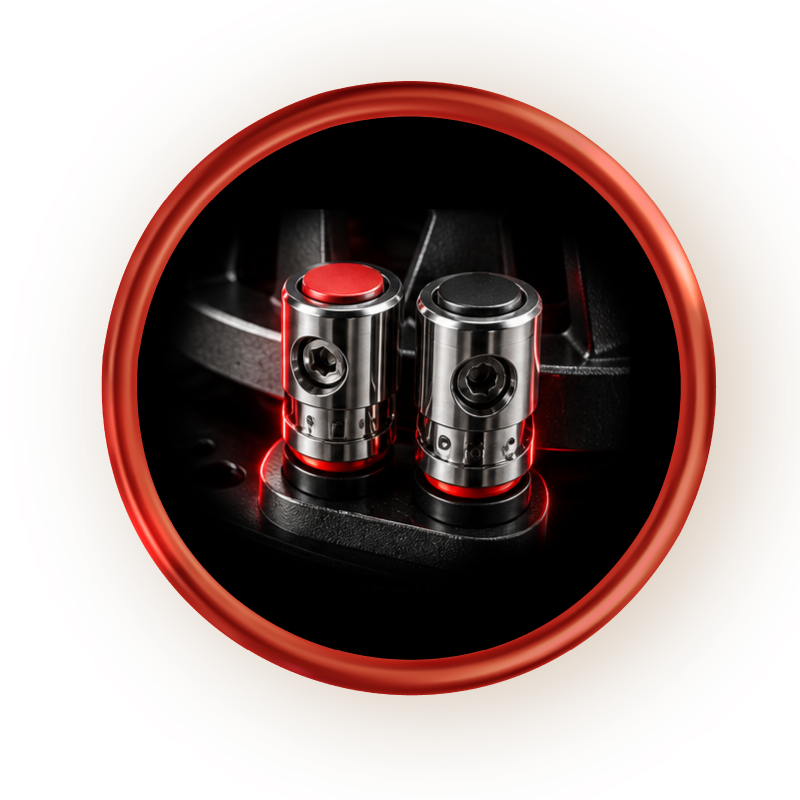

Compression Speaker Terminals
Compression speaker terminals create a secure wire connection for dependable signal transfer and reliable performance during installation and use.
Treated Cloth Surround
Provides flexibility and durability while supporting controlled cone movement for accurate sound reproduction.
Neodymium Magnet Assembly
Generates a strong magnetic field in a compact, lightweight design for efficient driver control and dynamic performance.
IP52 Rated Paper Cone
Delivers natural, balanced sound reproduction with protection against limited dust ingress and light water exposure.

Resonant Frequency (fs)	71.7Hz
D.C. Voice Coil Resistance (Re)	3.2Ω
Mechanical Quality Factor (Qms)	2.2
Electrical Quality Factor (Qes)	0.44
Total Quality Factor (Qts)	0.37
Compliance Equivalent Volume (Vas)	38.1L
Mechanical Compliance (Cms)	0.22 mm/N
Nominal Impedance	4Ω
Power Handling	400 Watts
Dynamic Wattage	800 Watts
Sensitivity (1w/1m)	102.1 dB
Voice Coil Diameter	2.5″ (63.5mm)

EXM10N

10" NEO Midrange

$329.98

What Makes it UNIQUE?

Feature#1

Feature#4

Feature#2

Feature#5

Feature#3

Feature#6

2.5″ (63.5mm) Voice Coil

Die-Cast Aluminum Basket with Radial Venting

Compression Speaker Terminals

Treated Cloth Surround

Neodymium Magnet Assembly

IP52 Rated Paper Cone

Features

Specification

Description

Product Manual

Recone Available
