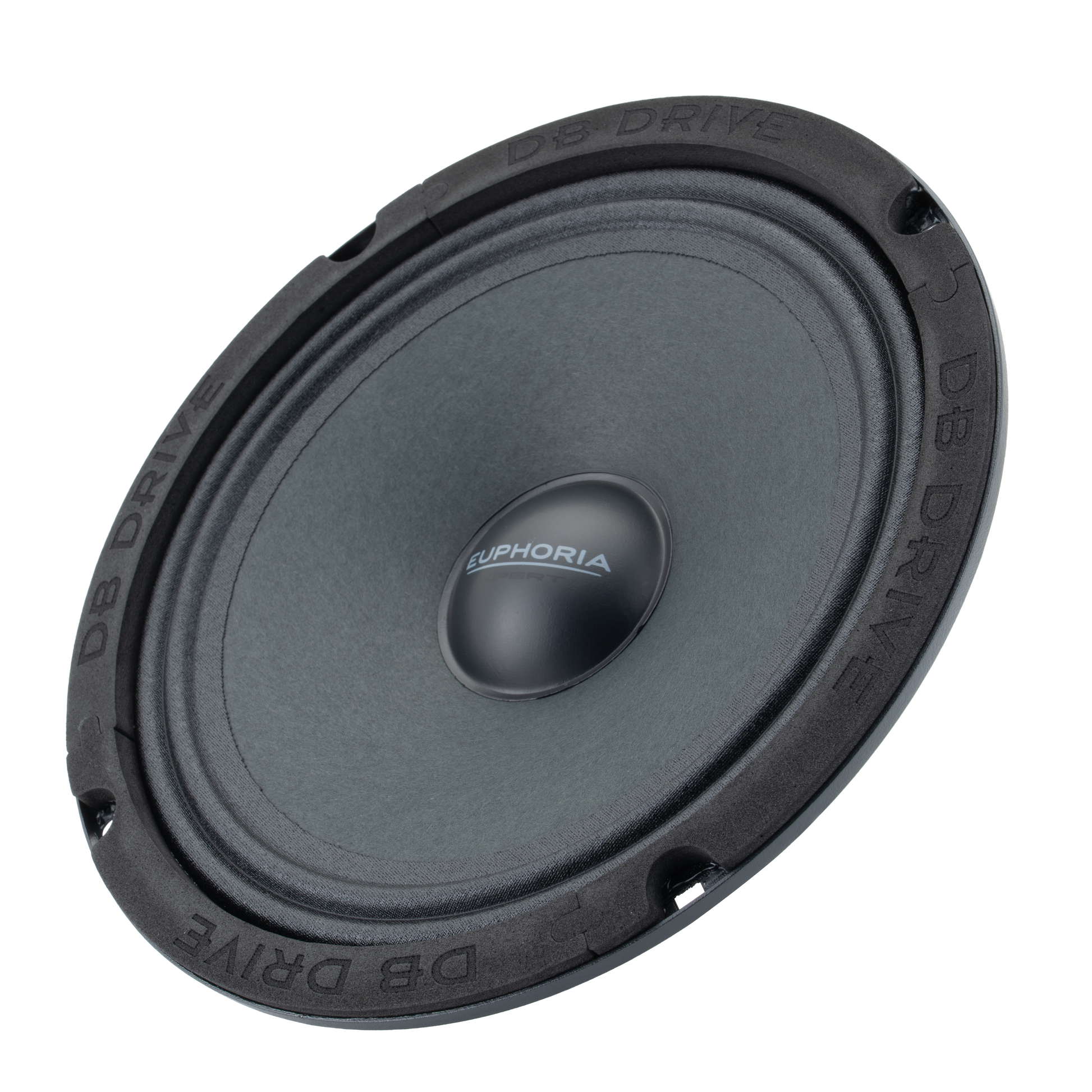

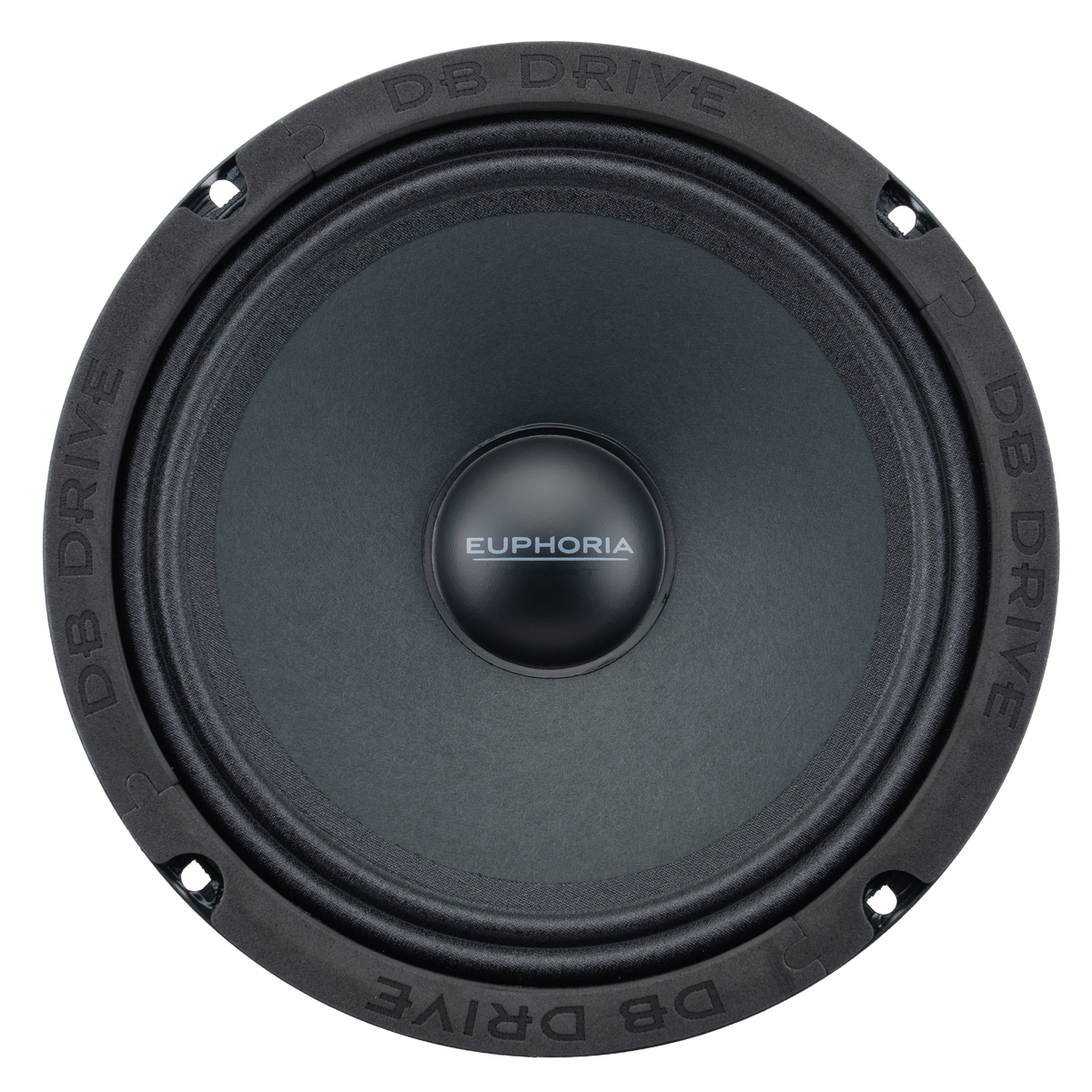

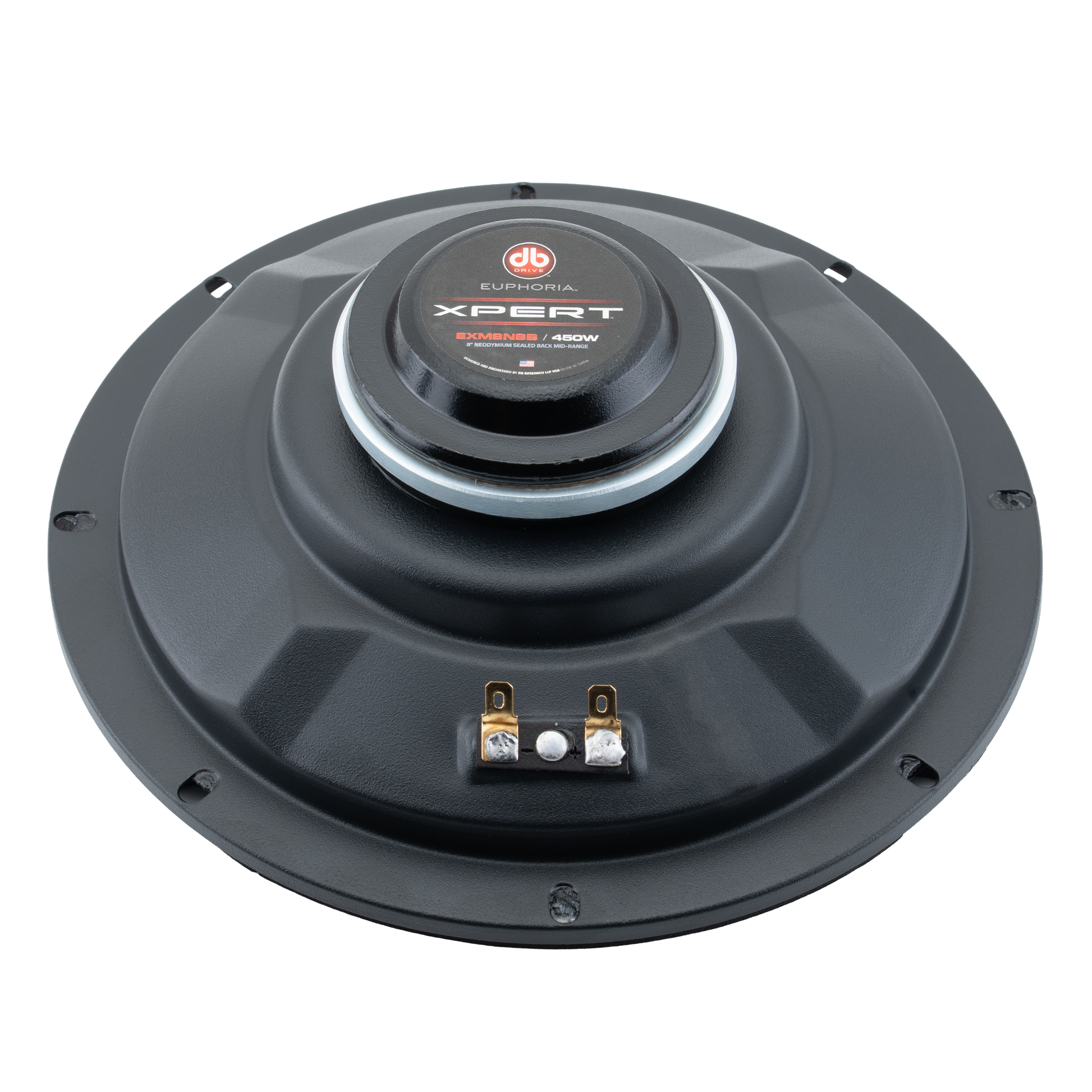

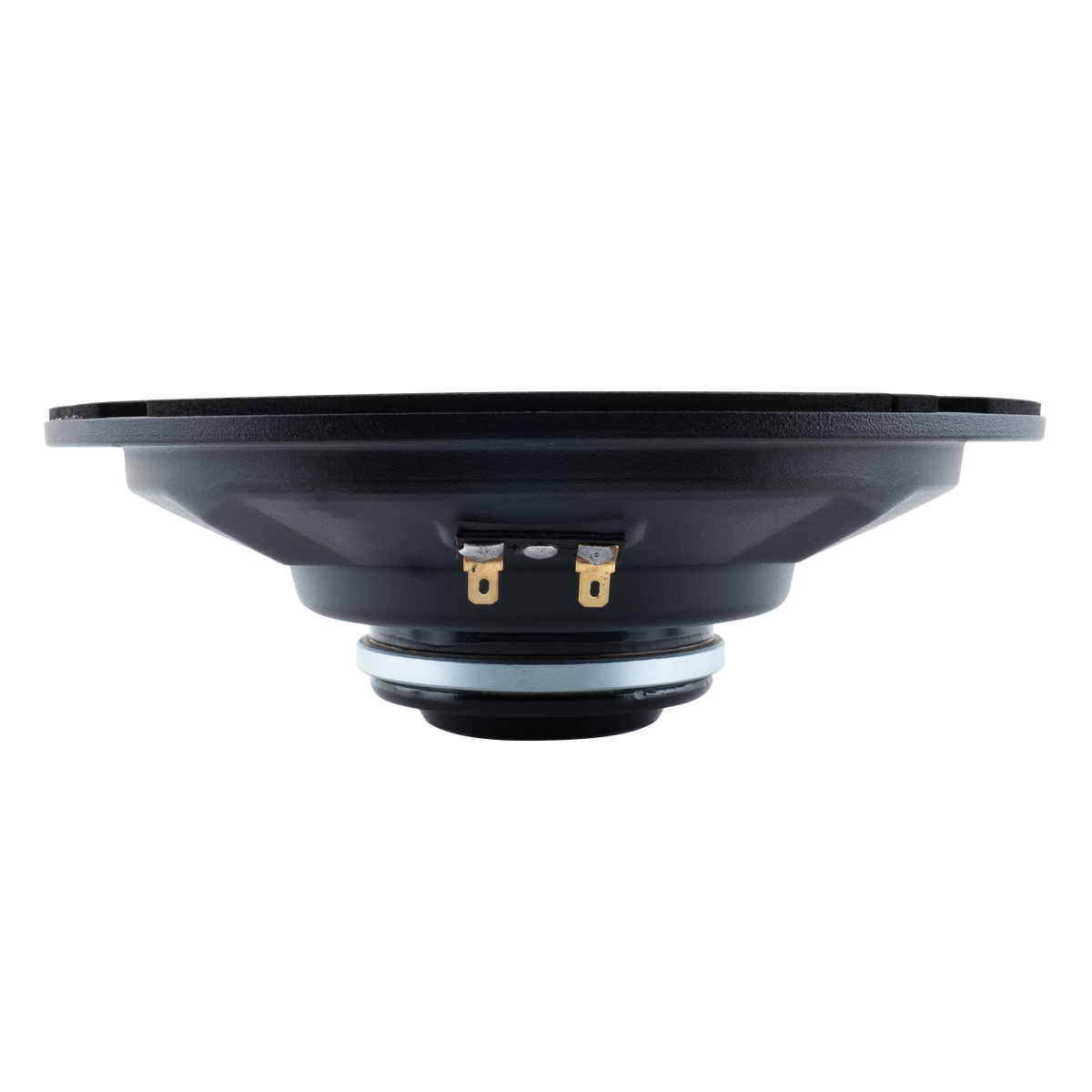

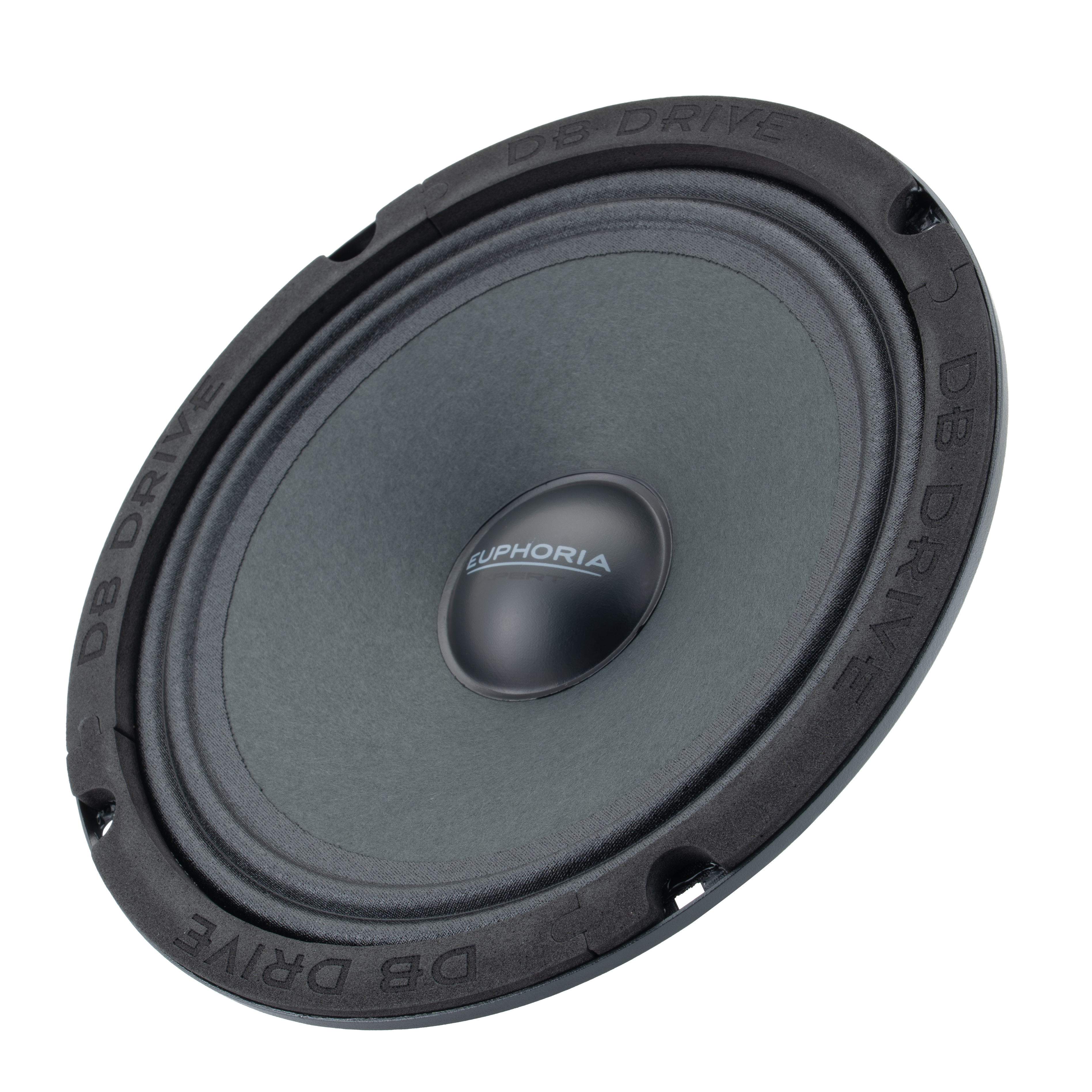

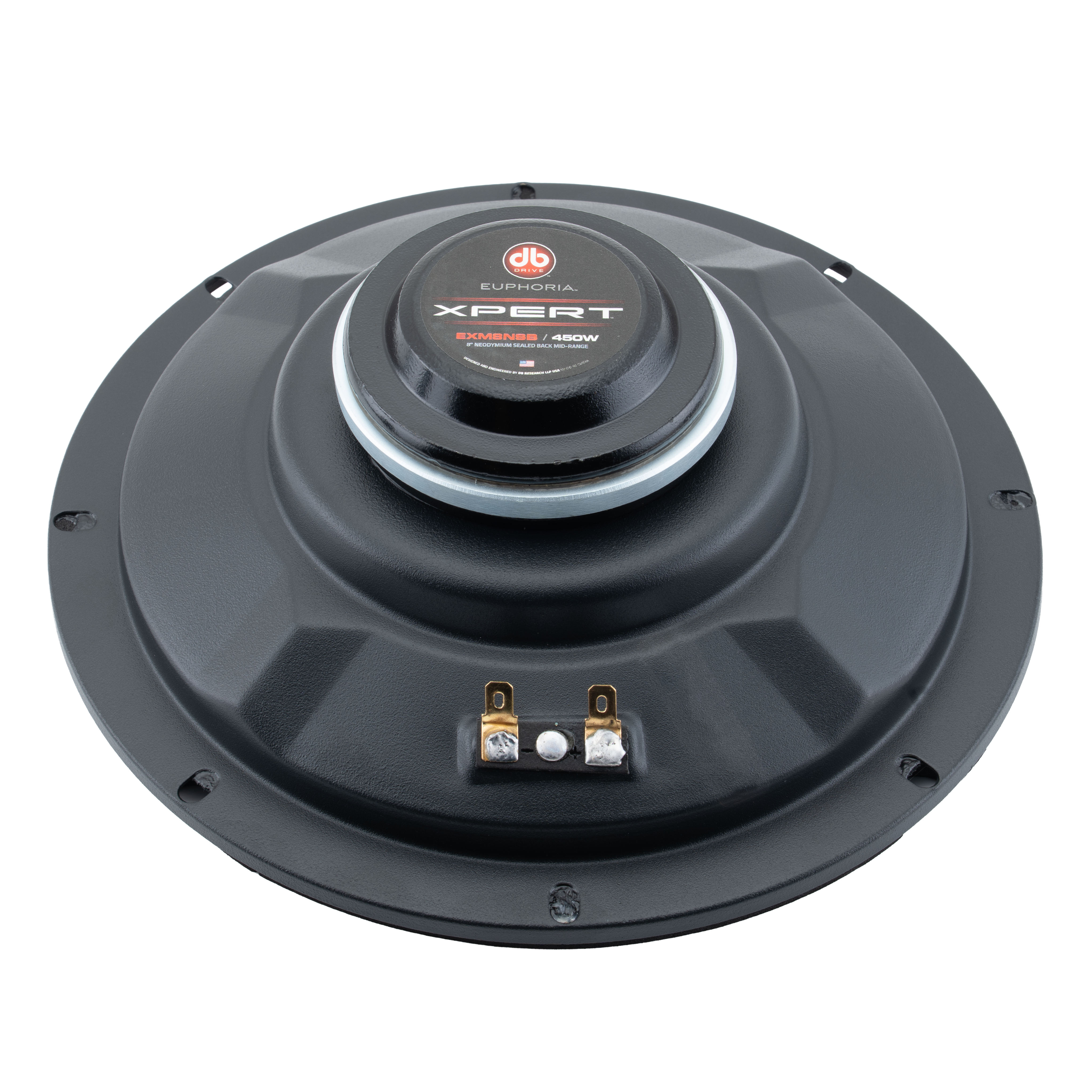

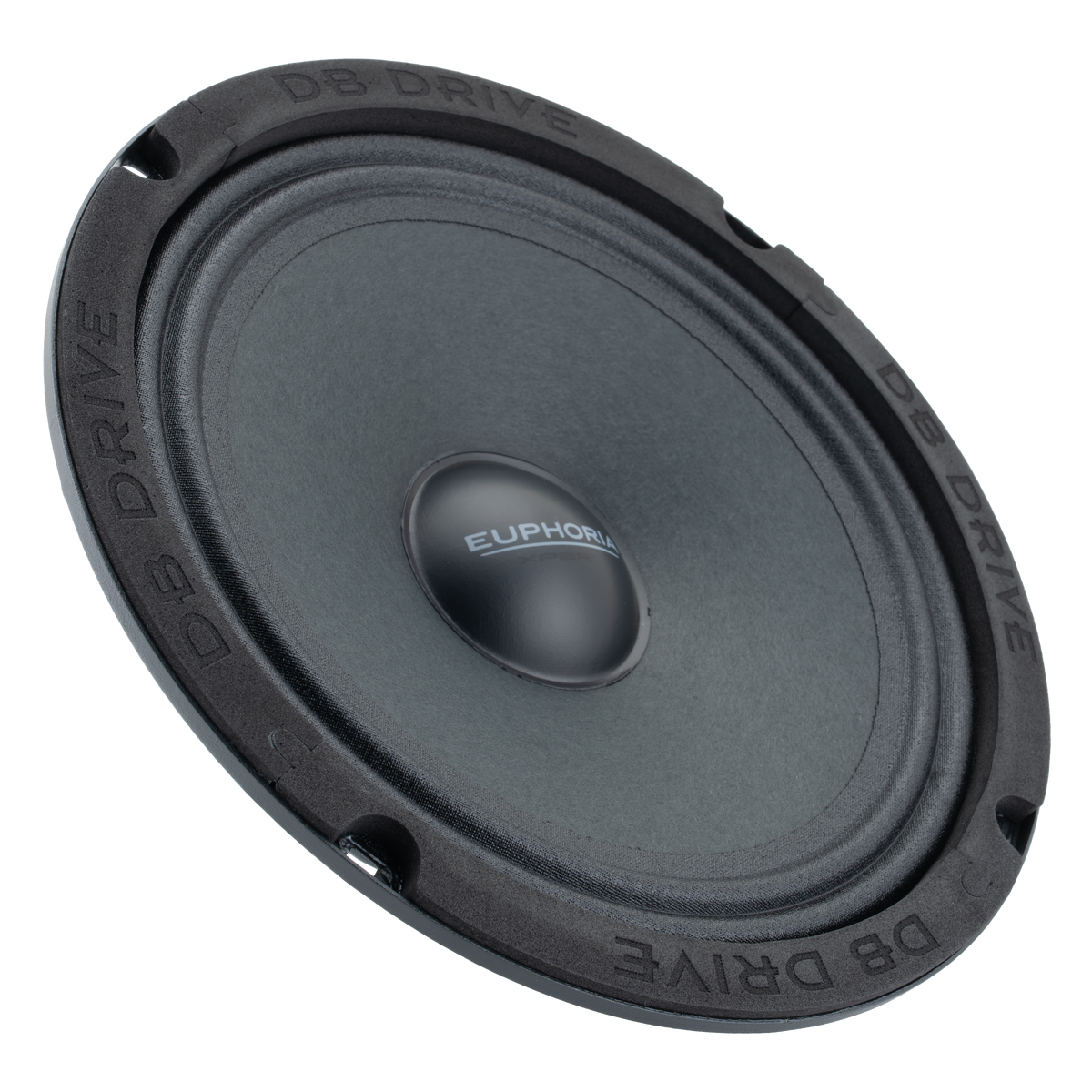

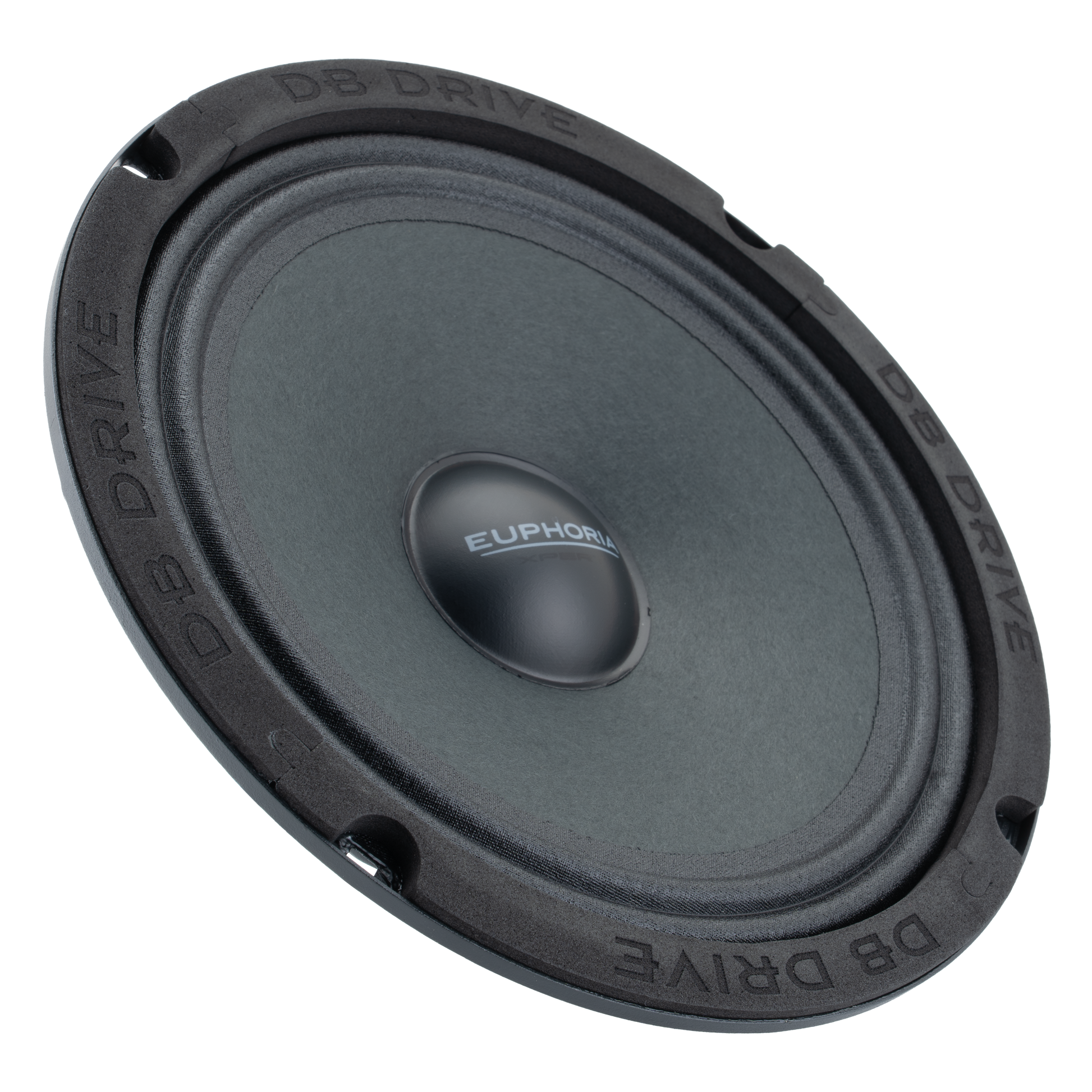

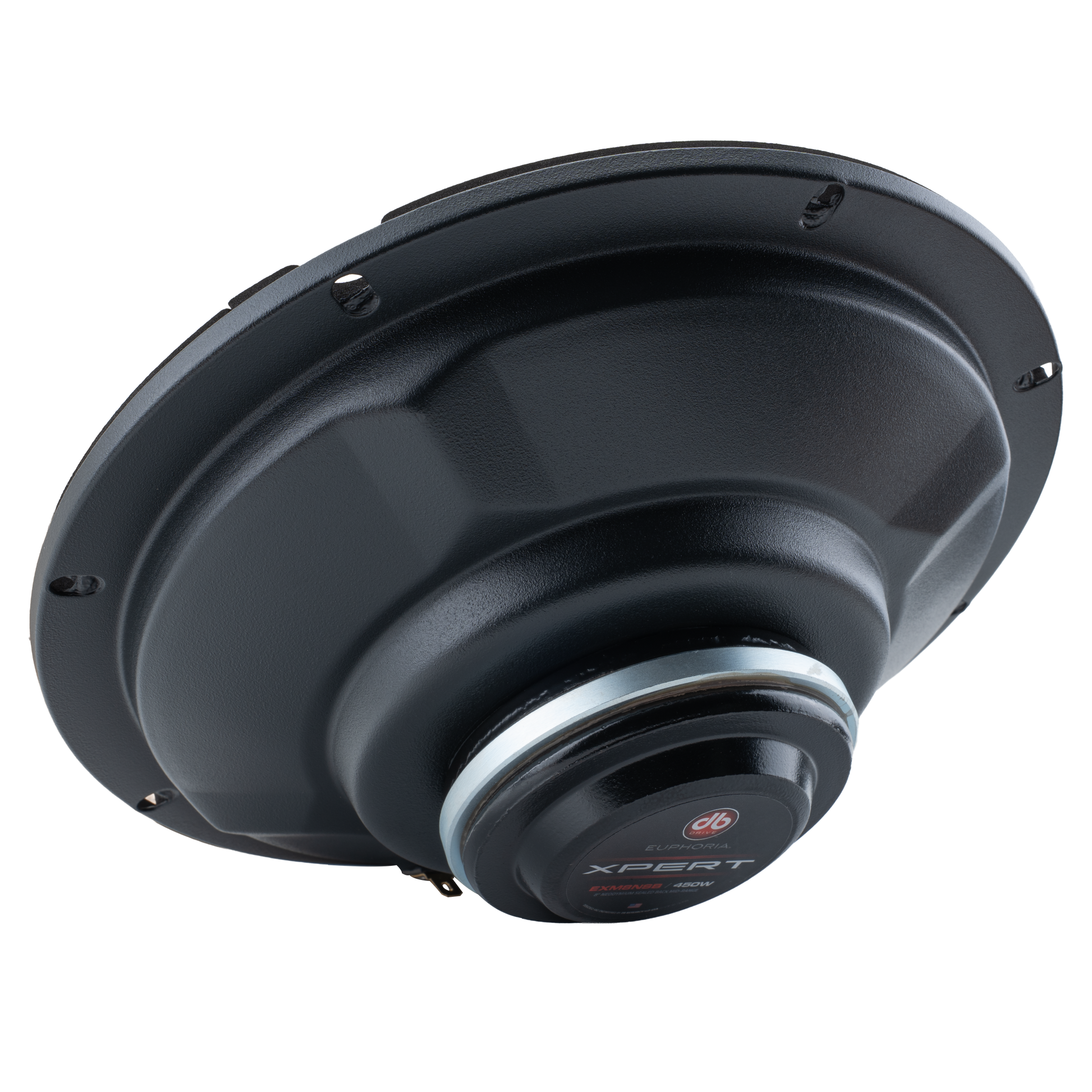

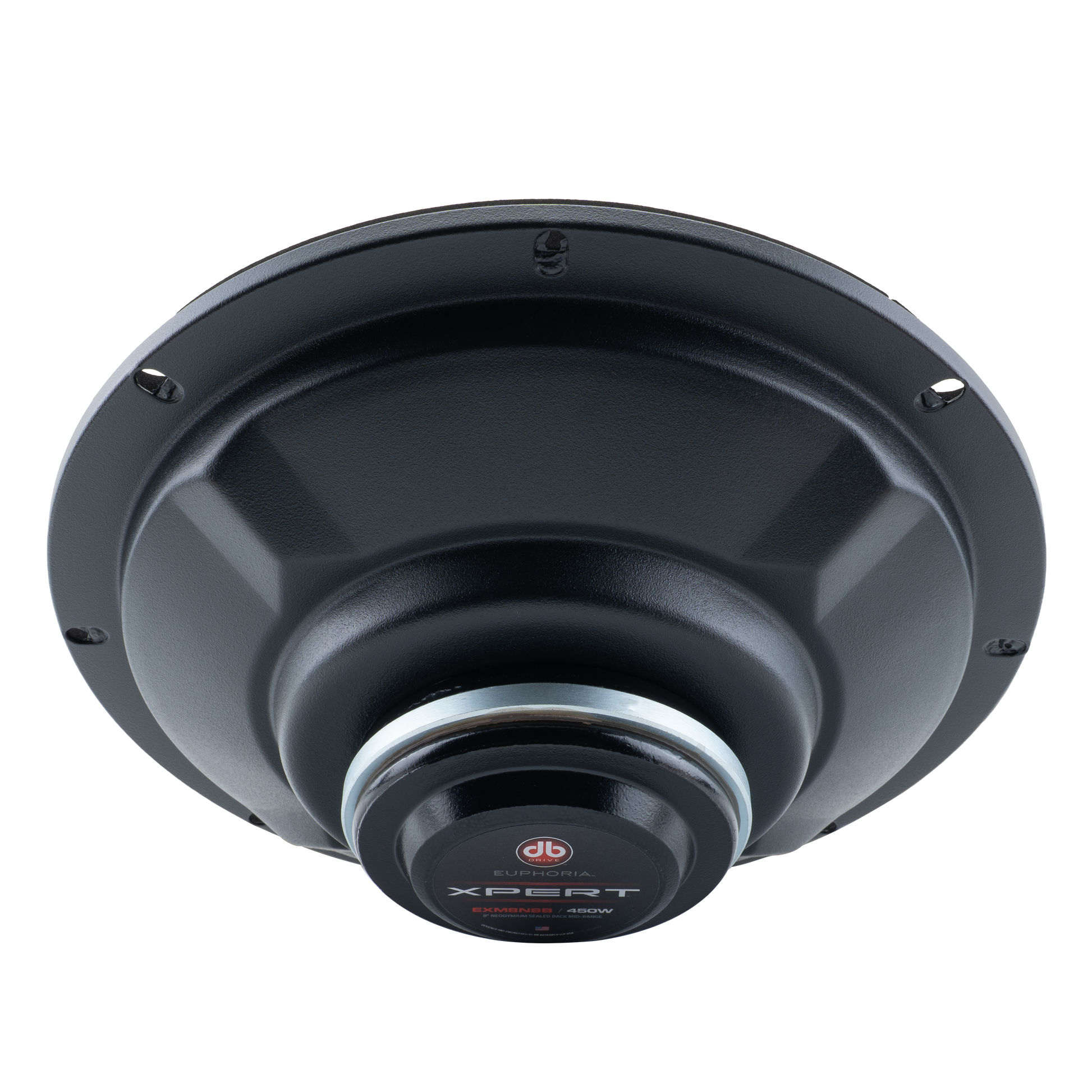

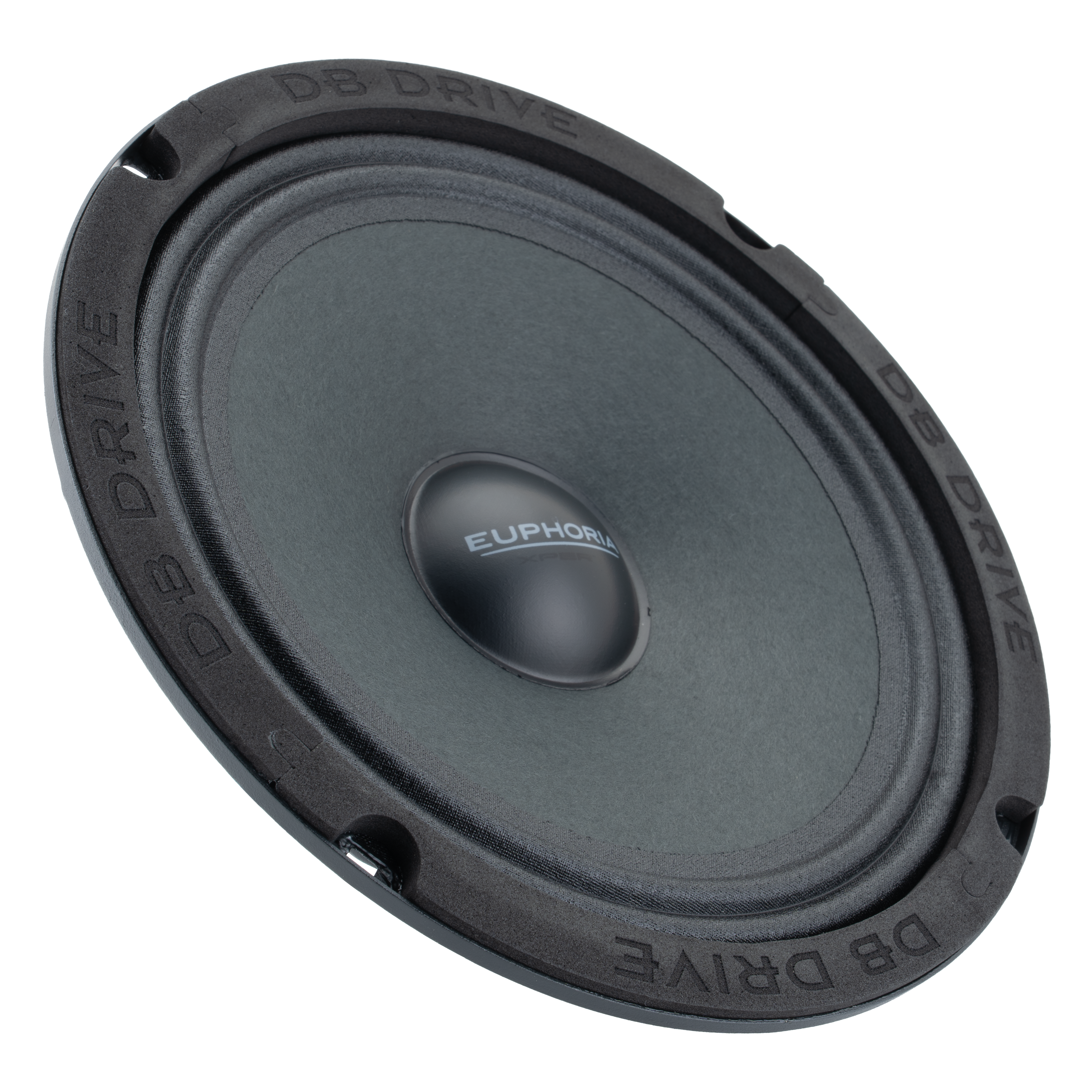

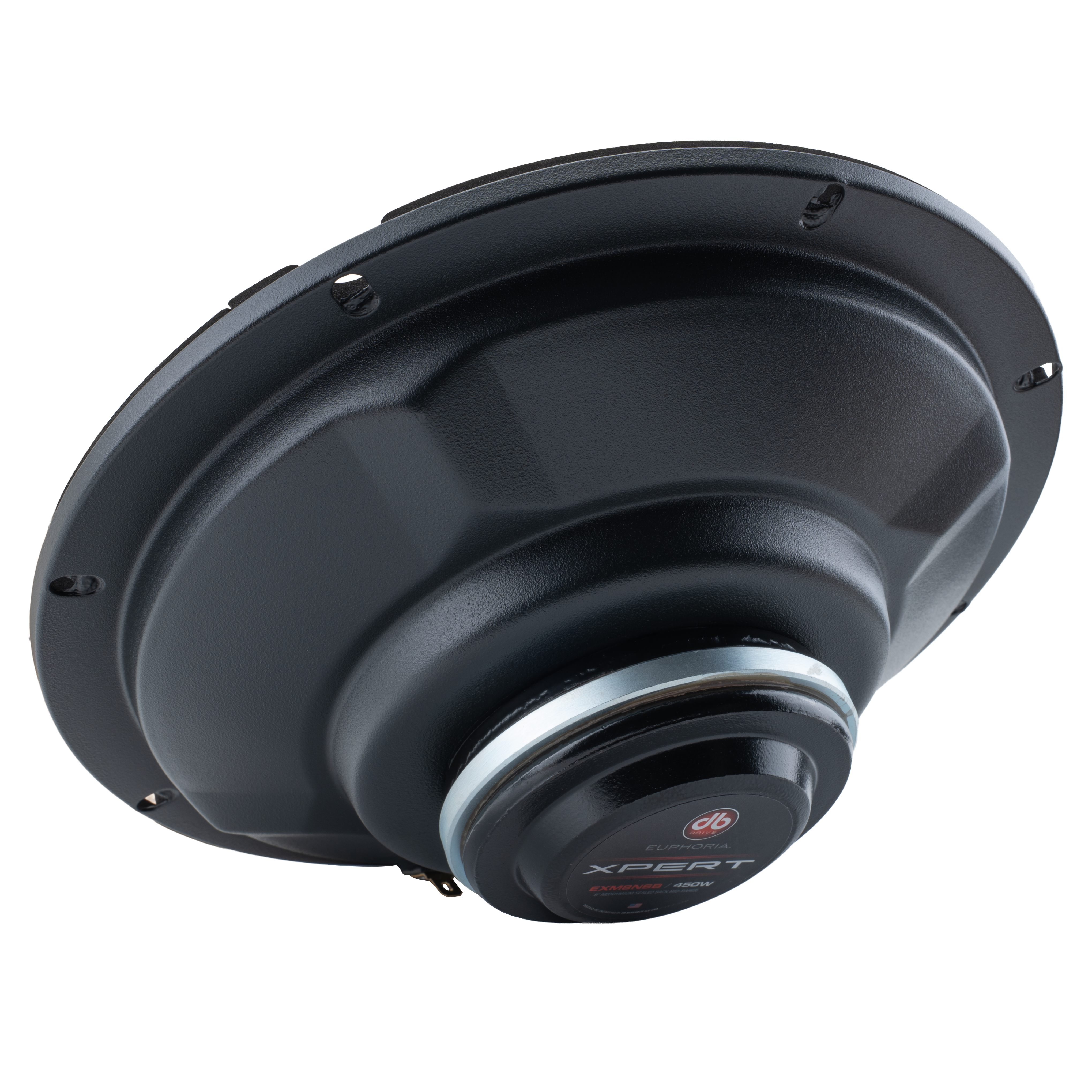

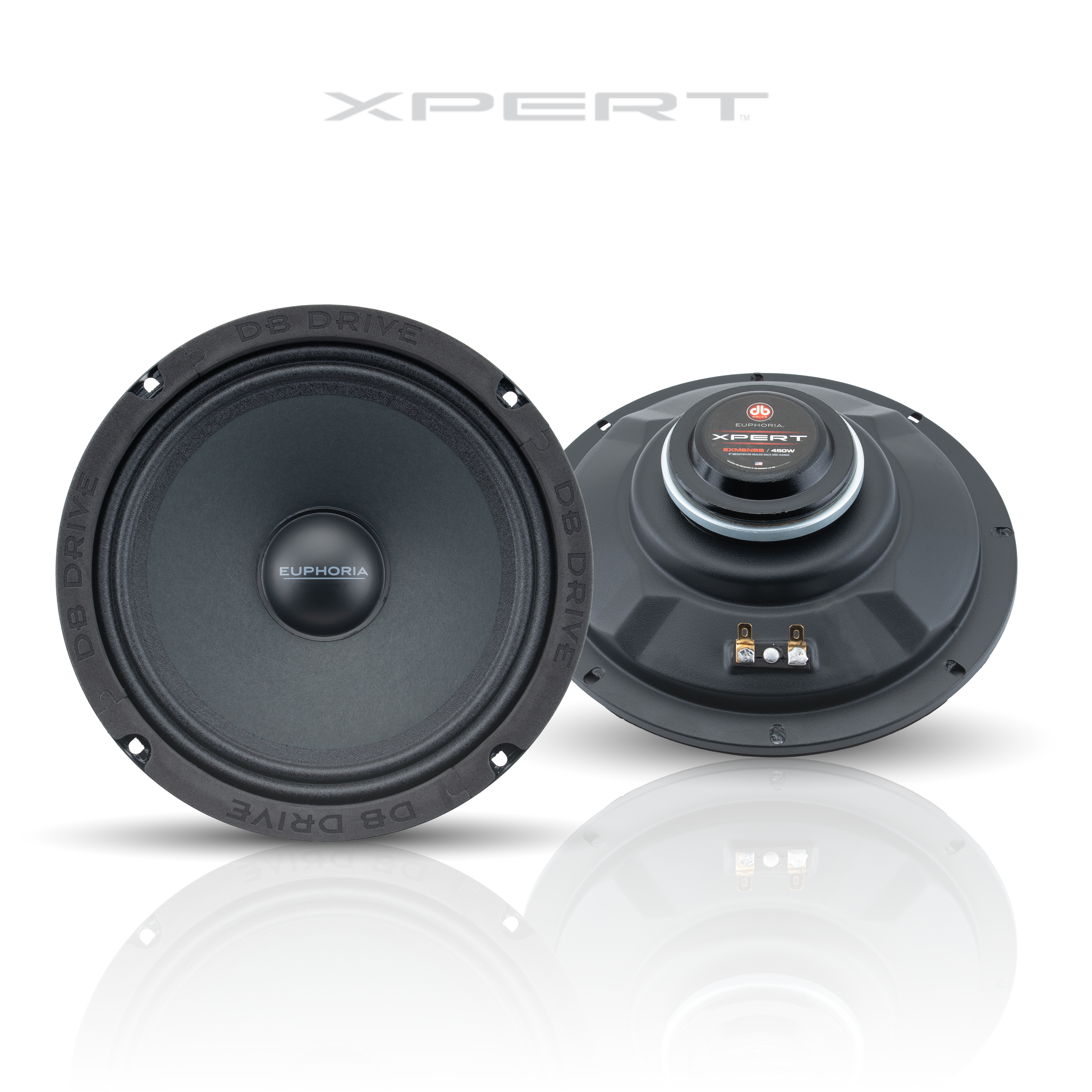

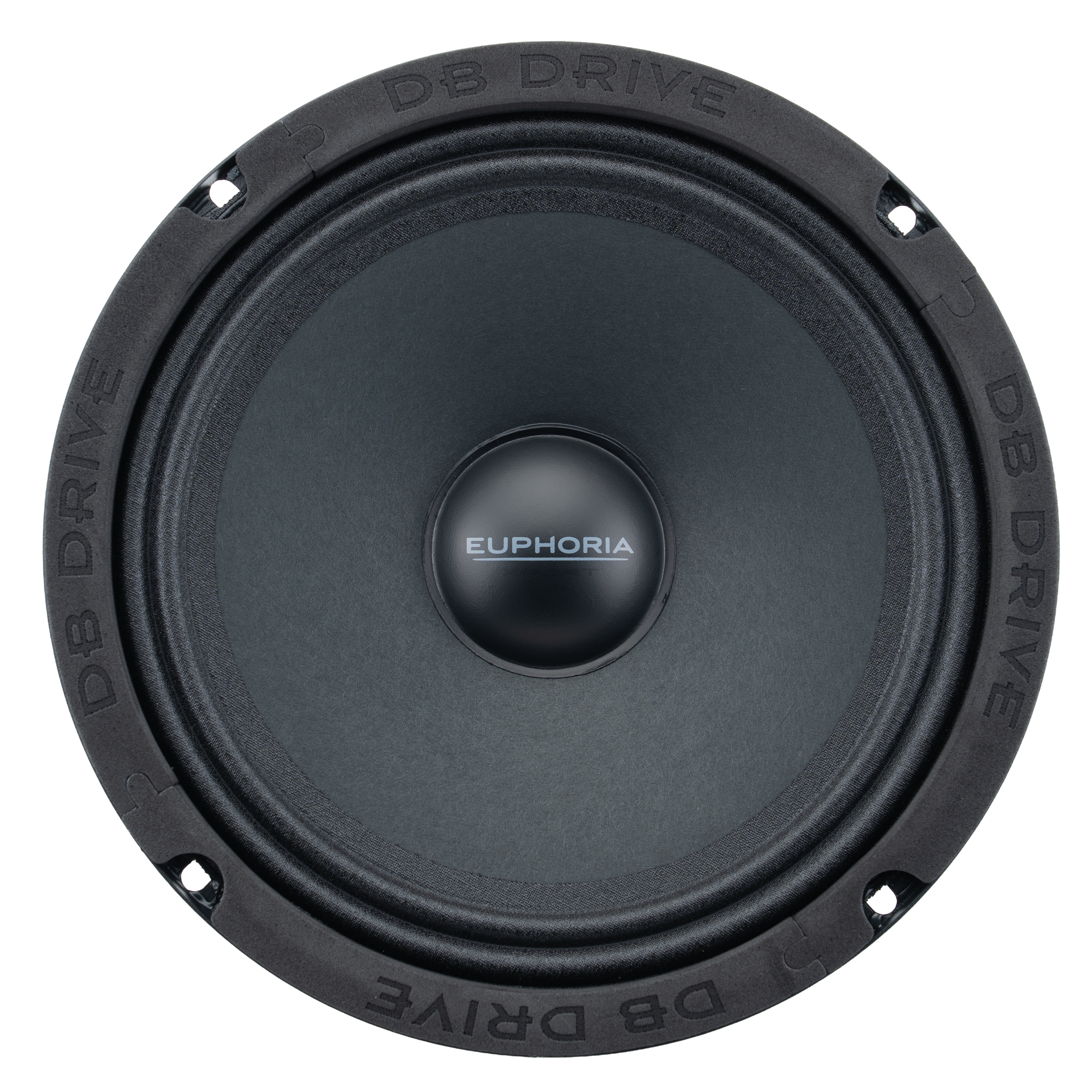

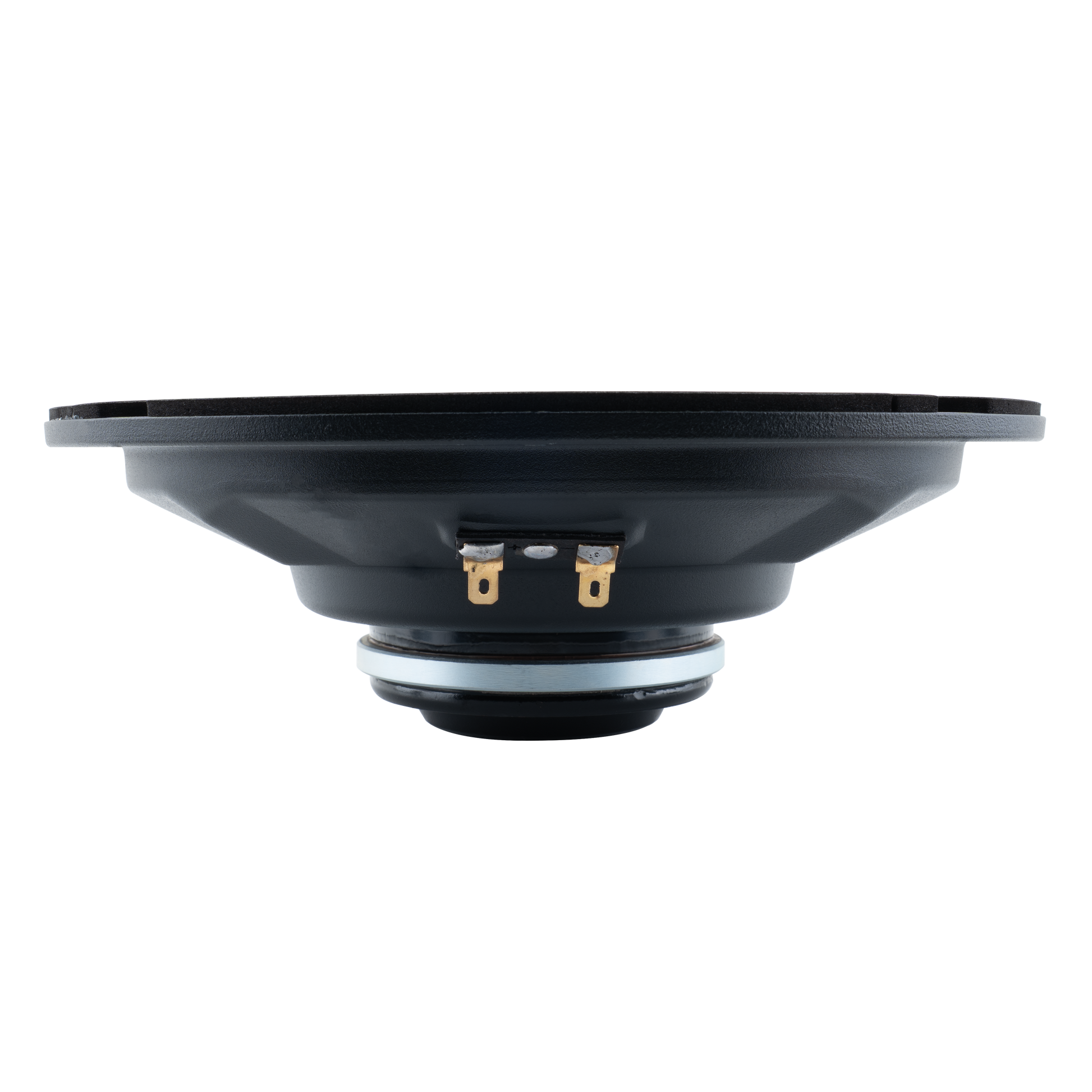

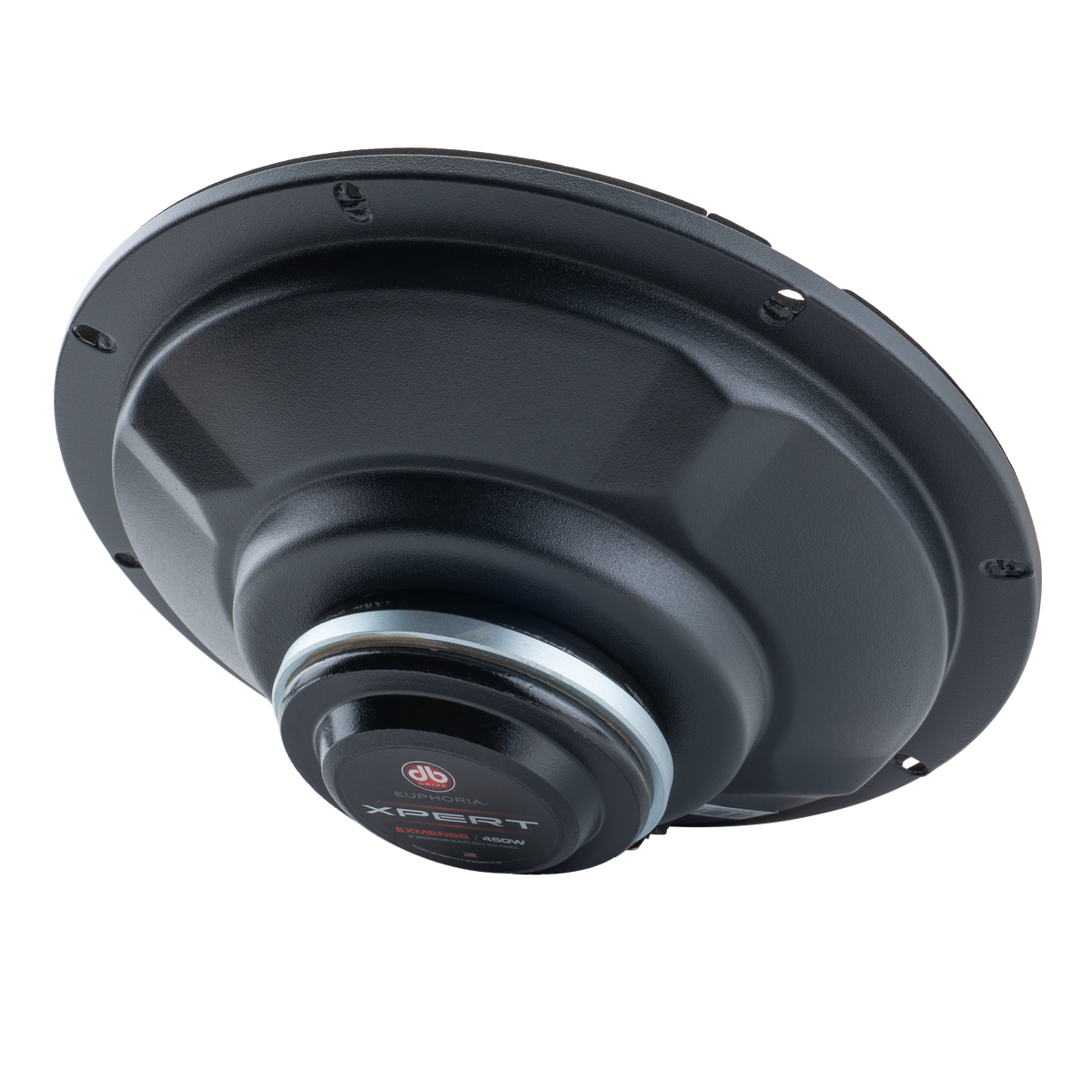

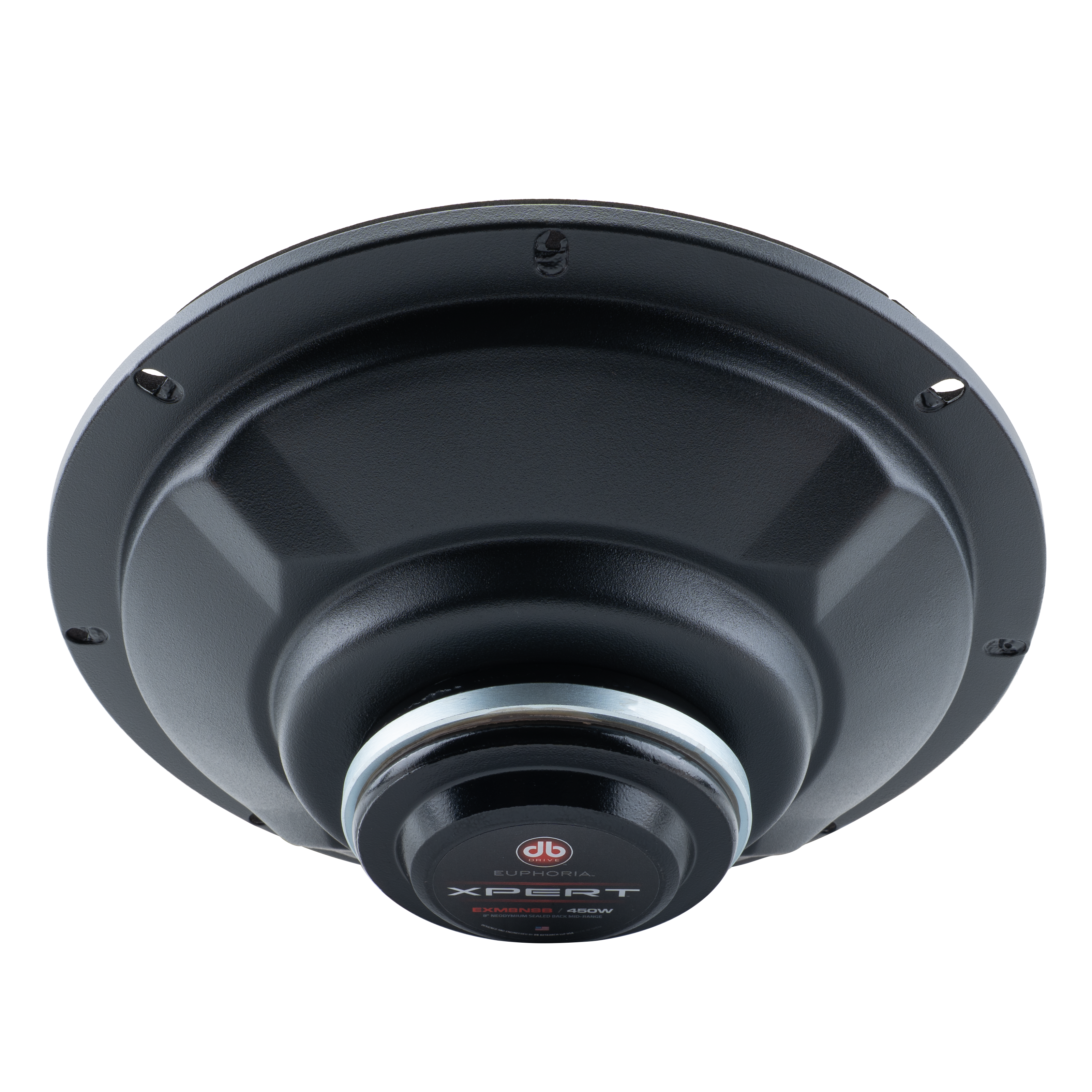

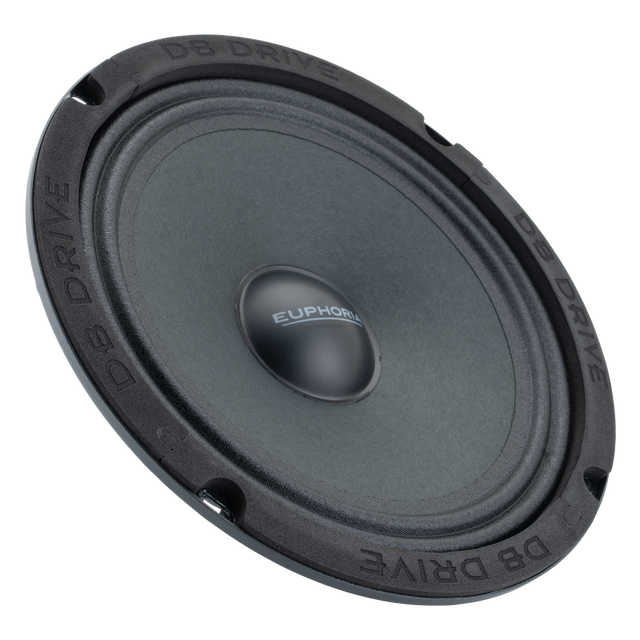

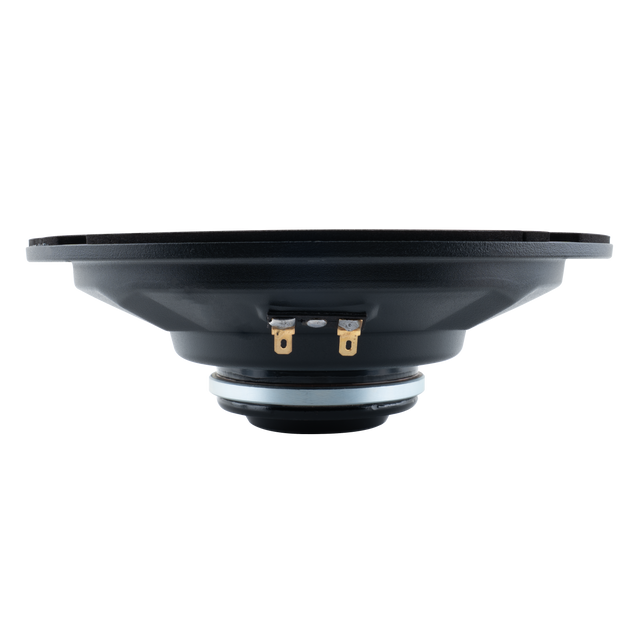

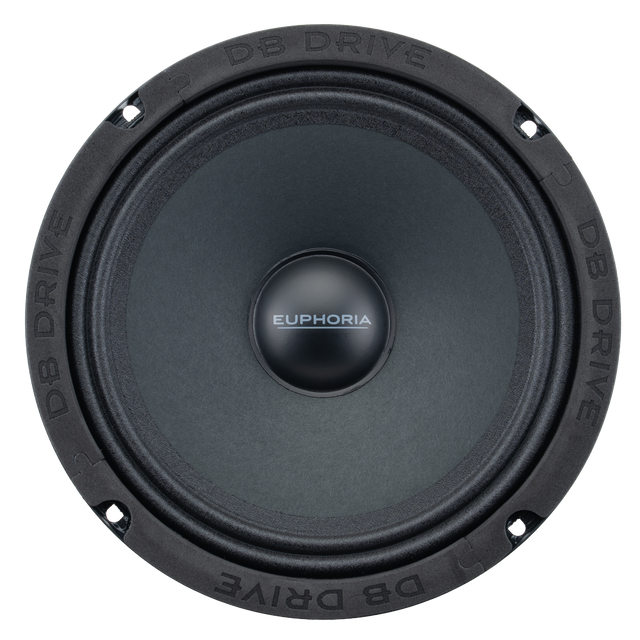

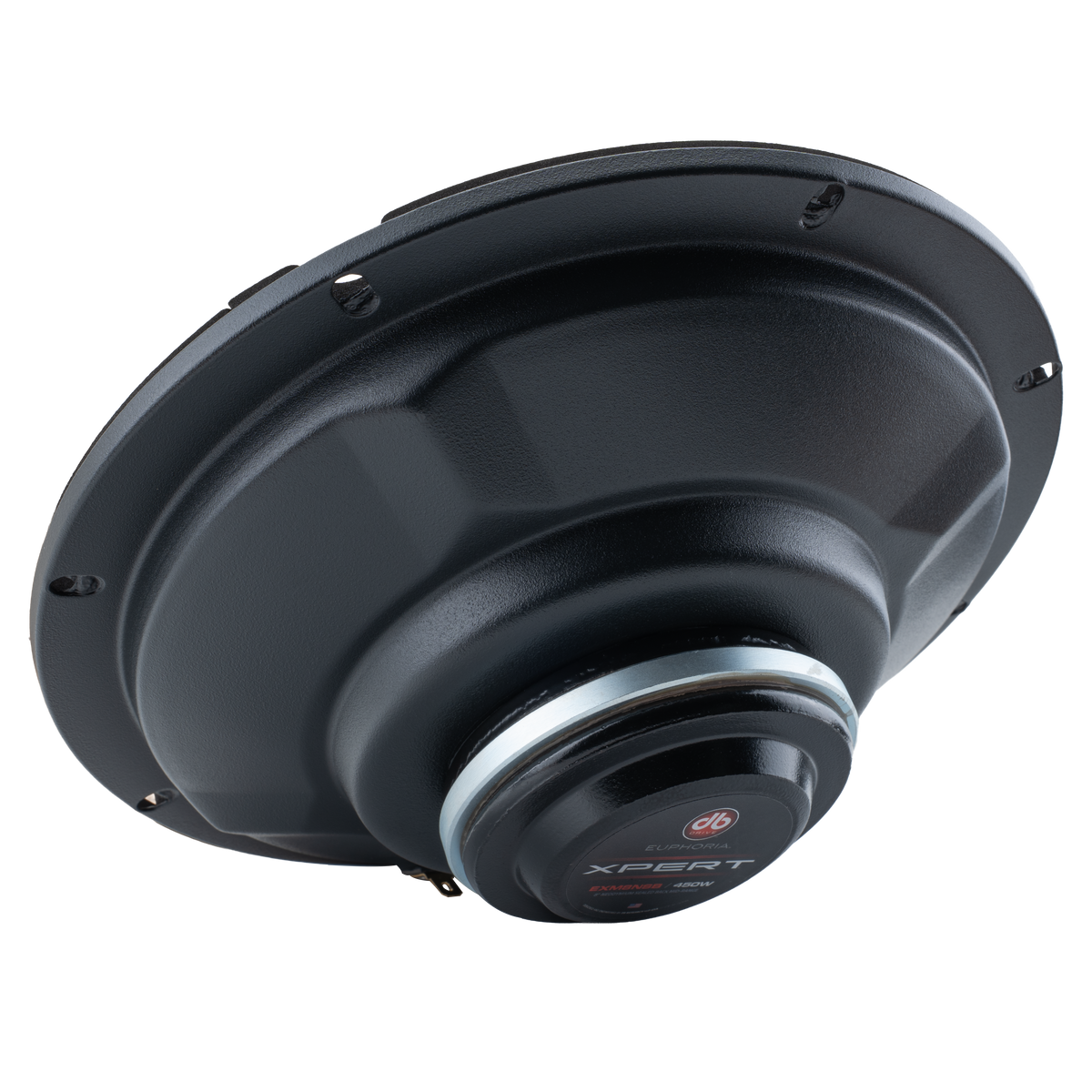

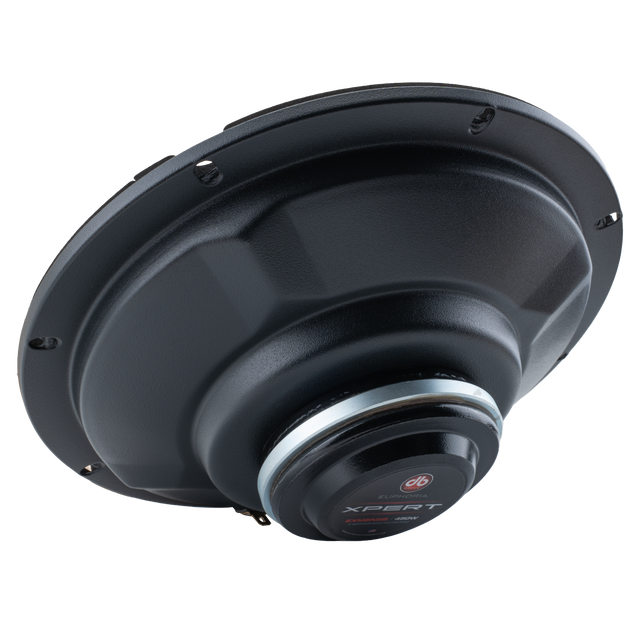

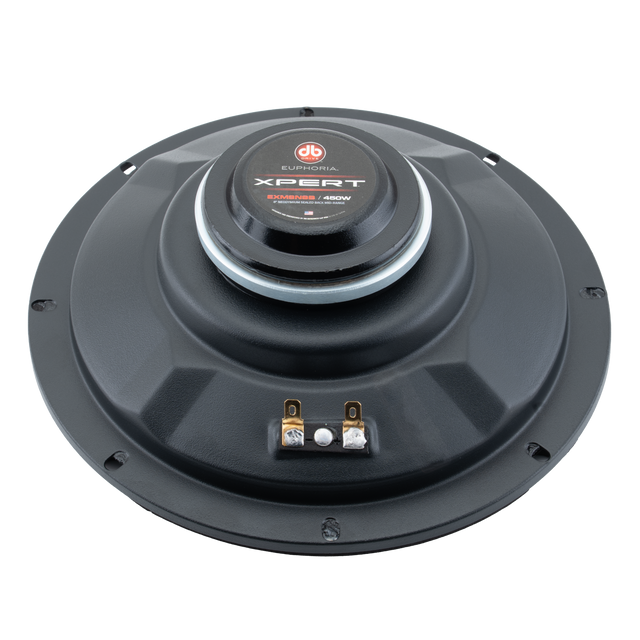

EXM8NSB : 8" NEO Sealed Back Midrange

EXM8NSB

8" NEO Sealed Back Midrange

$219.98

Elevate Your Sound with XPERT's EXM8NSB Midrange Magic! Discover the pinnacle of audio performance with the XPERT NEO SEALED BACK MID-RANGE EXM8NSB. Featuring a Ring Equalized Neodymium Magnet Assembly, this 8-inch marvel delivers a frequency response from 375Hz to 4.8KHz, ensuring every note is crisp and clear. The IP52 Rasted Paper Cone with Treated Cloth Surround, paired with a Stamped Steel Basket, guarantees durability and premium sound quality. With a 1.5-inch voice coil and 4Ω impedance, this midrange speaker is designed to elevate your listening experience. Perfect for audiophiles seeking precision and power, the EXM8NSB is where innovation meets excellence. Experience the XPERT difference today!

ADD TO CART

Financing Options Available at Checkout

What Makes it UNIQUE?

Feature#1

Feature#4

Feature#2

Feature#5

Feature#3

Feature#6

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer nec odio. Praesent libero. Sed cursus ante dapibus diam. Sed nisi. Nulla quis sem at nibh elementum imperdiet.

1.5″ (38.1mm) Midrange Voice Coil
Provides reliable power handling and efficient heat dissipation for consistent, high-output sound performance.
Stamped Steel Basket
Provides a strong, durable structure that maintains driver stability and supports consistent performance.
High Output Midrange
Delivers powerful, clear midrange frequencies with exceptional vocal presence and projection, even at high volume levels.
Treated Cloth Surround
Provides flexibility and durability while supporting controlled cone movement for accurate sound reproduction.
Neodymium Magnet Assembly
Generates a strong magnetic field in a compact, lightweight design for efficient driver control and dynamic performance.
IP52 Rated Paper Cone
Delivers natural, balanced sound reproduction with protection against limited dust ingress and light water exposure.

Resonant Frequency (fs)	474.2Hz
D.C. Voice Coil Resistance (Re)	3.2Ω
Mechanical Quality Factor (Qms)	5.05
Electrical Quality Factor (Qes)	1.76
Total Quality Factor (Qts)	1.31
Nominal Impedance	4Ω
Power Handling	225 Watts
Dynamic Wattage	450 Watts
Sensitivity (1w/1m)	98.9 dB
Frequency Response	375Hz – 4.8KHz

EXM8NSB

8" NEO Sealed Back Midrange

$219.98

What Makes it UNIQUE?

Feature#1

Feature#4

Feature#2

Feature#5

Feature#3

Feature#6

1.5″ (38.1mm) Midrange Voice Coil

Stamped Steel Basket

High Output Midrange

Treated Cloth Surround

Neodymium Magnet Assembly

IP52 Rated Paper Cone

Features

Specifications

Product Manual

Description
