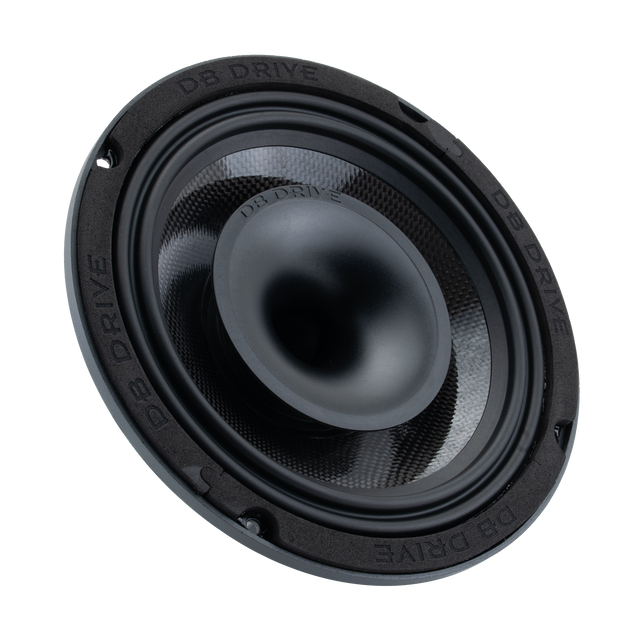

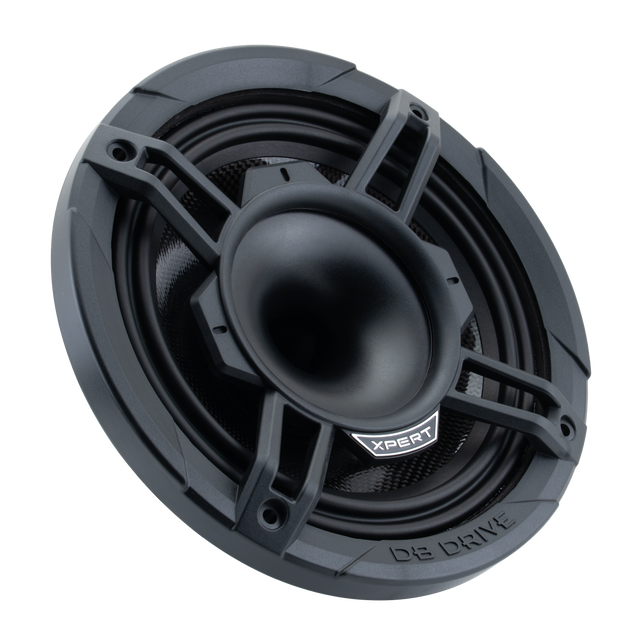

EX8NCD-CF : 8" 2-Way Carbon Fiber Loudspeaker W/ Back Mounted Compress

EX8NCD-CF

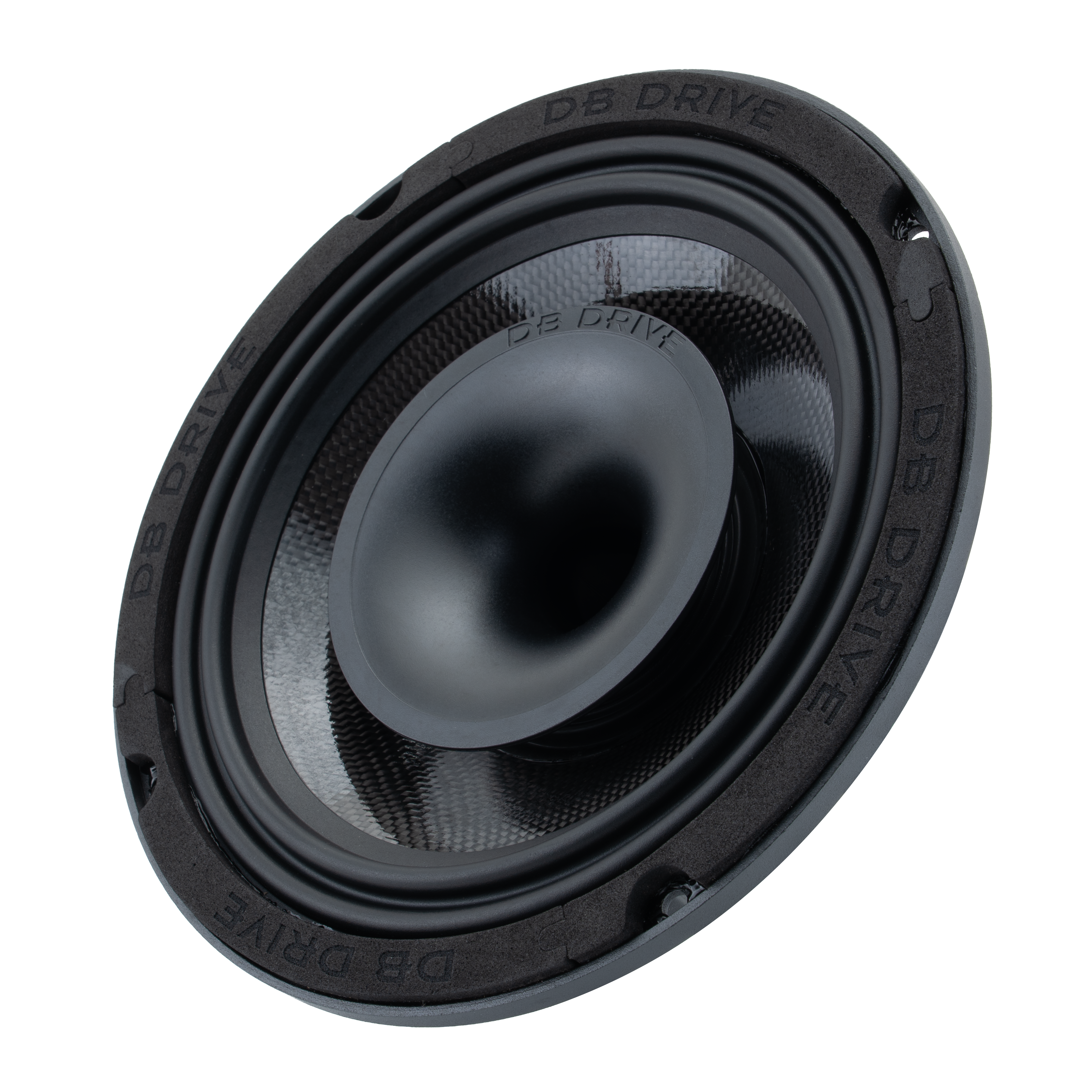

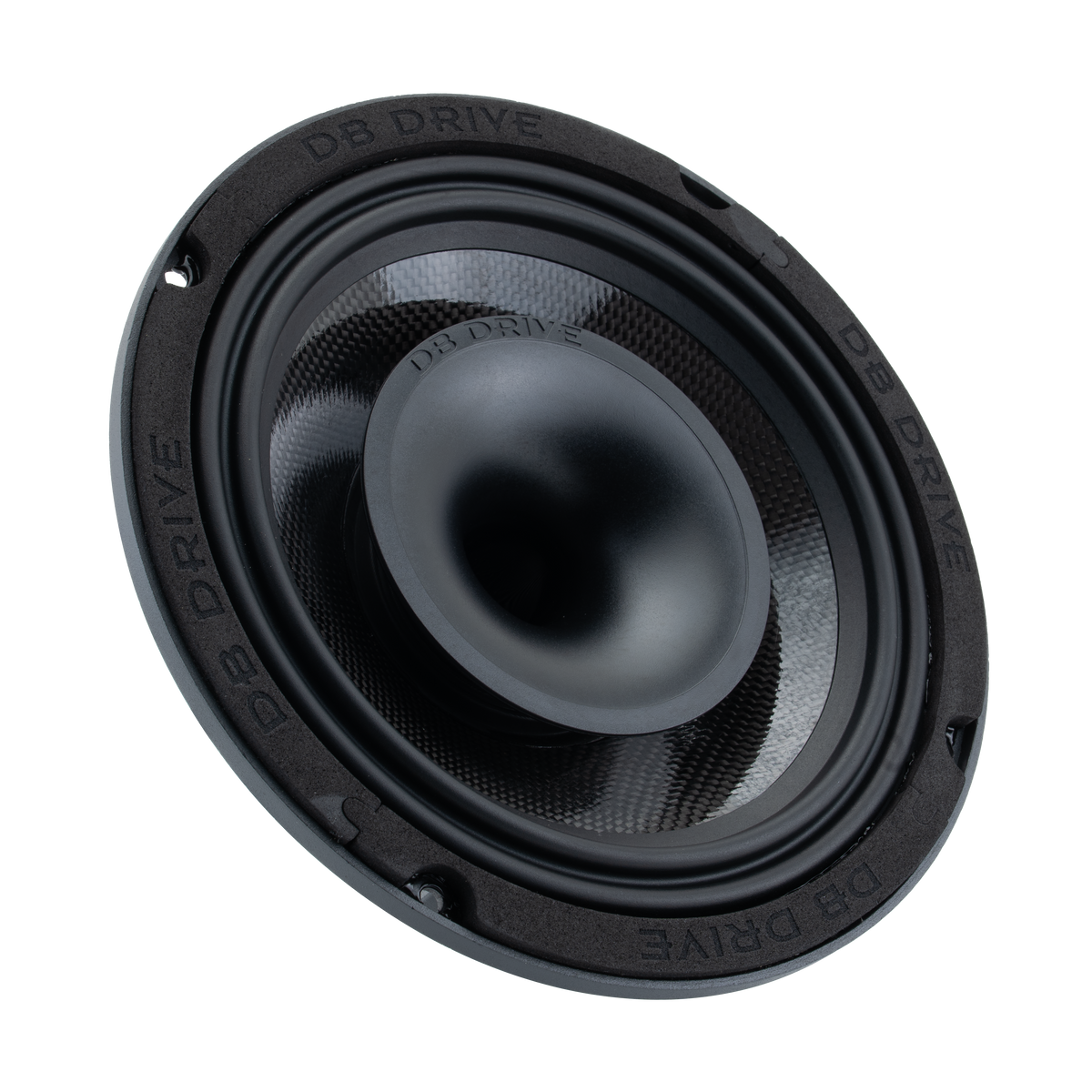

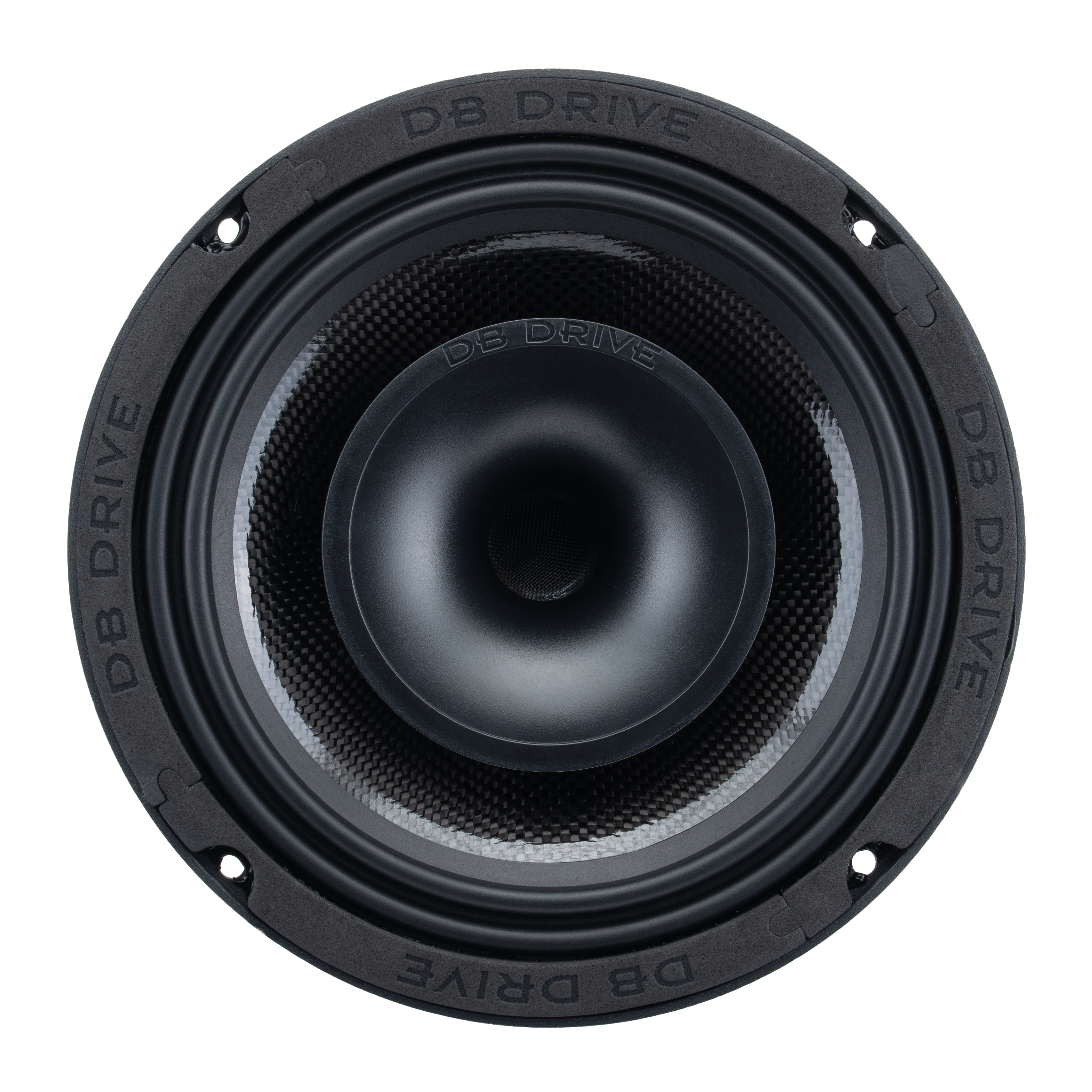

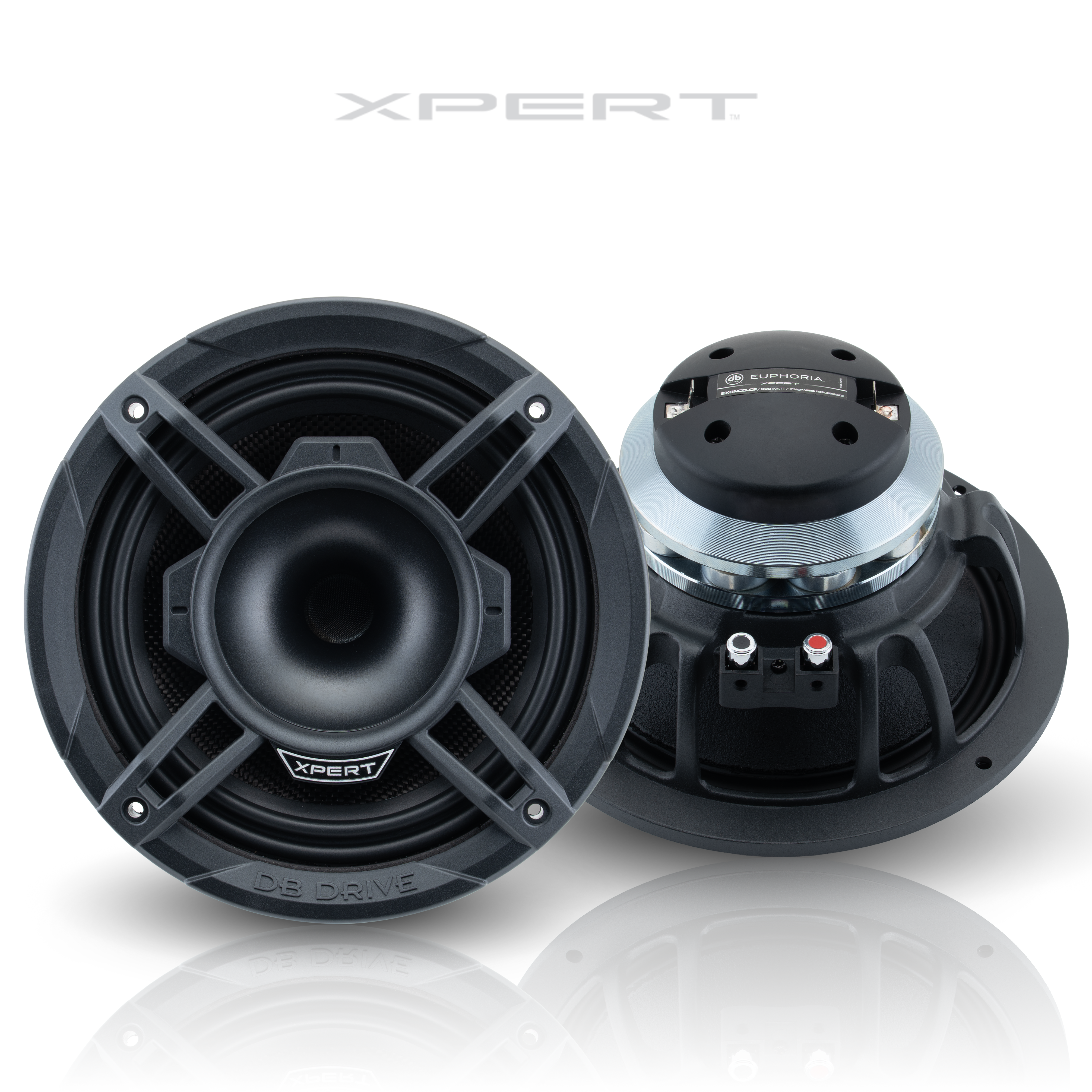

8" 2-Way Carbon Fiber Loudspeaker W/ Back Mounted Compression Driver

$999.98

Turn up the XPERT-ise in your audio experience! Introducing the XPERT EX8NCD-CF: the ultimate 8-inch NEO Mid Speaker with Compression Driver and Passive Crossover. This speaker is designed to revolutionize your audio setup with its cutting-edge features. Boasting a powerful neodymium magnet assembly and a rear-mounted full-sized compression driver, it delivers crystal-clear sound with wide dispersion thanks to the conical HF waveguide. The IP54-rated weather-resistant carbon fiber cone ensures durability, while the 1.4” polyester tweeter diaphragm adds a touch of sophistication to your high frequencies. With a frequency response of 50Hz to 20KHz and an impedance of 4Ω, this speaker is engineered to provide an immersive sound experience. The die-cast aluminum basket with radial venting keeps your speaker cool, even during intense sessions. Plus, the included protective grills and 12dB passive crossover make installation a breeze. Elevate your sound system with the XPERT EX8NCD-CF and experience the pinnacle of audio innovation.

ADD TO CART

Financing Options Available at Checkout

What Makes it UNIQUE?

Feature#1

Feature#4

Feature#2

Feature#5

Feature#3

Feature#6

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer nec odio. Praesent libero. Sed cursus ante dapibus diam. Sed nisi. Nulla quis sem at nibh elementum imperdiet.

2.0″ (51mm) Voice Coil
Provides reliable power handling and efficient heat dissipation for consistent, high-output sound performance.
Die-Cast Aluminum Basket with Radial Venting
Delivers rigid structural support while promoting airflow for improved heat dissipation.
1.4″ (36mm) Polyester Tweeter Diaphragm
Delivers smooth, detailed high-frequency reproduction with excellent responsiveness and clarity.

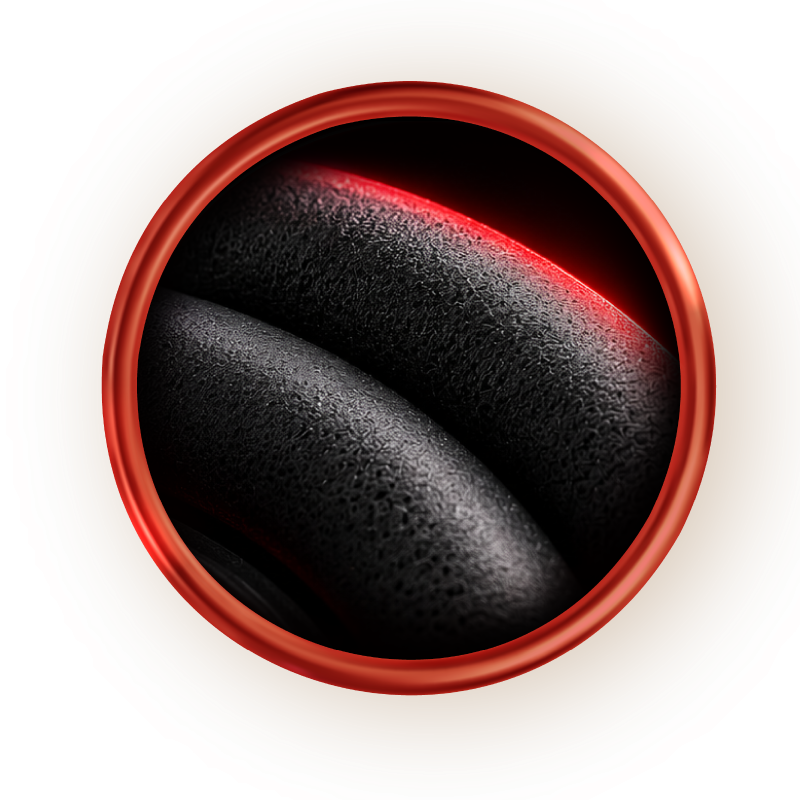

Rubber Surround
Provides flexibility and durability while allowing controlled cone movement for smooth, accurate sound reproduction.
Neodymium Magnet Assembly
Generates a strong magnetic field in a compact, lightweight design for efficient driver control and dynamic performance.

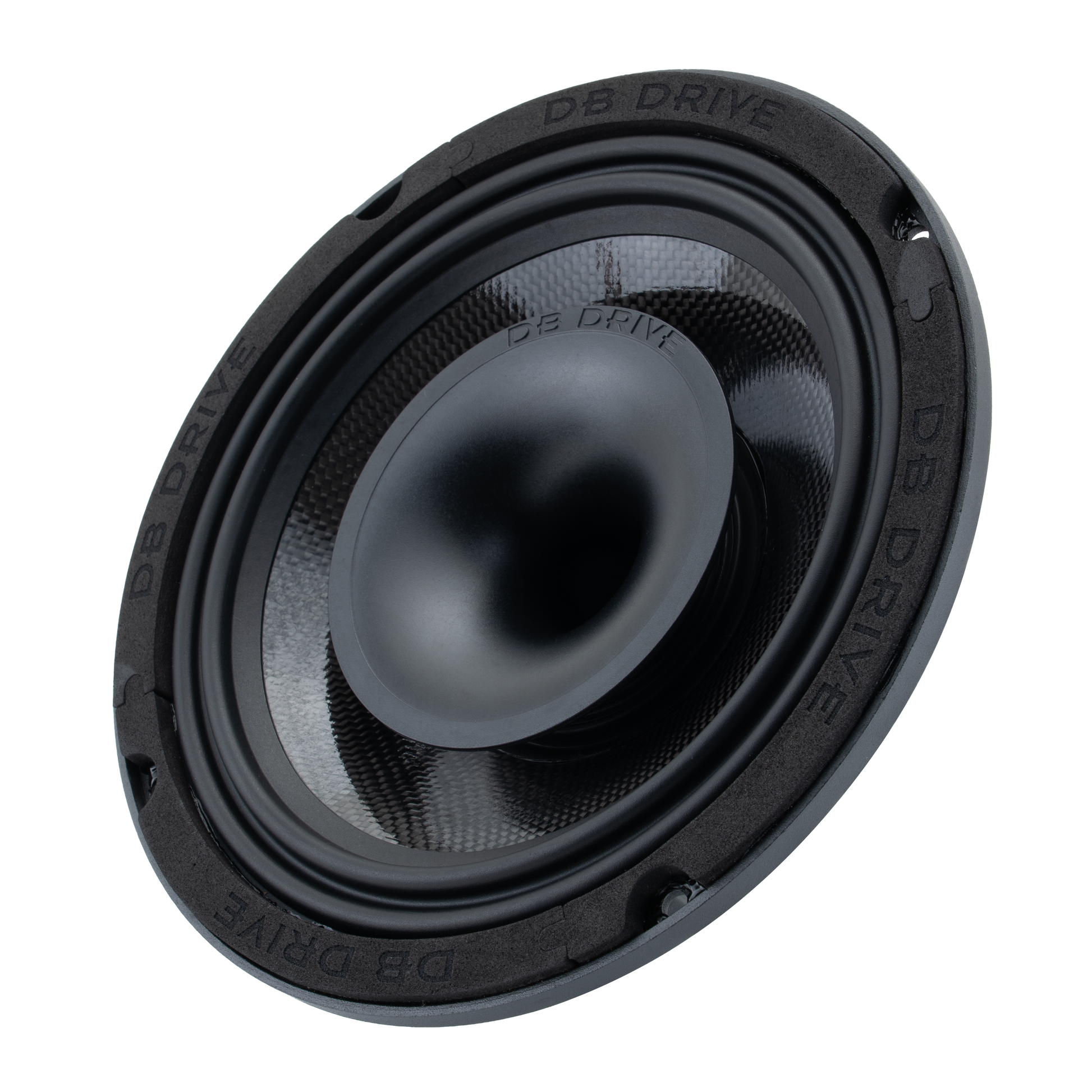

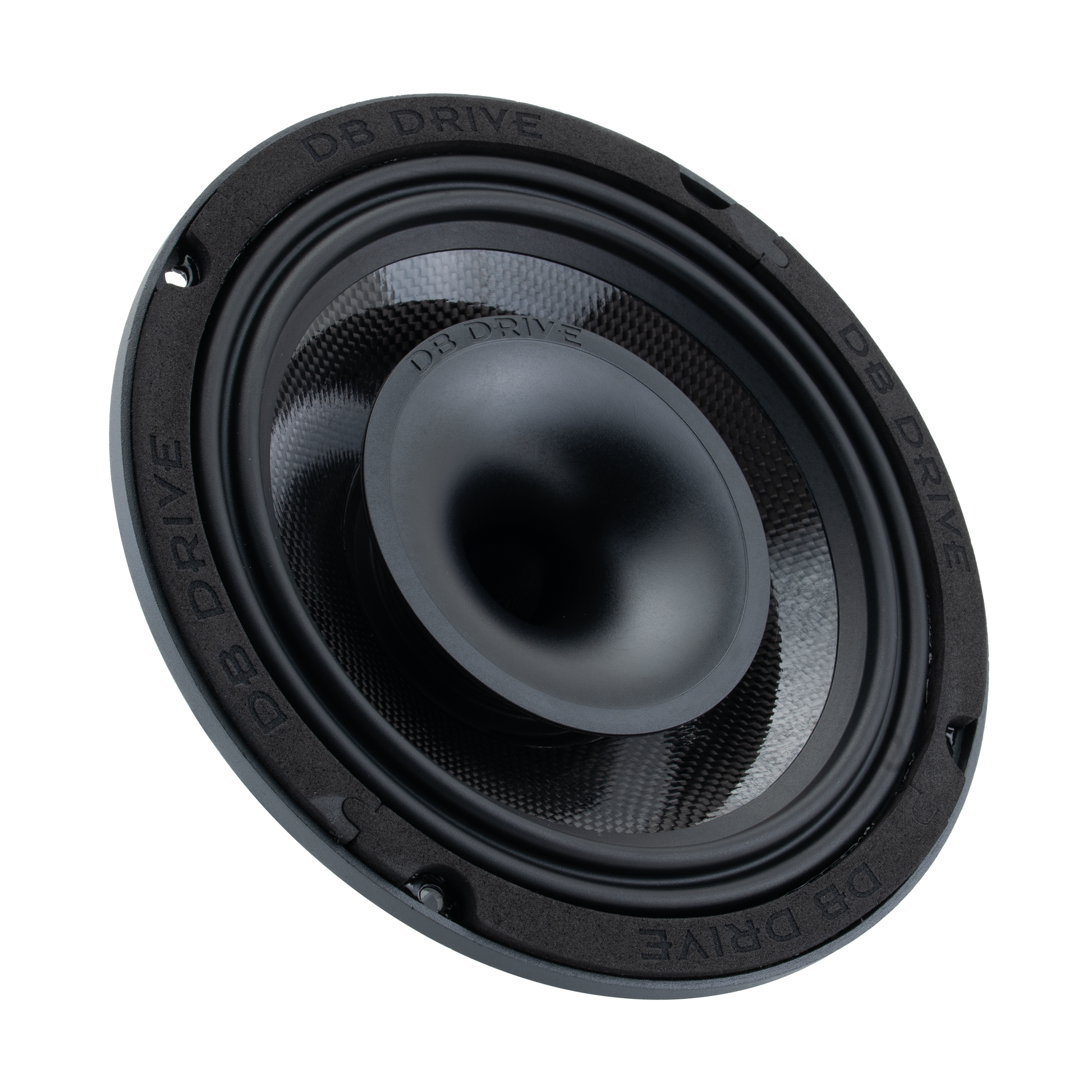

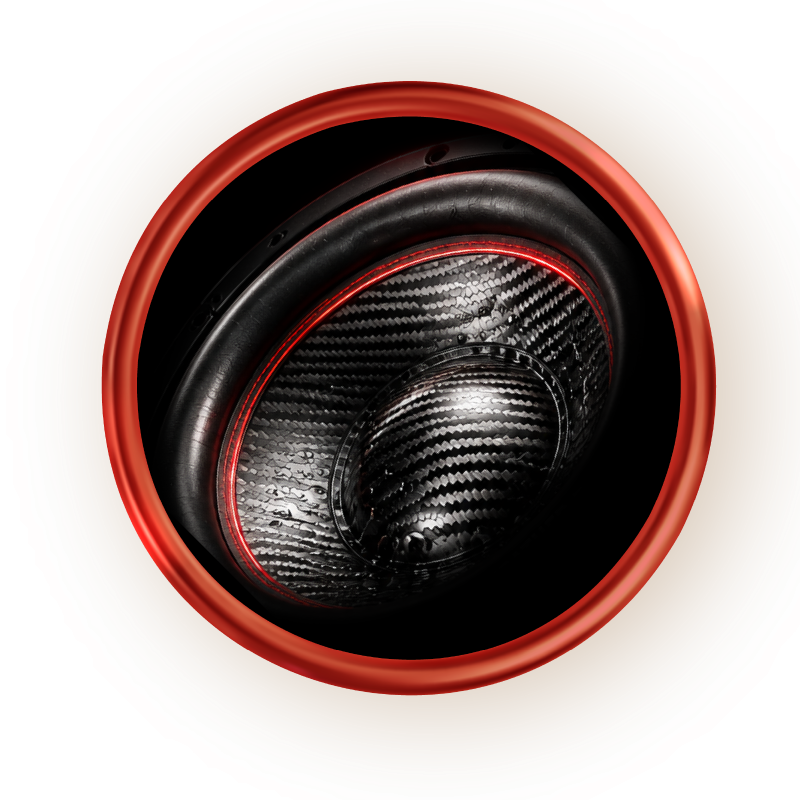

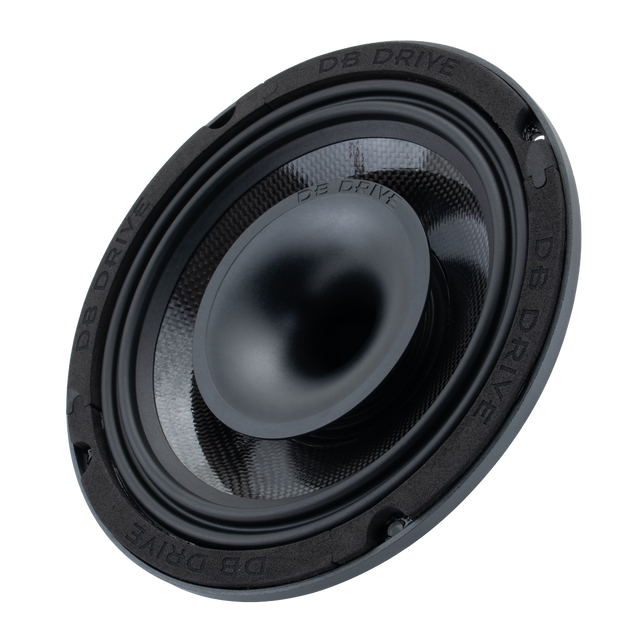

IP54 Rated Weather Resistant Carbon Fiber Cone
Combines lightweight, rigid carbon fiber construction with IP54-rated protection against dust and water splashes for reliable sound reproduction in demanding environments.

Features

8″ 2-Way Carbon Fiber Loudspeaker
2.0″ (51mm) Midrange Voice Coil
10 Neodymium Ring Magnet Assembly

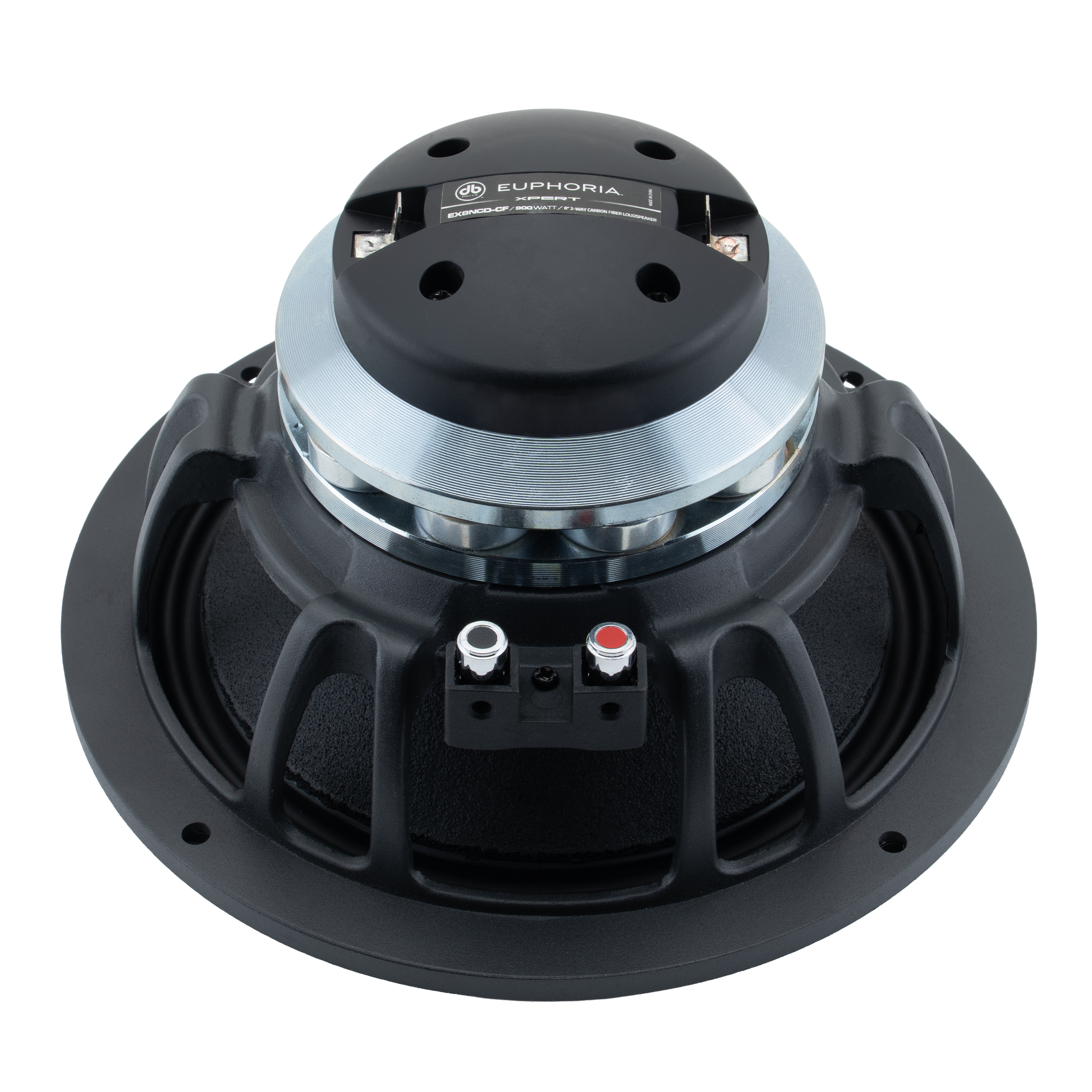

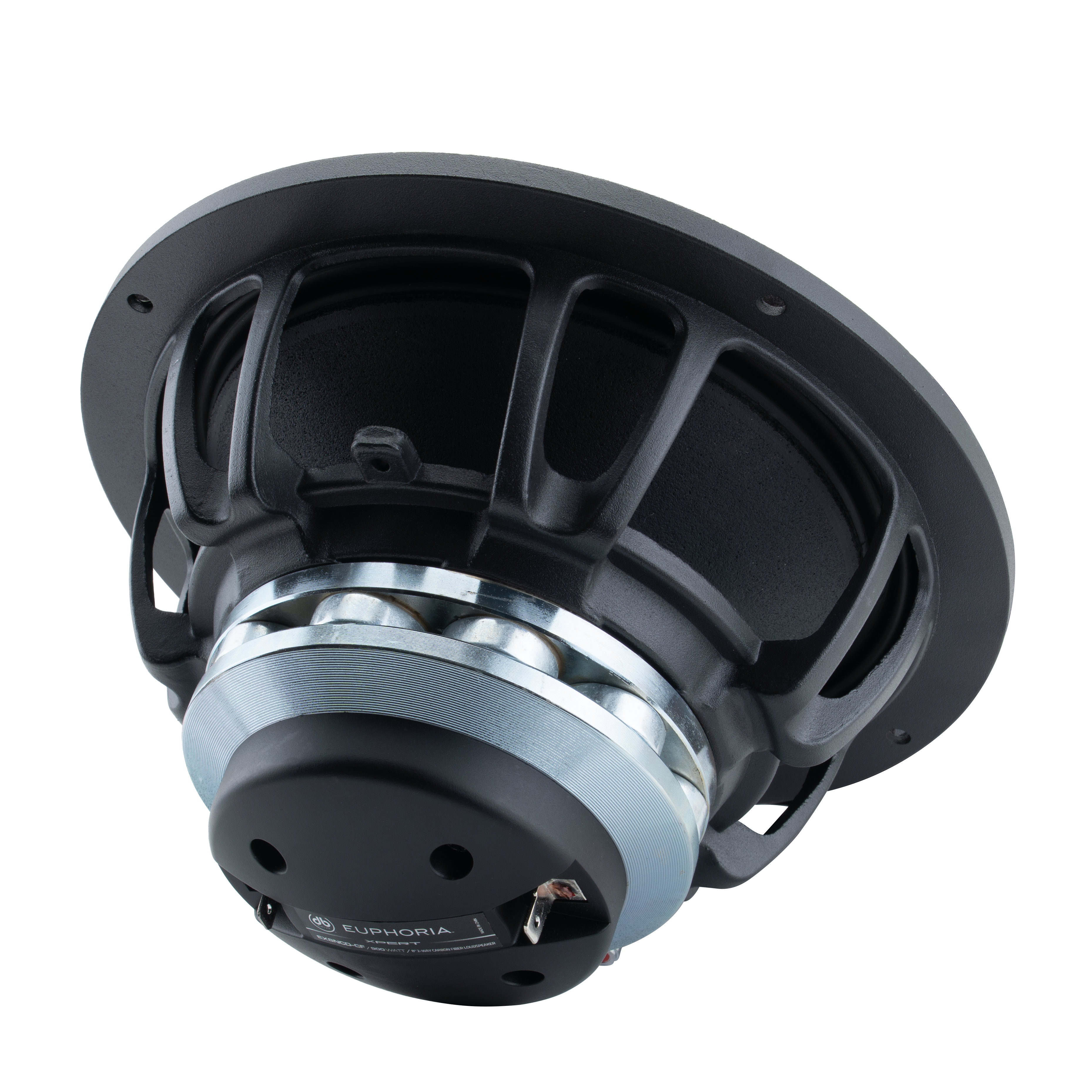

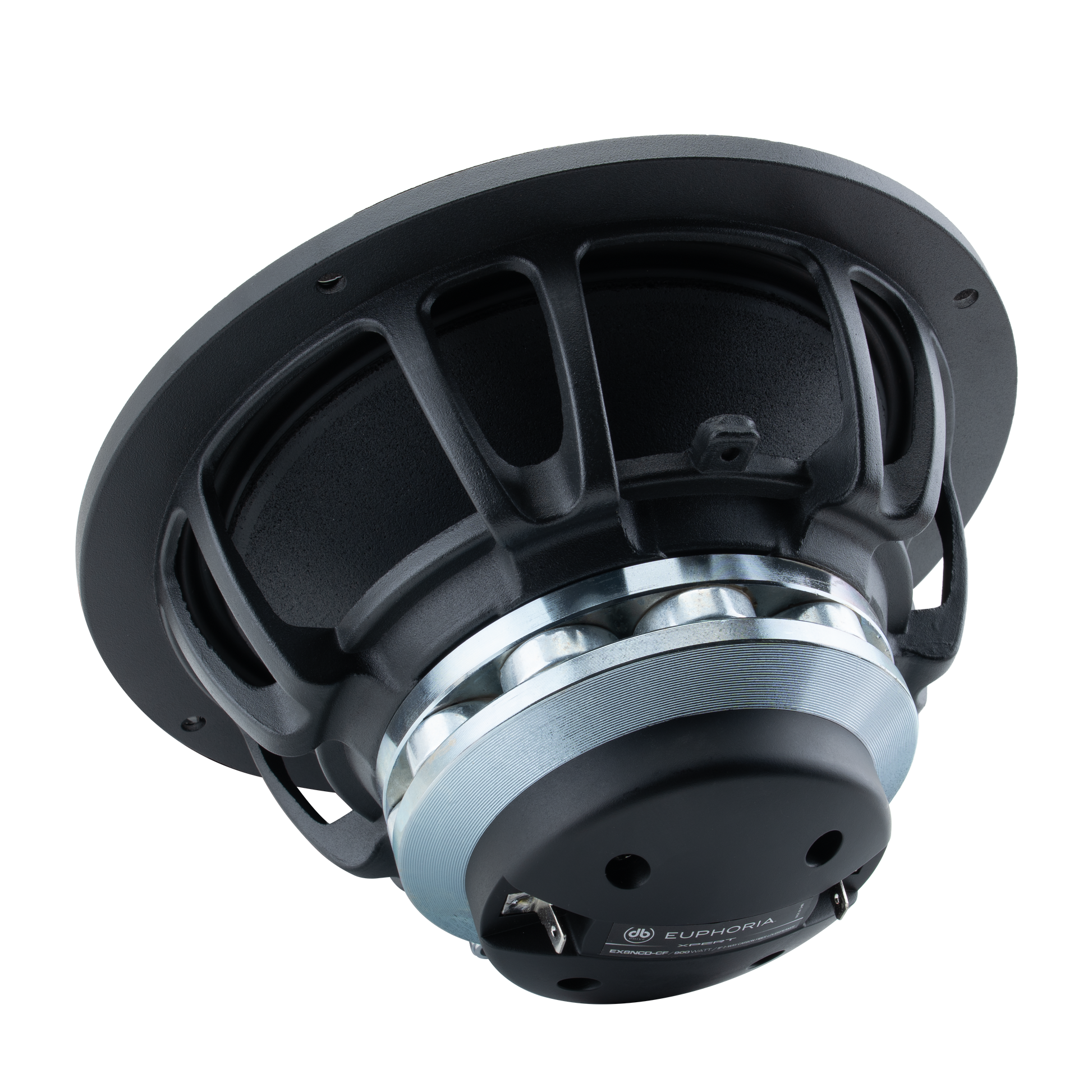

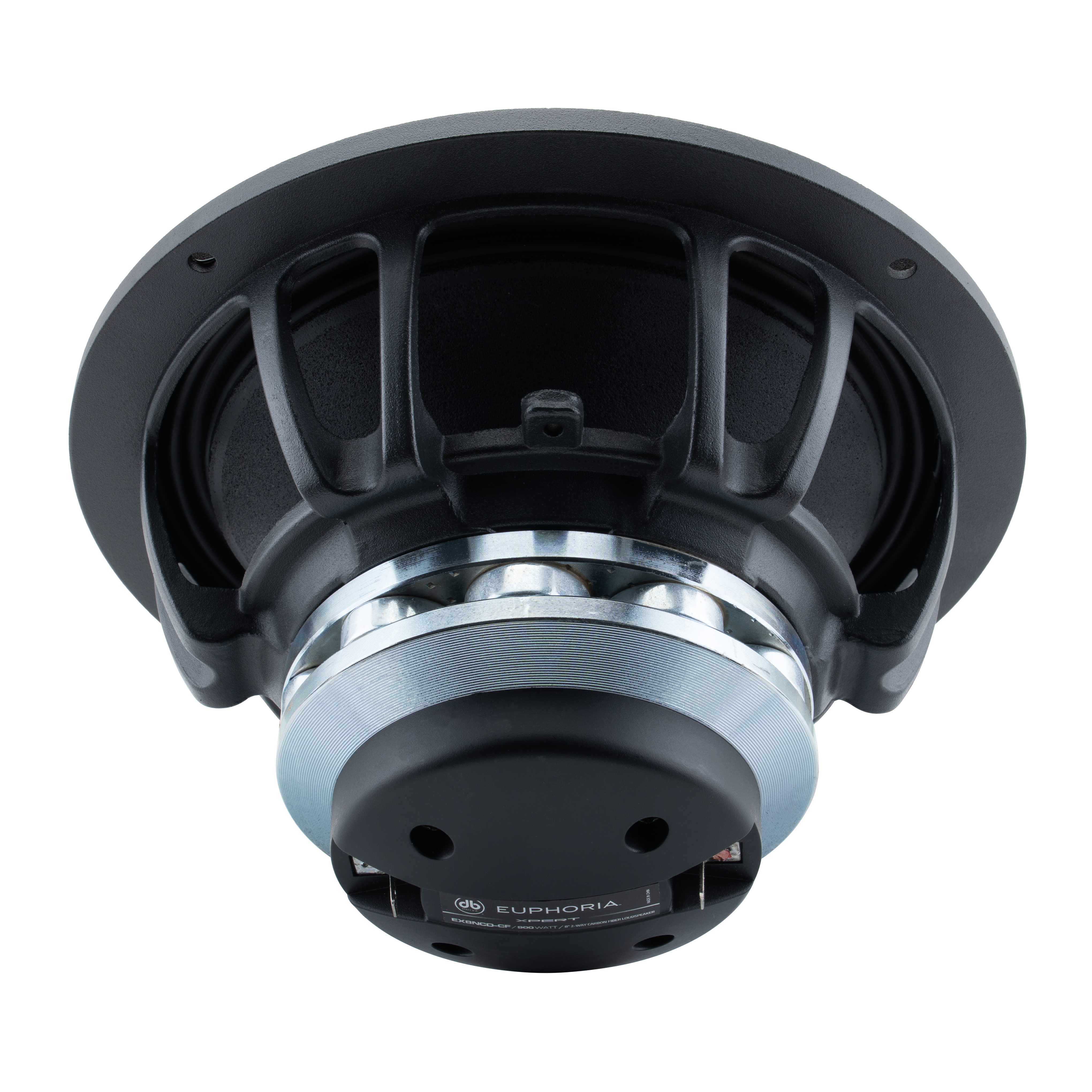

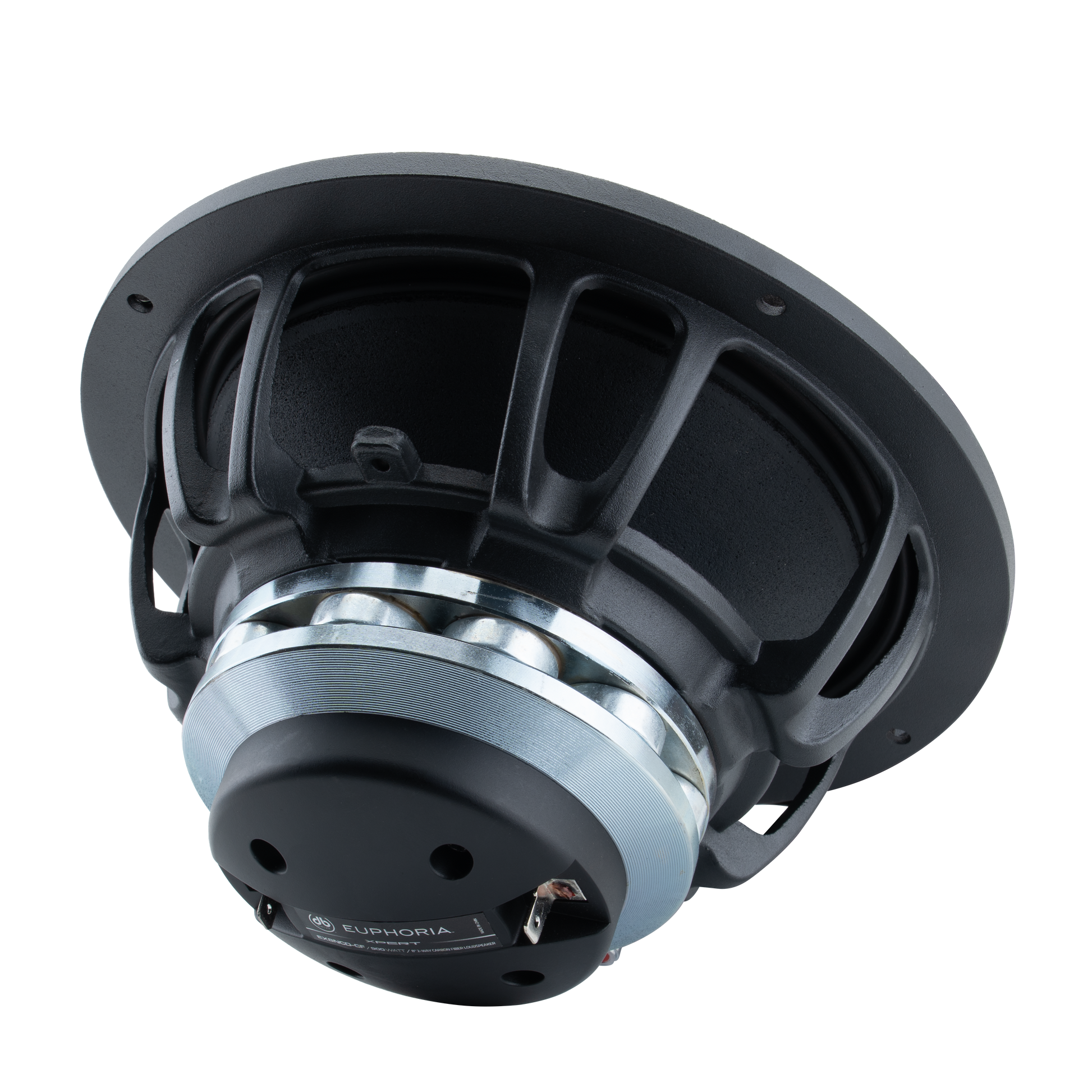

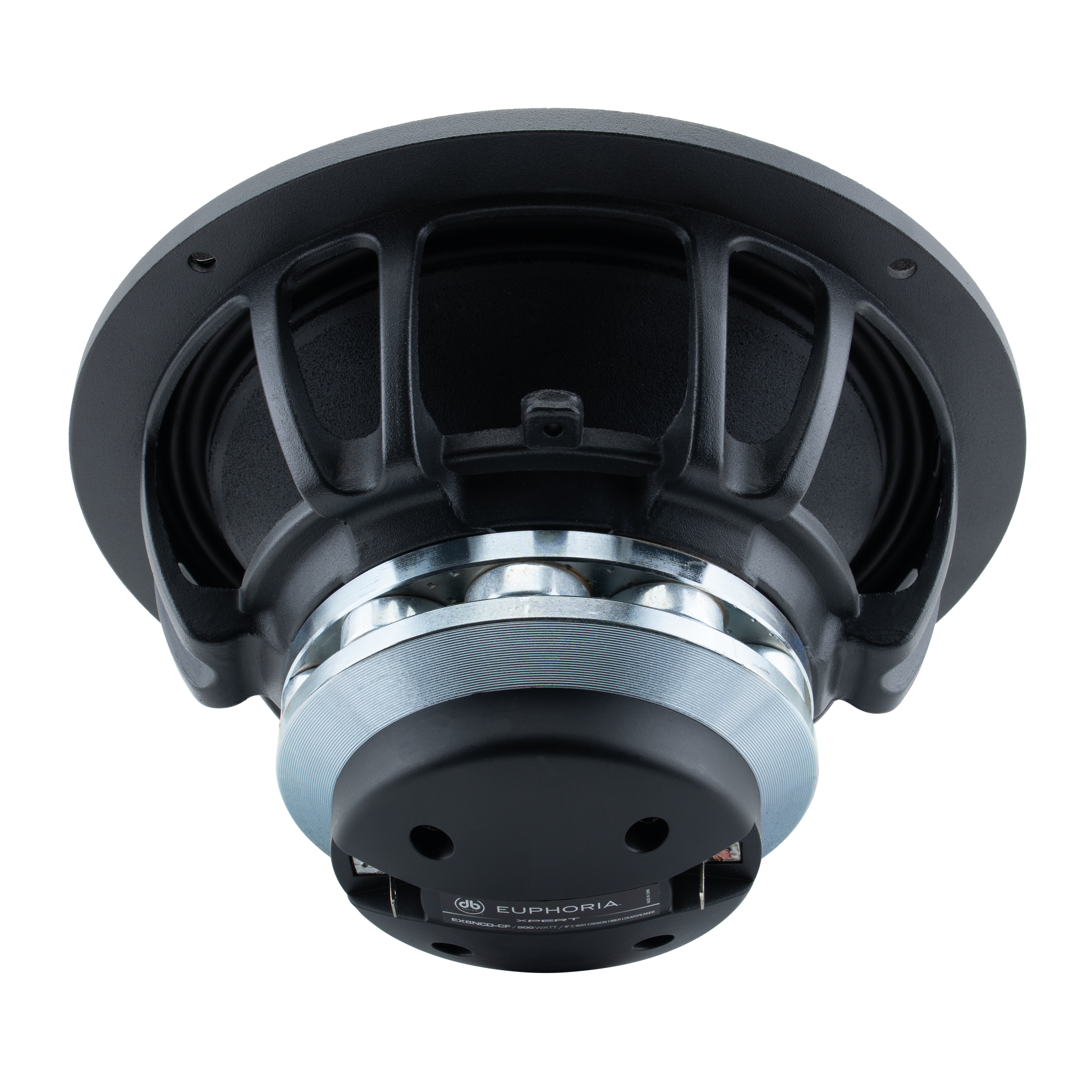

Rear Mounted Full Sized Compression Driver

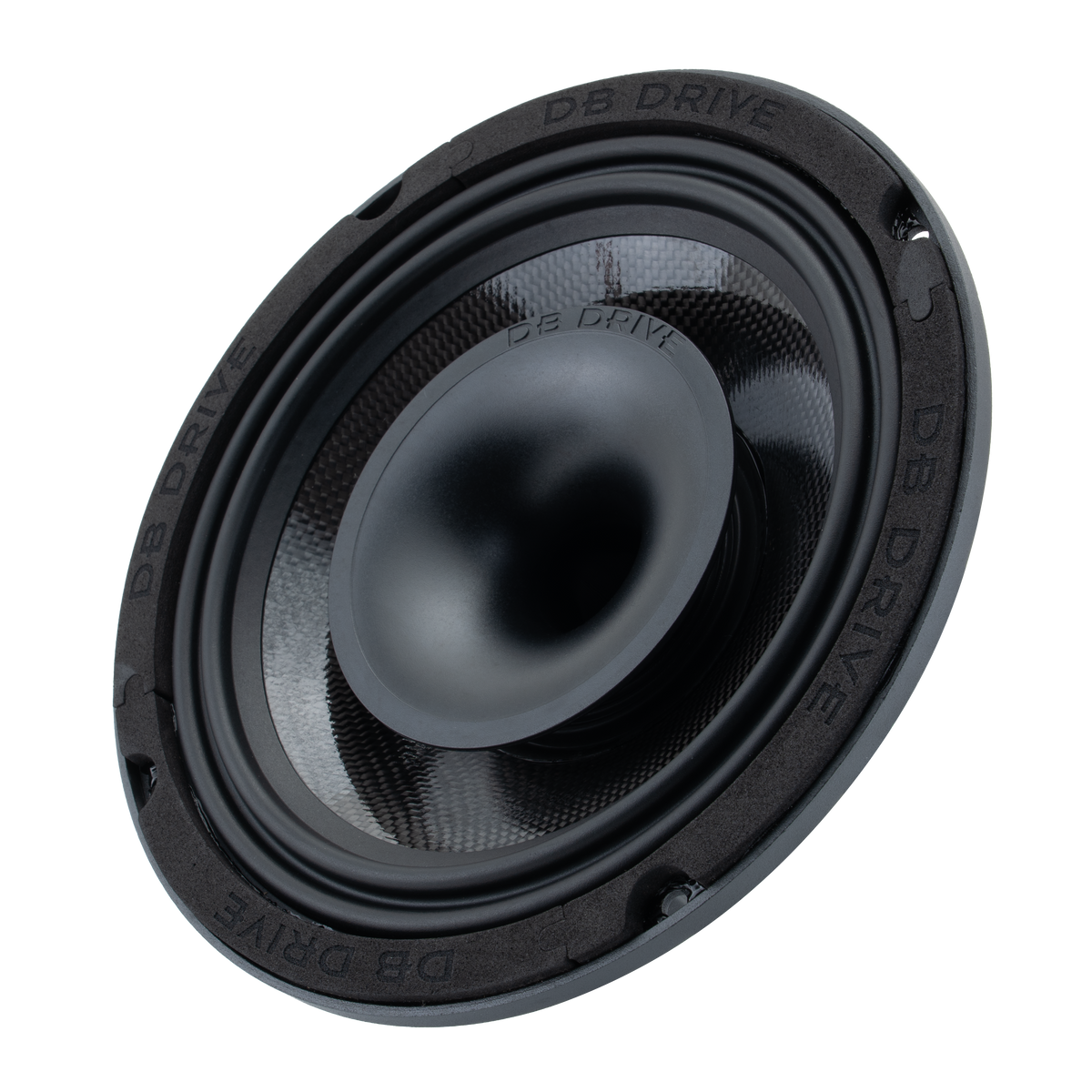

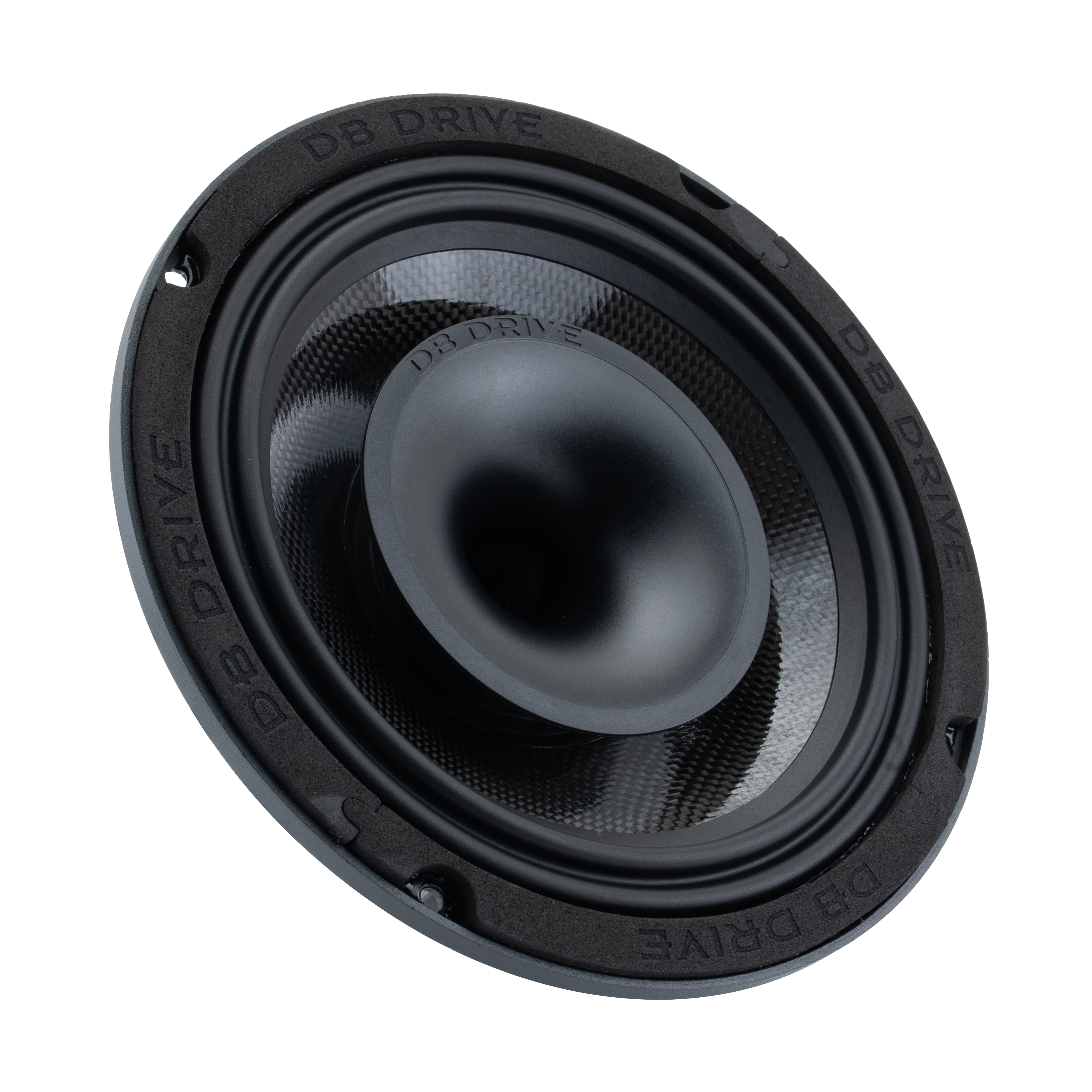

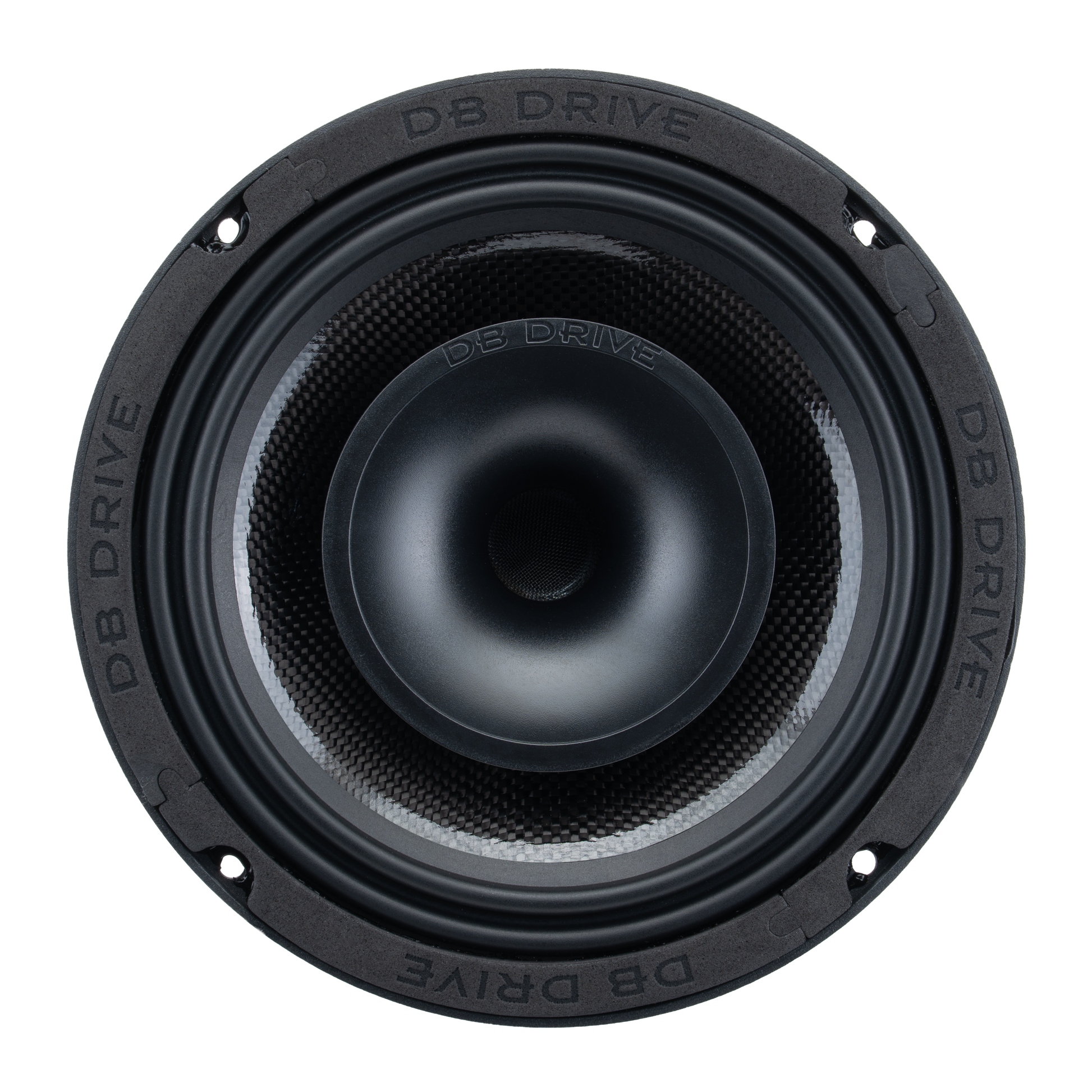

IP54 Rated Weather Resistant Carbon Fiber Cone with Rubber Surround

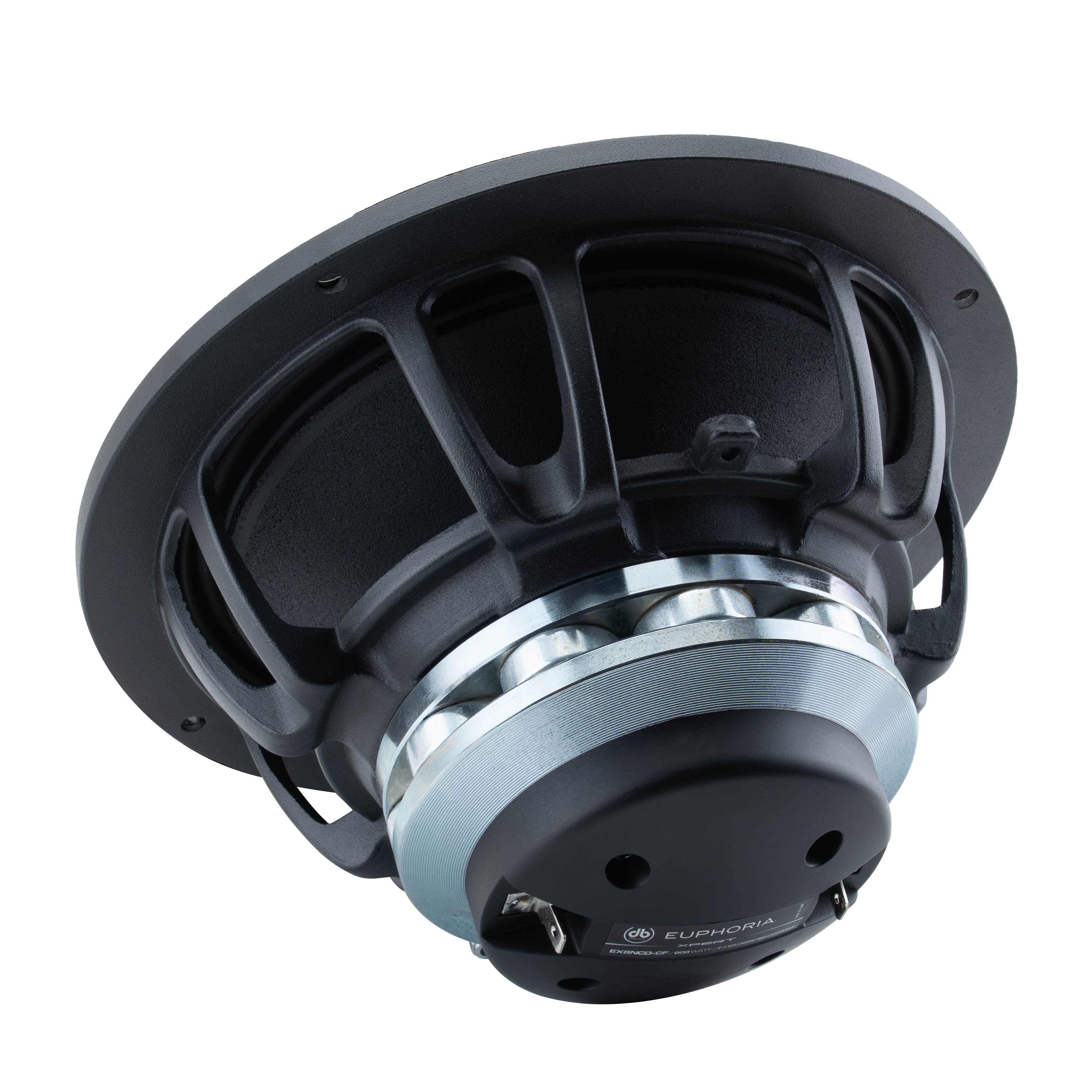

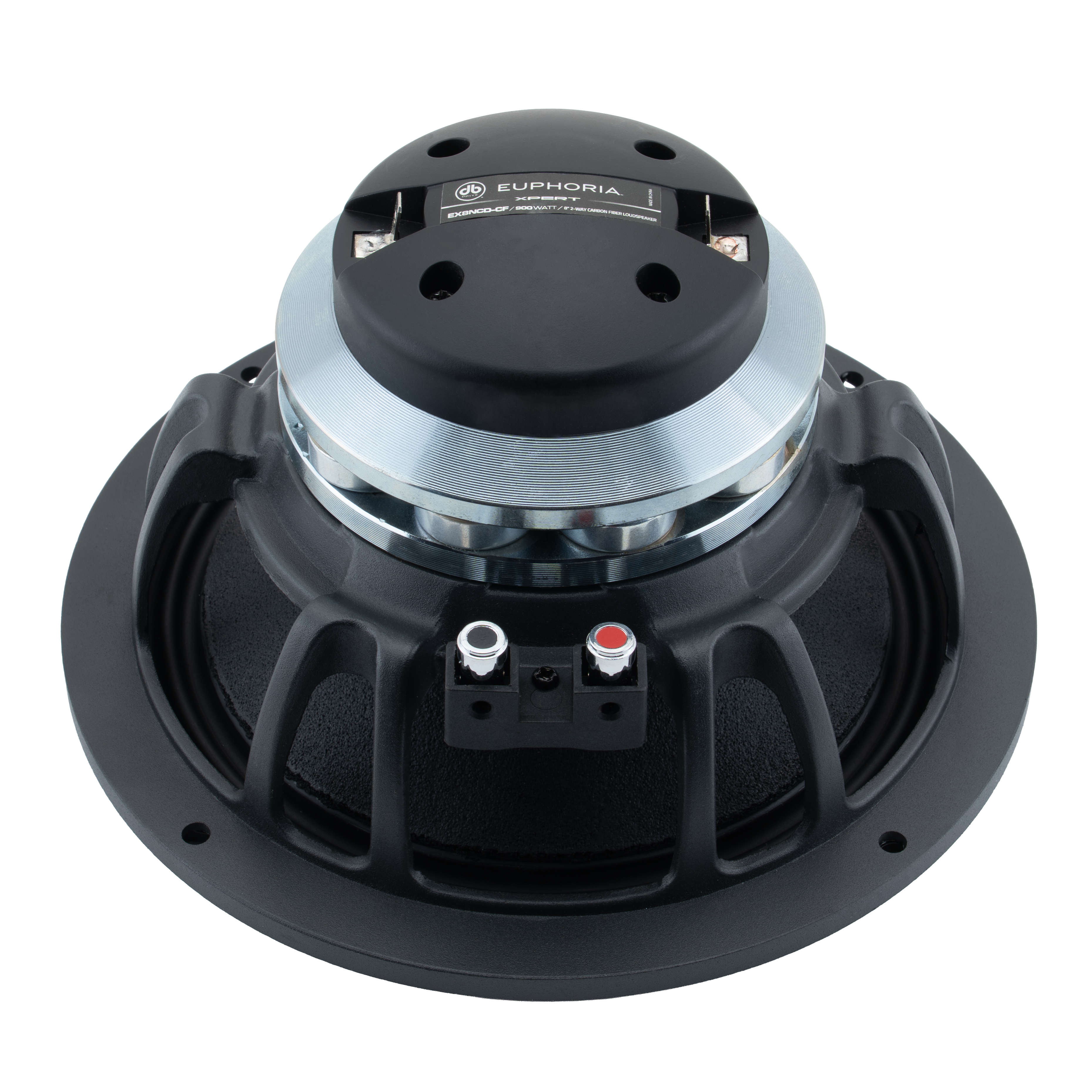

Die-Cast Aluminum Basket with Radial Venting
1.4″(36mm) Polyester Tweeter Diaphragm
Wide Dispersion Conical HF Waveguide
12dB Passive Crossover Included

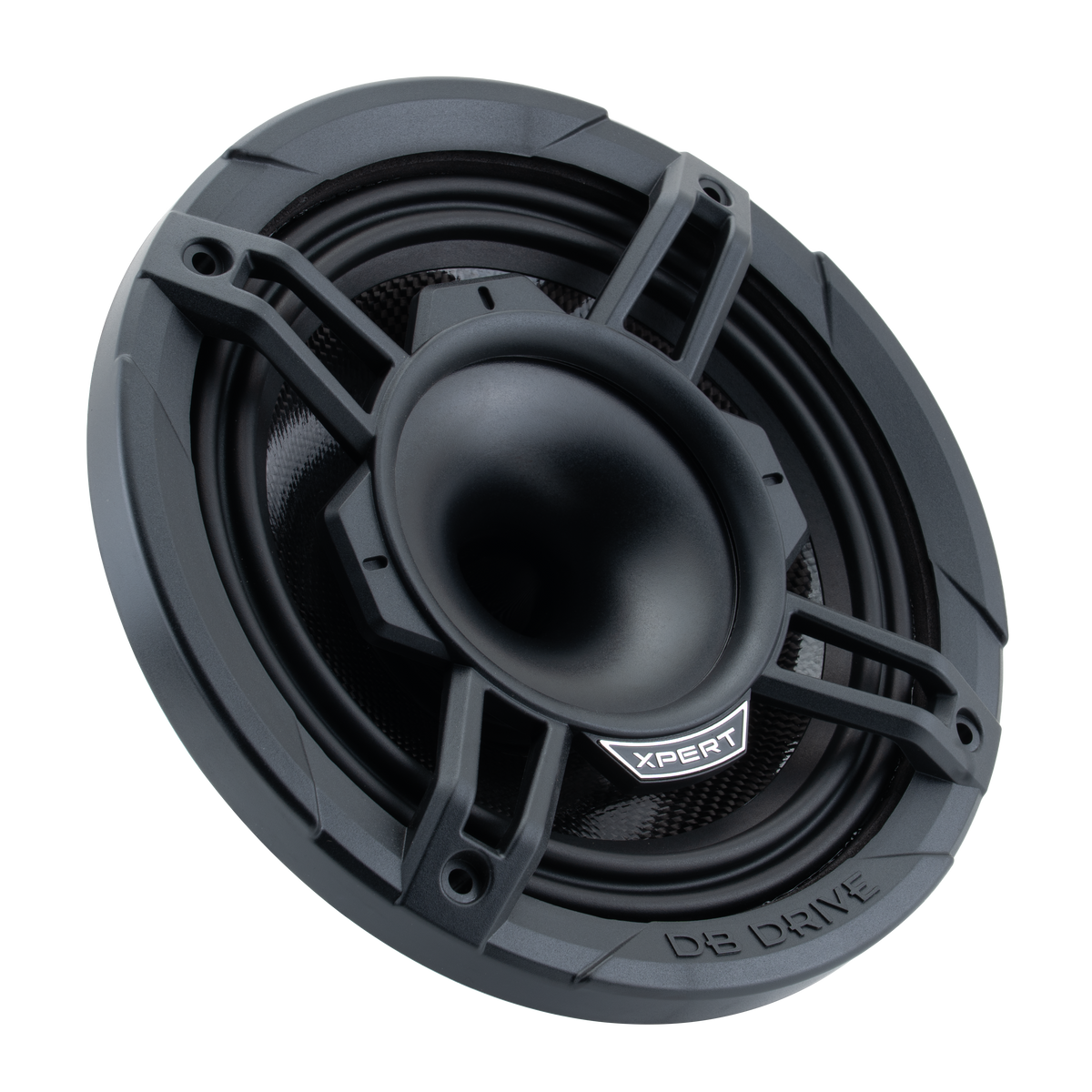

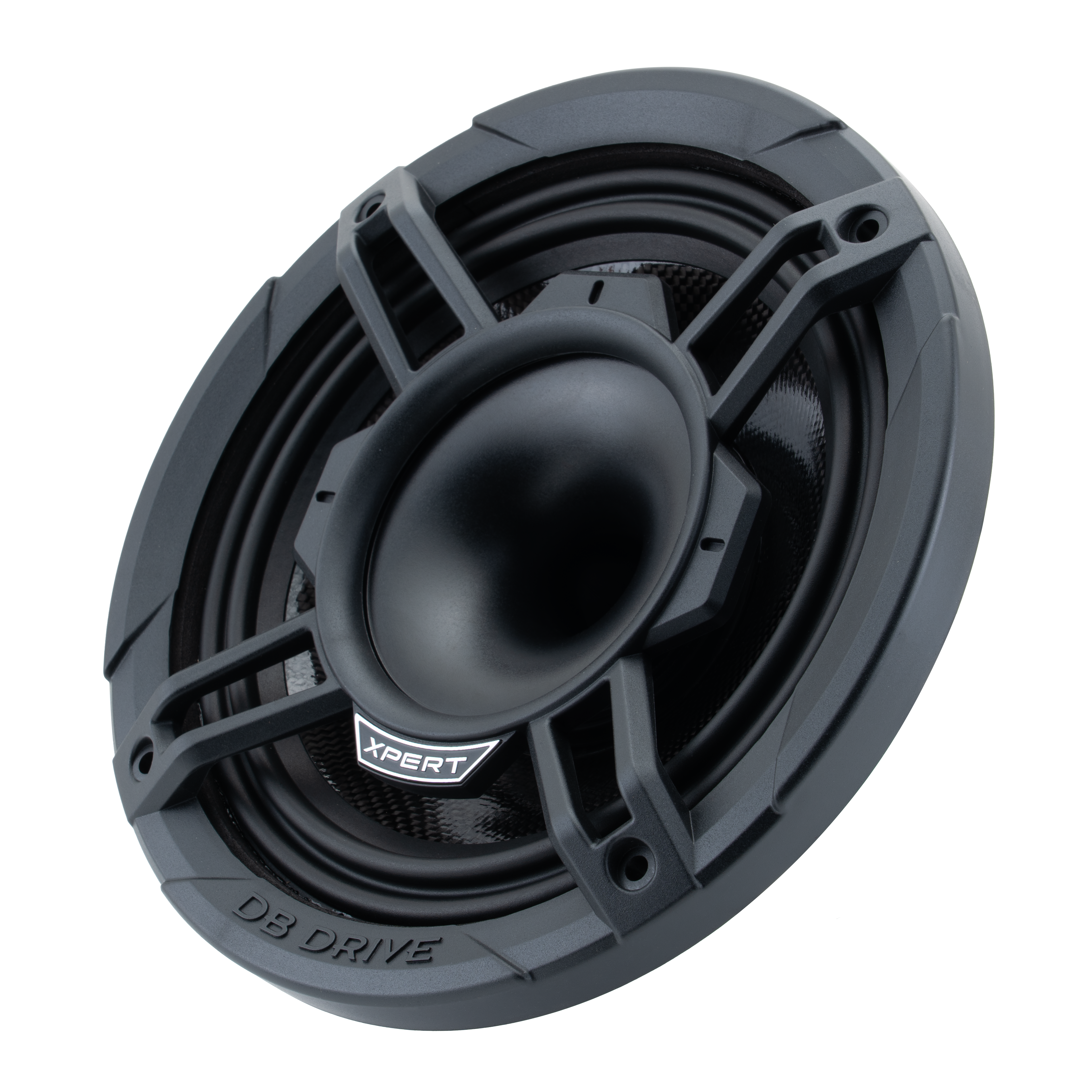

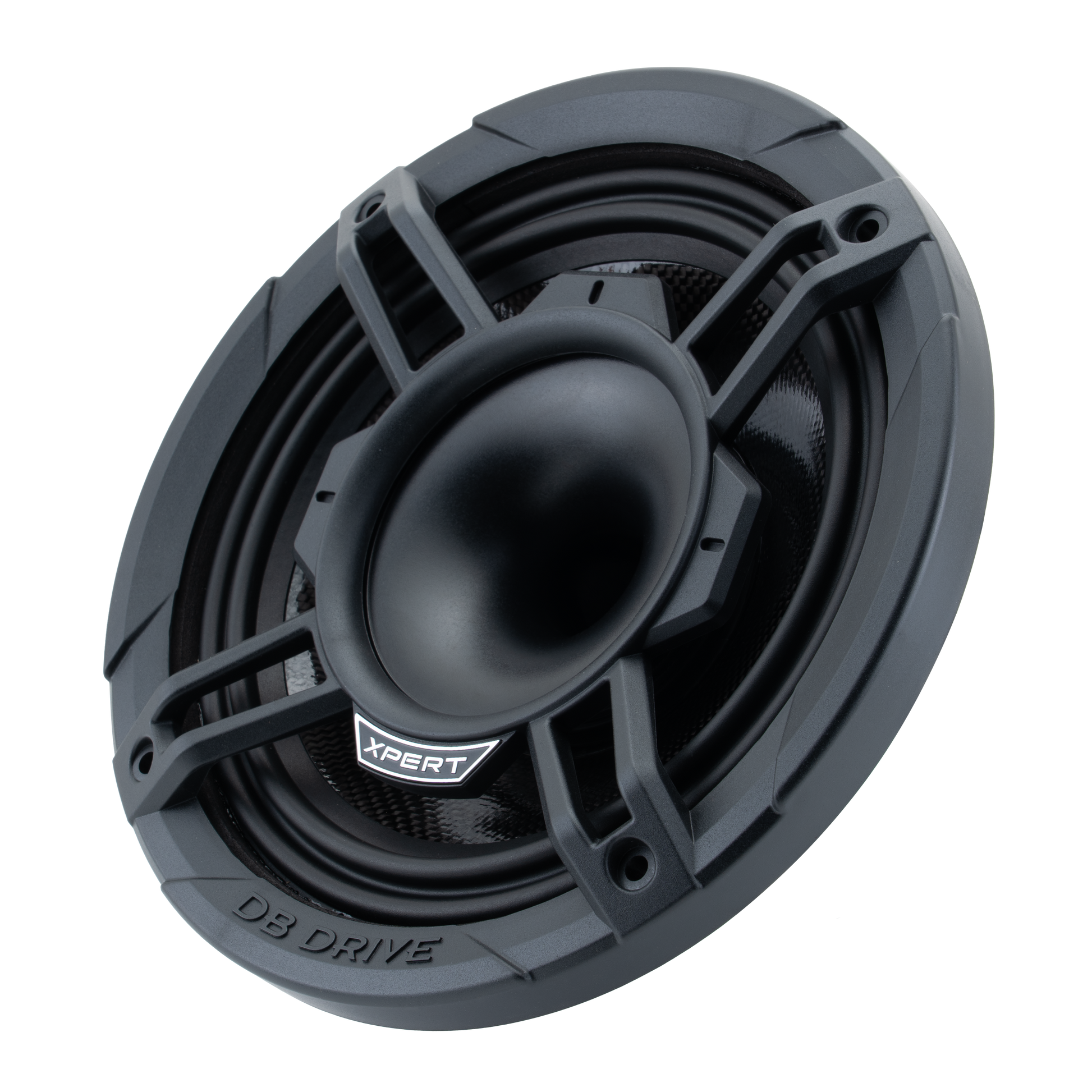

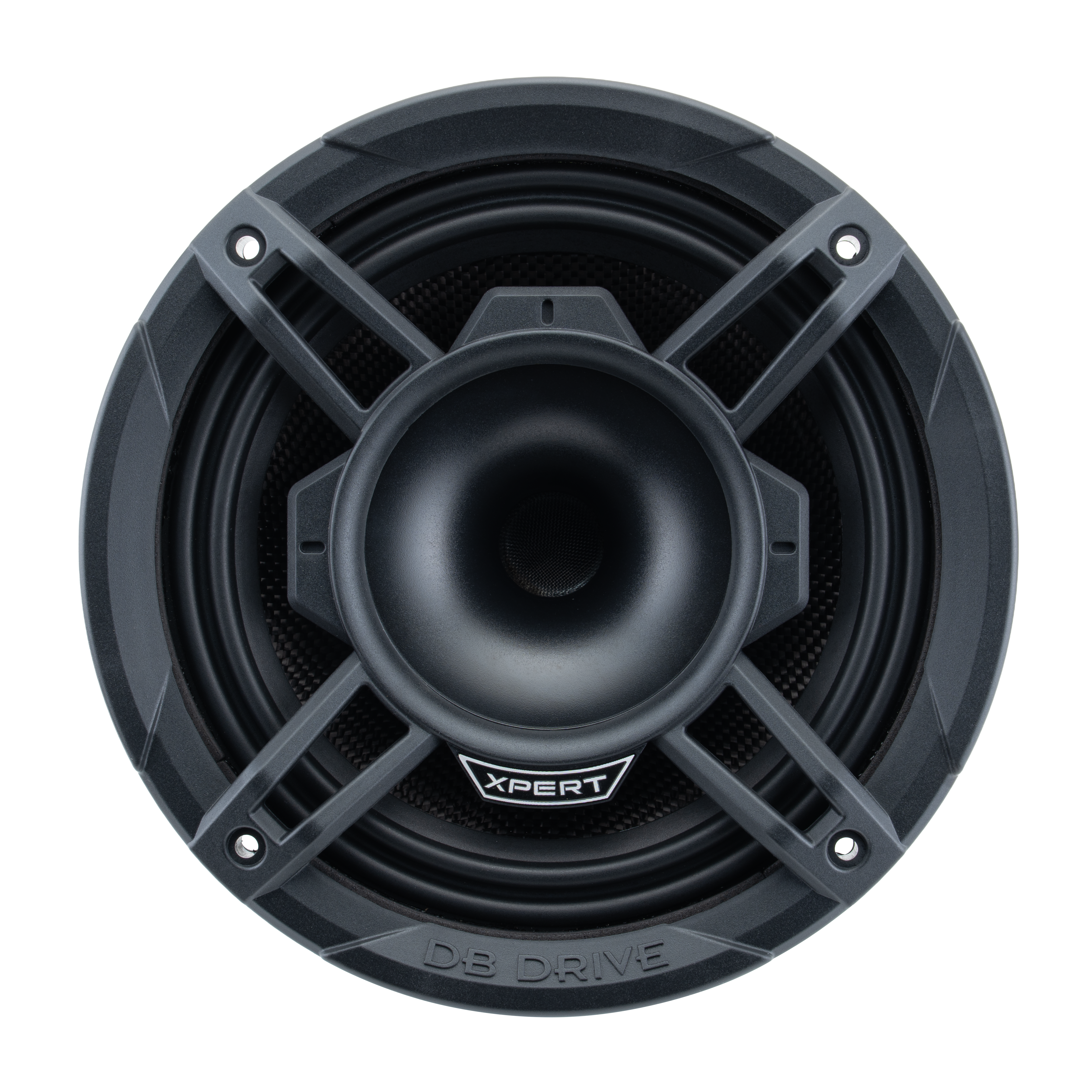

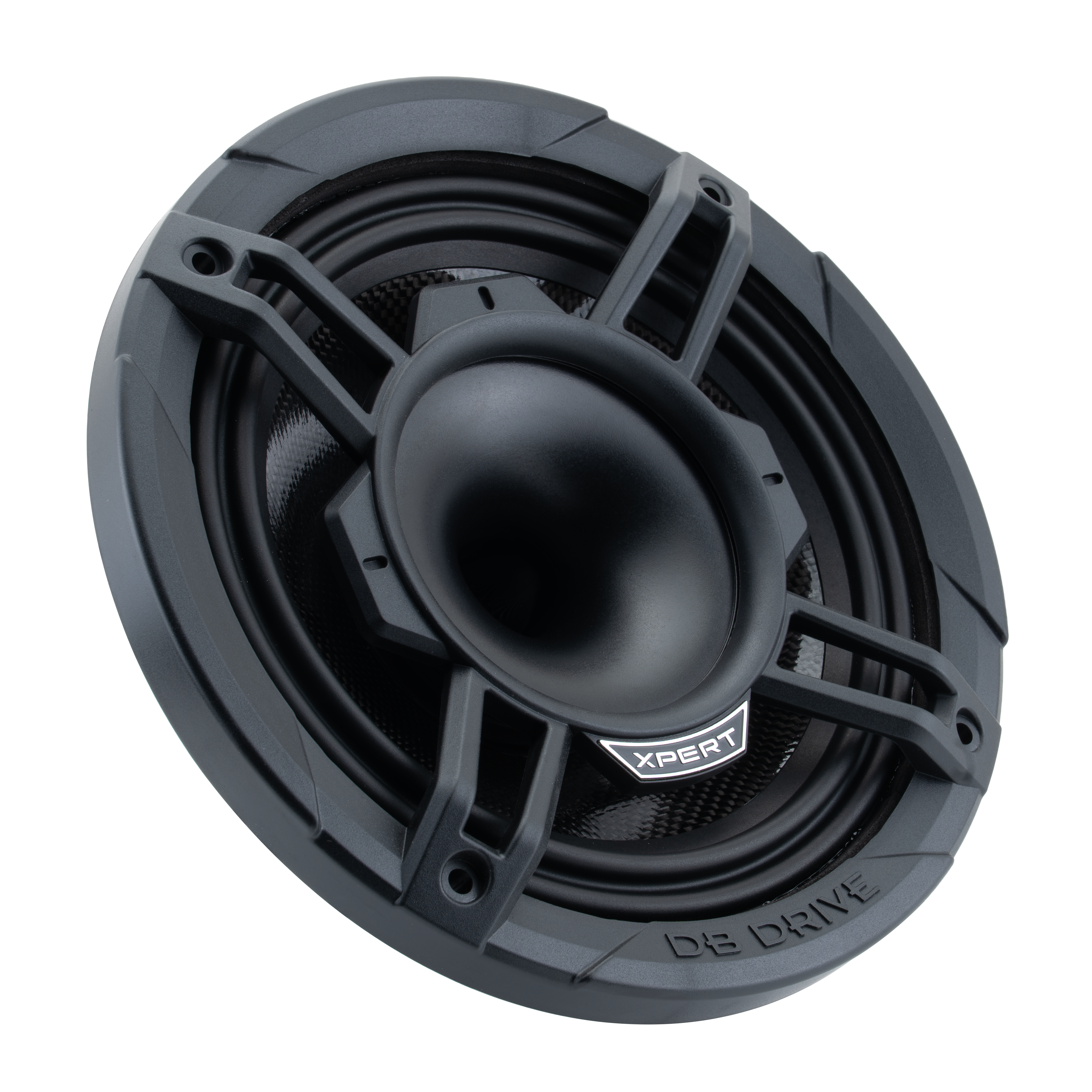

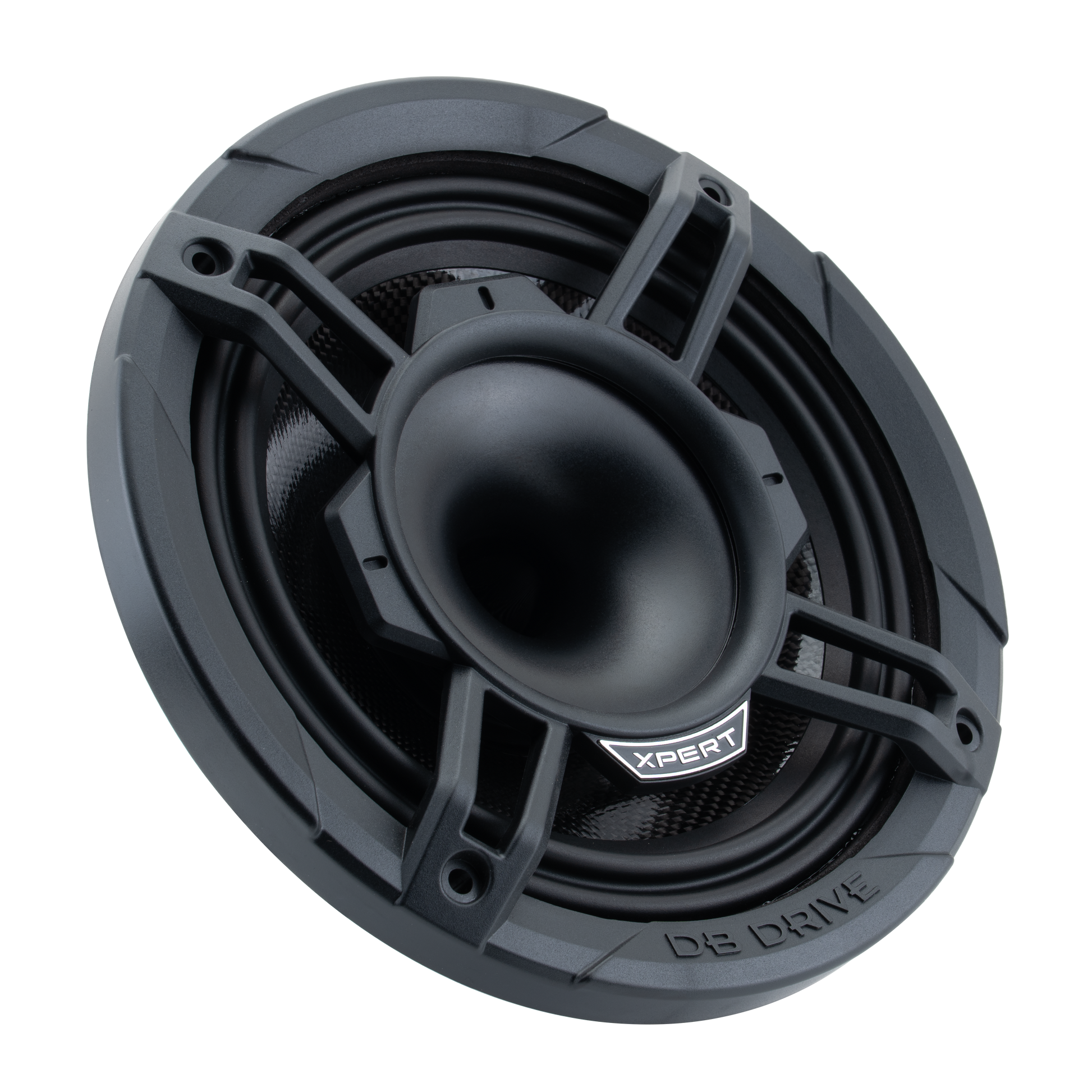

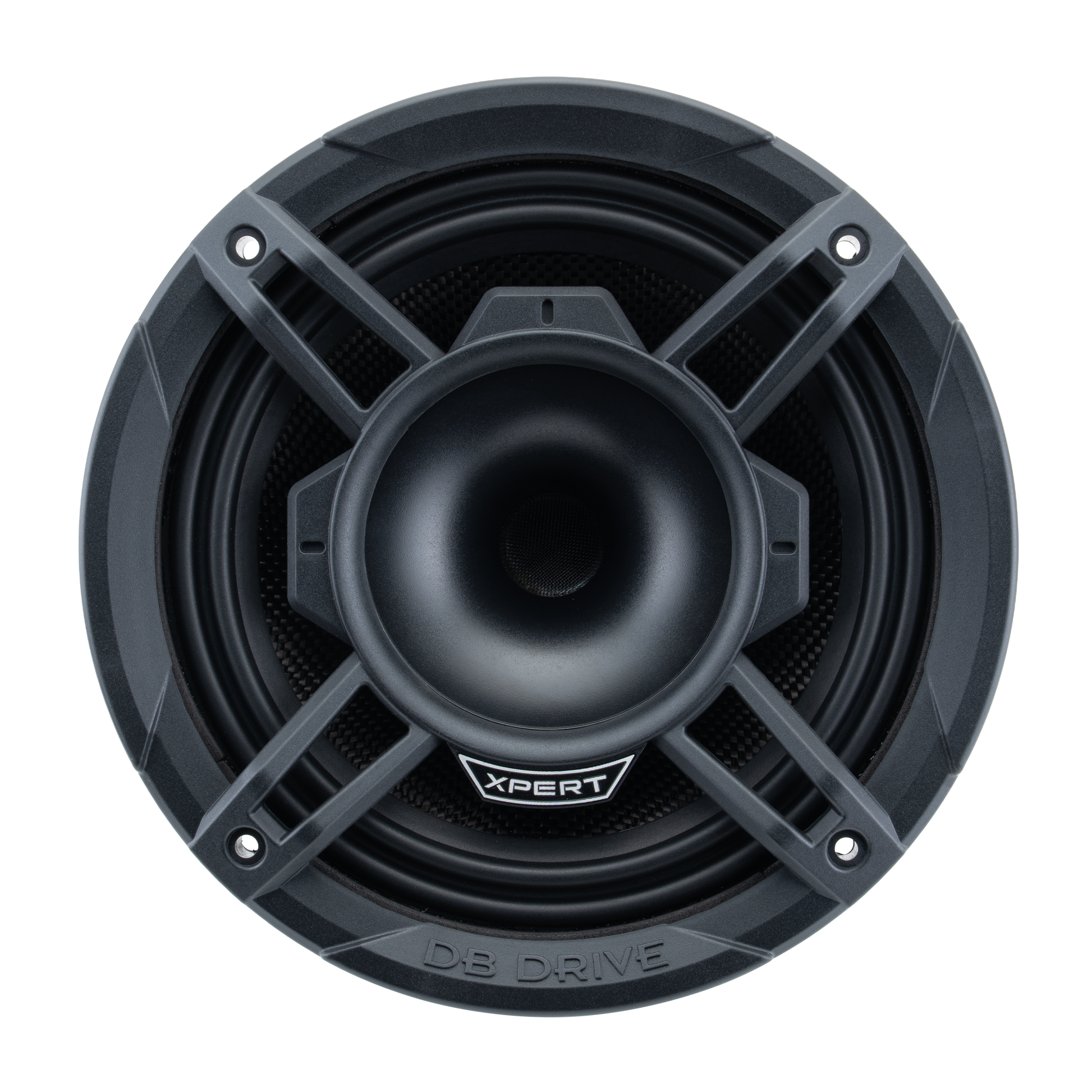

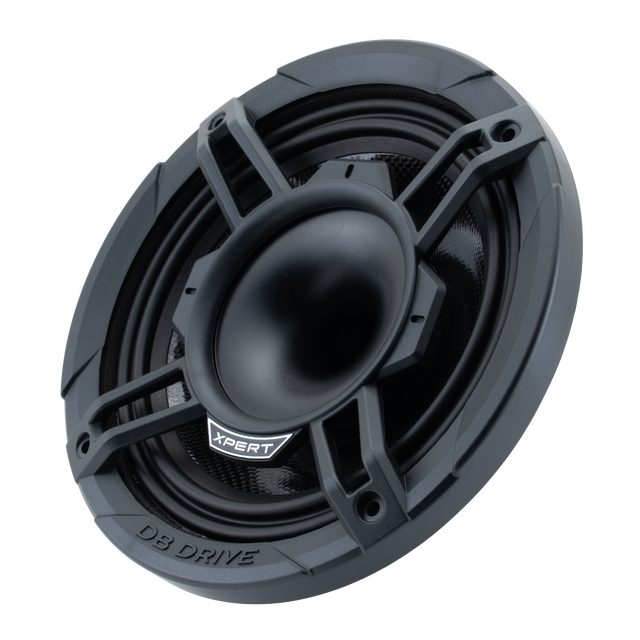

Protective Grills Included

Specifications

Resonant Frequency (fs)	66.2Hz
D.C. Voice Coil Resistance (Re)	3.2Ω
Mechanical Quality Factor (Qms)	6.16
Electrical Quality Factor (Qes)	0.47
Total Quality Factor (Qts)	0.44
Compliance Equivalent Volume (Vas)	18.1L
Mechanical Compliance (Cms)	0.27 mm/N
Nominal Impedance	4Ω
Power Handling	450 Watts
Dynamic Wattage	900 Watts
Sensitivity (1w/1m)	105.7 dB
Voice Coil Diameter	2.0″ (51mm)

Product Manual

Product Manual PDF

Description

Turn up the XPERT-ise in your audio experience!

Introducing the XPERT EX8NCD-CF: the ultimate 8-inch NEO Mid Speaker with Compression Driver and Passive Crossover. This speaker is designed to revolutionize your audio setup with its cutting-edge features. Boasting a powerful neodymium magnet assembly and a rear-mounted full-sized compression driver, it delivers crystal-clear sound with wide dispersion thanks to the conical HF waveguide. The IP54-rated weather-resistant carbon fiber cone ensures durability, while the 1.4” polyester tweeter diaphragm adds a touch of sophistication to your high frequencies. With a frequency response of 50Hz to 20KHz and an impedance of 4Ω, this speaker is engineered to provide an immersive sound experience. The die-cast aluminum basket with radial venting keeps your speaker cool, even during intense sessions. Plus, the included protective grills and 12dB passive crossover make installation a breeze. Elevate your sound system with the XPERT EX8NCD-CF and experience the pinnacle of audio innovation.
