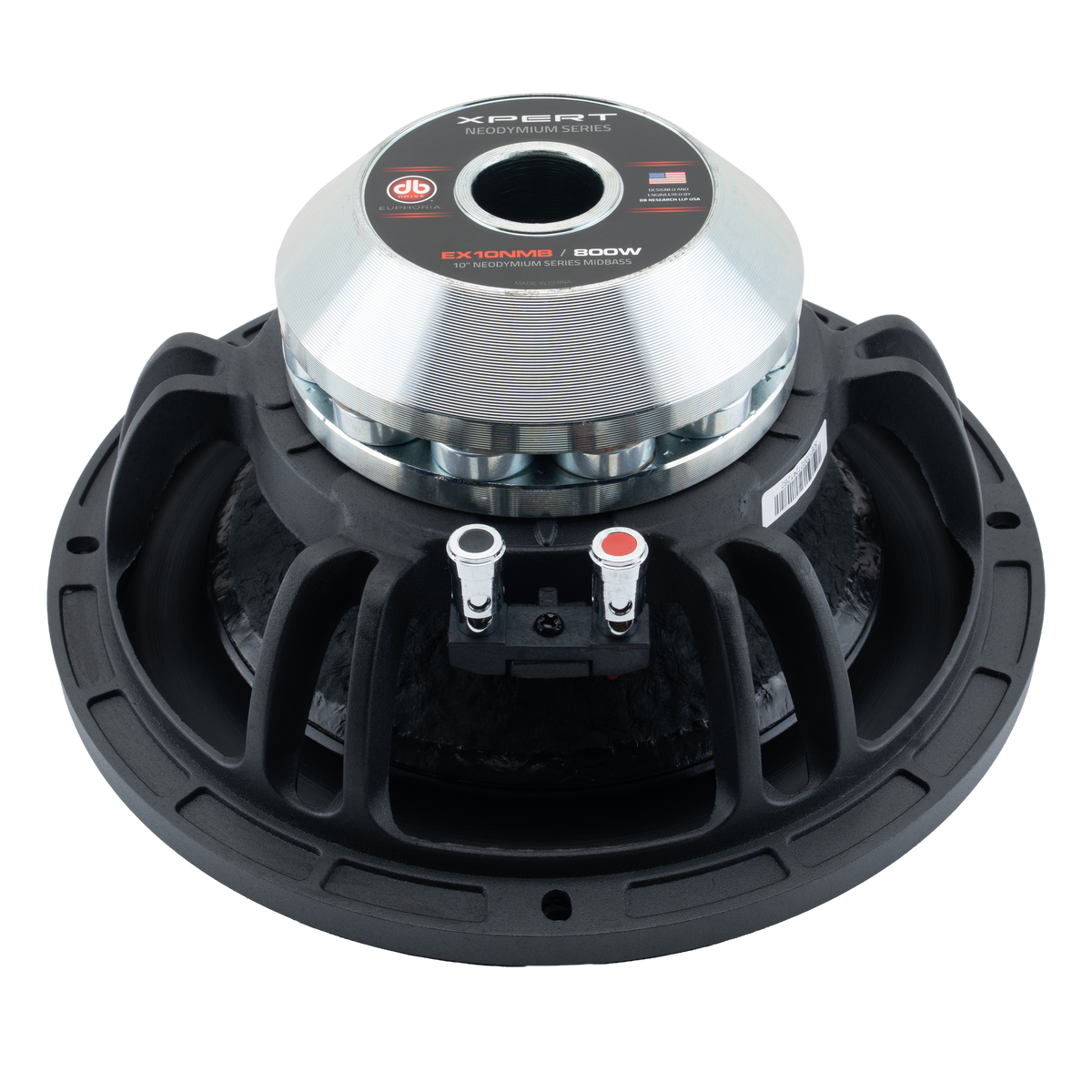

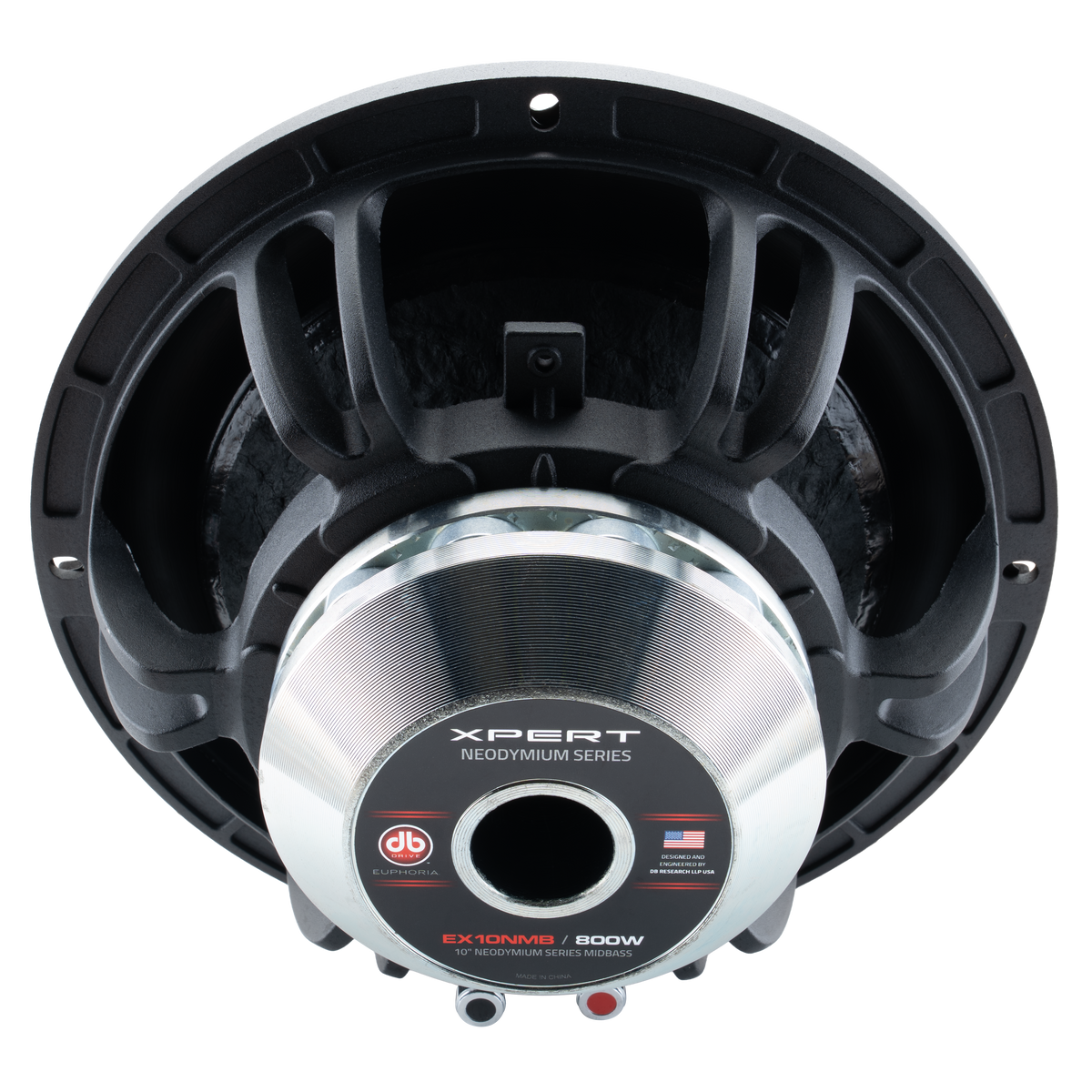

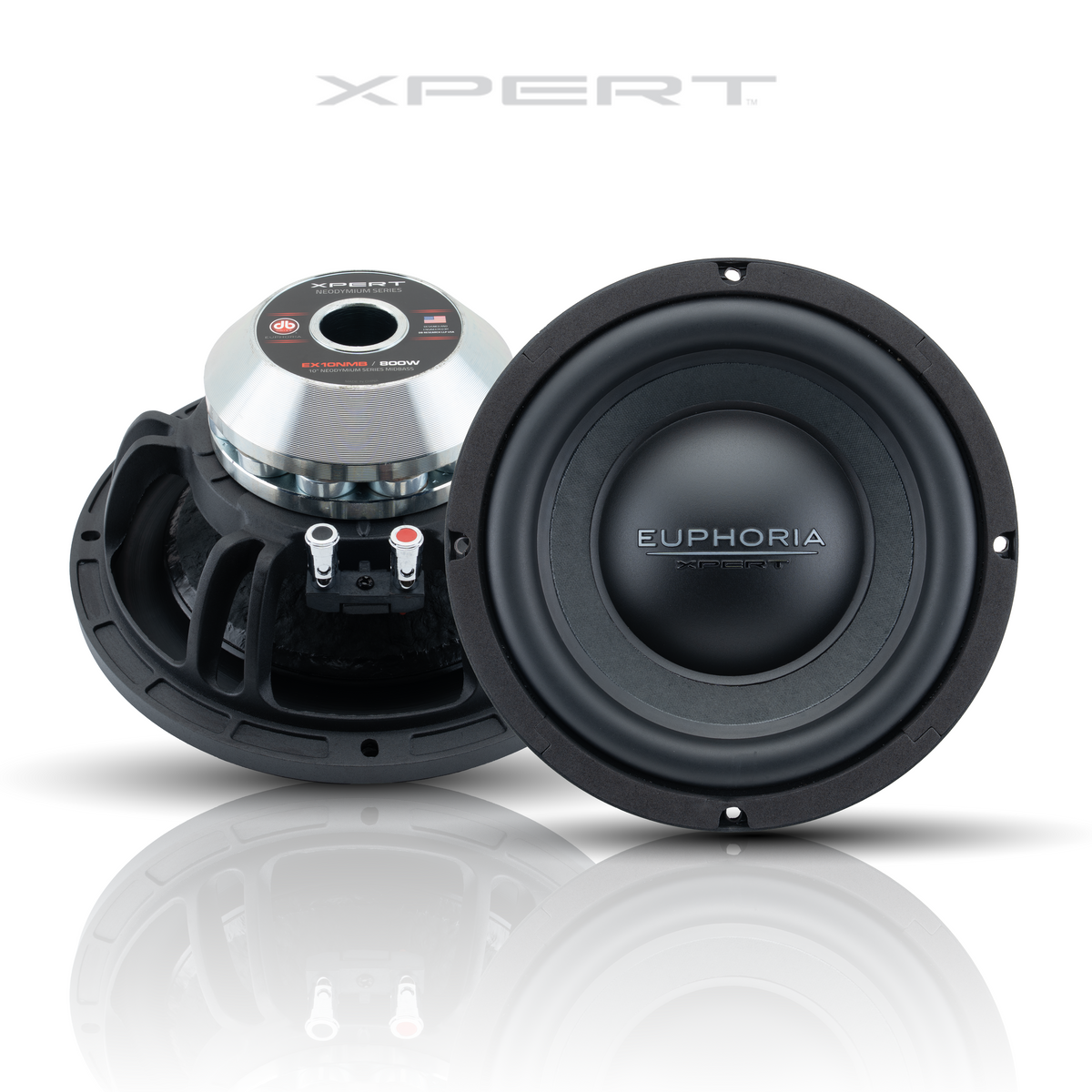

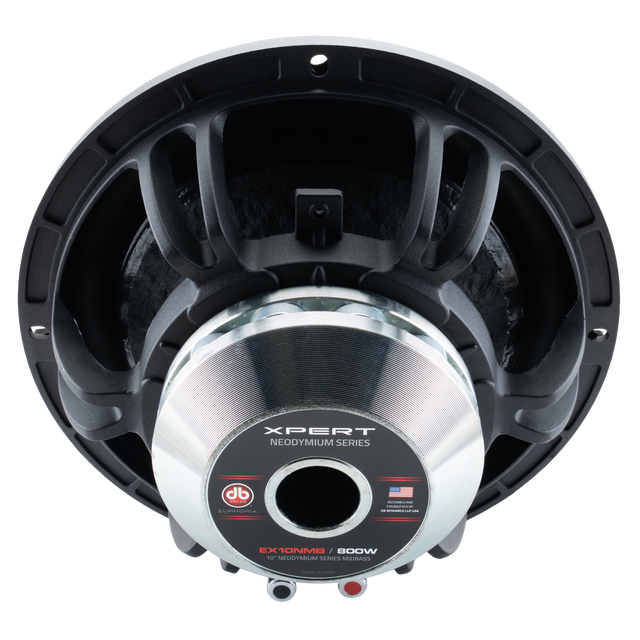

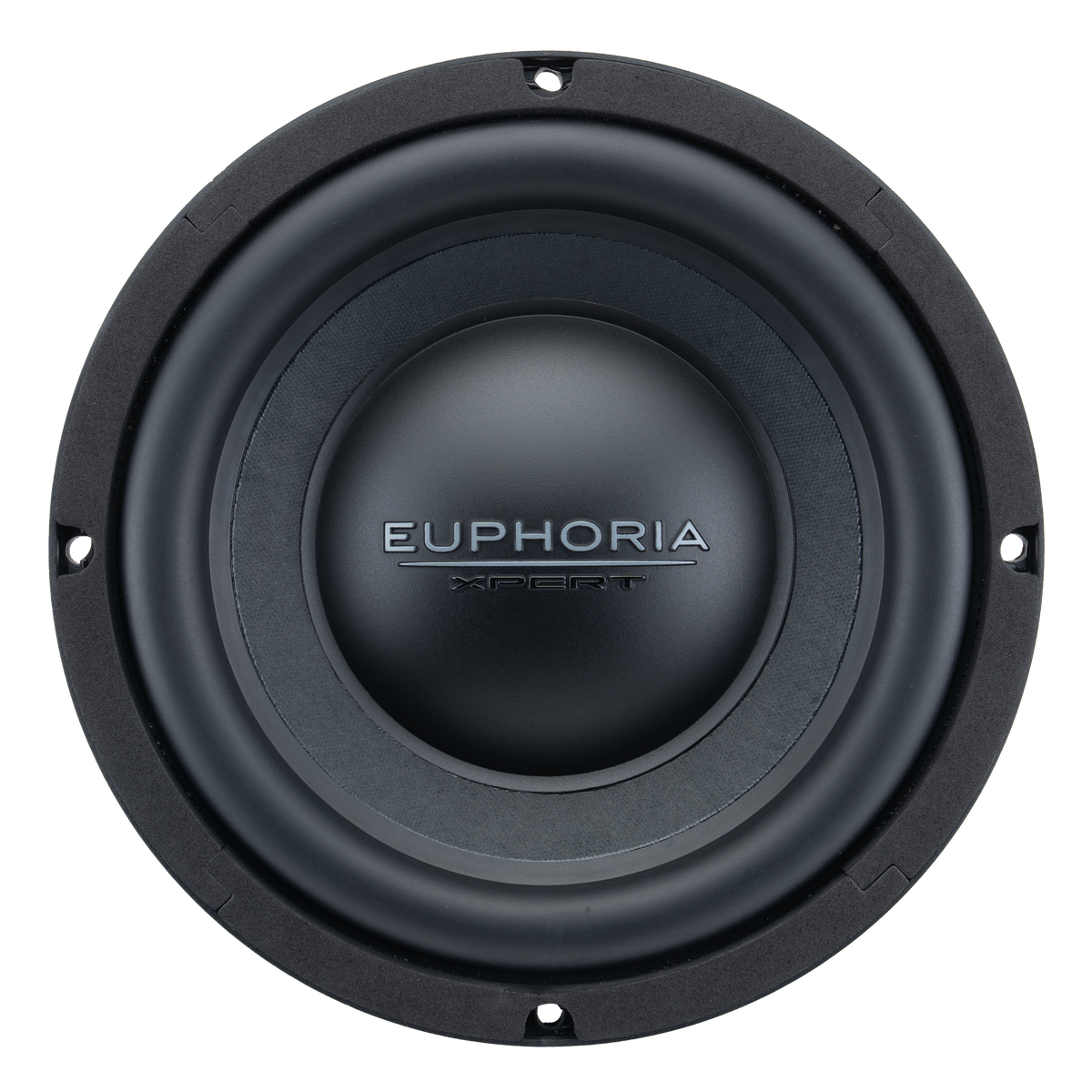

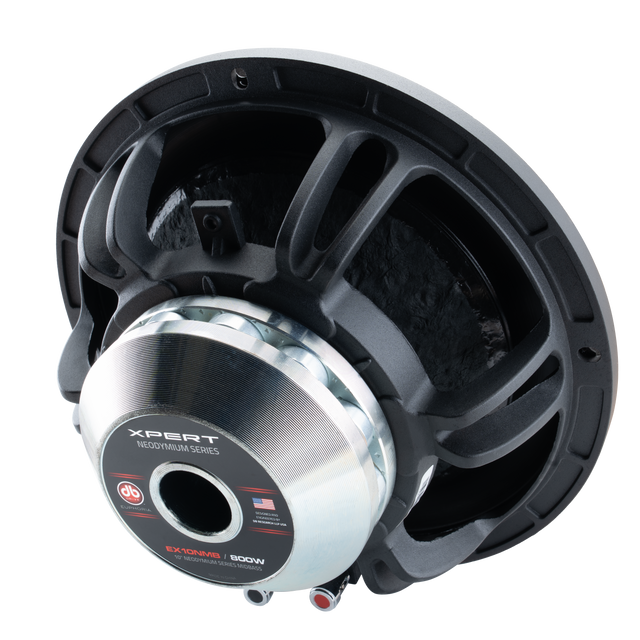

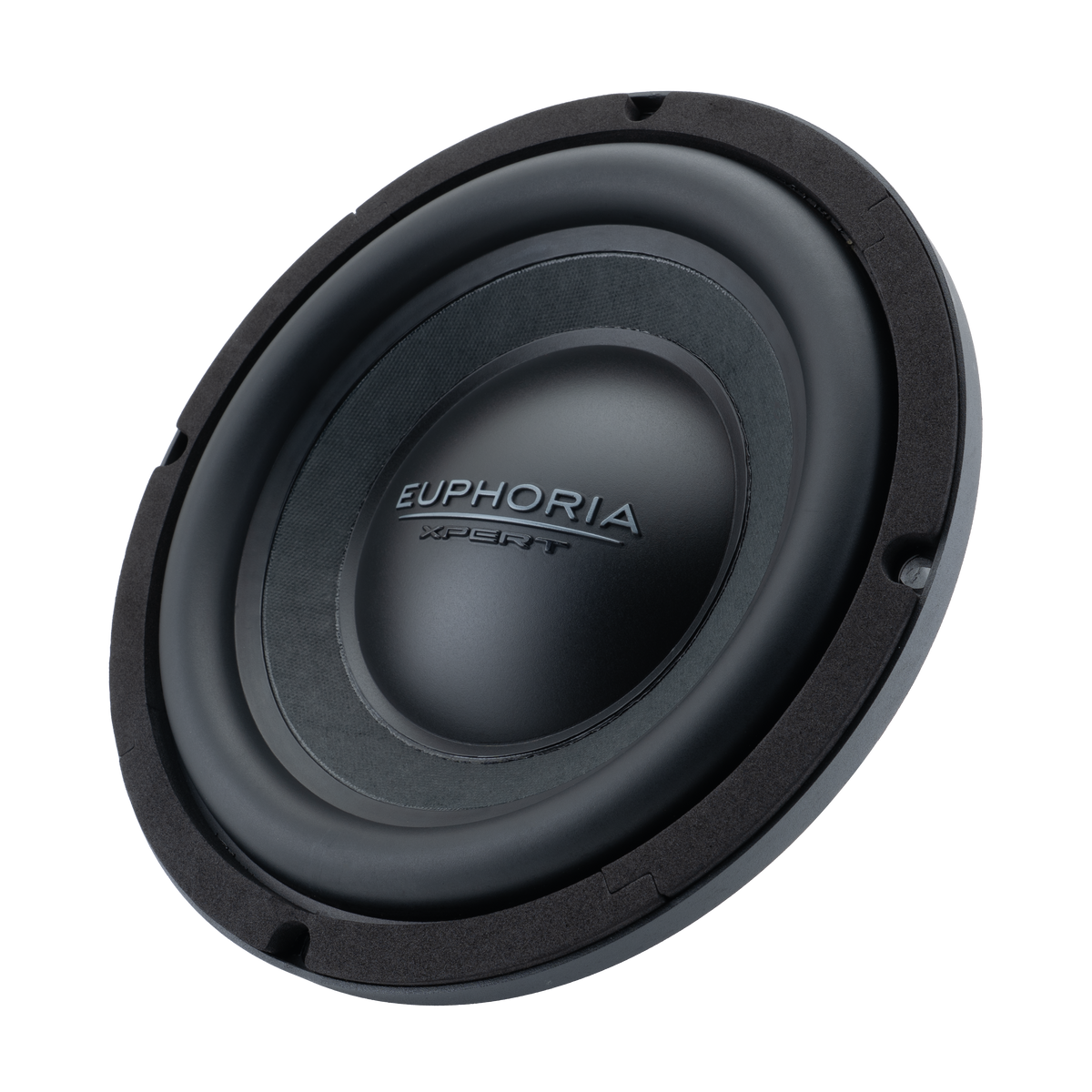

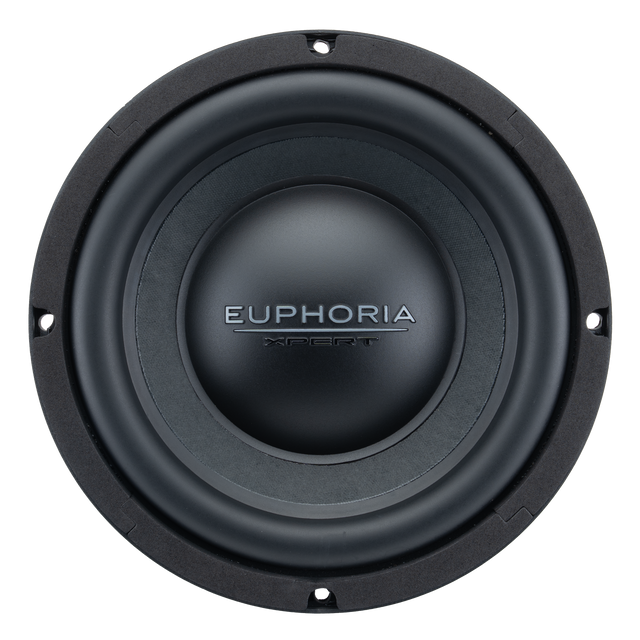

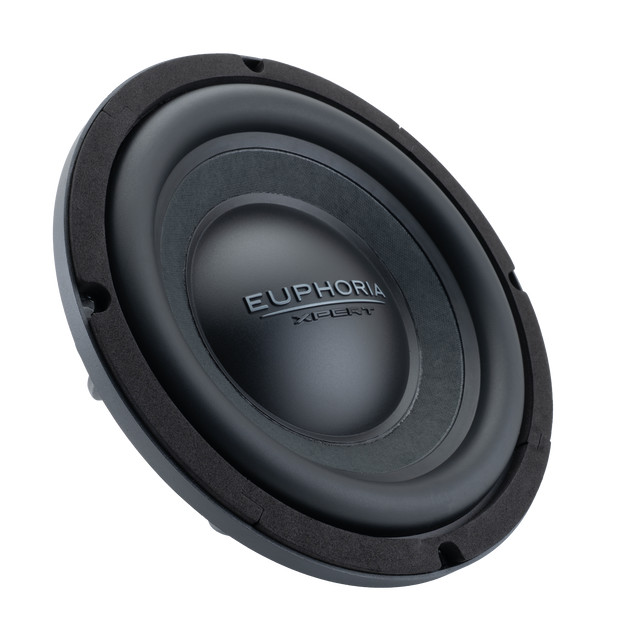

EX10NMB : 10" Die-Cast NEO Midbass

EX10NMB

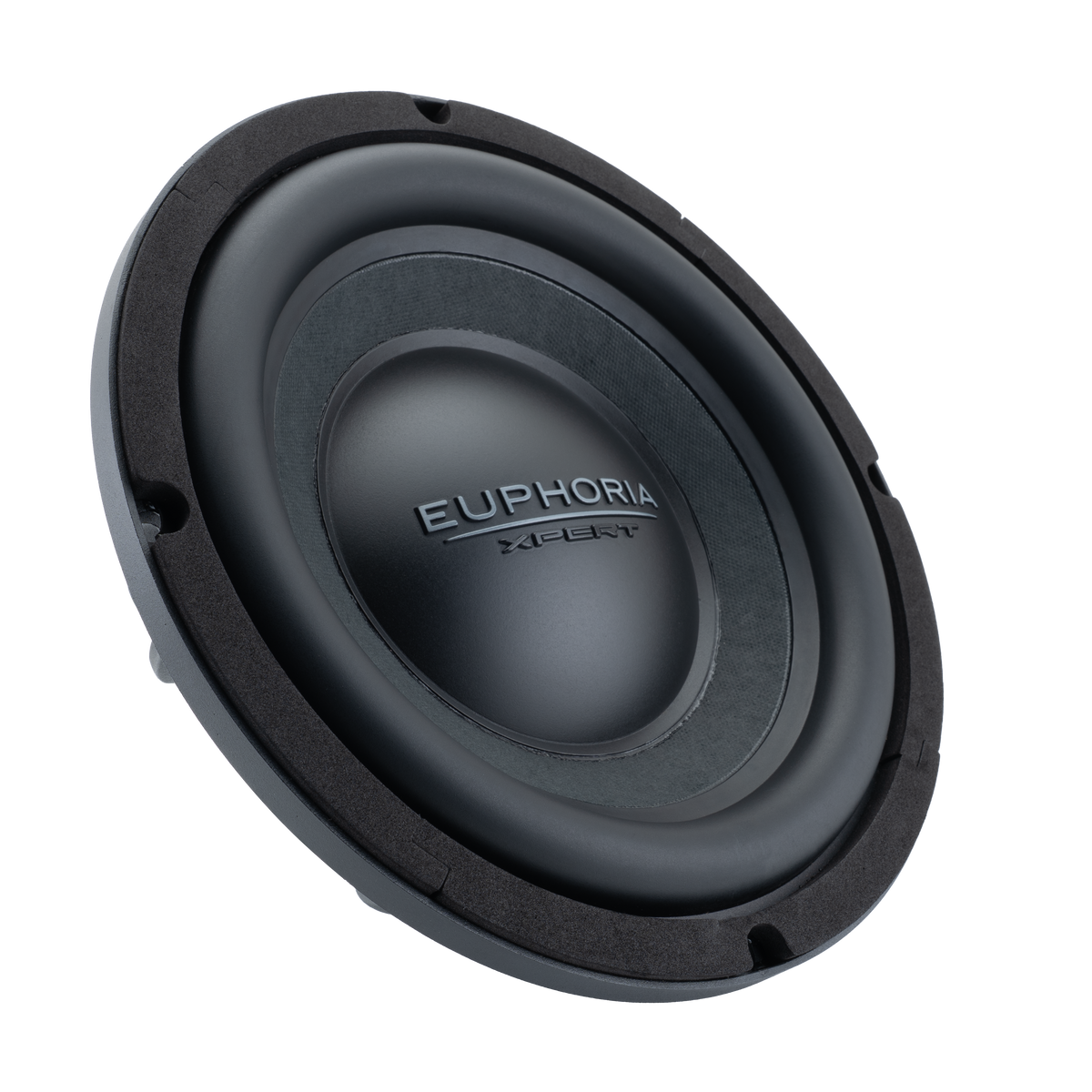

10" Die-Cast NEO Midbass

$469.98

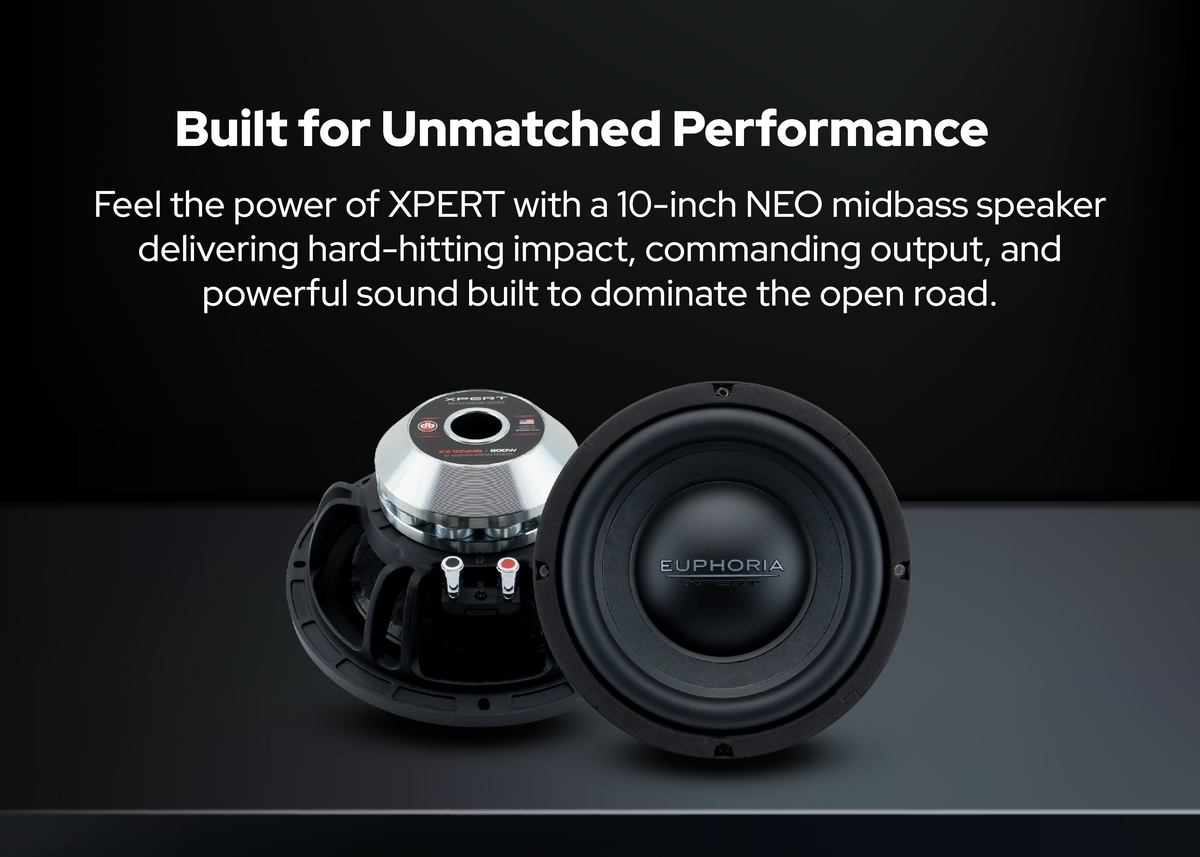

Experience the XPERT sound revolution with the EX10NMB 10in Die-Cast NEO Mid bass Driver! Elevate your audio experience with the XPERT EX10NMB 10in Die-Cast NEO Mid bass Driver. This powerhouse of sound features a Neodymium 12 Piece Radially Equalized Magnet Assembly that ensures exceptional magnetic strength and clarity. With an IP52 Rated Paper Cone and Treated Rubber Surround, it promises durability and superior sound quality. The Die-Cast Aluminum Basket with Radial Venting enhances cooling and longevity. Boasting a Frequency Response of 45Hz - 2000KHz and a Sensitivity of 92dB, it delivers precise, powerful sound. Whether you're looking to amplify your music or upgrade your audio system, the EX10NMB offers unparalleled performance with its 800 Watts Max Power and 400 Watts Nominal Power. Embrace innovation with the XPERT NEO MID-BASS series and transform your sound experience today.

ADD TO CART

Financing Options Available at Checkout

What Makes it UNIQUE?

Feature#1

Feature#4

Feature#2

Feature#5

Feature#3

Feature#6

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer nec odio. Praesent libero. Sed cursus ante dapibus diam. Sed nisi. Nulla quis sem at nibh elementum imperdiet.

2.5″ (63.5mm) Voice Coil
Provides reliable power handling and efficient heat dissipation for consistent, high-output sound performance.

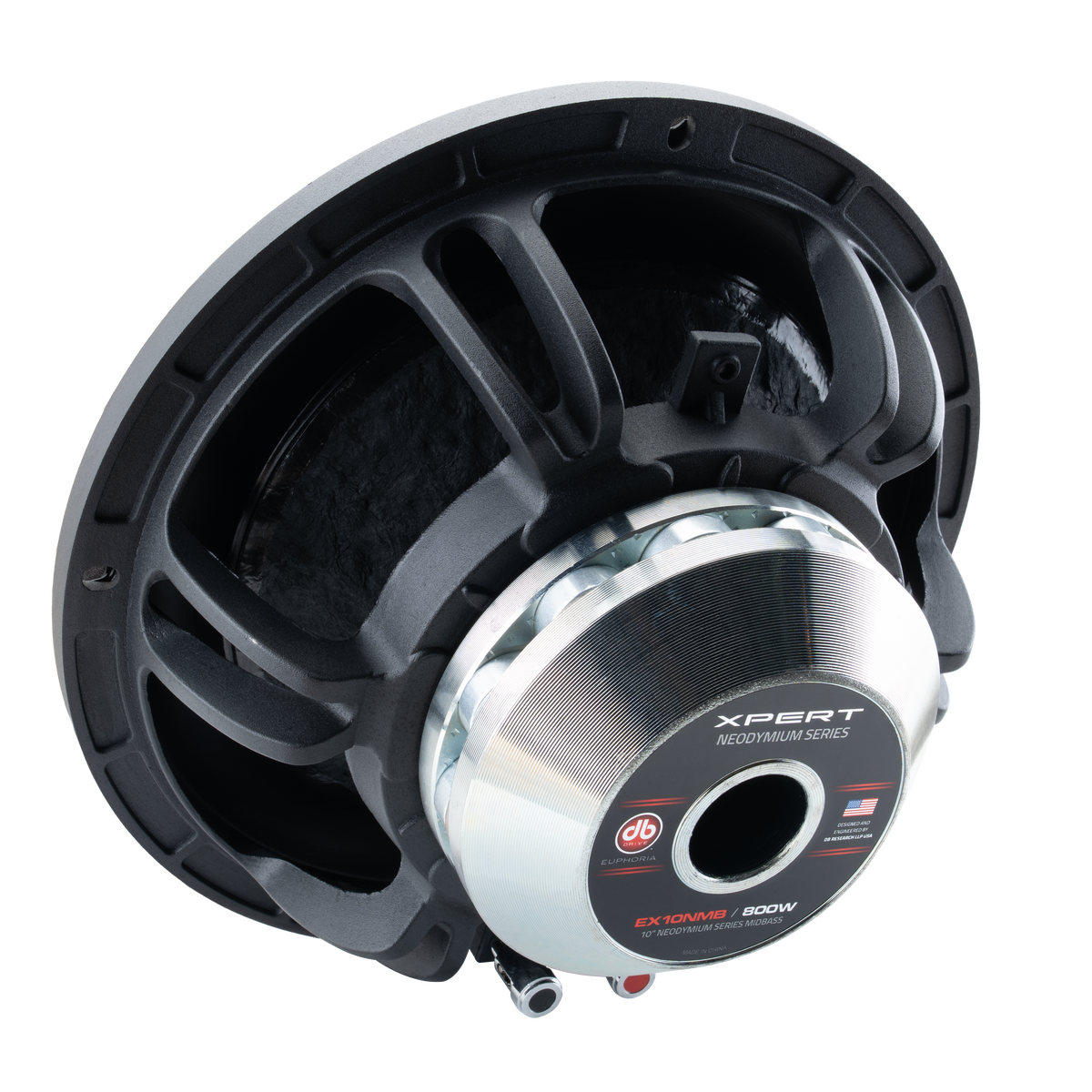

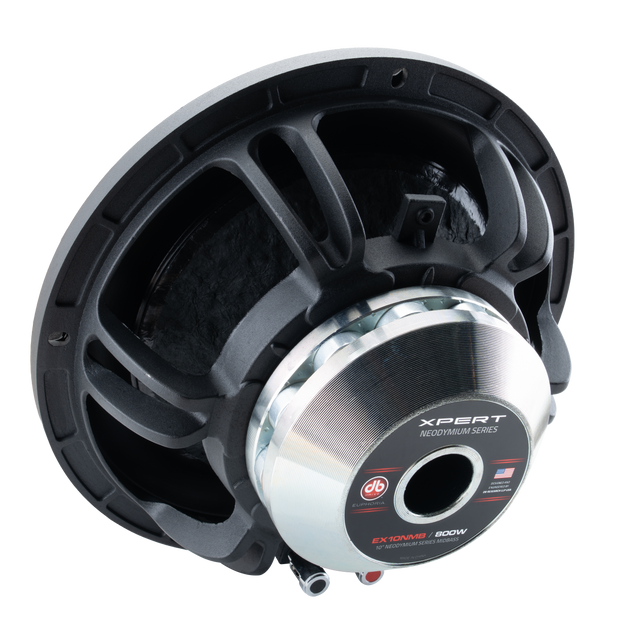

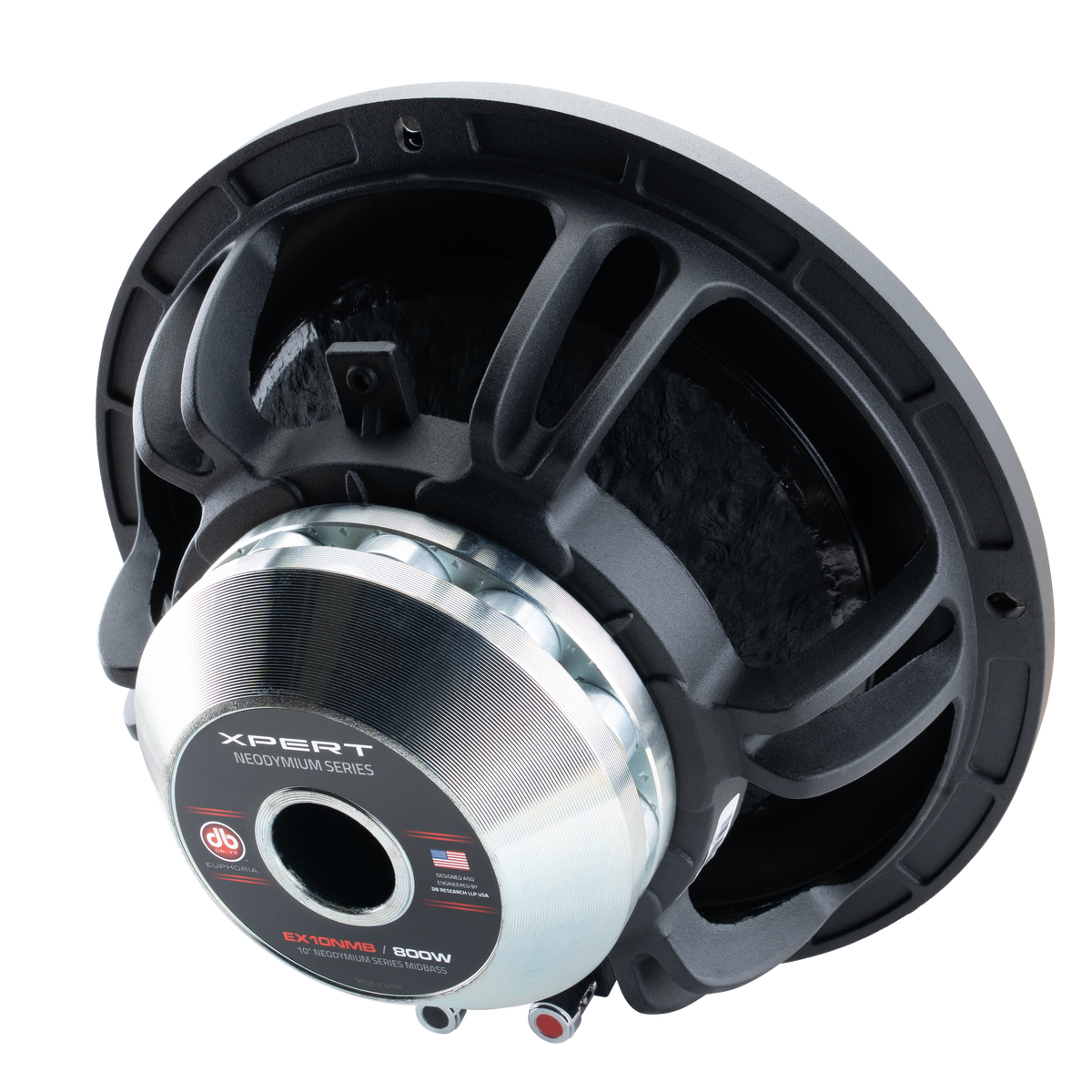

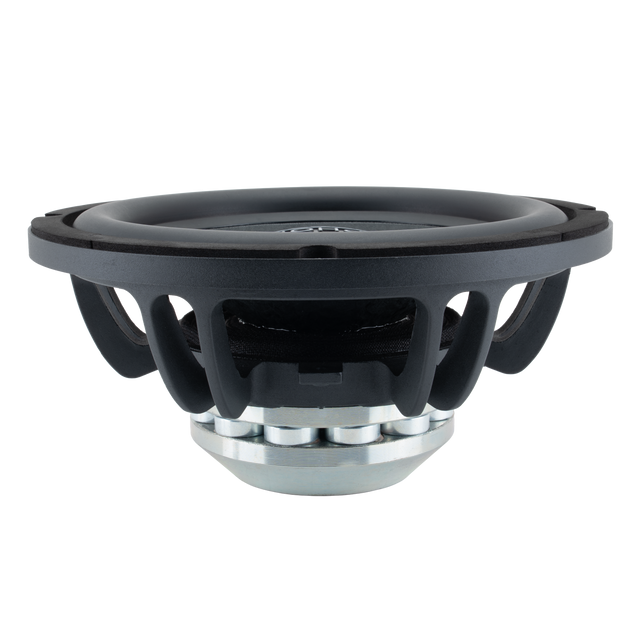

Die-Cast Aluminum Basket with Radial Venting
Delivers rigid structural support while promoting airflow for improved heat dissipation.
Compression Speaker Terminals
Compression speaker terminals create a secure wire connection for dependable signal transfer and reliable performance during installation and use.
Rubber Surround
Provides flexibility and durability while allowing controlled cone movement for smooth, accurate sound reproduction.

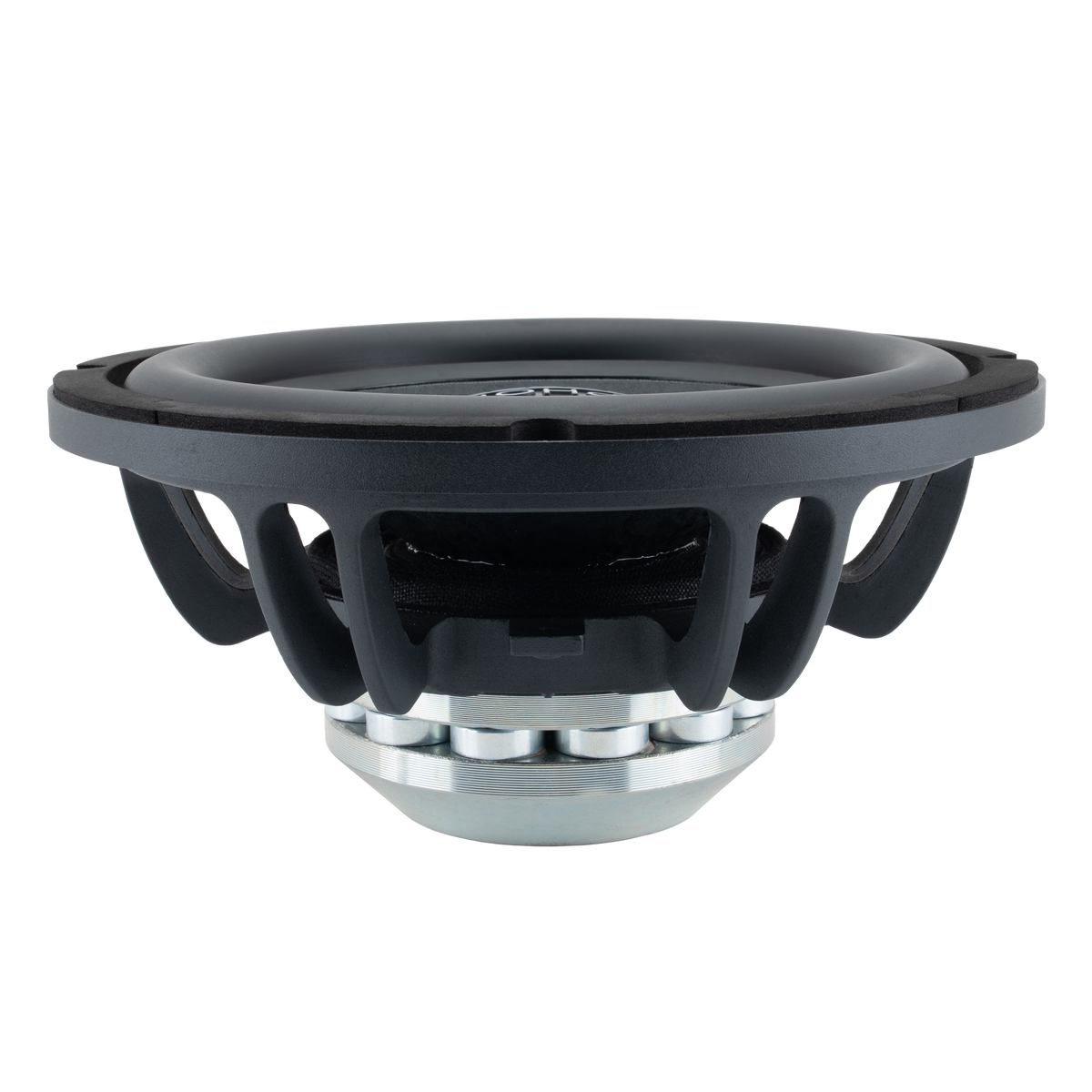

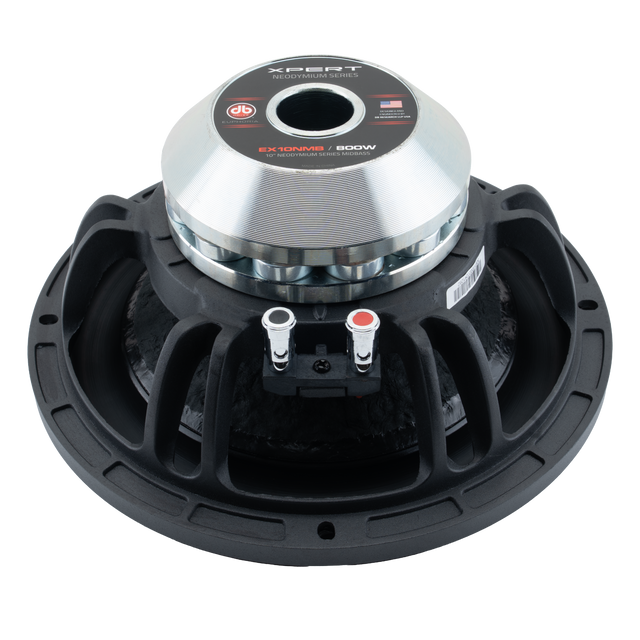

Neodymium Magnet Assembly
Generates a strong magnetic field in a compact, lightweight design for efficient driver control and dynamic performance.
IP52 Rated Paper Cone
Delivers natural, balanced sound reproduction with protection against limited dust ingress and light water exposure.

Resonant Frequency (fs)	40Hz
D.C. Voice Coil Resistance (Re)	3Ω
Mechanical Quality Factor (Qms)	2.913
Electrical Quality Factor (Qes)	0.485
Total Quality Factor (Qts)	0.416
Compliance Equivalent Volume (Vas)	25.94L
Mechanical Compliance (Cms)	167.735 mm/N
Nominal Impedance	4Ω
Power Handling	400 Watts
Dynamic Wattage	800 Watts
Sensitivity (1w/1m)	92 dB
Voice Coil Diameter	2.5″ (63.5mm)

EX10NMB

10" Die-Cast NEO Midbass

$469.98

What Makes it UNIQUE?

Feature#1

Feature#4

Feature#2

Feature#5

Feature#3

Feature#6

2.5″ (63.5mm) Voice Coil

Die-Cast Aluminum Basket with Radial Venting

Compression Speaker Terminals

Rubber Surround

Neodymium Magnet Assembly

IP52 Rated Paper Cone

Features:

Specifications:

Description

Recone Available

Product Manual
