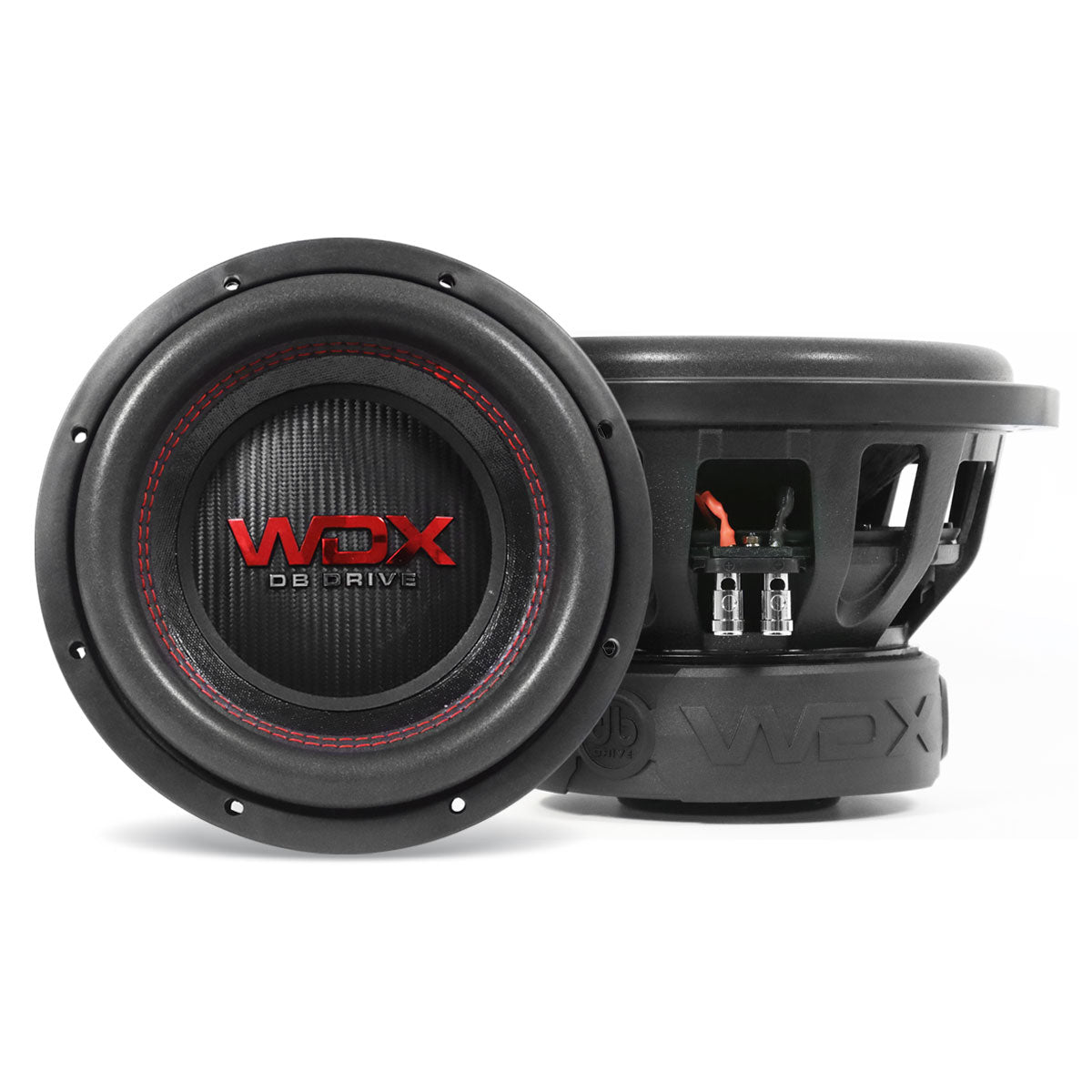

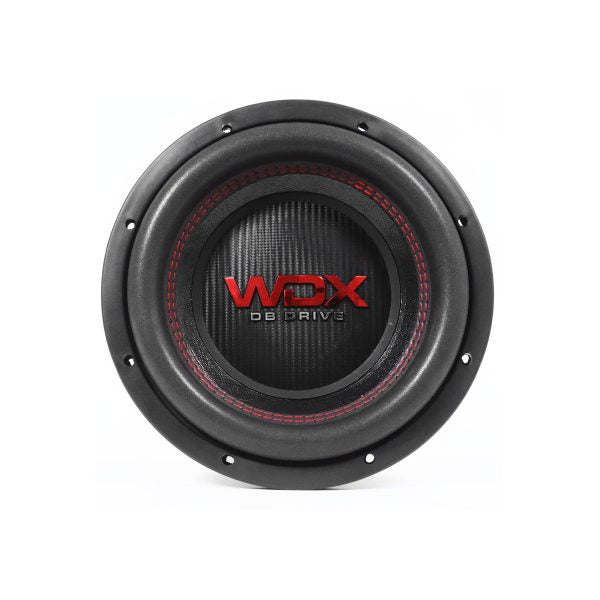

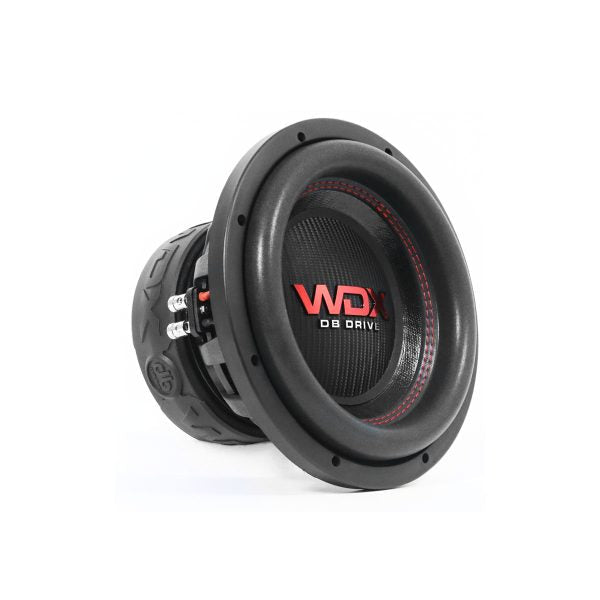

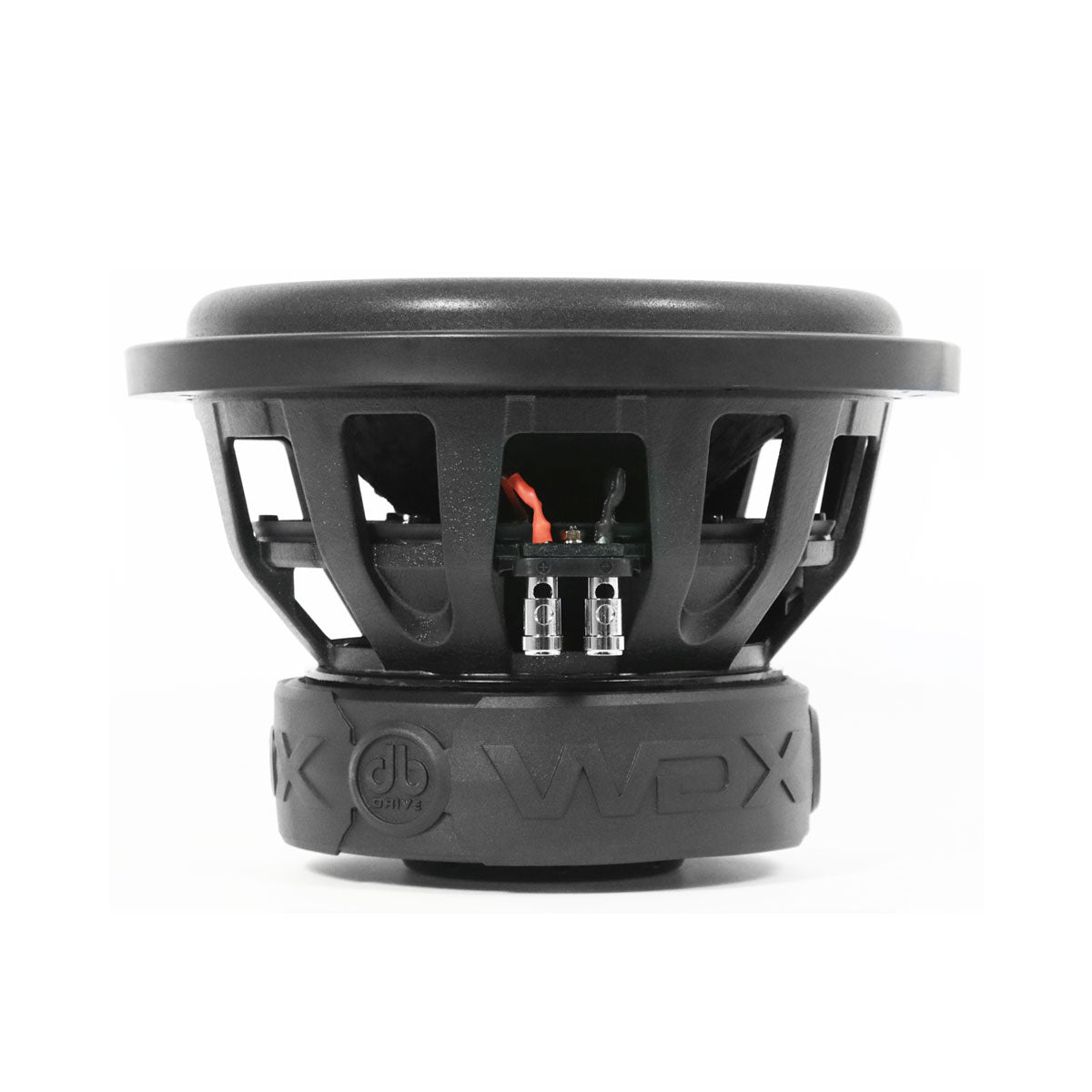

WDX8G1.4 : 8" Dual 4-Ohm Subwoofer

WDX8G1.4

8" Dual 4-Ohm Subwoofer

$199.98

Feel the Drive with the DB Drive WDX8G1.4—Where Power Meets Precision! Experience the ultimate sound revolution with the DB Drive WDX8G1.4: 8in Woofer 4 Ohm DVC. Designed for true audiophiles, this subwoofer features a high-temperature voice coil and a non-pressed paper cone, ensuring durability and outstanding sound quality. The double-stitched foam surround and dual poly-cotton dampeners provide unparalleled stability and performance, while the die-cast aluminum vented basket and rubber gasket trim ring enhance its rugged design. With a 120 oz. magnet and a maximum power handling of 1200 watts, this subwoofer is ready to deliver deep, powerful bass that will transform your listening experience. Whether you're pushing the limits with 600 watts of nominal power or enjoying the protective magnet cover, the WDX G1 series ensures every beat is felt, not just heard. Elevate your audio game with DB Drive—where innovation and excellence collide.

ADD TO CART

Financing Options Available at Checkout

What Makes it UNIQUE?

Feature#1

Feature#4

Feature#2

Feature#5

Feature#3

Feature#6

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer nec odio. Praesent libero. Sed cursus ante dapibus diam. Sed nisi. Nulla quis sem at nibh elementum imperdiet.

Dual Poly-cotton Dampeners
Dual poly-cotton dampeners provide enhanced cone control and stability, helping the subwoofer maintain accurate, powerful bass performance under high excursion.
Large Gauge Compression Terminals
Large gauge compression terminals deliver a secure, high-current connection for reliable power transfer to the subwoofer.
Reinforced PA
Double-stitched reinforced foam surround adds strength and durability while supporting high excursion for deeper, more controlled bass output.
Protective Magnet
Protective magnet helps shield the motor structure from damage, adding durability and reliability in demanding installations.
Die-cast Aluminum Vented Basket
Die-cast aluminum vented basket provides rigid support and improved airflow, helping reduce heat buildup while maintaining structural stability.
High-temp Voice Coil
High-temp voice coil is built to withstand intense heat during extended play, supporting consistent performance and improved power handling.

Features

Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double-stitched foam surround and the die-cast aluminum vented basket allow maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.

2" BASV High-Temperature Voice coil
Non-Pressed paper cone
Double stitched foam surround
Dual poly-cotton dampeners
Die-cast aluminum vented basket
Rubber gasket trim ring
Large gauge compression terminals
Protective magnet cover

Specifications

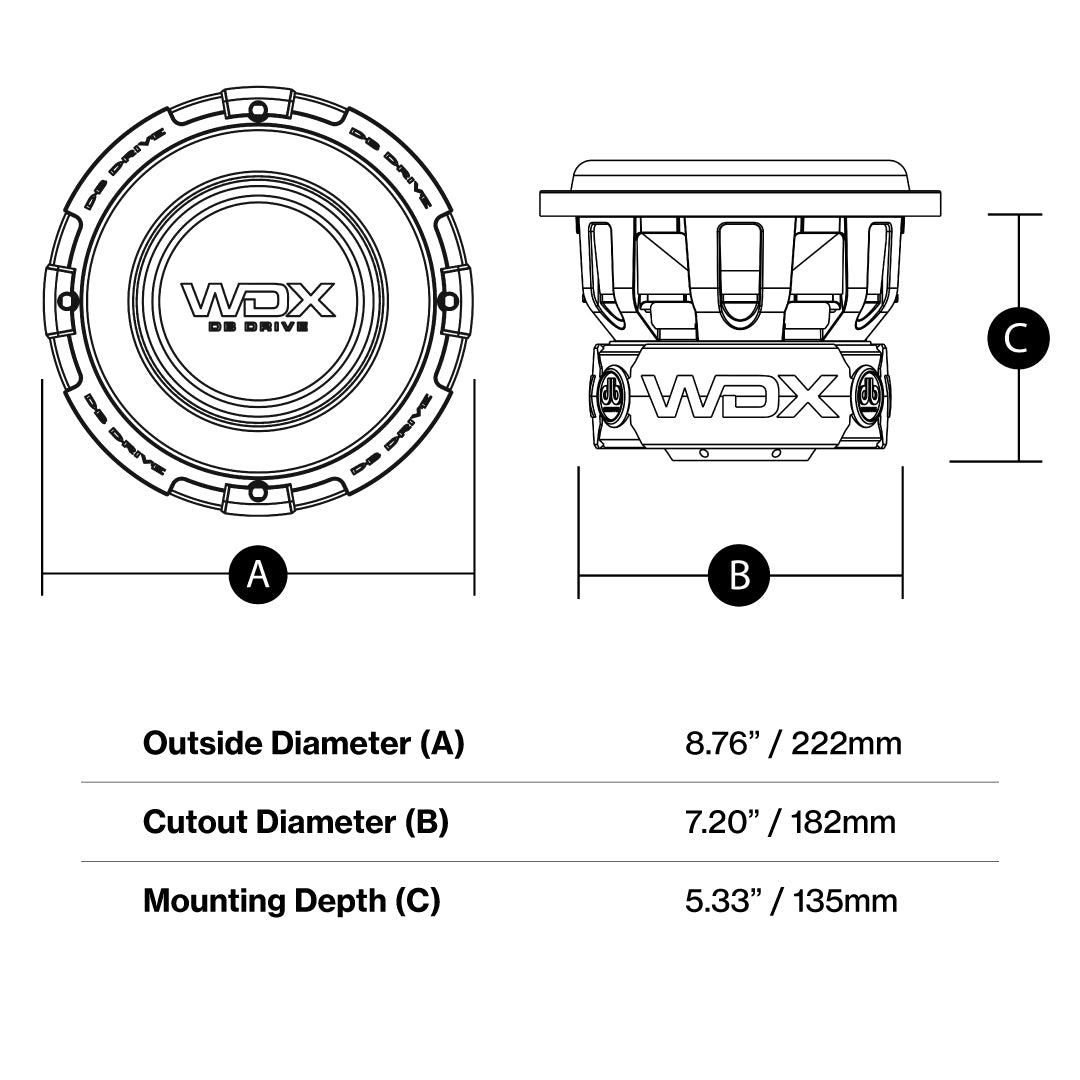

Structure	8" (20.3cm) Woofer
Dynamic Power Handling	1200 Watts
Nominal Power Handling	600 Watts
Impedance	Dual 4Ω Voice Coil
PARAMETERS
Resonant Frequency (fs)	55.71Hz
D.C. Voice Coil Resistance (Re)	3.2 x 3.2Ω
Mechanical Quality Factor (Qms)	6.234
Electrical Quality Factor (Qes)	0.757
Total Quality Factor (Qts)	0.675
Equivalent Air Volume to Cms (Vas)	3.519 L
Mass of Diaphragm/Coil (Mms)	150.516 g
Force Factor (Bl)	10.550
Sound Pressure Level (SPL)	80.9 dB
