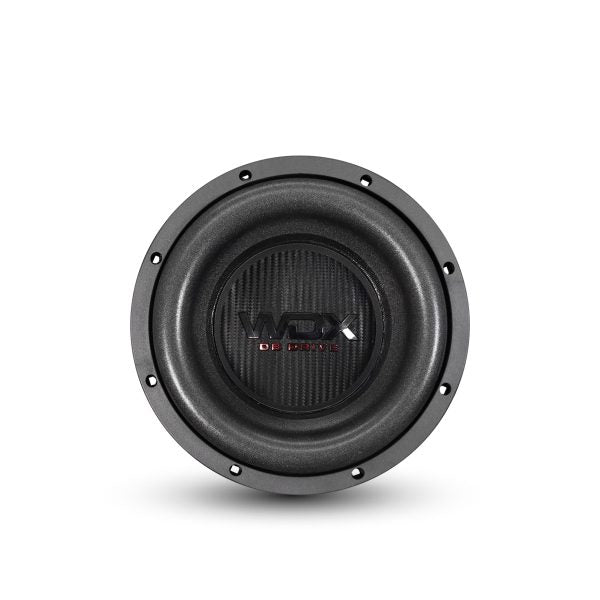

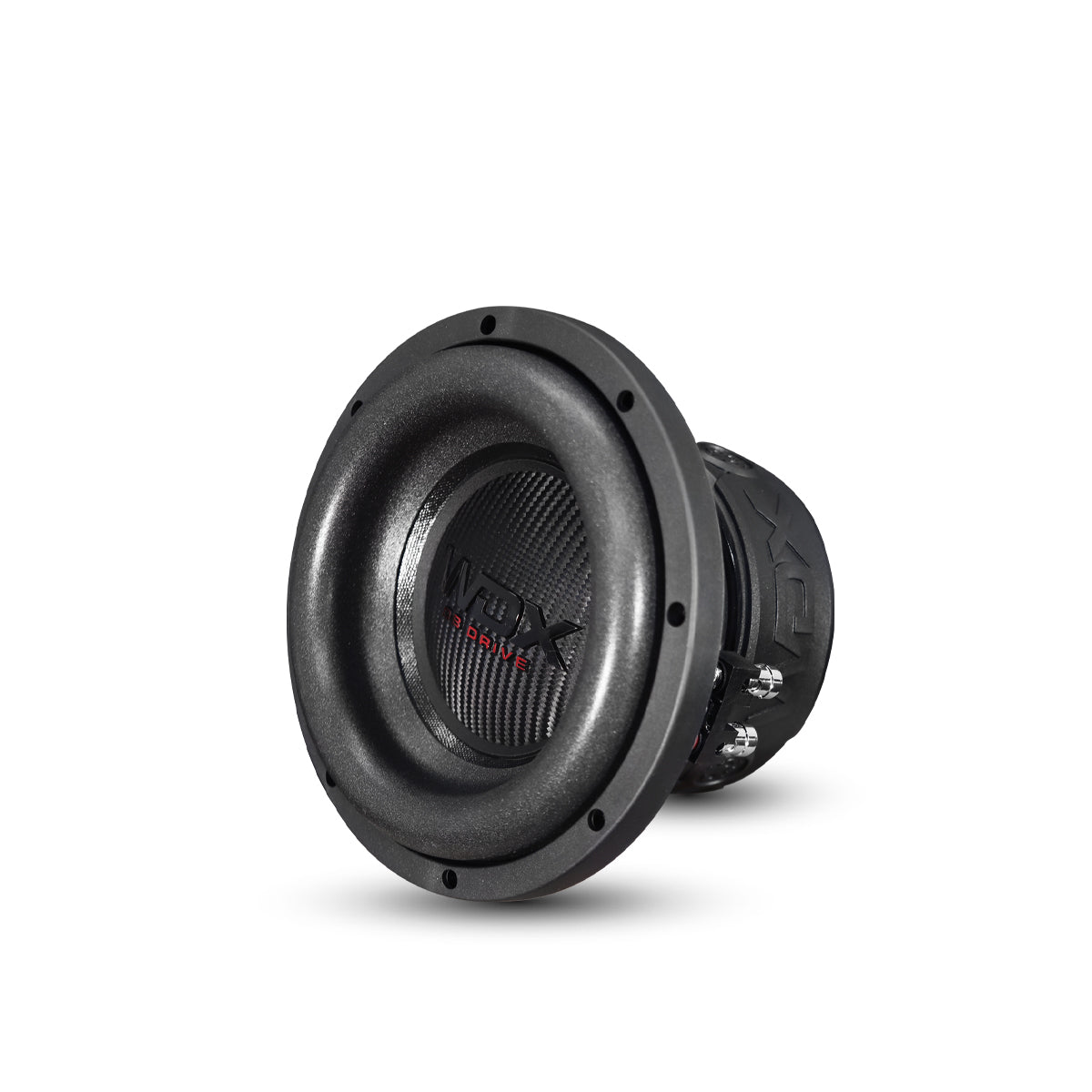

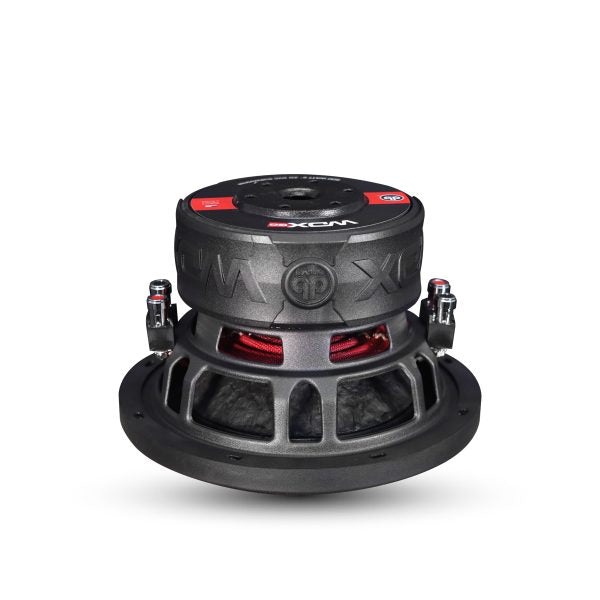

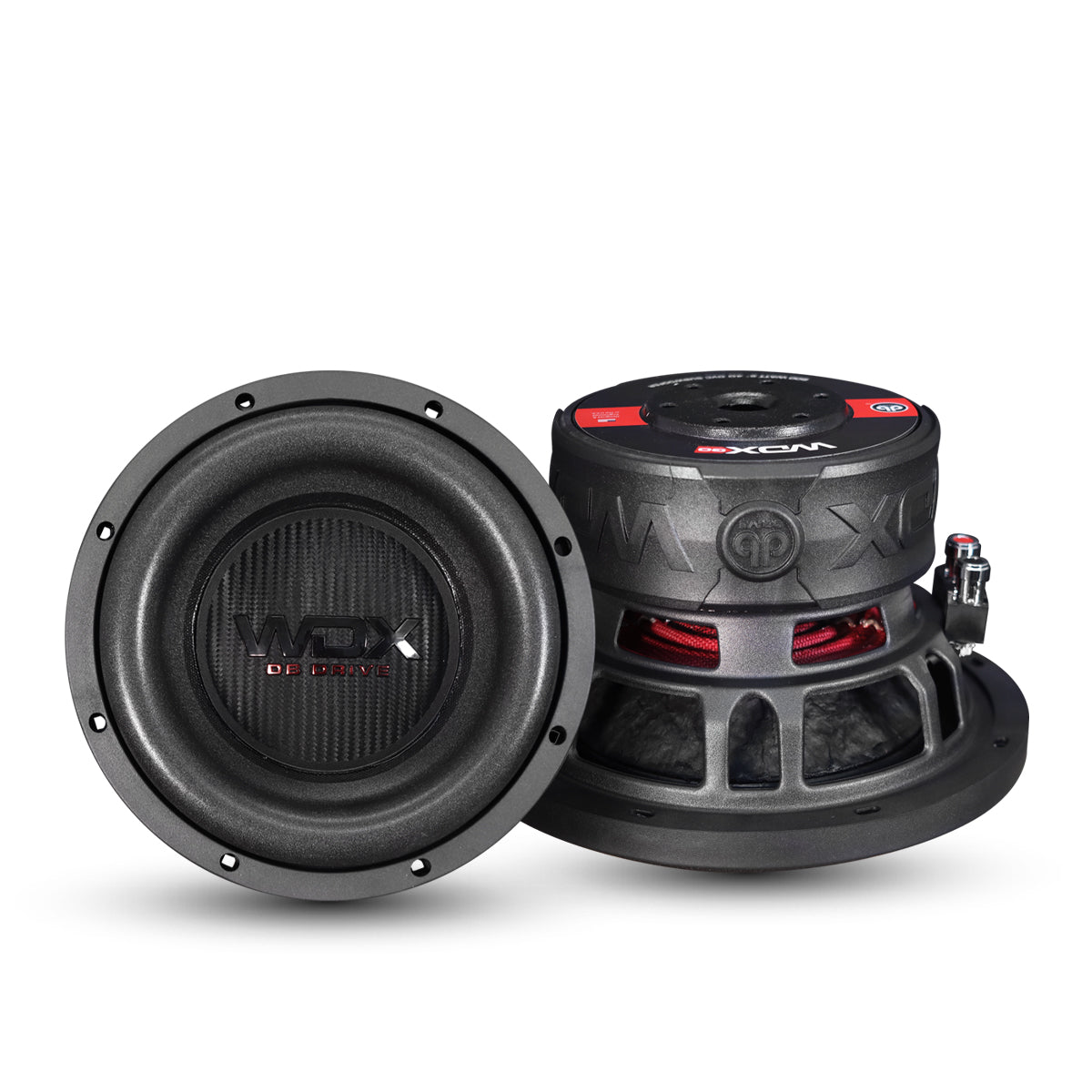

WDX8G0.4 : 8" Dual 4-Ohm Subwoofer

WDX8G0.4

8" Dual 4-Ohm Subwoofer

$169.98

Feel the Bass, Embrace the Power with DB Drive WDX8G0.4! Unleash the full potential of your audio system with the DB Drive WDX8G0.4 8in Stamped Frame Woofer. Designed for those who crave powerful, high-quality sound, this subwoofer features a high-temperature voice coil and a reinforced paper cone, ensuring durability and exceptional performance. With its dual 4Ω voice coil, you get maximum flexibility in wiring configurations. The 800-watt max power and 400-watt nominal power ratings mean it can handle even the most demanding audio tracks with ease. The double-stitched foam surround and dual poly-cotton dampeners provide superior control and reduced distortion, while the large gauge compression terminals and protective magnet cover ensure longevity and reliability. Whether you're setting up a new system or upgrading an existing one, the DB Drive WDX8G0.4 is the perfect choice for delivering deep, rich bass that you can feel.

ADD TO CART

Financing Options Available at Checkout

What Makes it UNIQUE?

Feature#1

Feature#4

Feature#2

Feature#5

Feature#3

Feature#6

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer nec odio. Praesent libero. Sed cursus ante dapibus diam. Sed nisi. Nulla quis sem at nibh elementum imperdiet.

Dual Poly-cotton Dampeners
Dual poly-cotton dampeners provide enhanced cone control and stability, helping the subwoofer maintain accurate, powerful bass performance under high excursion.
Large Gauge Compression Terminals
Large gauge compression terminals deliver a secure, high-current connection for reliable power transfer to the subwoofer.
Reinforced PA
Double-stitched reinforced foam surround adds strength and durability while supporting high excursion for deeper, more controlled bass output.
Protective Magnet
Protective magnet helps shield the motor structure from damage, adding durability and reliability in demanding installations.
Die-cast Aluminum Vented Basket
Die-cast aluminum vented basket provides rigid support and improved airflow, helping reduce heat buildup while maintaining structural stability.
High-temp Voice Coil
High-temp voice coil is built to withstand intense heat during extended play, supporting consistent performance and improved power handling.

Structure	8” (20.3cm) Woofer
Dynamic Power Handling	800 Watts
Nominal Power Handling	400 Watts
Impedance	Dual 4Ω Voice Coil

Resonant Frequency (fs)	41.702Hz
D.C. Voice Coil Resistance (Re)	3.2Ω x 2
Mechanical Quality Factor (Qms)	2.230
Electrical Quality Factor (Qes)	0.447
Total Quality Factor (Qts)	0.372
Equivalent Air Volume to Cms (Vas)	8.417 m
Mass of Diaphragm/Coil (Mms)	93.321 g
Force Factor (Bl)	9.745
Sound Pressure Level (SPL)	84.3dB

WDX8G0.4

8" Dual 4-Ohm Subwoofer

$169.98

What Makes it UNIQUE?

Feature#1

Feature#4

Feature#2

Feature#5

Feature#3

Feature#6

Dual Poly-cotton Dampeners

Large Gauge Compression Terminals

Reinforced PA

Protective Magnet

Die-cast Aluminum Vented Basket

High-temp Voice Coil

Features

Specifications

Description

Product Manual
