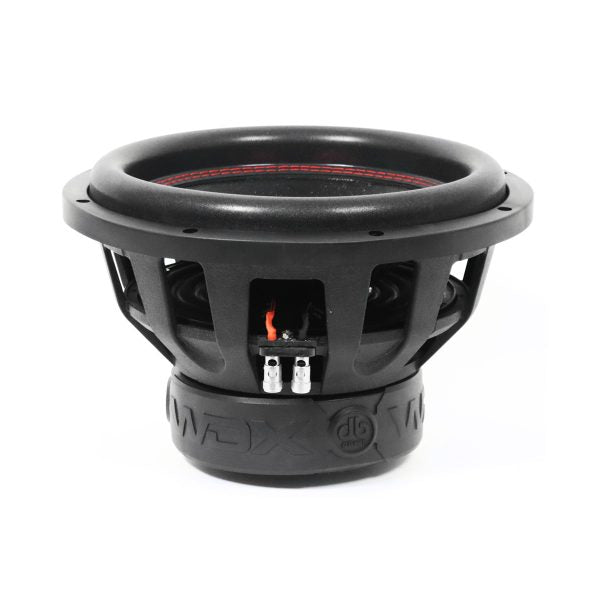

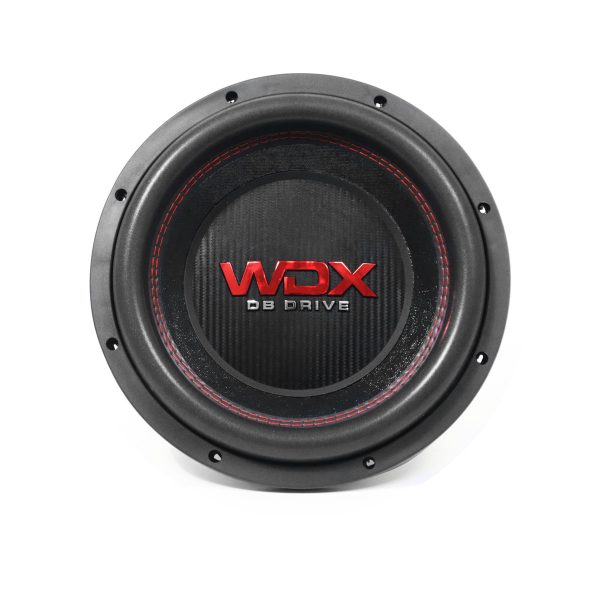

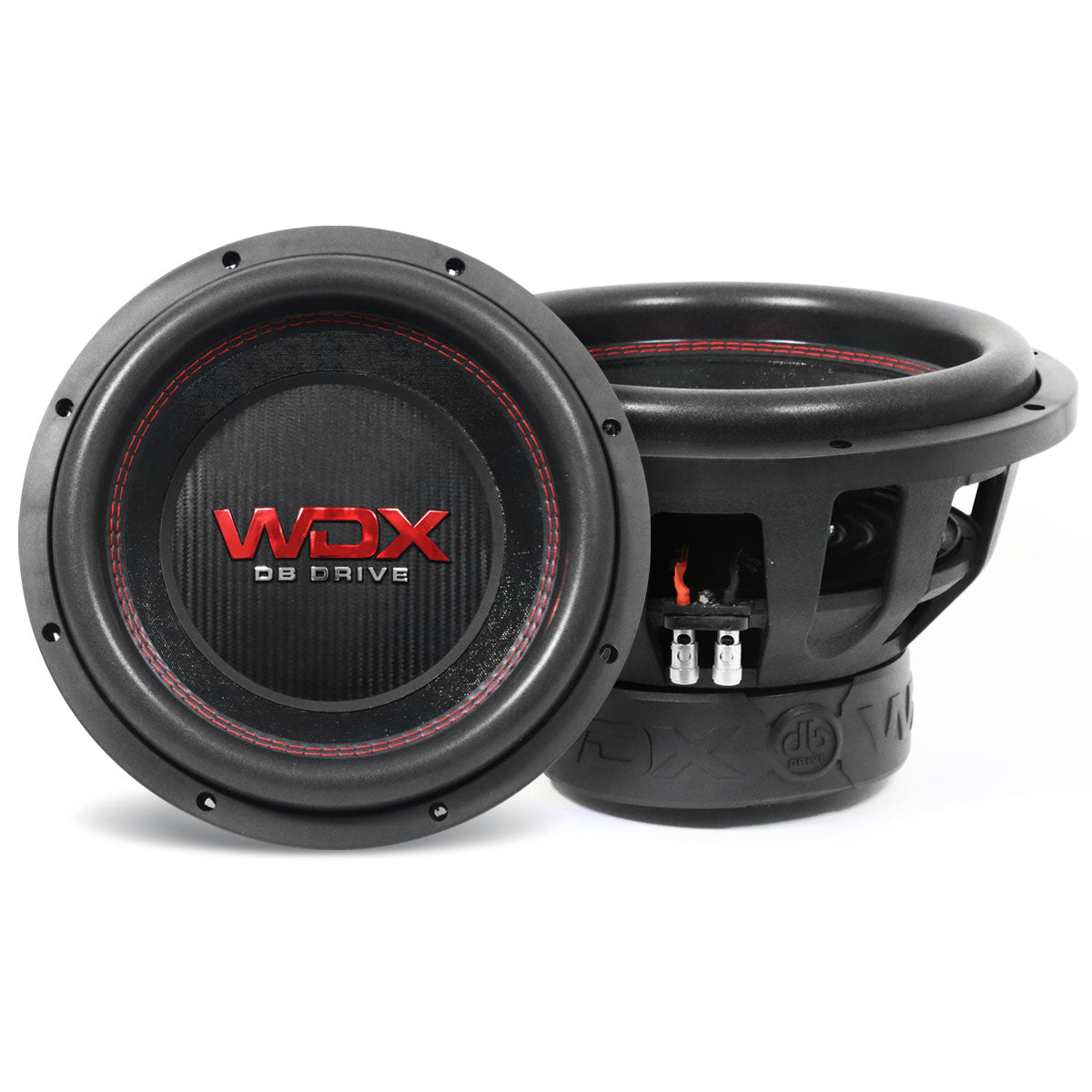

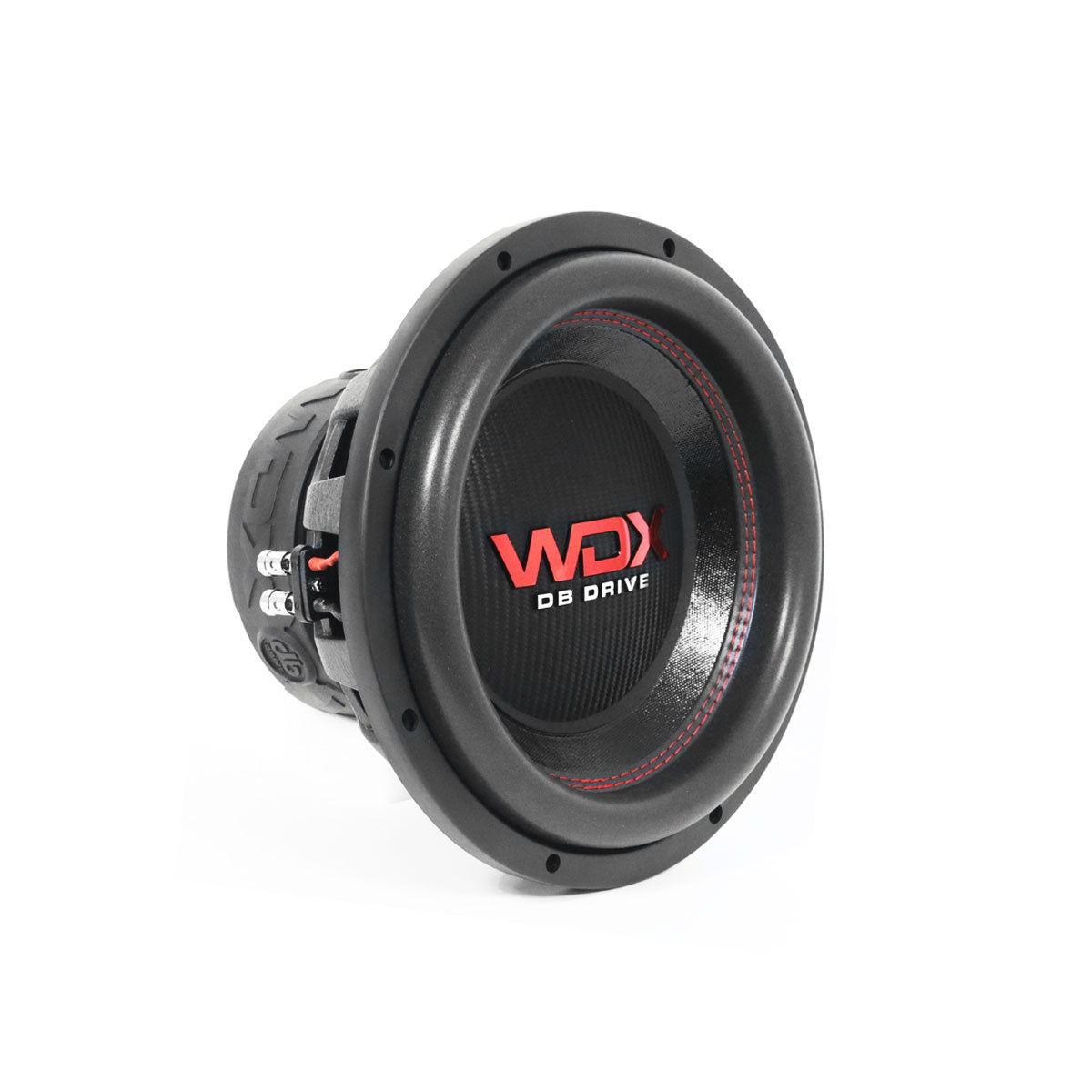

WDX15G1.4 : 15" Dual 4-Ohm Subwoofer

WDX15G1.4

15" Dual 4-Ohm Subwoofer

$329.98

Feel the Thunder with DB Drive's WDX G1 Subwoofers! Unleash the power of music with the WDX15G1.4, DB Drive's pinnacle of subwoofer engineering. Designed with precision and packed with features, this 15-inch woofer boasts a high-temperature voice coil and a non-pressed paper cone, ensuring durability and exceptional sound quality. The double-stitched foam surround and dual poly-cotton dampeners provide unmatched stability, while the die-cast aluminum vented basket and rubber gasket trim ring guarantee flawless performance. With a massive 135 oz. magnet and large gauge compression terminals, this subwoofer delivers an earth-shattering 2000 watts of peak power. Experience the deep, rich bass and elevate your audio experience to new heights with the WDX G1 series. Transform your sound system and feel the music like never before!

ADD TO CART

Financing Options Available at Checkout

What Makes it UNIQUE?

Feature#1

Feature#4

Feature#2

Feature#5

Feature#3

Feature#6

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer nec odio. Praesent libero. Sed cursus ante dapibus diam. Sed nisi. Nulla quis sem at nibh elementum imperdiet.

Dual Poly-cotton Dampeners
Dual poly-cotton dampeners provide enhanced cone control and stability, helping the subwoofer maintain accurate, powerful bass performance under high excursion.
Large Gauge Compression Terminals
Large gauge compression terminals deliver a secure, high-current connection for reliable power transfer to the subwoofer.
Reinforced PA
Double-stitched reinforced foam surround adds strength and durability while supporting high excursion for deeper, more controlled bass output.
Protective Magnet
Protective magnet helps shield the motor structure from damage, adding durability and reliability in demanding installations.
Die-cast Aluminum Vented Basket
Die-cast aluminum vented basket provides rigid support and improved airflow, helping reduce heat buildup while maintaining structural stability.
High-temp Voice Coil
High-temp voice coil is built to withstand intense heat during extended play, supporting consistent performance and improved power handling.

Structure	12" (30.48cm) Woofer
Dynamic Power Handling	2000 Watts
Nominal Power Handling	1000 Watts
Impedance	Dual 4Ω Voice Coil

Resonant Frequency (fs)	40.93Hz
D.C. Voice Coil Resistance (Re)	3.2 x 3.2Ω
Mechanical Quality Factor (Qms)	3.885
Electrical Quality Factor (Qes)	0.739
Total Quality Factor (Qts)	0.621
Equivalent Air Volume to Cms (Vas)	18.014 L
Mass of Diaphragm/Coil (Mms)	335.972 g
Force Factor (Bl)	13.679
Sound Pressure Level (SPL)	84.1 dB
