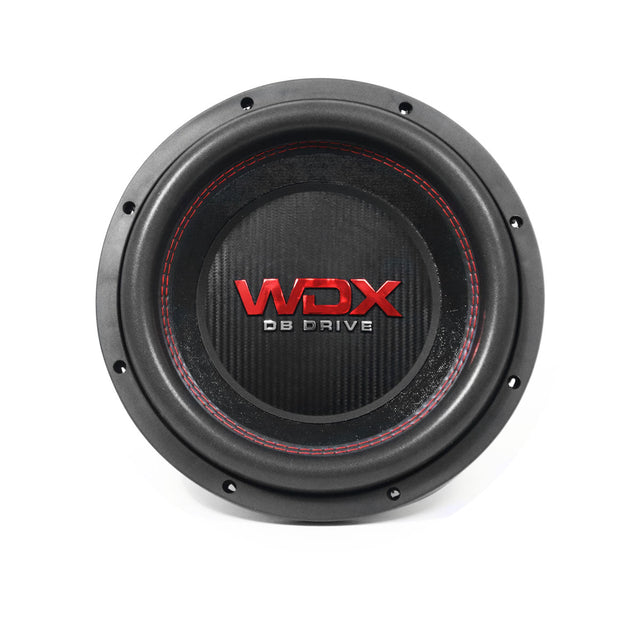

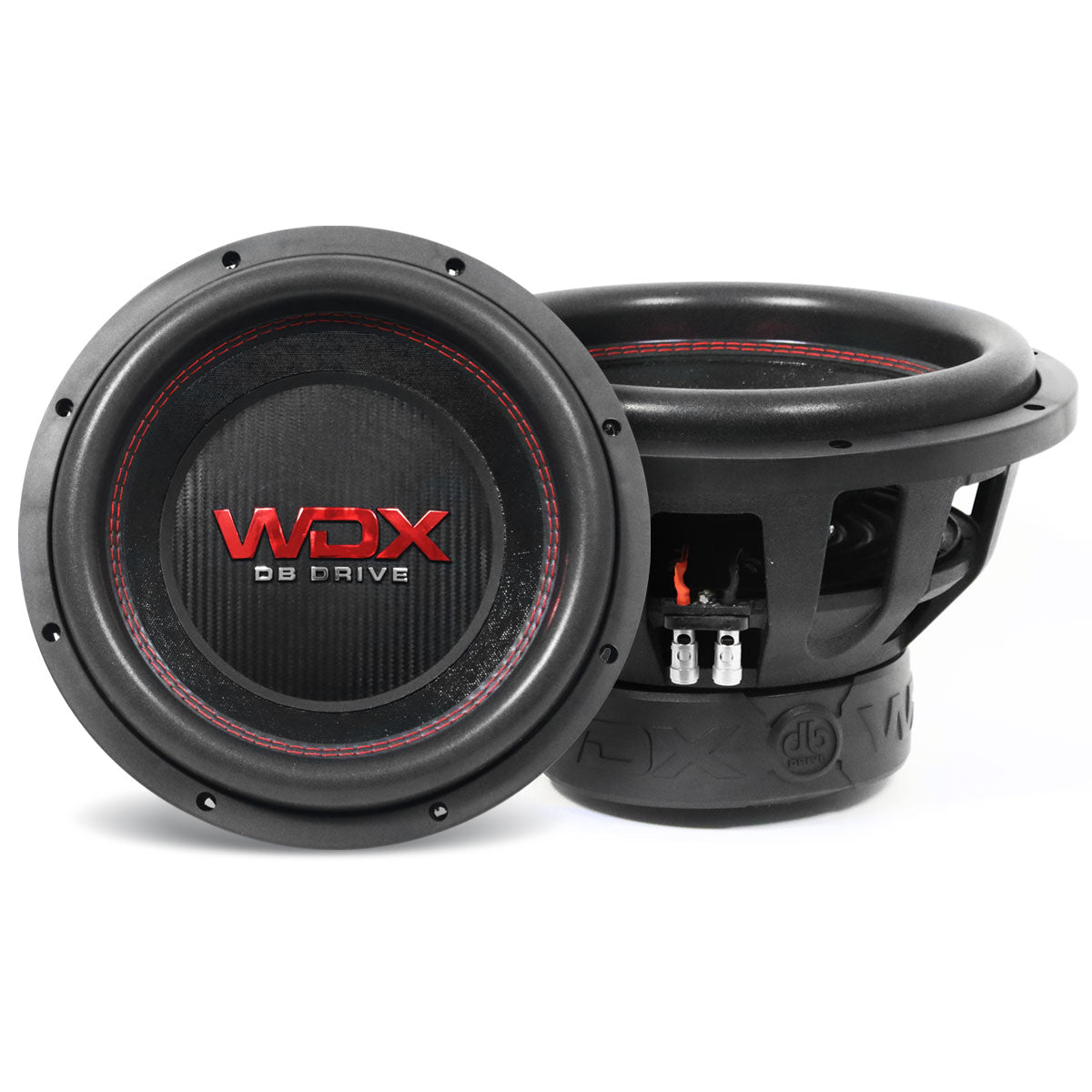

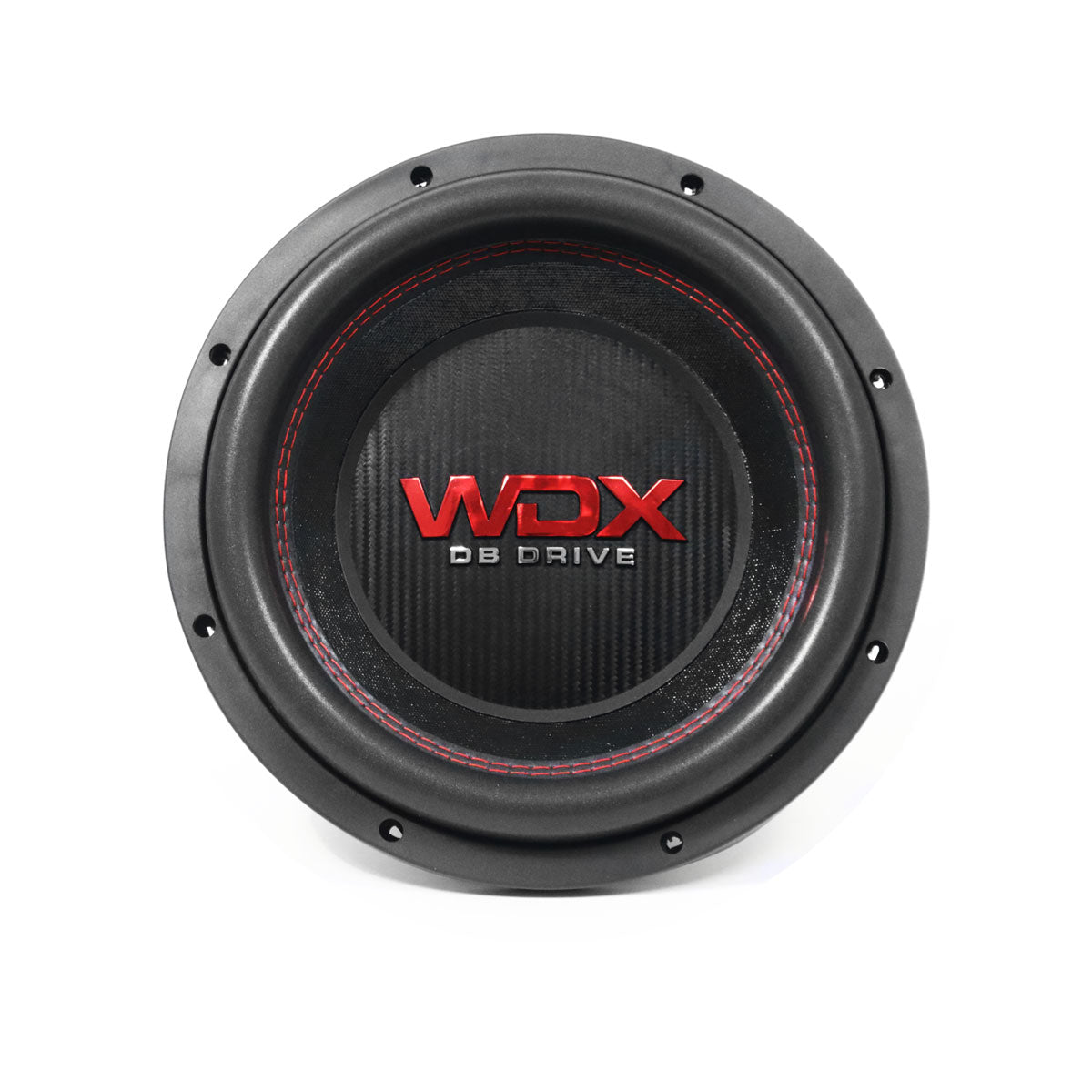

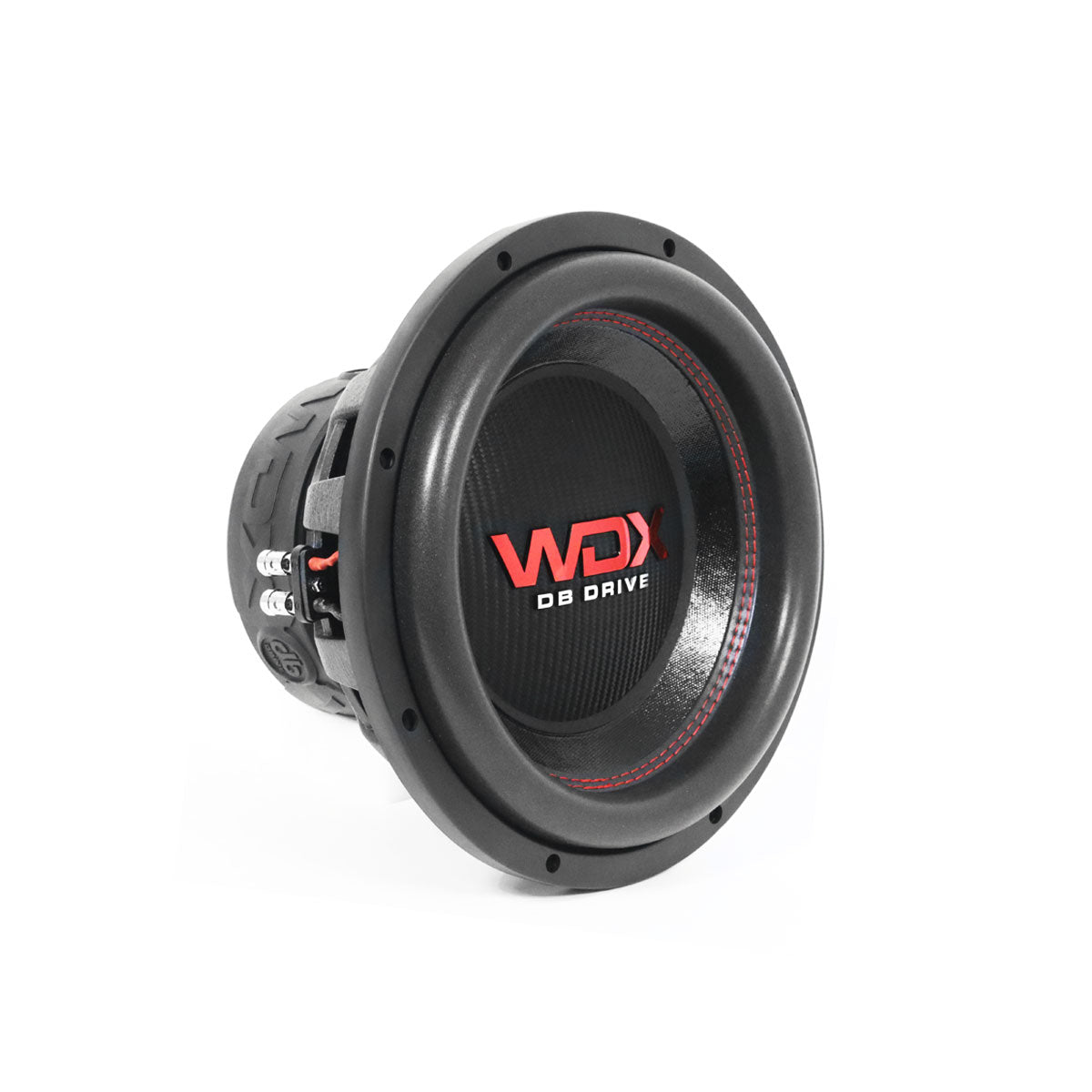

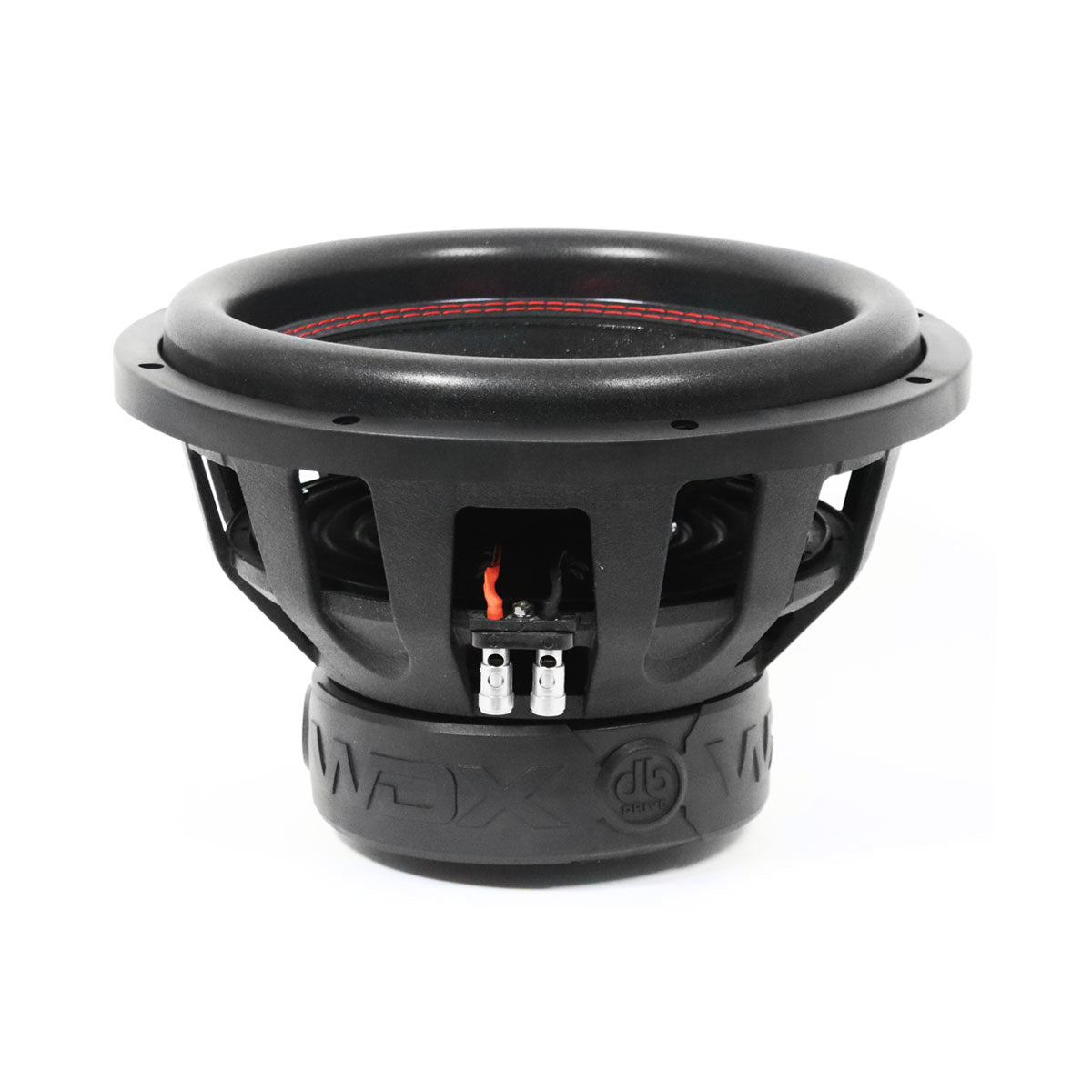

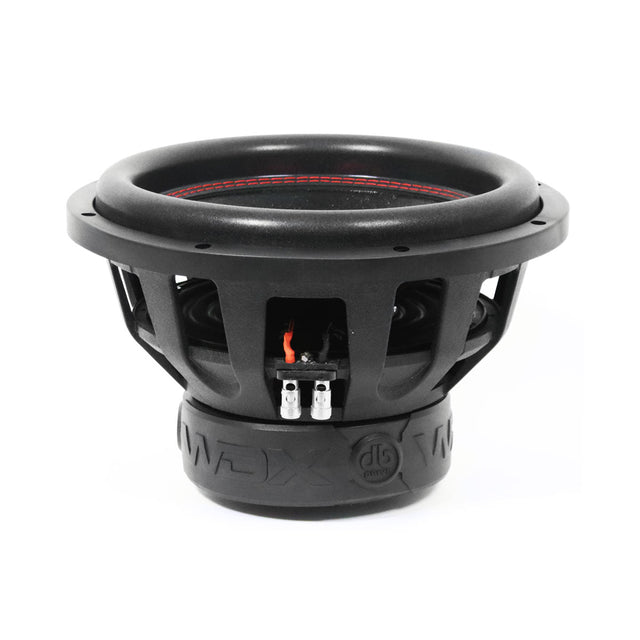

WDX12G1.4 : 12" Dual 4-Ohm Subwoofer

WDX12G1.4

12" Dual 4-Ohm Subwoofer

$289.98

Feel the Power of Sound with DB Drive's WDX12G1.4! Unleash the ultimate audio experience with the DB Drive WDX12G1.4, a 12-inch subwoofer that redefines power and precision. Boasting a high temperature voice coil and a non-pressed paper cone, this subwoofer is engineered for durability and exceptional sound clarity. The double stitched foam surround and dual poly-cotton dampeners ensure that every beat hits with perfect accuracy. Encased in a die-cast aluminum vented basket with a rubber gasket trim ring, this subwoofer not only performs exceptionally but also looks sleek and modern. With large gauge compression terminals and a protective magnet cover, installation is a breeze and longevity is guaranteed. The DB Drive WDX12G1.4 operates at a dual 4Ω impedance, delivering a staggering 2000 watts of max power and 1000 watts of nominal power. Get ready to transform your audio system and feel the power of sound like never before with the DB Drive WDX12G1.4 subwoofer.

ADD TO CART

Financing Options Available at Checkout

What Makes it UNIQUE?

Feature#1

Feature#4

Feature#2

Feature#5

Feature#3

Feature#6

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer nec odio. Praesent libero. Sed cursus ante dapibus diam. Sed nisi. Nulla quis sem at nibh elementum imperdiet.

Dual Poly-cotton Dampeners
Dual poly-cotton dampeners provide enhanced cone control and stability, helping the subwoofer maintain accurate, powerful bass performance under high excursion.
Large Gauge Compression Terminals
Large gauge compression terminals deliver a secure, high-current connection for reliable power transfer to the subwoofer.
Reinforced PA
Double-stitched reinforced foam surround adds strength and durability while supporting high excursion for deeper, more controlled bass output.
Protective Magnet
Protective magnet helps shield the motor structure from damage, adding durability and reliability in demanding installations.
Die-cast Aluminum Vented Basket
Die-cast aluminum vented basket provides rigid support and improved airflow, helping reduce heat buildup while maintaining structural stability.
High-temp Voice Coil
High-temp voice coil is built to withstand intense heat during extended play, supporting consistent performance and improved power handling.

Structure	12" (30.48cm) Woofer
Dynamic Power Handling	2000 Watts
Nominal Power Handling	1000 Watts
Impedance	Dual 4Ω Voice Coil

Resonant Frequency (fs)	40.93Hz
D.C. Voice Coil Resistance (Re)	3.2 x 3.2Ω
Mechanical Quality Factor (Qms)	3.885
Electrical Quality Factor (Qes)	0.739
Total Quality Factor (Qts)	0.621
Equivalent Air Volume to Cms (Vas)	18.014 L
Mass of Diaphragm/Coil (Mms)	335.972 g
Force Factor (Bl)	13.679
Sound Pressure Level (SPL)	84.1 dB
