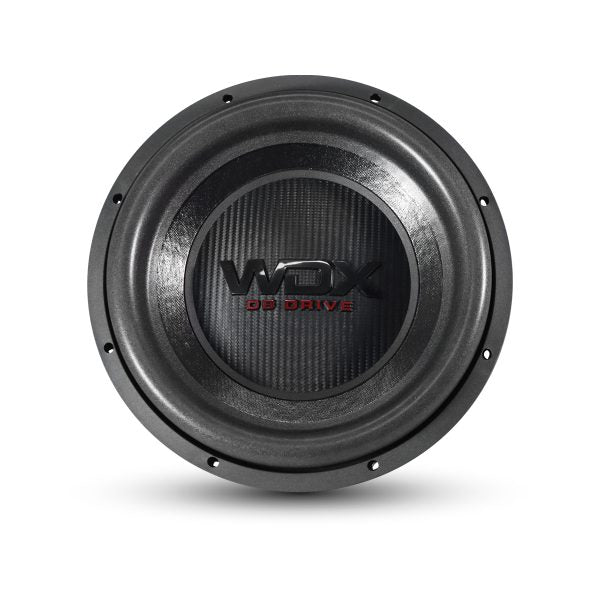

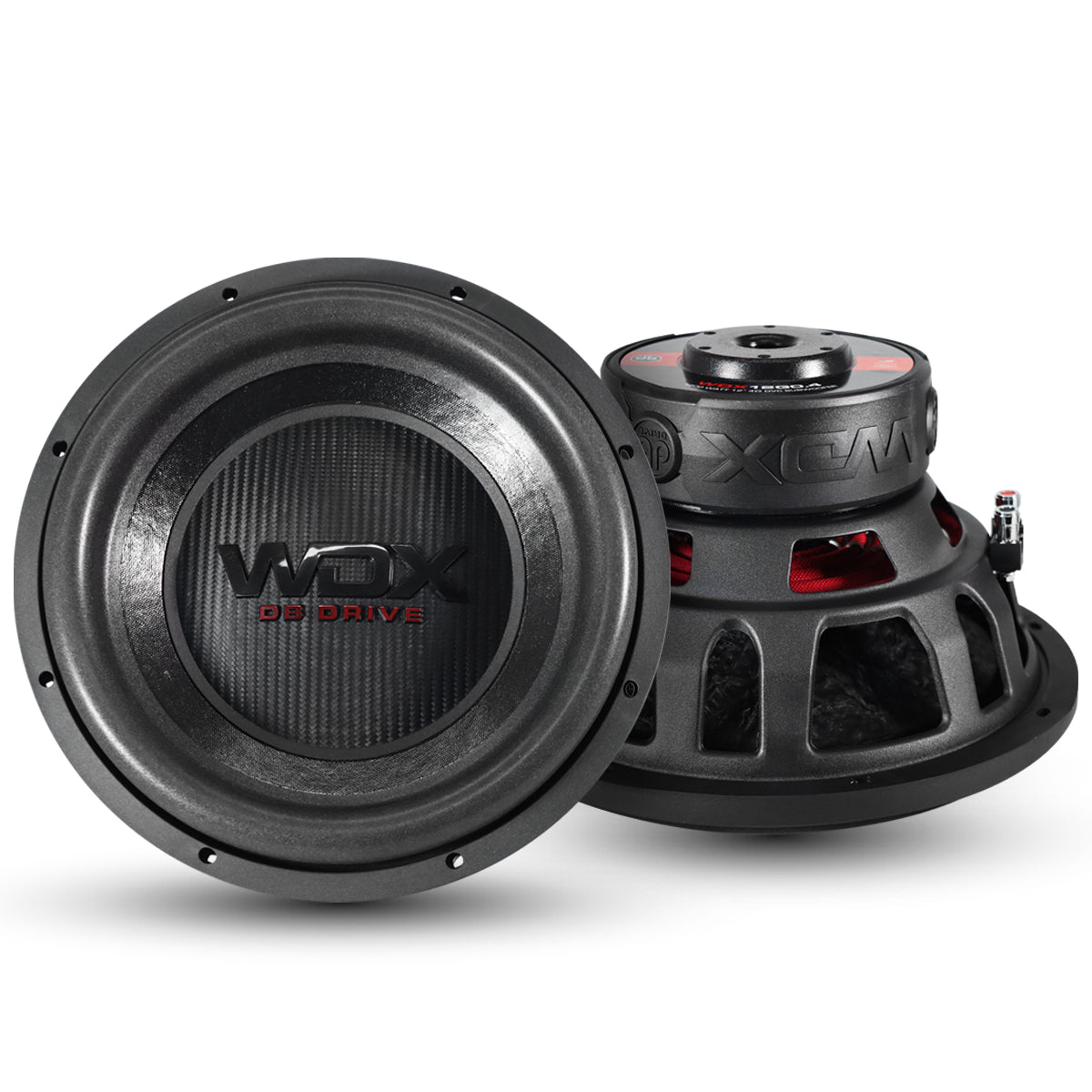

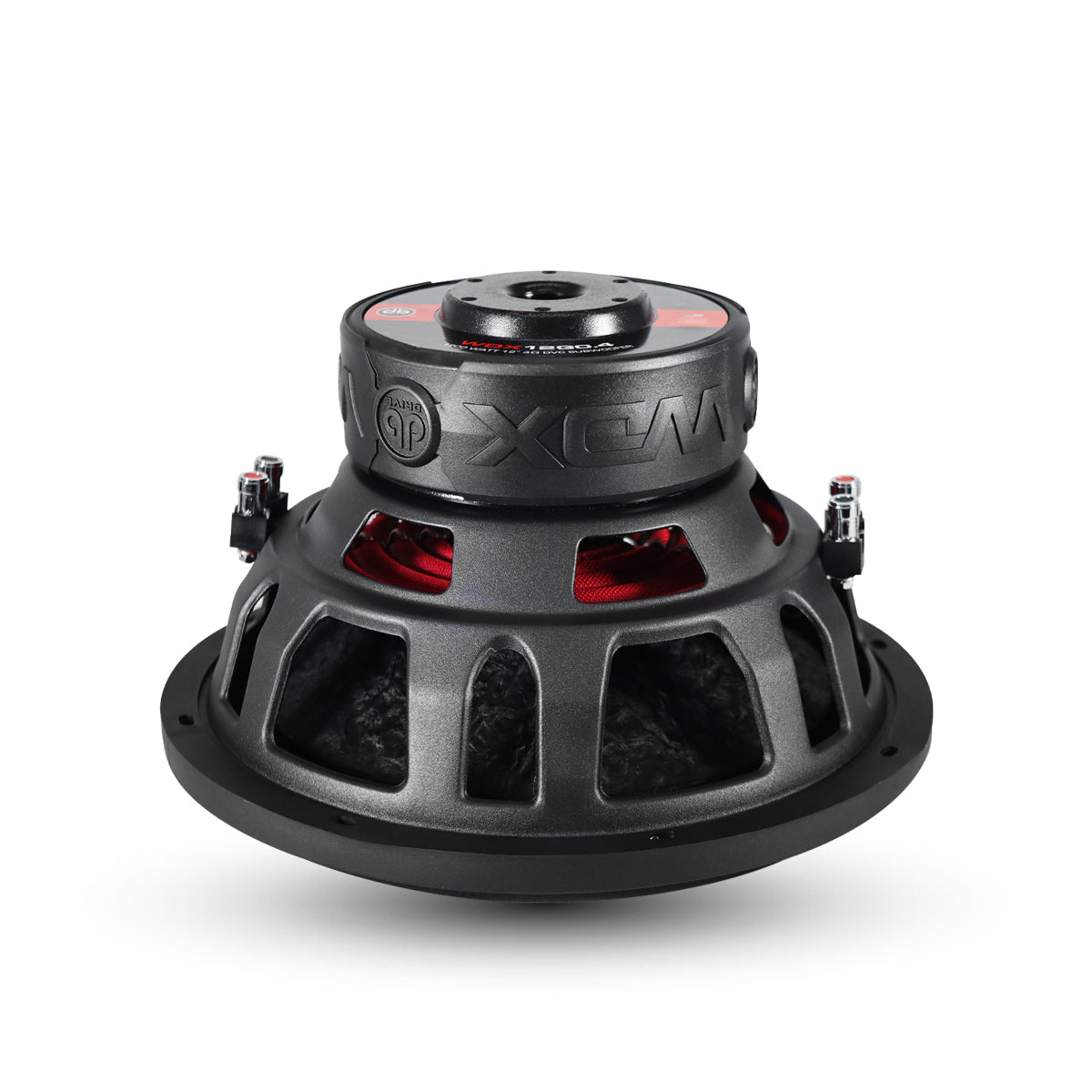

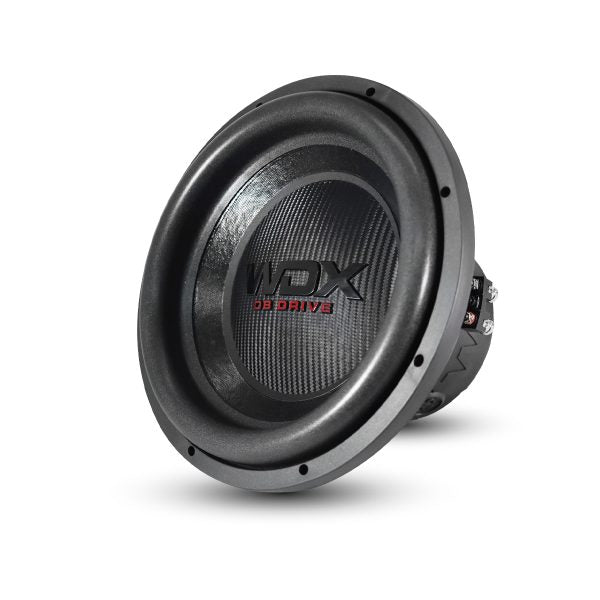

WDX12G0.4 : 12" Dual 4-Ohm Subwoofer

WDX12G0.4

12" Dual 4-Ohm Subwoofer

$249.98

Feel the Power with Every Beat! Discover the ultimate sound experience with the DB Drive WDX12G0.4, a 12-inch stamped frame woofer designed to elevate your audio game. This powerhouse boasts a high temperature voice coil and a reinforced paper cone, ensuring durability and exceptional sound quality. The double stitched foam surround and dual poly-cotton dampeners provide stability and precision, while the stamped cast steel vented basket and rubber gasket trim ring offer robust construction. With a maximum power of 1200 watts and a nominal power of 600 watts, this subwoofer delivers earth-shaking bass. The large gauge compression terminals and protective magnet cover add to its impressive features. Whether you're a car audio enthusiast or just love great sound, the WDX12G0.4 is engineered to exceed your expectations. Feel the power, embrace the beat, and transform your listening experience with DB Drive.

ADD TO CART

Financing Options Available at Checkout

What Makes it UNIQUE?

Feature#1

Feature#4

Feature#2

Feature#5

Feature#3

Feature#6

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer nec odio. Praesent libero. Sed cursus ante dapibus diam. Sed nisi. Nulla quis sem at nibh elementum imperdiet.

Dual Poly-cotton Dampeners
Dual poly-cotton dampeners provide enhanced cone control and stability, helping the subwoofer maintain accurate, powerful bass performance under high excursion.
Large Gauge Compression Terminals
Large gauge compression terminals deliver a secure, high-current connection for reliable power transfer to the subwoofer.
Reinforced PA
Double-stitched reinforced foam surround adds strength and durability while supporting high excursion for deeper, more controlled bass output.
Protective Magnet
Protective magnet helps shield the motor structure from damage, adding durability and reliability in demanding installations.
Die-cast Aluminum Vented Basket
Die-cast aluminum vented basket provides rigid support and improved airflow, helping reduce heat buildup while maintaining structural stability.
High-temp Voice Coil
High-temp voice coil is built to withstand intense heat during extended play, supporting consistent performance and improved power handling.

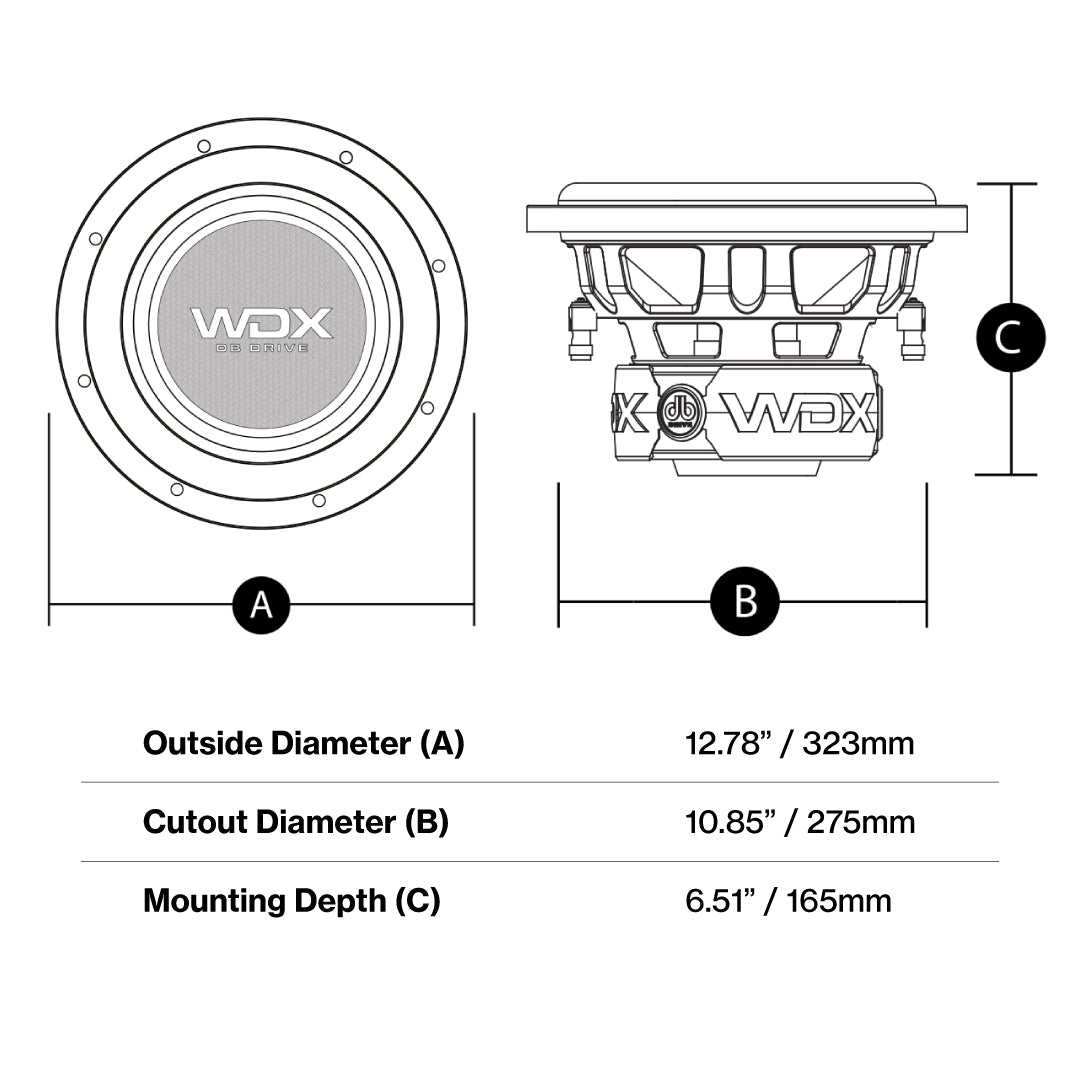

Structure	12" (30.48cm) Woofer
Dynamic Power Handling	1200 Watts
Nominal Power Handling	600 Watts
Impedance	Dual 4Ω Voice Coil
PARAMETERS
Resonant Frequency (fs)	34.798Hz
D.C. Voice Coil Resistance (Re)	3.4 x 2Ω
Mechanical Quality Factor (Qms)	2.876
Electrical Quality Factor (Qes)	0.673
Total Quality Factor (Qts)	0.545
Equivalent Air Volume to Cms (Vas)	34.645 m
Mass of Diaphragm/Coil (Mms)	241.691 gr
Force Factor (Bl)	11.556 N/A
Sound Pressure Level (SPL)	85.2 dB

WDX12G0.4

12" Dual 4-Ohm Subwoofer

$249.98

What Makes it UNIQUE?

Feature#1

Feature#4

Feature#2

Feature#5

Feature#3

Feature#6

Dual Poly-cotton Dampeners

Large Gauge Compression Terminals

Reinforced PA

Protective Magnet

Die-cast Aluminum Vented Basket

High-temp Voice Coil

Features

Specifications

Description

Product Manual
