Features
- 3" BASV High-Temperature Voice coil
- Non-pressed paper cone
- Double stitched foam surround
- Dual poly-cotton dampeners
- Die-cast aluminum vented basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Protective magnet cover
Specifications

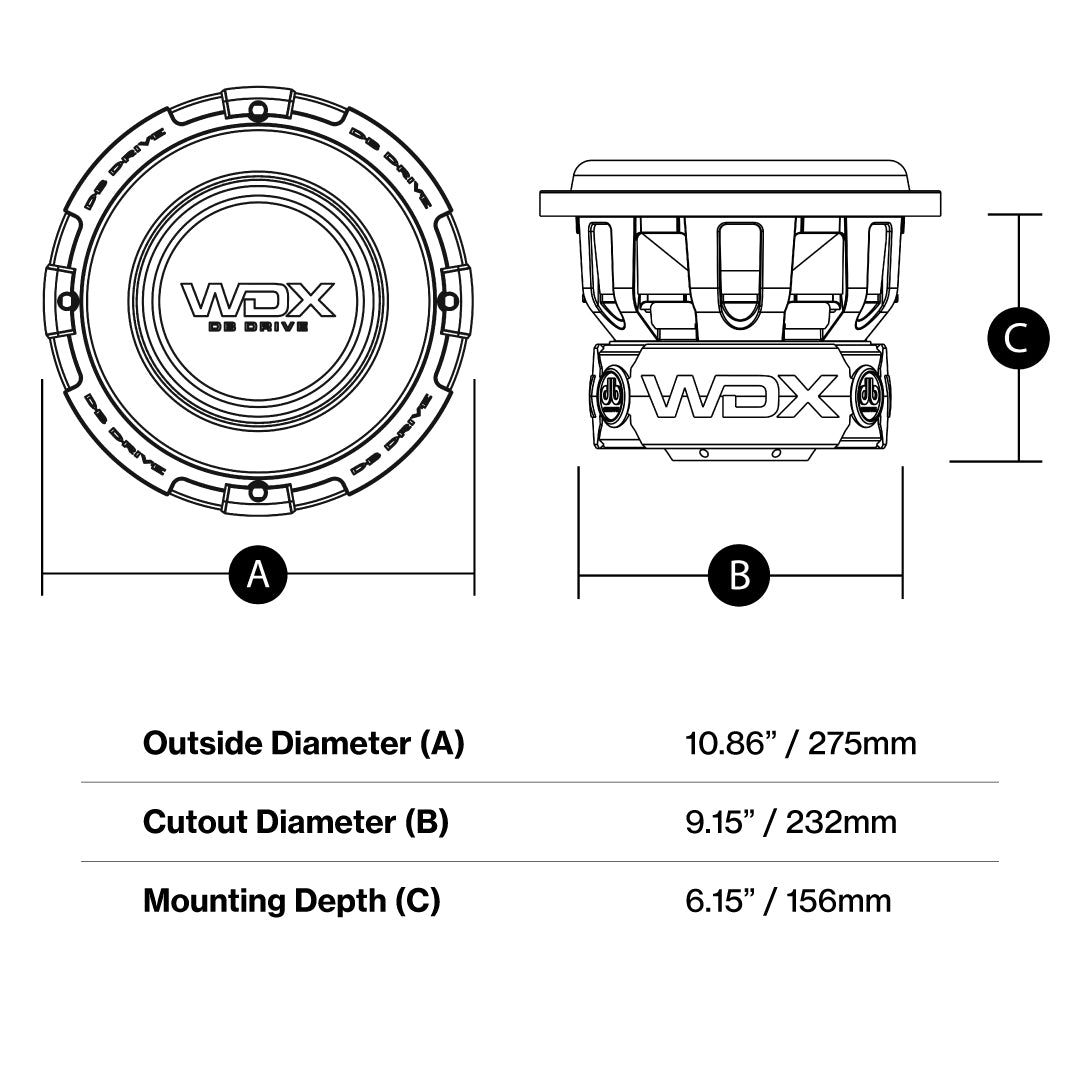

Structure |
10" (25.4cm) Woofer |
Dynamic Power Handling |
2000 Watts |
Nominal Power Handling |
1000 Watts |
Impedance |
Dual 4Ω Voice Coil |
Parameters
Resonant Frequency (fs) |
41.63Hz |
D.C. Voice Coil Resistance (Re) |
3.2 x 3.2Ω |
Mechanical Quality Factor (Qms) |
3.156 |
Electrical Quality Factor (Qes) |
0.582 |
Total Quality Factor (Qts) |
0.492 |
Equivalent Air Volume to Cms (Vas) |
9.79 L |
Mass of Diaphragm/Coil (Mms) |
289.93 g |
Force Factor (Bl) |
14.437 |
Sound Pressure Level (SPL) |
82.7 dB |
Description
Feel the beat with DB Drive's WDX10G1.4 – where power meets precision.
Elevate your audio experience with the DB Drive WDX10G1.4, a 10-inch subwoofer that delivers unparalleled performance and precision. Designed for those who crave deep, powerful bass, this subwoofer is packed with features that set it apart from the competition. With a high-temperature voice coil and a non-pressed paper cone, it ensures durability and exceptional sound quality. The double-stitched foam surround and dual poly-cotton dampeners provide enhanced stability and resilience, while the die-cast aluminum vented basket and rubber gasket trim ring offer robust protection and longevity. Boasting a 135 oz. magnet and large gauge compression terminals, this subwoofer is engineered for maximum power, handling up to 2000 watts with a nominal power of 1000 watts. Whether you're a casual listener or a true audiophile, the DB Drive WDX10G1.4 is your ticket to an immersive, high-fidelity audio experience that will make every beat come alive.
Product Manual
Product Manual PDF
