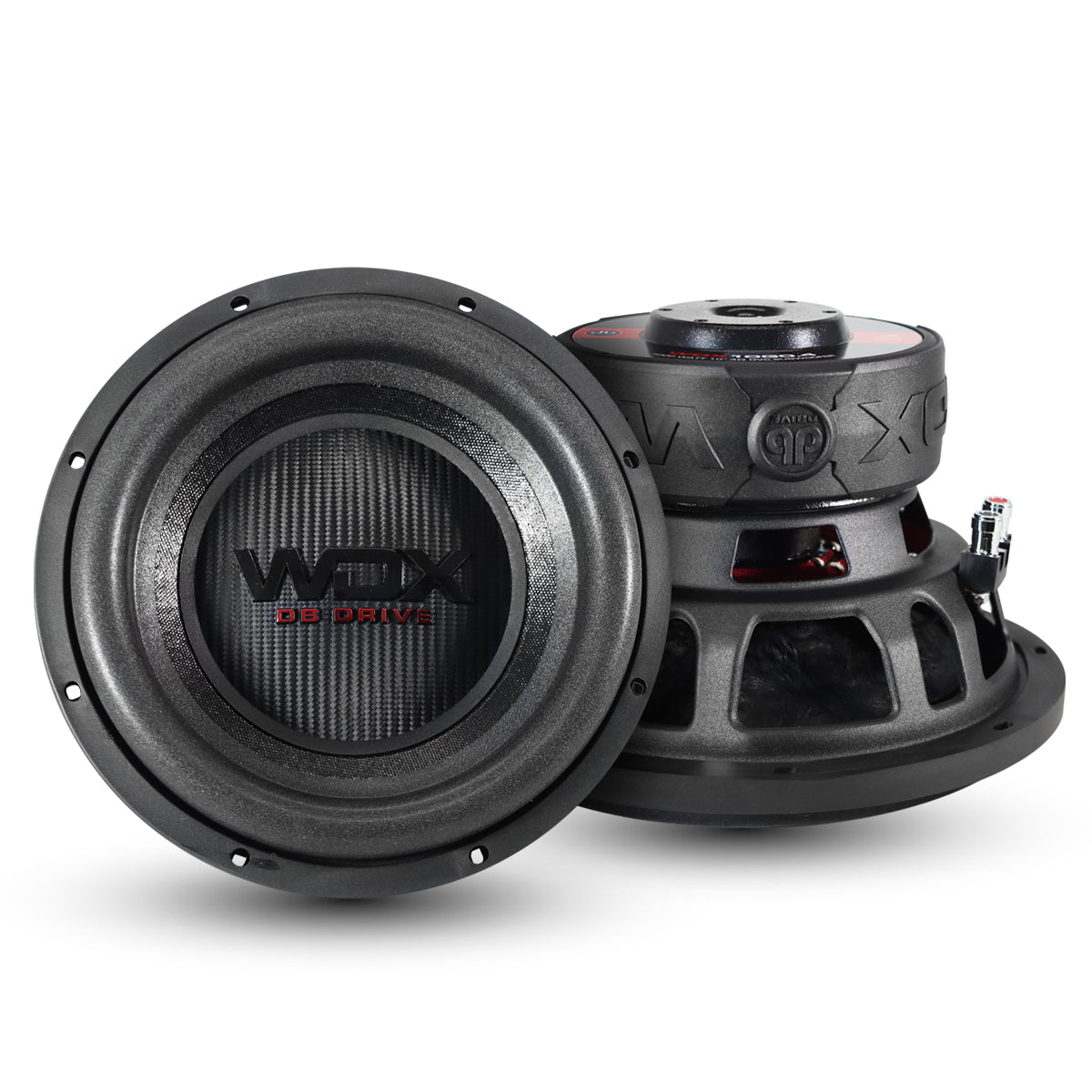

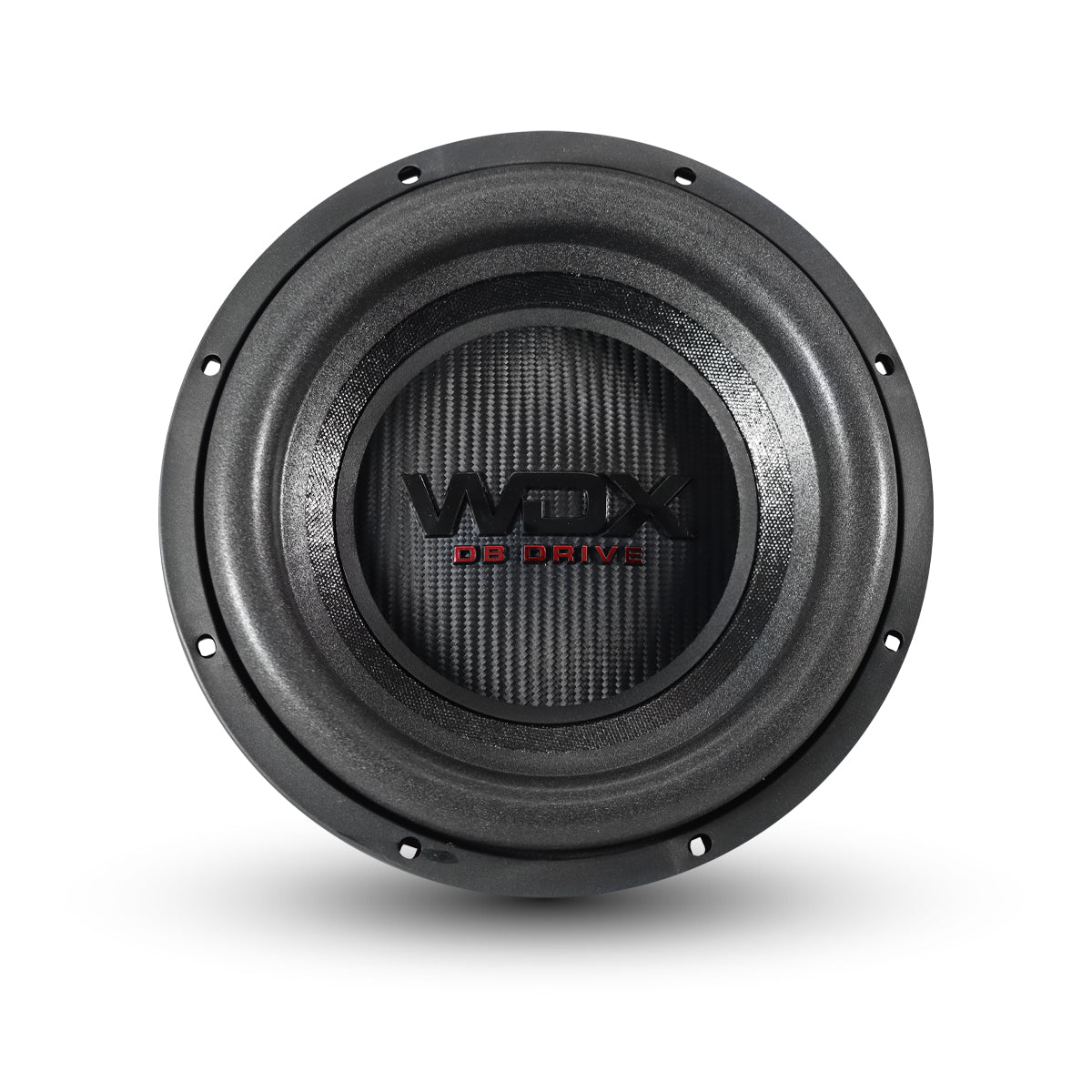

WDX10G0.4 : 10" Dual 4-Ohm Subwoofer

WDX10G0.4

10" Dual 4-Ohm Subwoofer

$229.98

Feel the Thunder with DB Drive's WDX10G0.4 Subwoofer! Unleash the power of sound with the DB Drive WDX10G0.4 Subwoofer, the ultimate addition to your audio setup. Engineered with a high-temperature voice coil and reinforced paper cone, this subwoofer delivers unparalleled performance and durability. The double-stitched foam surround and dual poly-cotton dampeners ensure precise sound quality, while the stamped cast steel vented basket and rubber gasket trim ring provide robust support. With a massive 1000 watts of max power and dual 4Ω voice coils, this subwoofer is designed to handle the most intense audio demands. The large gauge compression terminals and protective magnet cover add to its superior build. Whether you're a casual listener or an audiophile, the DB Drive WDX10G0.4 Subwoofer will elevate your sound experience to new heights. Feel every beat, every note, and every moment with the power of DB Drive.

ADD TO CART

Financing Options Available at Checkout

What Makes it UNIQUE?

Feature#1

Feature#4

Feature#2

Feature#5

Feature#3

Feature#6

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer nec odio. Praesent libero. Sed cursus ante dapibus diam. Sed nisi. Nulla quis sem at nibh elementum imperdiet.

Dual Poly-cotton Dampeners
Dual poly-cotton dampeners provide enhanced cone control and stability, helping the subwoofer maintain accurate, powerful bass performance under high excursion.
Large Gauge Compression Terminals
Large gauge compression terminals deliver a secure, high-current connection for reliable power transfer to the subwoofer.
Reinforced PA
Double-stitched reinforced foam surround adds strength and durability while supporting high excursion for deeper, more controlled bass output.
Protective Magnet
Protective magnet helps shield the motor structure from damage, adding durability and reliability in demanding installations.
Die-cast Aluminum Vented Basket
Die-cast aluminum vented basket provides rigid support and improved airflow, helping reduce heat buildup while maintaining structural stability.
High-temp Voice Coil
High-temp voice coil is built to withstand intense heat during extended play, supporting consistent performance and improved power handling.

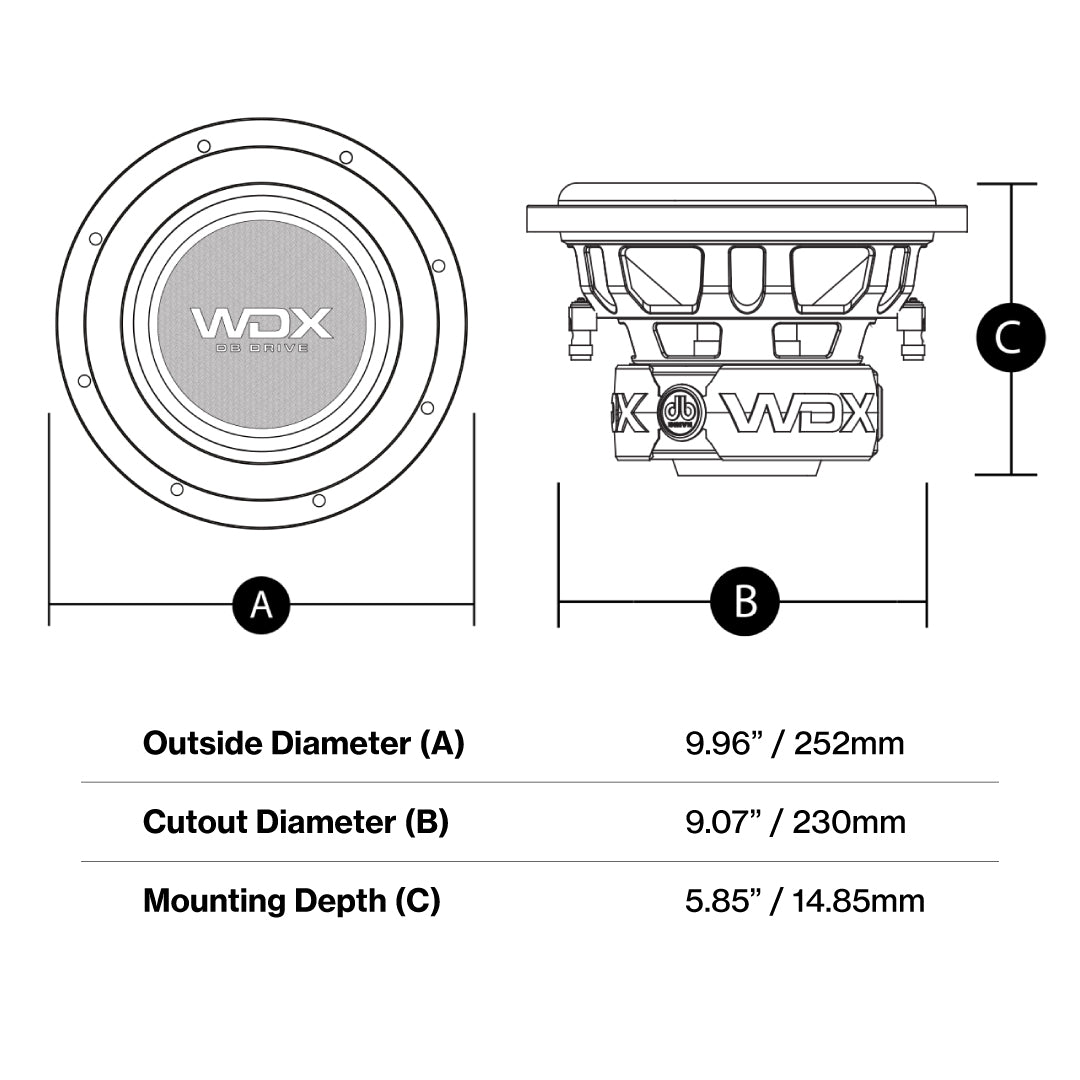

Structure	10” (25.4cm) Woofer
Dynamic Power Handling	1000 Watts
Nominal Power Handling	500 Watts
Impedance	Dual 4Ω Voice Coil
PARAMETERS
Resonant Frequency (fs)	38.074Hz
D.C. Voice Coil Resistance (Re)	3.4 x 2Ω
Mechanical Quality Factor (Qms)	2.370
Electrical Quality Factor (Qes)	0.580
Total Quality Factor (Qts)	0.466
Equivalent Air Volume to Cms (Vas)	18.768L
Mass of Diaphragm/Coil (Mms)	174.262 g
Force Factor (Bl)	11.051
Sound Pressure Level (SPL)	84.4dB
