DB Drive

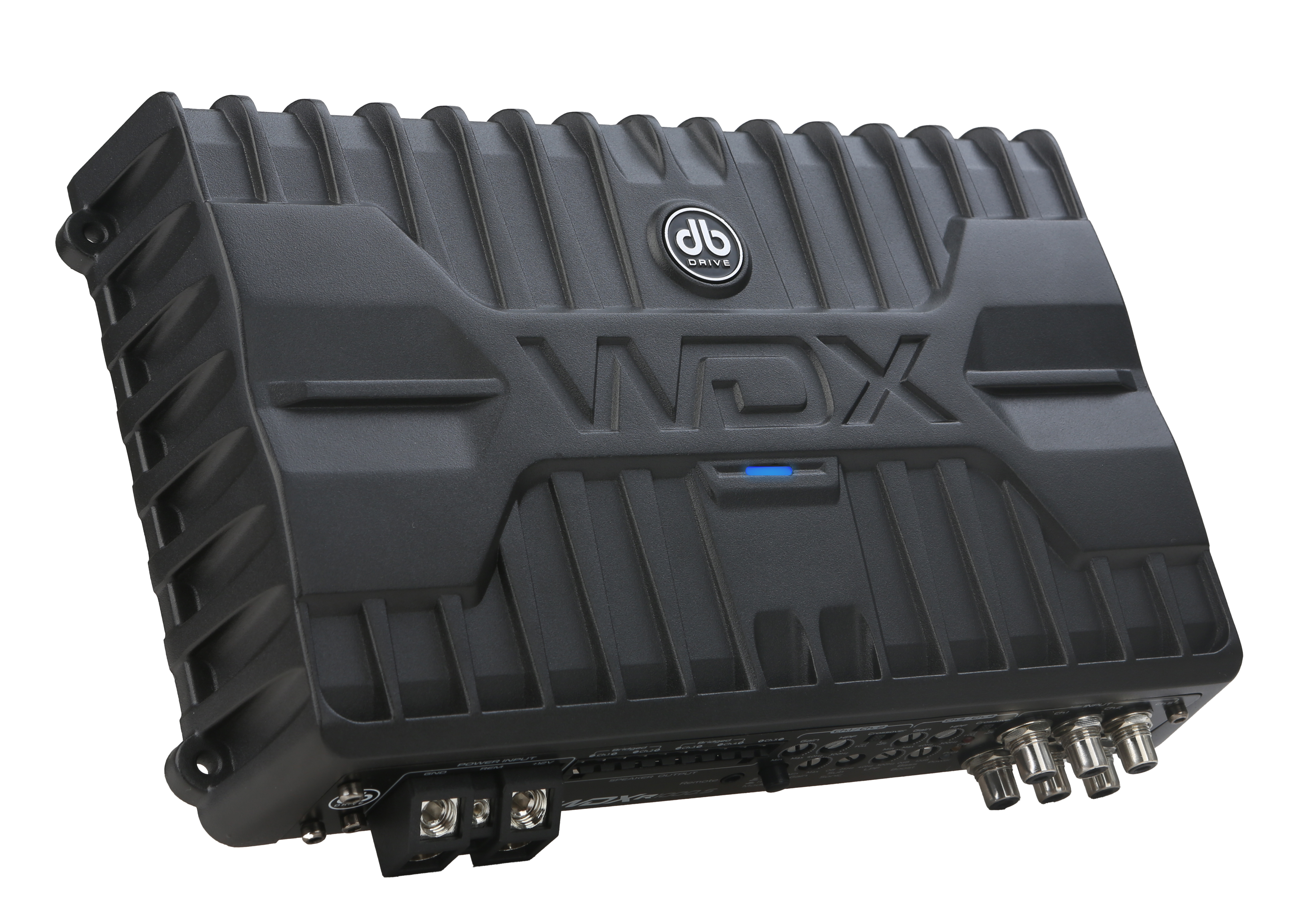

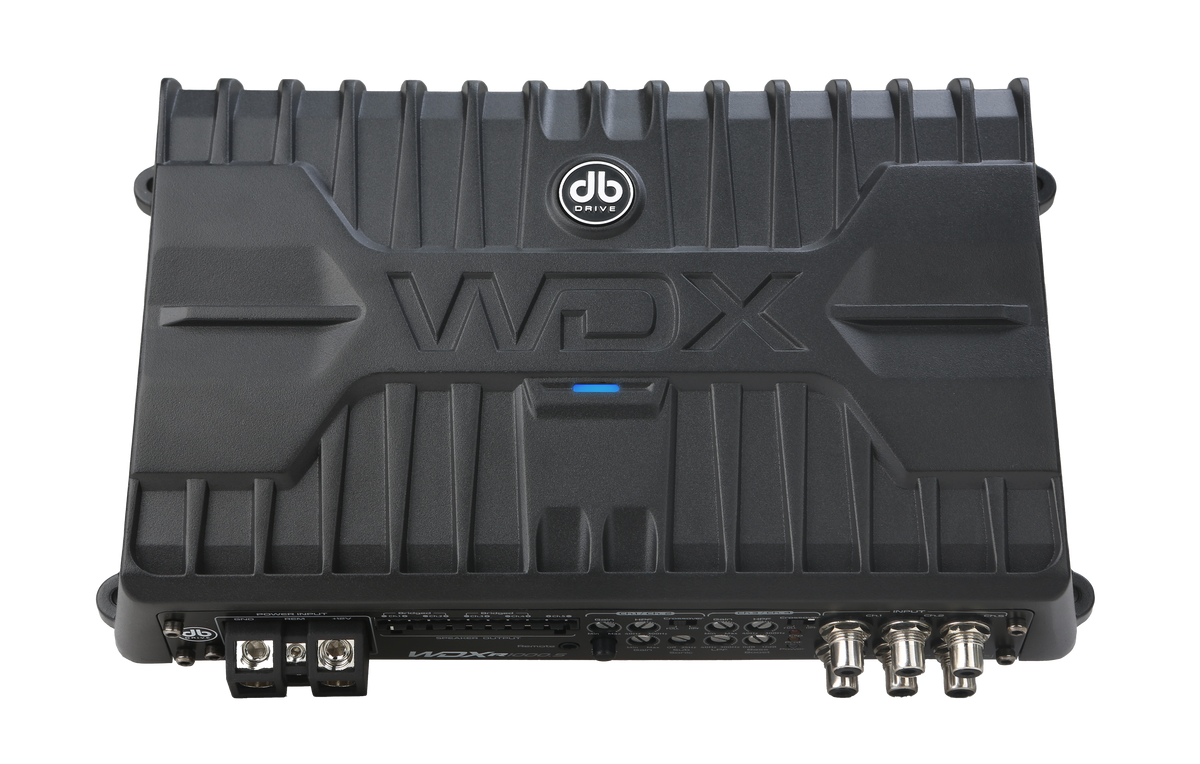

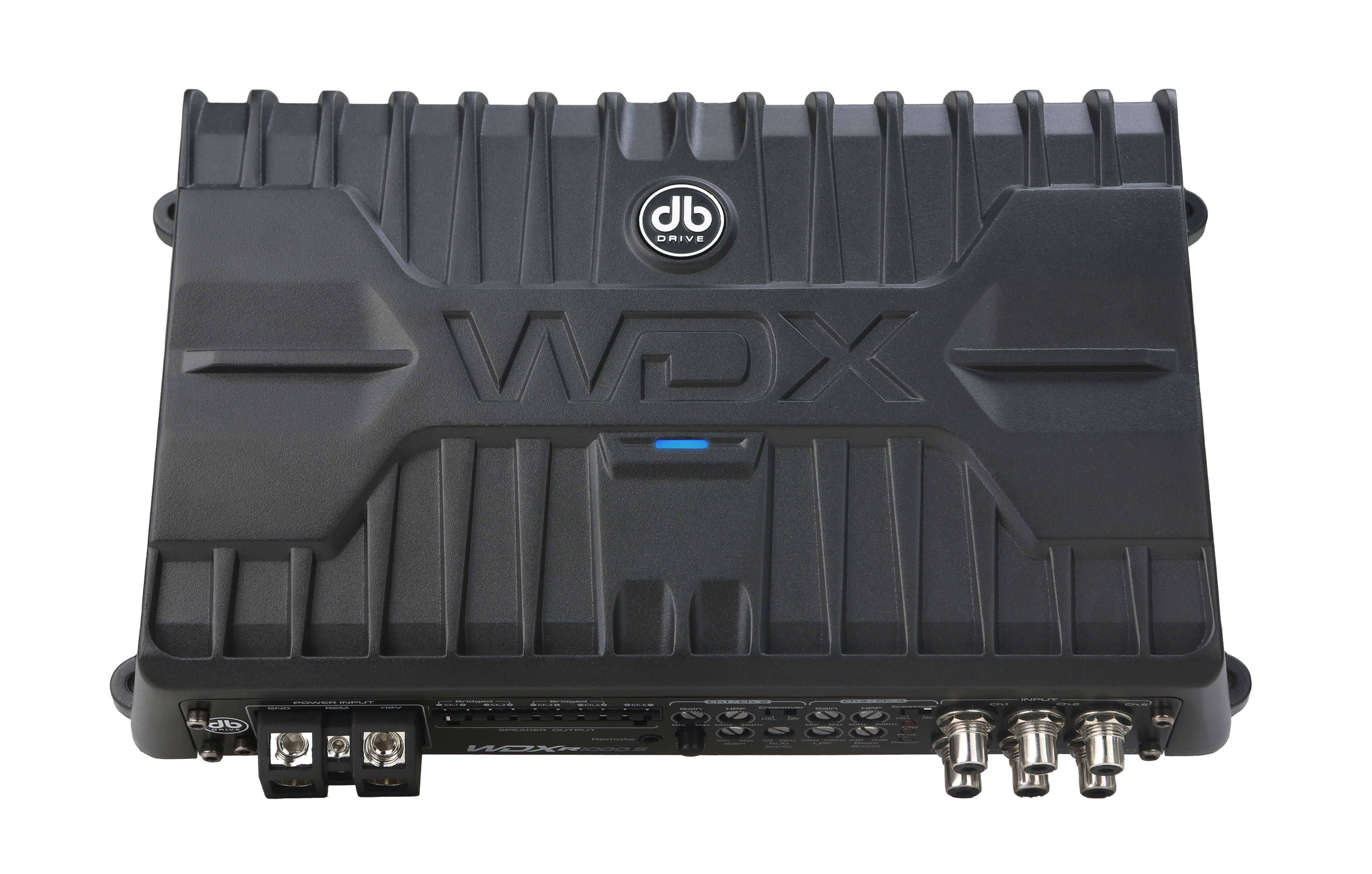

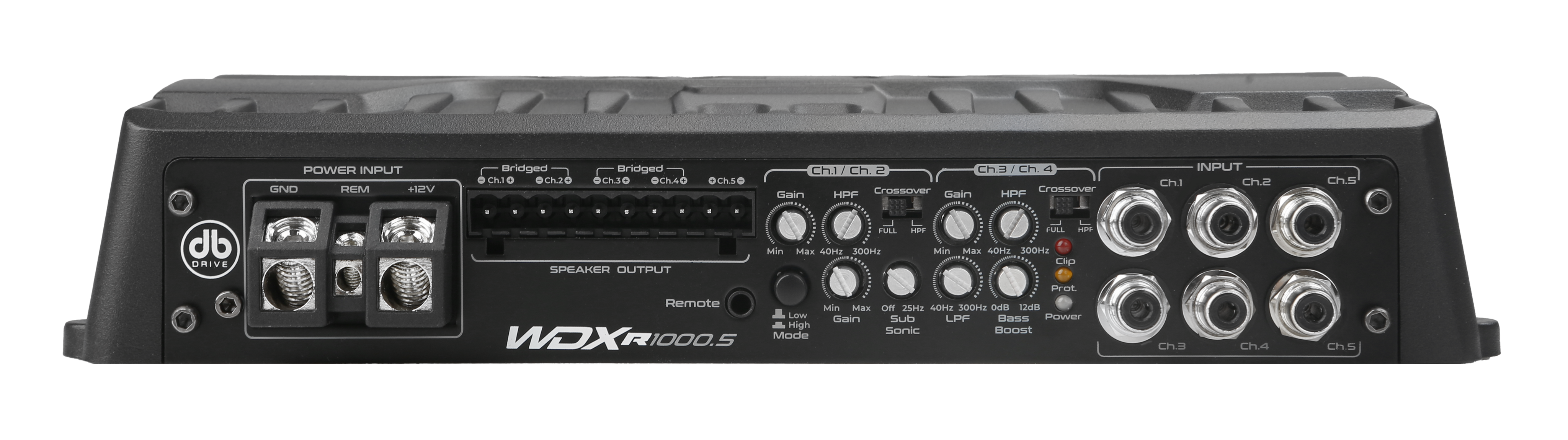

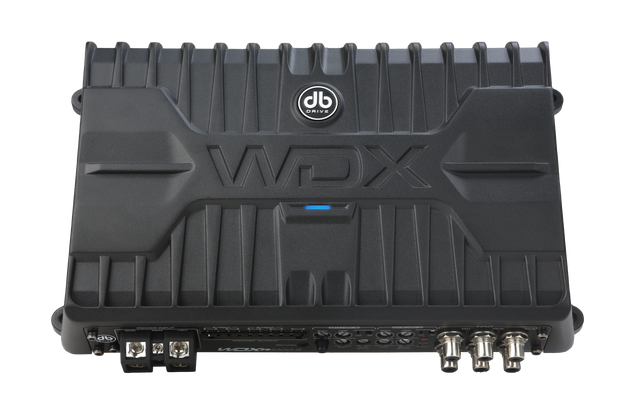

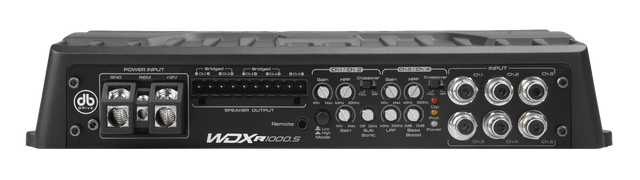

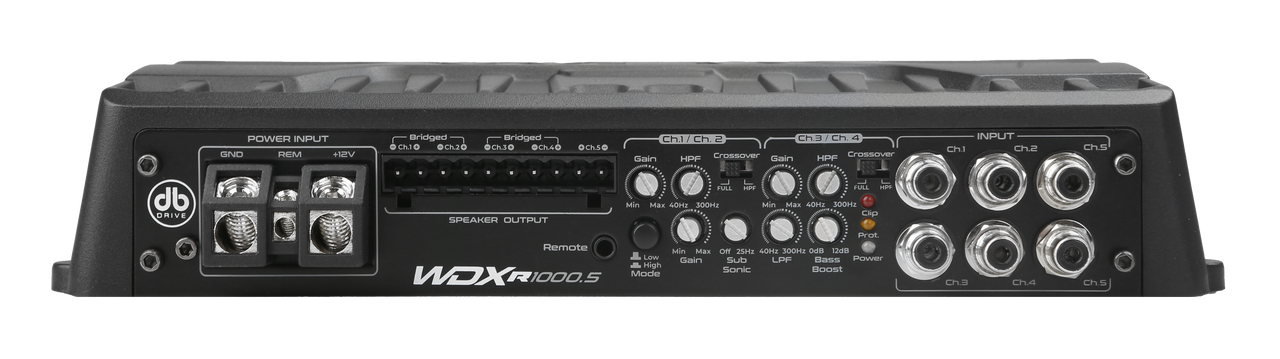

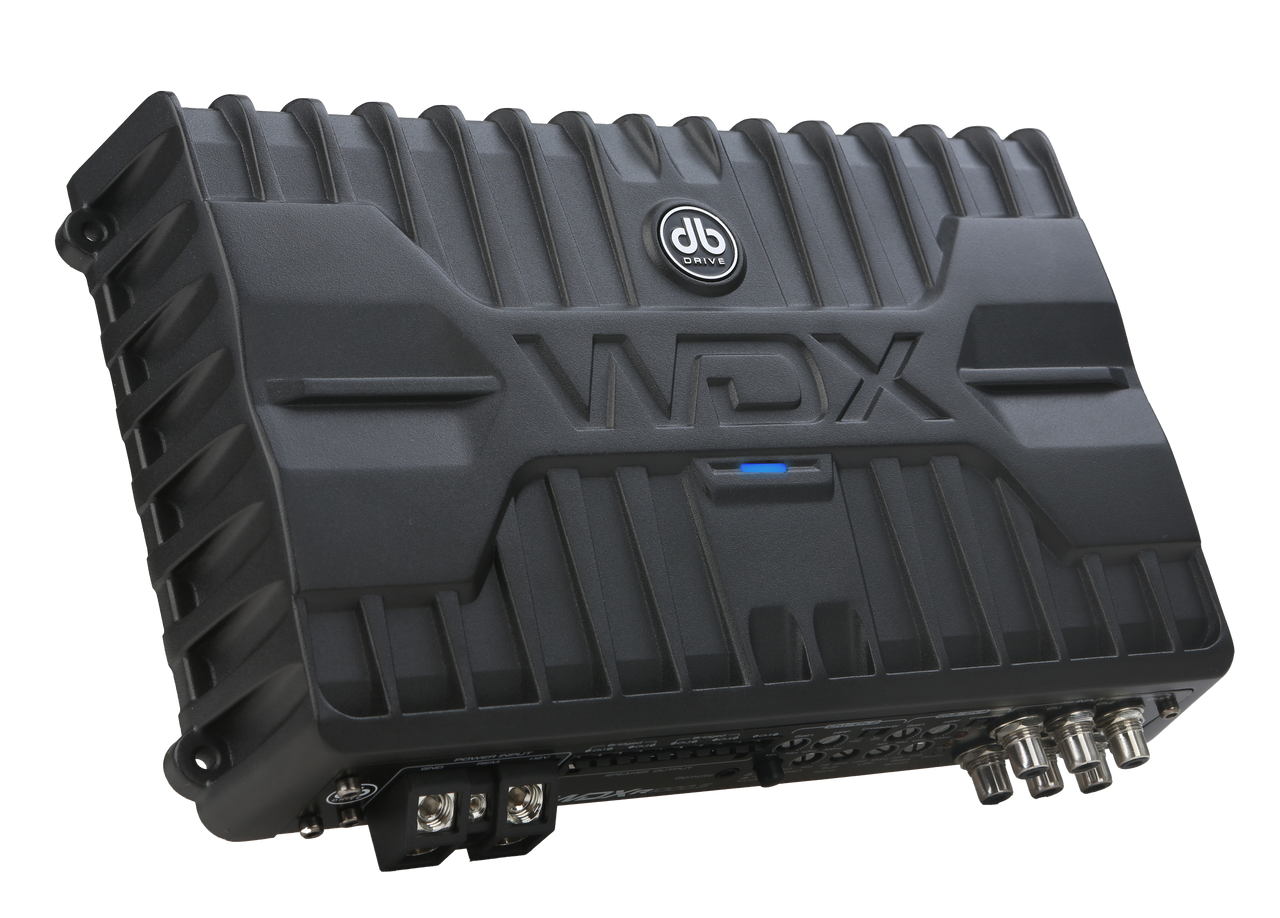

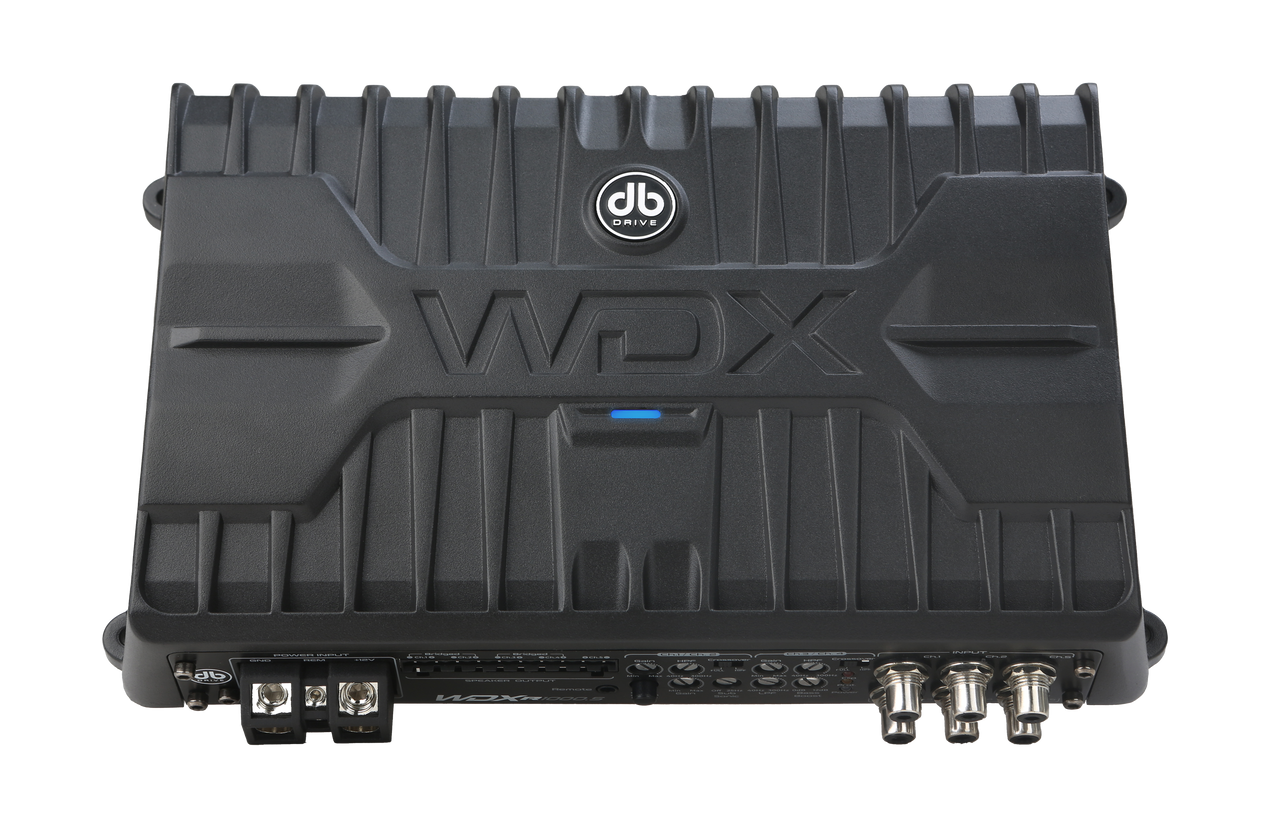

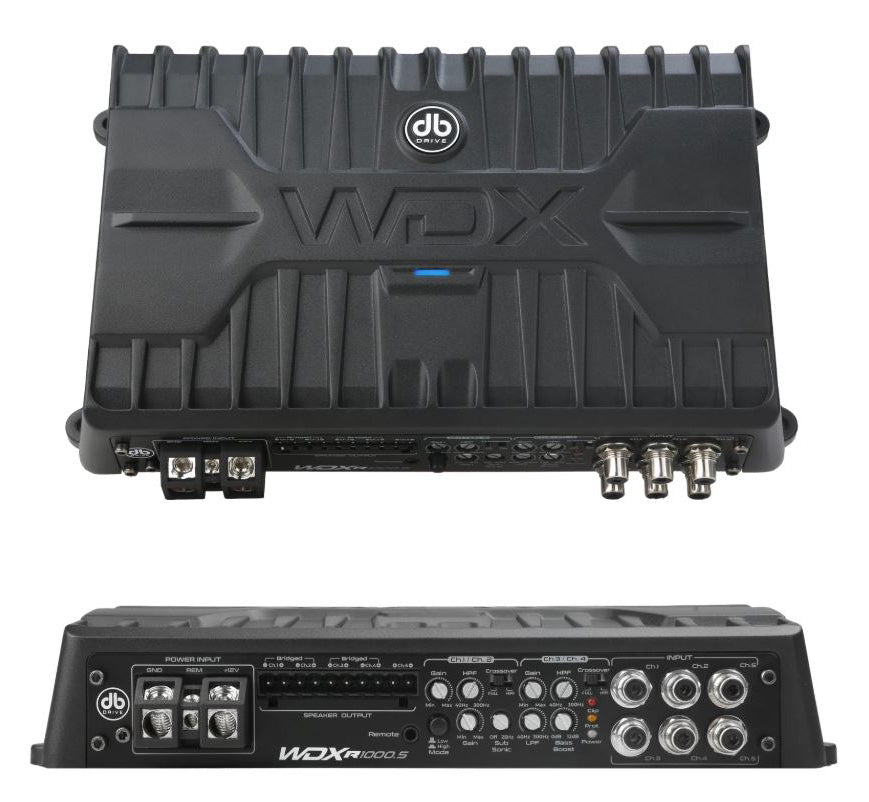

WDX-R1000.5 : WDX Reference Class-D 5 Channel Amplifier
💥 New 2025 💥
Regular price
$449.98 USD
Lease to own
Pay as low as
$/week
Get Pre-approved! No Credit Required!
−
Decrease quantity for WDX-R1000.5 : WDX Reference Class-D 5 Channel Amplifier
Quantity
+
Increase quantity for WDX-R1000.5 : WDX Reference Class-D 5 Channel Amplifier
Add to cart
This item is a recurring or deferred purchase. By continuing, I agree to the
cancellation policy
and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.
Features
Class D Technology
Direct Connect Speaker Terminals
Large Gauge Power Wire Inputs
Selectable Low Level RCA Input Range
ACT- Adaptive Crossover Technology
PWM Mosfet Regulated Power Supply
APC - Audio Protection Circuit
SESI - Signal Evaluation Status indicator
CHM - Collective Heat Management
2Ω stereo / 4Ω Bridged capability
Remote Bass Control Included
Specifications
Rated Power:: 4 x 125 Watts + 250 Watts @ 4Ω
Rated Power: 4 x 200 Watts
+ 500 watts
@ 2Ω
Ch 1-2 High Pass Crossover: 40Hz - 300Hz
Ch 3-4 High Pass Crossover: 40Hz - 300Hz
Ch 5 Low Pass Crossover: 40Hz - 300Hz
Subsonic Filter: 0 - 25 Hz
Crossover Slope @ 12 dB
Bass Boost @ 45Hz : 0-12dB
Input Sensitivity: .425Mv -
8.5V
Signal to Noise ratio :
>98dB
DIMENSIONS:
L - 10.26"/ 260.7 mm
W - 6.12"/155.5 mm
H - 1.97"/ 50 mm
