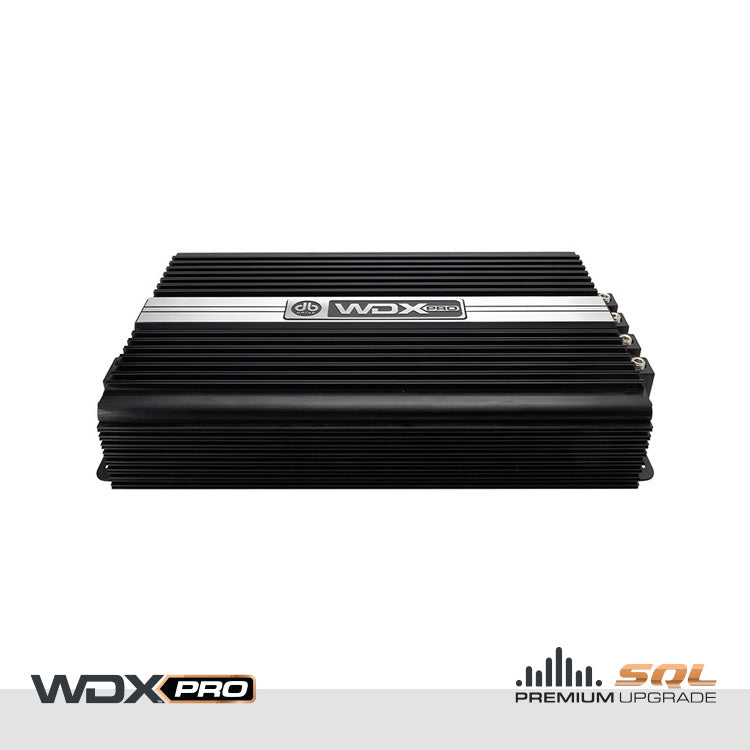

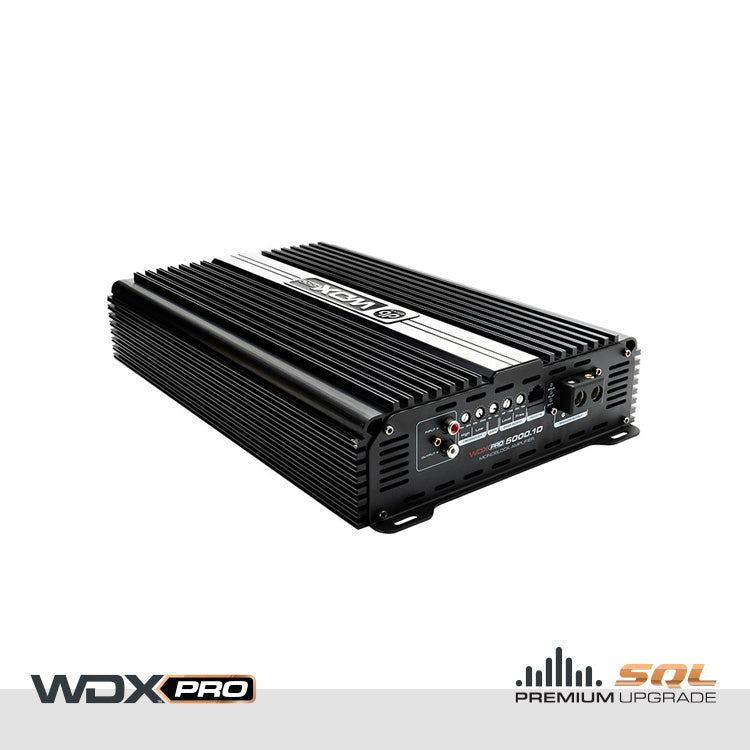

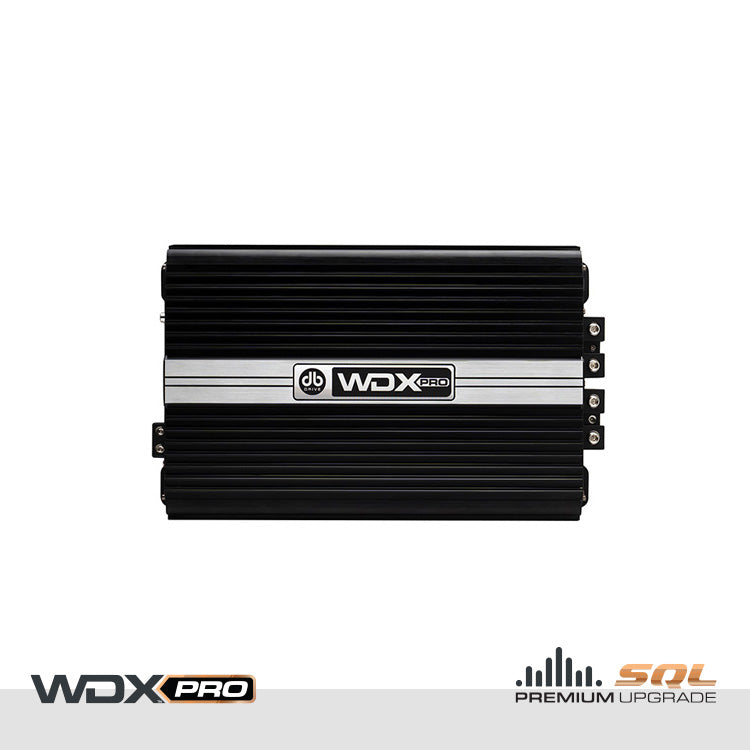

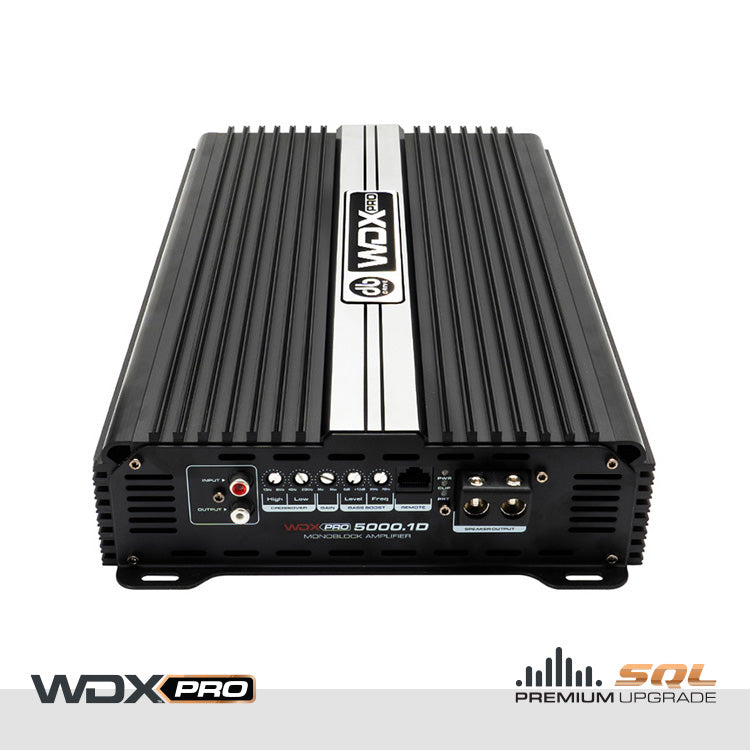

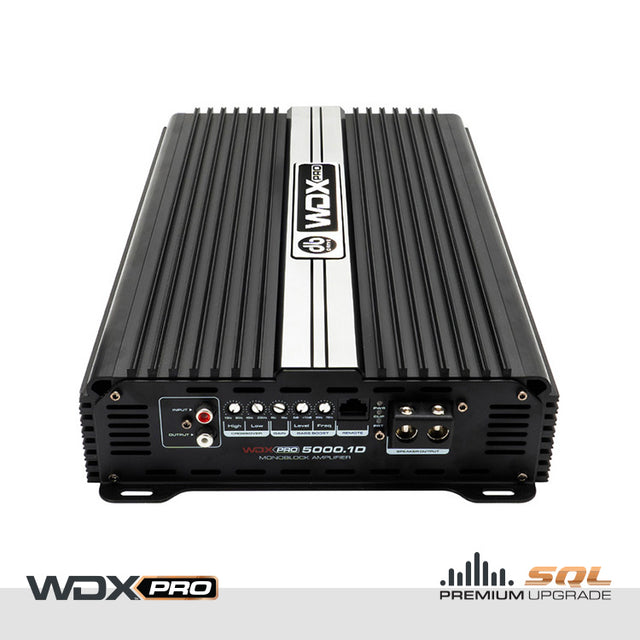

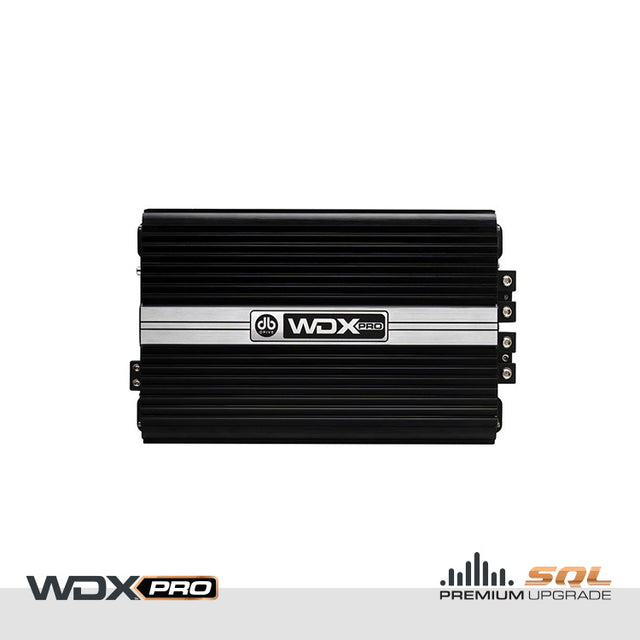

WDX PRO5000.1D : Mono Full-Range Class D Amplifier

Features

• ATC - Audiophile RCA Connectors

• ACT - Adaptive Crossover Technology

• High efficiency  Class Full Range Class D Technology

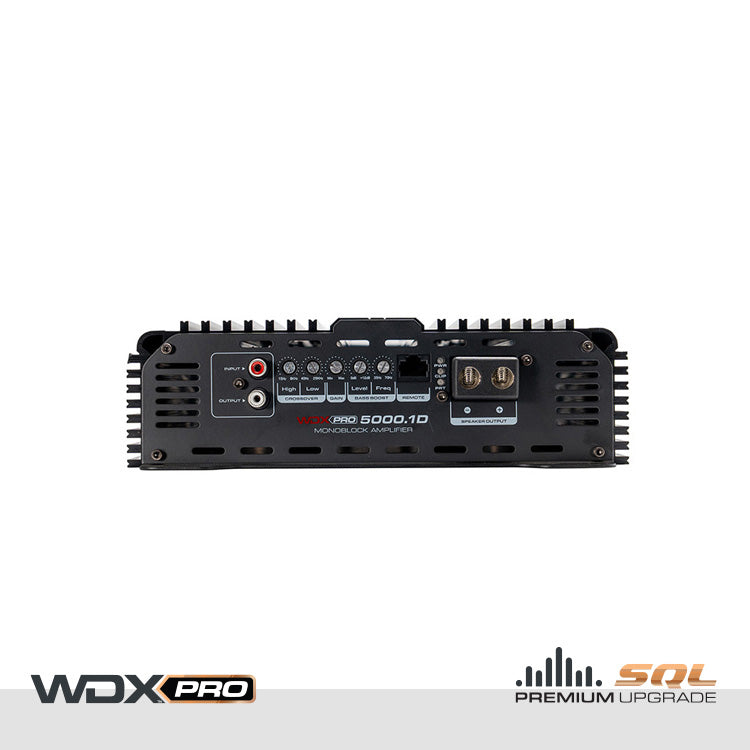

• 4 Gauge Direct Connect Speaker Terminals

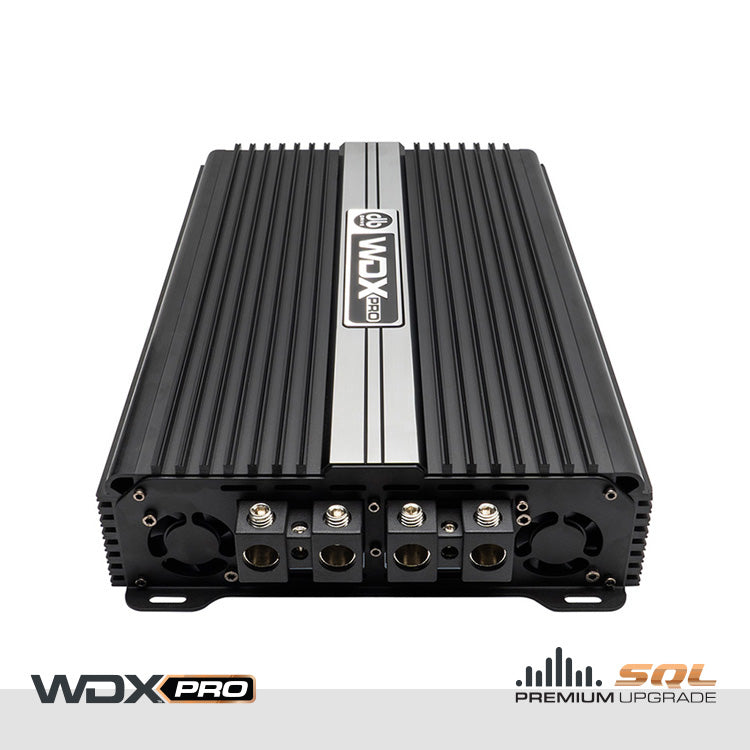

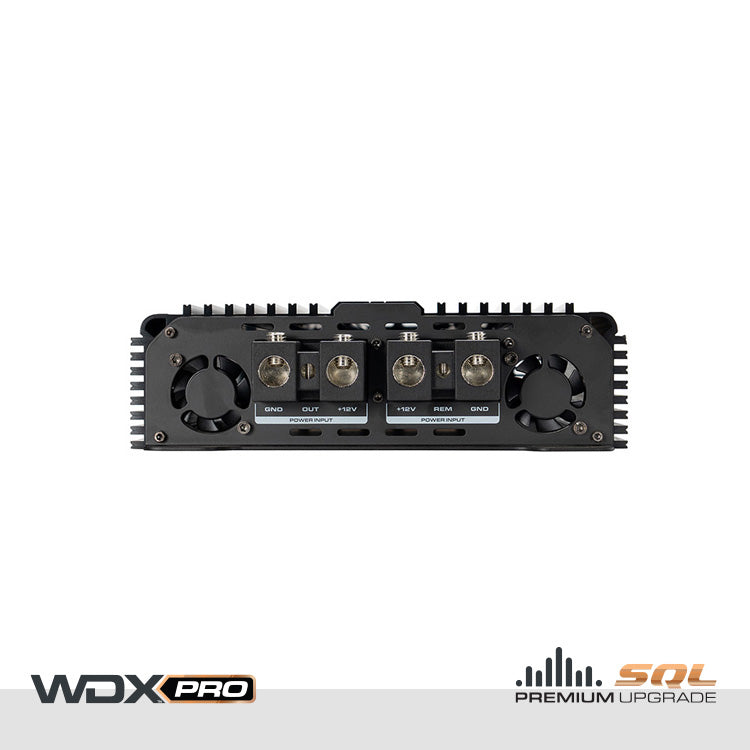

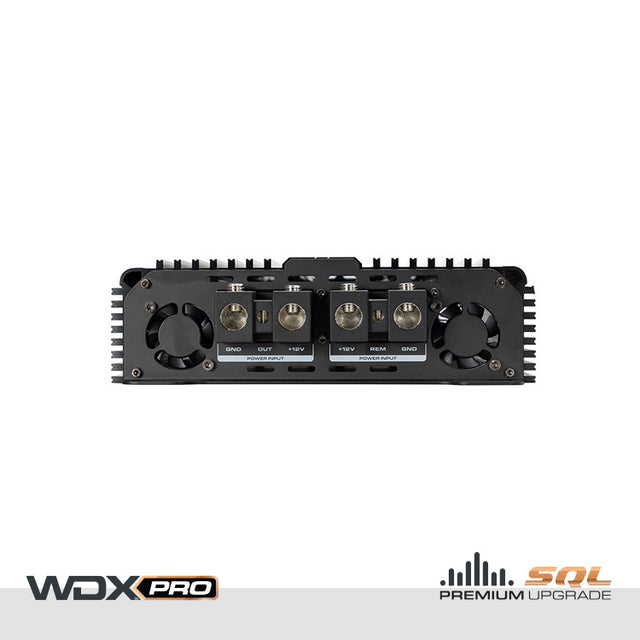

• Dual 0 Gauge Power Wire Inputs

• APC - Audio Protection Circuit

• SESI - Signal Evaluation Status Indicator

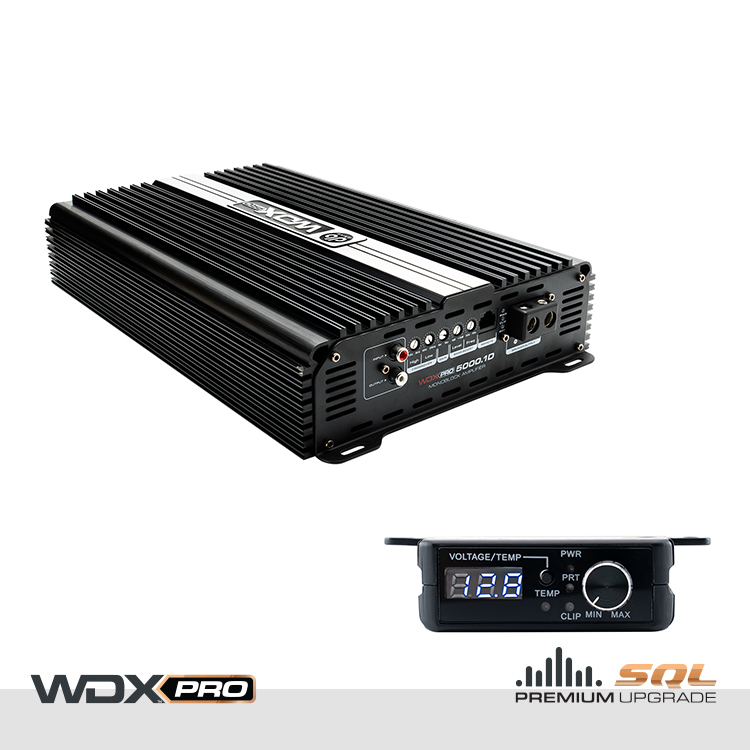

• Bass Remote with voltage , temperature and signal status indicator

• CHM - Collective Heat Management

Specifications

• 1 x 5000 Watts @ 1 ohm

• 1 x 2500 Watts @ 2 ohms

• 1 x 1250 Watts @ 4 ohms

• Working Voltage: 12-15 Volts

• Frequency Response: 15 Hz - 20k Hz

• Signal to Noise Ratio: 95dB

• Damping Factor: ≥200

• Low Level Input: 6V - 0.2mV

• Variable Bass Boost Frequency:  35 Hz - 70 Hz

• Bass Boost EQ Gain: 0dB - 12dB

• High Pass Filter Variable: 15 Hz - 8k Hz

• Low Pass Filter Variable: 40 Hz - 20 Hz

• Minimum working Impedance: 1 Ohm

Description

Superior audio performance with the DB Drive WDX PRO5000.1D a mono Class D full range amplifier designed for high output and crystal-clear sound. Easily power subwoofers or high power midbass drivers. Key Features: •    Adaptive Crossover: Fine-tunes your system for optimal performance across compression drivers , midranges, or subwoofers. •    CHM: Keeps the amp cool for consistent power without overheating. •    SESI Circuit: Real-time monitoring to protect your system from overdriving. •    Large-Gauge Terminals: Compatible with 4-gauge wiring for maximum efficiency. With 5000 Watts at 1Ω, the WDX PRO5000.1D provides extremely powerful, dynamic power taking your car audio system to the next level.

Product Manual

Product Manual PDF
