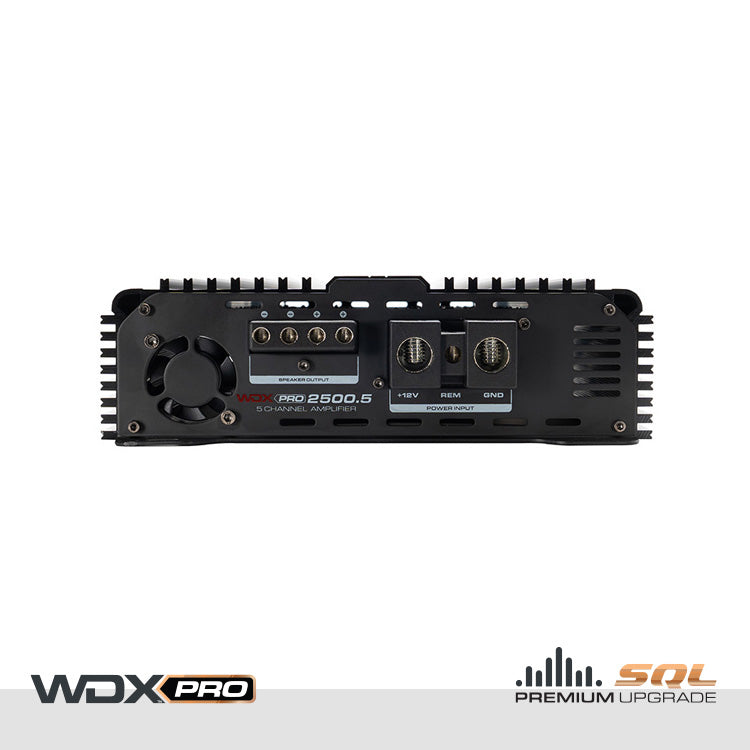

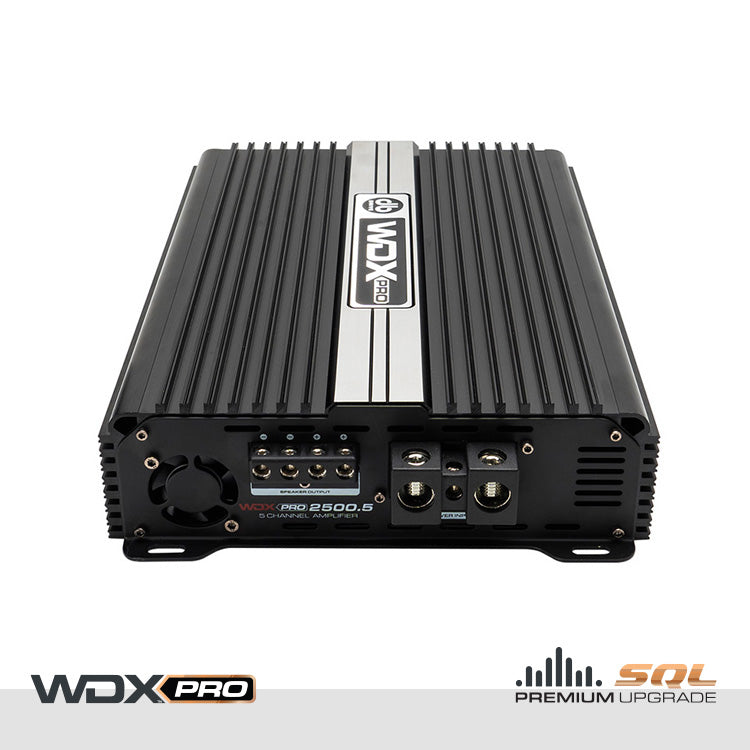

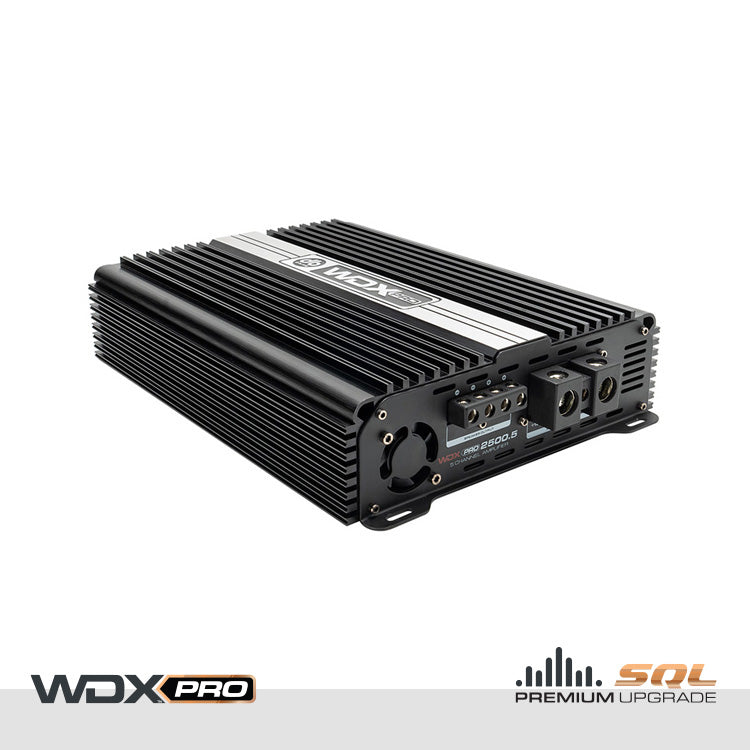

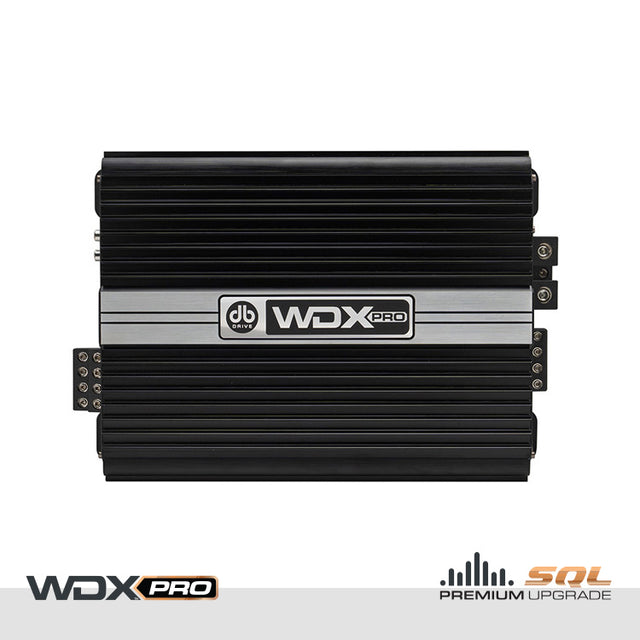

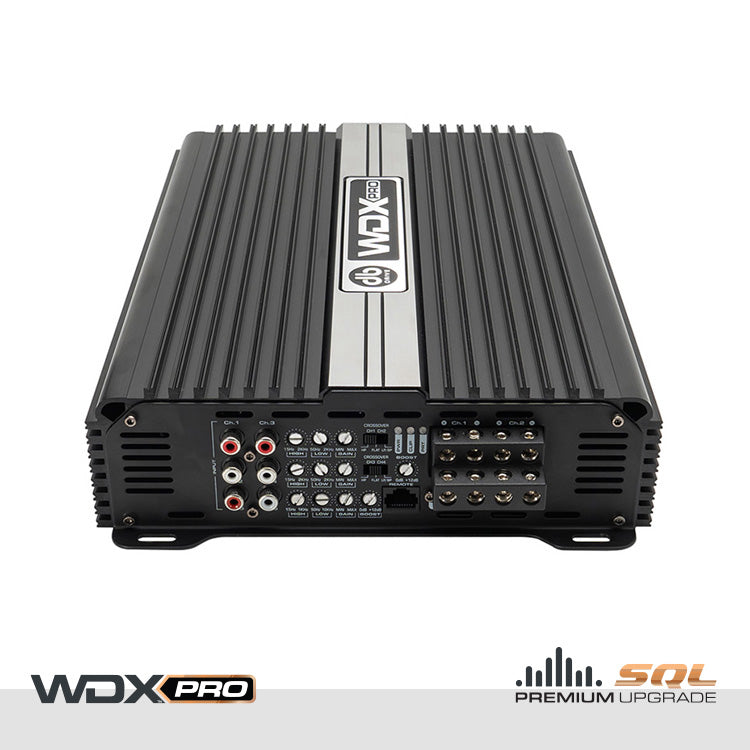

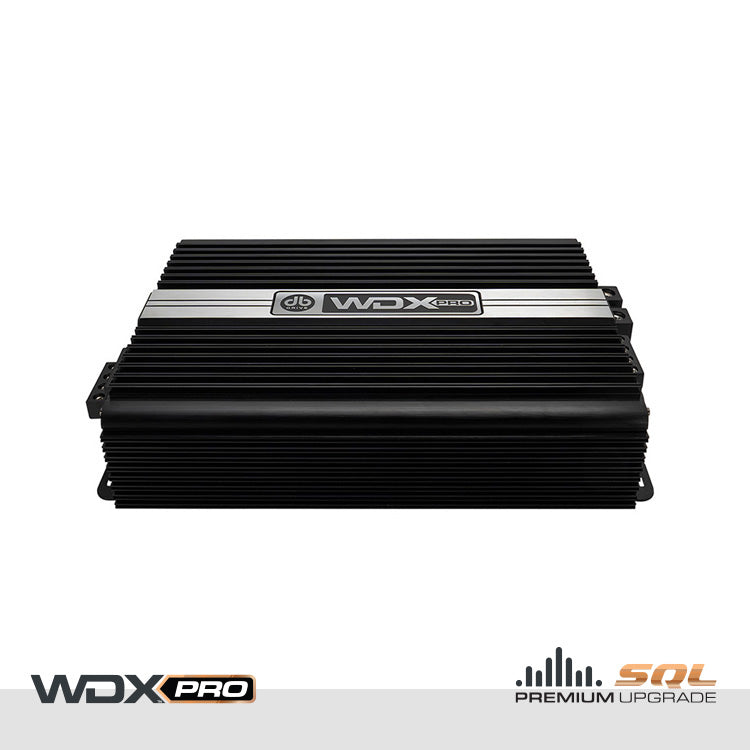

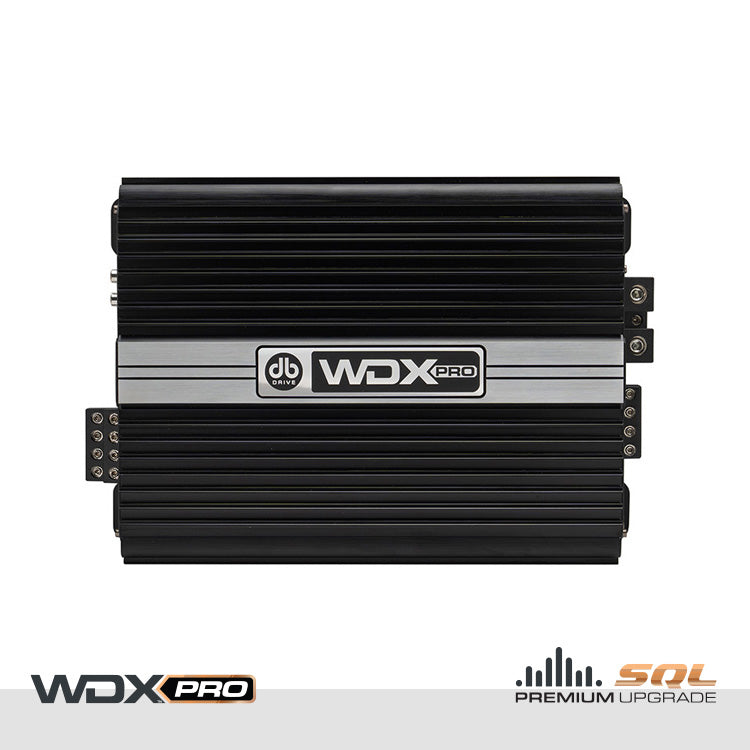

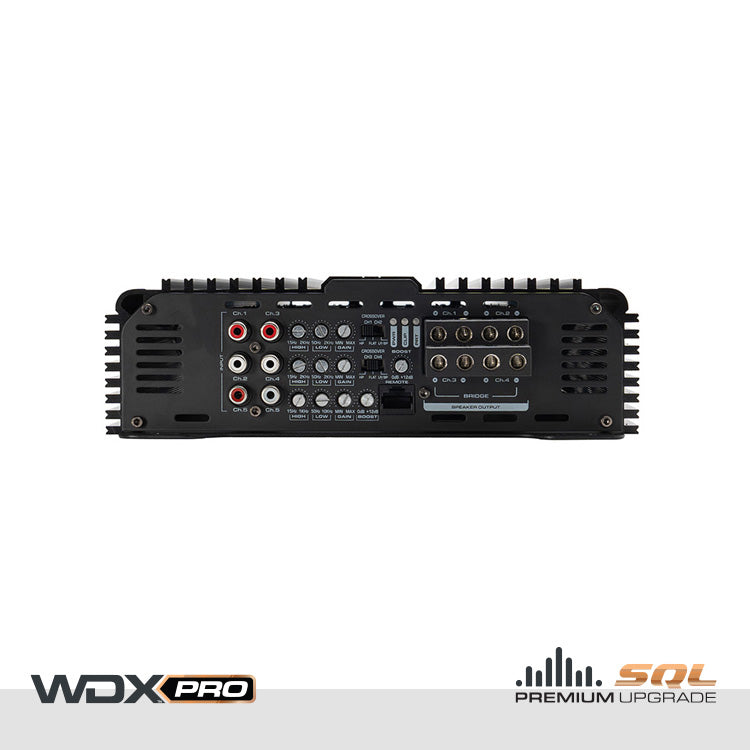

WDX PRO2500.5 : 5-Channel Full-Range Class D Amplifier

• @ 14.4 volts
• 4 x 100 Watts @ 4 ohms
• 4 x 200 Watts @ 2 ohms
• 4 x 300 Watts @ 1 ohm
• (5th Ch) 1 x 1000 Watts @ 1 ohm
• Working Voltage: 12-15 Volts
• Frequency Response: 15 Hz - 20k Hz
• Signal to Noise Ratio: <96dB
• ACT - Variable Crossover HP/BP/LP
• Damping Factor: ≥200
• Low Level Input: 6V - 0.2mV
• Ch 1/2 High Pass Filter Variable: 15 Hz - 2k Hz
• Ch 1/2 Low Pass Filter Variable: 50 Hz - 2k Hz
• Ch 3/4 High Pass Filter Variable: 15 Hz - 2k Hz
• Ch 3/4 Low Pass Filter Variable: 50 Hz - 2k Hz
• Minimum working Impedance: 1 Ohm

Description

Achieve superior audio performance with the DB Drive WDX PRO2500.5, a 5-channel Class D amplifier built for high output and crystal-clear sound. Effortlessly power your full 4-channel stereo system alongside an additional subwoofer.  Key Features:  Adaptive Crossover: Optimizes performance for tweeters, midranges, and subwoofers. CHM: Ensures consistent power and prevents overheating. SESI Circuit: Monitors in real time to protect against overdriving. Large-Gauge Terminals: Supports 4-gauge wiring for maximum efficiency. With 4 x 200 Watts and 1 x 1000 Watts at 1Ω, the WDX PRO2500.5 elevates your car audio system, delivering powerful, dynamic sound.
