Features
- Class D Technology

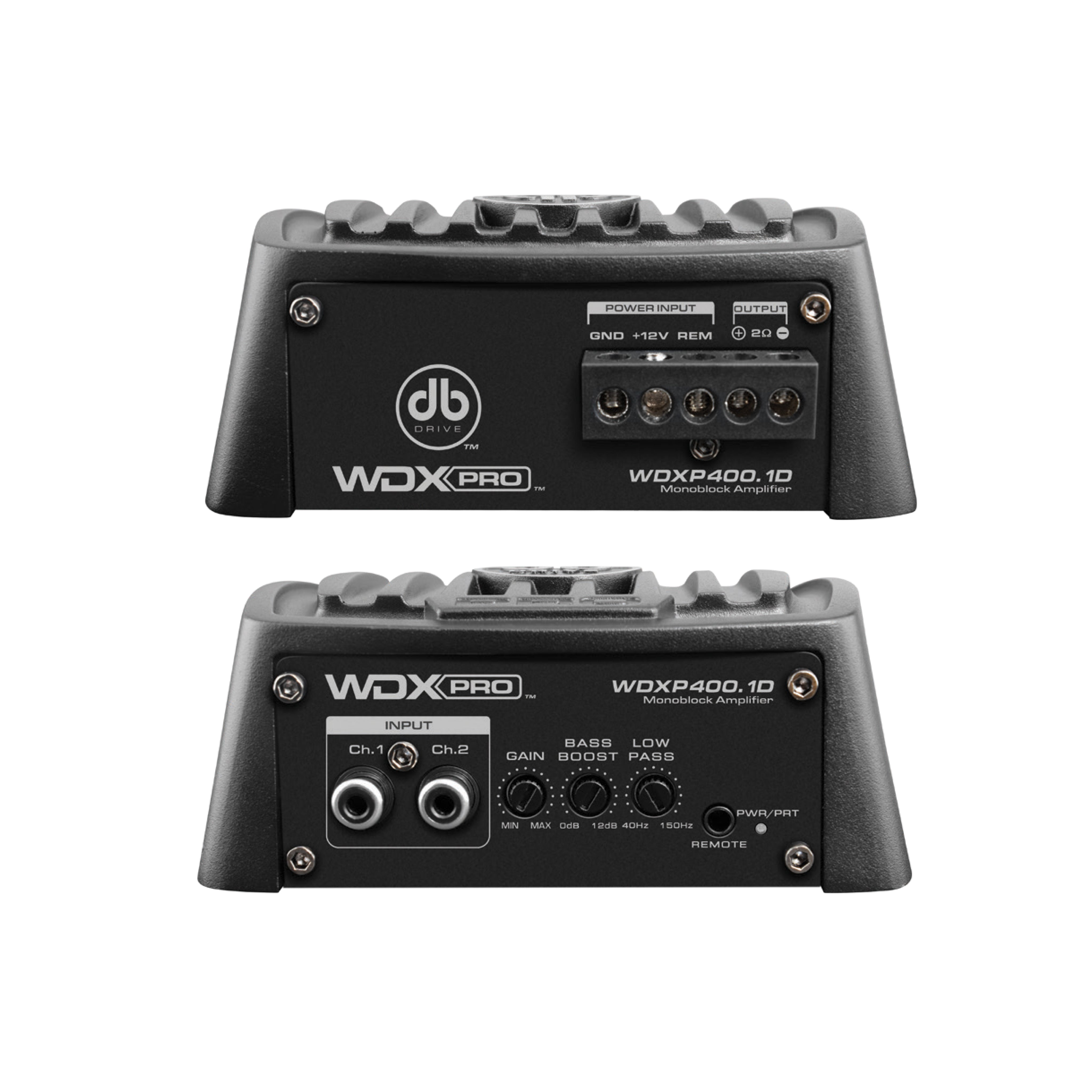

- Direct Connect Speaker and Power Terminals
- PWM Mosfet Regulated Power Supply
- APC - Audio Protection Circuit
- SESI - Signal Evaluation Status Indicator
- CHM - Collective Heat Management
- 2Ω Capability
- Remote Bass Control Included
Specifications
• Rated Power: 1 x 425 Watts @ 2Ω
• Rated Power: 1 x 300 Watts @ 4Ω
• Crossover Slope: @ 12dB
• Low Pass Filter: 40Hz - 150Hz
• Bass Boost @ 45Hz: 0 - 12dB
• Input Sensitivity: .250Mv - 8.5V
• Signal to Noise Ratio: >101dB
DIMENSIONS
- Length - 5” / 127 mm
- Width - 3” / 76.2 mm
- Height - 1.89” / 48.20 mm
