| 2x 120 Watts @ 4 Ω Stereo
|
| 2 x 240 Watts @ 2 Ω Stereo
|
| 1 x 480 Watts @ 4 Ω Bridged
|
| Compatibility 2 Ω Stereo |
| THD at Rated Power <0.5% |
| Bandwidth (-3 dB) - 18Hz- 22KHz |
| Damping Factor (1k Hz @ 4Ω) - 100 |
| Signal to Noise Ratio >90dB |
| Input Sensitivity: 285Mv - 6V |
| Minimum Load Impedance - 2Ω Stereo
|

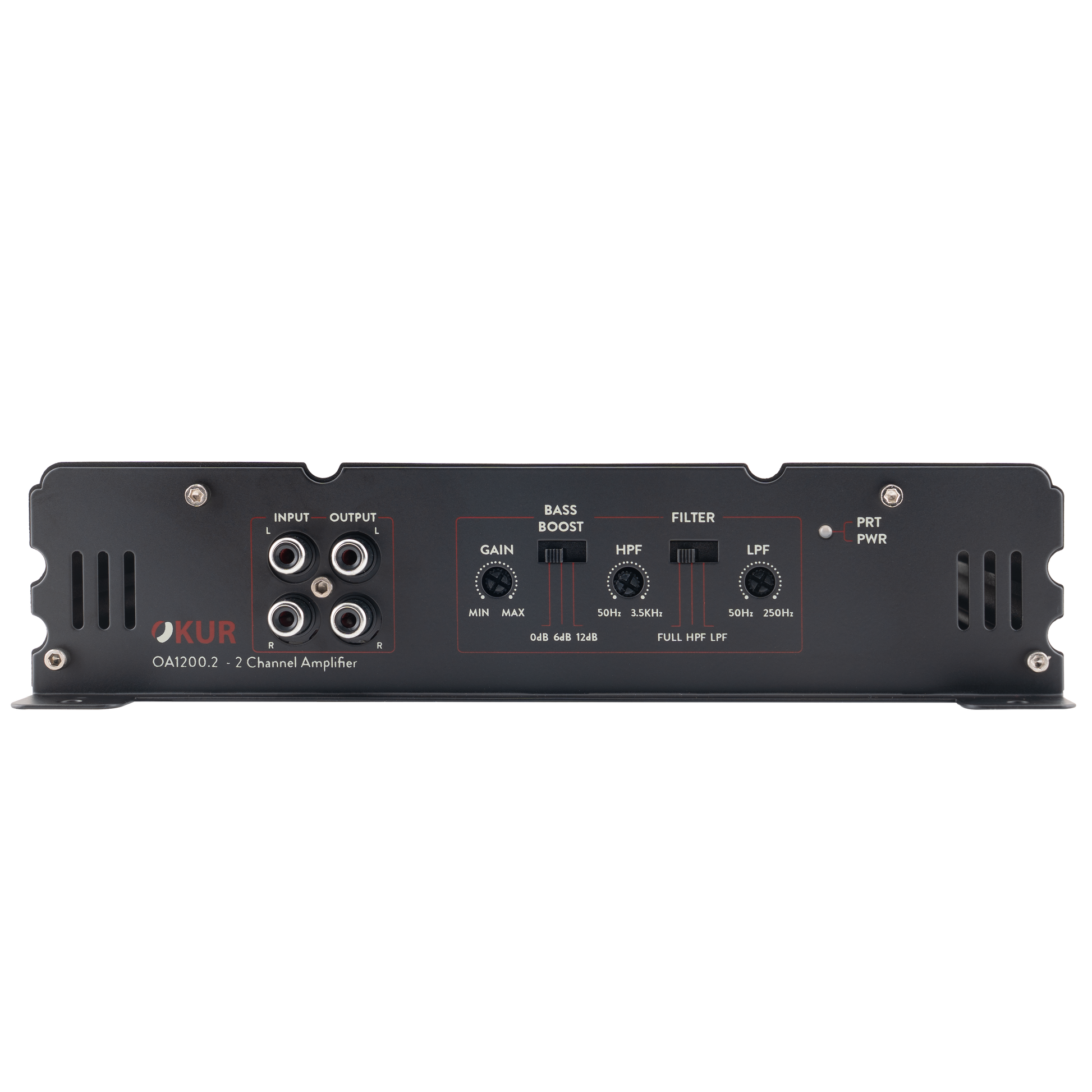

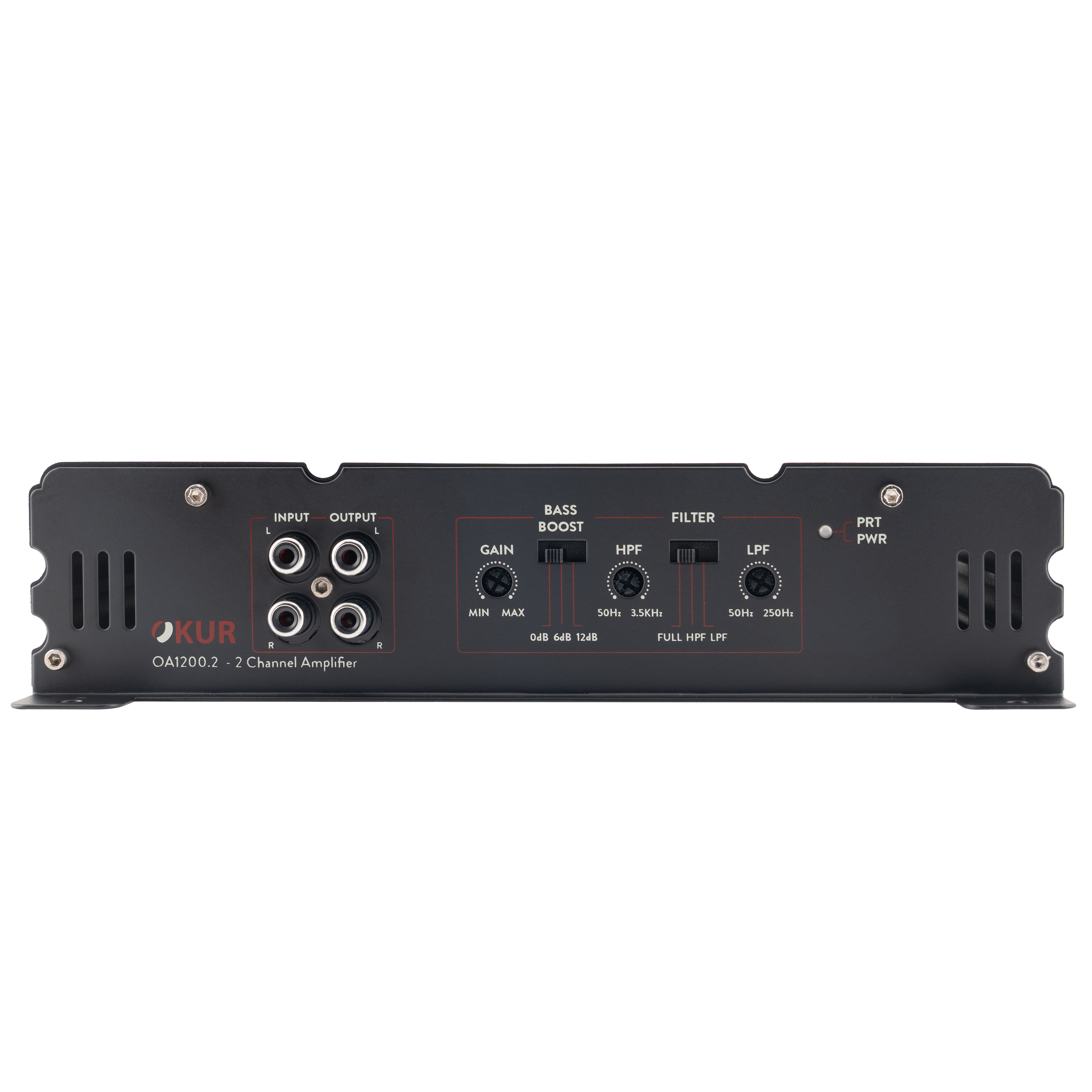

| Input : Pre in RCA |
| Crossover filter slope in stereo - 12dB |
| Channel 1-2 HP filter range - 20Hz - 3.5KHz |
| LP filter range - 50Hz - 250Hz |
| Selectable Bass Boost @45Hz - 0-12dB |
| |
| L- 179mm
|
| W - 237.38mm |
| H - 52mm |
