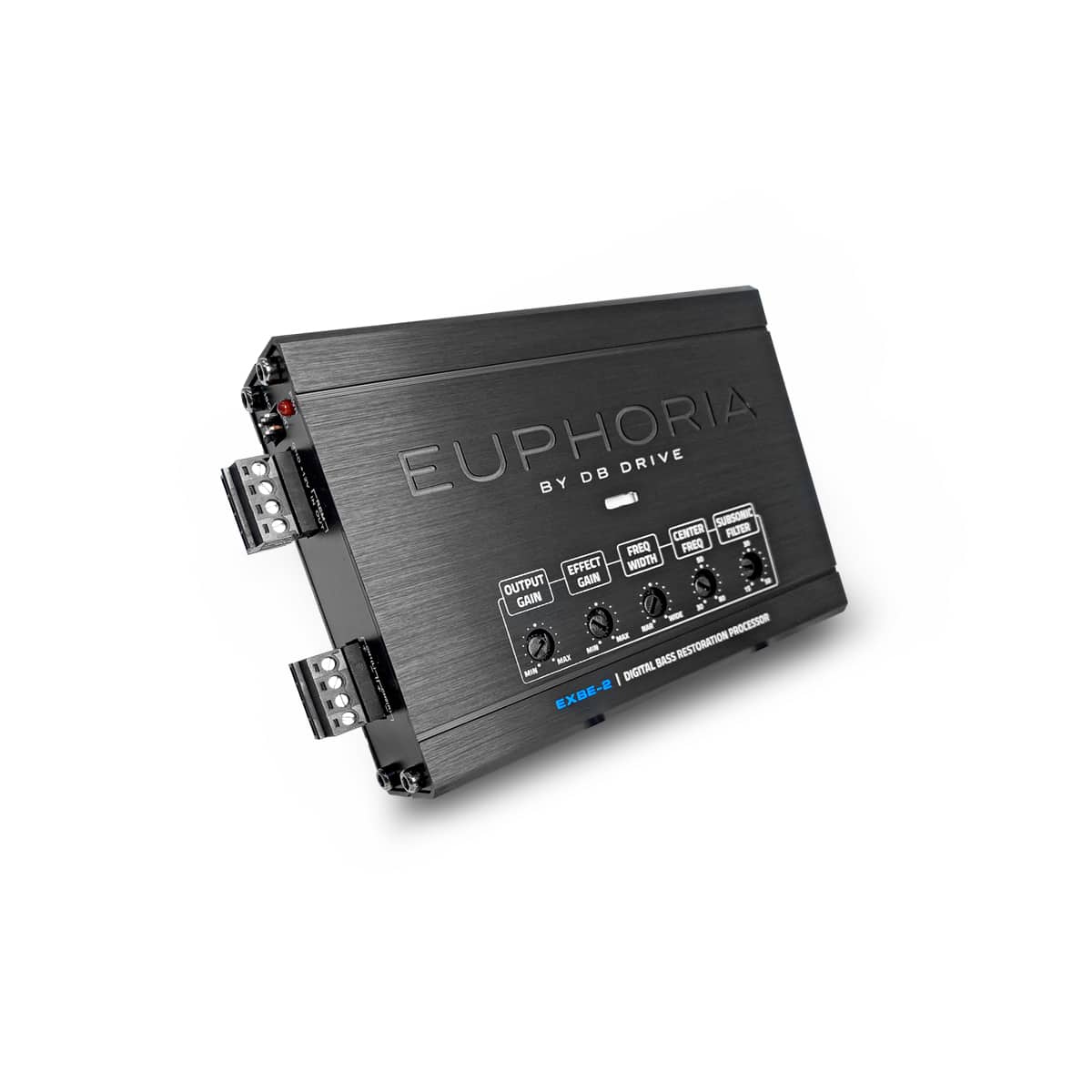

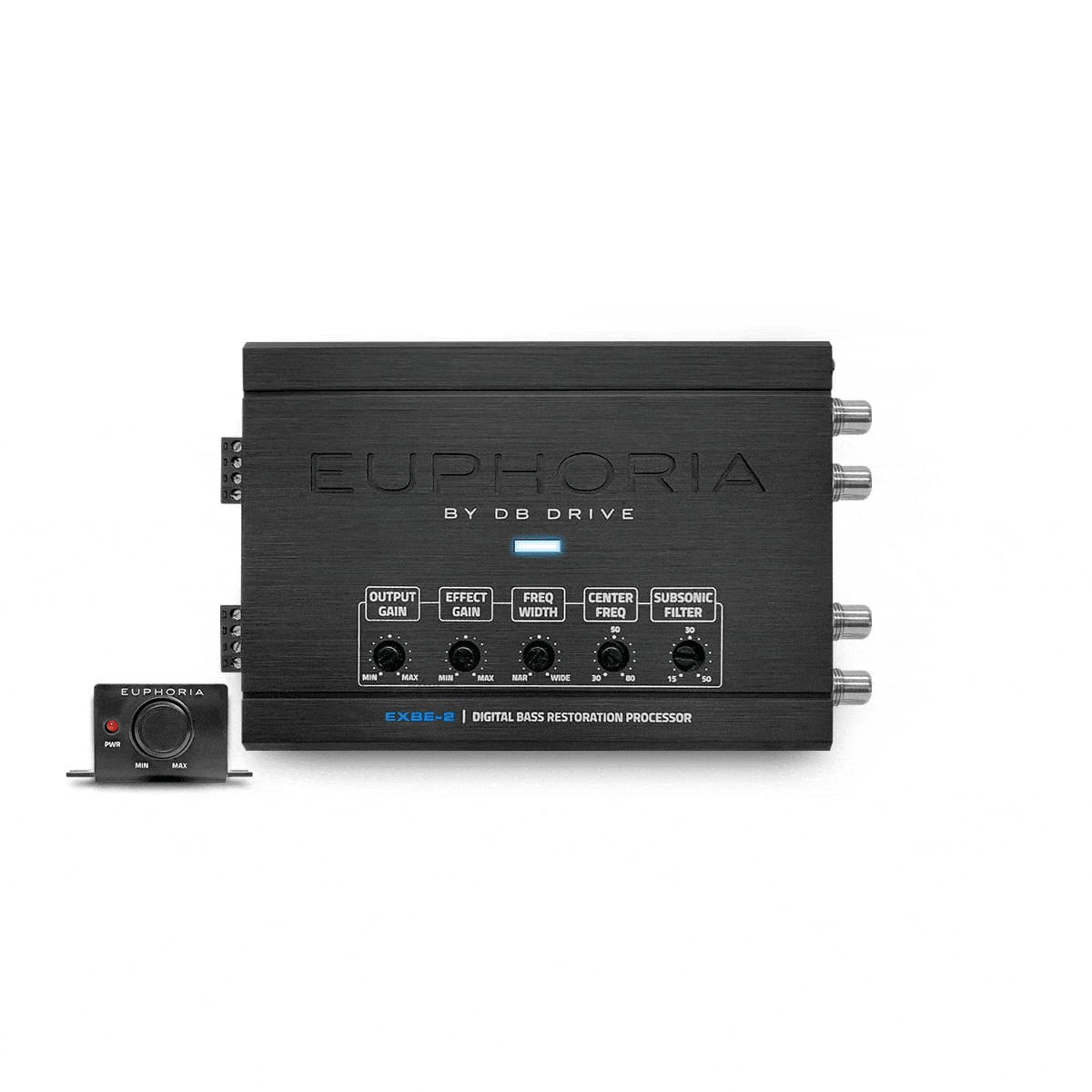

EXBE-2 : Bass Restoration Processor

EXBE-2

Bass Restoration Processor

$219.95

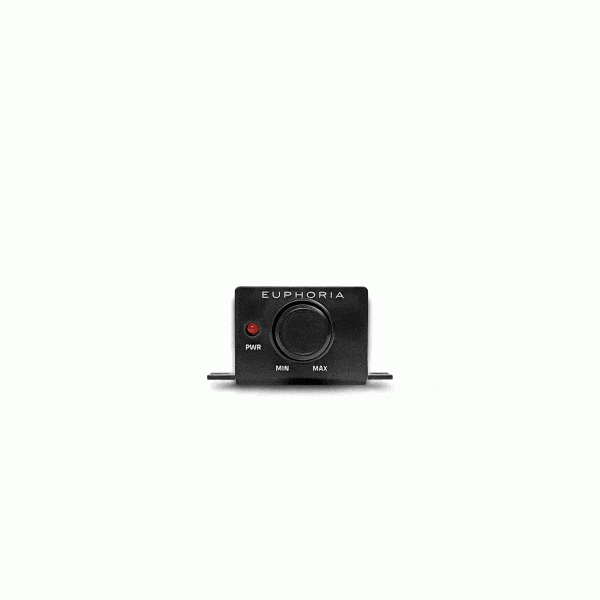

Pump up the bass and feel the Euphoria! Introducing the EXBE-2 Bass Restoration Processor by Euphoria, the ultimate game-changer for bass enthusiasts. This innovative device is engineered to breathe new life into your factory radio speakers with hi-level inputs and balanced RCA low-level inputs. With a frequency response from 15Hz to over 25kHz, you’ll experience bass like never before. The EXBE-2 features an integrated line driver output, variable subsonic filter, and variable gain adjustment with a clip LED indicator for precision tuning. It also includes a remote level control with effect defeat, making it versatile for any setup. Plus, with +12V remote output for factory radio integration and selectable ground isolation, installation is a breeze. Get ready to elevate your audio experience and immerse yourself in the Euphoria of unparalleled bass!

ADD TO CART

Financing Options Available at Checkout

What Makes it UNIQUE?

Feature#1

Feature#4

Feature#2

Feature#5

Feature#3

Feature#6

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer nec odio. Praesent libero. Sed cursus ante dapibus diam. Sed nisi. Nulla quis sem at nibh elementum imperdiet.

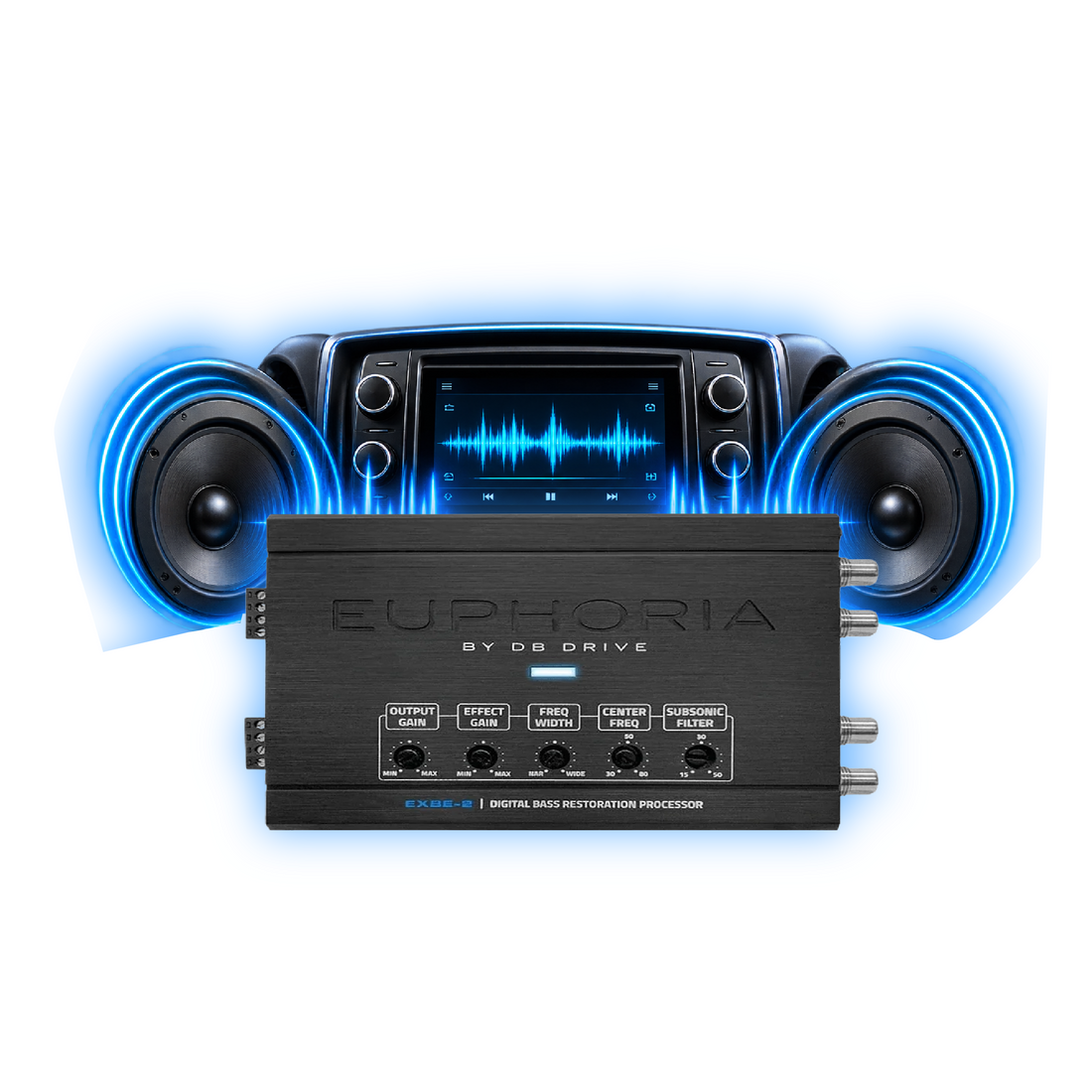

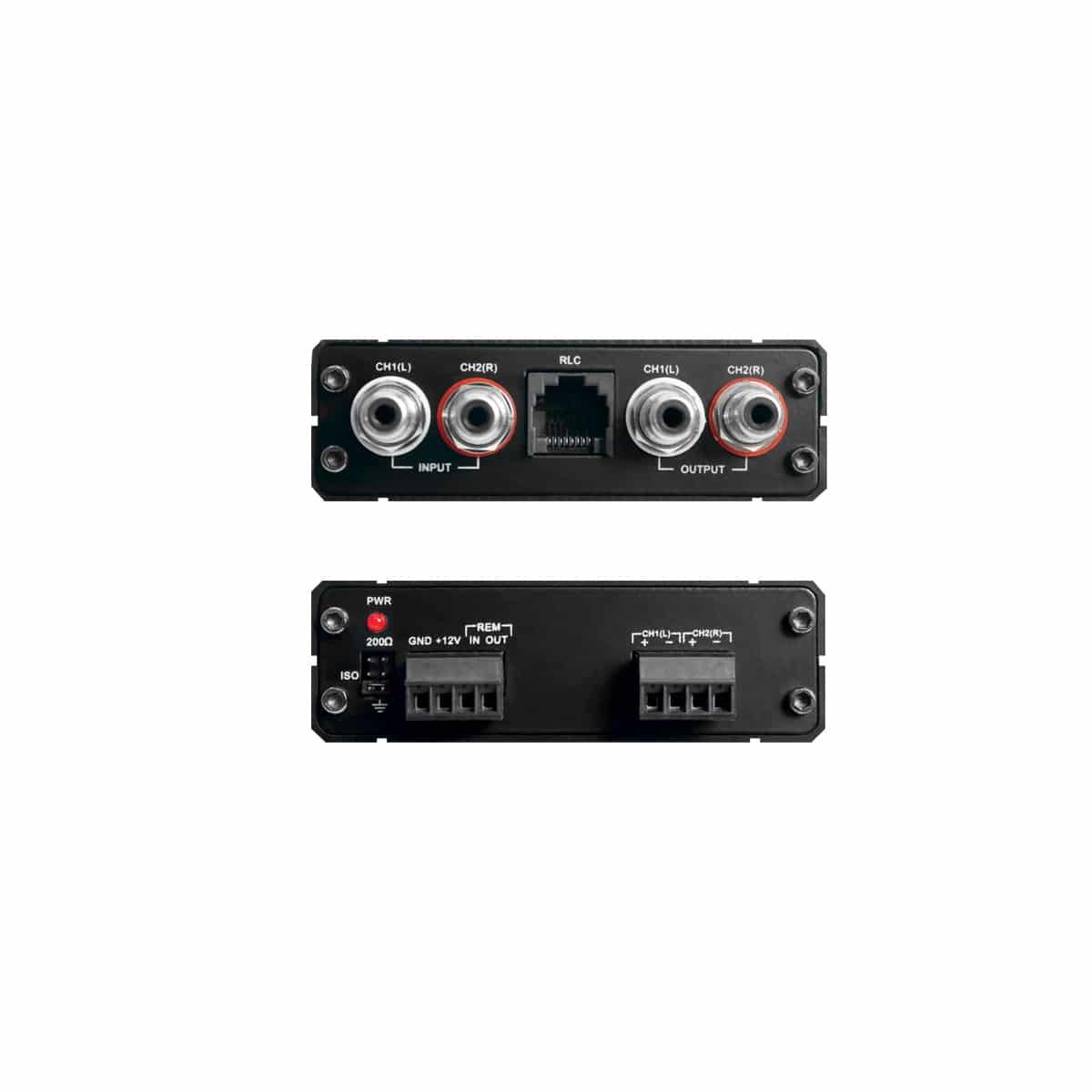

Factory Radio Speaker Hi-Level Inputs
Connects directly to factory radio speaker outputs for easy integration without requiring additional converters.

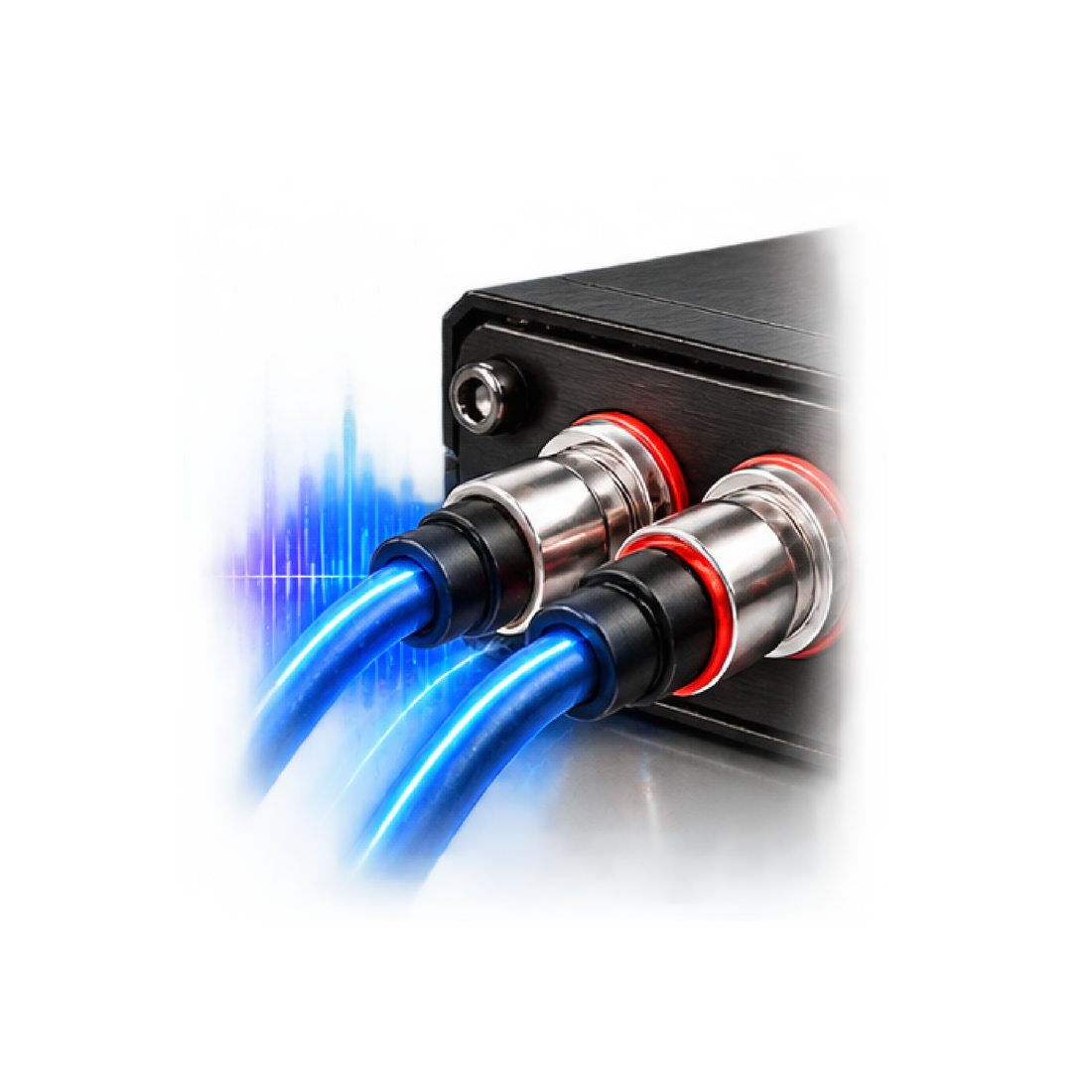

Balanced RCA Low-Level Inputs
Accepts low-level RCA signals while helping reduce unwanted noise for a cleaner audio signal.

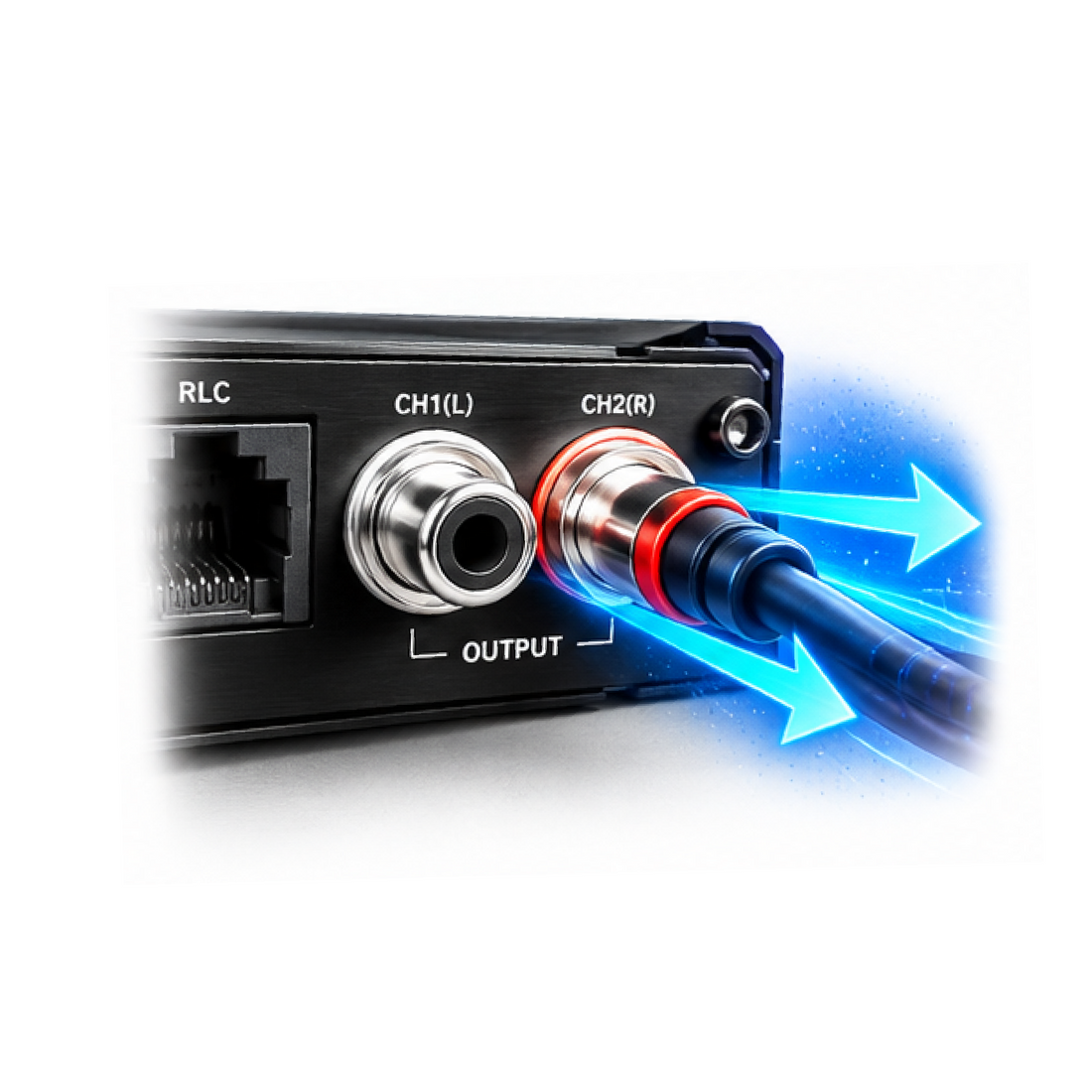

Integrated Line Driver Output
Boosts output signal voltage to deliver a stronger, cleaner signal to your amplifiers.
Variable Subsonic Filter
Allows precise adjustment of ultra-low frequencies to help protect your system and improve bass performance.

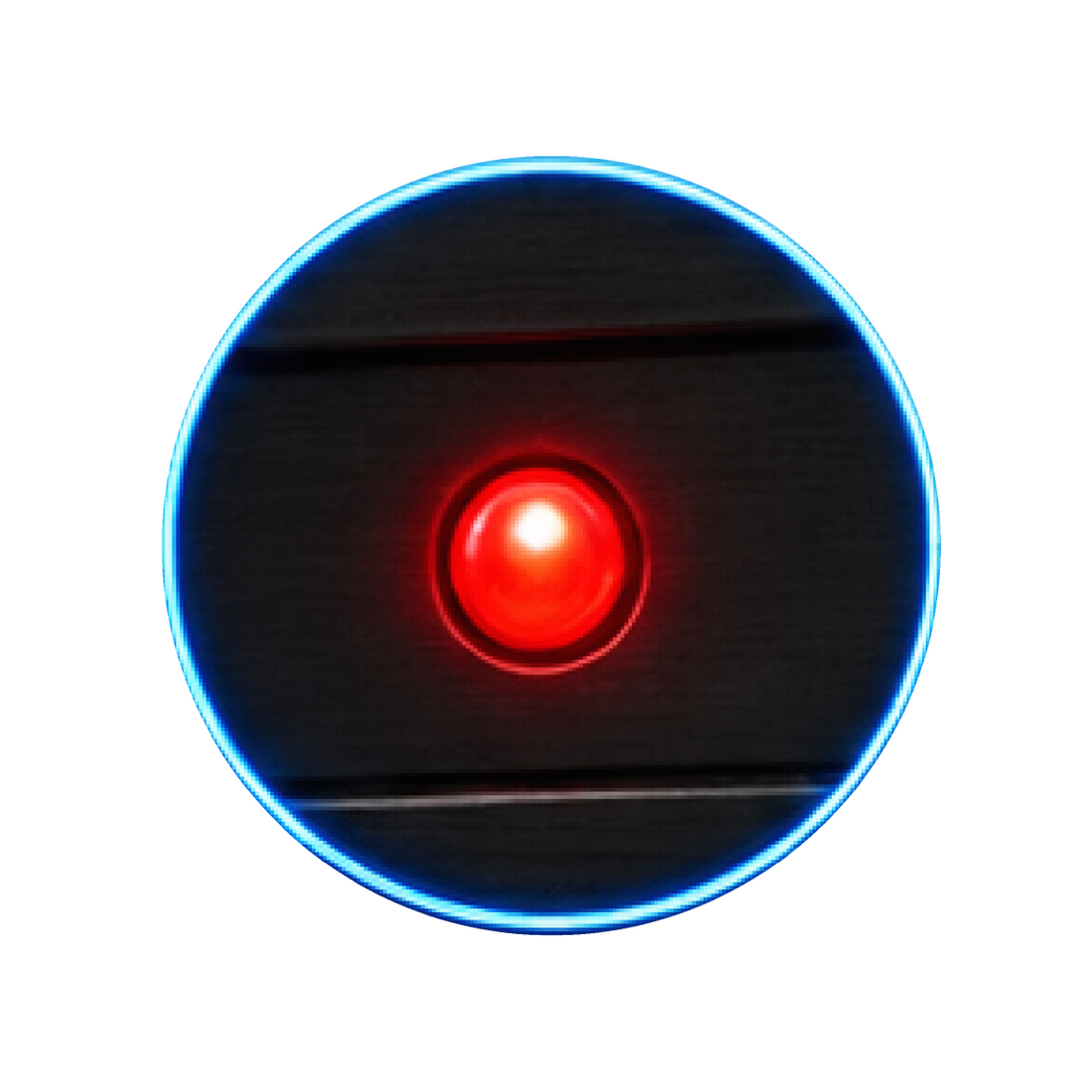

Variable Gain Adjustment with Clip LED Indicator
Provides precise signal-level adjustment with a visual clipping indicator for clean, distortion-free setup.

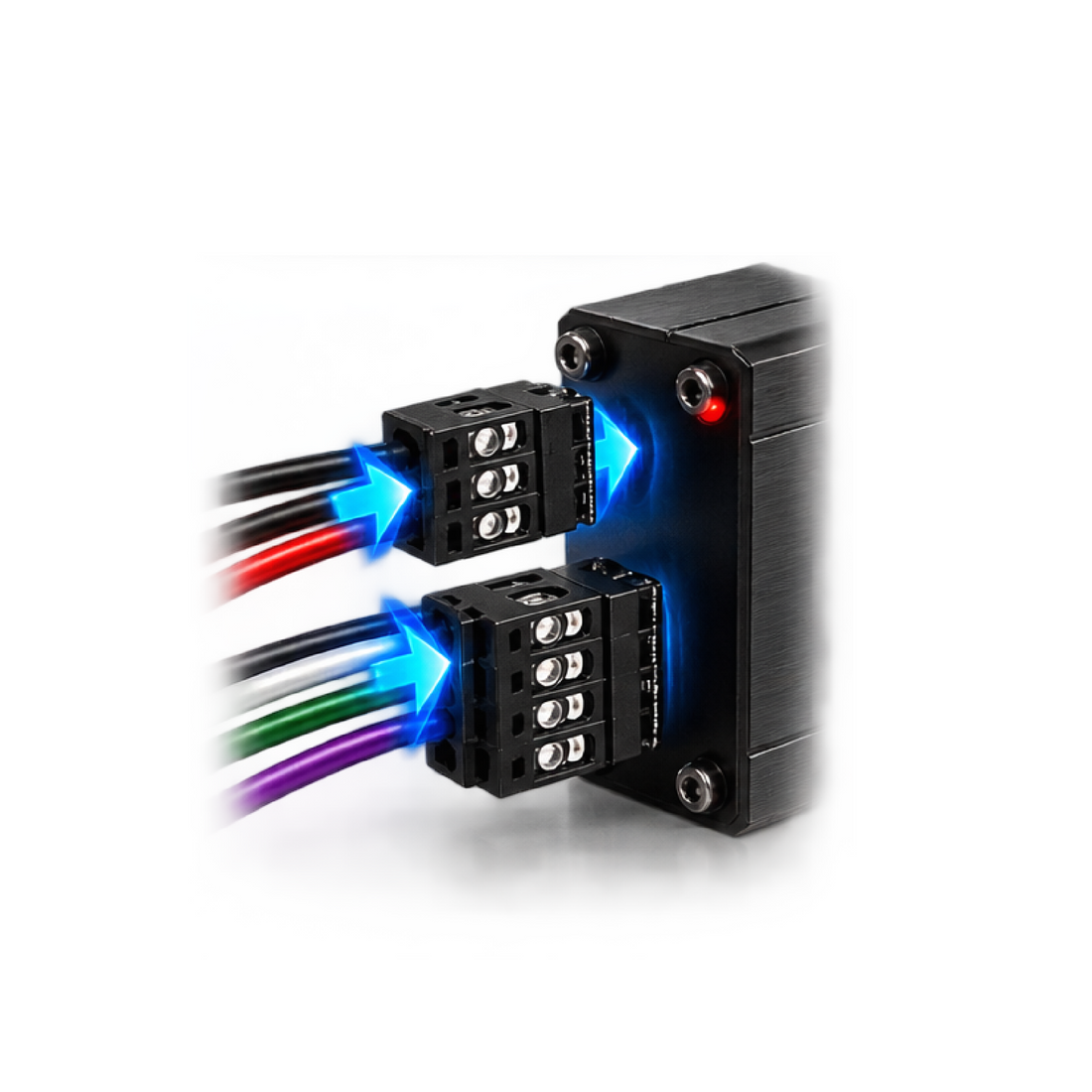

Removable Power/Speaker Terminals
Simplifies installation and servicing with convenient detachable connections for power and speaker wiring.

Input Sensitivity
Hi-Level	2-20Vs - 4-40V (internally selectable)
RCA	4KHz - 22.5KHz0.5-5V-1-10V (internally selectable)
Maximum Hi-Level Input Voltage	40Vrms
Frequency Response	15Hz to > 25kHz
THD+N (SPK/RCA)	<0.05% / <0.1%
Maximum Output Voltage	-10Vrms
Bass Restoration
Effect Gain	0 - 18dB
Width	Nar-Wide
Freq	30 - 80Hz
Variable Subsonic Filter	15Hz - 50Hz
+12V Remote Output	500mA
Chassis Dimensions	1.1" x 3.5" x 5.2" (29 x 90x 133mm)
