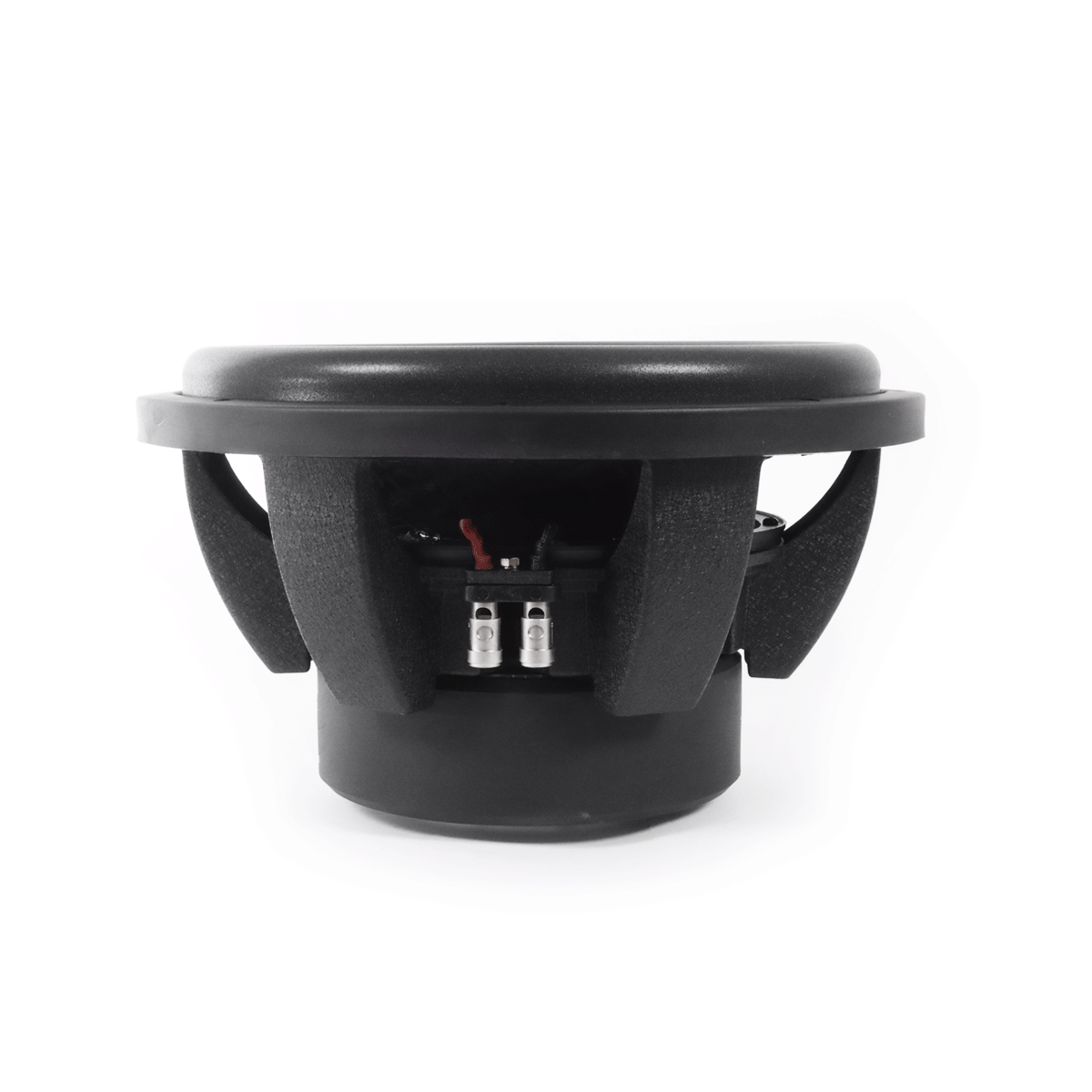

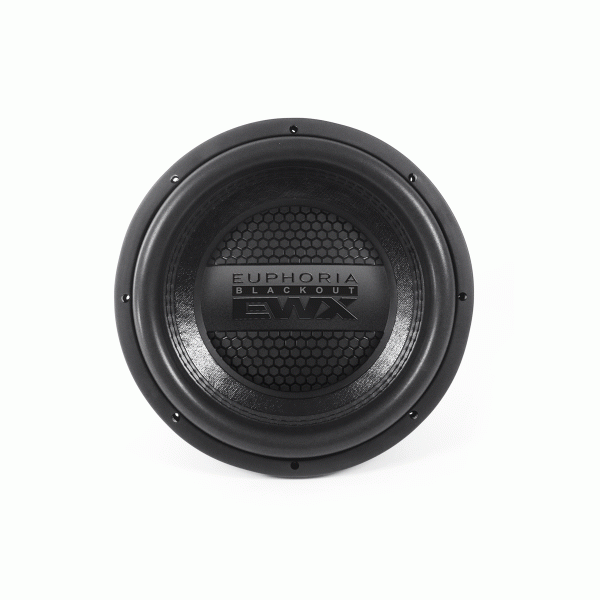

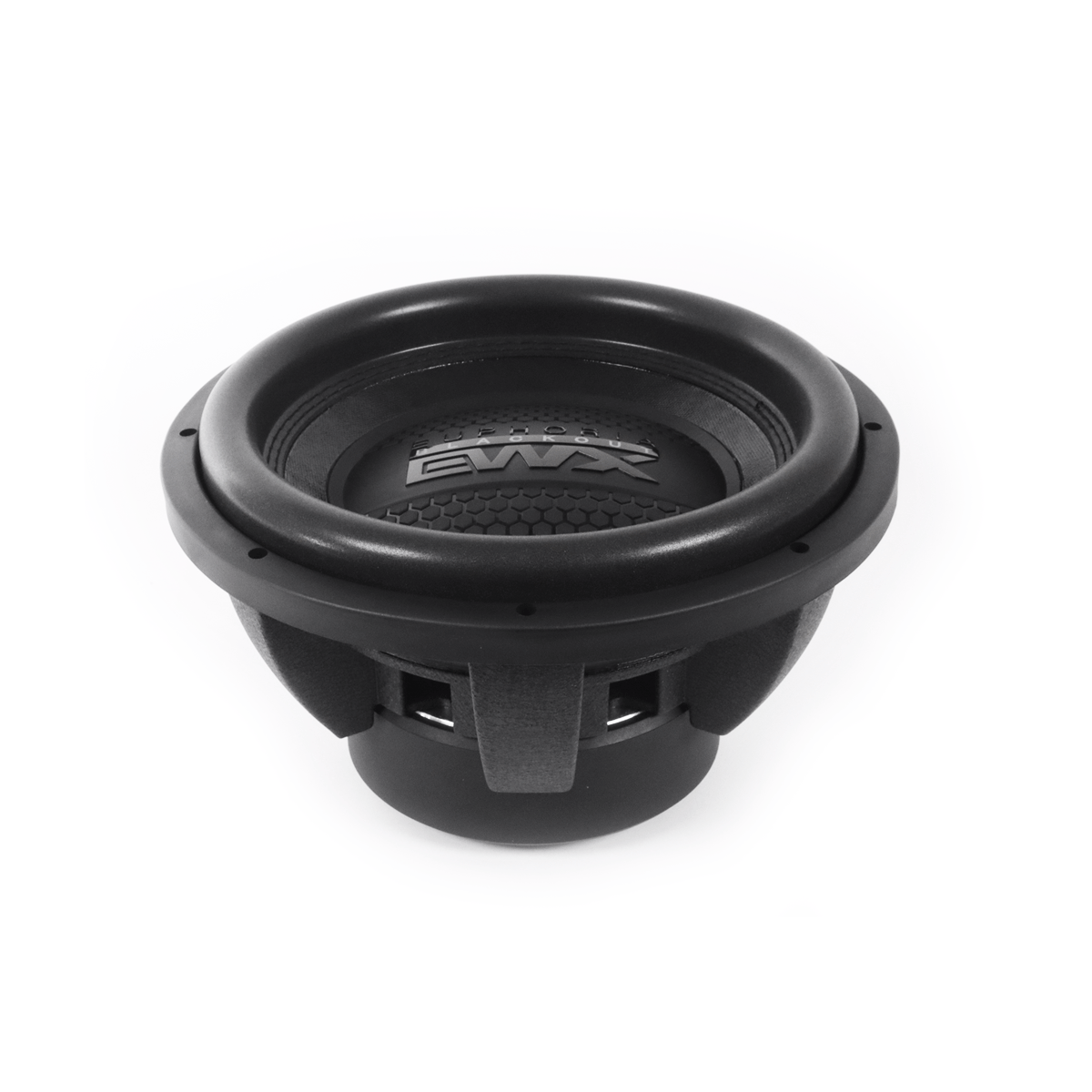

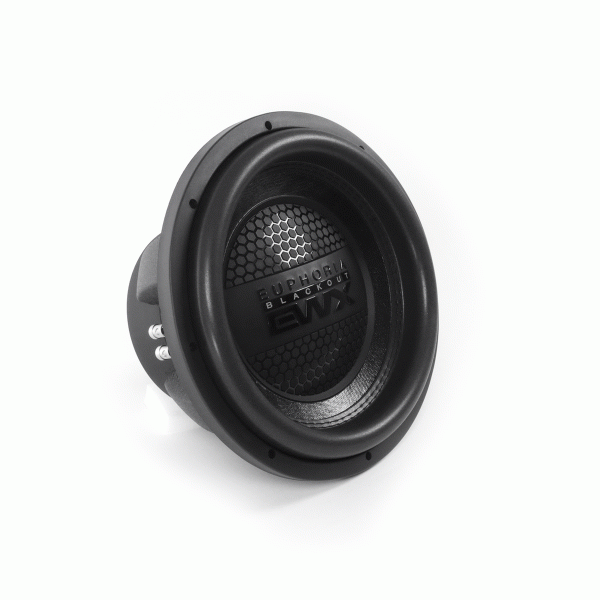

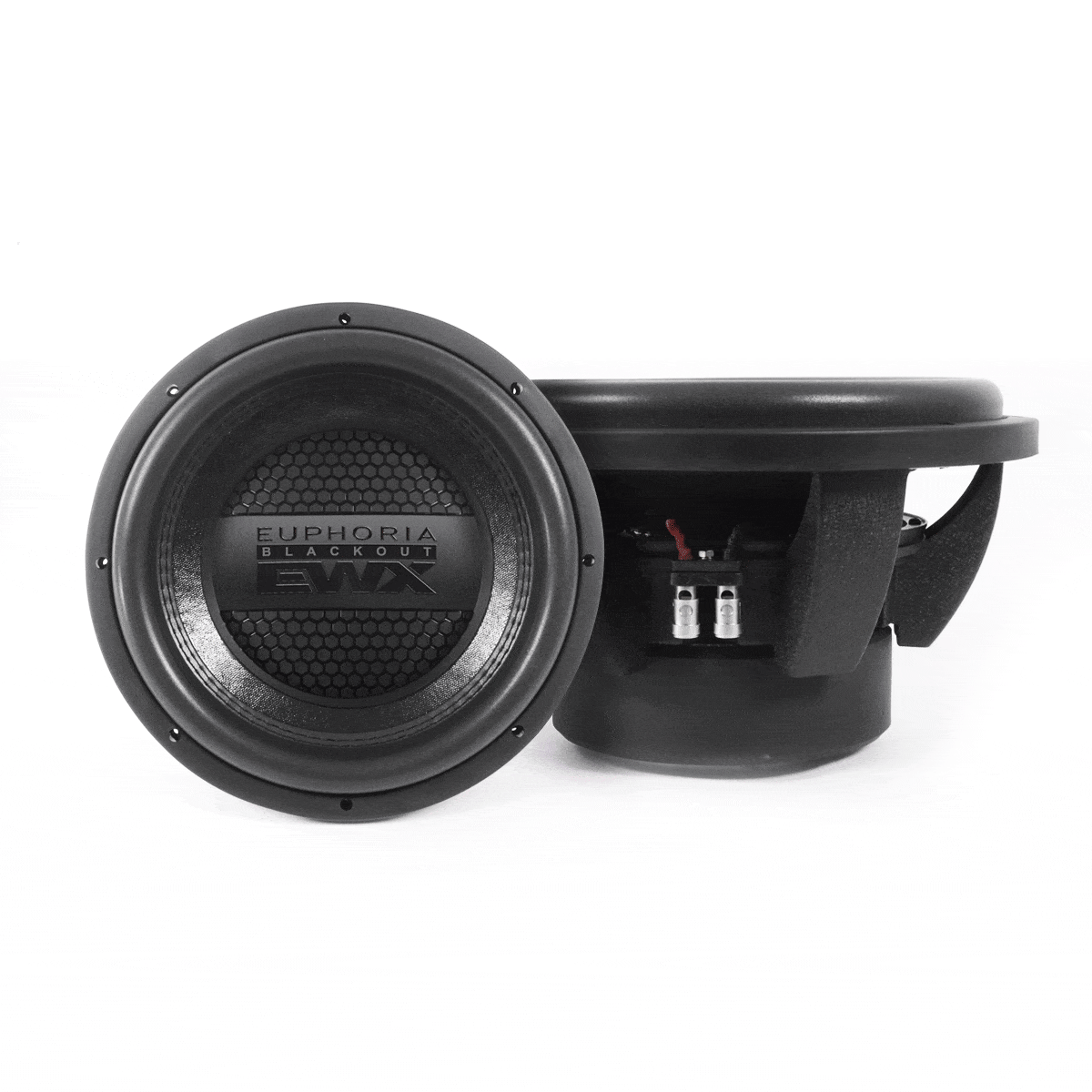

EWXB12D4 : 12" Dual 4-Ohm Subwoofer Black Out Edition

EWXB12D4

12" Dual 4-Ohm Subwoofer Black Out Edition

$399.95

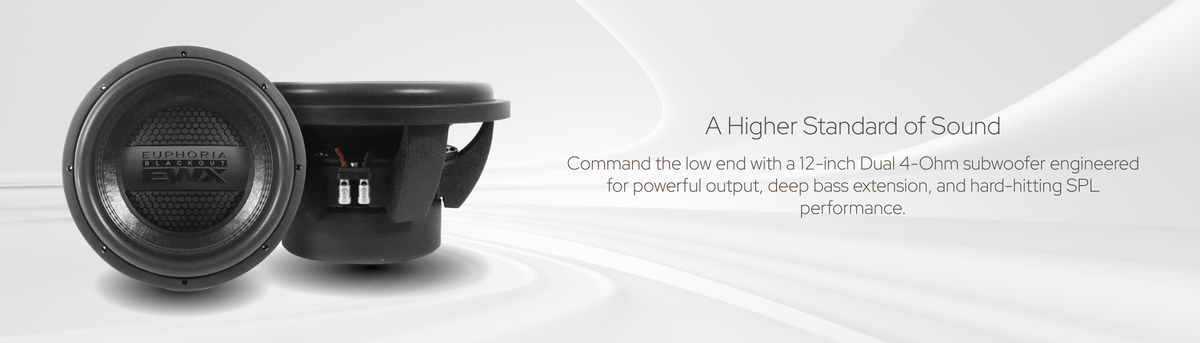

Feel the Euphoria with every beat! Experience sound like never before with the EWXB12D4: 12in Subwoofer Black Edition from the Euphoria brand. This masterpiece is designed to optimize SPL performance, ensuring every beat hits with precision and power. The blacked-out cosmetic design adds a touch of elegance, making it not just a subwoofer but a statement piece. With a high excursion multi-layer foam surround and a high-temperature voice coil, it’s built to handle even the most demanding bass lines. The high-grade low carbon steel top and bottom plate ensure durability, while the 1.5” high roll foam surround and large gauge push button speaker terminals provide easy installation and superior sound quality. Boasting a dual 4Ω voice coil, a massive 145 oz. Magnet, and the ability to handle up to 2500 watts of max power, this subwoofer is engineered for high-output bass that will leave you in awe. Elevate your audio experience with the EWX Blackout Series – where power meets precision.

ADD TO CART

Financing Options Available at Checkout

What Makes it UNIQUE?

Feature#1

Feature#4

Feature#2

Feature#5

Feature#3

Feature#6

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer nec odio. Praesent libero. Sed cursus ante dapibus diam. Sed nisi. Nulla quis sem at nibh elementum imperdiet.

Ceramic Ferrite Magnet
Delivers strong, consistent magnetic force for powerful and reliable bass performance.
High Grade Low Carbon Steel Top & Bottom Plate
Provides a strong magnetic structure for improved efficiency and precise woofer control.
Designed to Optimize SPL Performance
Engineered for high sound pressure levels to deliver louder, more impactful bass output.
1.5” High Roll Foam Surround
Allows greater cone excursion for deeper bass and increased output while maintaining control.
High Temperature Voice Coil
Handles elevated power and heat for reliable performance during demanding use.
Large Gauge Push Button Speaker Terminals
Provides a secure, easy connection while accommodating larger-gauge speaker wire.

Features

Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double-stitched foam surround along with the die-cast aluminum vented basket allows for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.

High-Temperature Voice Coil
120 oz. Ceramic Ferrite Magnet ( EWX8D2/8D4 Only )
145 oz. Ceramic Ferrite Magnet
High-Grade Low Carbon Steel Top & Bottom Plate
Designed to optimize SPL Performance
1.5” High Roll Foam Surround
Large Gauge Push Button Speaker Terminals
Available in Dual 2Ω or Dual 4Ω Voice Coil

Specifications

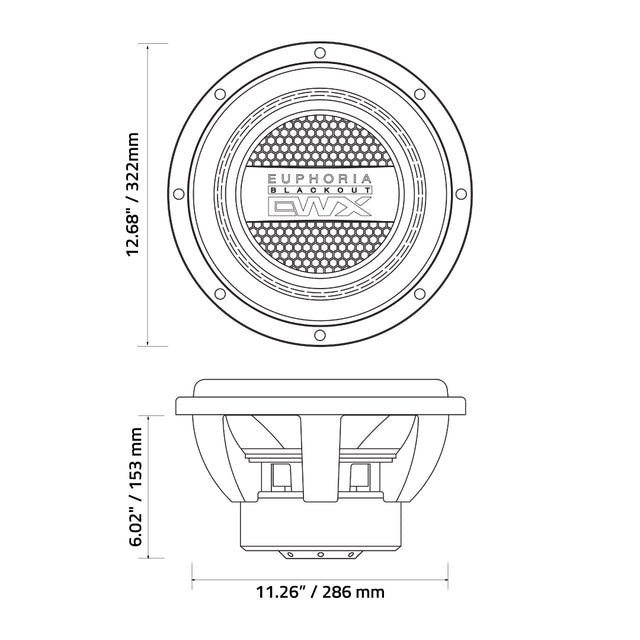

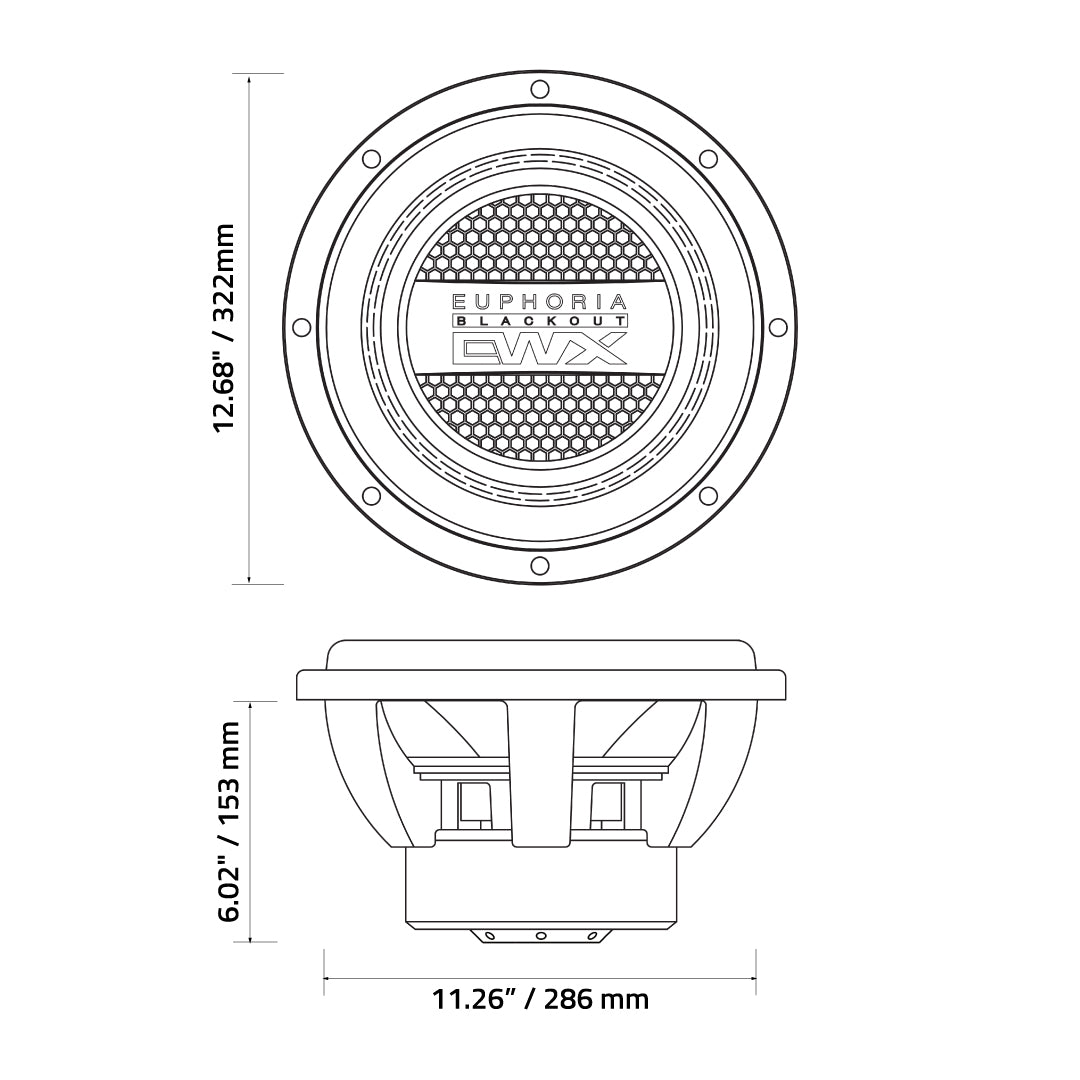

Structure	12” (322 mm)
Max Power	2500 Watts
Nominal Power	1000 Watts
Impedance	Dual 4Ω Voice Coil
PARAMETERS
Resonant Frequency (fs)	41.415 Hz
D.C. Voice Coil Resistance (Re)	3.2Ω + 3.2Ω
Mechanical Quality Factor (Qms)	3.656
Electrical Quality Factor (Qes)	0.652
Total Quality Factor (Qts)	0.553
Equivalent Air Volume to Cms (Vas)	11.764L
Force Factor (BL)	25.156 N/A
Mass of Diaphragm/Coil (Mms)	247.161 g
Sound Pressure Level (SPL)	83 dB

Description

Feel the Euphoria with every beat!

Experience sound like never before with the EWXB12D4: 12in Subwoofer Black Edition from the Euphoria brand. This masterpiece is designed to optimize SPL performance, ensuring every beat hits with precision and power. The blacked-out cosmetic design adds a touch of elegance, making it not just a subwoofer but a statement piece. With a high excursion multi-layer foam surround and a high-temperature voice coil, it’s built to handle even the most demanding bass lines. The high-grade low carbon steel top and bottom plate ensure durability, while the 1.5” high roll foam surround and large gauge push button speaker terminals provide easy installation and superior sound quality. Boasting a dual 4Ω voice coil, a massive 145 oz. Magnet, and the ability to handle up to 2500 watts of max power, this subwoofer is engineered for high-output bass that will leave you in awe. Elevate your audio experience with the EWX Blackout Series – where power meets precision.
