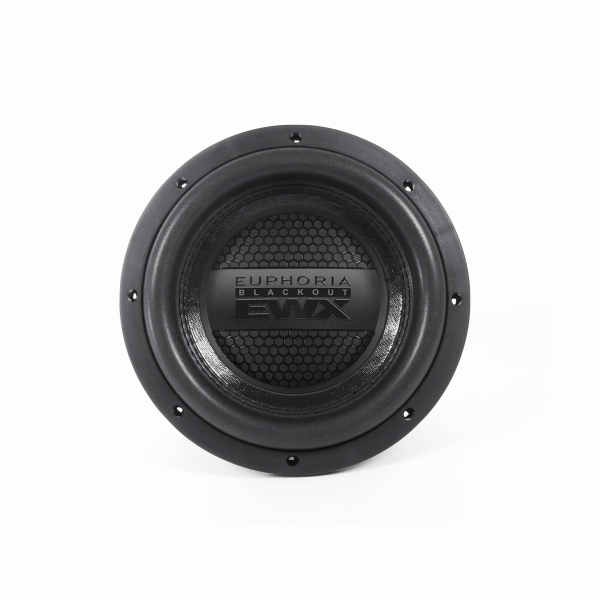

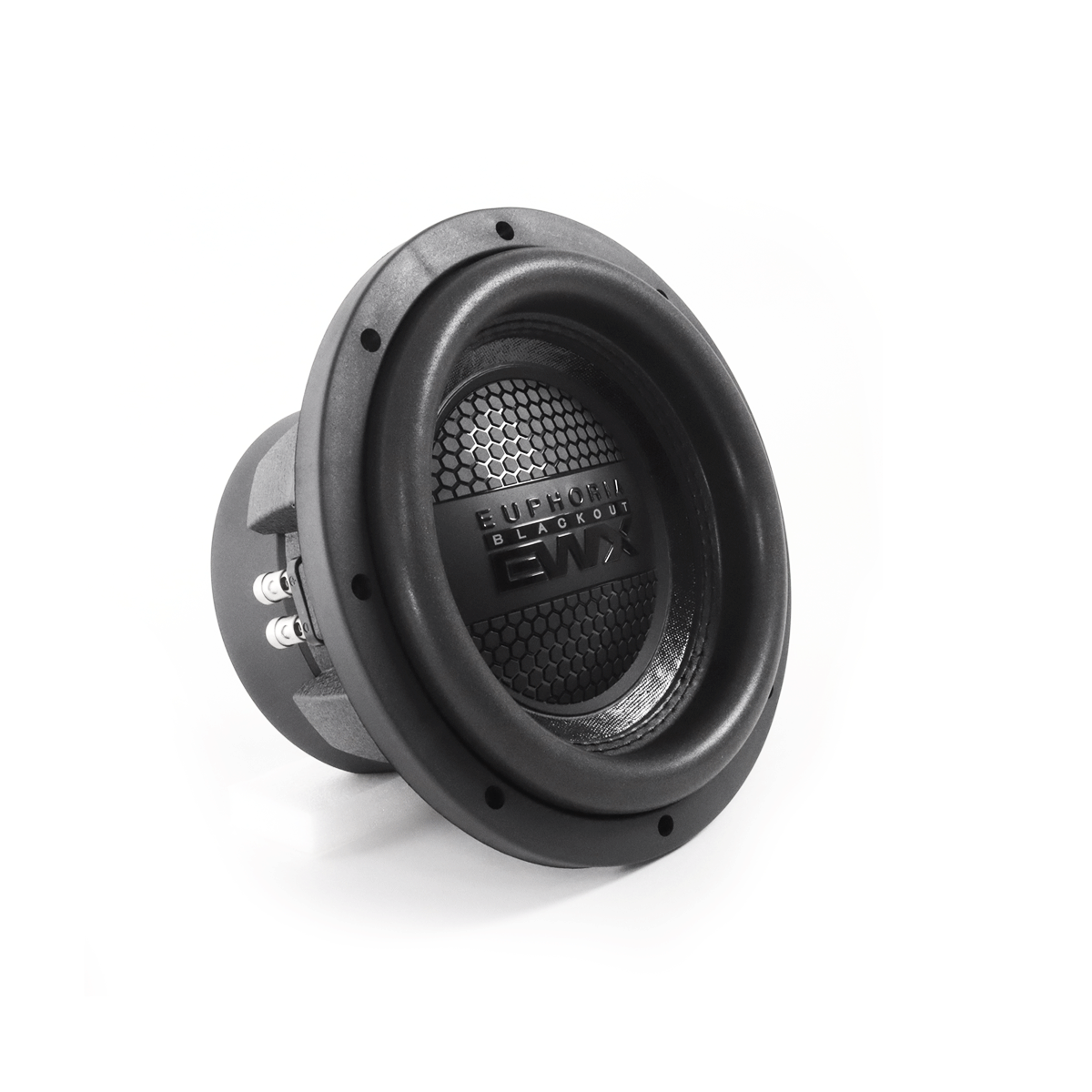

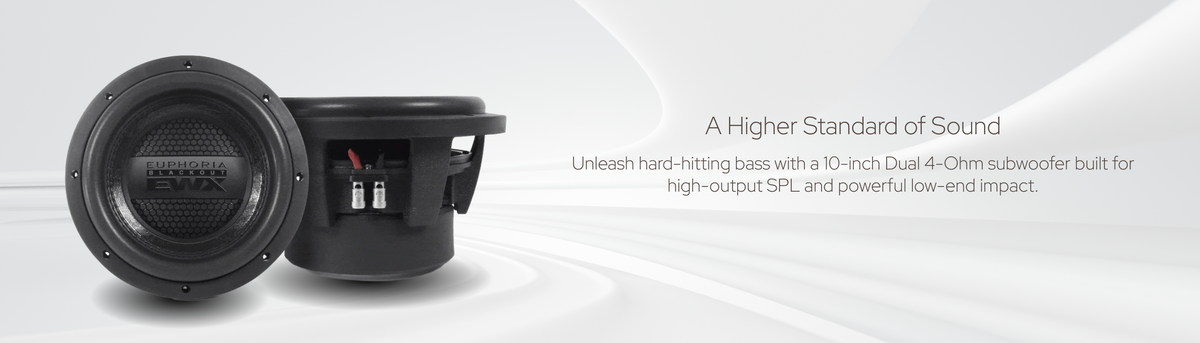

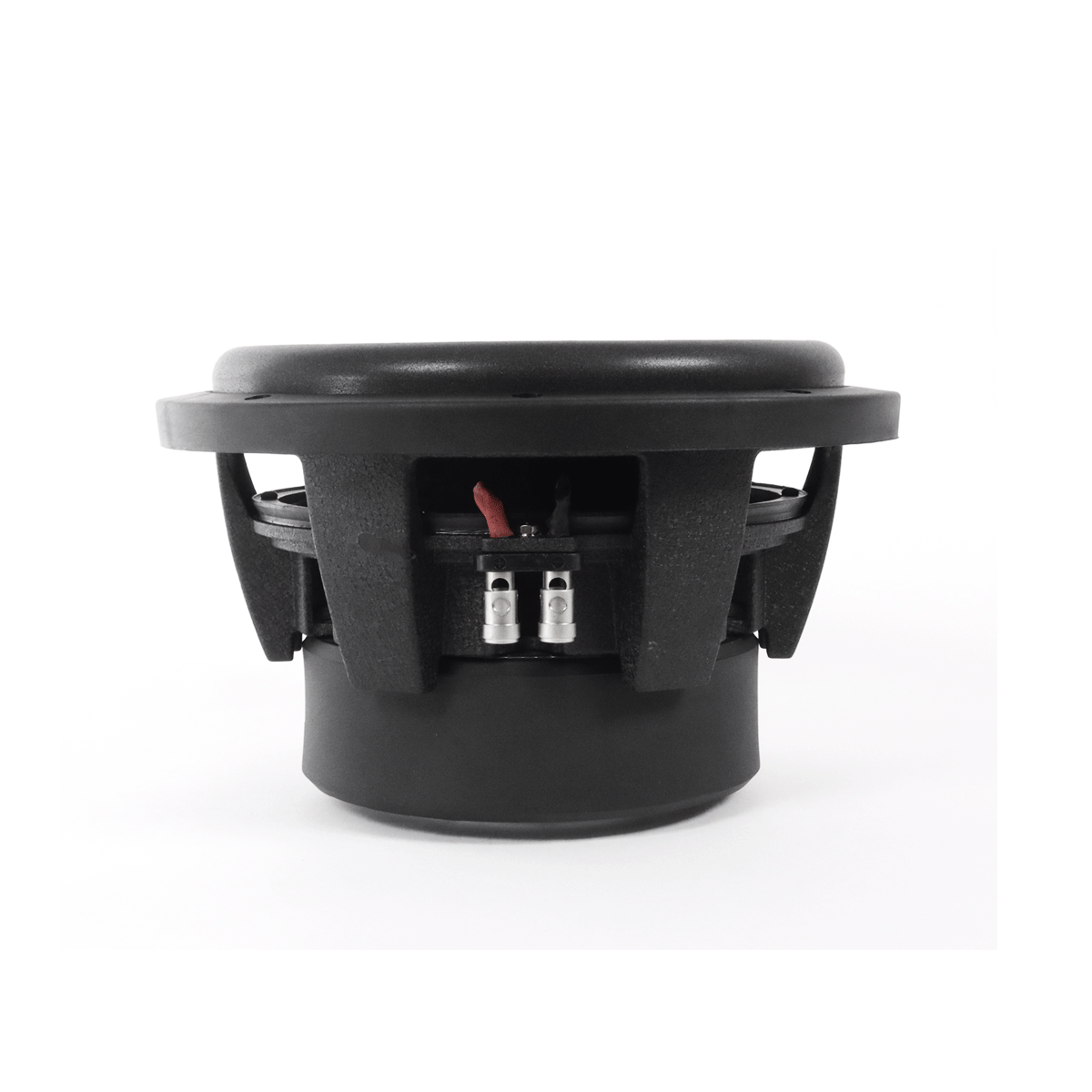

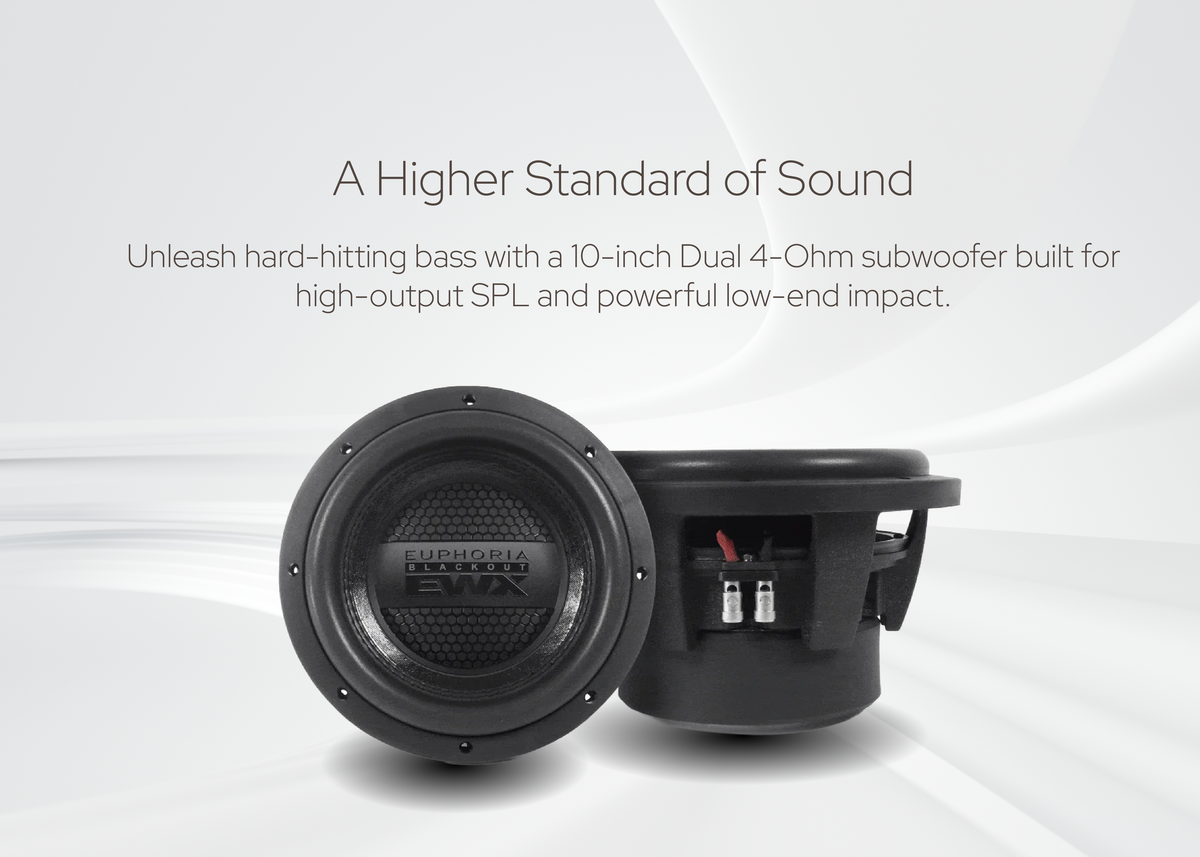

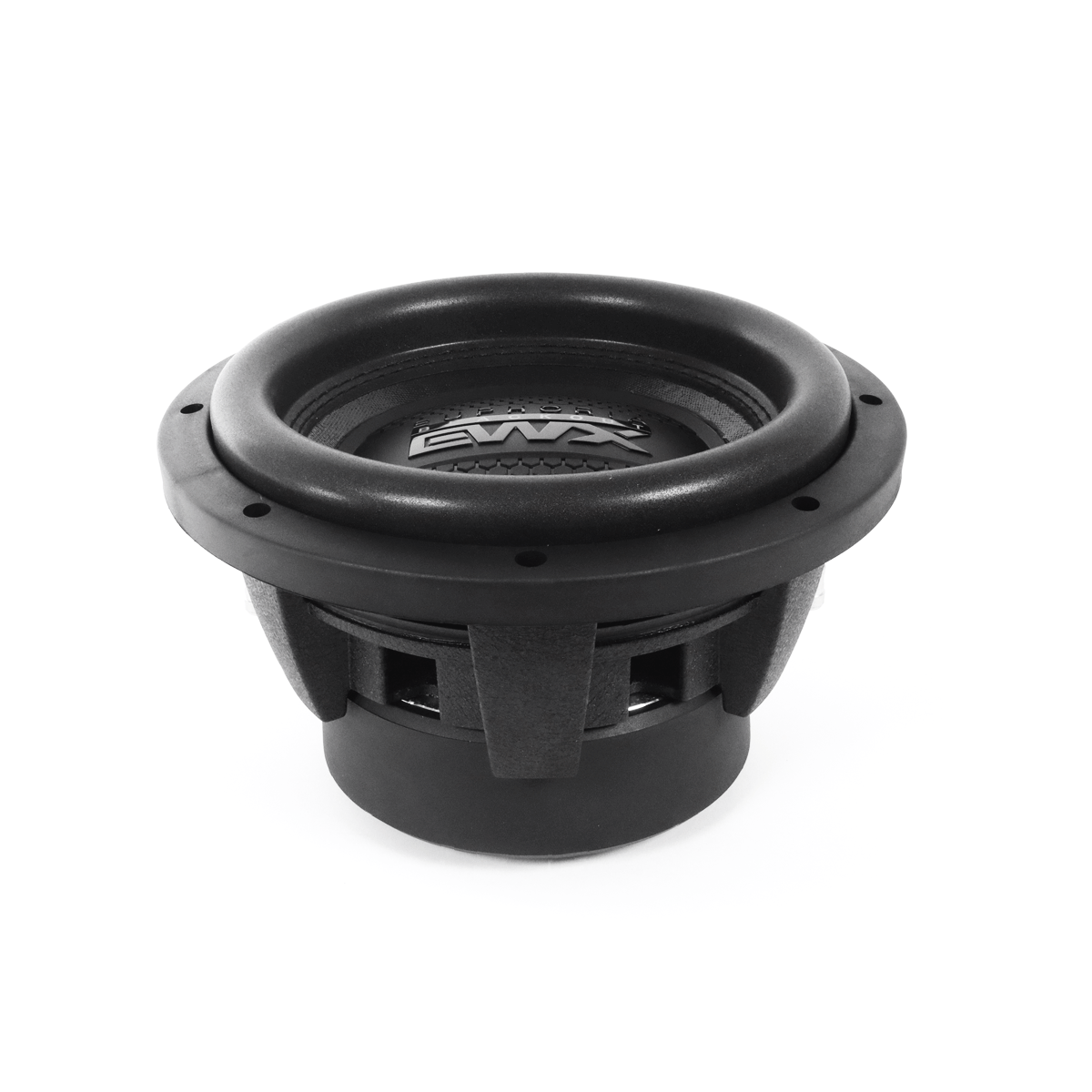

EWXB10D4 : 10" Dual 4-Ohm Subwoofer Black Out Edition

EWXB10D4

10" Dual 4-Ohm Subwoofer Black Out Edition

$349.95

Feel the bass, and live the Euphoria with every beat! Introducing the Euphoria EWXB10D4: 10in Subwoofer Black Out Edition, a true marvel designed to optimize SPL performance. This subwoofer is not just about looks; its blacked-out cosmetic design exudes sophistication and power. Equipped with a high excursion multi-layer foam surround and optimized for high-output bass, it delivers an unparalleled auditory experience. With a high-temperature voice coil and high-grade low-carbon steel top & bottom plate, durability meets performance. The 1.5” high roll foam surround and large gauge push button speaker terminals ensure seamless connectivity and superior sound. Boasting a dual 4Ω voice coil, 145 oz. magnet size, and max power of 2500 Watts, this subwoofer is engineered to impress. Whether you're a casual listener or a hardcore audiophile, the Euphoria EWXB10D4 promises to elevate your audio experience to new heights.

ADD TO CART

Financing Options Available at Checkout

What Makes it UNIQUE?

Feature#1

Feature#4

Feature#2

Feature#5

Feature#3

Feature#6

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer nec odio. Praesent libero. Sed cursus ante dapibus diam. Sed nisi. Nulla quis sem at nibh elementum imperdiet.

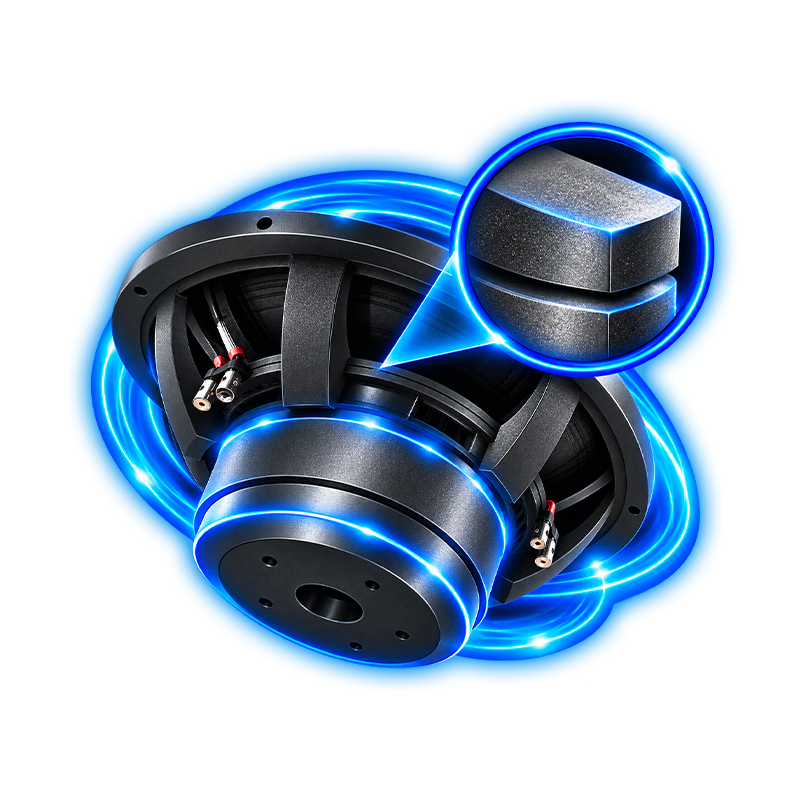

Ceramic Ferrite Magnet
Delivers strong, consistent magnetic force for powerful and reliable bass performance.

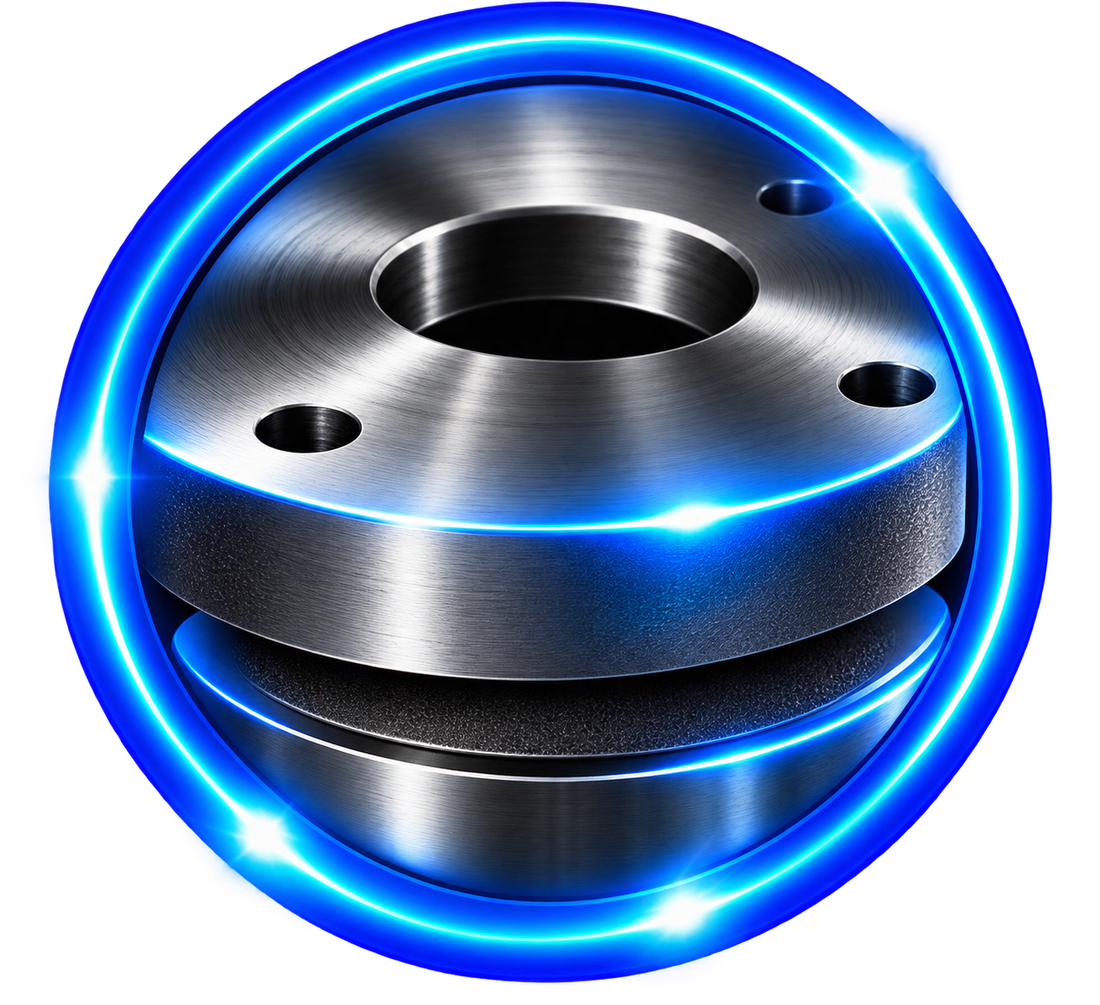

High Grade Low Carbon Steel Top & Bottom Plate
Provides a strong magnetic structure for improved efficiency and precise woofer control.

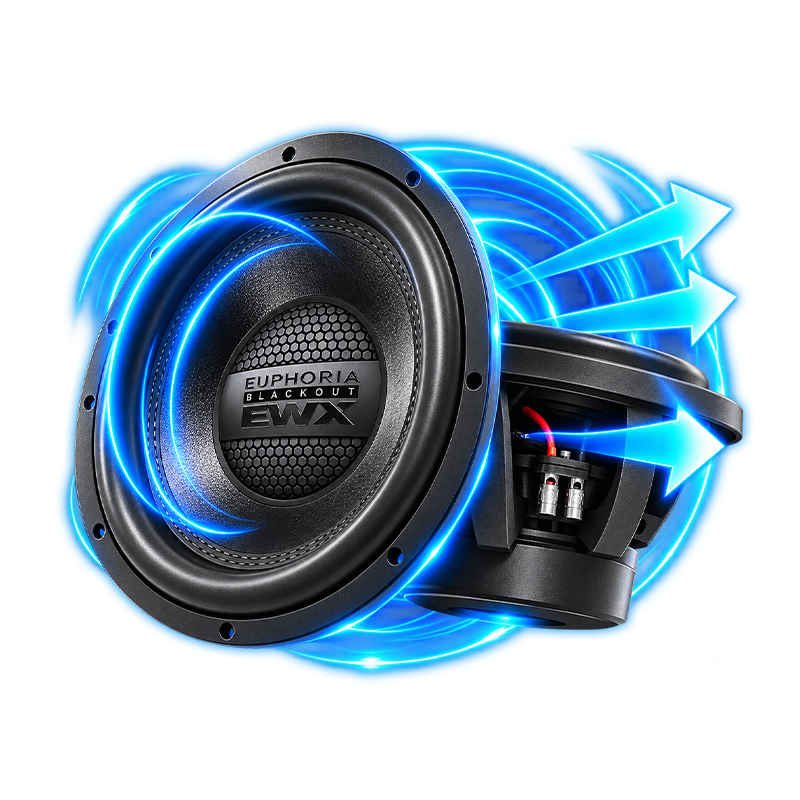

Designed to Optimize SPL Performance
Engineered for high sound pressure levels to deliver louder, more impactful bass output.

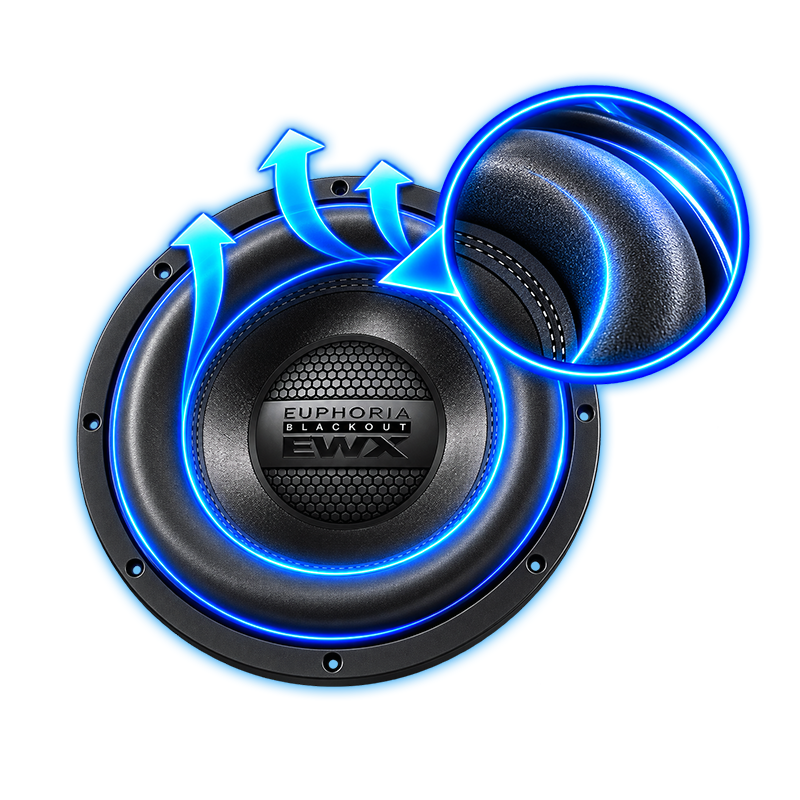

1.5” High Roll Foam Surround
Allows greater cone excursion for deeper bass and increased output while maintaining control.

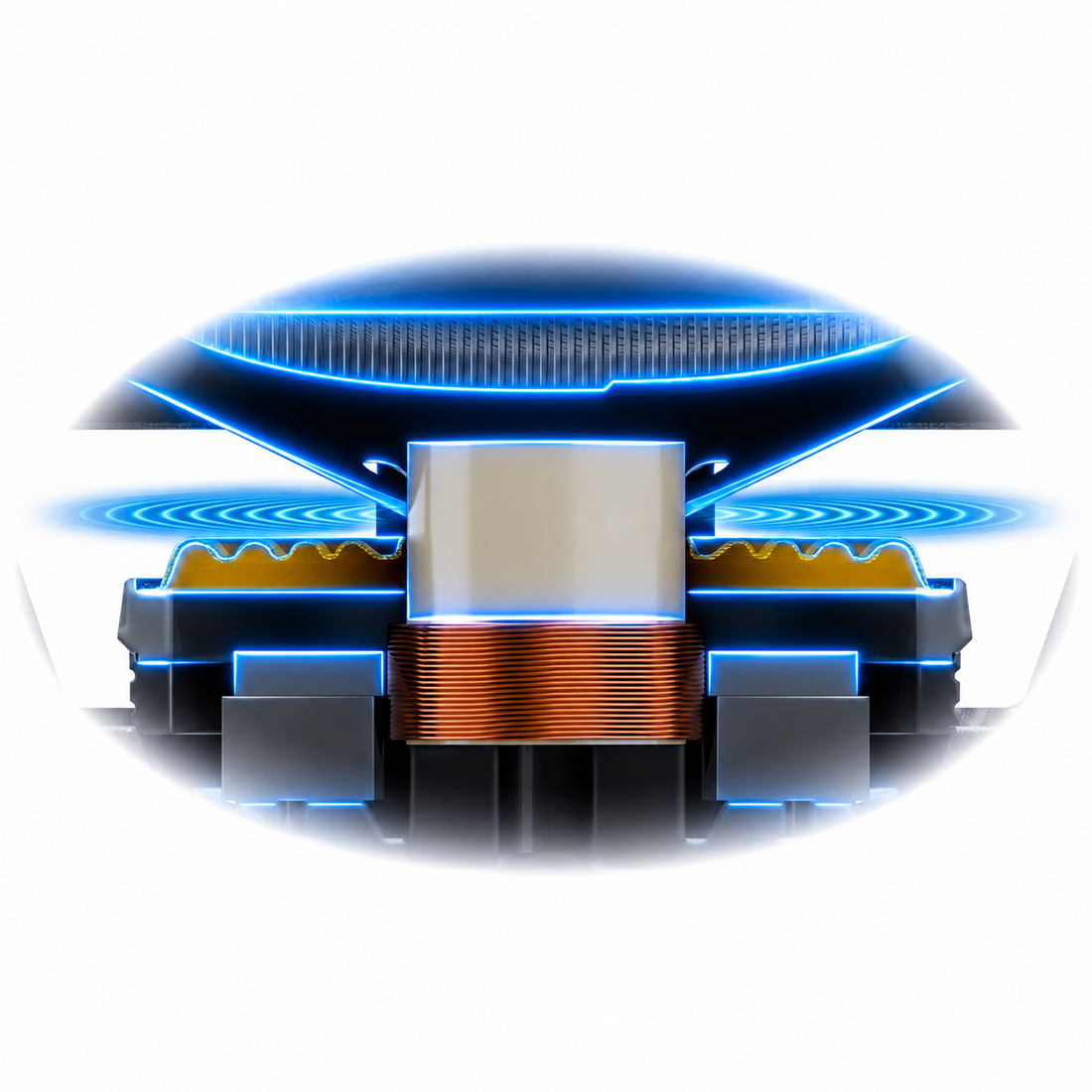

High Temperature Voice Coil
Handles elevated power and heat for reliable performance during demanding use.

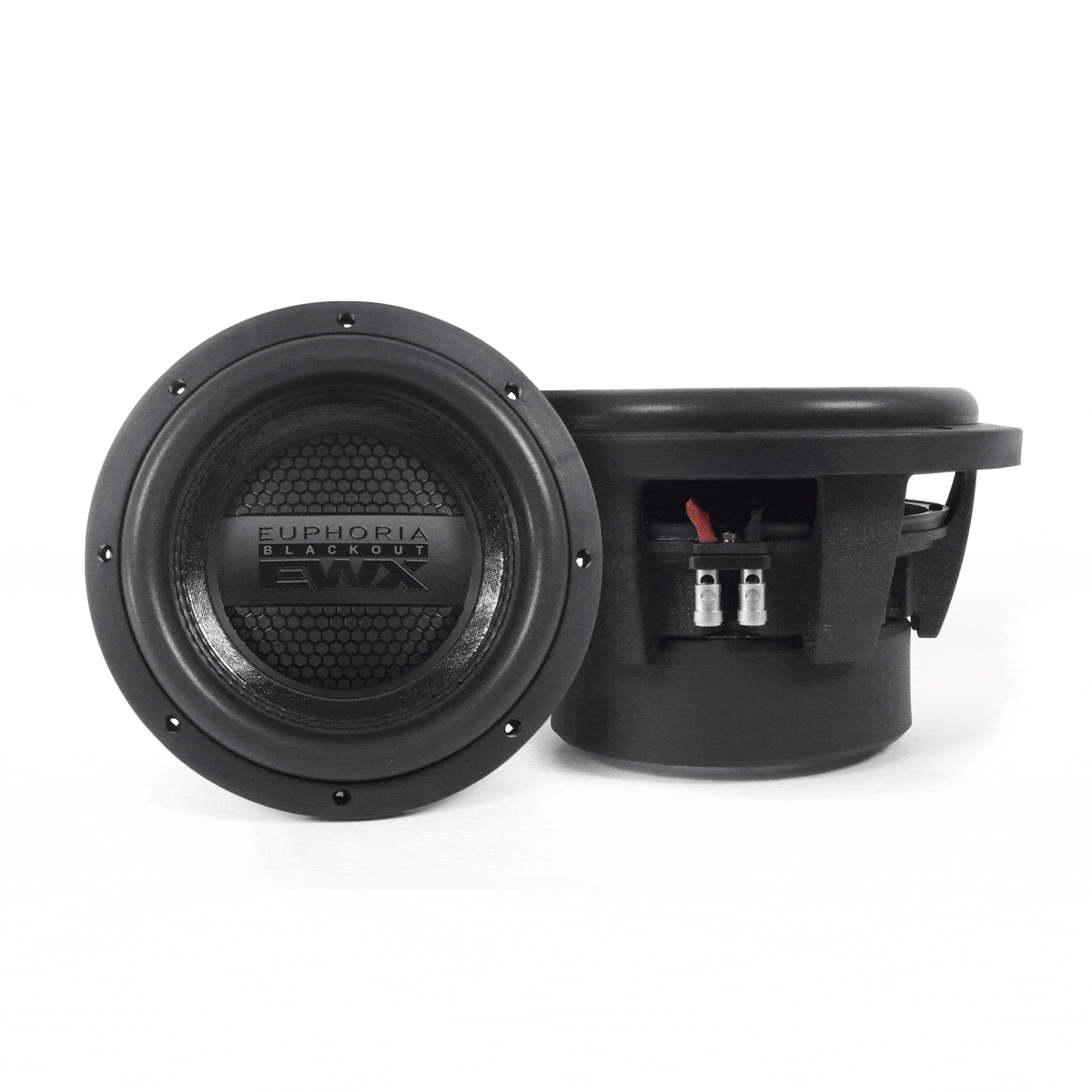

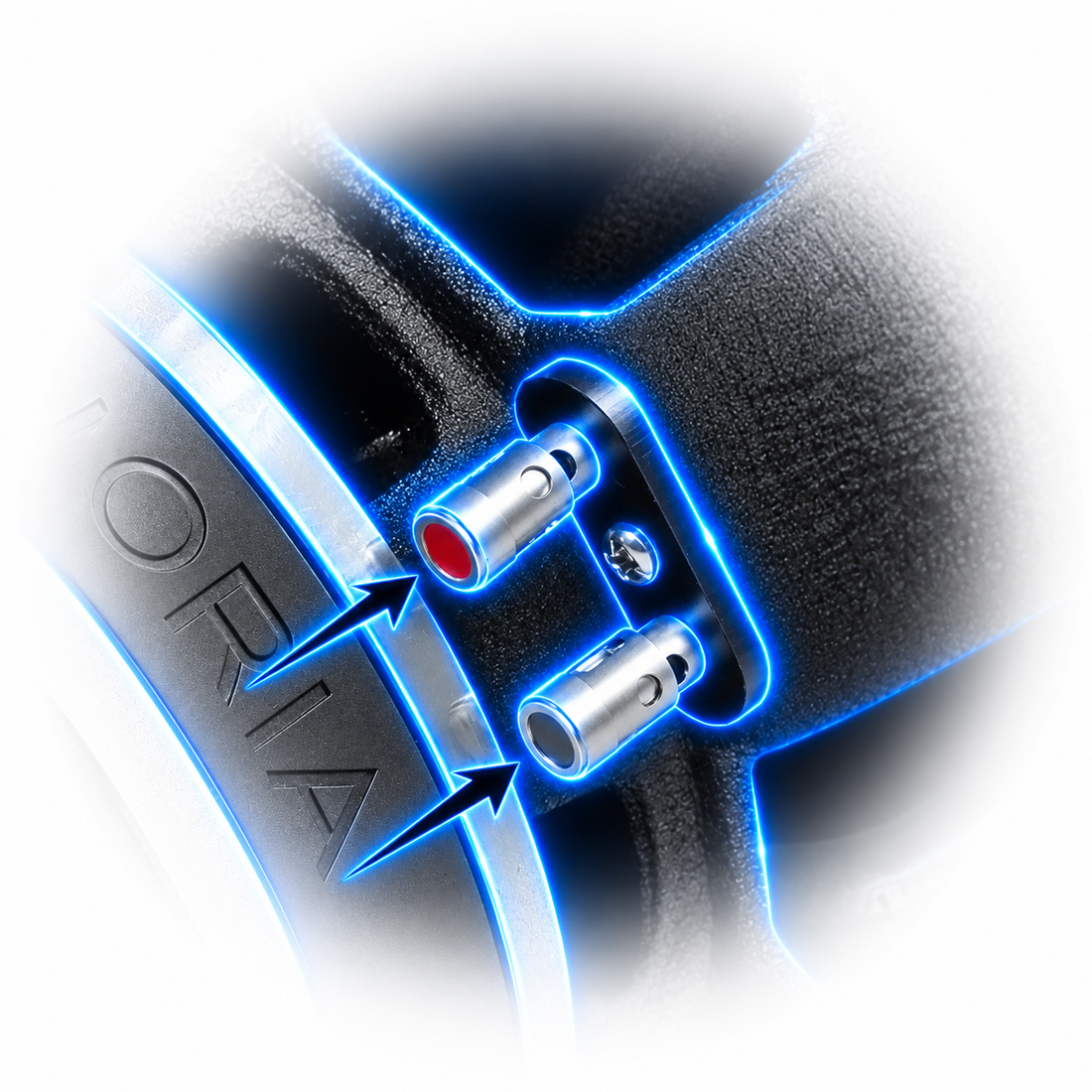

Large Gauge Push Button Speaker Terminals
Provides a secure, easy connection while accommodating larger-gauge speaker wire.

Features

Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double stitched foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.

High Temperature Voice Coil
120 oz. Ceramic Ferrite Magnet ( EWX8D2/8D4 Only )
145 oz. Ceramic Ferrite Magnet
High Grade Low Carbon Steel Top & Bottom Plate
Designed to optimize SPL Performance
1.5” High Roll Foam Surround
Large Gauge Push Button Speaker Terminals
Available in Dual 2Ω or Dual 4Ω Voice Coil

Specifications

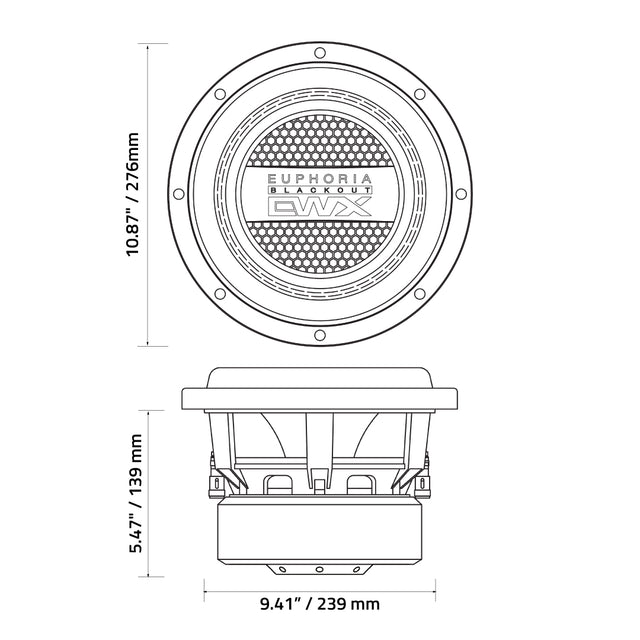

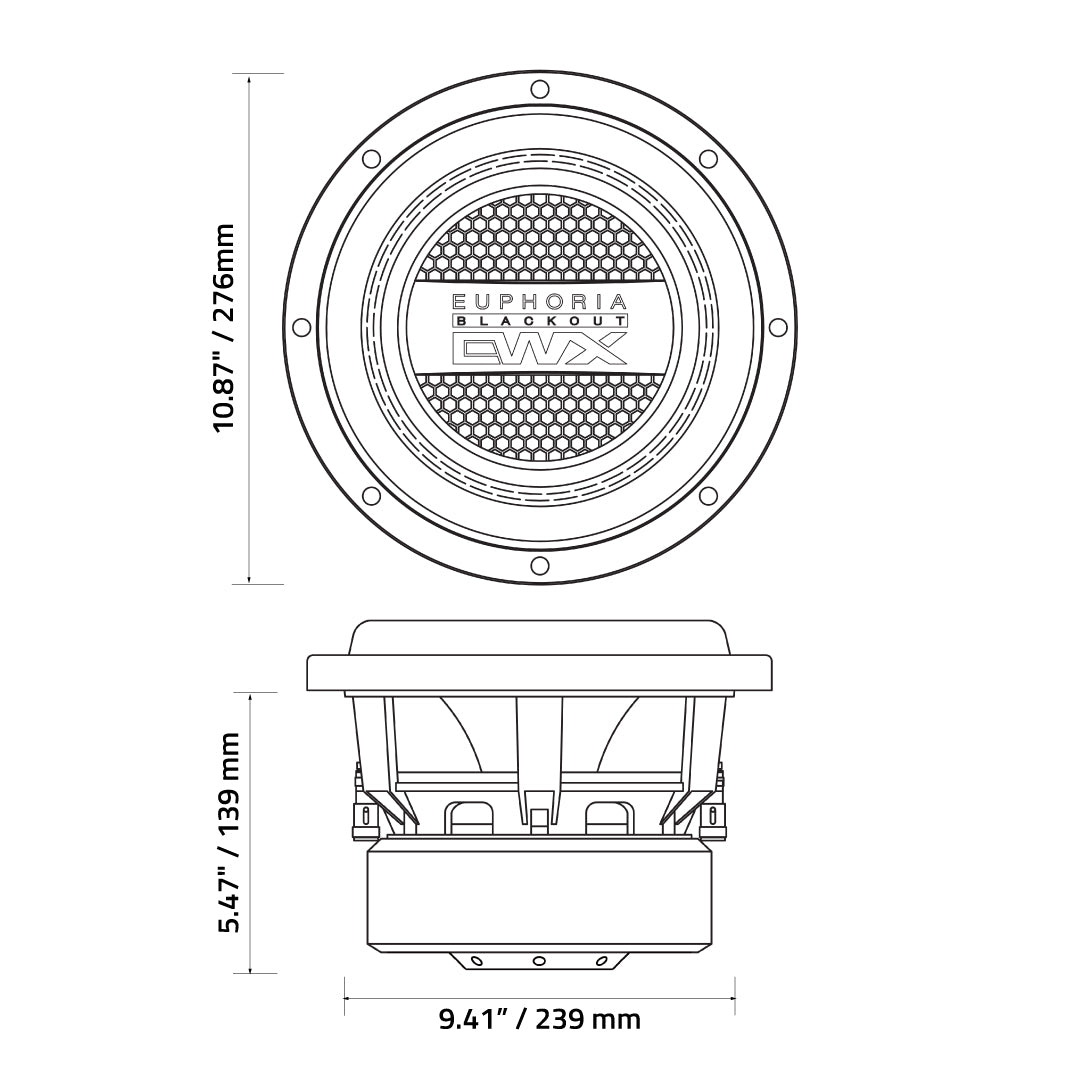

Structure	10” (276 mm)
Max Power	2500 Watts
Nominal Power	1000 Watts
Impedance	Dual 4Ω Voice Coil
PARAMETERS
Resonant Frequency (fs)	38.955 Hz
D.C. Voice Coil Resistance (Re)	3.6Ω + 3.6Ω
Mechanical Quality Factor (Qms)	4.566
Electrical Quality Factor (Qes)	0.896
Total Quality Factor (Qts)	0.749
Equivalent Air Volume to Cms (Vas)	23.655L
Force Factor (BL)	23.609 N/A
Mass of Diaphragm/Coil (Mms)	284.56 g
Sound Pressure Level (SPL)	83.8 dB

Description

Feel the bass, and live the Euphoria with every beat!

Introducing the Euphoria EWXB10D4: 10in Subwoofer Black Out Edition, a true marvel designed to optimize SPL performance. This subwoofer is not just about looks; its blacked-out cosmetic design exudes sophistication and power. Equipped with a high excursion multi-layer foam surround and optimized for high-output bass, it delivers an unparalleled auditory experience. With a high-temperature voice coil and high-grade low-carbon steel top & bottom plate, durability meets performance. The 1.5” high roll foam surround and large gauge push button speaker terminals ensure seamless connectivity and superior sound. Boasting a dual 4Ω voice coil, 145 oz. magnet size, and max power of 2500 Watts, this subwoofer is engineered to impress. Whether you're a casual listener or a hardcore audiophile, the Euphoria EWXB10D4 promises to elevate your audio experience to new heights.
