| Max power : 250 Watts |
| Nominal Power Handling : 100 Watts |
| Frequency Response: 42Hz - 20KHz |
| Impedance: 4Ω |
| Sensitivity: 90.1 dB |
|

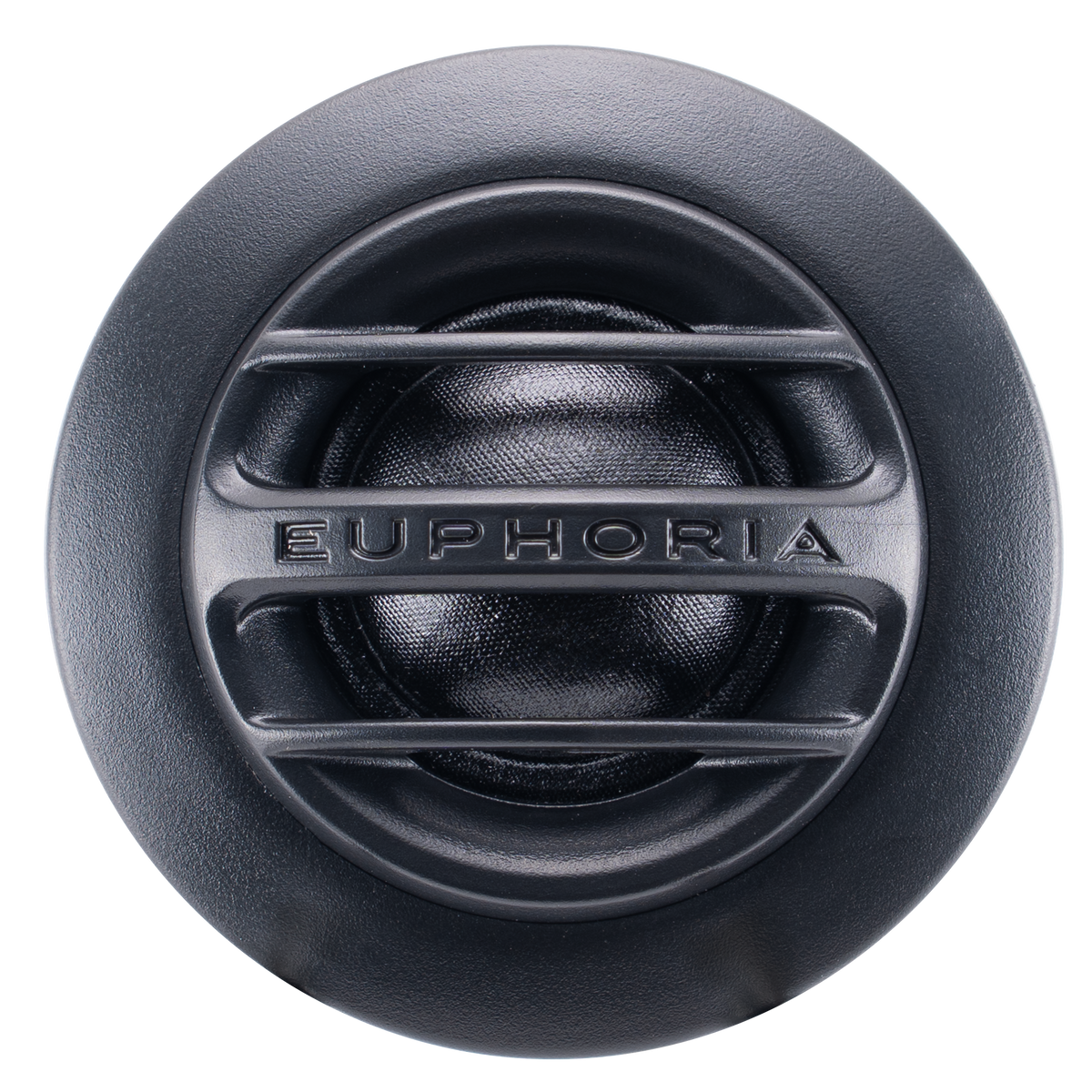

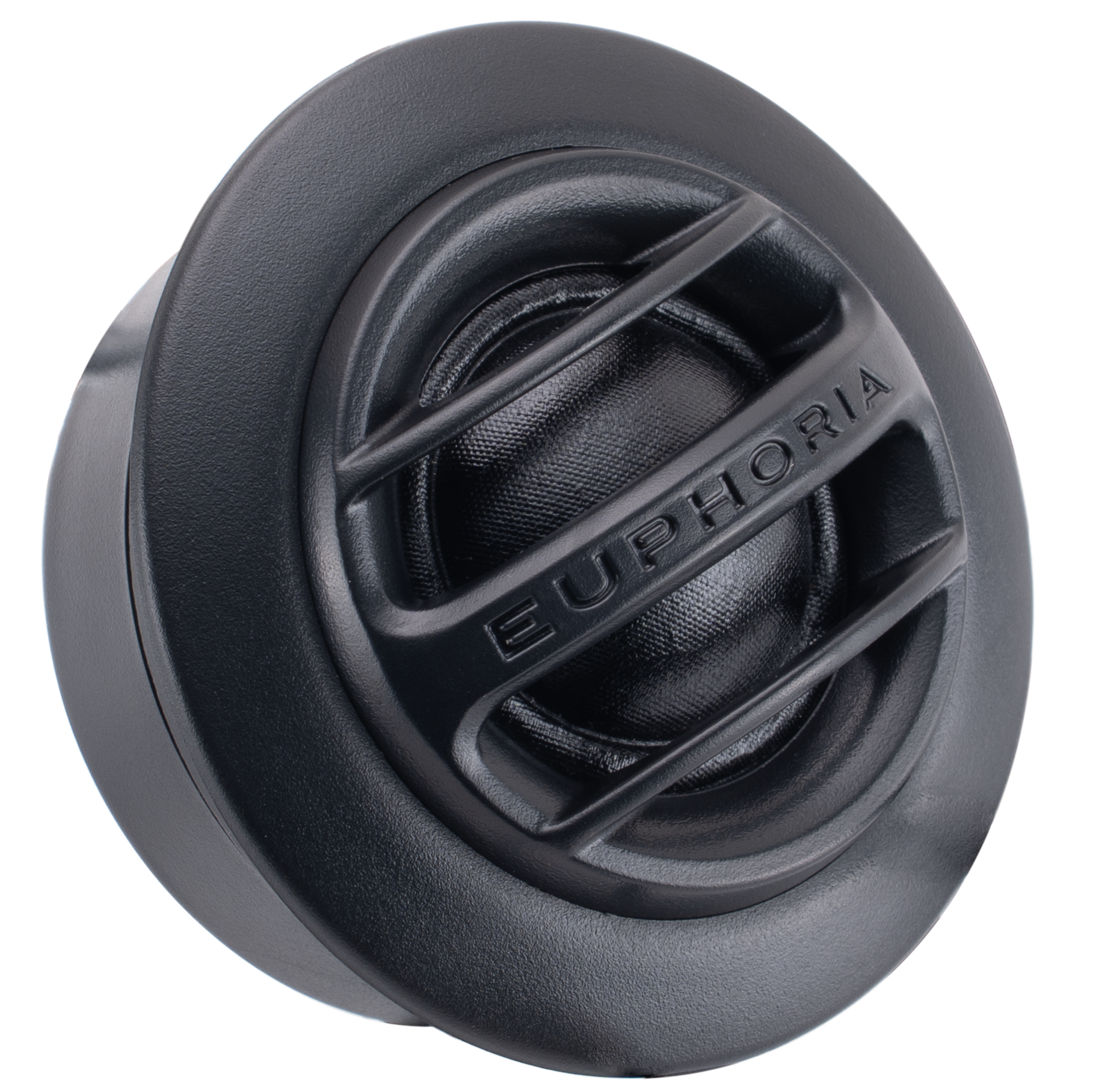

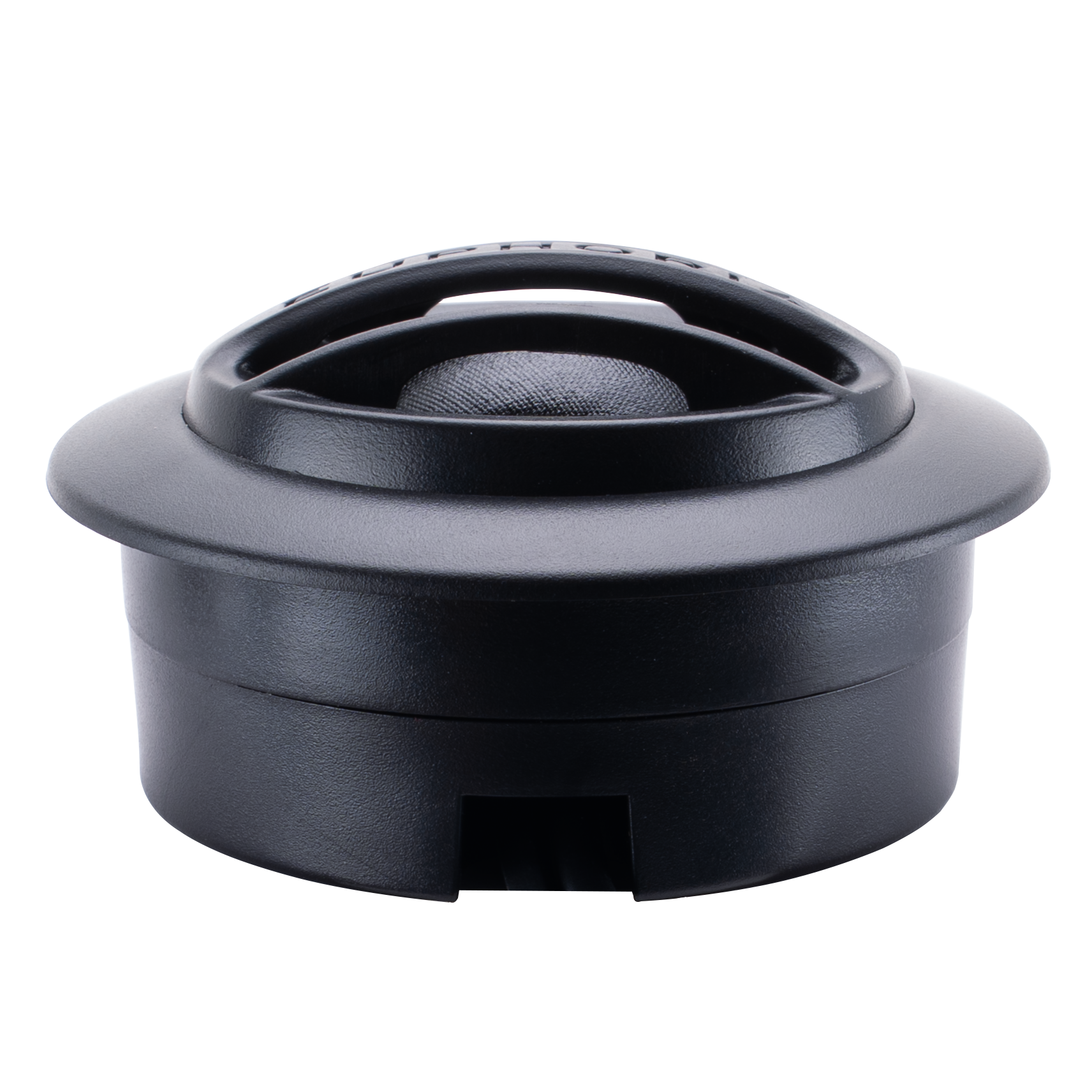

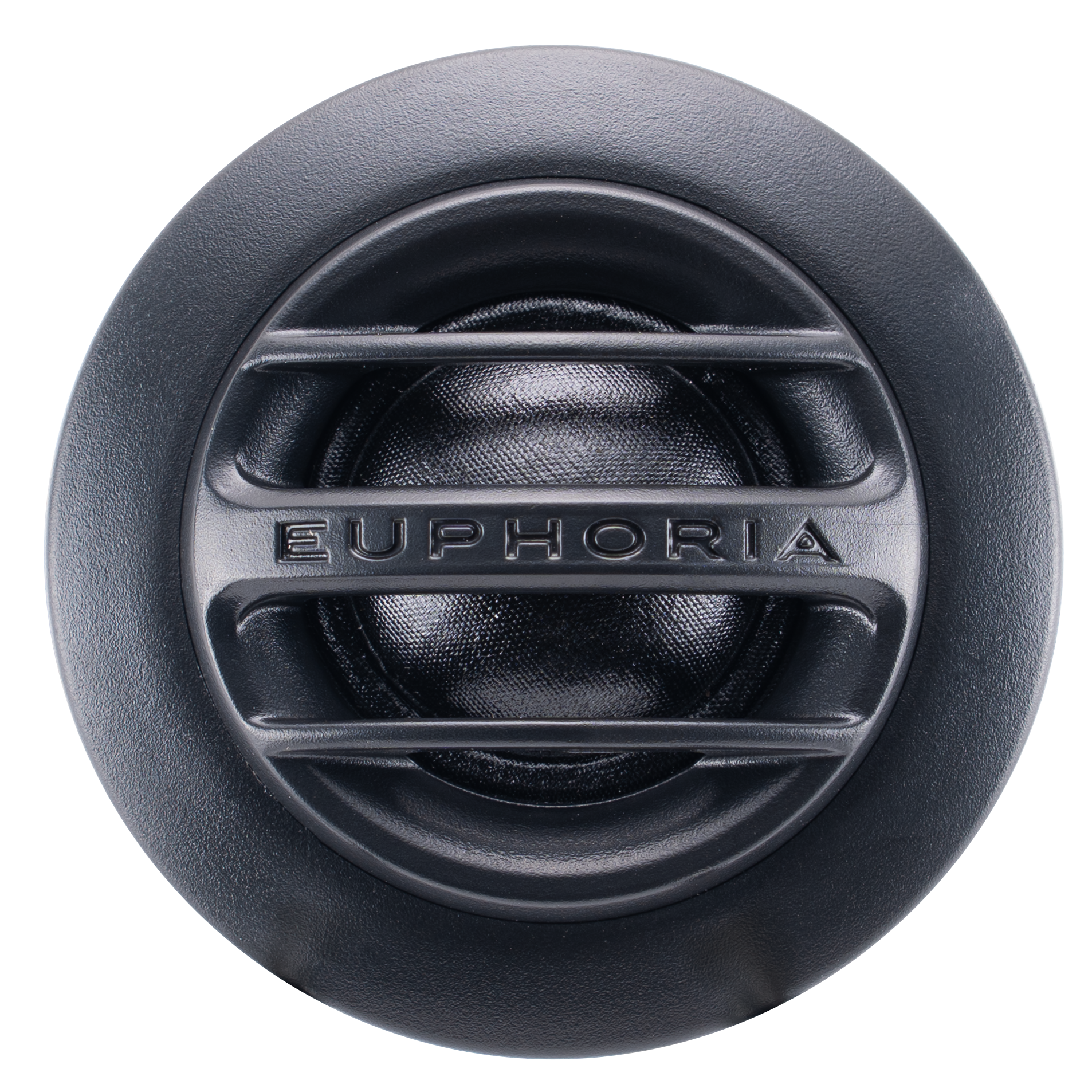

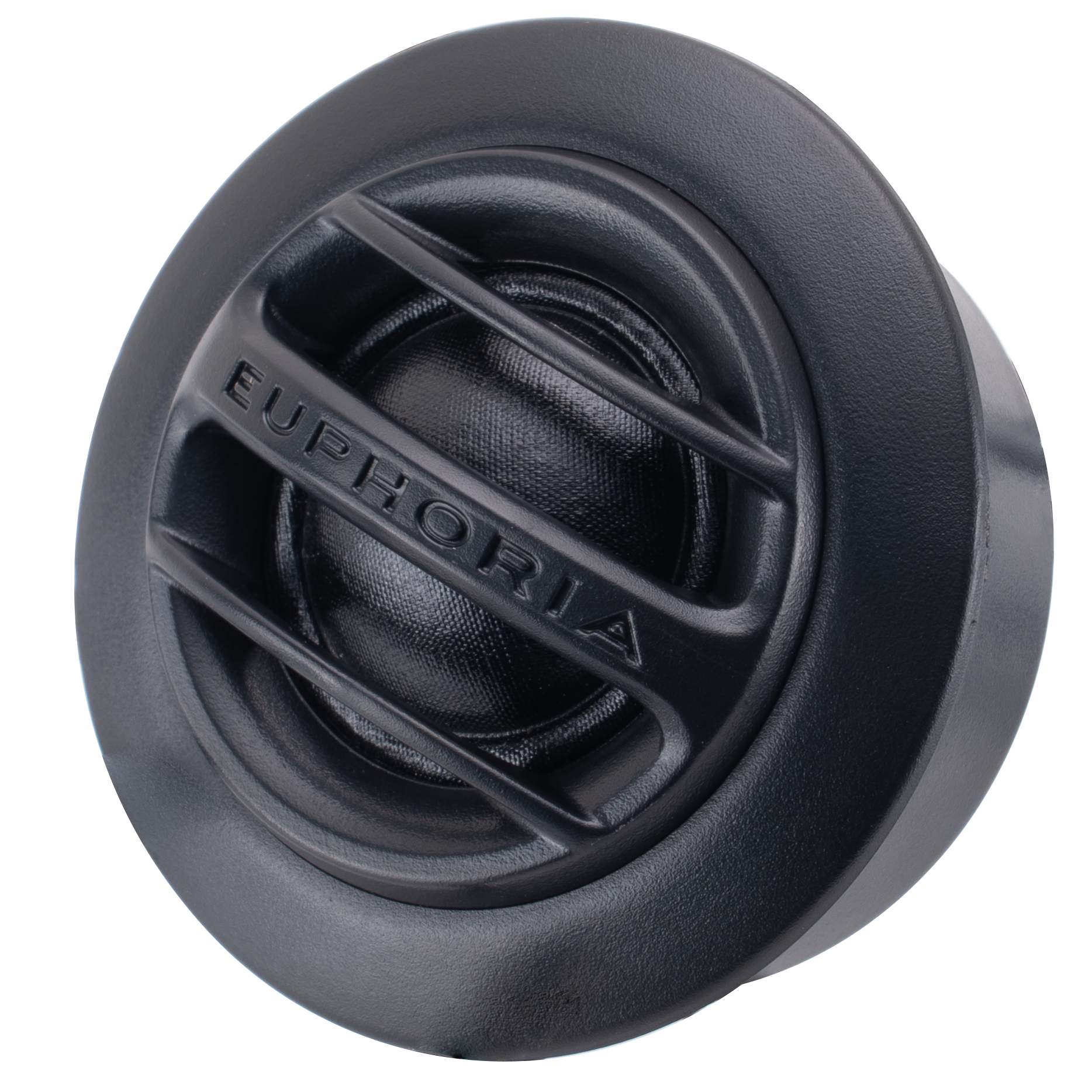

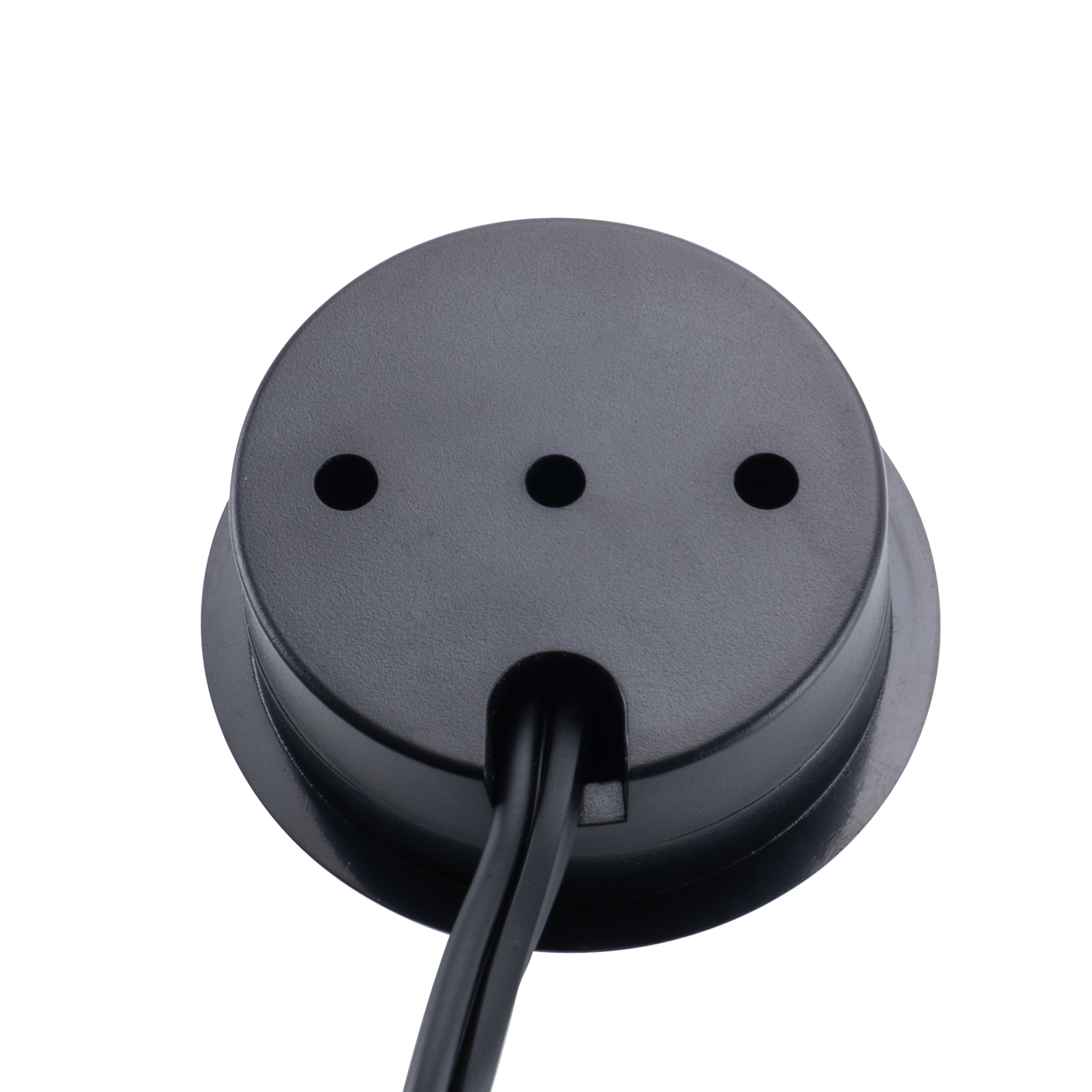

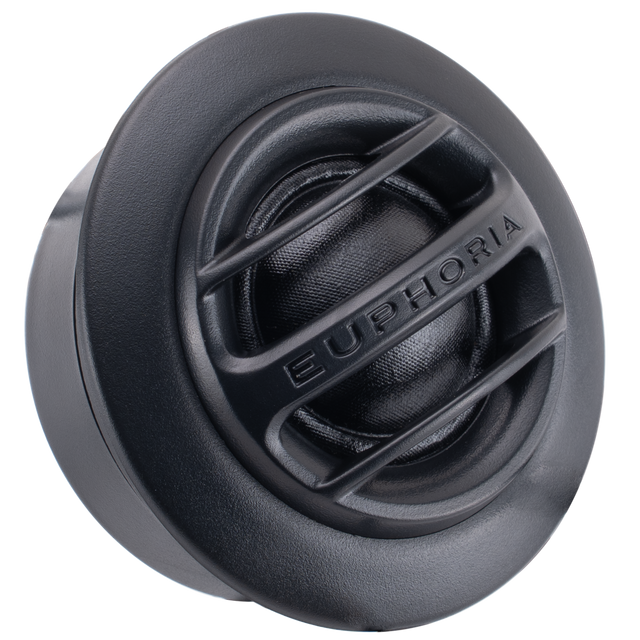

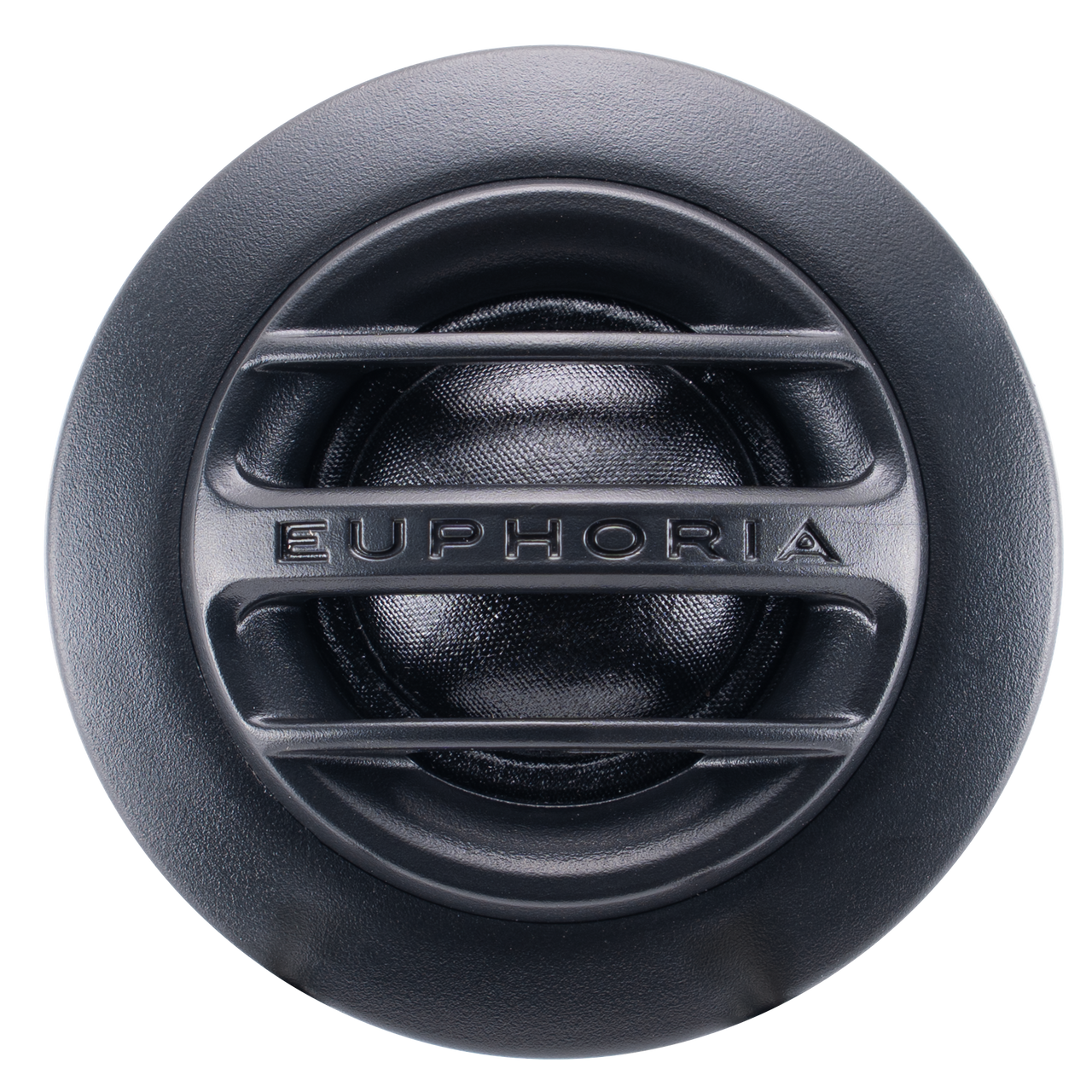

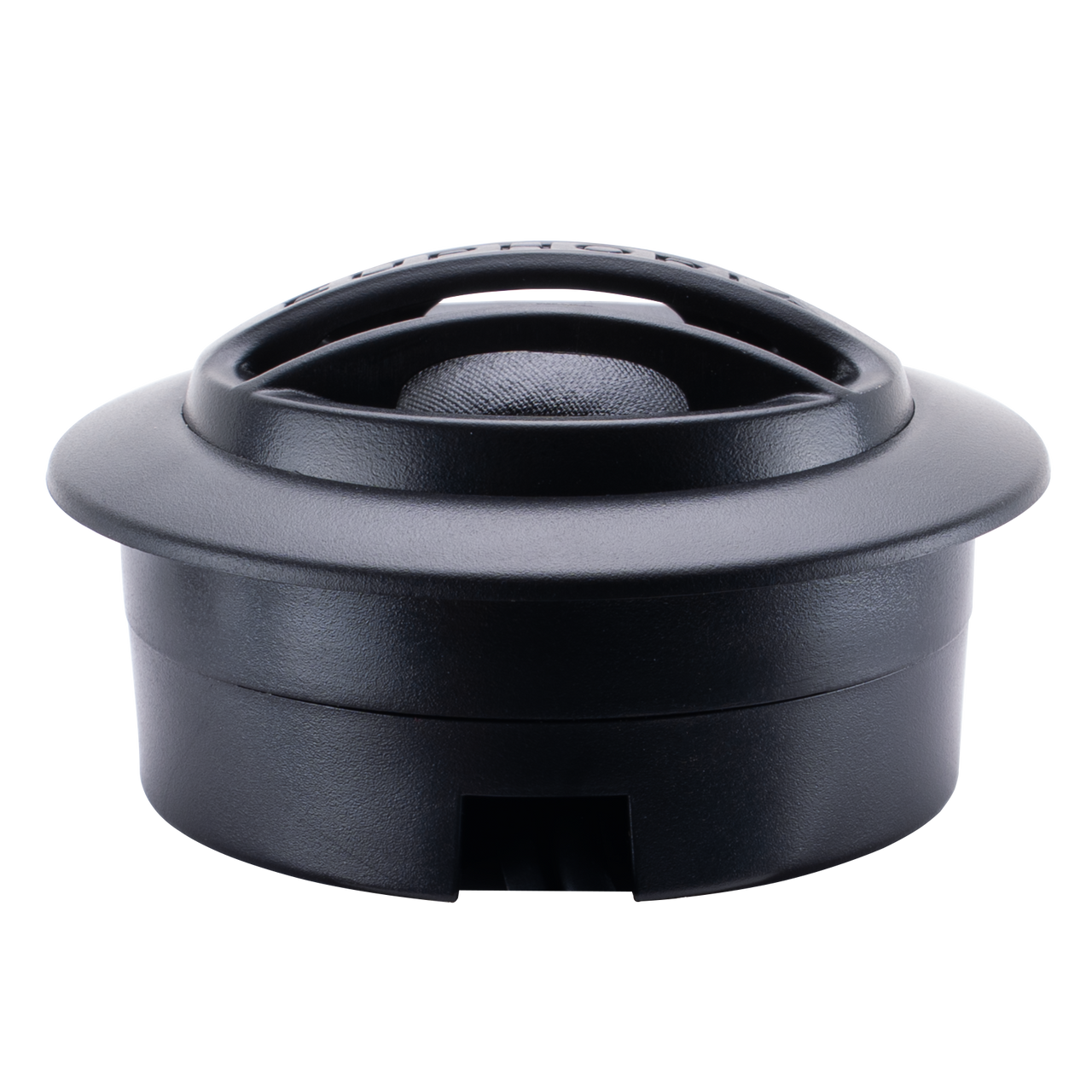

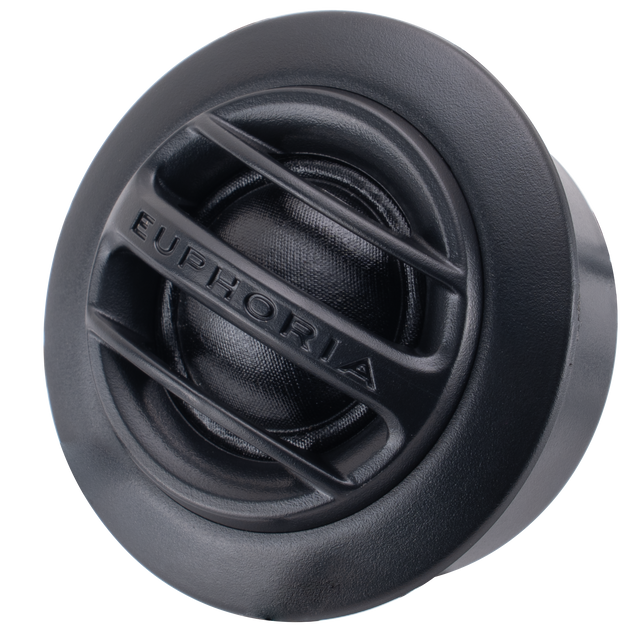

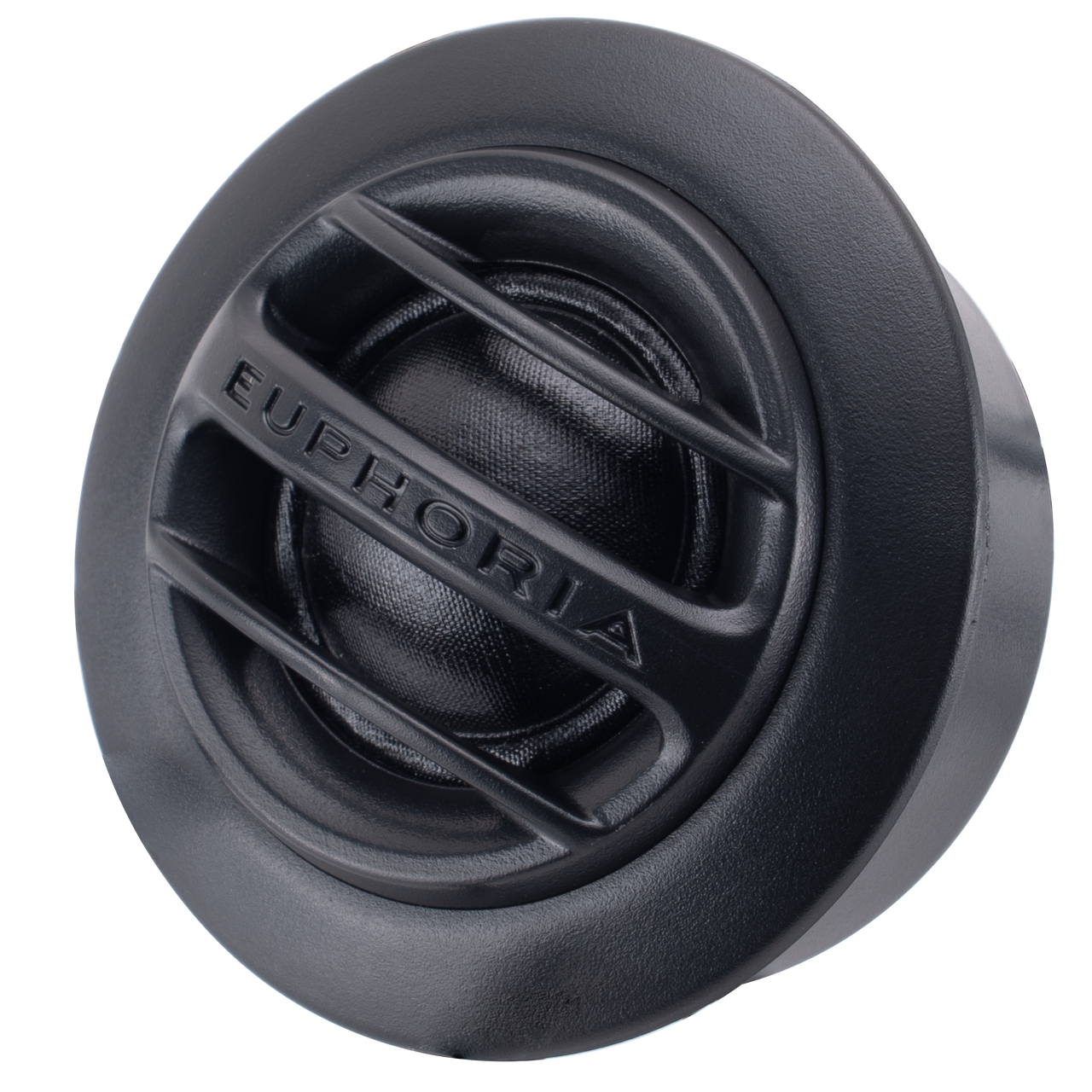

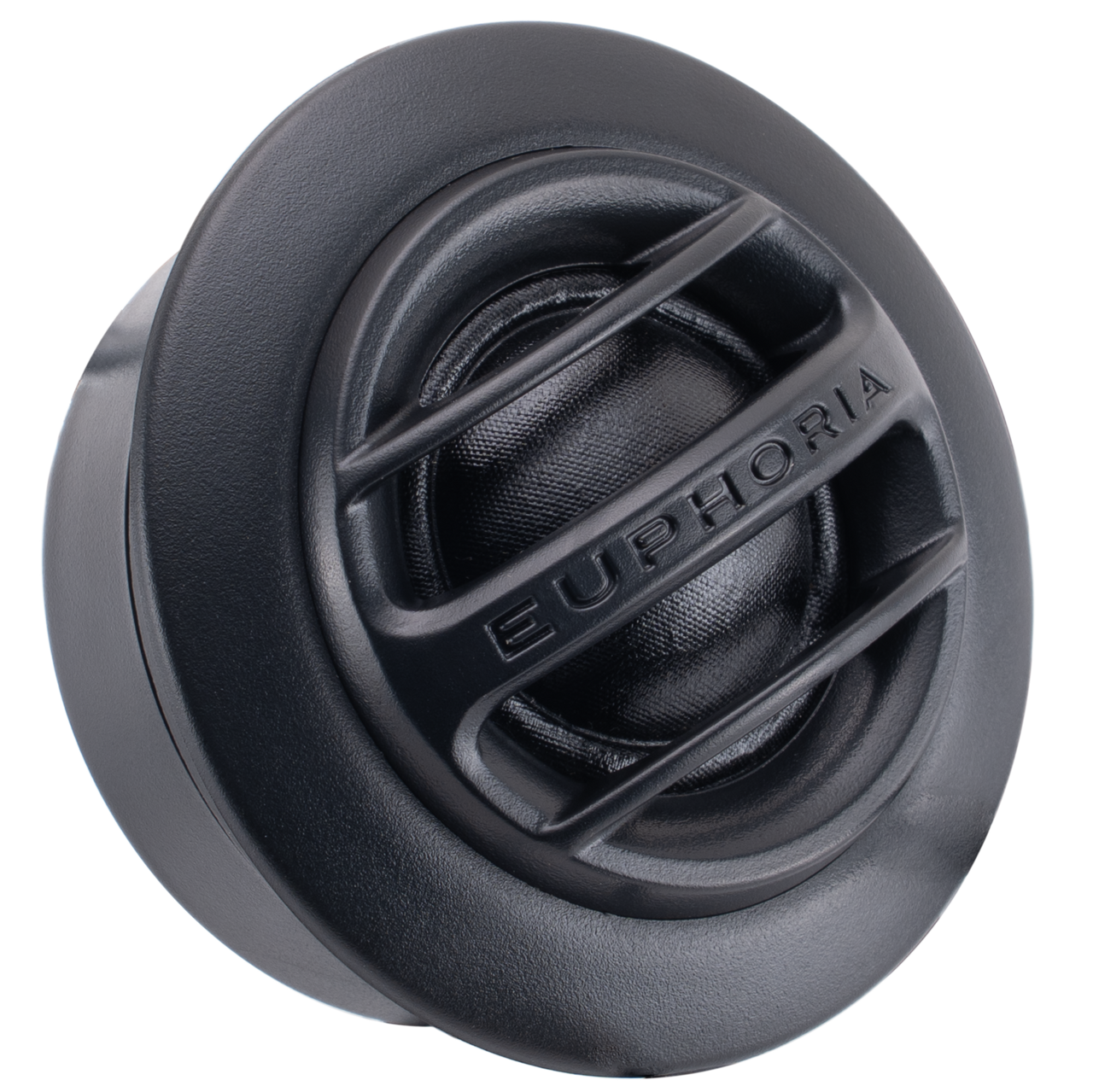

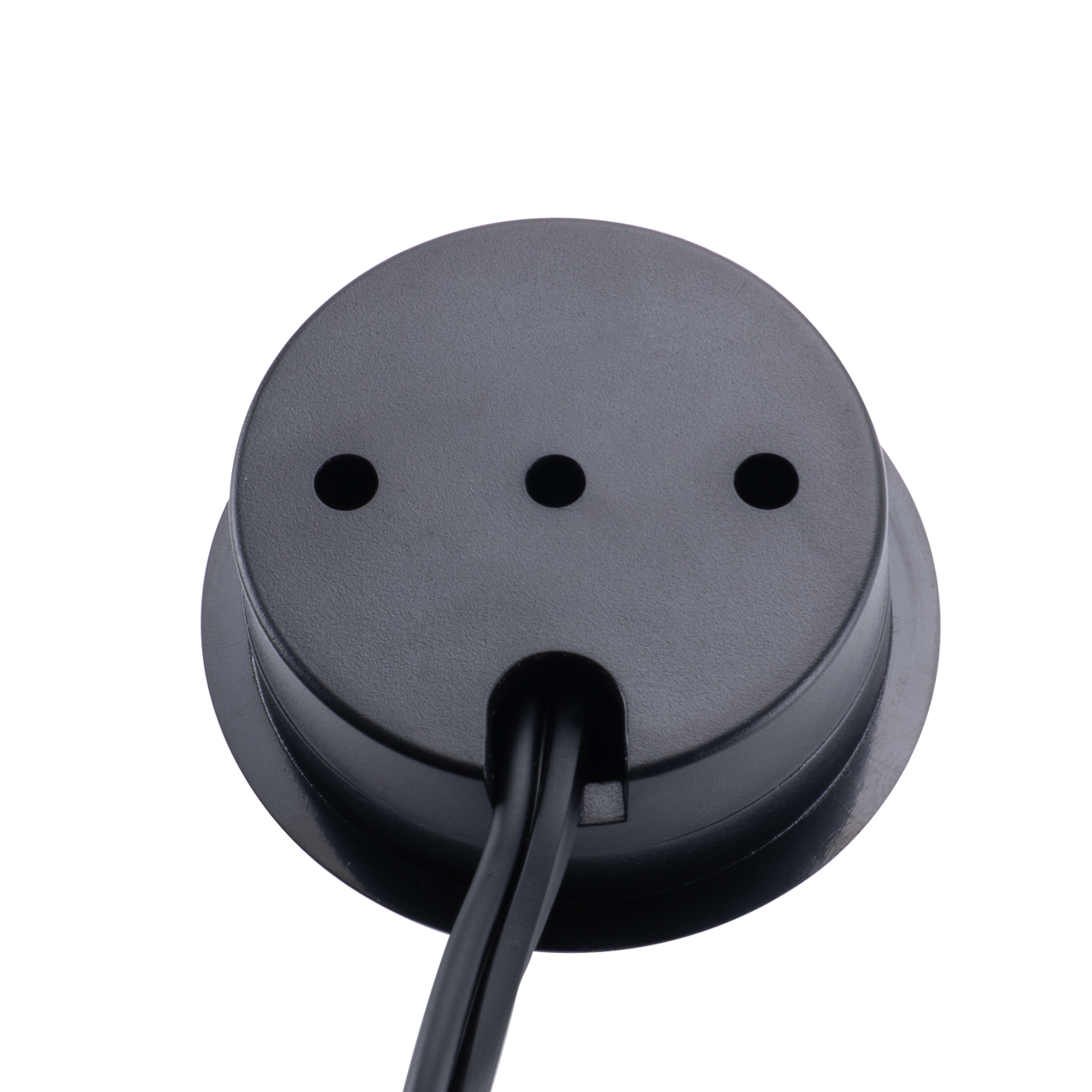

| 1" Tweeter Dimensions |
| Overall Diameter: 2.07"/ 52.5 mm |
| Mounting Depth: 0.68"/ 17.2 mm |
| Cutout Diameter: 1.78"/ 45.3 mm |
|

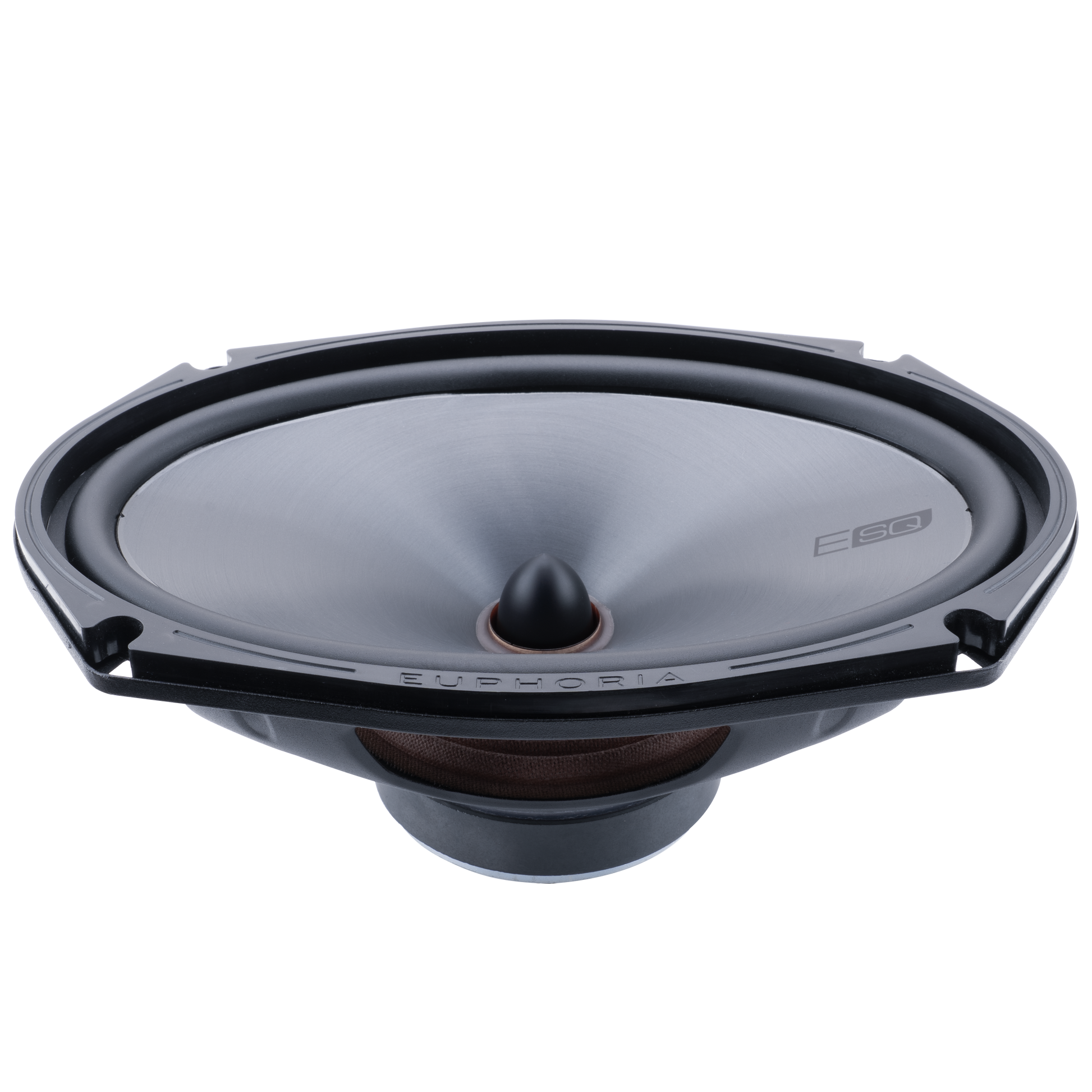

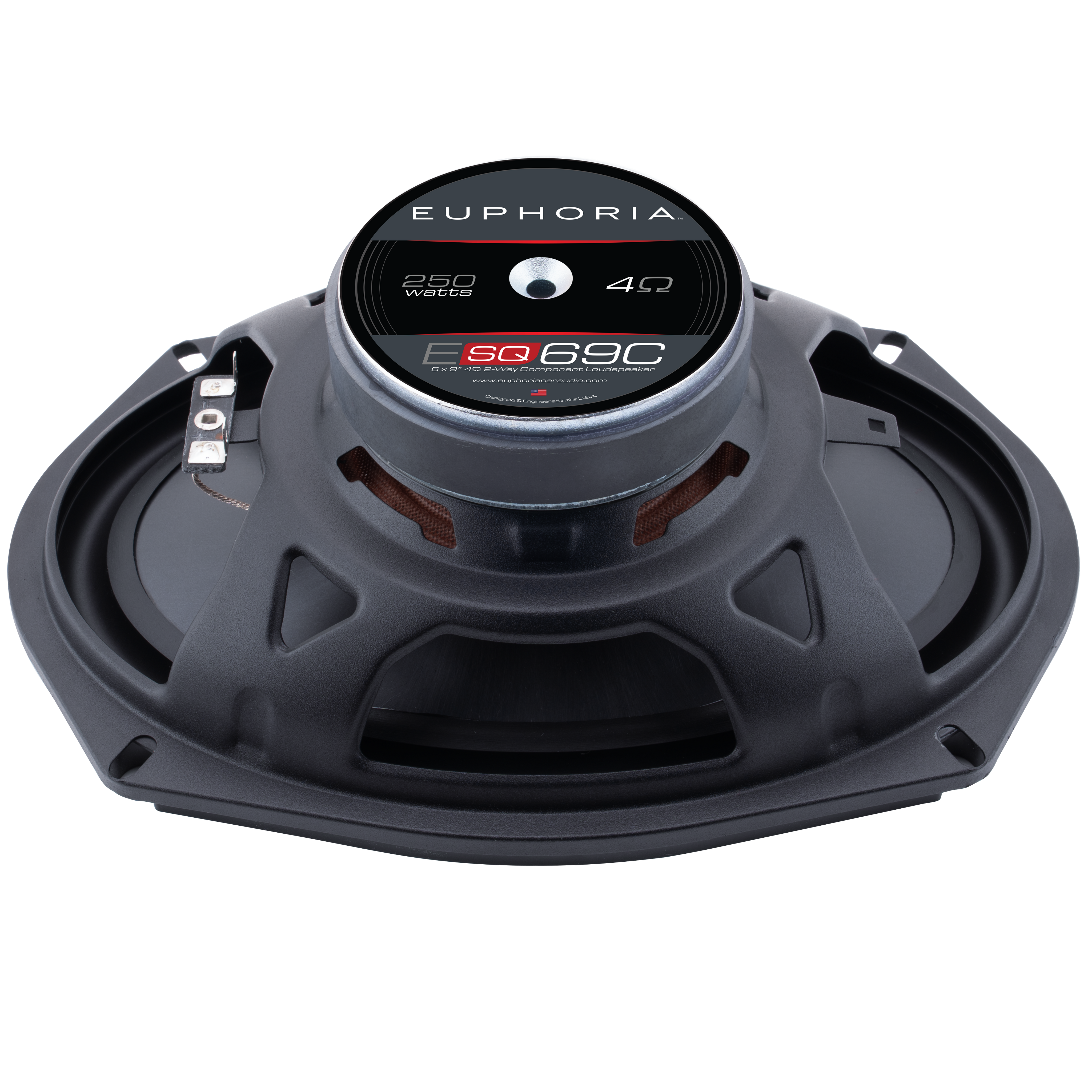

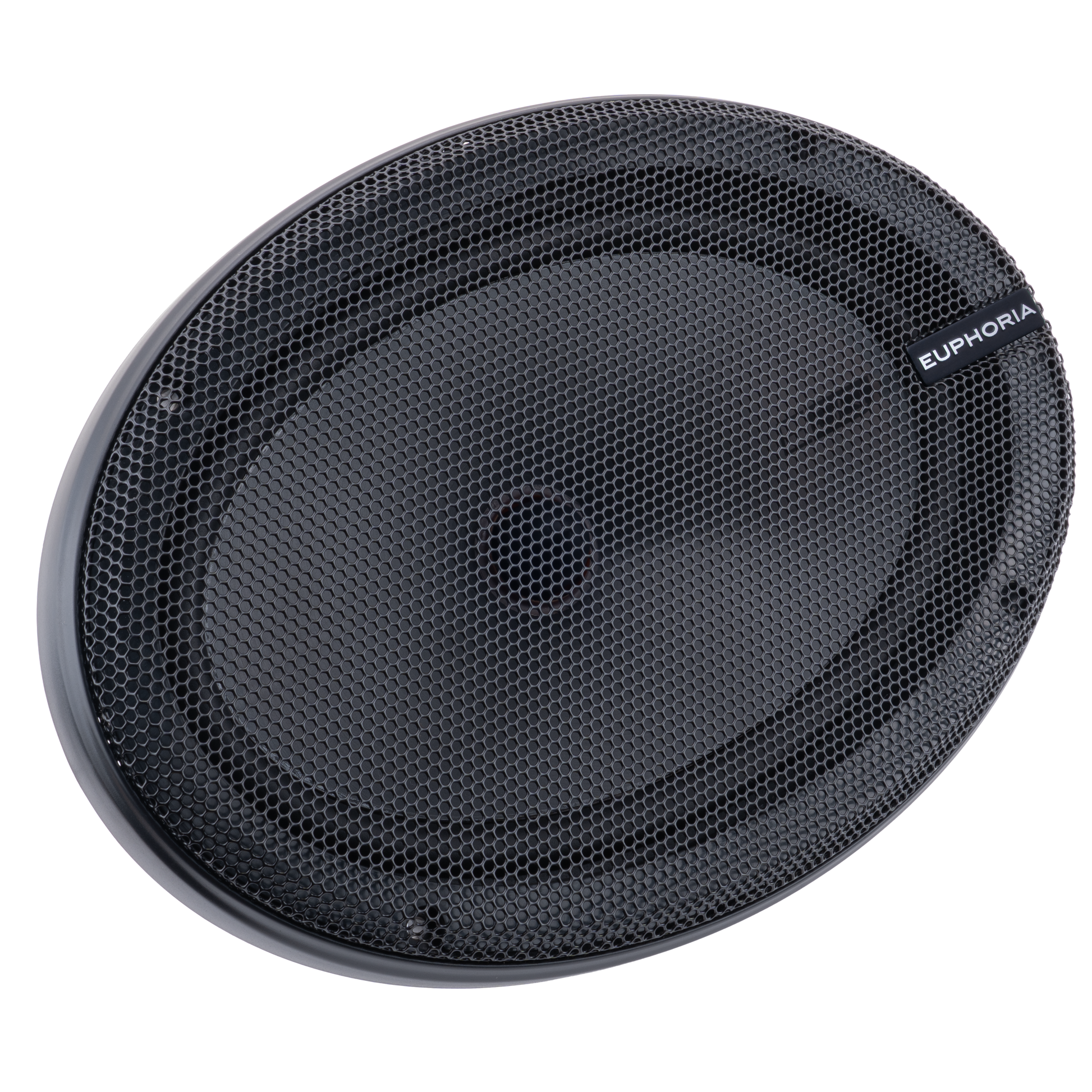

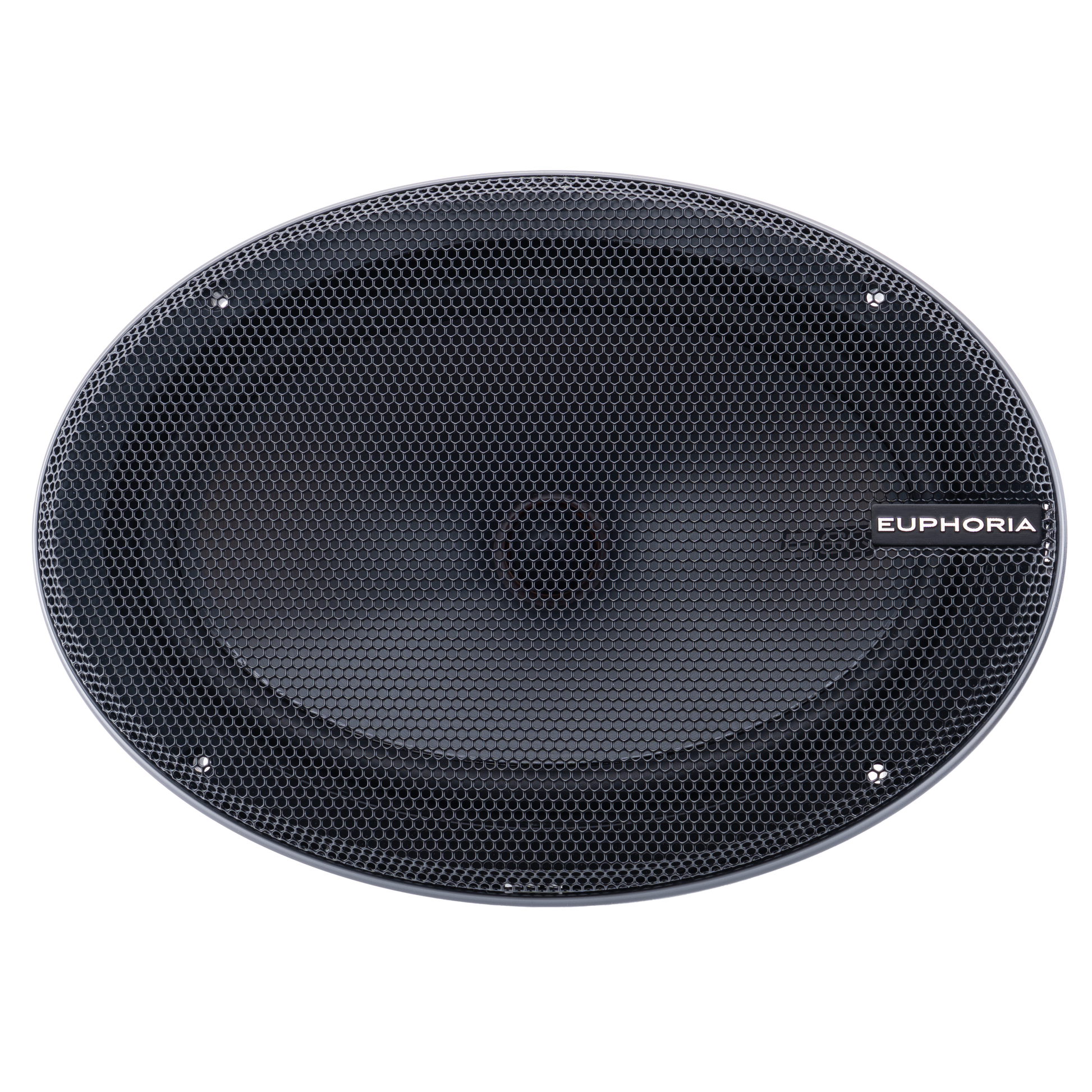

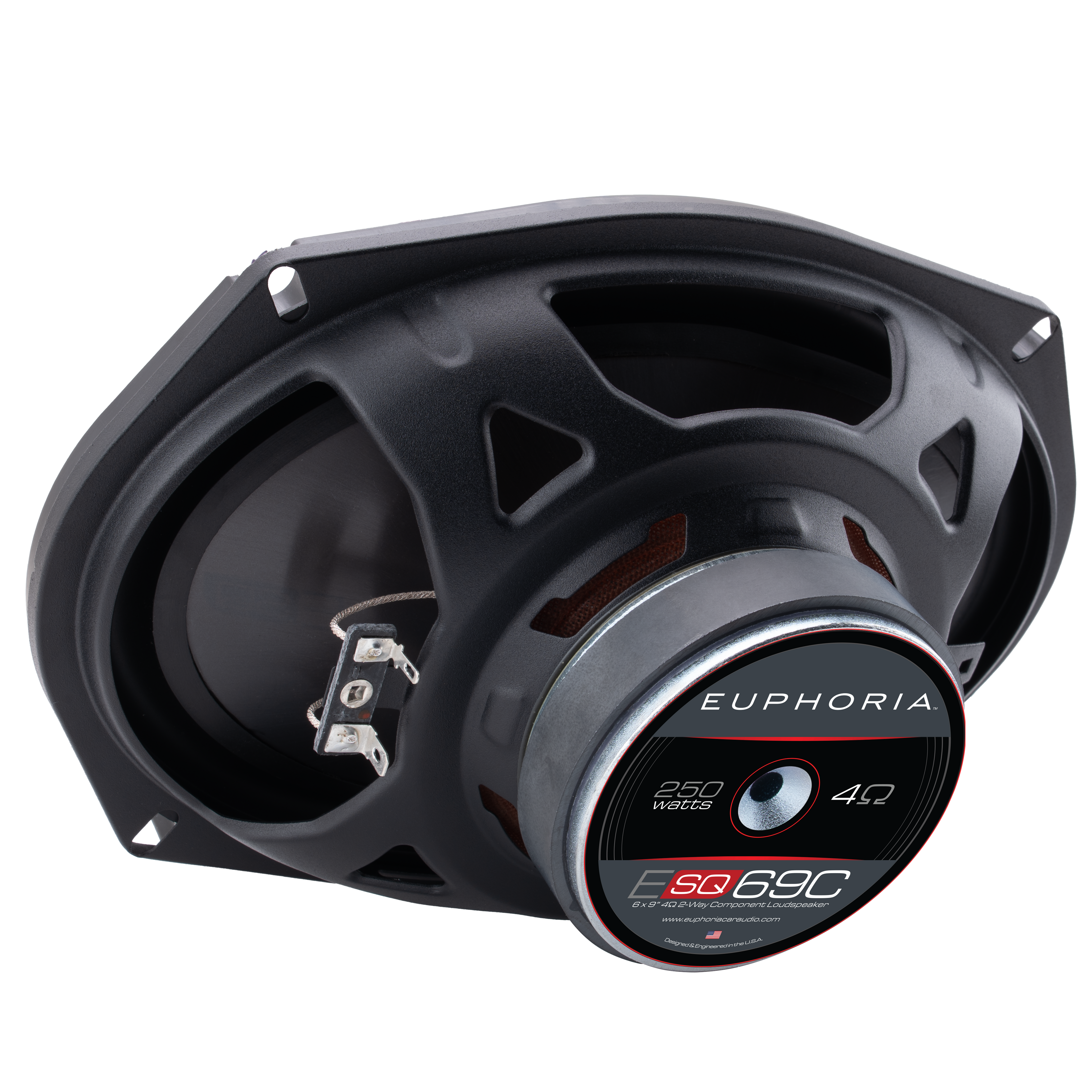

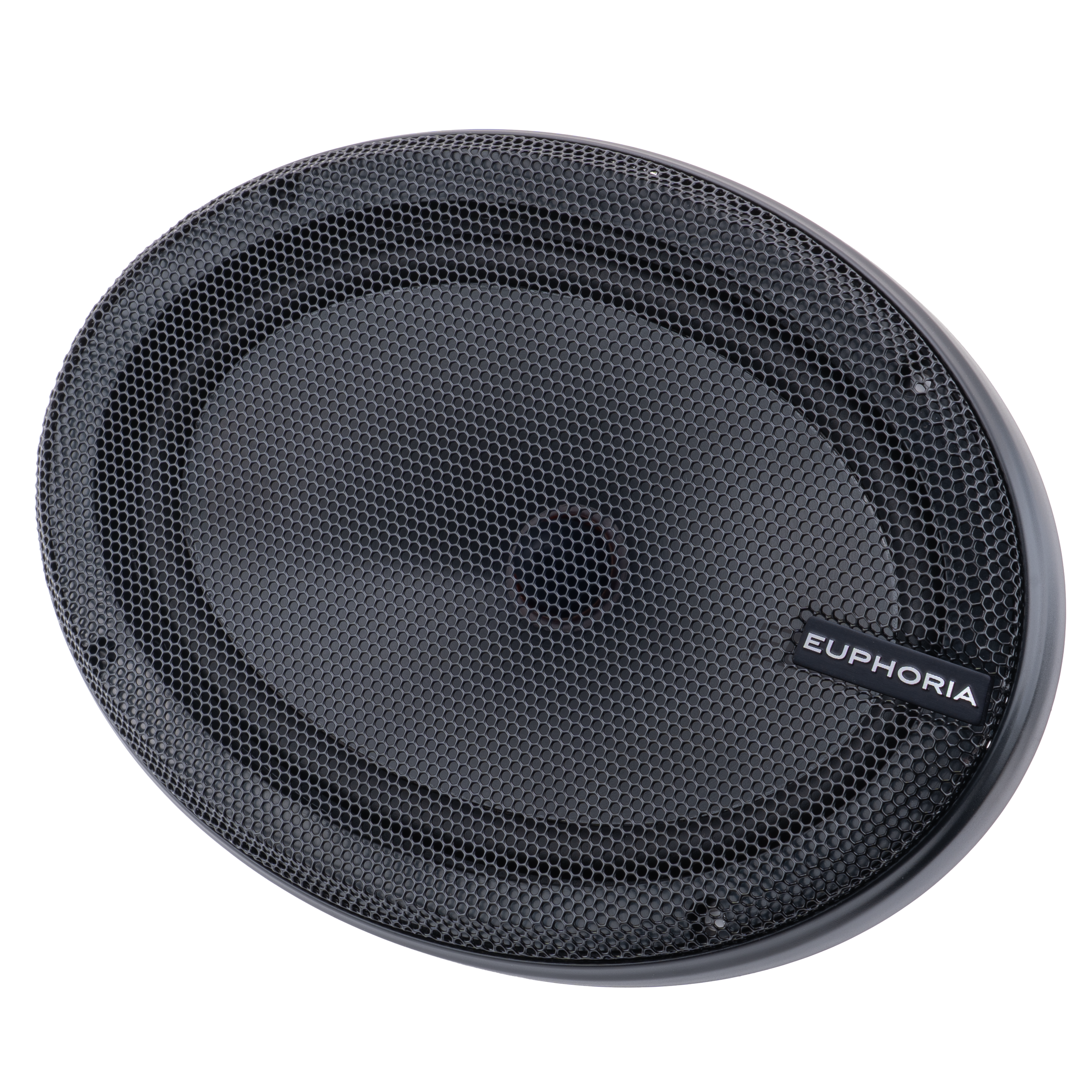

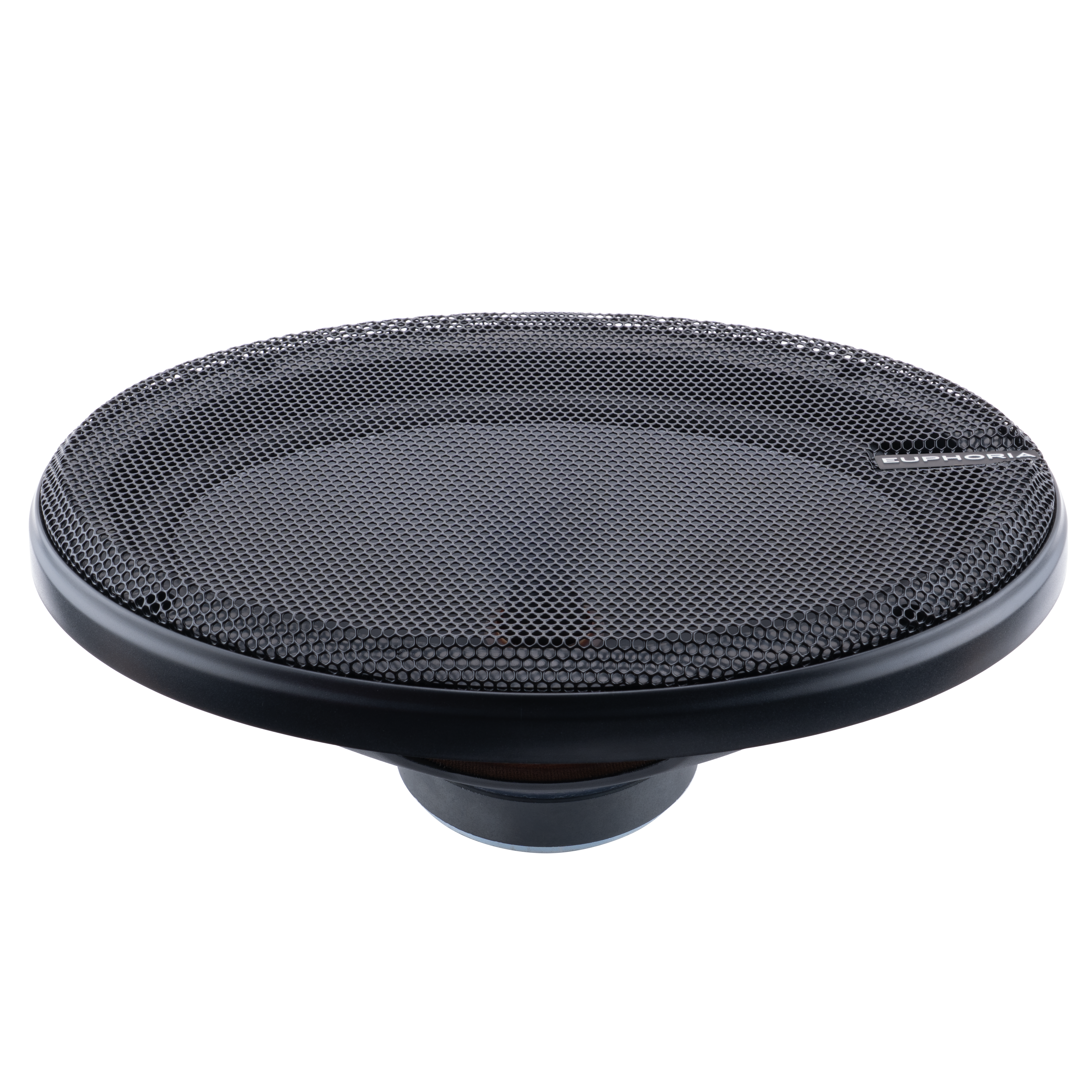

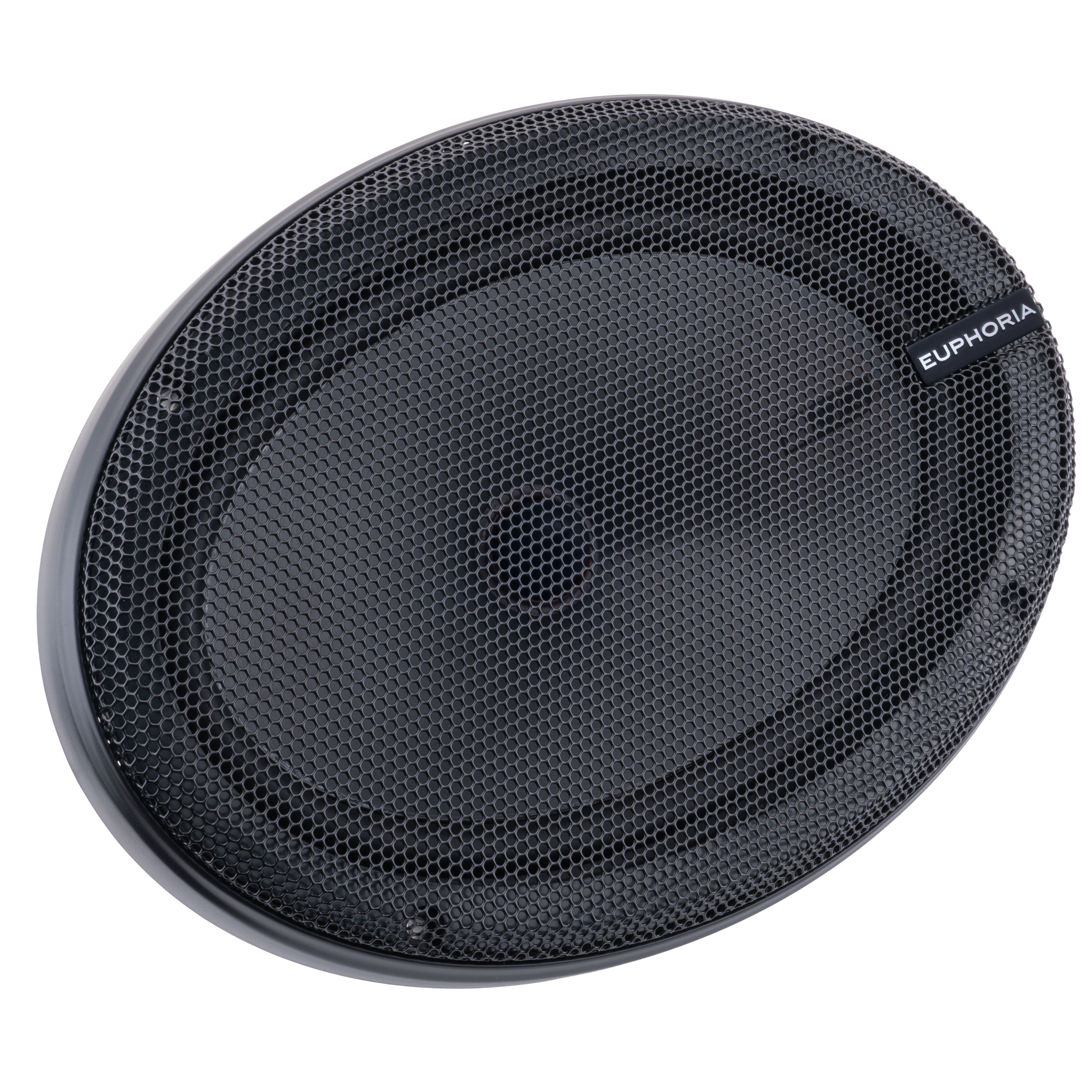

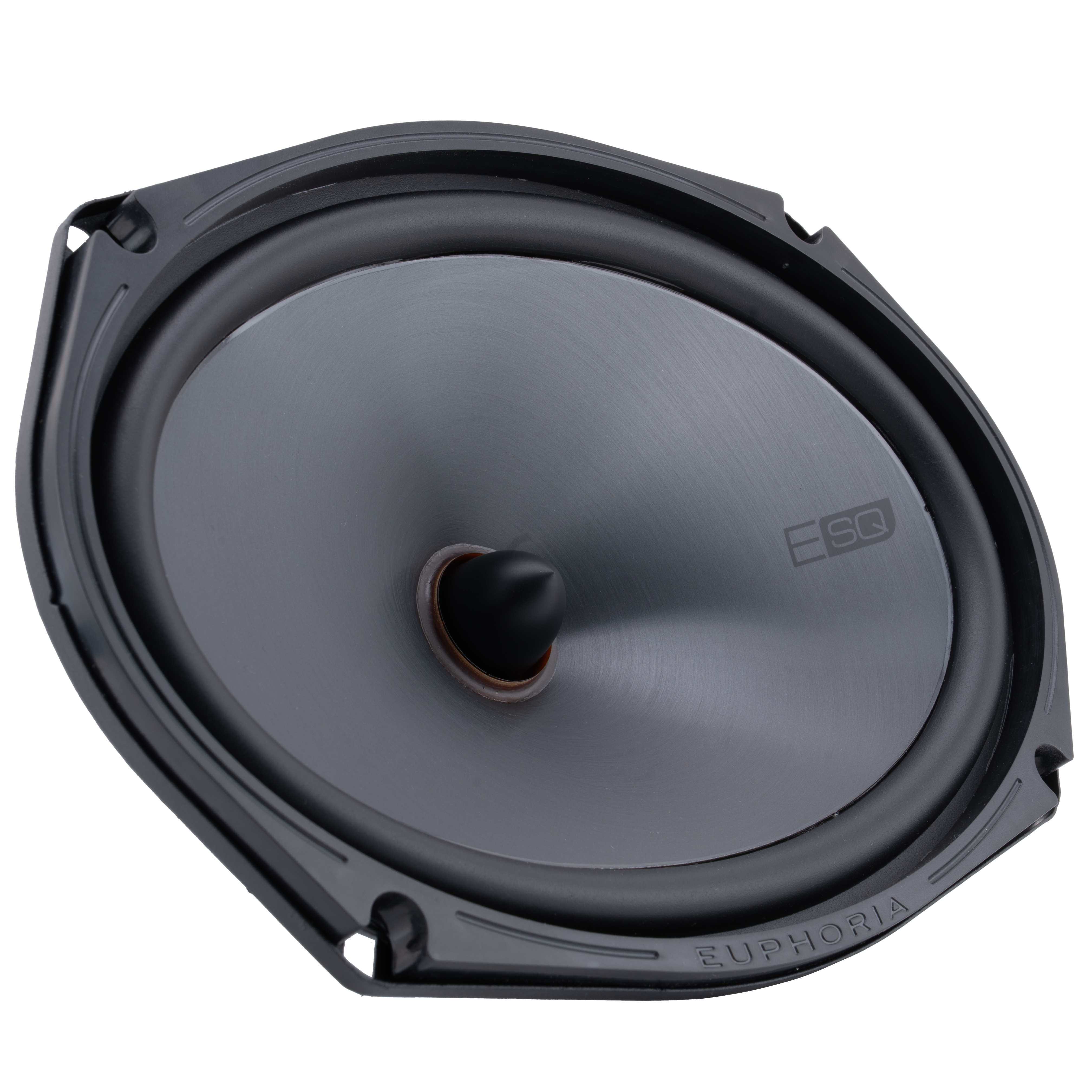

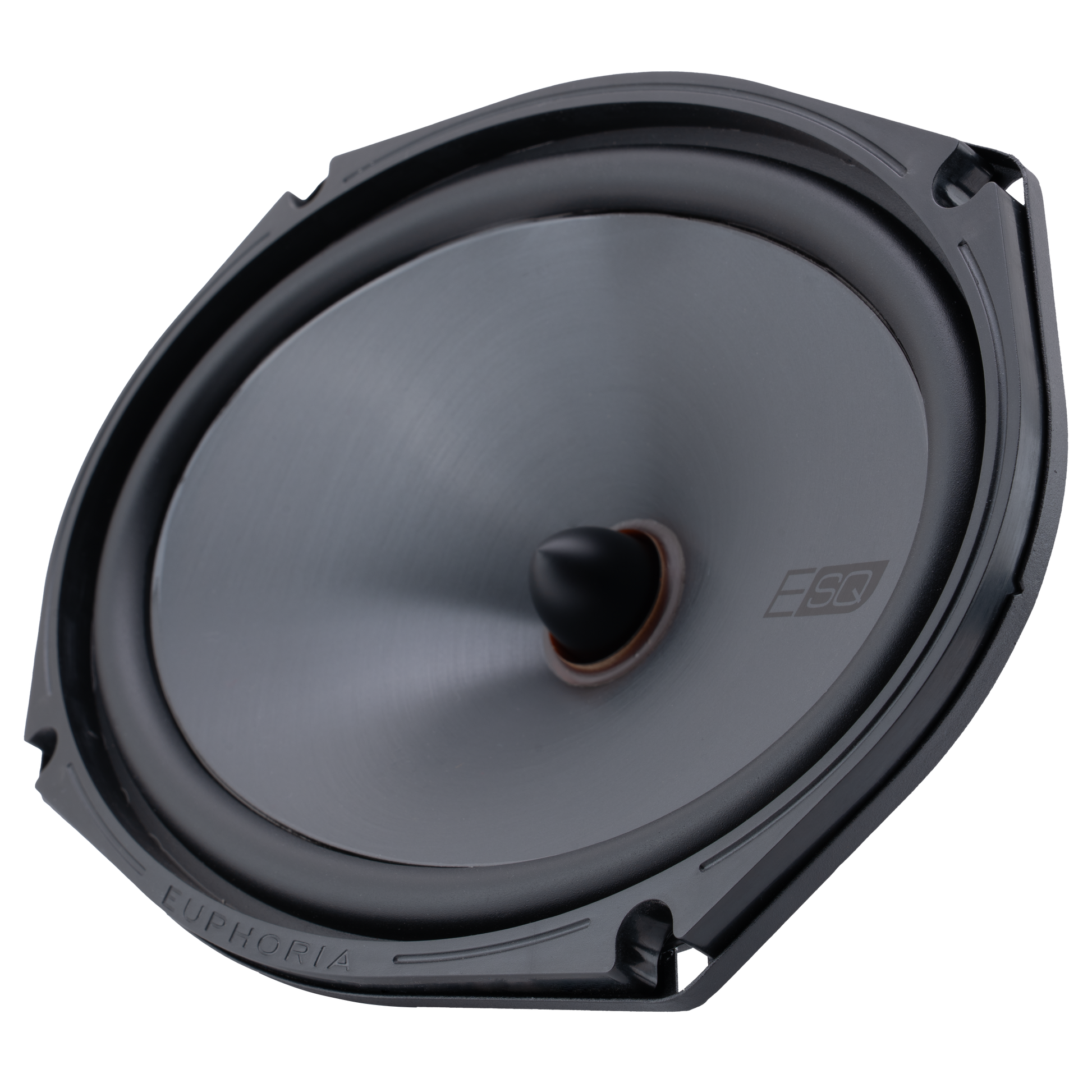

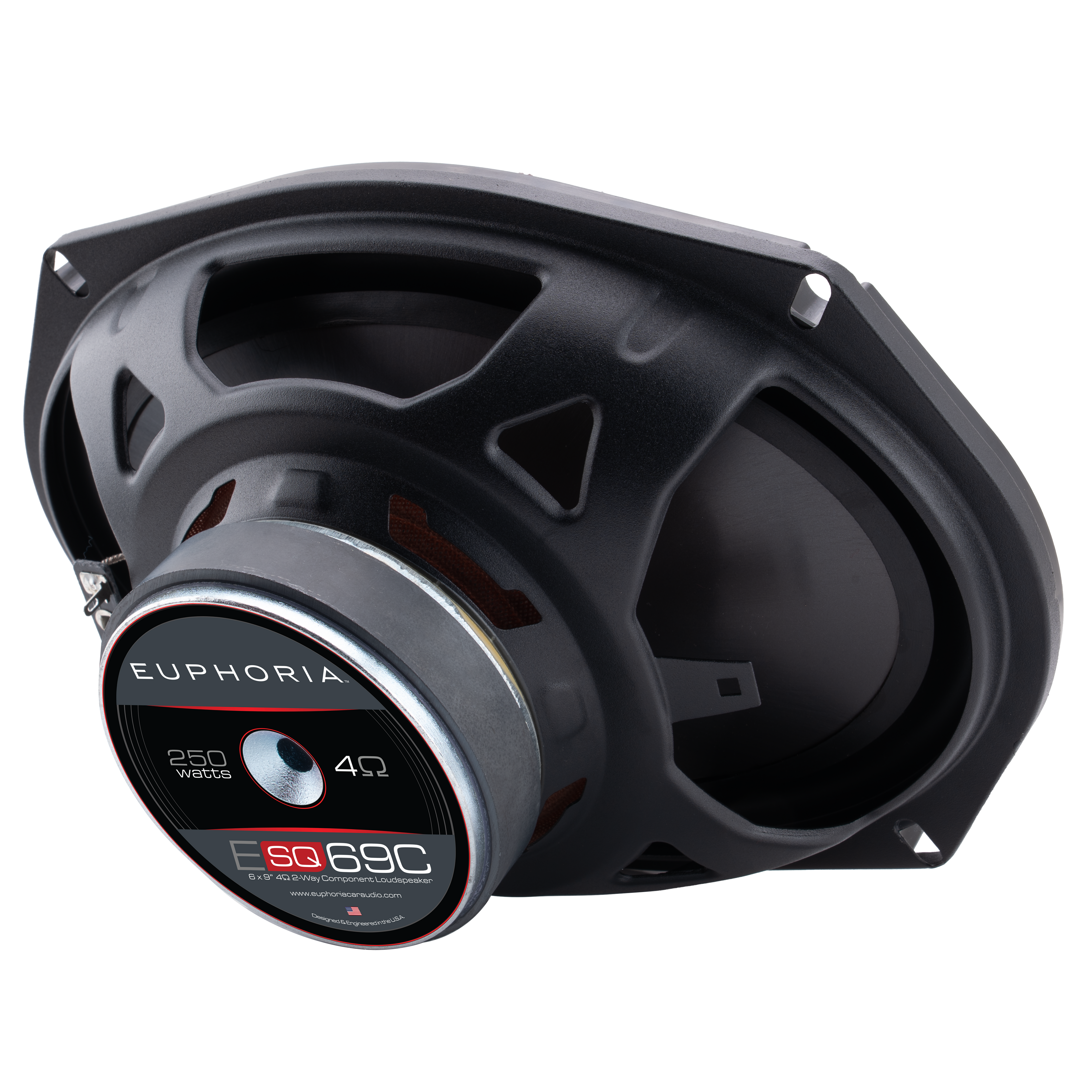

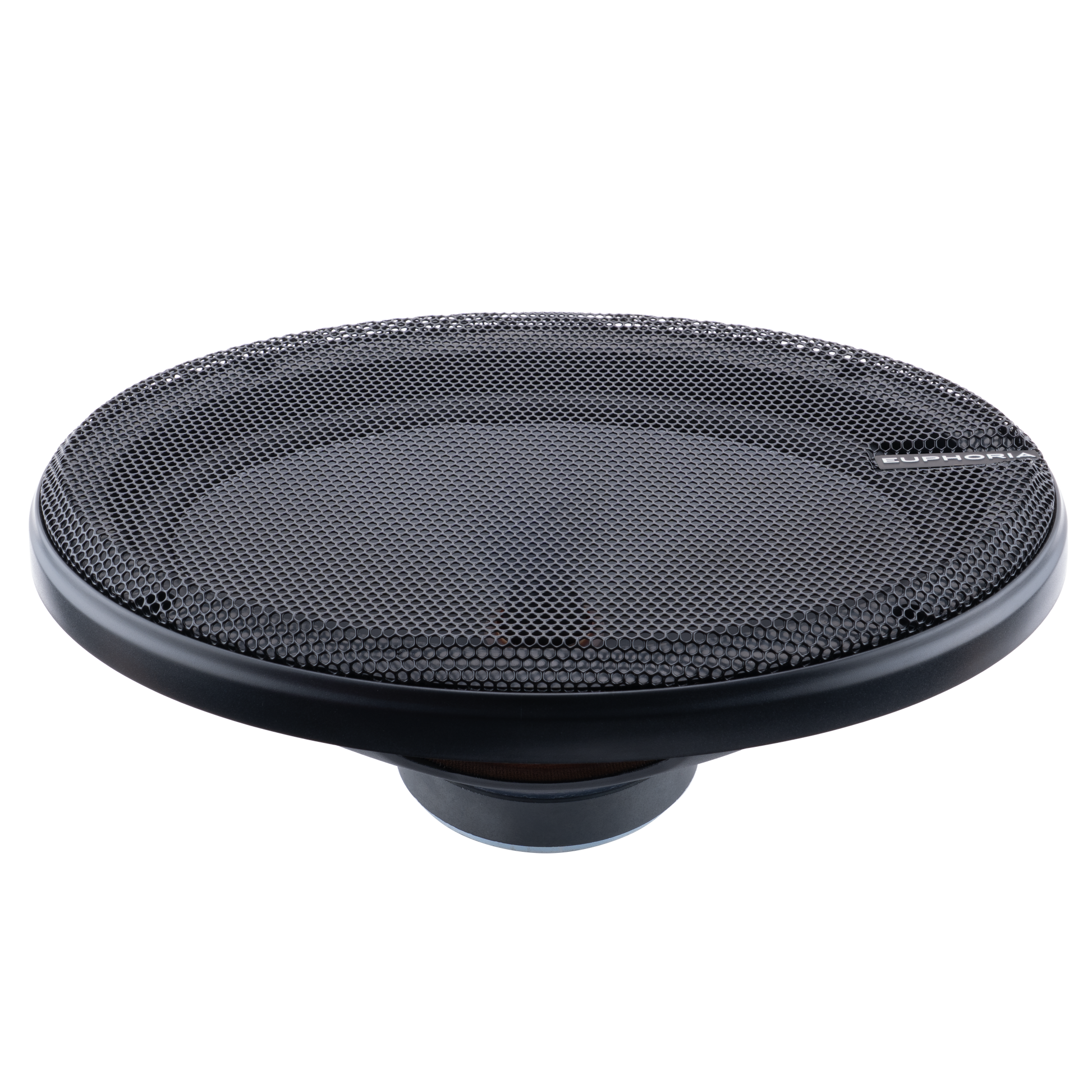

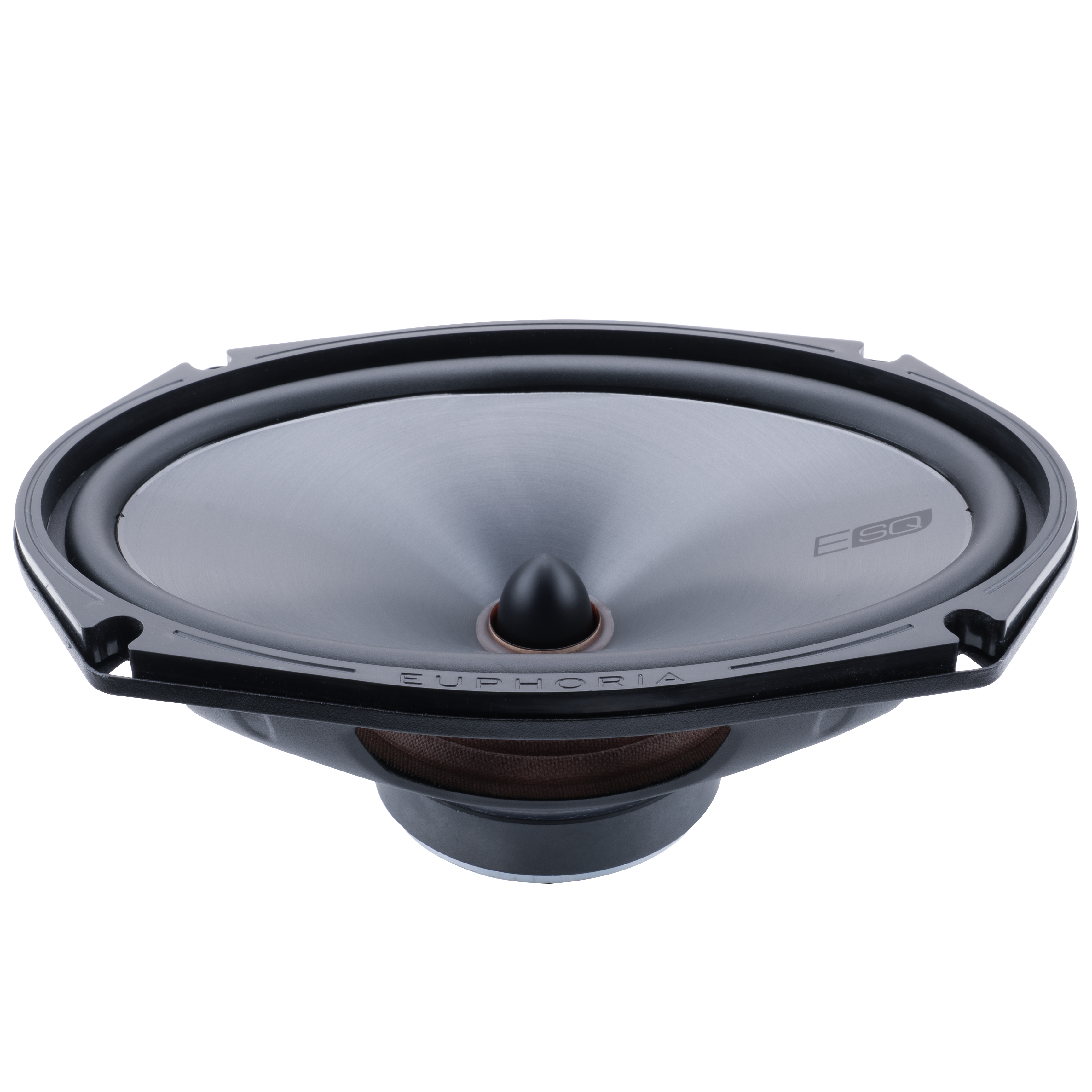

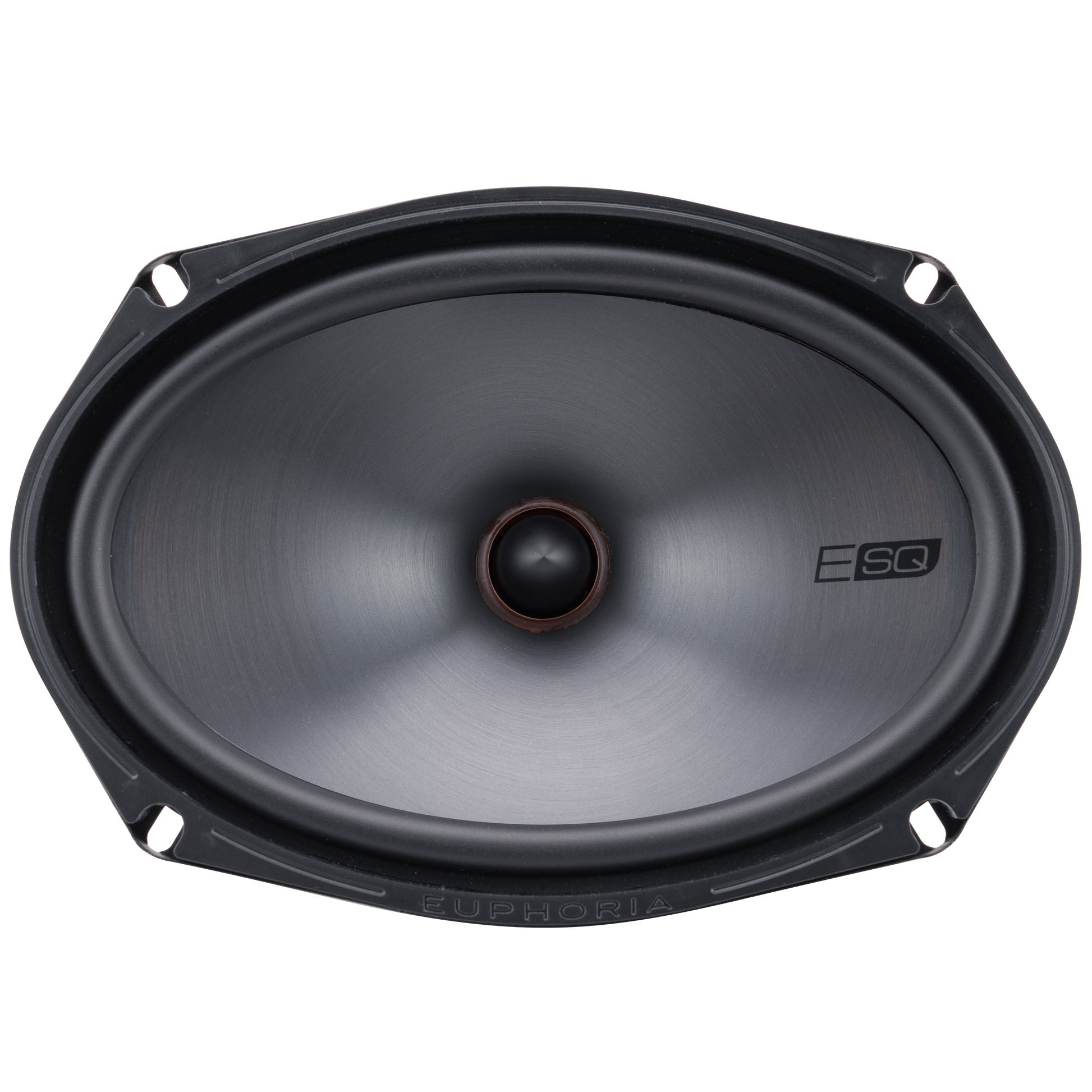

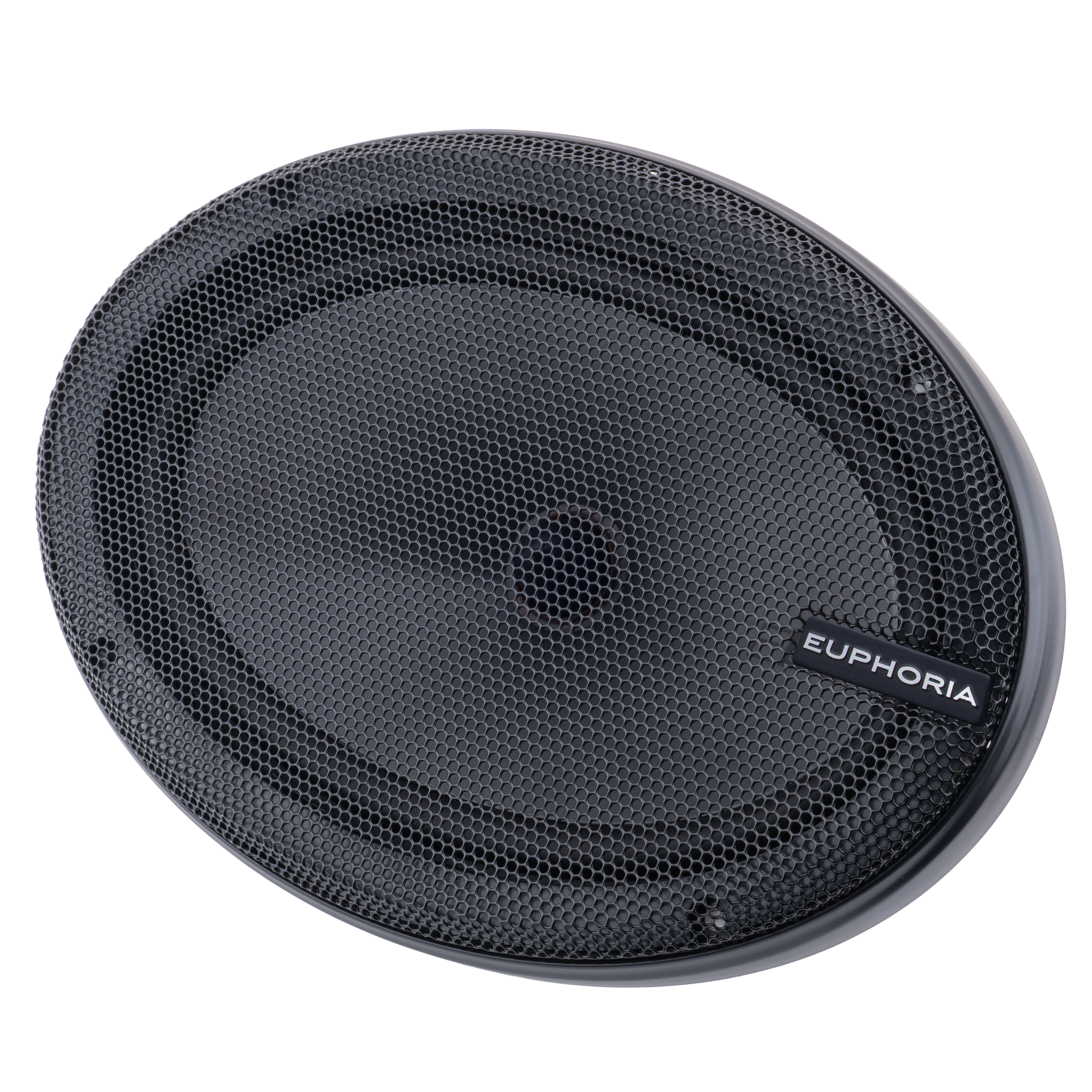

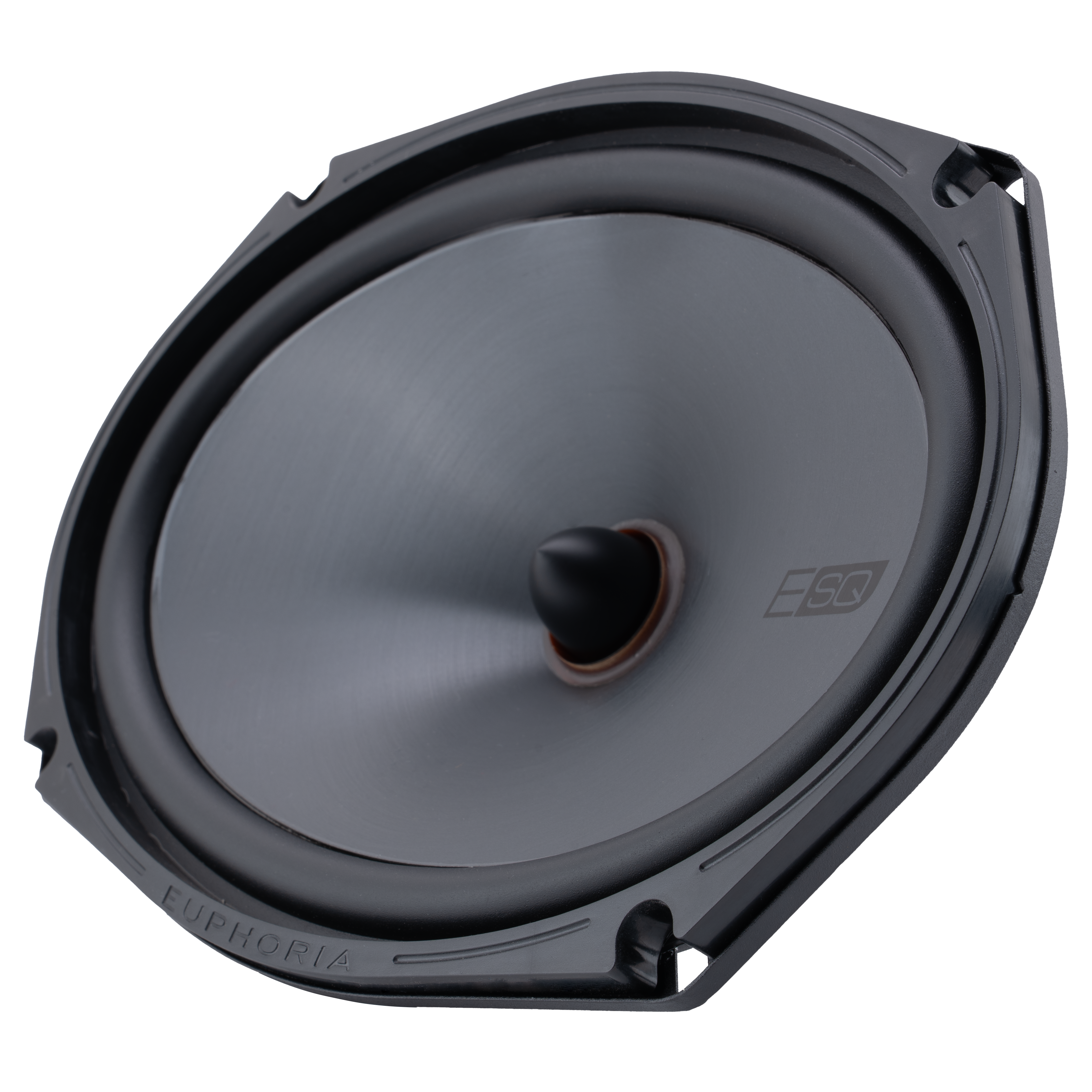

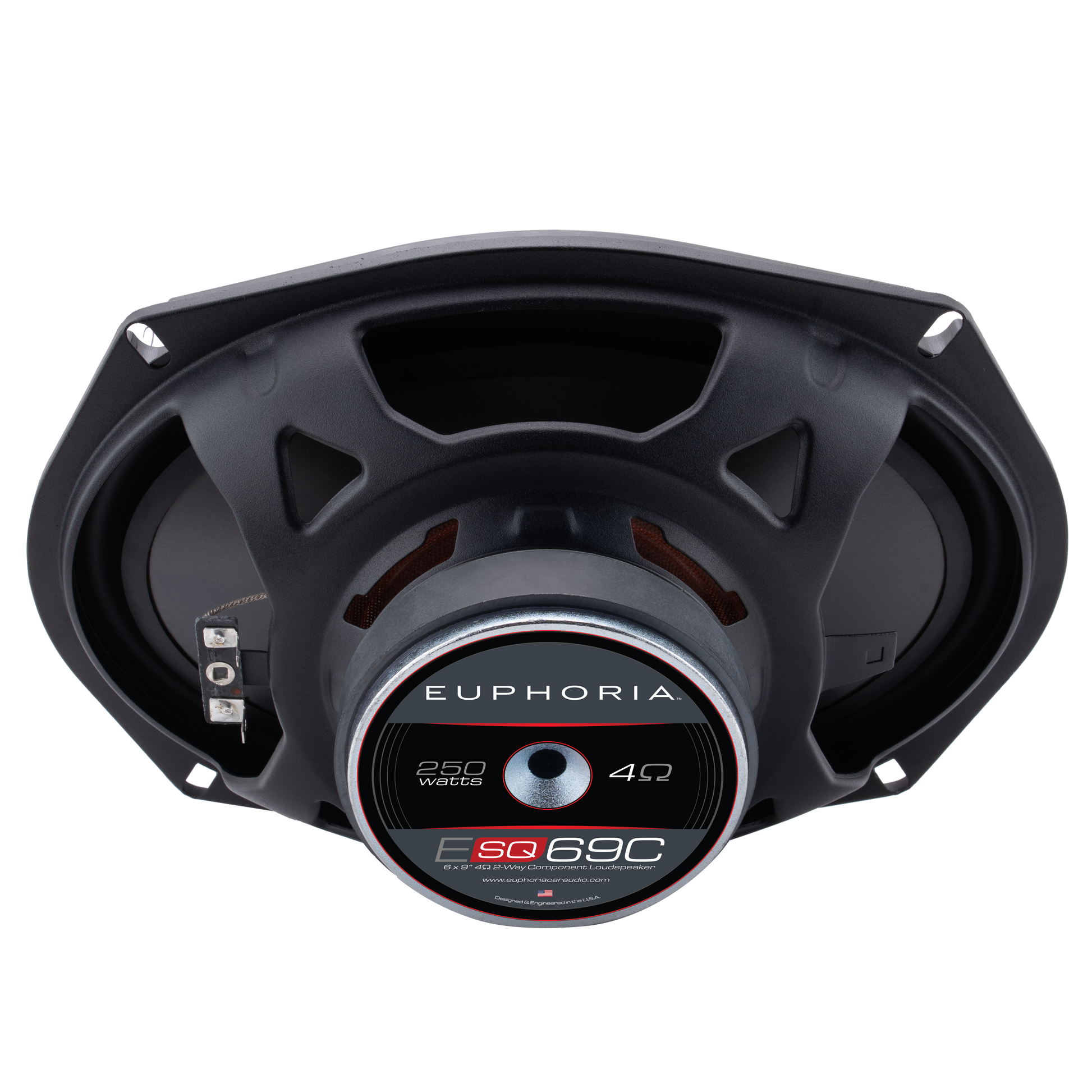

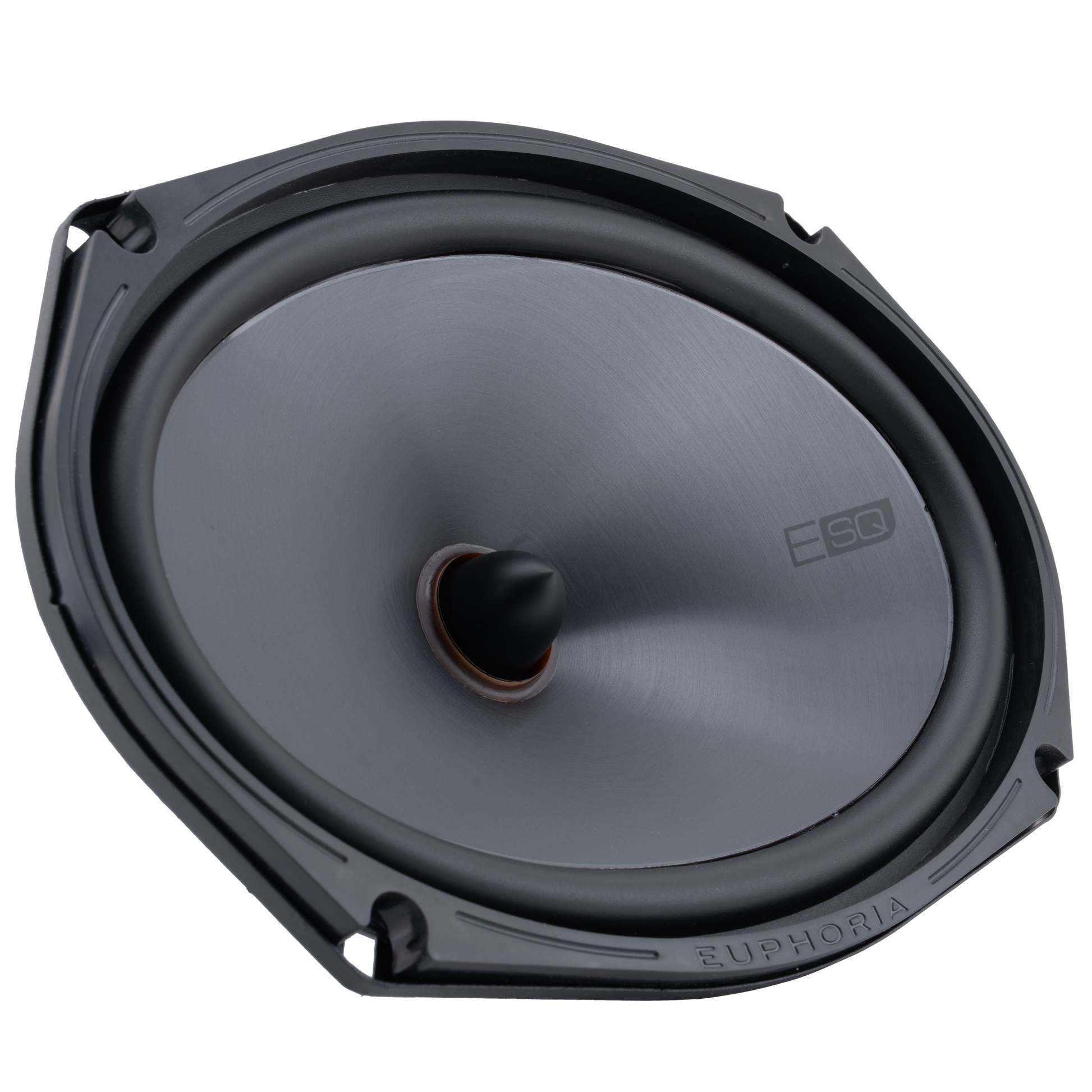

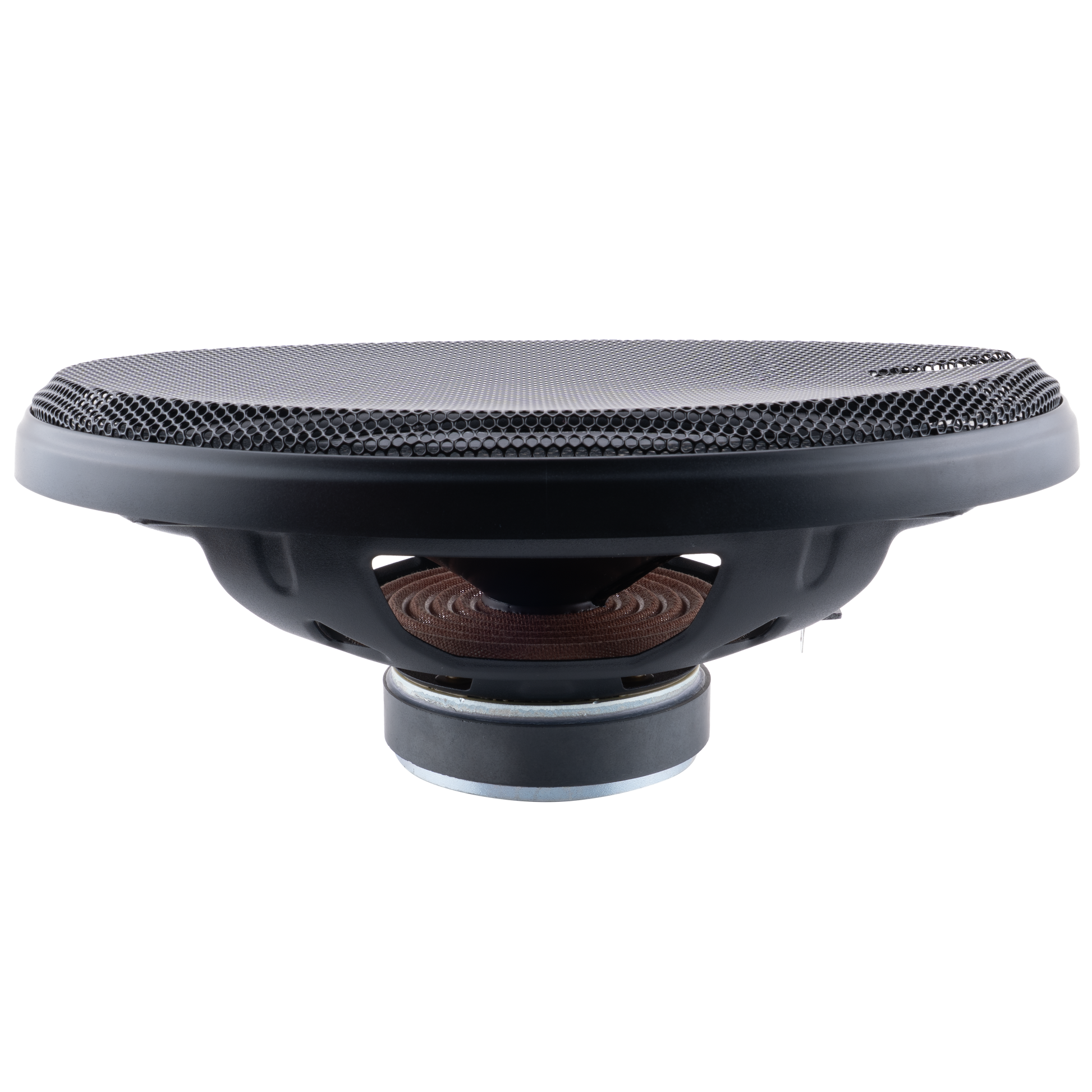

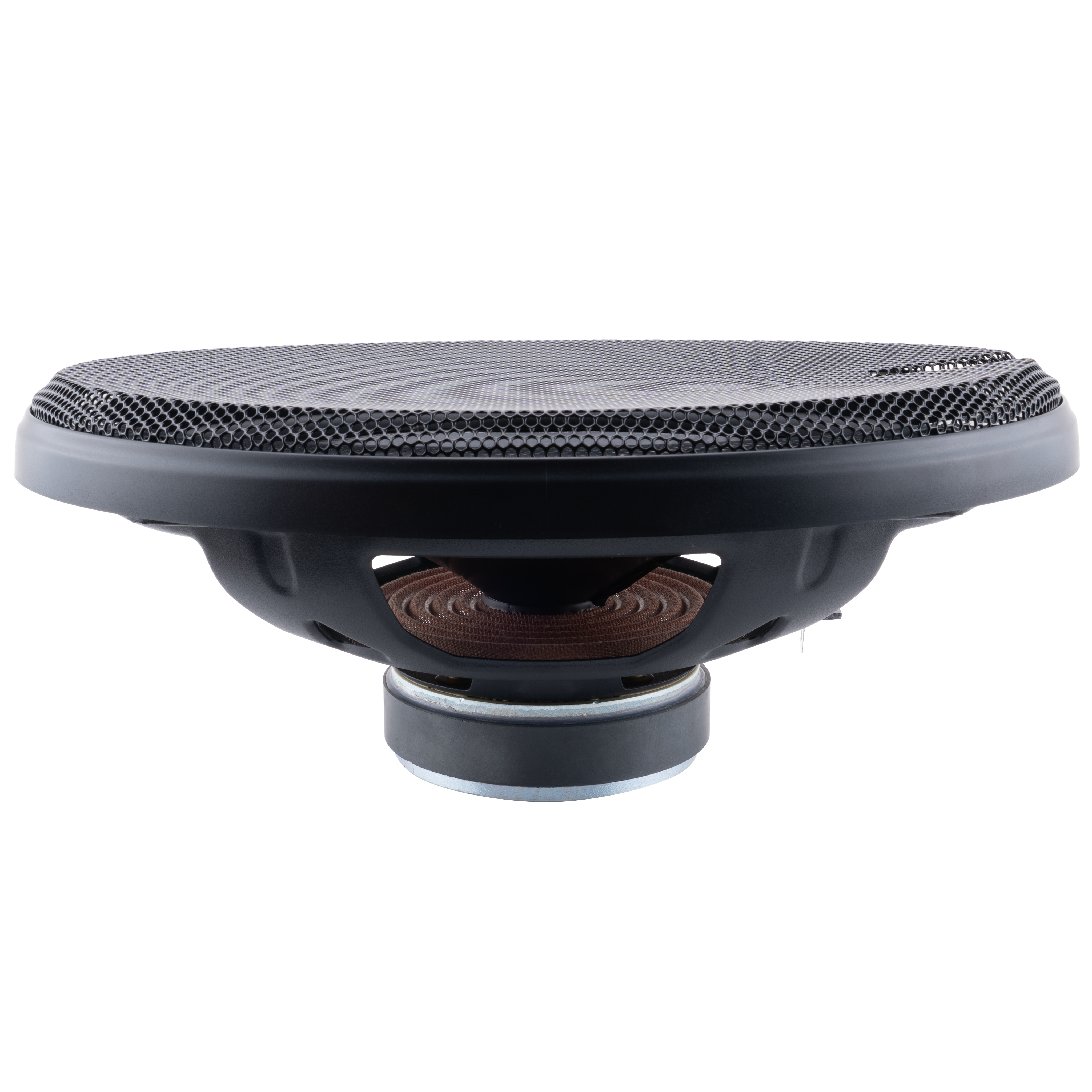

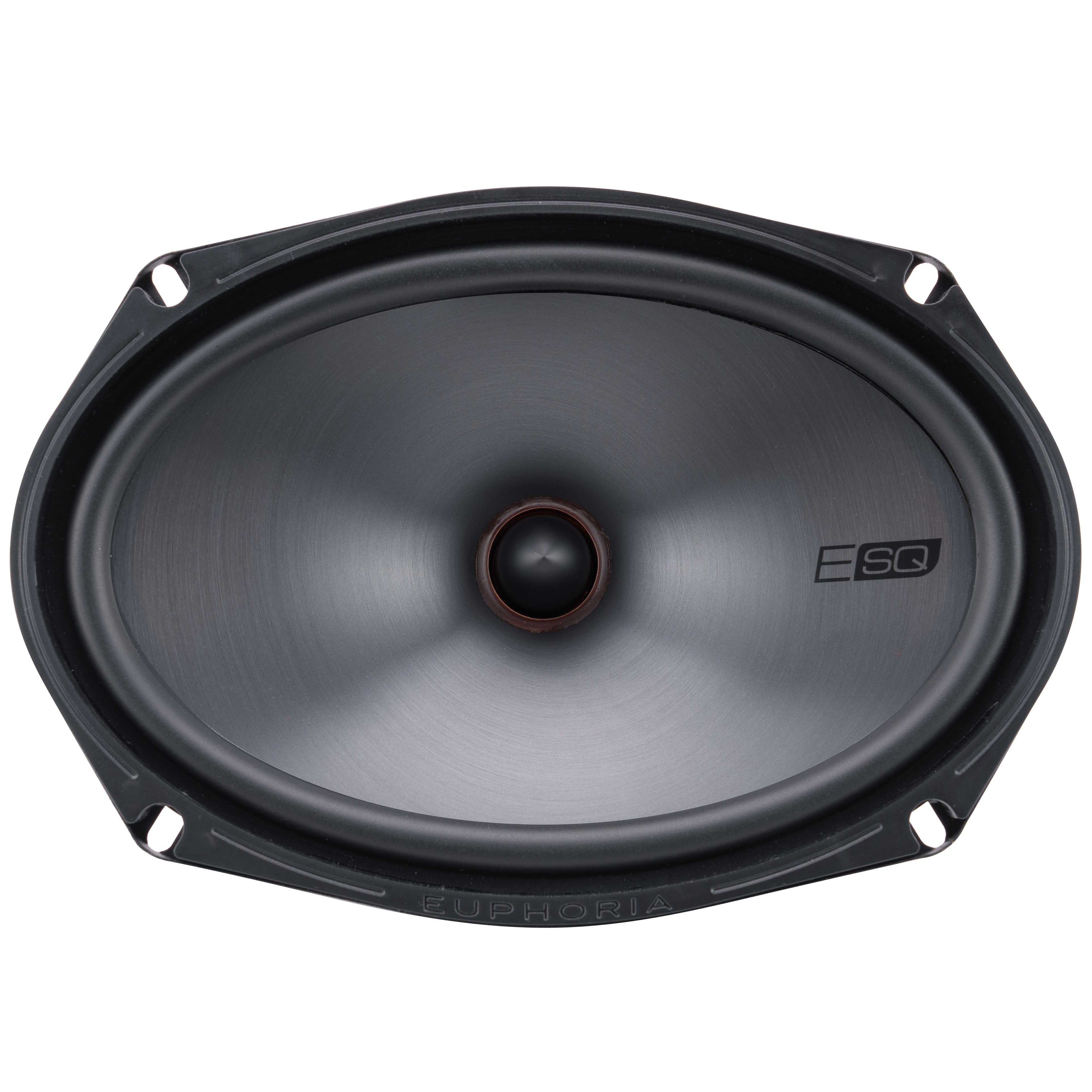

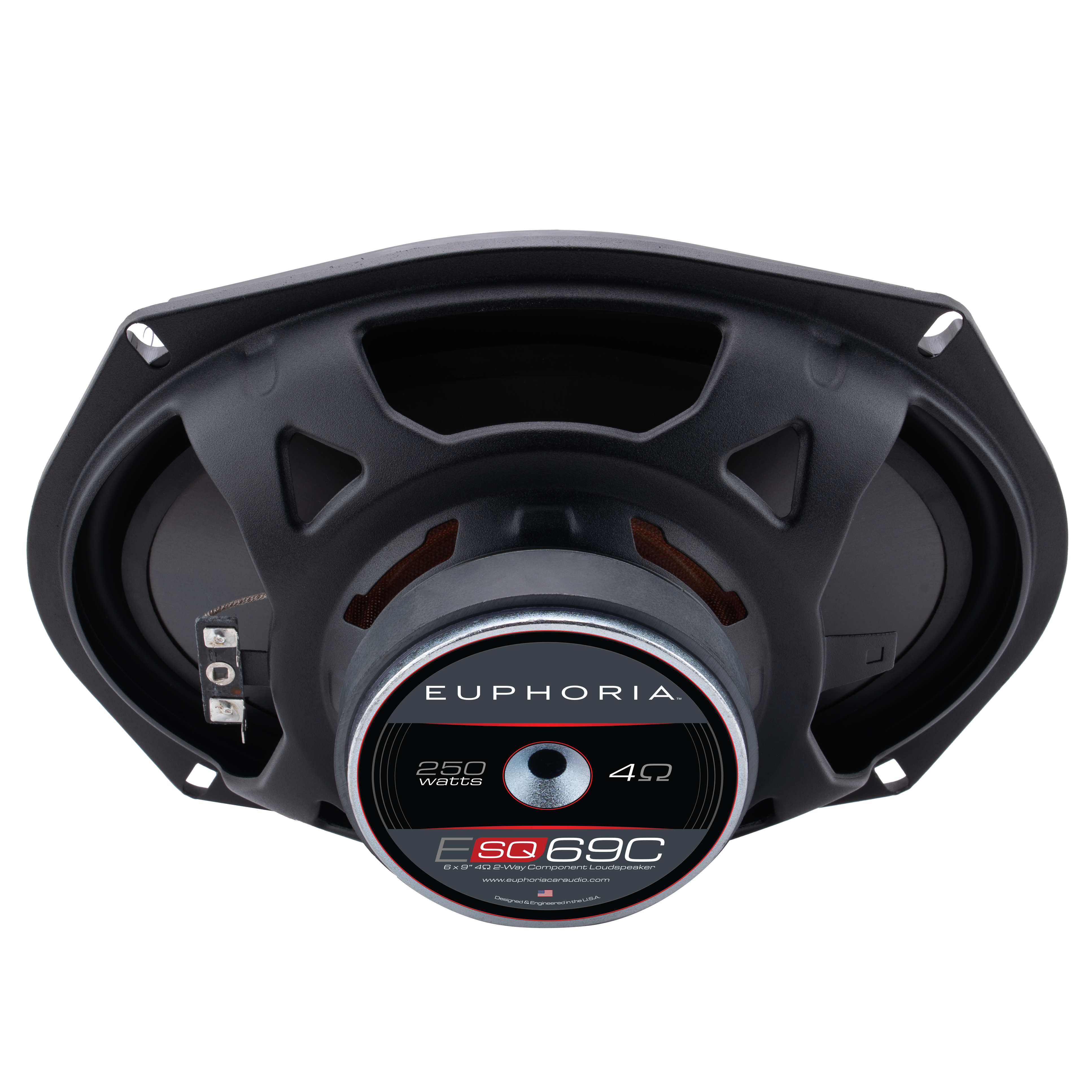

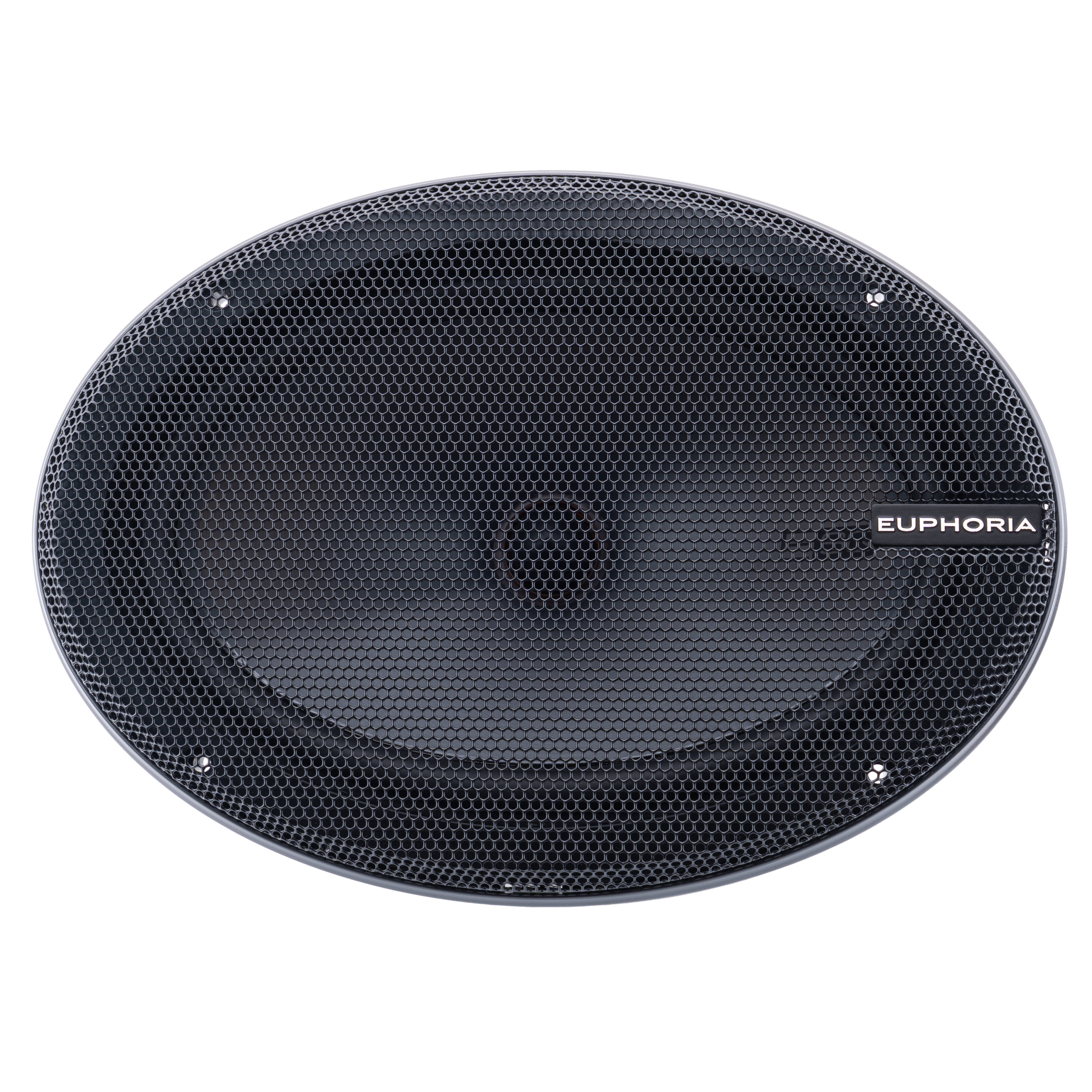

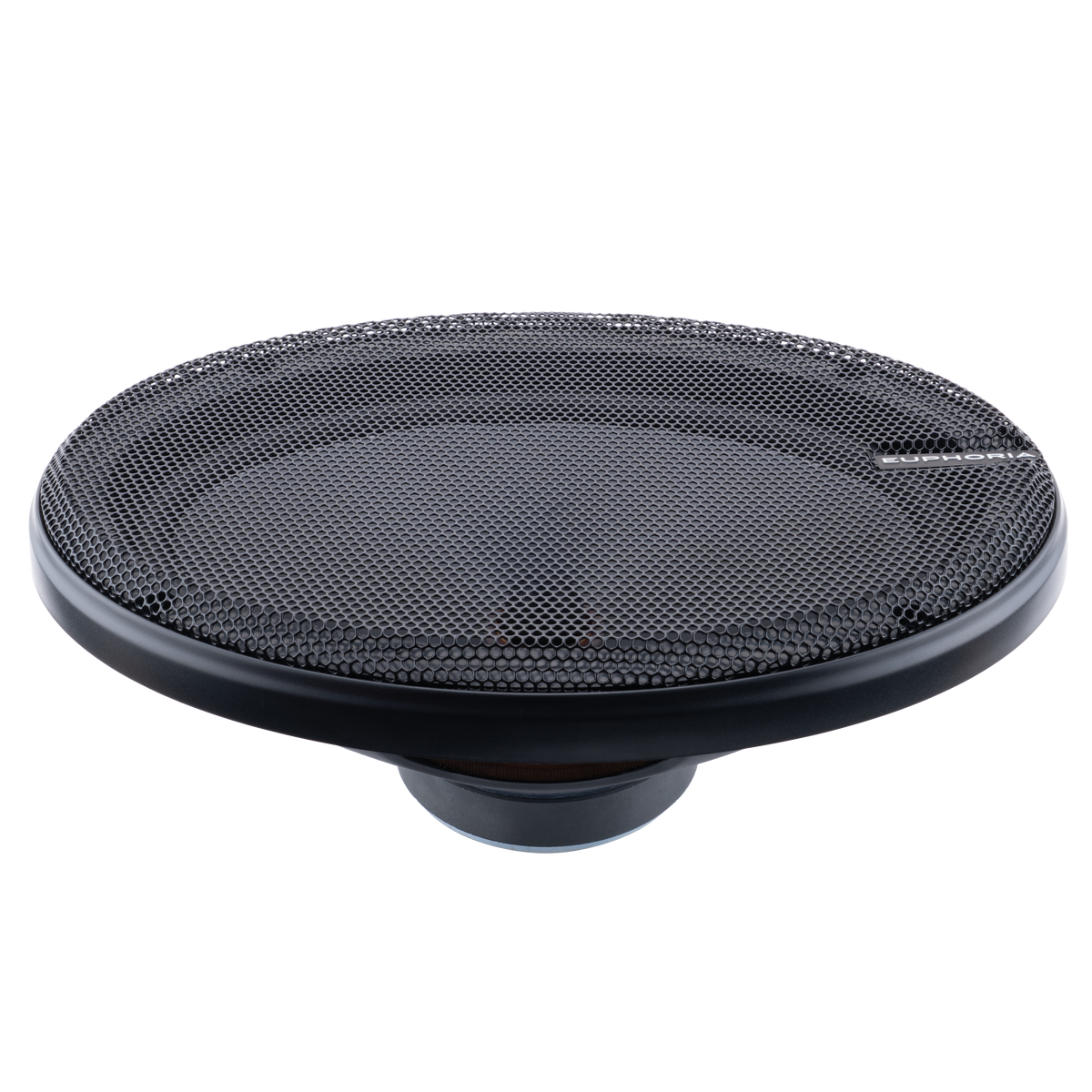

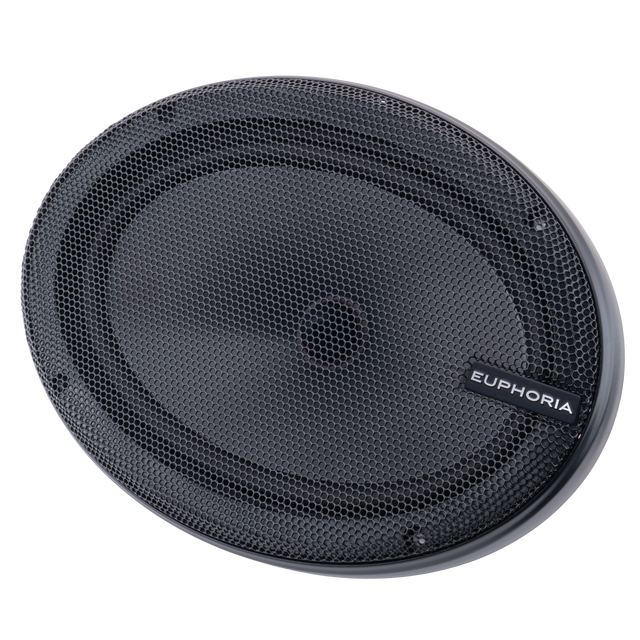

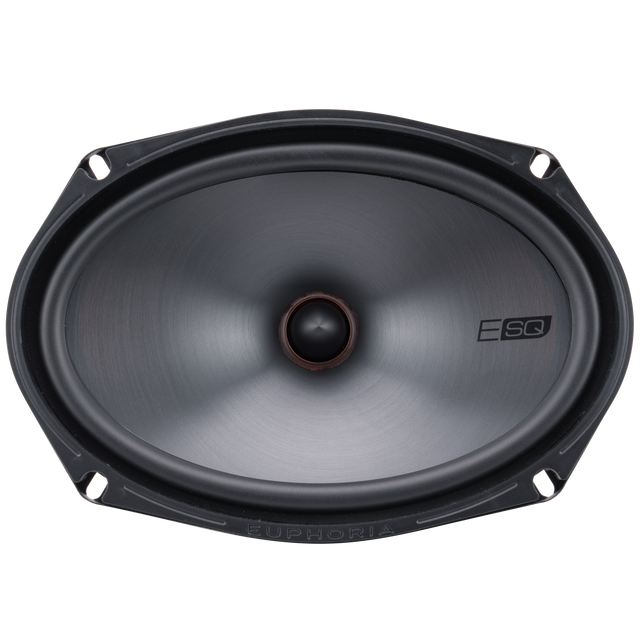

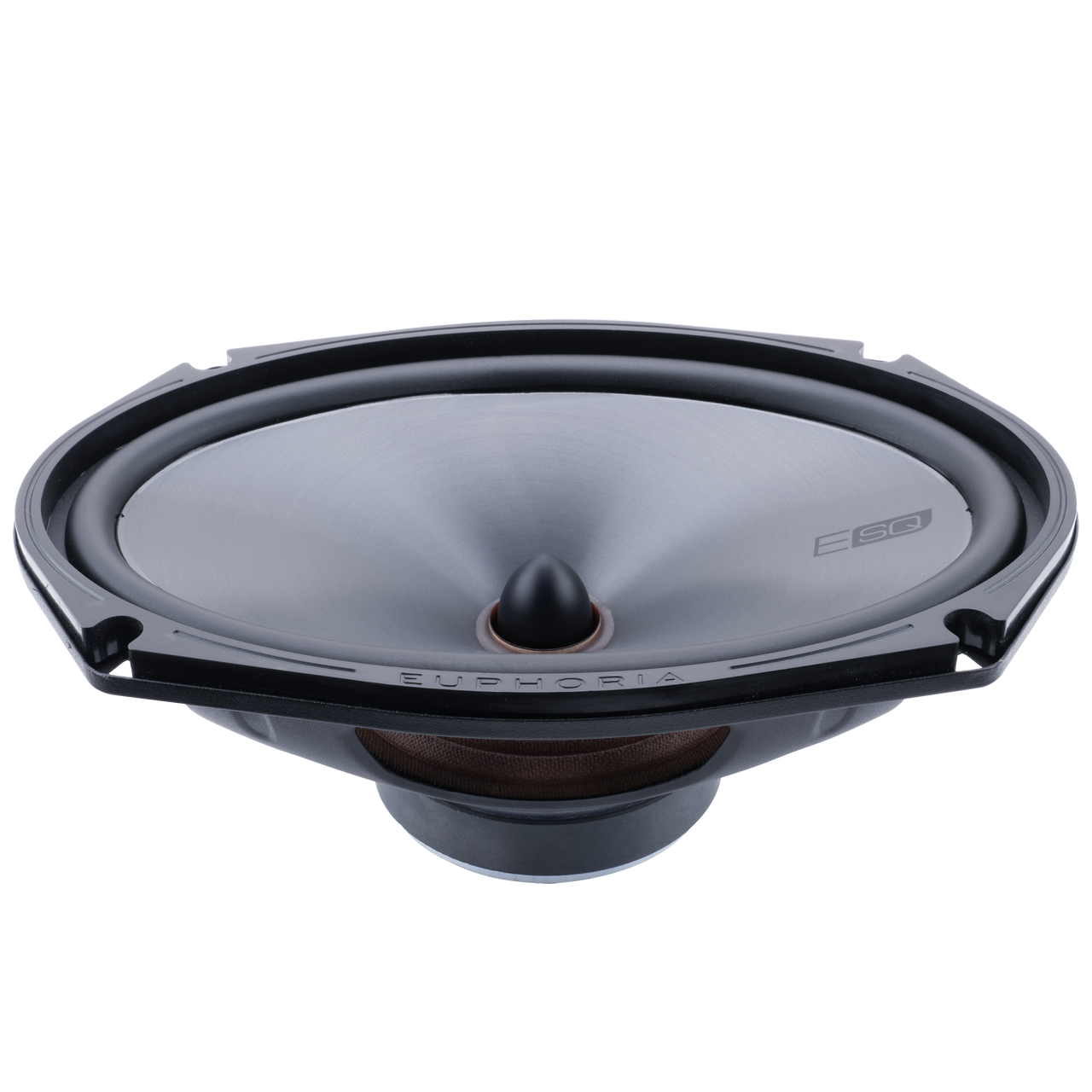

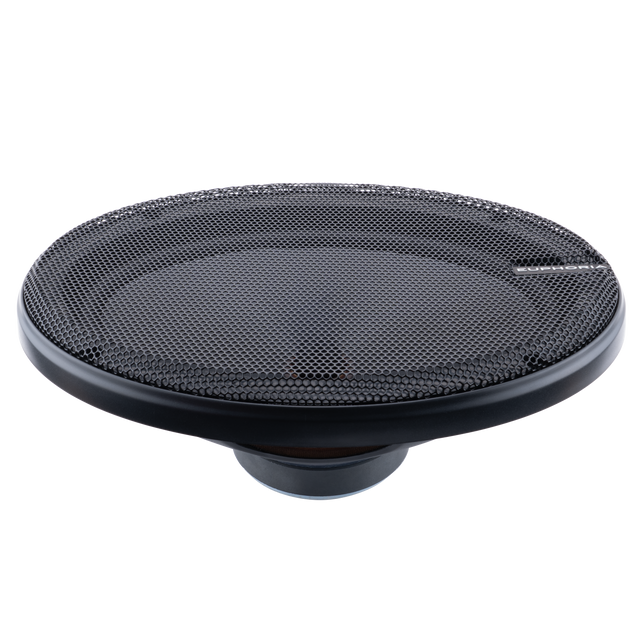

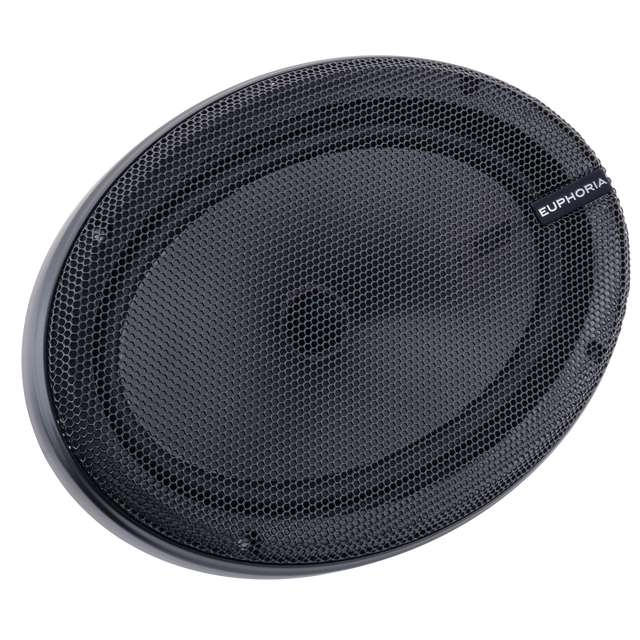

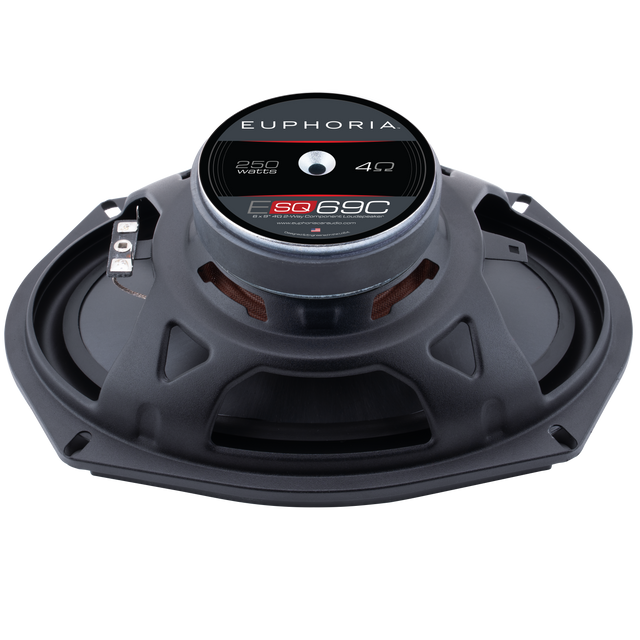

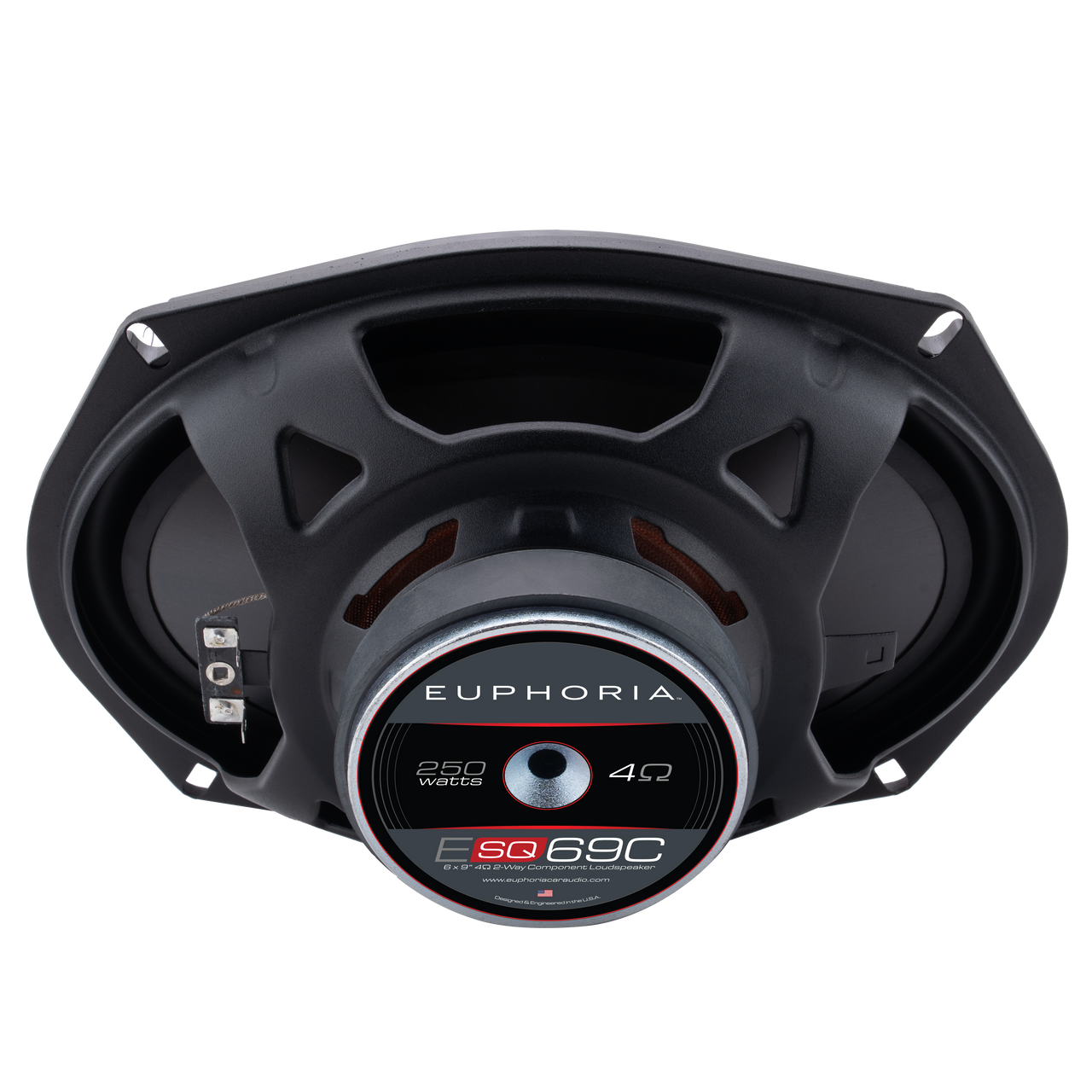

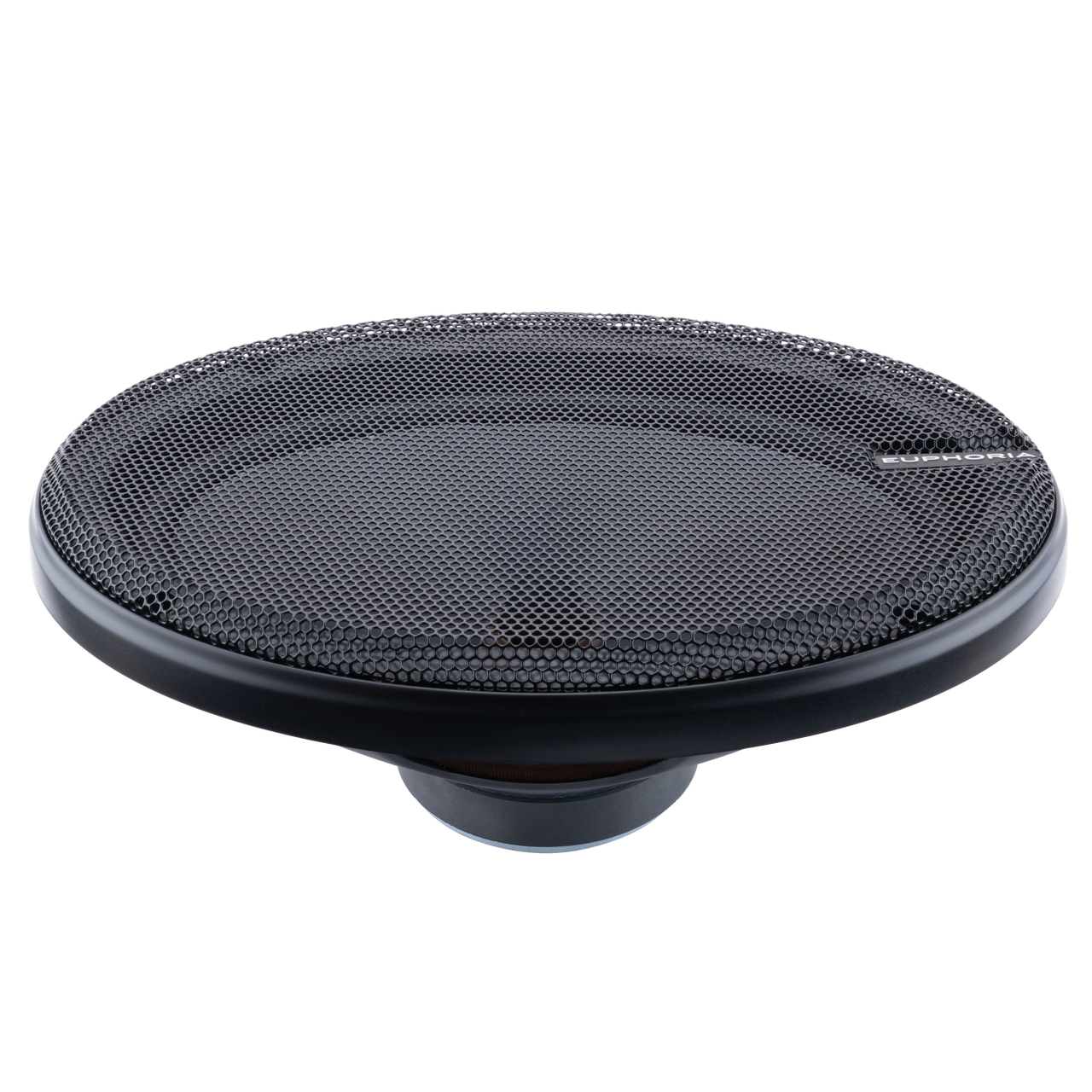

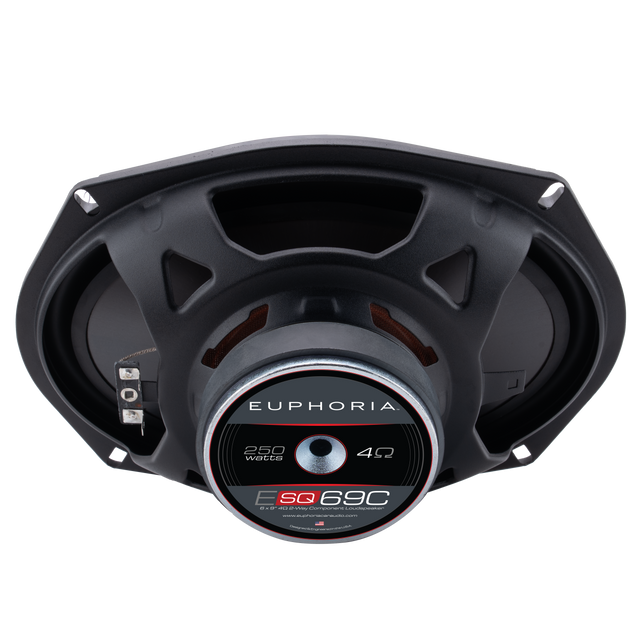

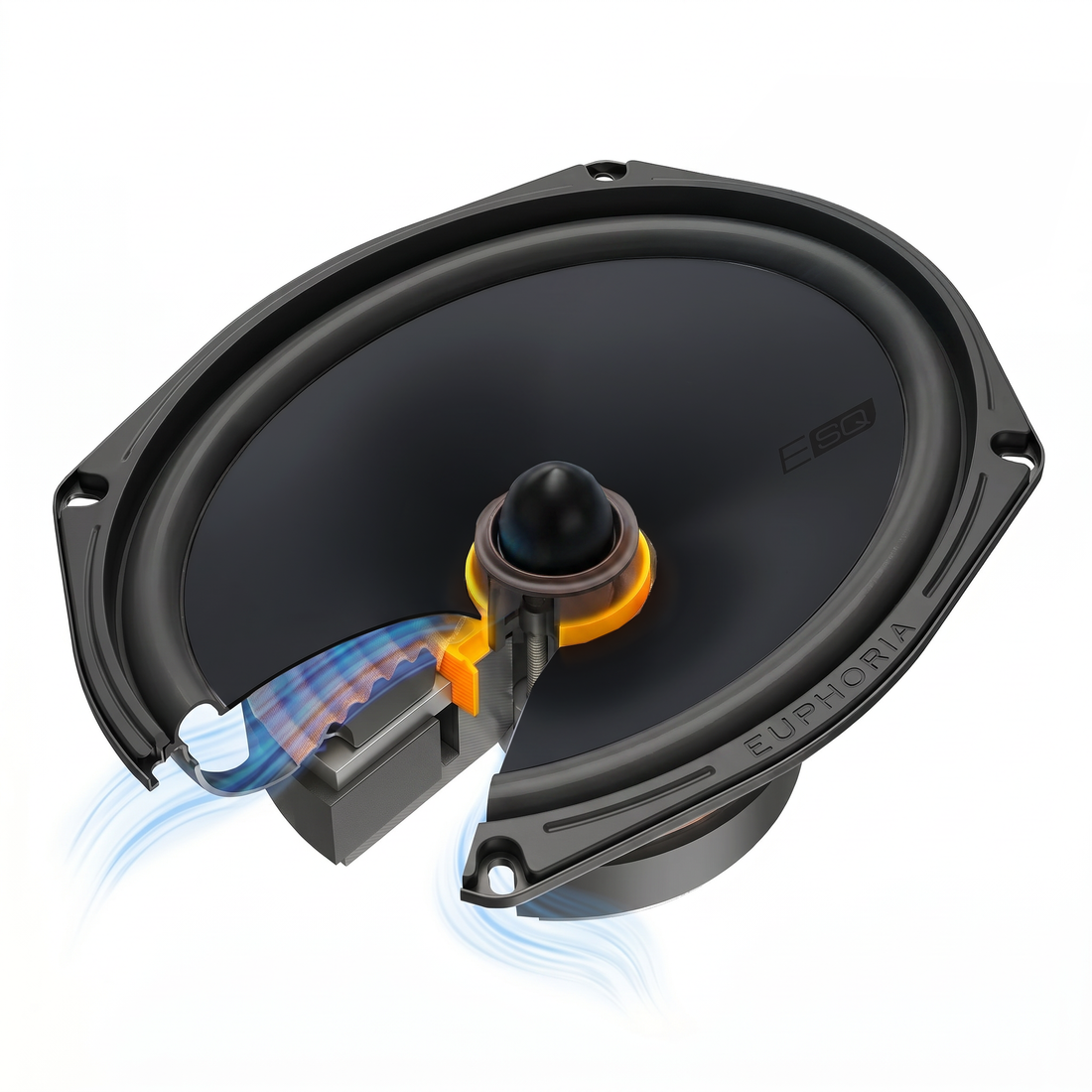

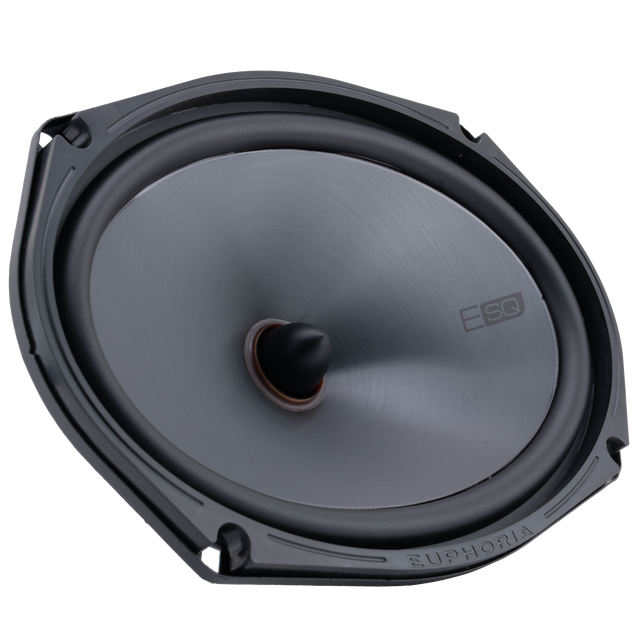

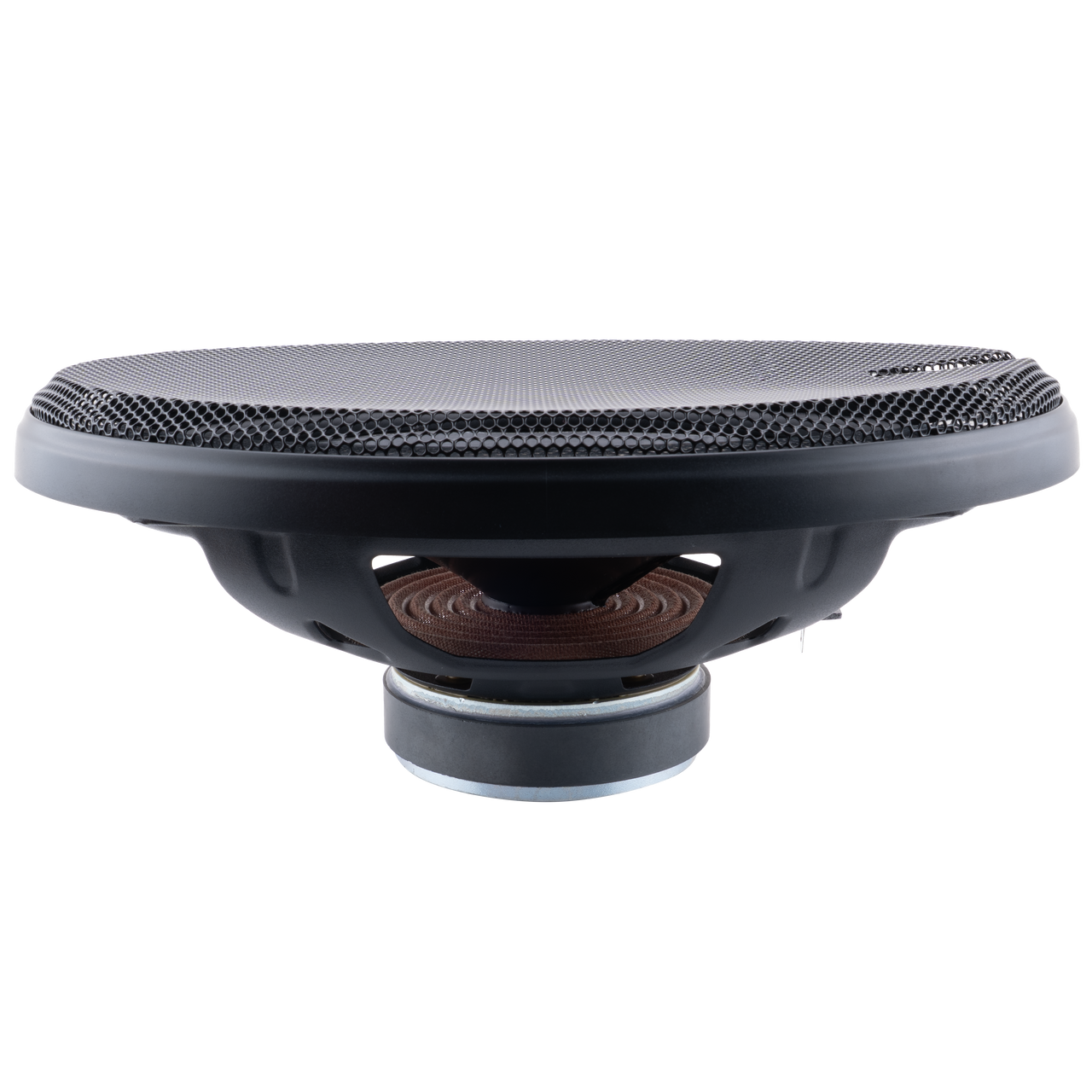

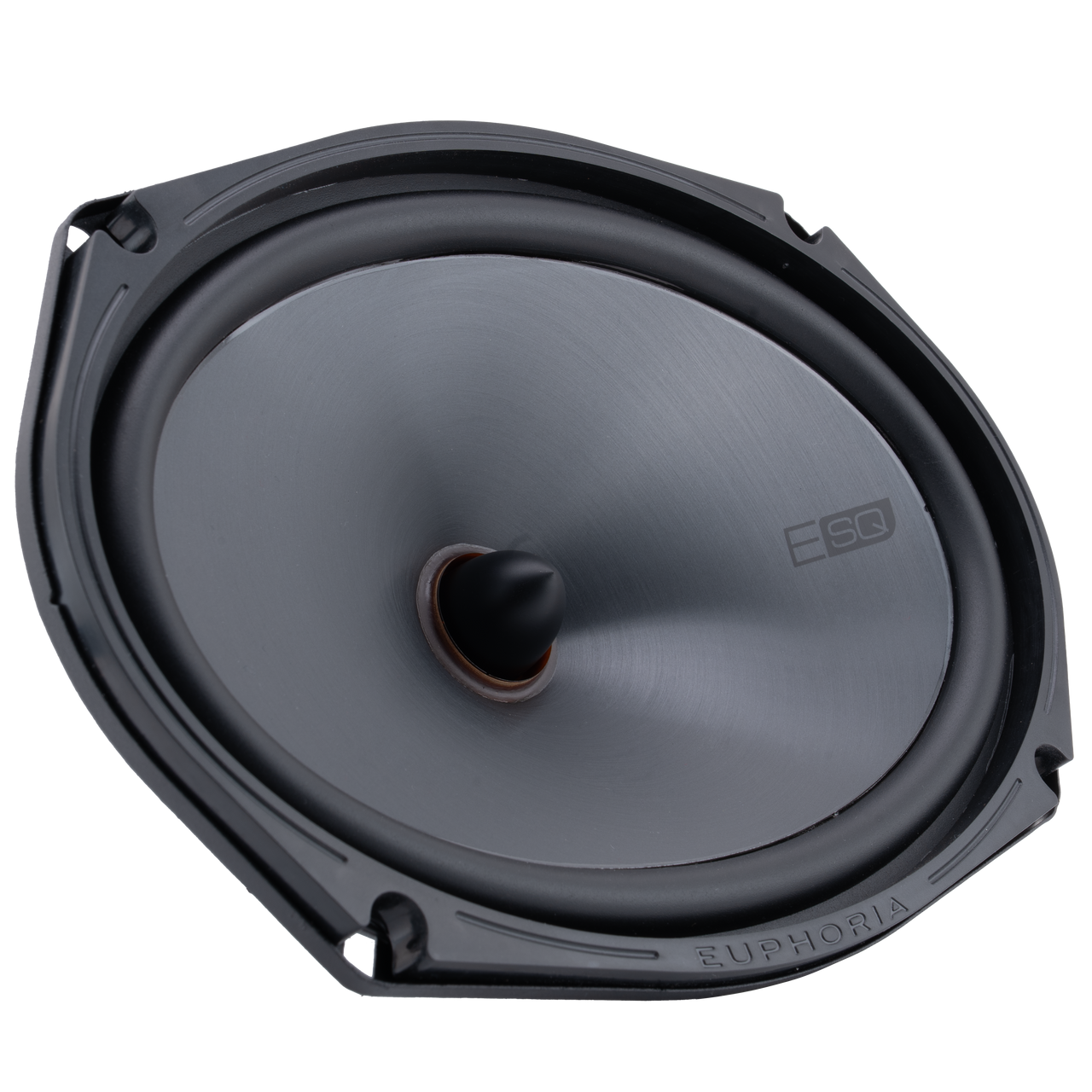

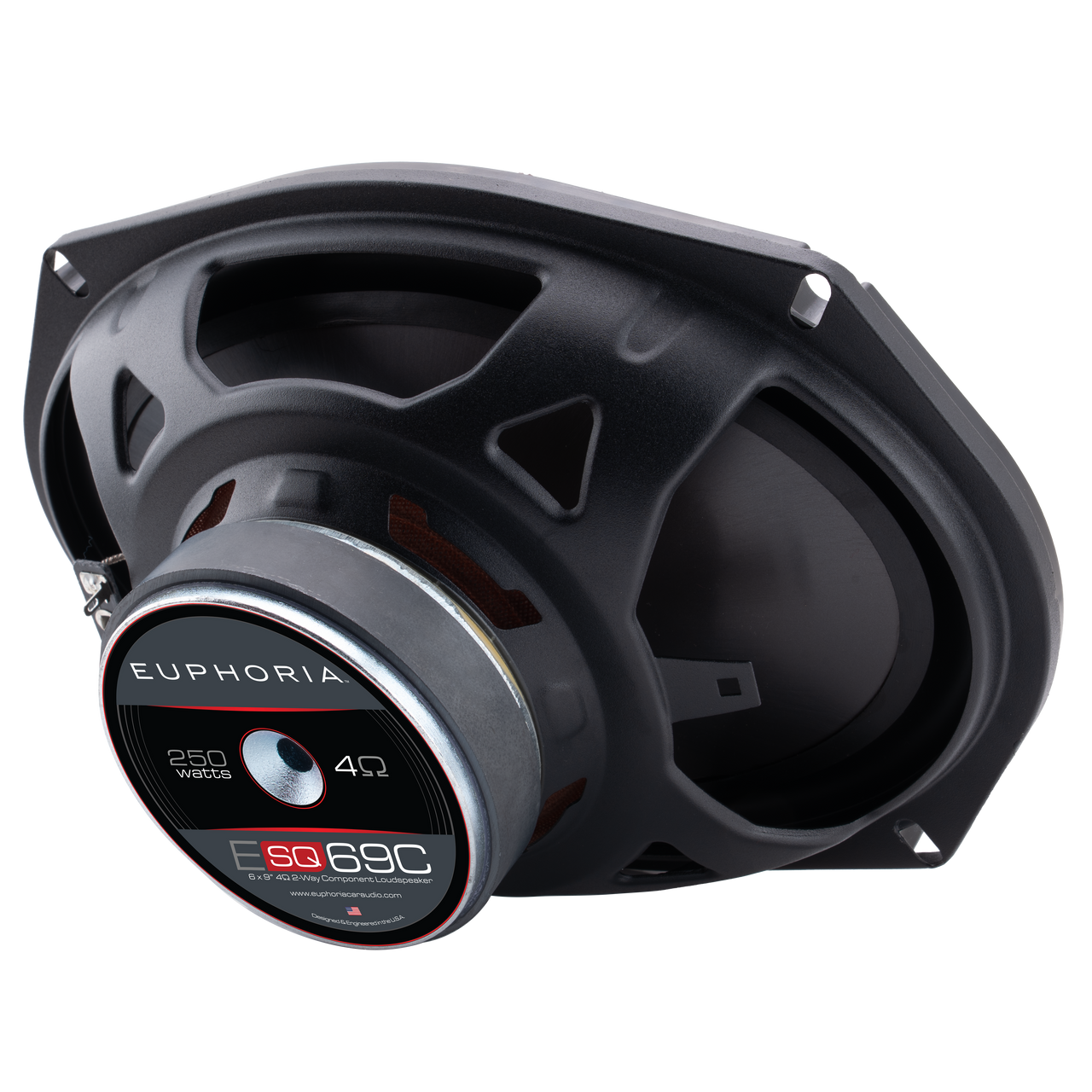

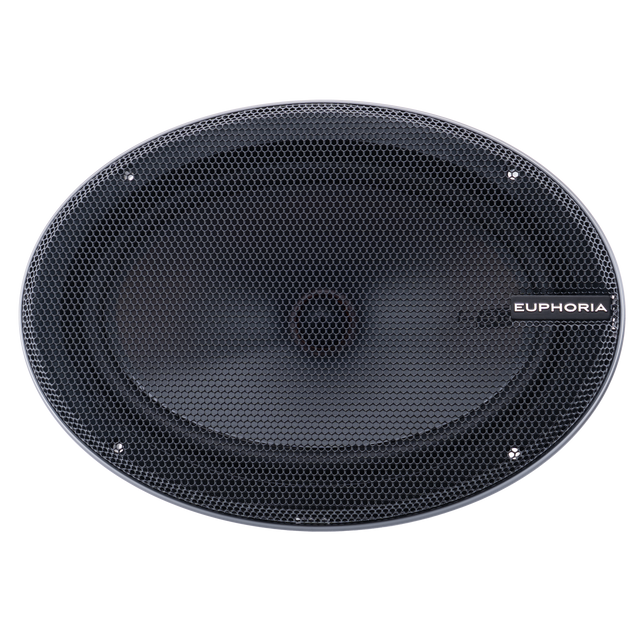

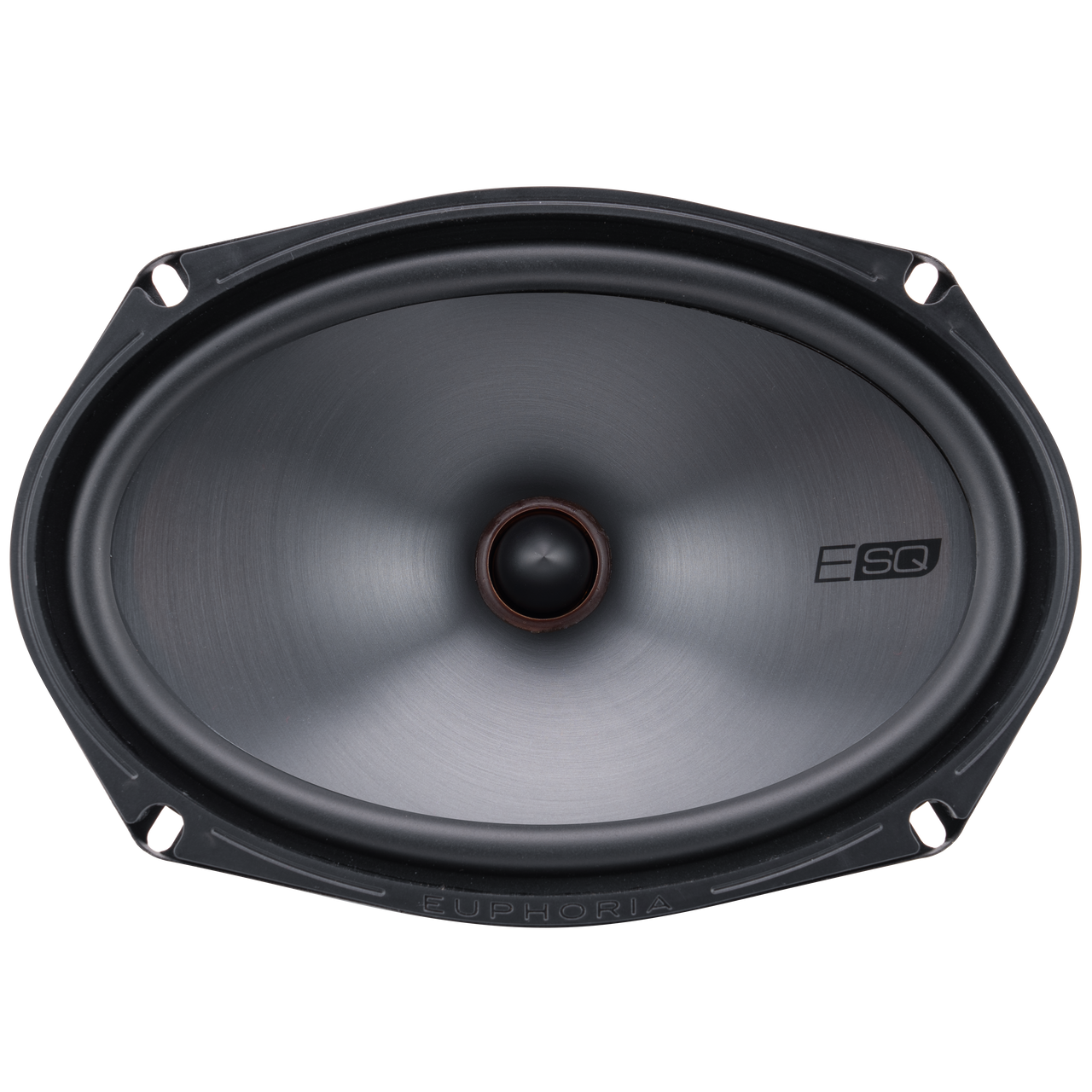

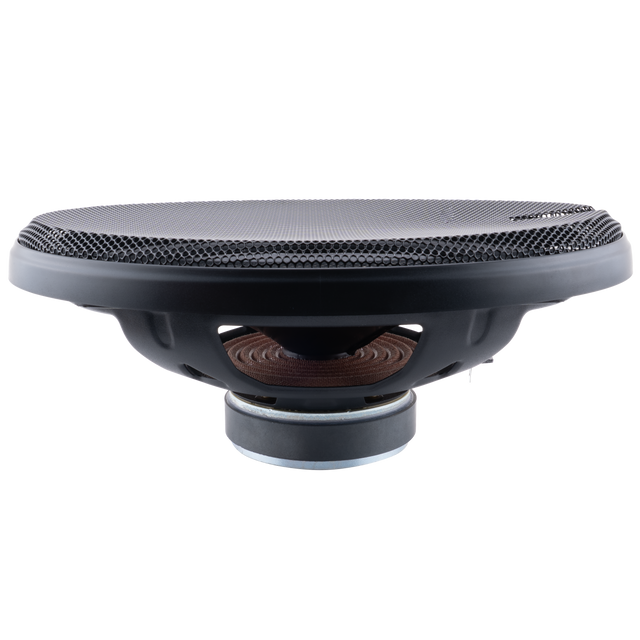

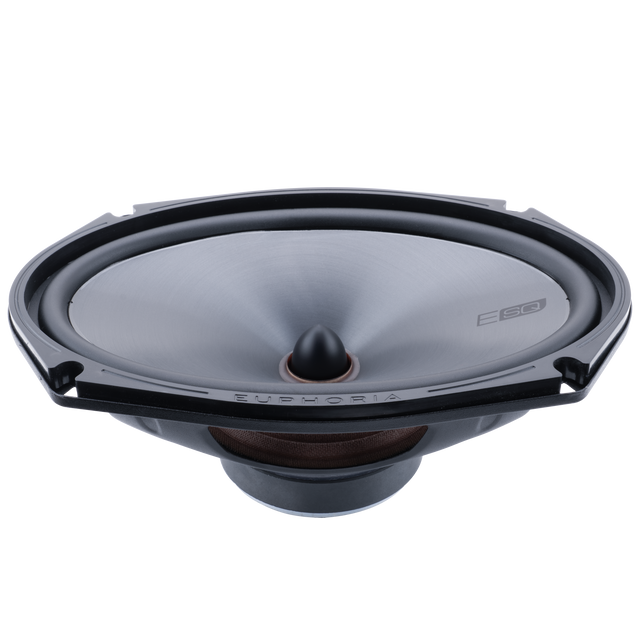

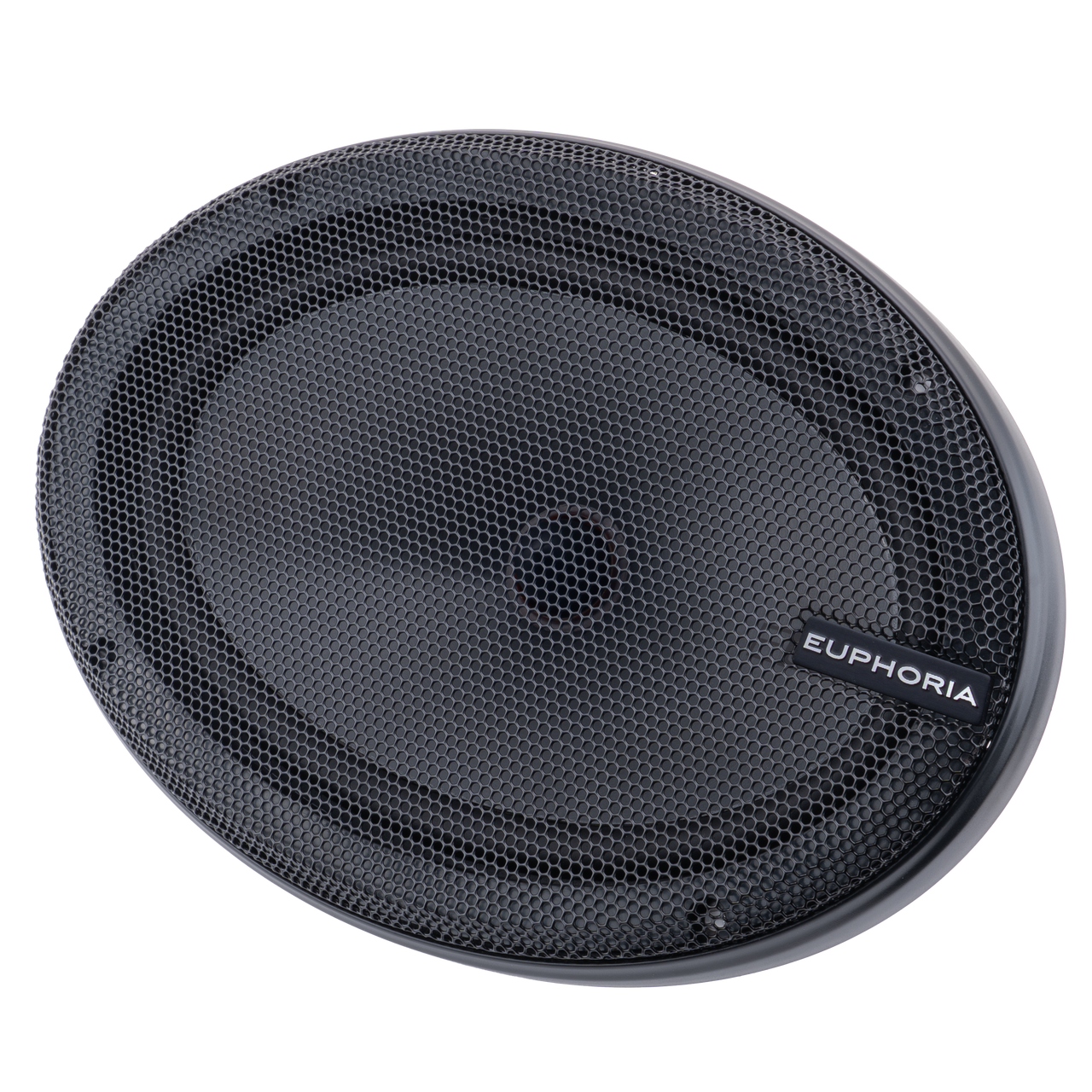

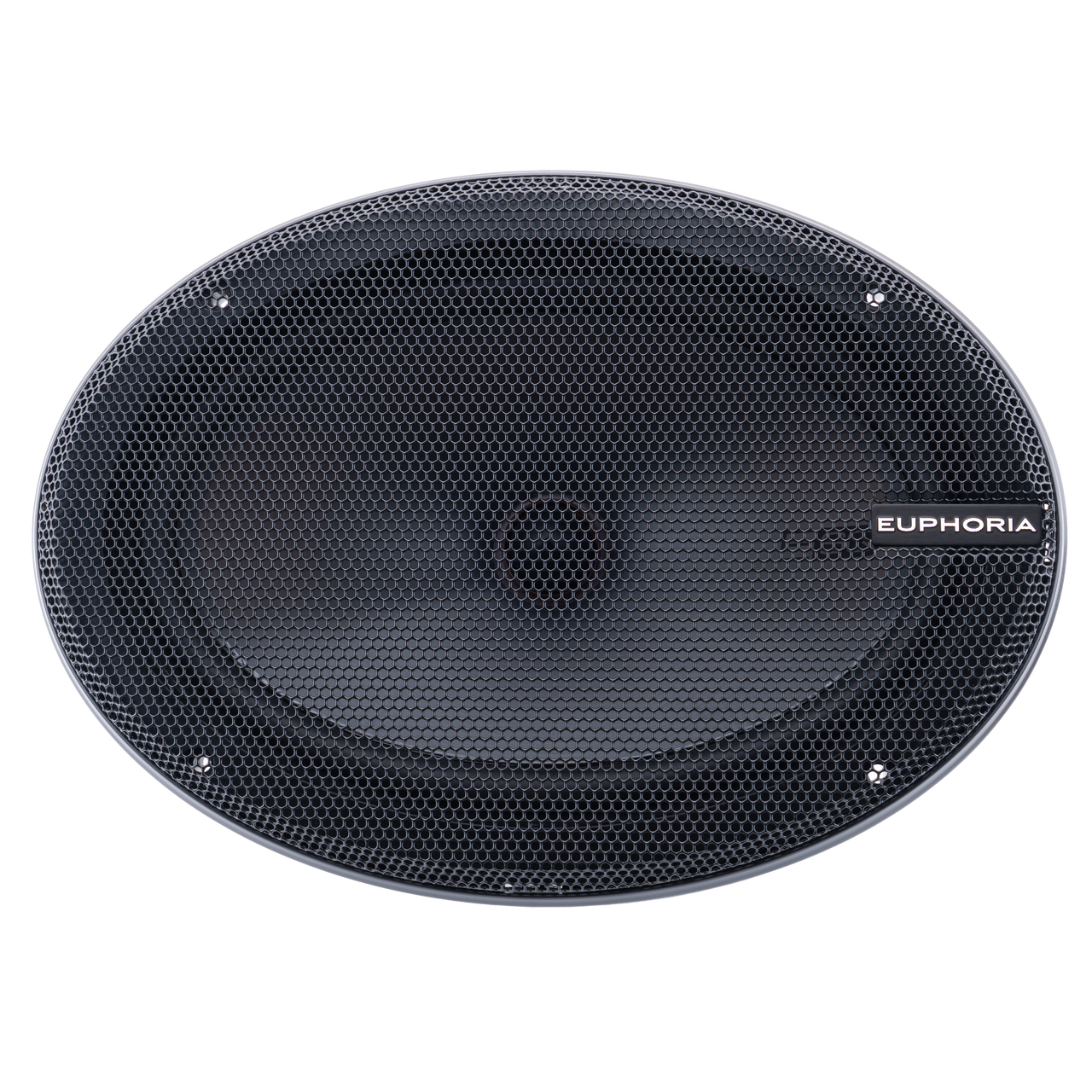

| 6x9" Loudspeaker Dimensions |
| Overall Diameter: 6.41 x 9.25"/ 163 x 235 mm
|
| Mounting Depth: 2.91"/ 74 mm |
| Cutout Diameter: 5.91 x 8.67"/ 150.2 x 220.2 mm |
|

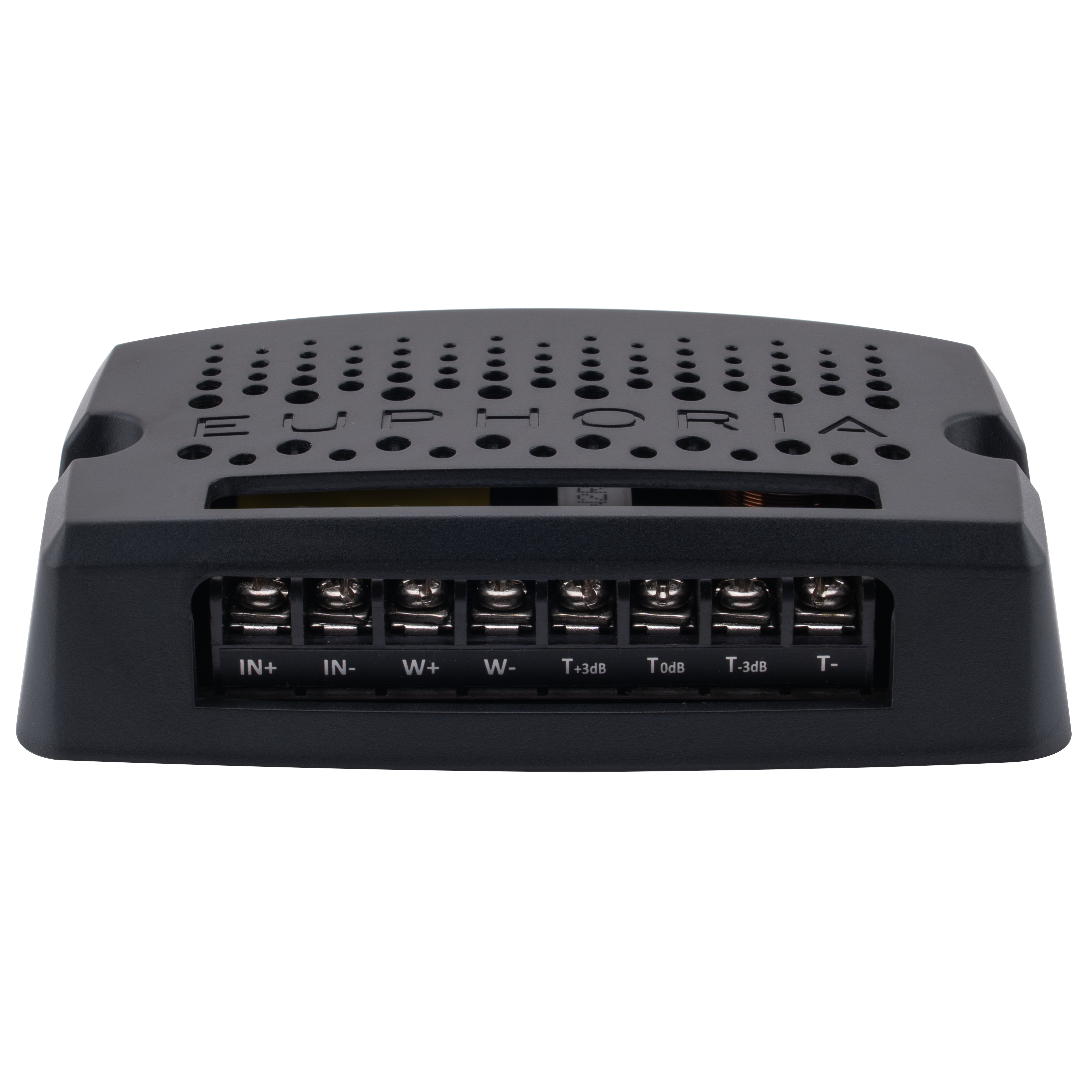

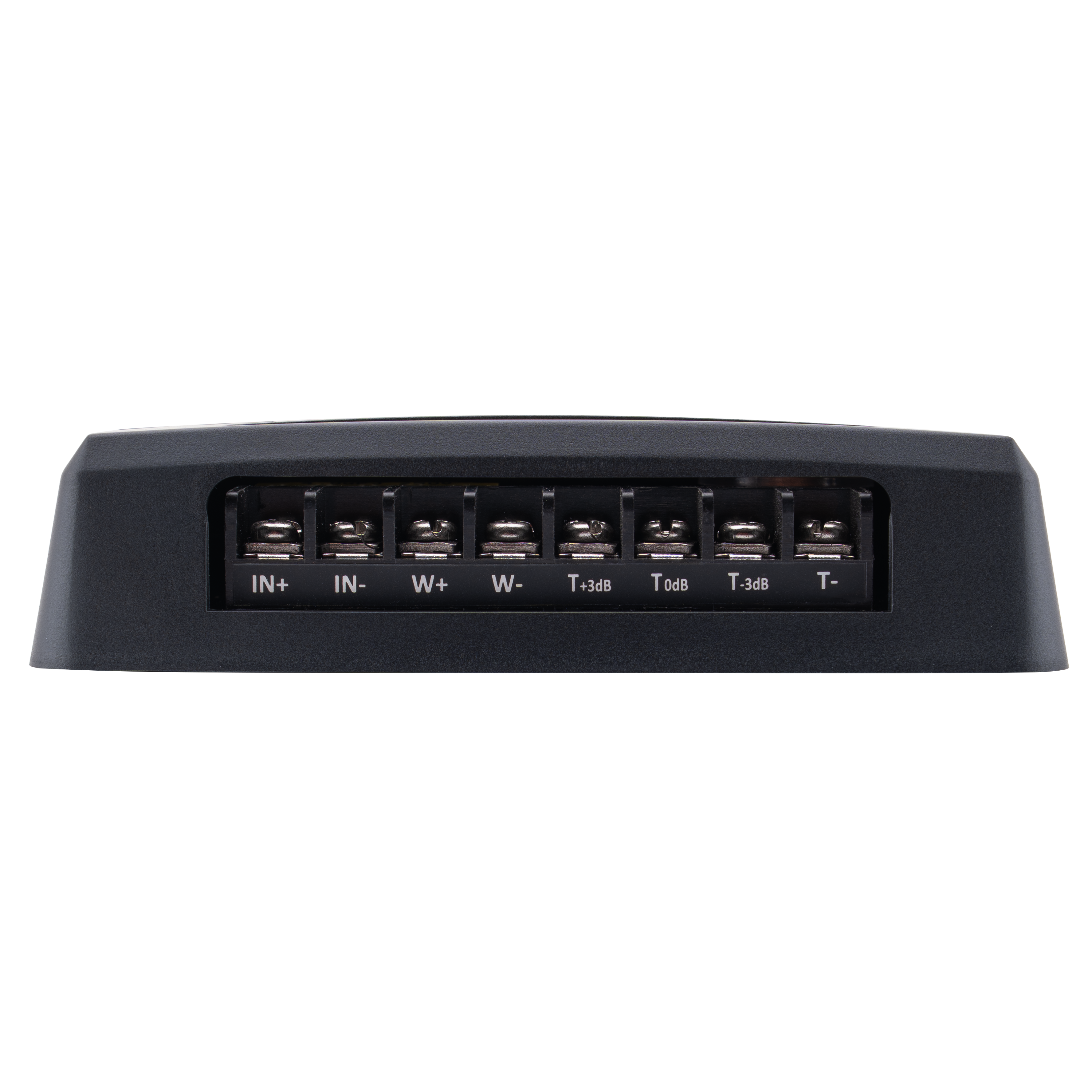

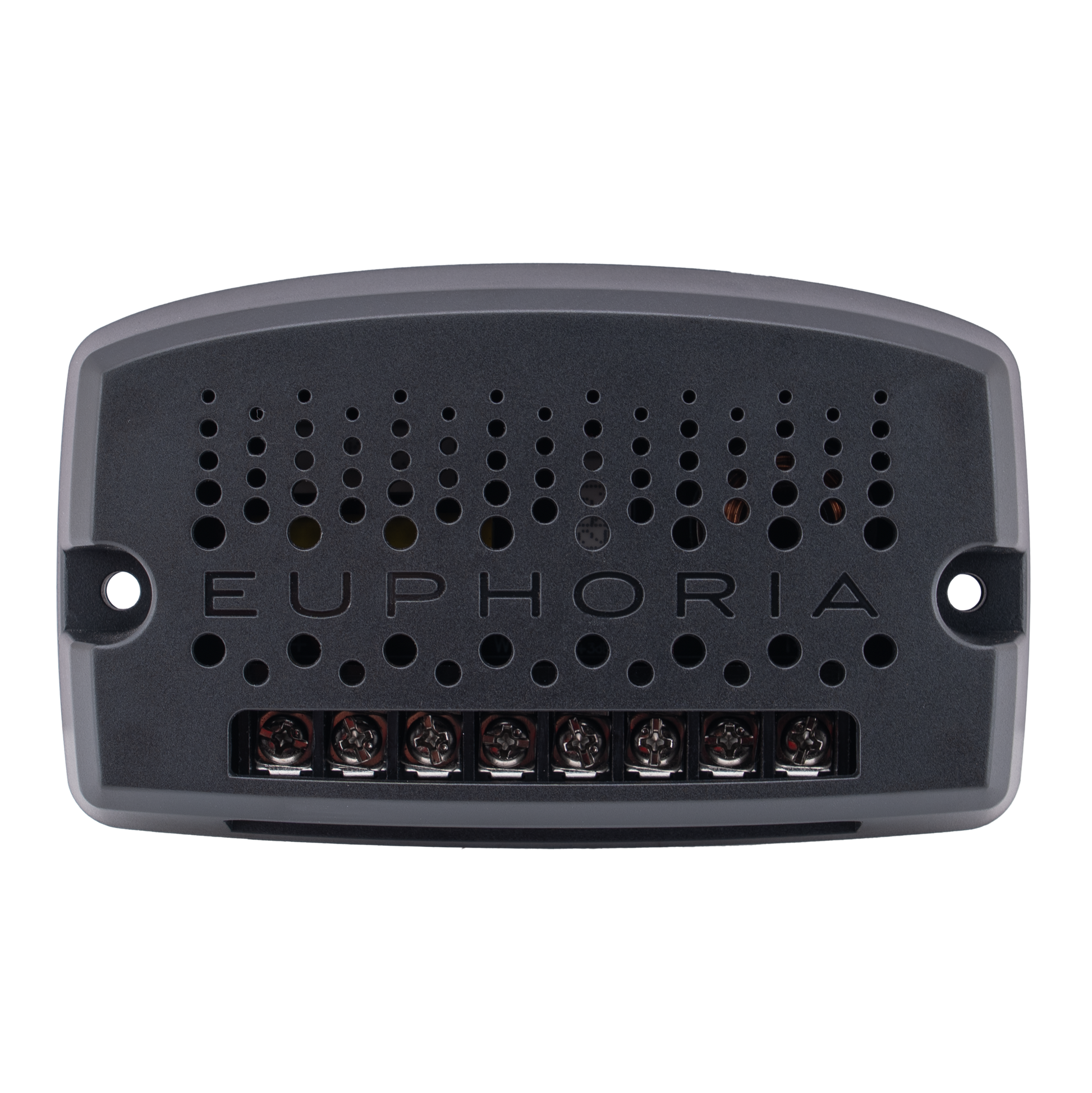

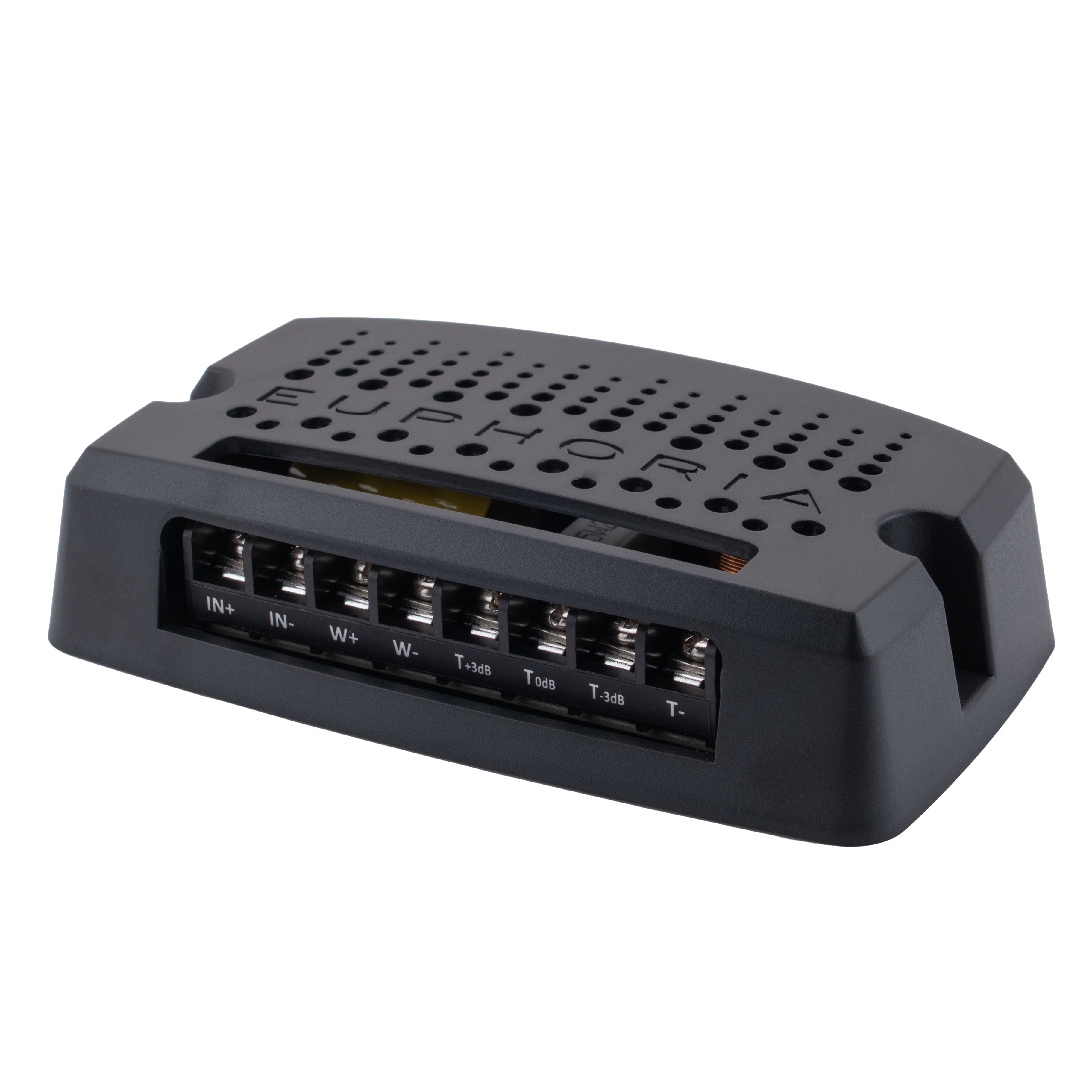

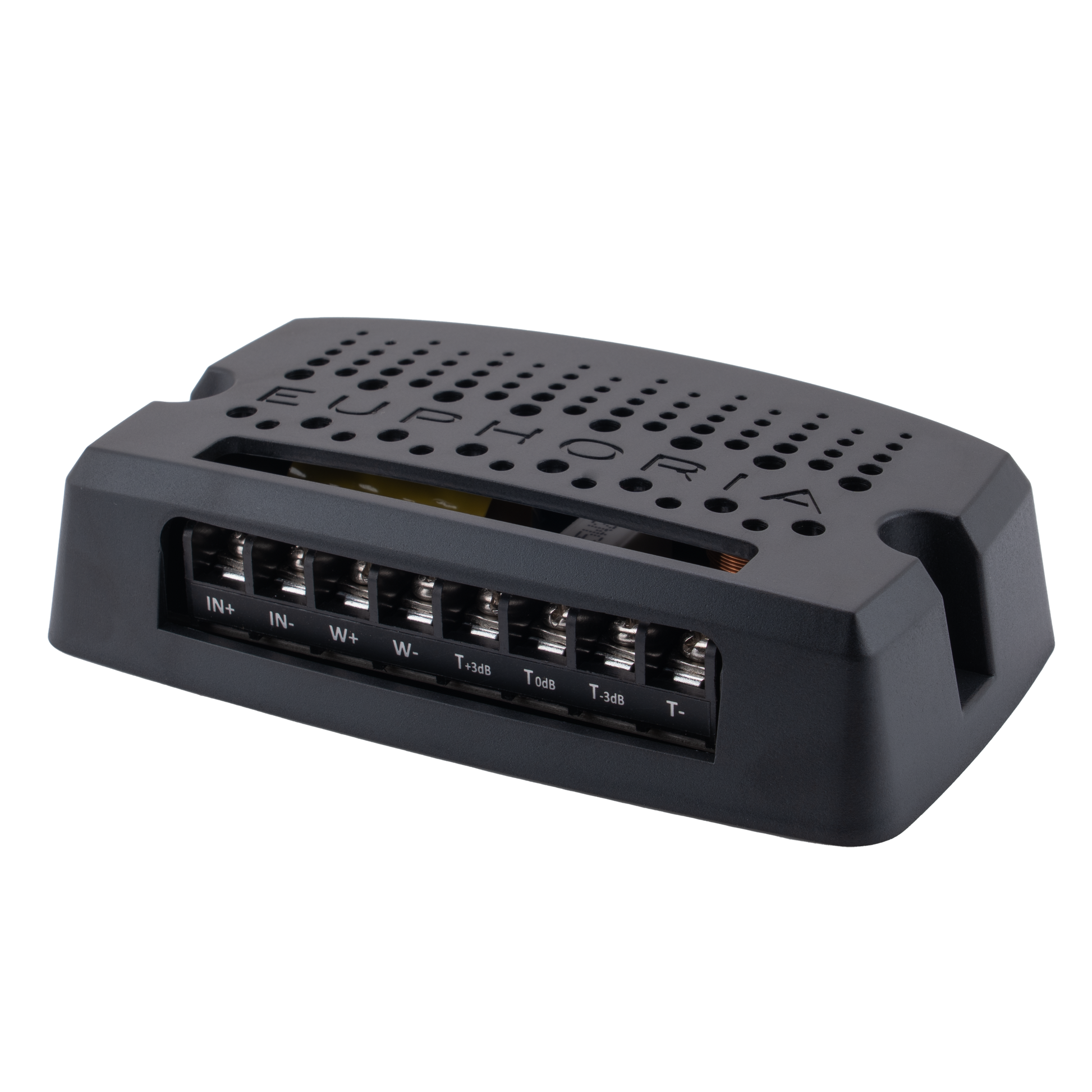

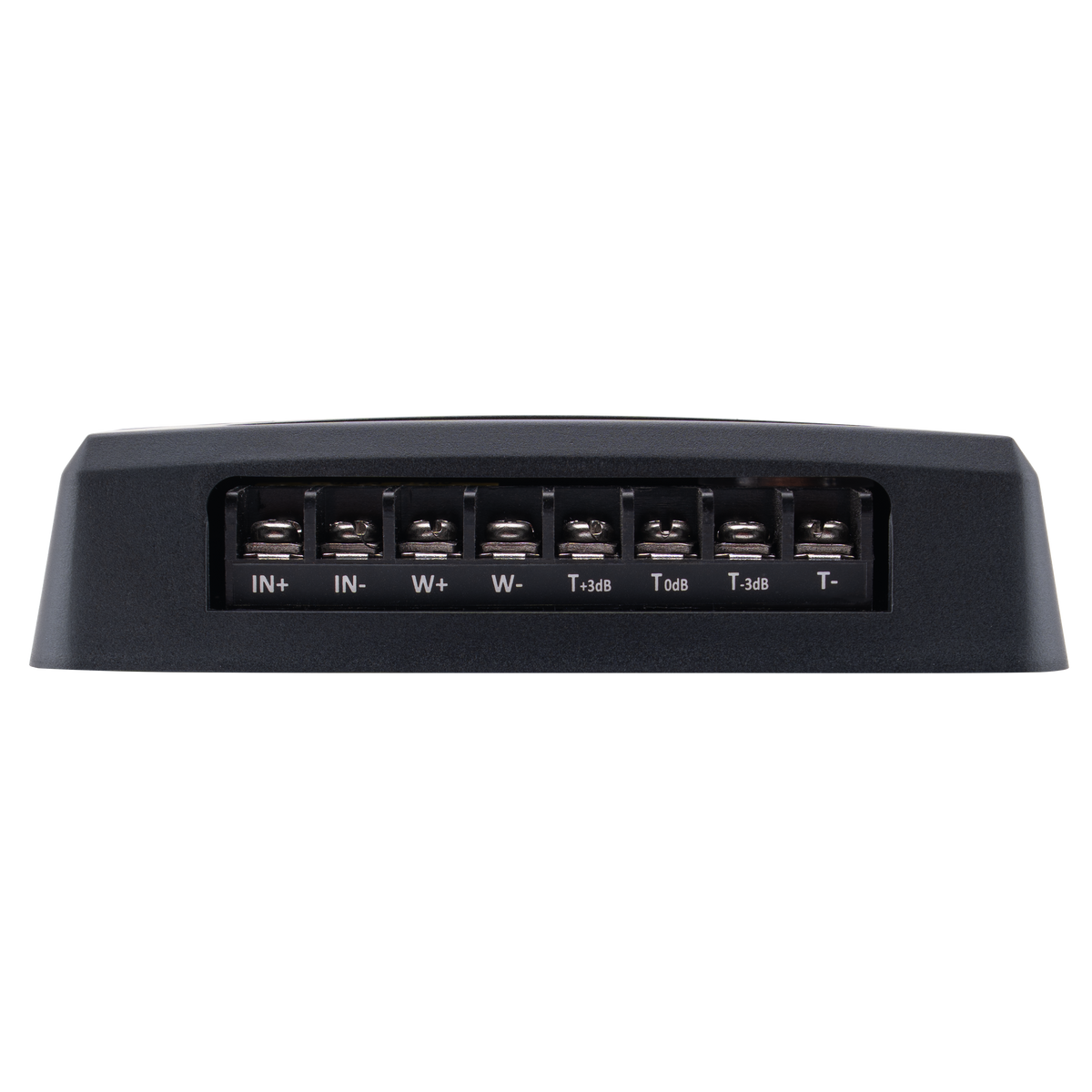

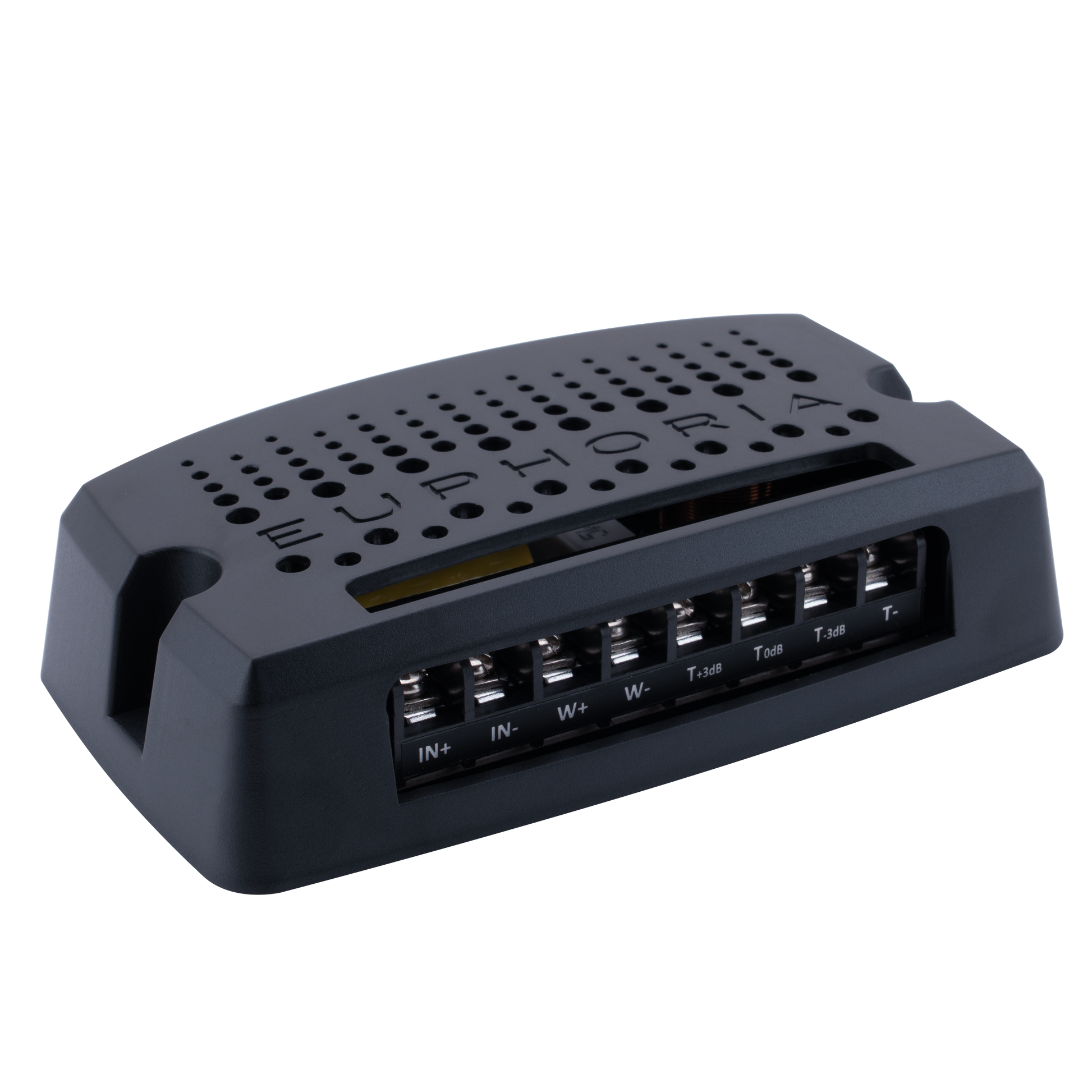

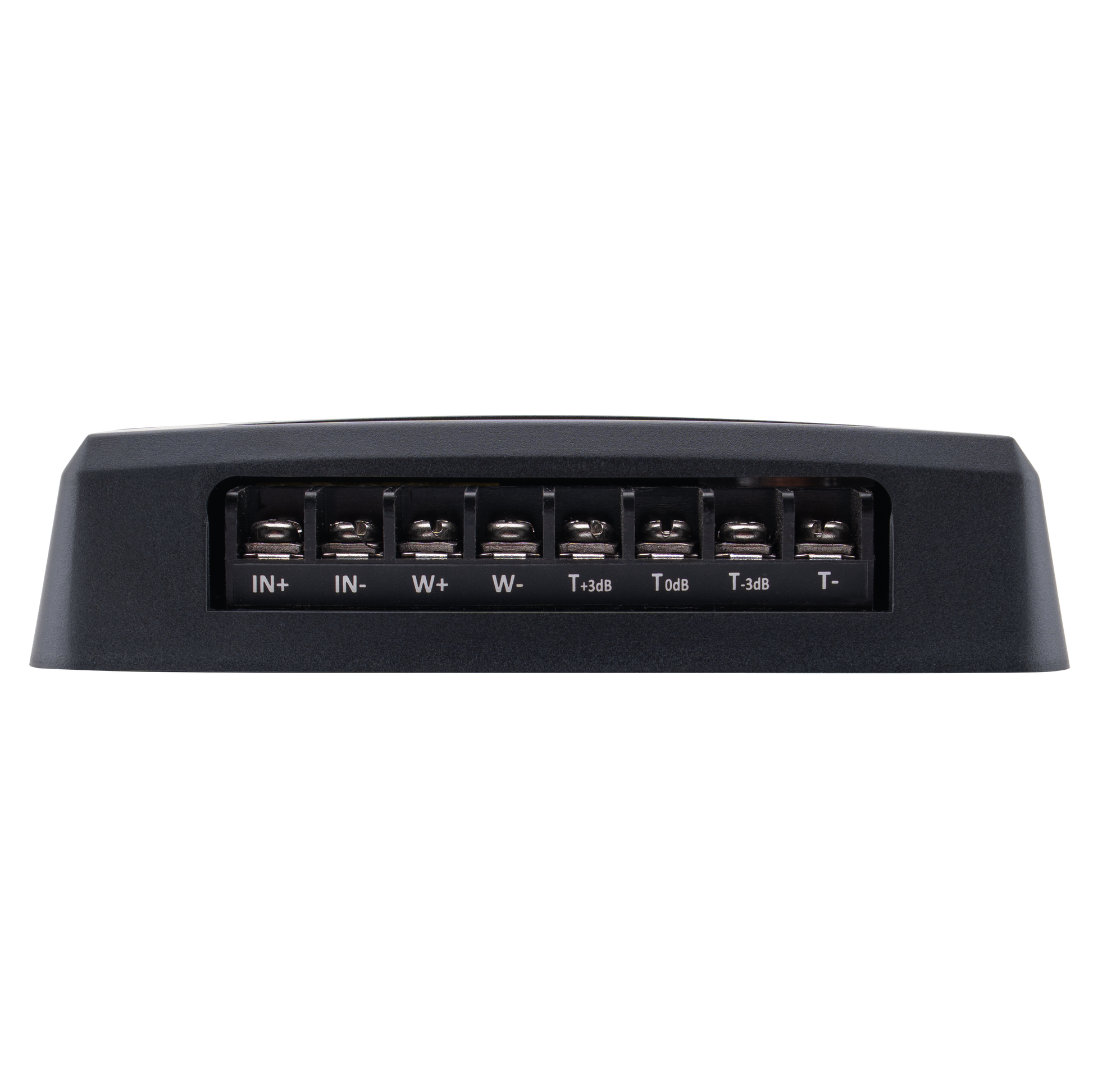

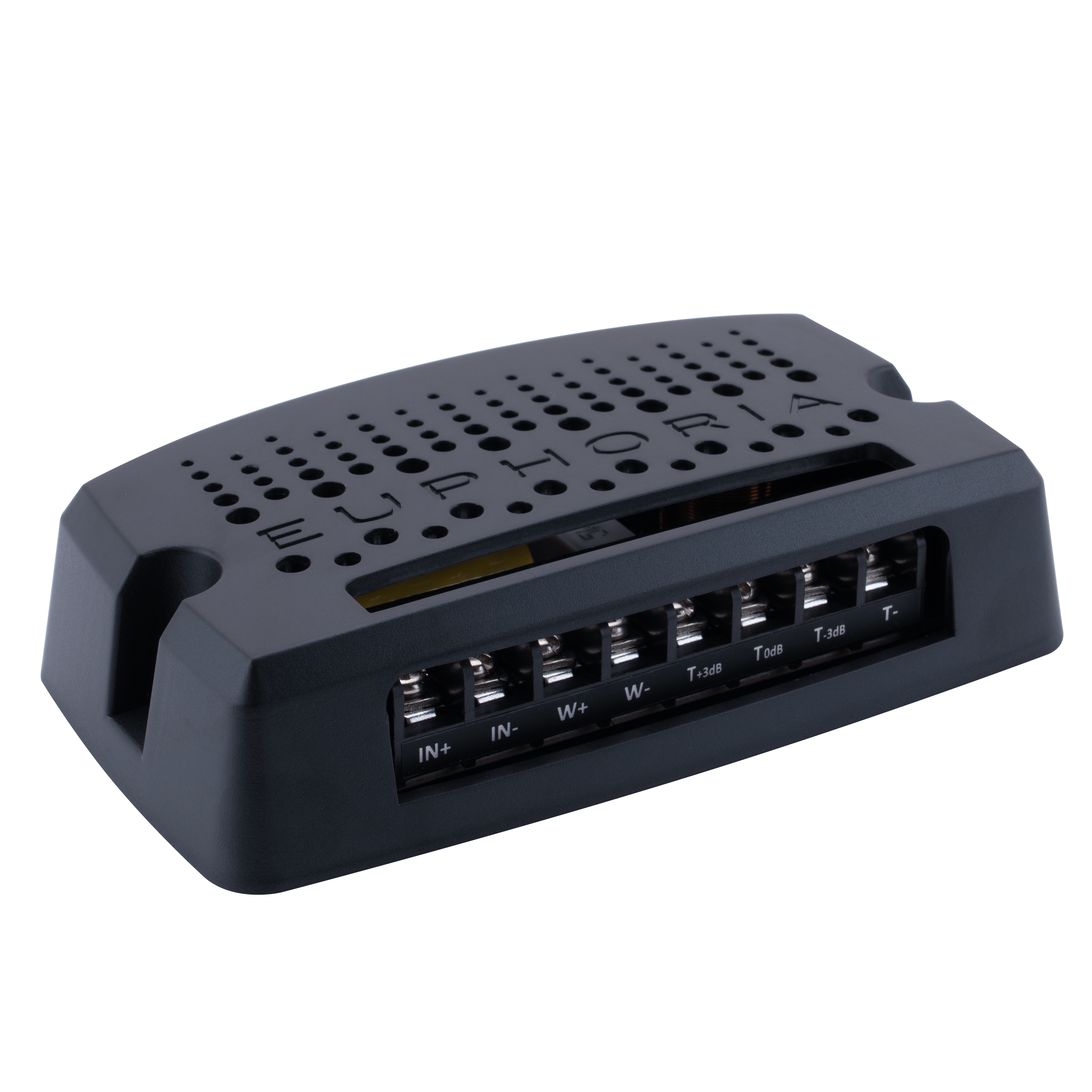

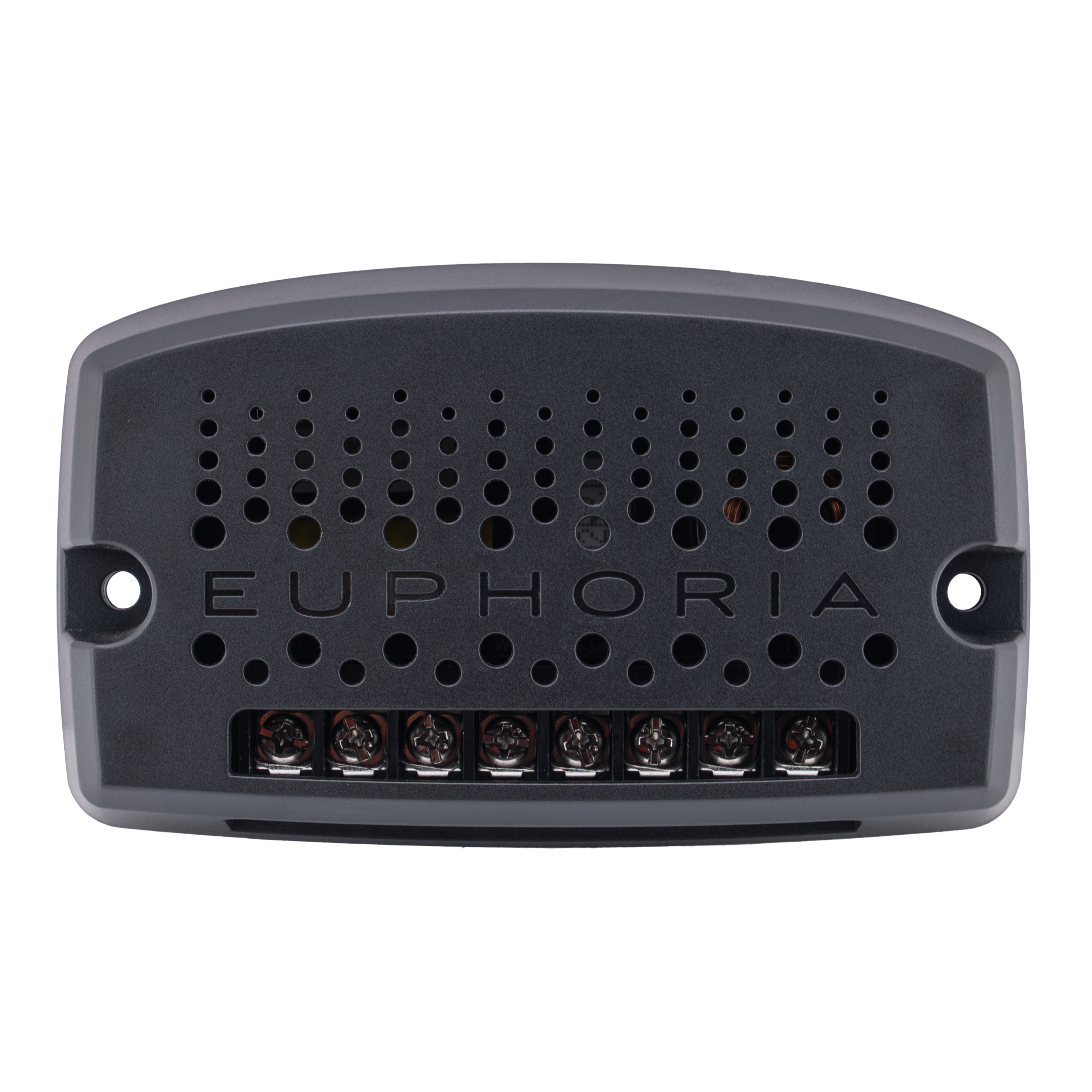

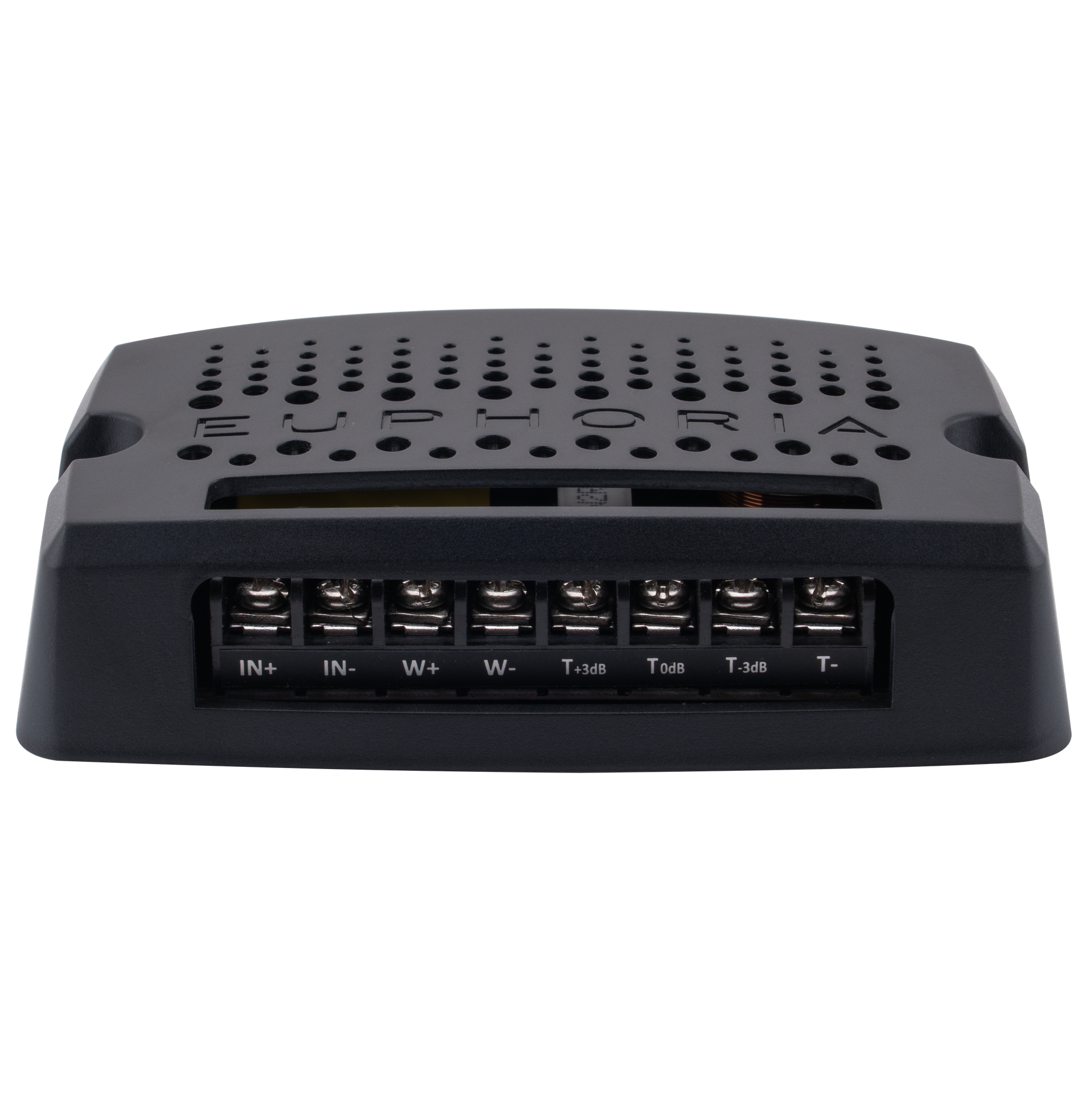

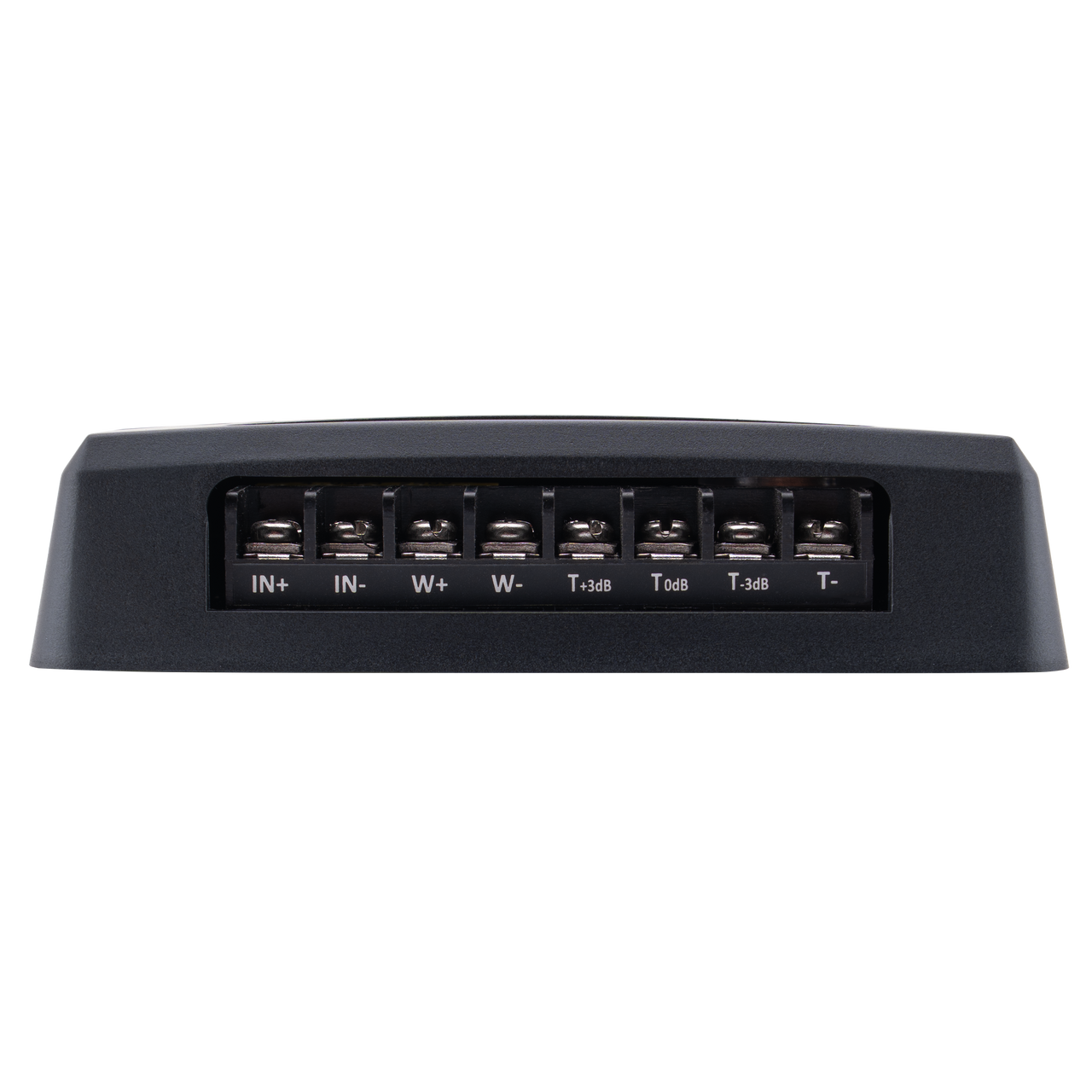

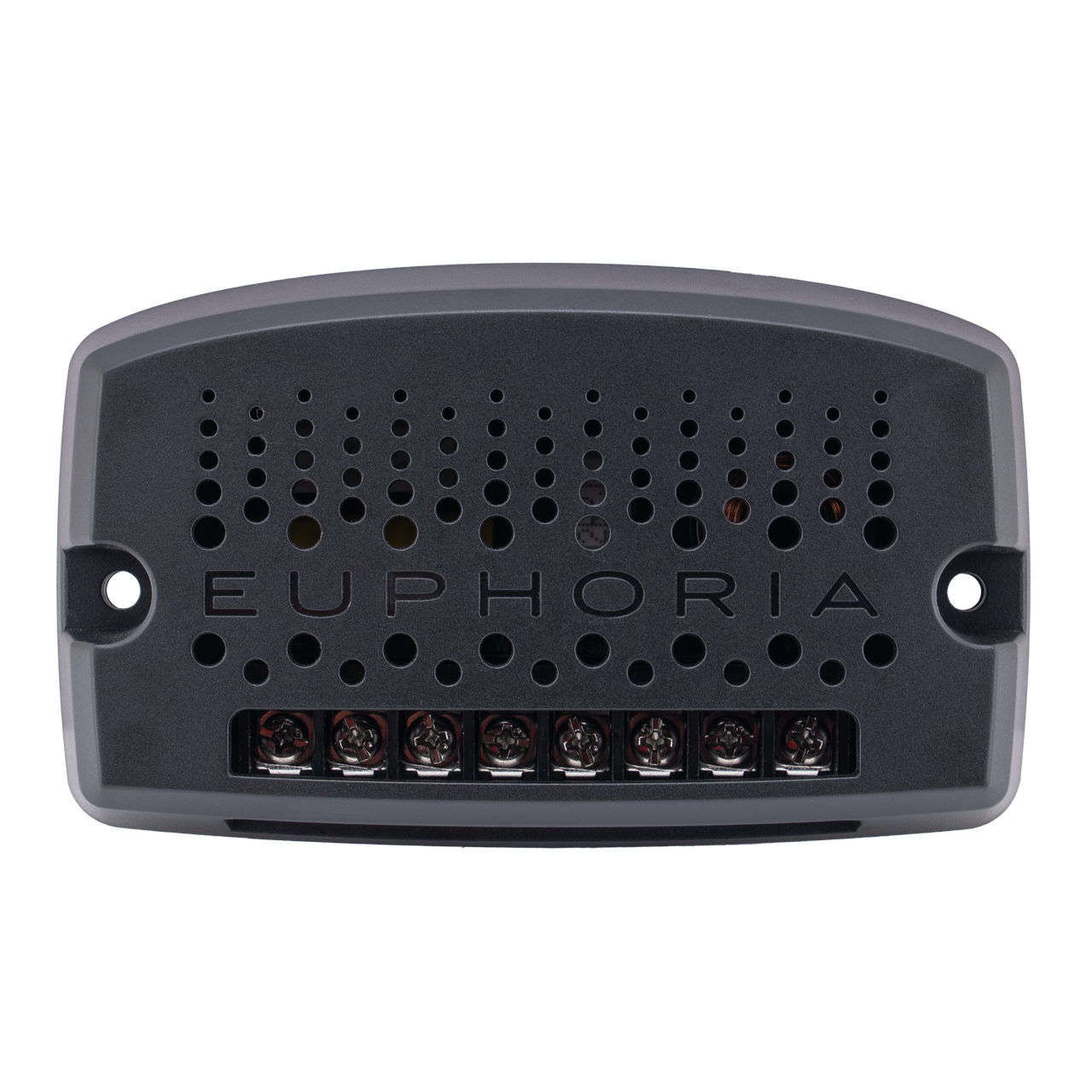

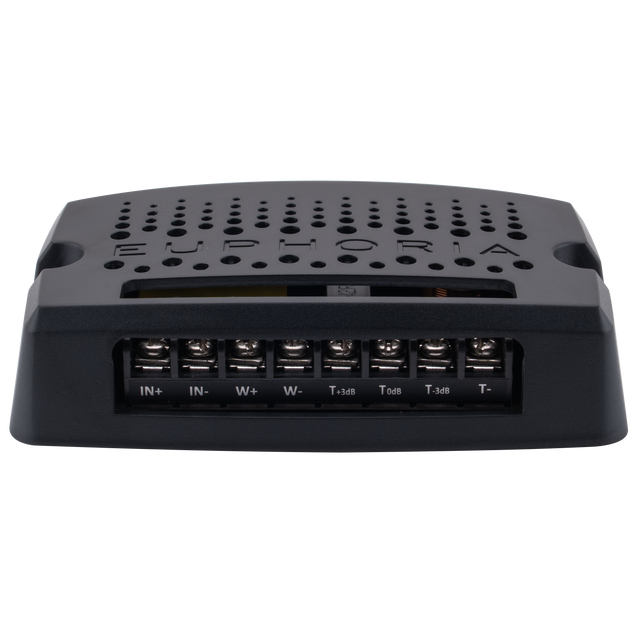

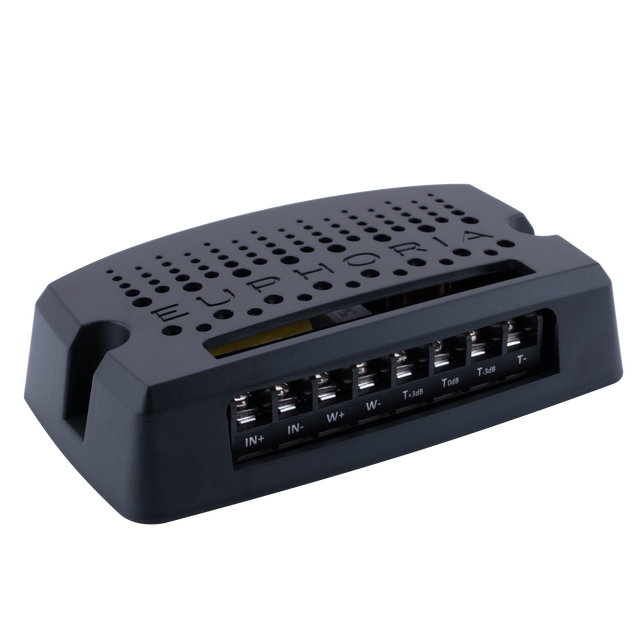

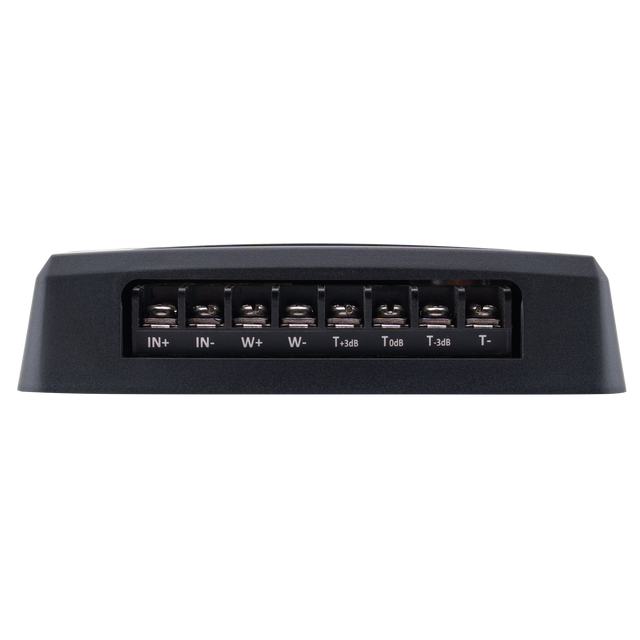

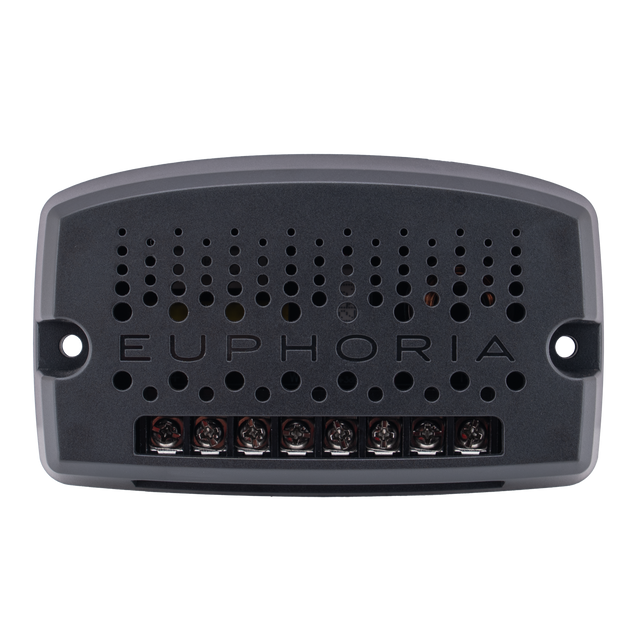

| Crossover Dimensions |
| Length: 5.06"/ 128.6 mm |
| Width: 3.04"/ 77.1 mm |
| Height: 1.17"/ 29.6 mm |
