Features
- High Temp Voice Coil Wire Around Vented KSV Former

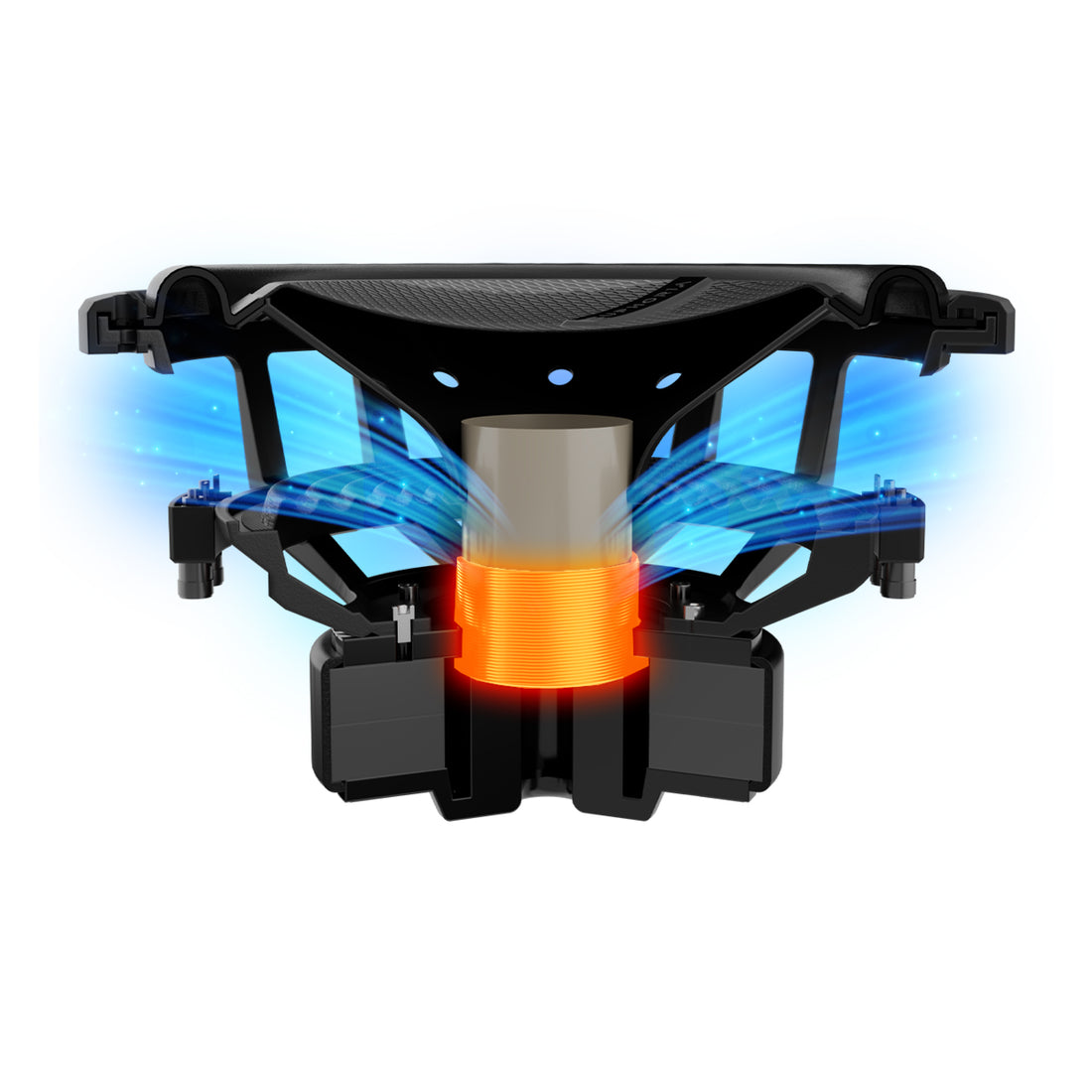

- Radial Basket Vents for Voice Coil Cooling
- Large Gauge Push Button Speaker Wire Terminals

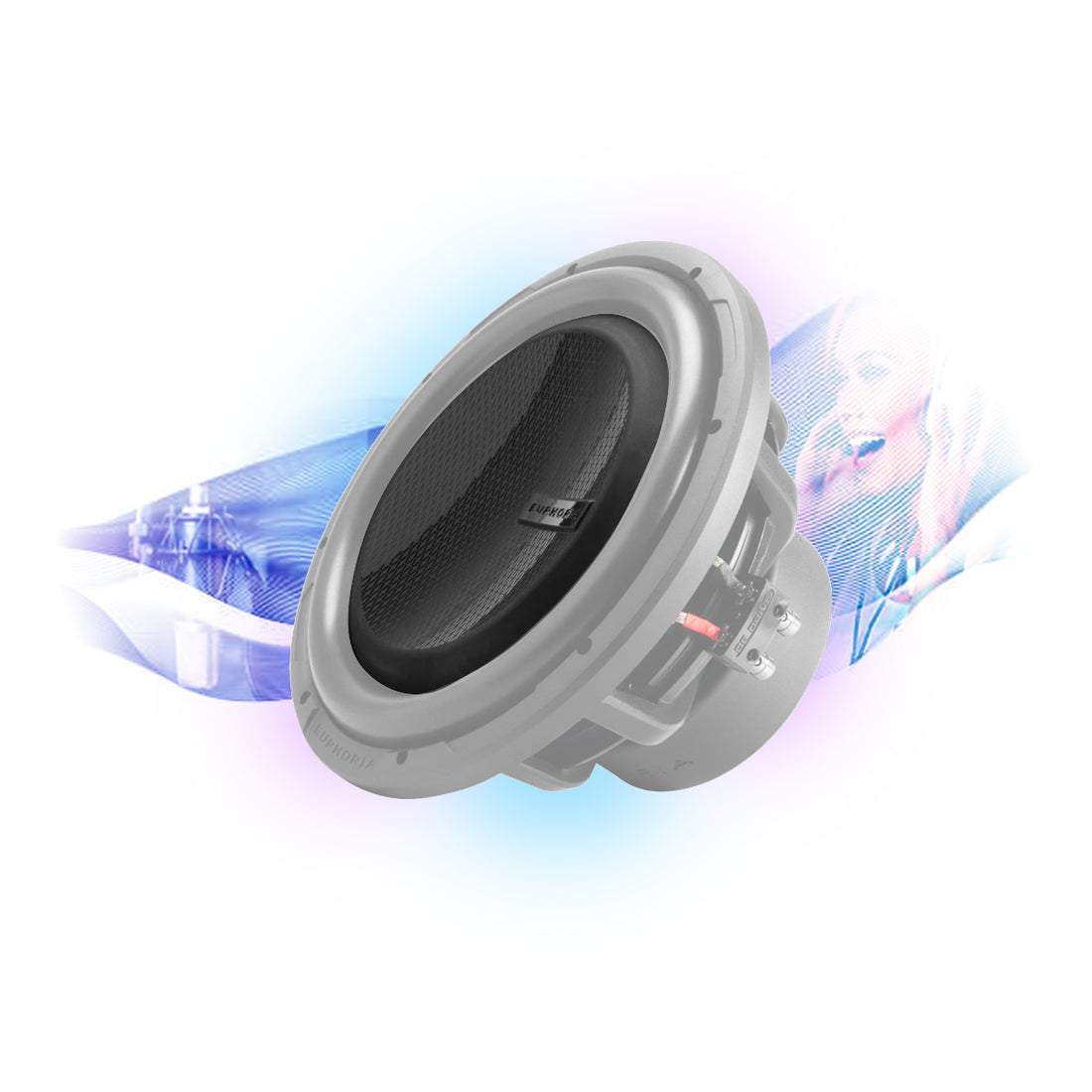

- Proprietary Injection Molded Polypropylene Cone
- High Excursion Foam Surround

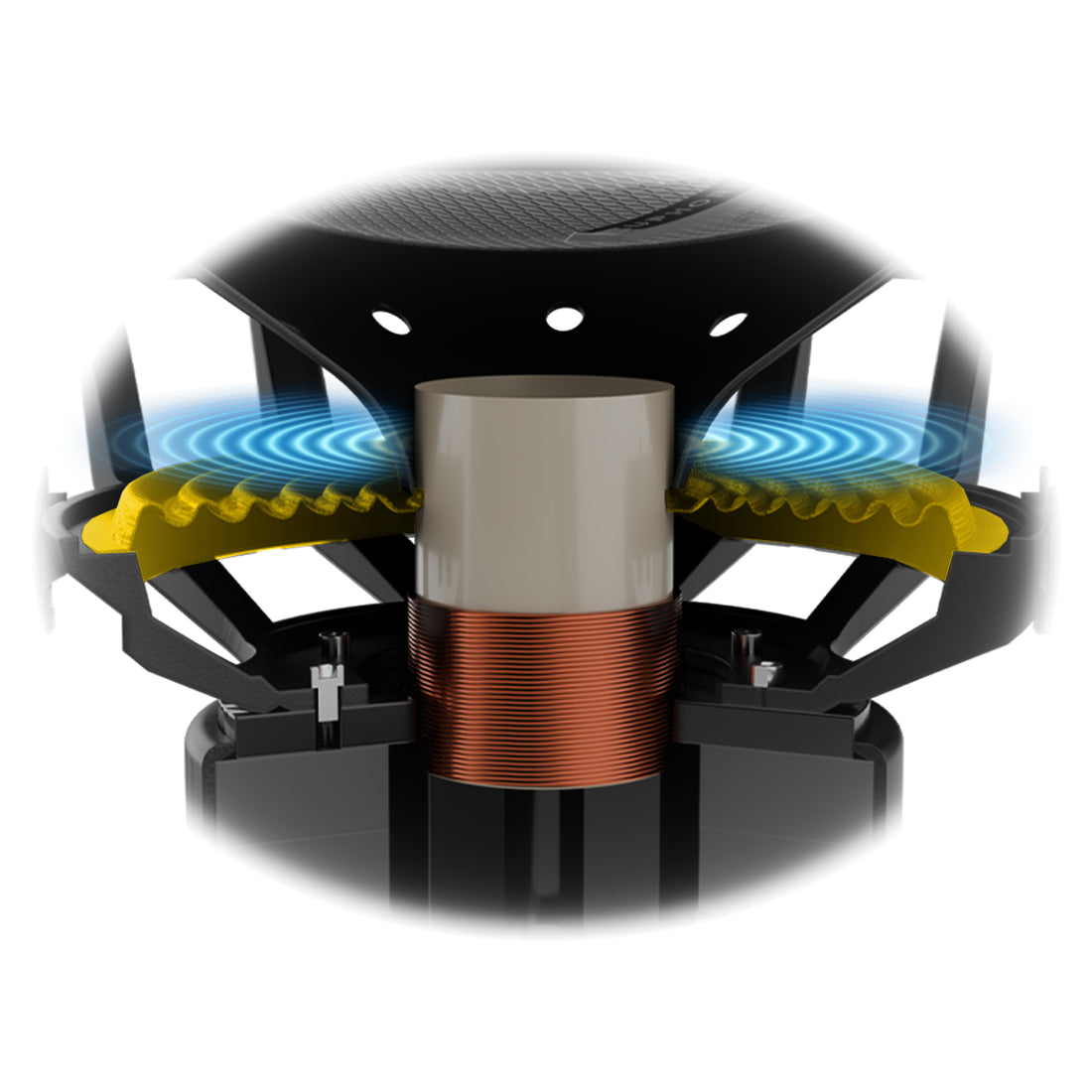

- Extended Linear Roll Progressive Dampener

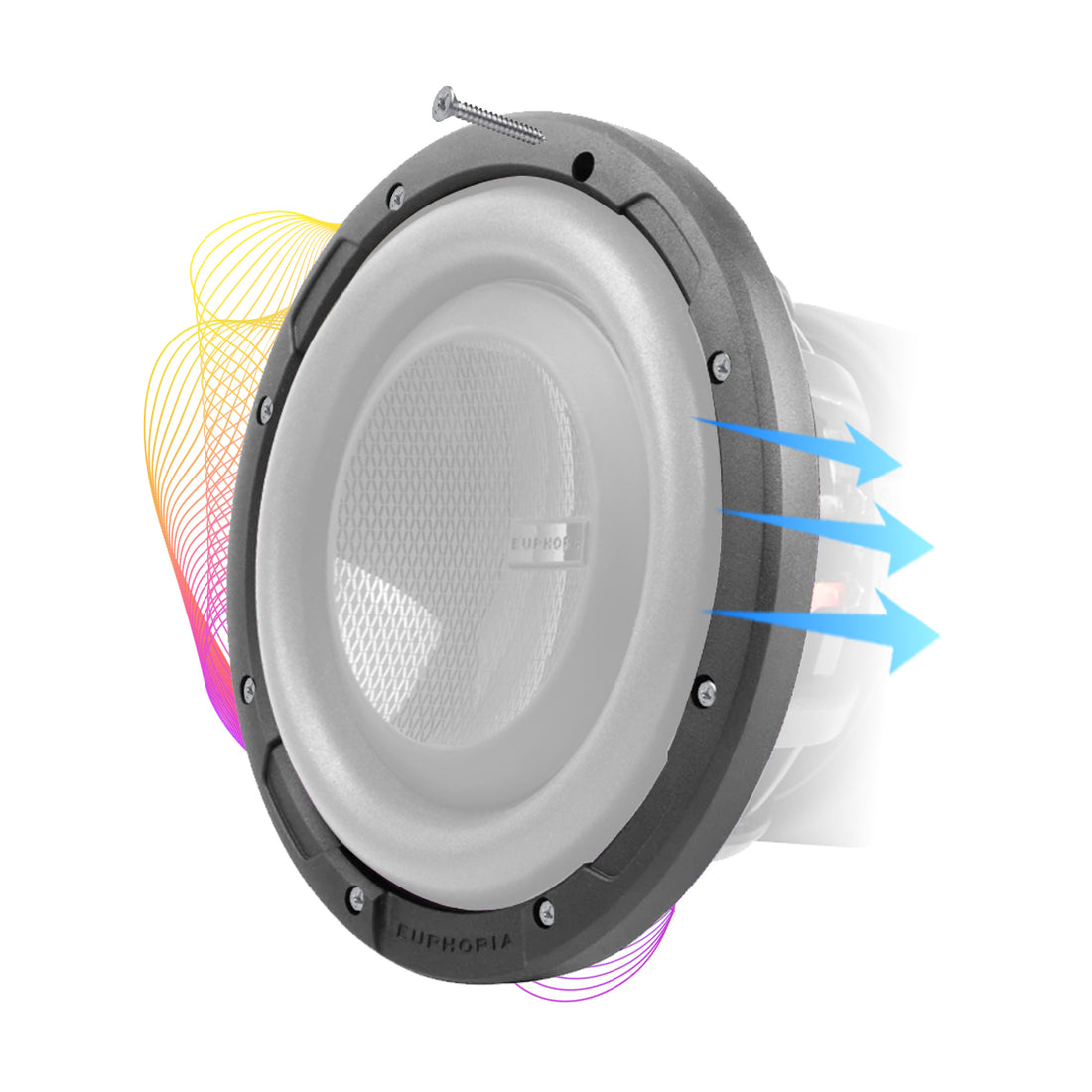

- Stealth Gasket for Custom Mounting Applications

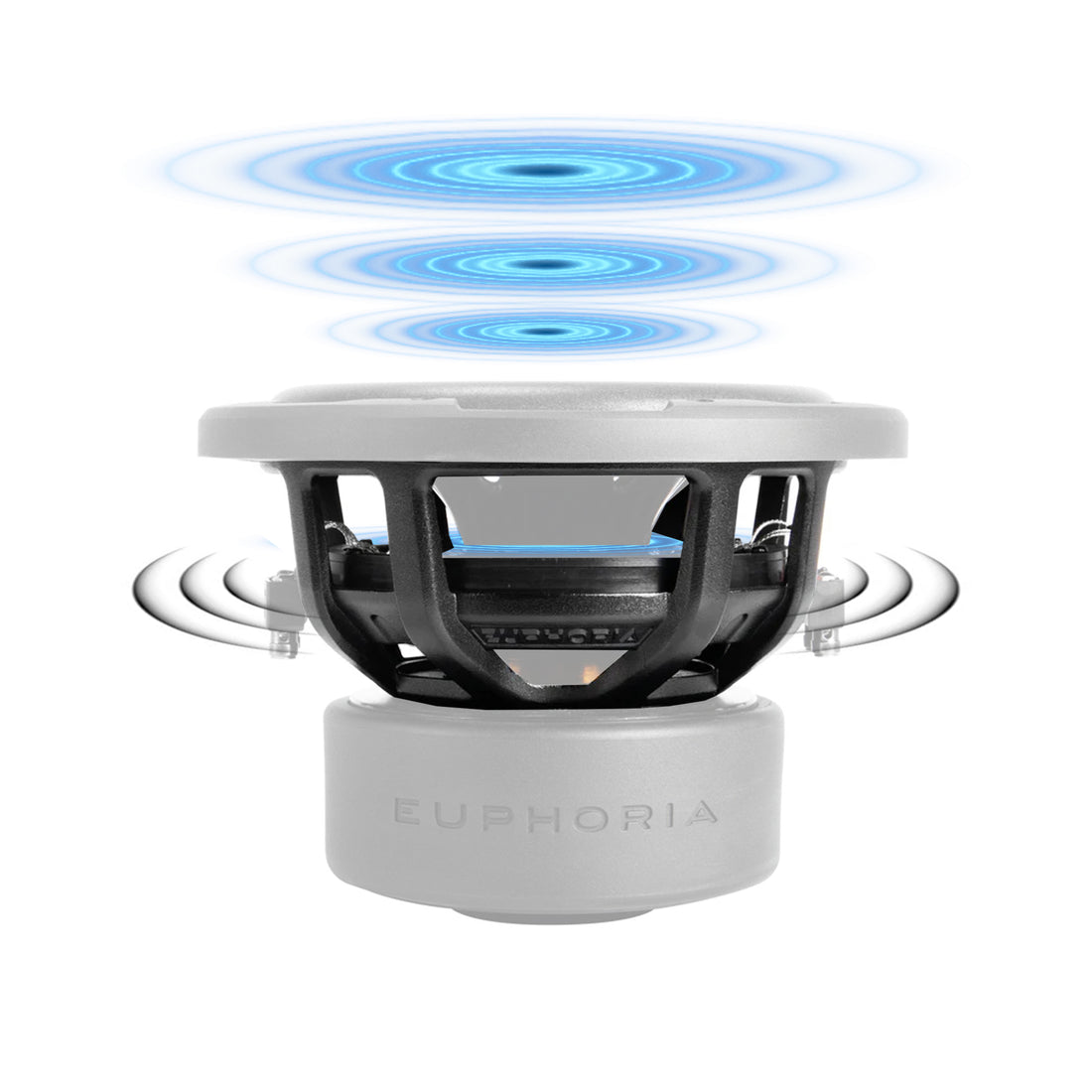

- Anti- Resonance Heavy Gauge Die-Cast basket

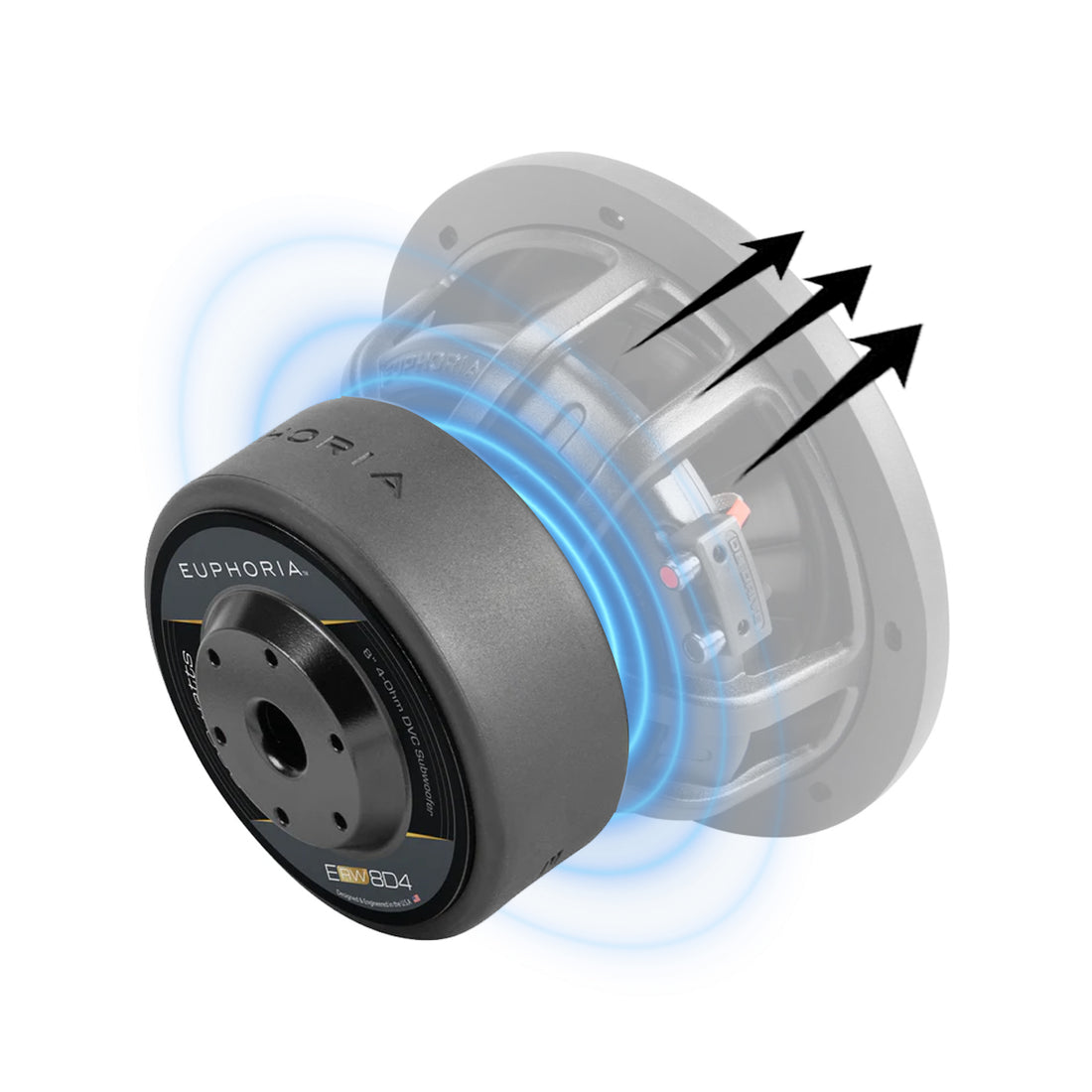

- Optimized Motor for Low Frequency Response
Specifications
• Nominal Power Handling: 400 Watts
• Peak Power Handling: 800 Watts
• Impedance: Dual 4Ω Voice Coil
• Free Air Resonance (Fo) 45.136 Hz
• D.C. Voice Coil Resistance (Re): 6.800Ω
• Mechanical Quality Factor (Qms): 5.082
• Electrical Quality Factor (Qes): 0.594
• Total Quality Factor (Qts): 0.532
• Equivalent Air Volume (Vas): 5.892 L
• Mass of Diaphragm/Coil (Mms): 121.139 g
• Force Factor (BL):19.824 TM
• Sound Pressure Level (SPL): 81.5 dB
• Effective Diaphragm Area (Sd): 20.106m
• Compliance of Mechanical Suspension (Cms): 102.637 mm/N
• Moving Mass of Diaphragm (Mmd): 119.499m Kg
• MMd: 110.000g
DIMENSIONS
• Overall Diameter: 8.78"/223 mm
• Mounting Depth: 5.43"/138 mm
• Cutout Diameter: 7.30"/185.5 mm
