Overview

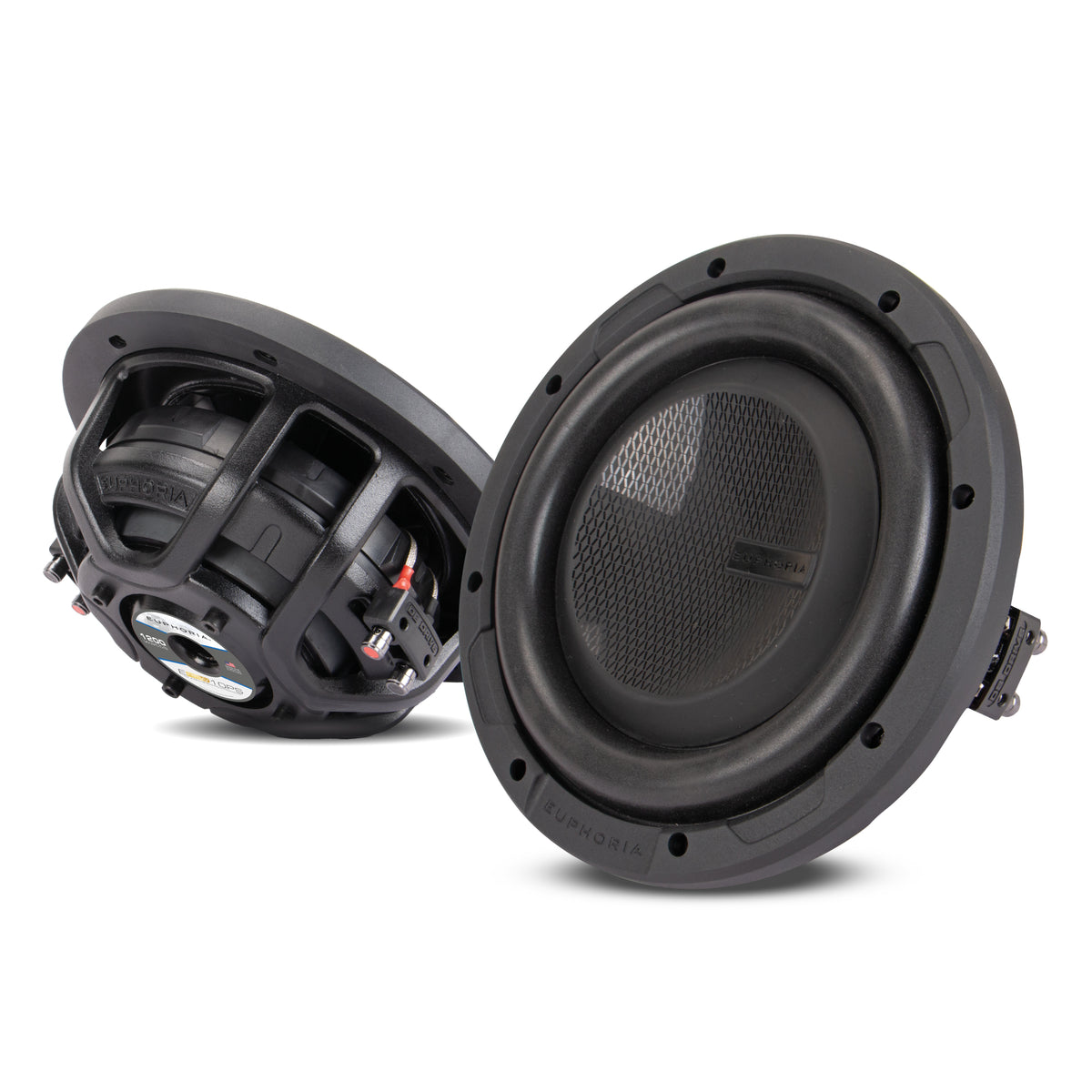

A Higher Standard of Sound. Compact subwoofer delivering controlled bass through efficient cooling and precise cone movement.
Features

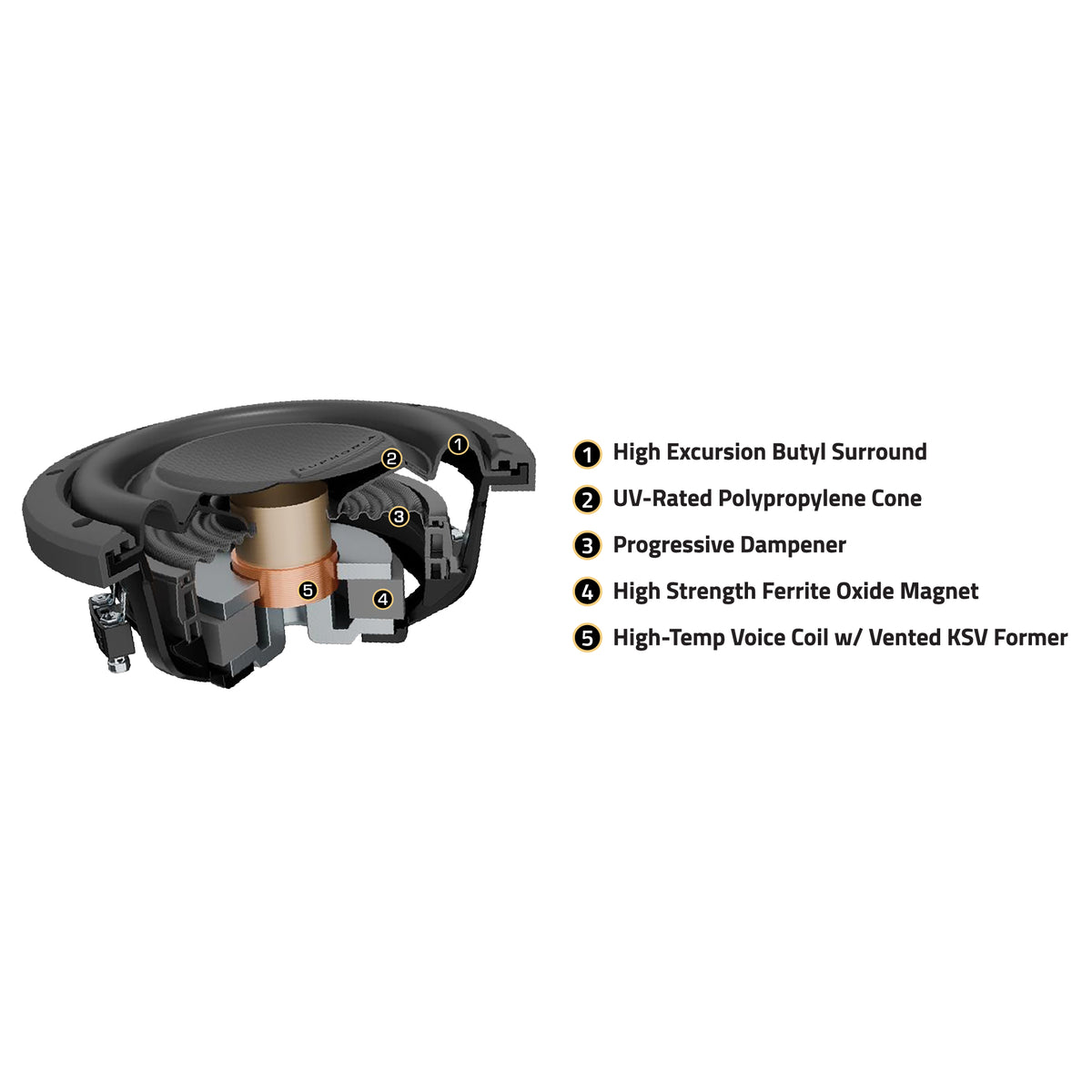

- High-Temp Voice Coil w/ Vented KSV Former – Stays cool under high power
- Radial Basket Venting – Enhances airflow for extended play
- Large Gauge Push Terminals – Secure, high-power connection
- UV-Rated Polypropylene Cone – Resistant to water, mud & UV
- High Excursion Butyl Surround – Deep bass with lasting durability
- Progressive Dampener – Smooth, controlled excursion
- Stealth Mount Gasket – Tight seal, clean install
- Die-Cast Anti-Resonance Basket – Rigid, low-vibration design
- Low-Frequency Optimized – Delivers deep, hard-hitting bass
Specifications
- Nominal Power Handling: 600 Watts
- Peak Power Handling: 1200 Watts
- Impedance: Dual 4Ω Voice Coil
- D.C. Voice Coil Resistance (Re): 6.400Ω
- Mechanical Quality Factor (Qms): 4.679
- Electrical Quality Factor (Qes): 0.565
- Total Quality Factor (Qts): 0.504
- Equivalent Air Volume (Vas): 19.141 L
- Mass of Diaphragm/Coil (Mms): 221.565 g
- Moving Mass of Diaphragm (Mmd): 218.118 m Kg
- Force Factor (BL): 21.892 TM
- Sound Pressure Level (SPL): 81.7 dB
- Free Air Resonance (Fo) 30.396 Hz
- Effective Diaphragm Area (Sd): 33.006 m
- Compliance of Mechanical Suspension (Cms): 123.738 mm/N
- MMd: 218.118 g
DIMENSIONS
- Overall Diameter: 10.71"/272 mm
- Mounting Depth: 3.68"/93.5 mm
- Cutout Diameter: 9.13"/232 mm
