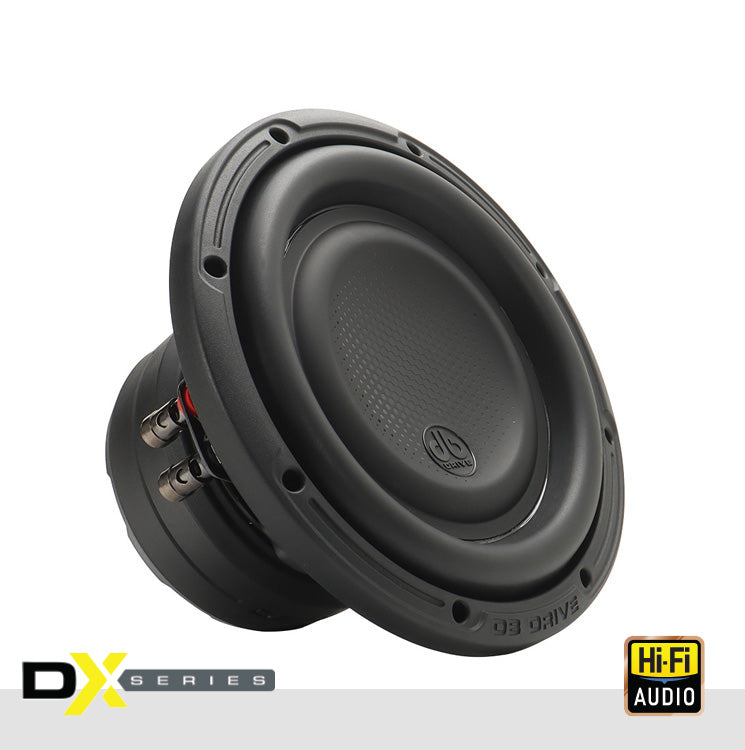

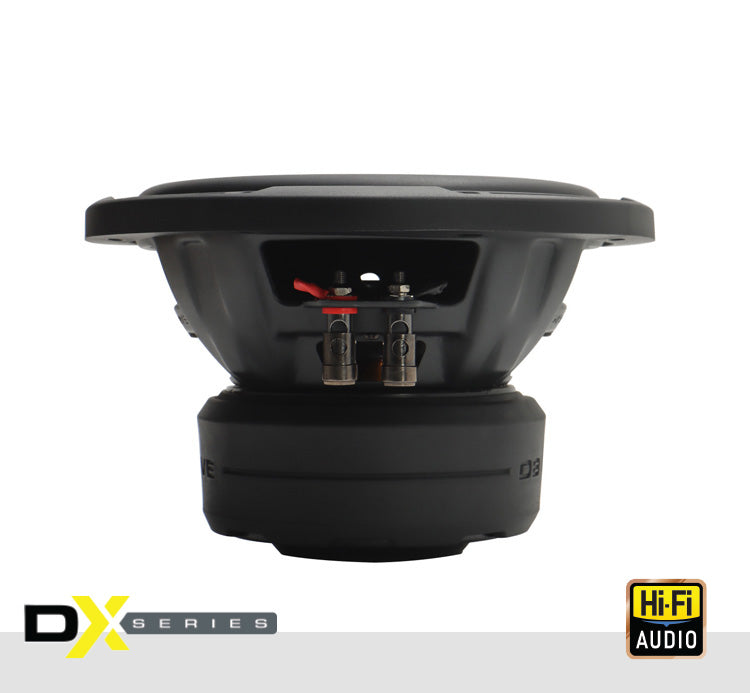

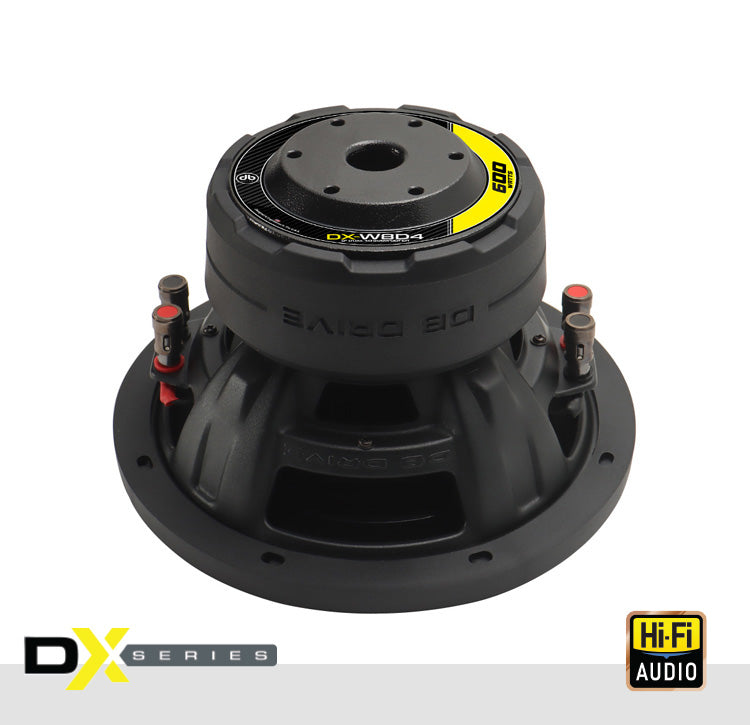

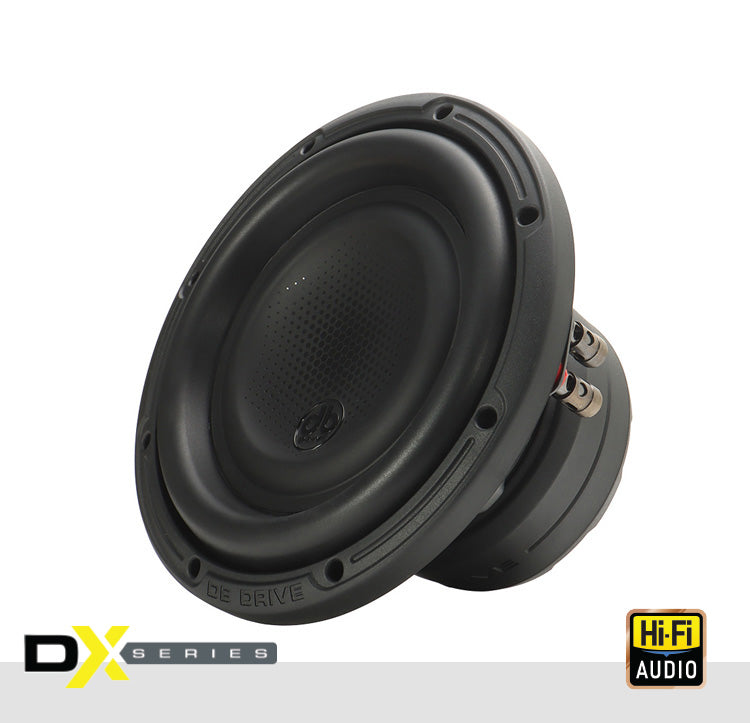

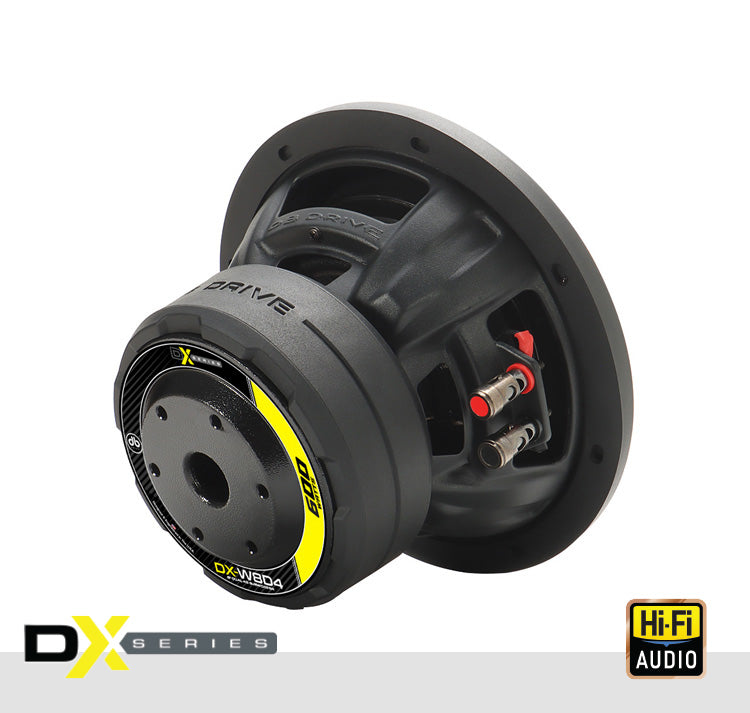

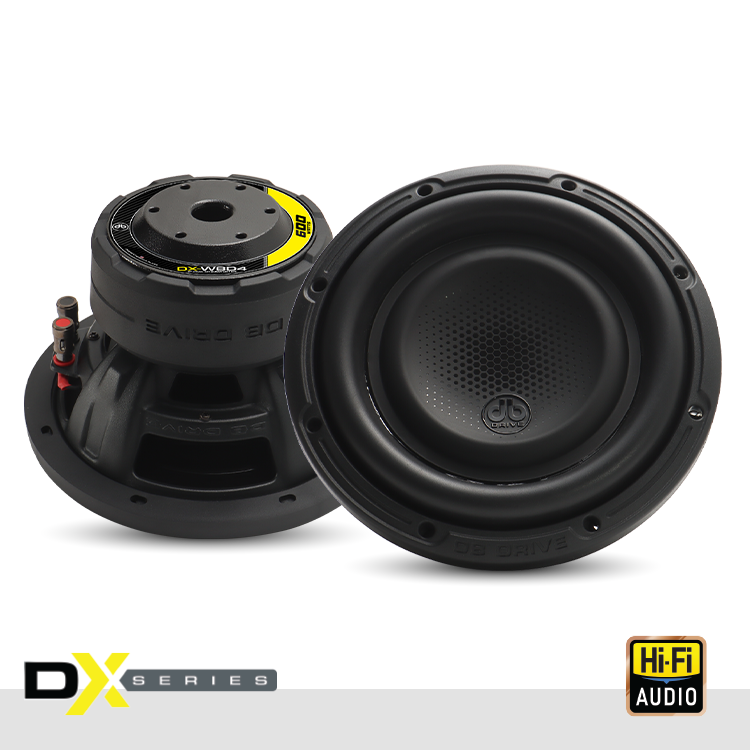

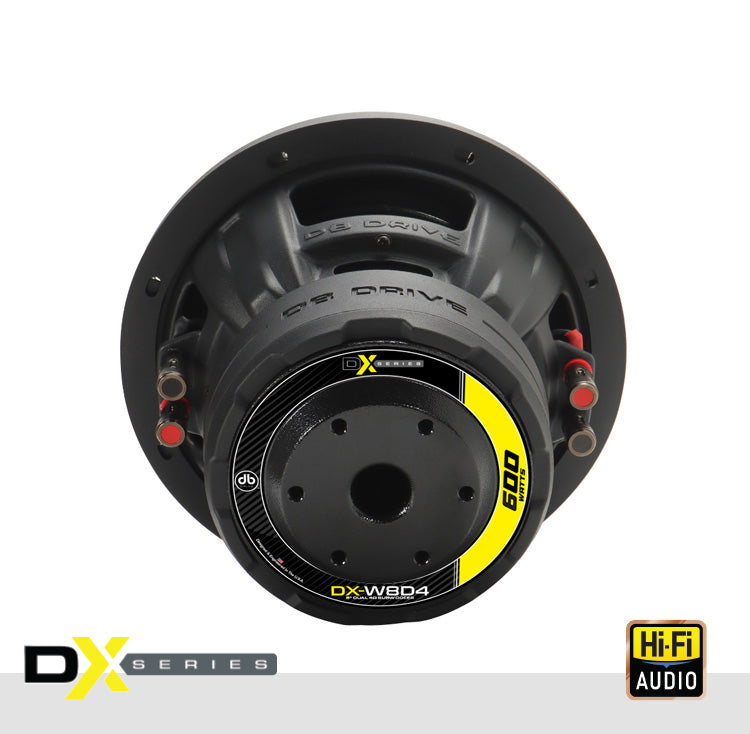

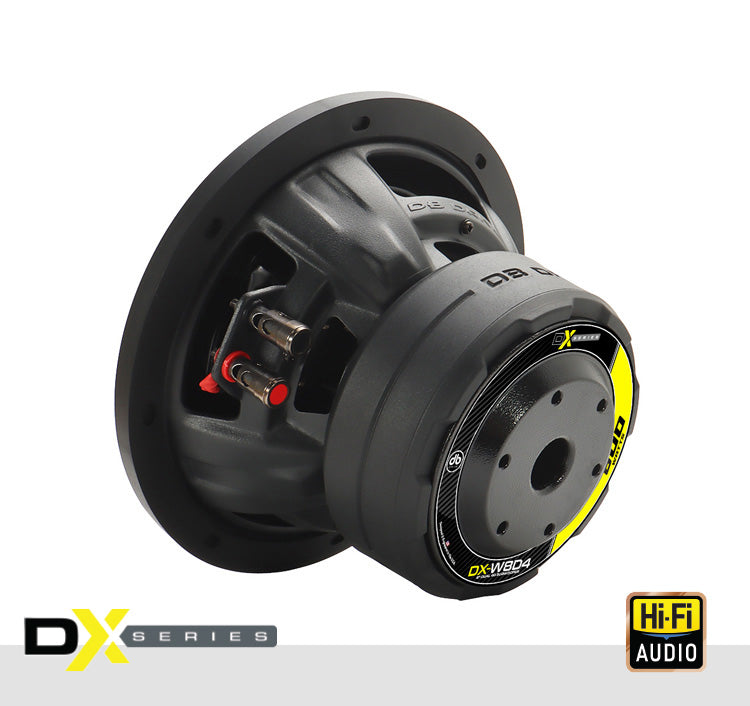

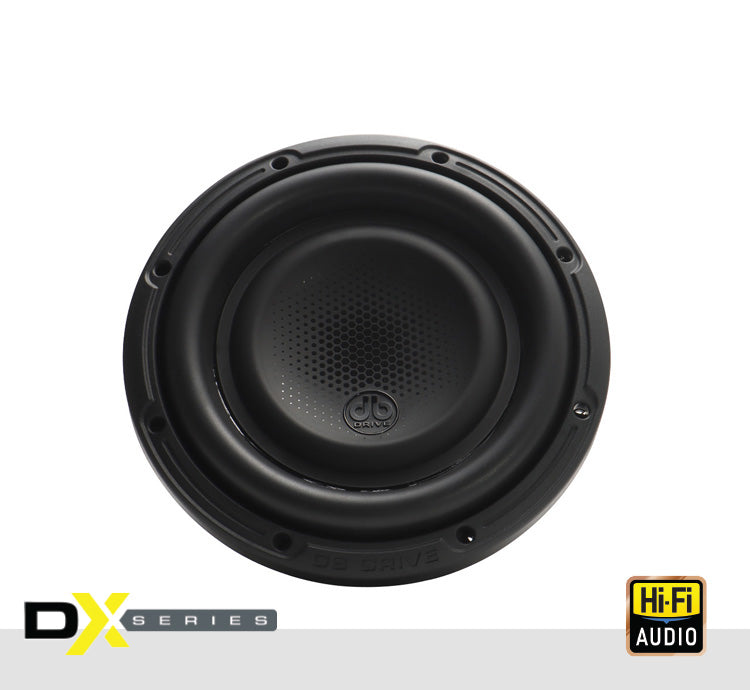

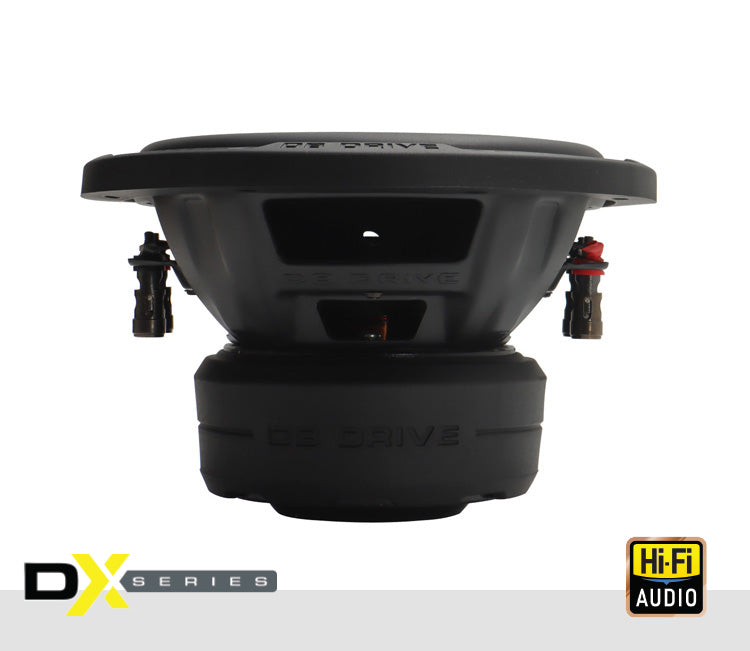

DX-W8D4 : DX 8" Dual 4-Ohm Subwoofer

Features

• 2″ (50.8mm) 4 Layer Voice Coil

• Injected PP Cone with rubber Surround

• Precision Excursion design

• High Strength Ferrite Oxide magnet

• Anti-resonant stamped steel basket with radial venting

• Linear dampening

• Compression Speaker Terminals

Specifications

• Dynamic Power Handling: 600 Watts

• Nominal Power Handling: 300 Watts

• Impedance: Dual 4Ω Voice Coil

• Resonant Frequency (fs): 43.321 Hz

• D.C. Voice Coil Resistance (Re): 2 x 4Ω

• Mechanical Quality Factor (Qms): 3.347

• Electrical Quality Factor (Qes): 0.985

• Total Quality Factor (Qts): 0.761

• Equivalent Air Volume to Cms (Vas): 7.270 L

• Mass of Diaphragm/Coil (Mms): 106.571 g

• Force Factor (BL): 13.731

• Sound Pressure Level (SPL): 79.7 dB

• X-max: 18

Description

The DB Drive DX-W8D4 8" subwoofer packs precision and power into a compact design, making it the perfect solution for tight spaces without compromising performance. Built with a 2″ 4-layer voice coil, an injected polypropylene cone with rubber surround, and a high-strength ferrite oxide magnet, this subwoofer is engineered for clean, controlled bass. Its anti-resonant stamped steel basket with radial venting and linear dampening technology ensures efficient airflow and long-lasting reliability. With 600W dynamic power handling and a dual 4Ω voice coil configuration, the DX-W8D4 delivers rich, responsive low frequencies—ideal for enhancing any car audio system.

Product Manual

Product Manual PDF
