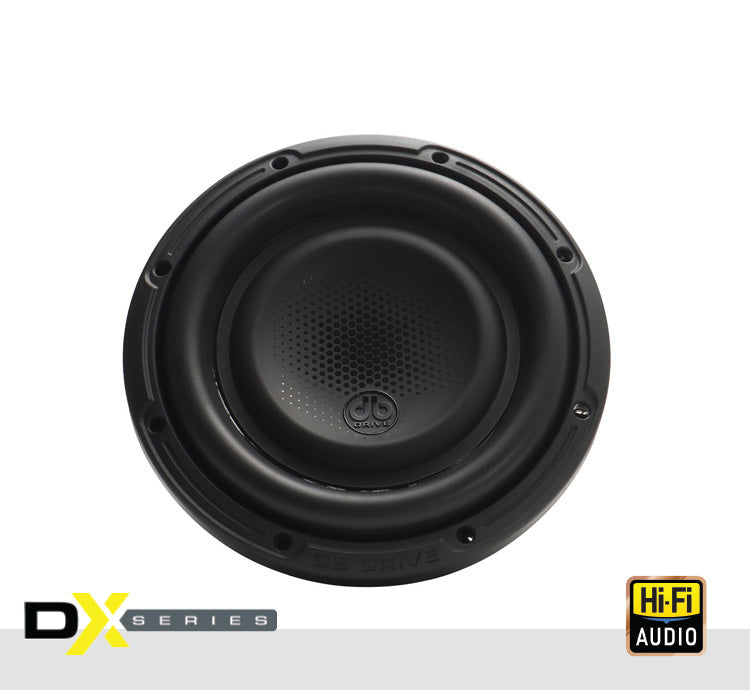

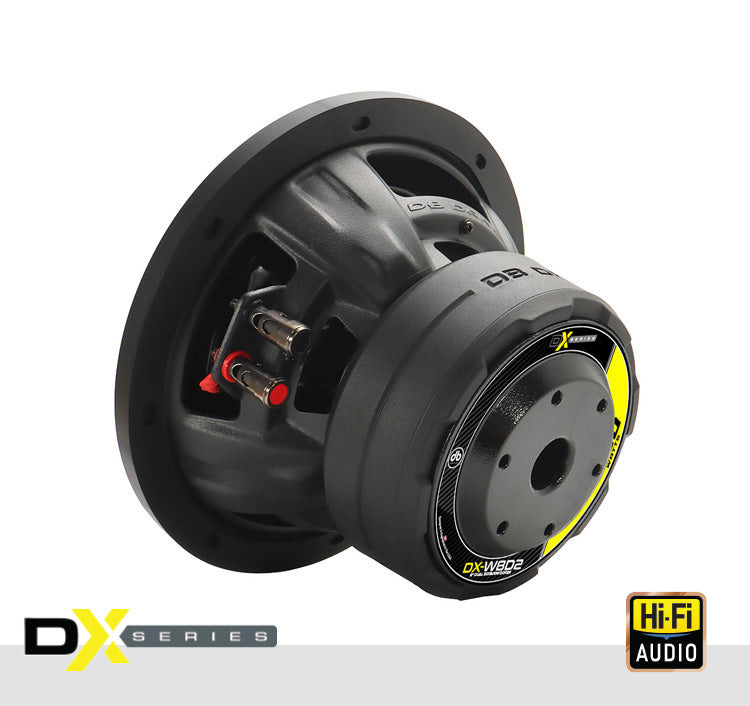

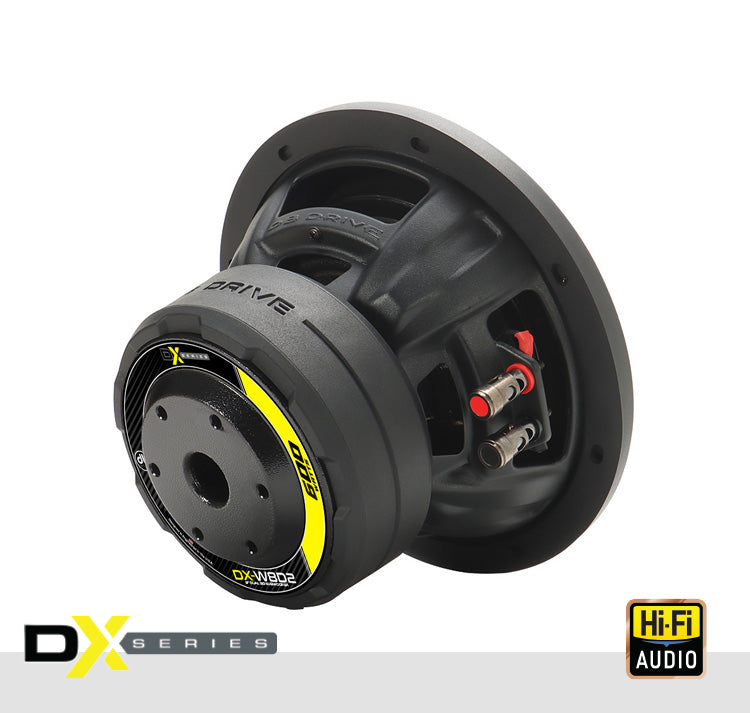

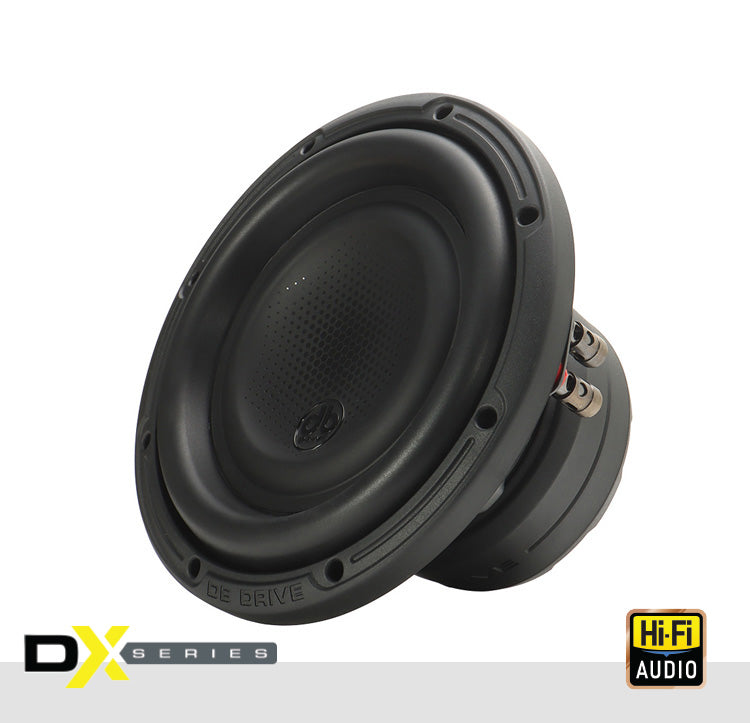

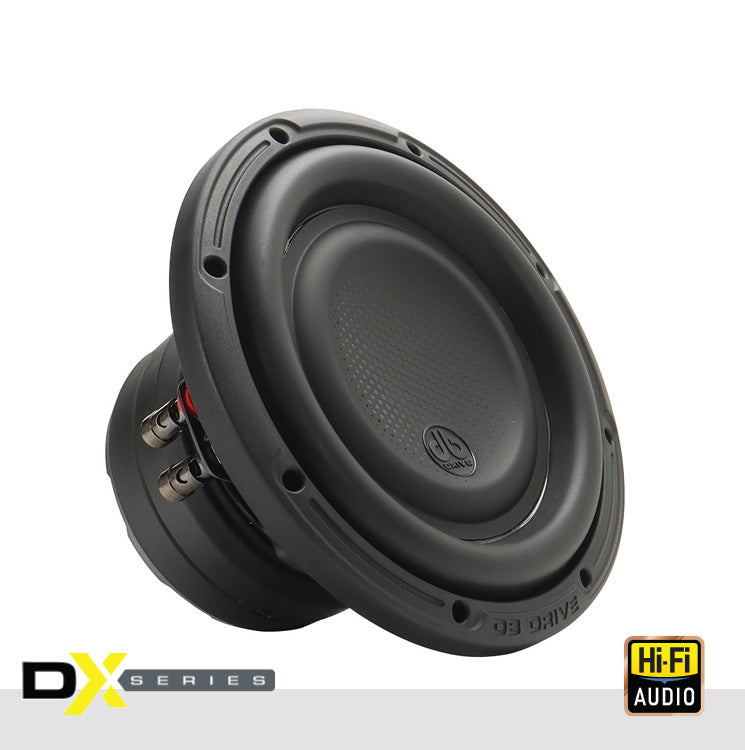

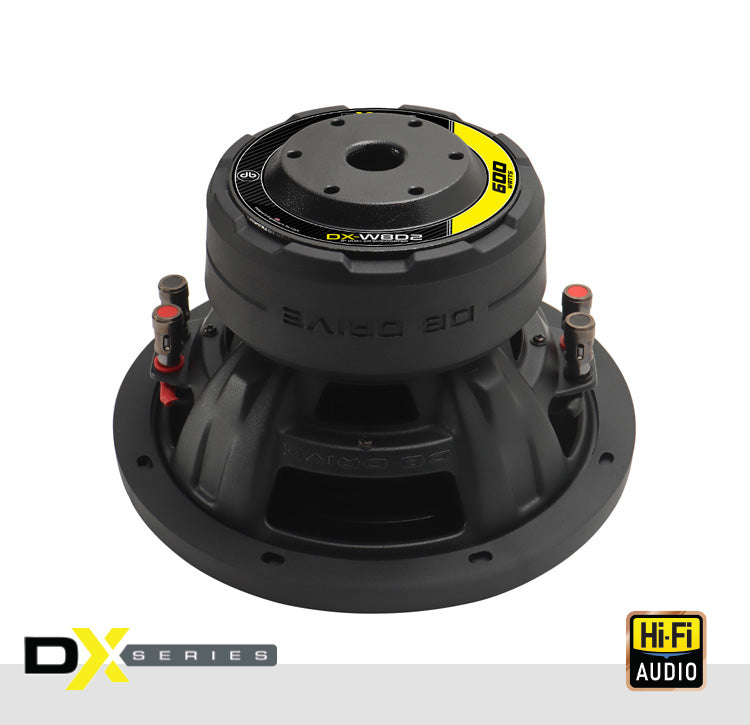

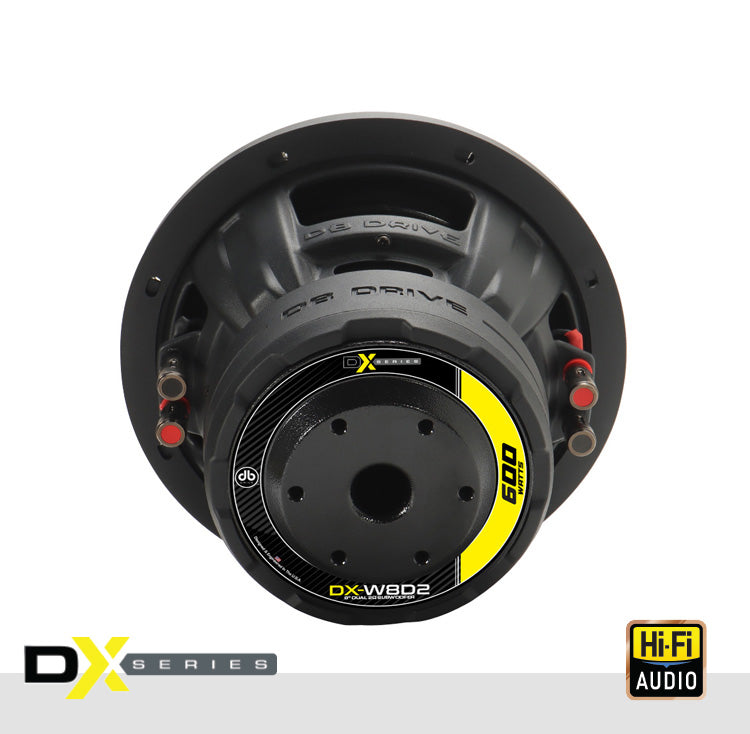

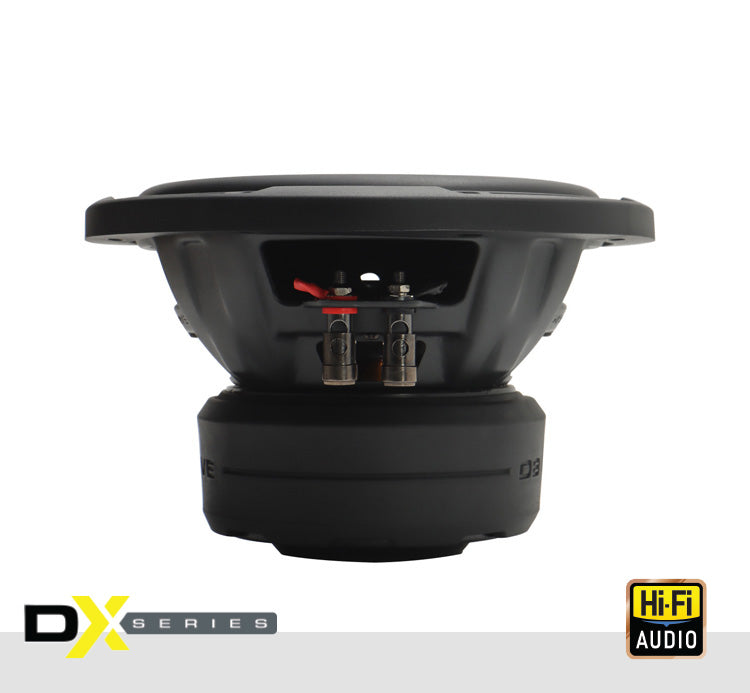

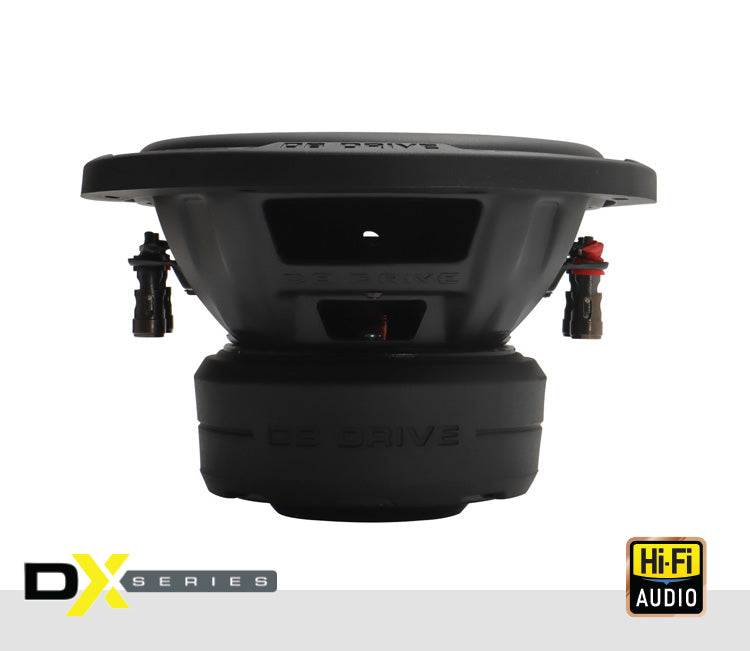

DX-W8D2 : DX 8 in. Dual 2-Ohm Subwoofer

Features

• 2″ (50.8mm) 4 Layer Voice Coil

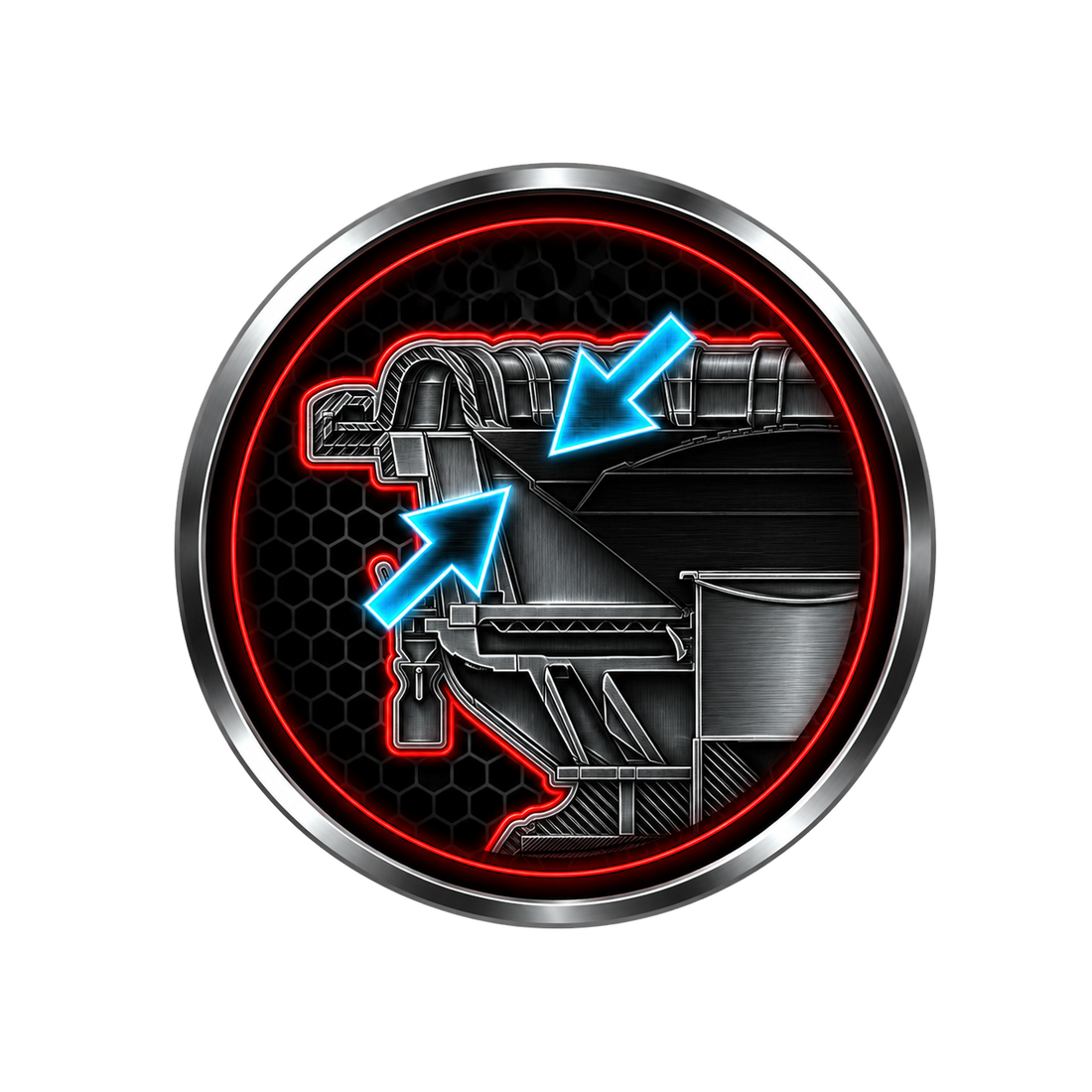

• Injected PP  Cone with rubber Surrounding

• Precision Excursion design

• High Strength Ferrite Oxide magnet

• Anti-resonant stamped steel basket with radial venting

• Linear dampening

• Compression Speaker Terminals

Specifications

• Dynamic Power Handling: 600 Watts

• Nominal Power Handling: 300 Watts

• Impedance: Dual 2Ω Voice Coil

• Resonant Frequency (fs): 41.450Hz

• D.C. Voice Coil Resistance (Re): 2 x 2Ω

• Mechanical Quality Factor (Qms): 3.147

• Electrical Quality Factor (Qes): 0.934

• Total Quality Factor (Qts): 0.720

• Equivalent Air Volume to Cms (Vas): 8.677 L

• Mass of Diaphragm/Coil (Mms): 97.538 g

• Force Factor (BL): 10.431

• "Sound Pressure Level (SPL): 80.1 dB"

• X-max: 18

Description

The DB DRIVE DX-W8D2 subwoofers deliver deep, precise bass and crystal-clear clarity, perfect for both SQ enthusiasts and bass lovers.  Key Features:  Power Handling: 600W peak, 300W nominal for robust, consistent performance. Dual 2-Ohm Voice Coils: Flexible wiring options for custom setups. Poly-Cotton Spiders: Enhanced cone control for smooth bass response. Durable Dust Cap: Triple-reinforced for long-lasting reliability. Optimized Magnetic Geometry: Superior efficiency and clearer sound. IMPP Cone: Rigid for deep, accurate bass. High-Temperature Voice Coil: Withstands high power without compromising performance. Rigid Basket: Ensures stability and performance at high volumes. Motor Venting: Reduces distortion and maintains cool temperatures. Designed for versatility and durability, the DX-W8D2 subwoofers are the perfect addition to elevate your car audio system.
