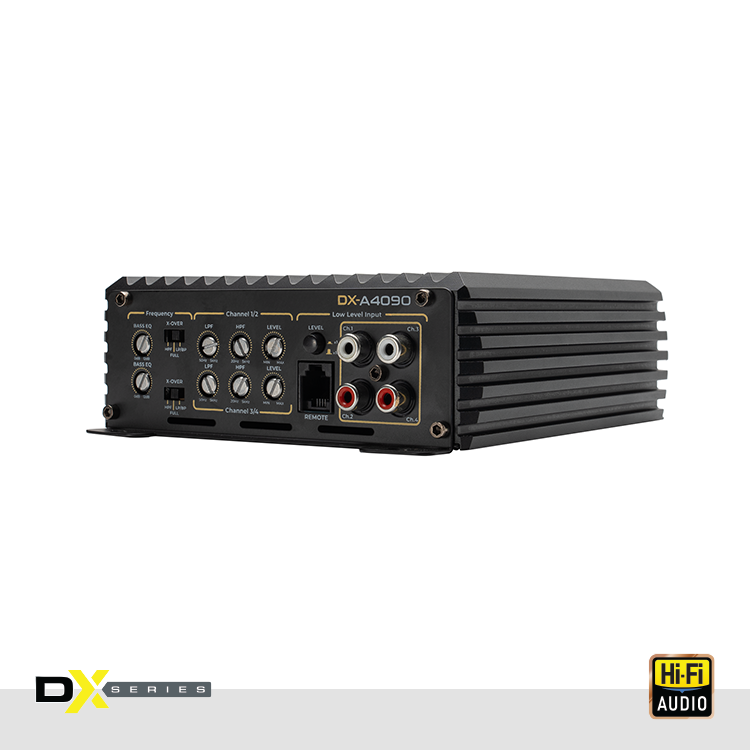

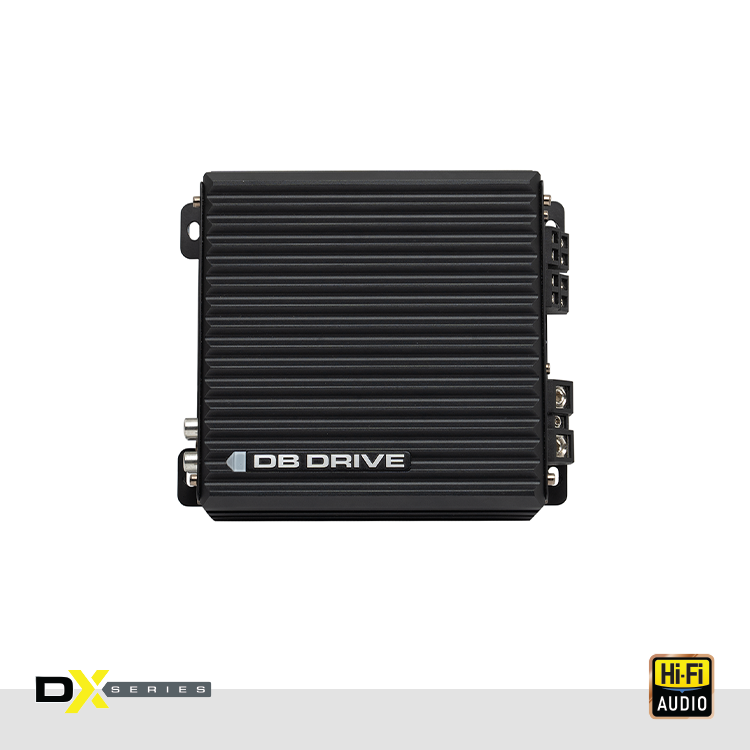

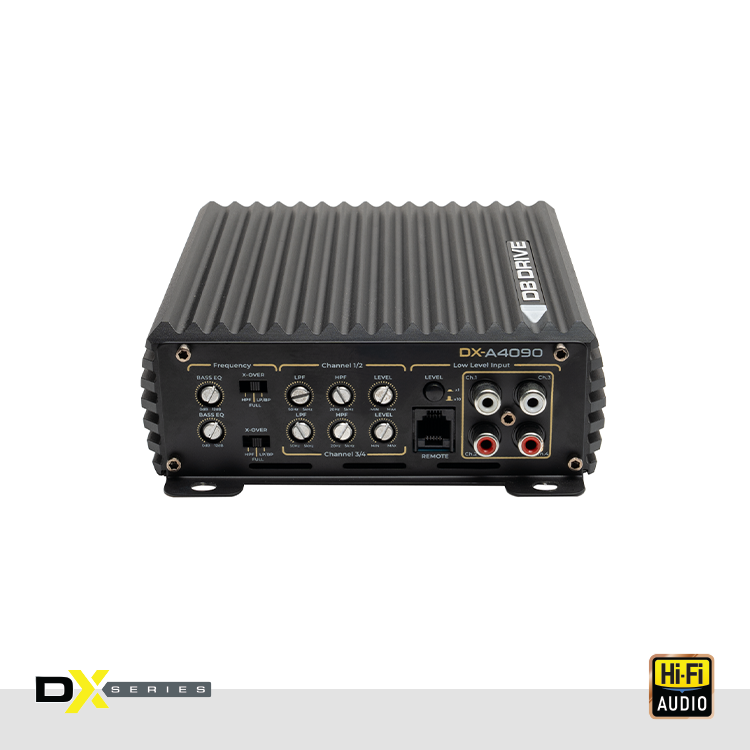

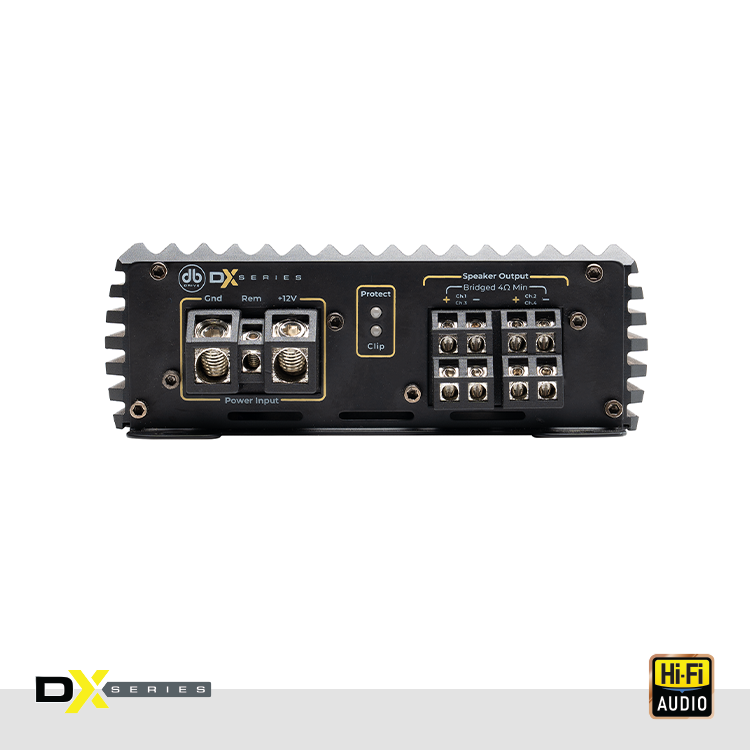

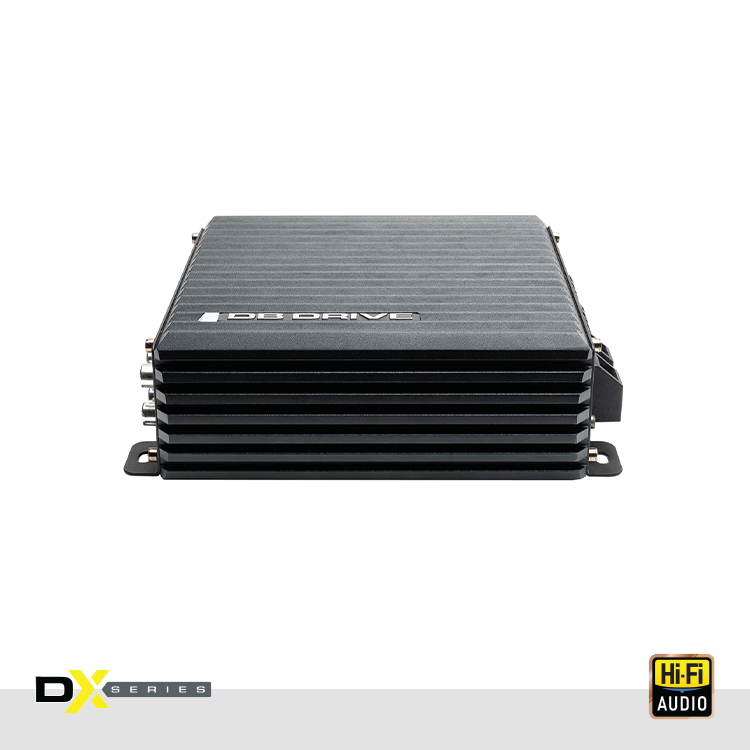

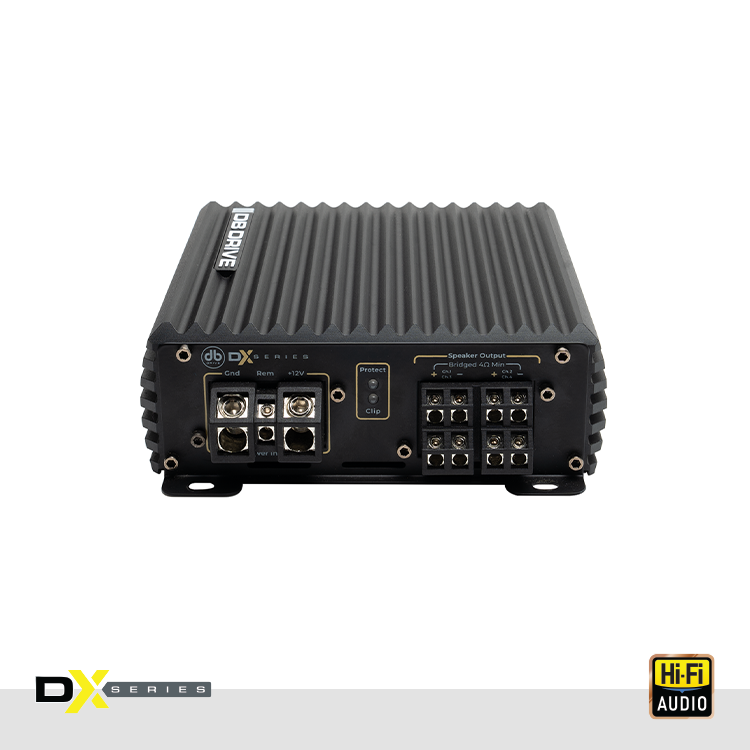

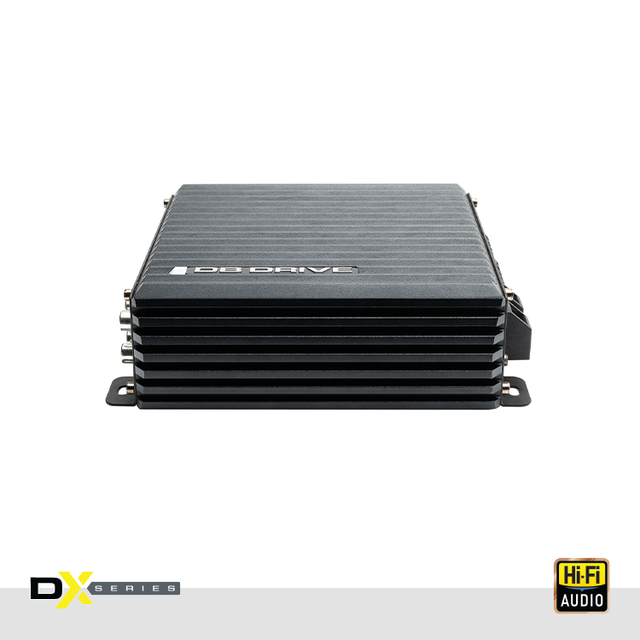

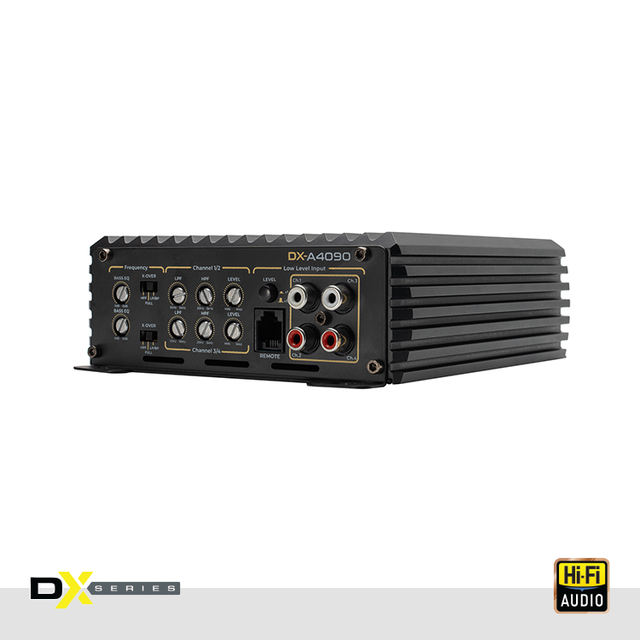

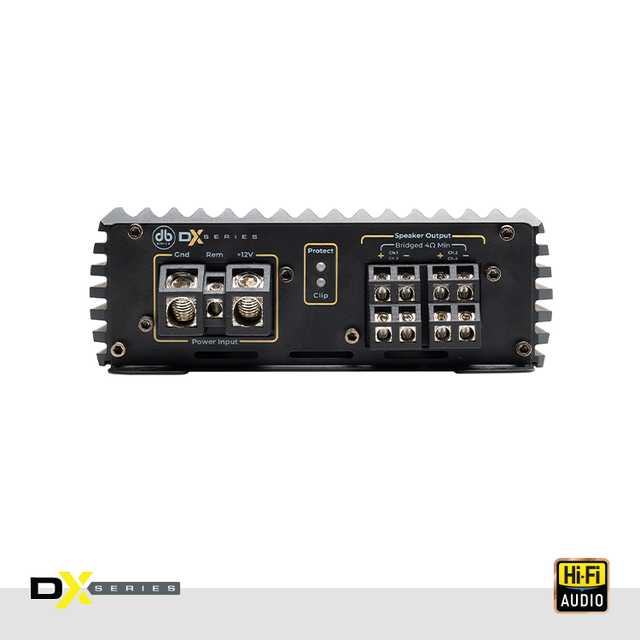

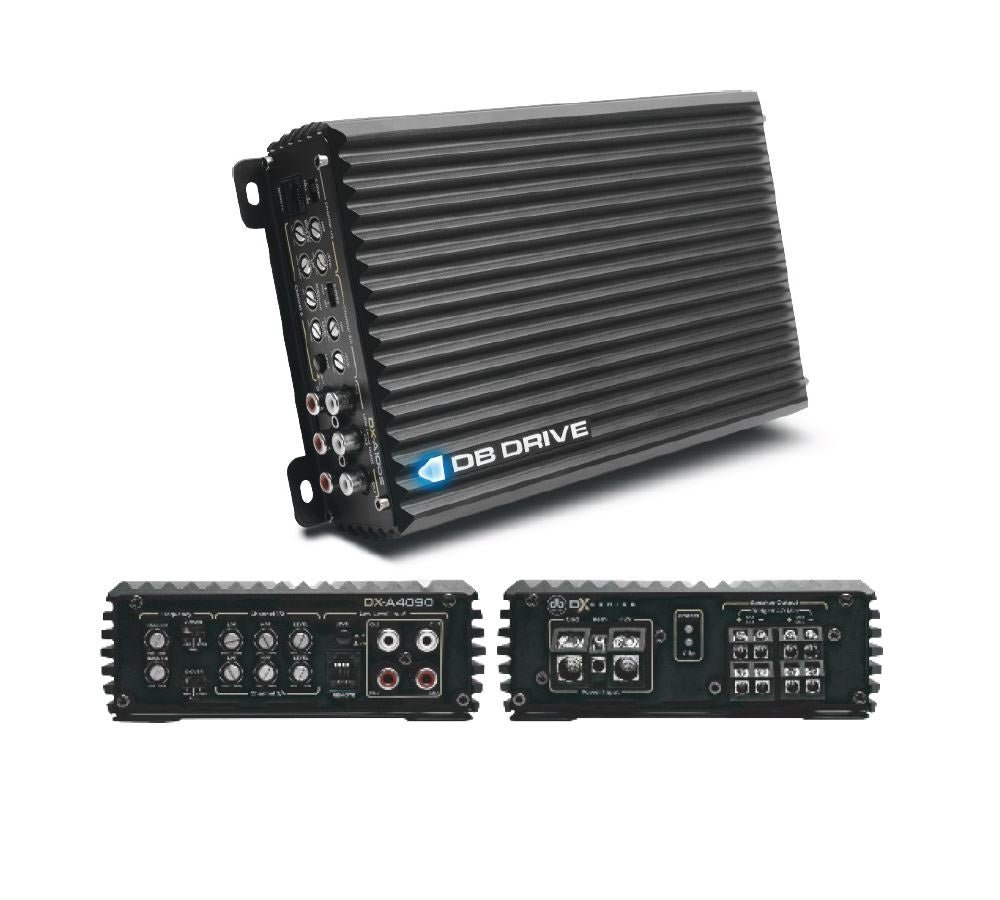

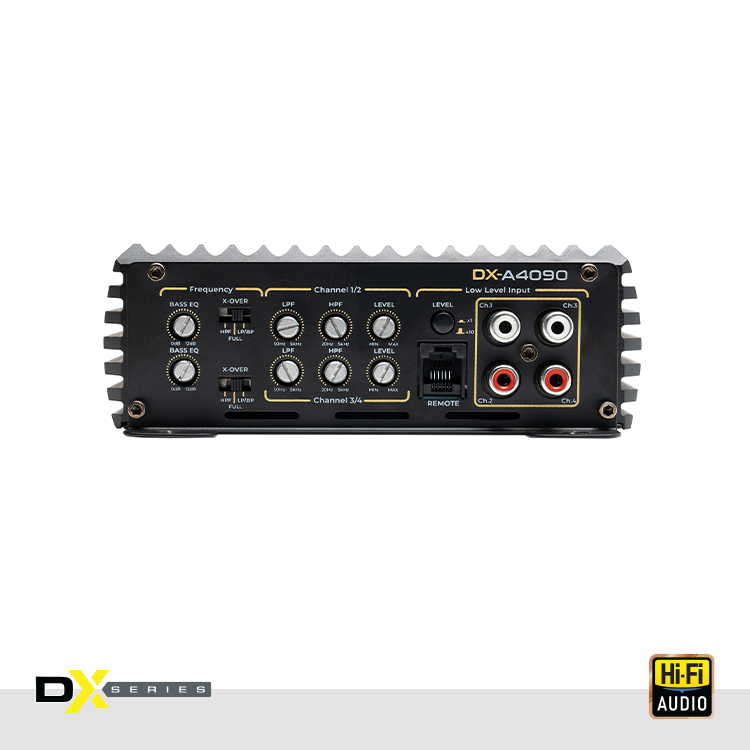

DX-A4090 : 4 Channel Class D Amplifier

• (Rated @ 14.4 volts)

• Dynamic Power: 4 x 90 Watts @ 4Ω

• Dynamic Power: 4 x 150 Watts @ 2Ω

• Dynamic power: 2 x 300 Watts @ 4Ω (bridged)

• Rated Power: 4 x 80 Watts @ 4Ω

• Rated Power: 4 x 140 Watts @ 2Ω

• Rated power: 2 x 270 Watts @ 4Ω (bridged)

• Ch 1-2 High Pass Crossover: 20Hz- 5kHz

• Ch 1-2 Low Pass Crossover: 50Hz- 5kHz

• Ch 3-4  High pass Crossover:  20Hz- 5kHz

• Ch 3-4  Low pass Crossover: 50Hz- 5kHz

• Crossover Slope @ 12 dB

• Bass Boost @ 45Hz : 0-12dB

• Input Sensitivity: 250Mv -  6V

• Signal to Noise ratio :  >92dB

• Frequency Response:10Hz-22KHz

For premium sound in your vehicle, the DB DRIVE DX-A4090 is your ultimate solution. Designed for both audiophiles and casual listeners, it offers dynamic, high-performance audio. Key Features: •    Powerful Output: 90W x 4 at 4 ohms, 140W x 4 at 2 ohms, delivering clear, full-range sound. •    Bridgeable Design: Easily drive a subwoofer for enhanced low-end performance. •    High-Efficiency Circuit: Perfect for modern vehicles with compact electrical systems. •    Adaptive Crossover: Fine-tune your audio for optimal sound. •    Hi-Fi Playback: Reproduces high-resolution audio with precision. •    Precision Tuning: Metal potentiometers ensure stable settings. •    4-Layer PCB: Delivers cleaner, more accurate sound. •    Compact Design: Easy to install without compromising on power. Transform your car into a concert hall with the DB DRIVE DX-A4090 for sound like never before.

Product Manual PDF
