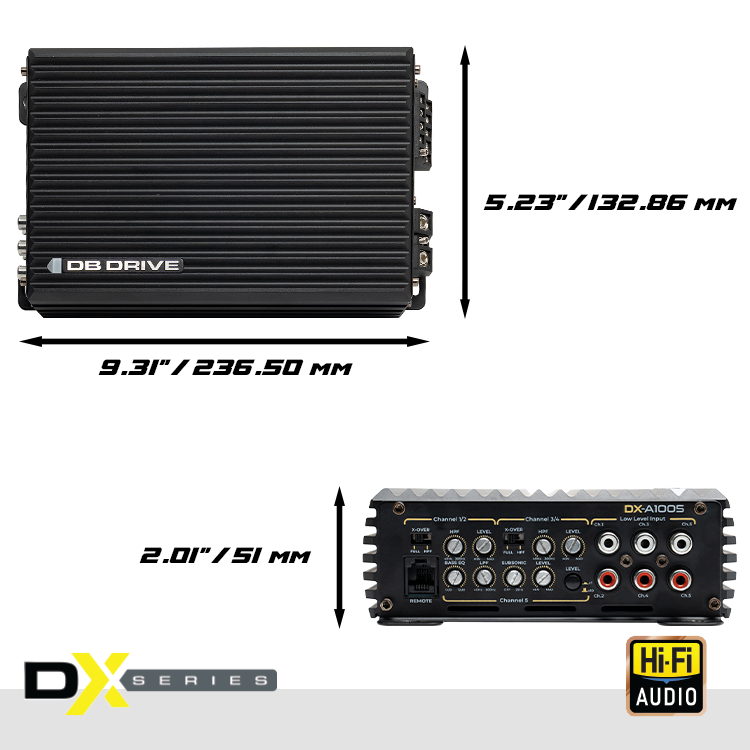

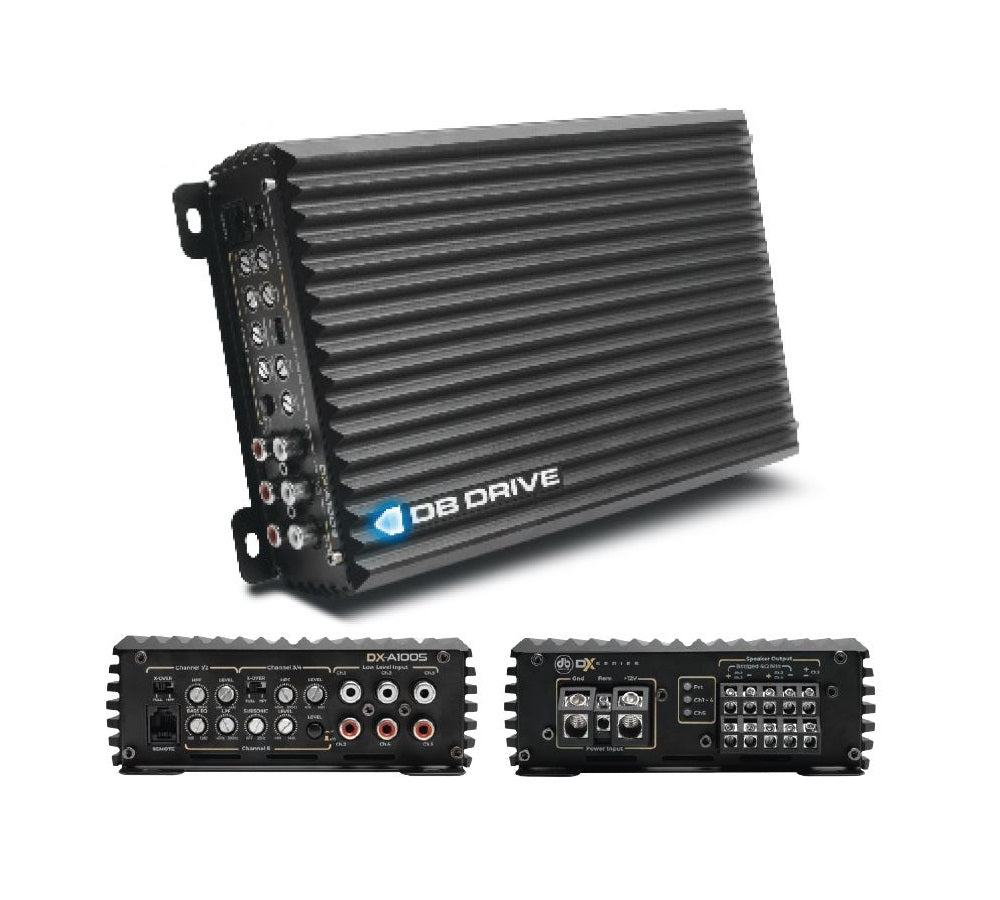

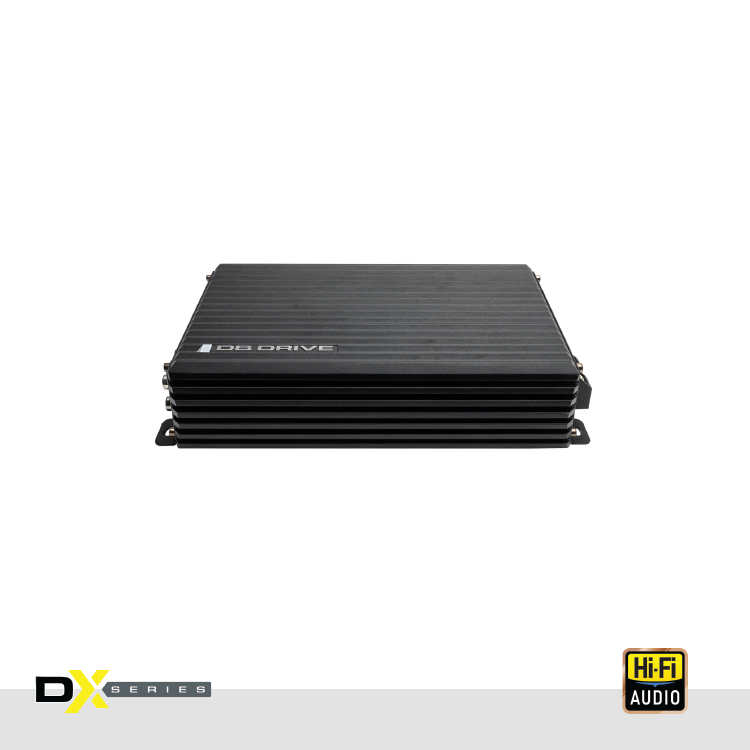

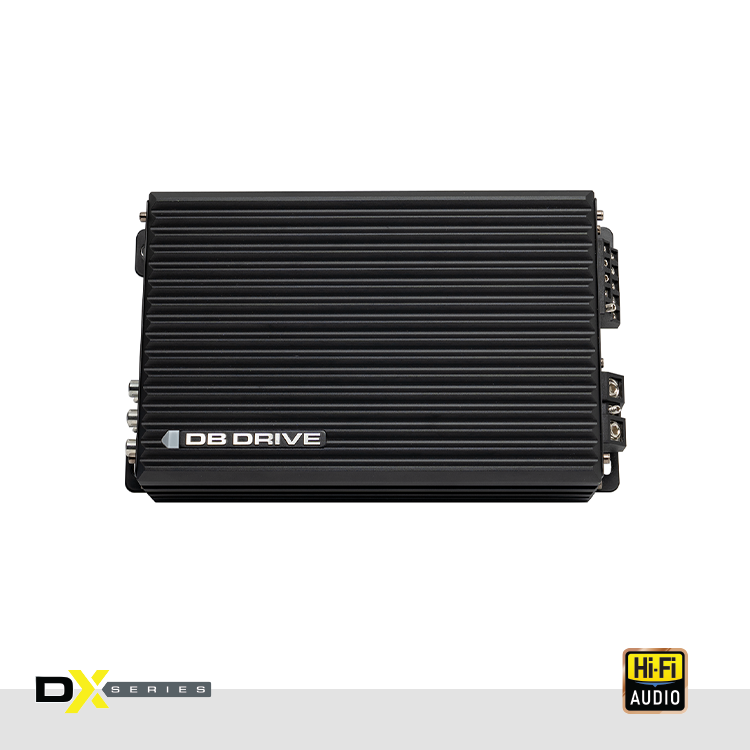

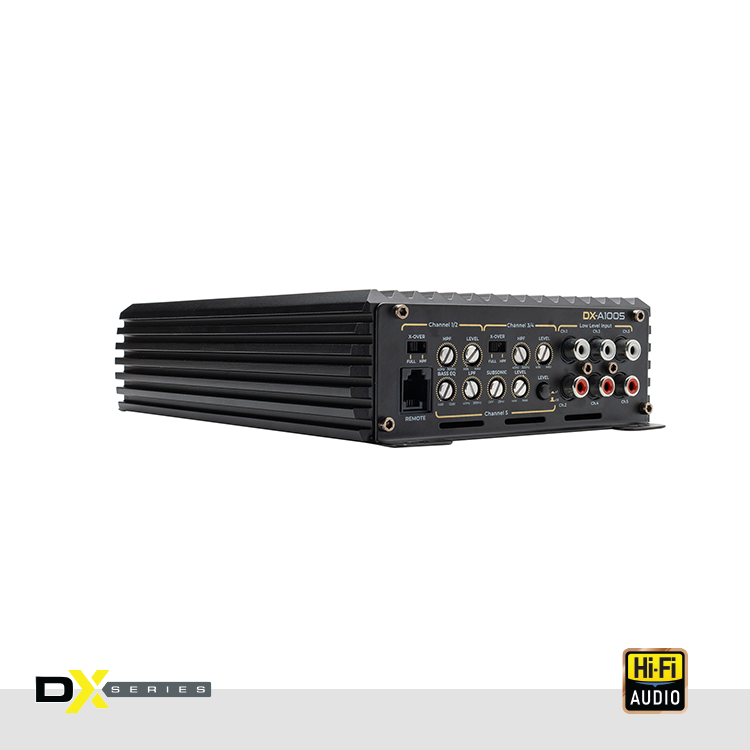

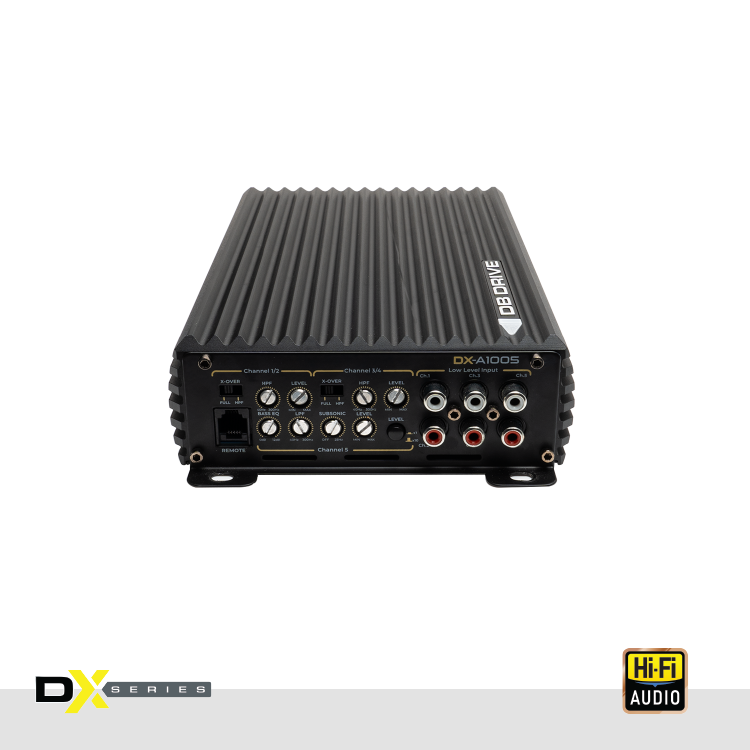

DX-A1005 : 5 Channel Class D Amplifier

Features

• Class D Technology

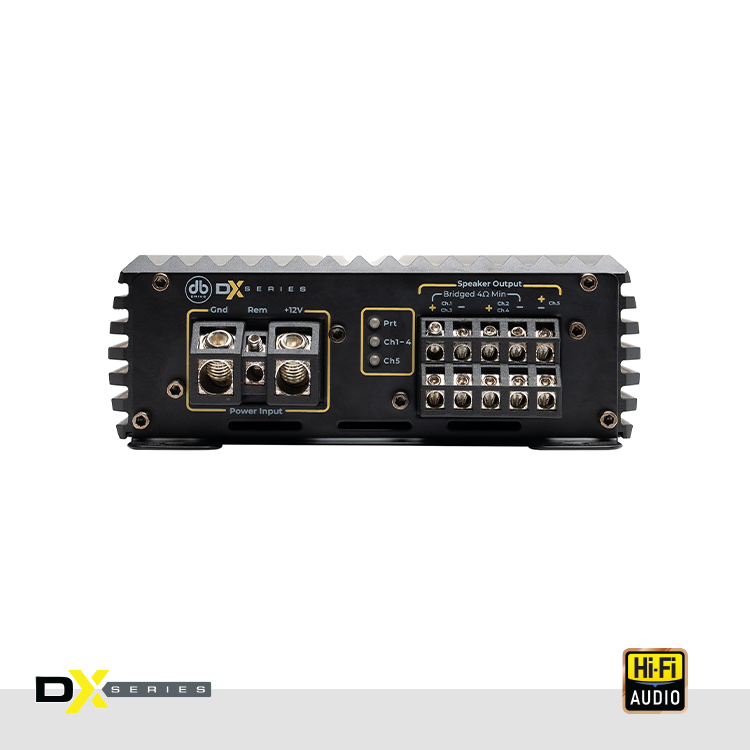

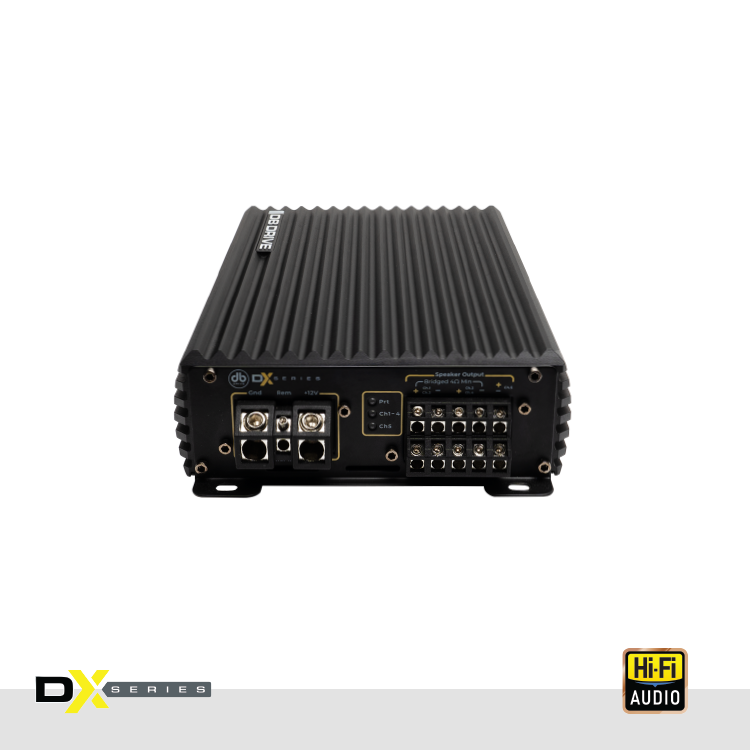

• Direct Connect Speaker Terminals

• Large Gauge Power Wire Inputs

• PWM Mosfet Regulated Power Supply

• APC - Audio Protection Circuit

• SESI - Signal Evaluation Status indicator

• CHM - Collective Heat Management

• 2Ω stereo / 4Ω Bridged capability

• Remote Bass Control Included

Specifications

• Dynamic Power: 4 x 90 Watts + 250 Watts @ 4Ω

• Dynamic  Power: 4 x 150 Watts  + 500 watts  @ 2Ω

• Rated Power: 4 x 80 Watts + 200 Watts @ 4Ω

• Rated  Power: 4 x 140 Watts  + 450 watts  @ 2Ω

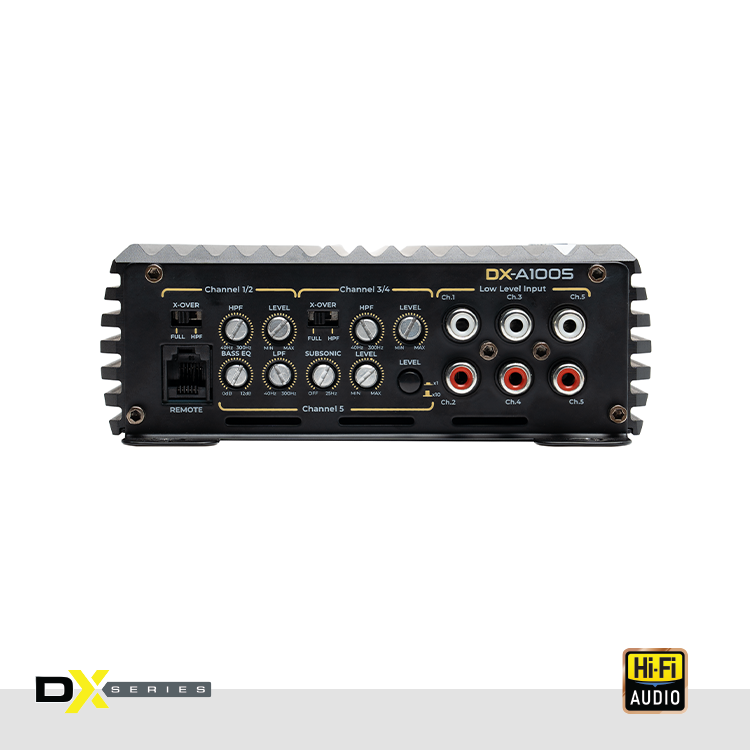

• Ch 1-2 High Pass Crossover: 40Hz - 300Hz

• Ch 3-4 High Pass Crossover: 40Hz - 300Hz

• Ch 5 Low Pass Crossover: 40Hz - 300Hz

• Subsonic Filter: 0 - 25 Hz

• Crossover Slope @ 12 dB

• Bass Boost @ 45Hz : 0-12dB

• Input Sensitivity: 250Mv -  6V

• Signal to Noise ratio :  >92dB

• Frequency Response:10Hz-22KHz

Description

The DB DRIVE DX-A1005 delivers powerful, dynamic sound for both audiophiles and casual listeners.  Key Features:  Powerful Output: 90W x 4 at 4 ohms + 350W for the subwoofer at 2 ohms, ensuring deep, precise sound. High-Efficiency Design: Perfect for modern electrical systems and compact vehicles. Adaptive Crossover: Fine-tune your bass for optimal sound. Hi-Fi Playback: Delivers distortion-free, high-resolution audio. Precision Tuning: Metal potentiometers for stable settings. 4-Layer PCB: Provides cleaner, more accurate sound. Compact Design: Easy installation in tight spaces. Transform your car into a high-performance sound system with the DB DRIVE DX-A1005. Experience superior sound today.

Product Manual

Product Manual PDF
